PL5000RGB MK2 - Laser projector Laserworld - Free user manual and instructions

Brand	Laserworld
Model	PL5000RGB MK2
Product type	Class 4 laser projector
Usage	Professional - show and display
Laser class	4
Wavelengths	Red, Green, Blue (RGB)
Modes of operation	Auto, DMX, Master/Slave (selection via DIP switch)
Integrated Scan Safety	Yes (blocks fixed beams)
X/Y inversion	Yes (via dedicated buttons)
Color adjustment	Rear panel potentiometers for red, green, blue
Safety	Key switch and interlock connector
Use	Indoor only
Installation	By qualified personnel
Minimum distance to walls	15 cm
Mounting	Safety sling (strength ≥ 10× weight)
Ventilation	Ensure adequate ventilation
Maintenance	Clean fans and radiators regularly
Delivery contents	Projector, power cable, key, interlock connector, manual, technical datasheet
Manufacturer	Laserworld (Switzerland) AG, Switzerland
Support	Online manual: www.laserworld.com/fr/manuel-en-ligne

Frequently Asked Questions - PL5000RGB MK2 Laserworld

How to connect the PL5000RGB MK2 laser projector?

Connect the power cable to the device and to a suitable power outlet. Make sure the voltage matches. Connect the interlock connector, insert the safety key and turn it to ON, then turn on the device. The 'Emission' LED lights up when the device is ready.

What is the laser class of this projector?

The PL5000RGB MK2 is a class 4 laser projector. It emits laser radiation hazardous to eyes and skin. Professional use only.

Can I use this projector outdoors?

No, this projector is designed for indoor use only. Moisture, rain, or dust can damage it and void the warranty.

How to adjust the colors (RGB)?

Use the potentiometers on the rear panel to adjust the power of the red, green, and blue colors. Fine adjustments allow achieving the desired color balance.

What to do if the fuse blows?

Unplug the device, locate the fuse on the rear panel and replace it with a fuse of the same type. If the problem persists, contact your dealer or Laserworld customer service.

How to change the operating mode?

The modes (Auto, DMX, etc.) are selectable via the DIP switches on the rear panel. First turn off the projector, change the DIP switches, then turn on again. Never change the DIP switches while powered on.

What does the 'Emission' indicator mean?

The 'Emission – Laser on' LED lights up when the device is ready to emit the laser beam. It indicates that laser radiation is active and all safety checks are passed.

How to clean the laser projector?

To avoid overheating, regularly clean the fans and radiators (fins) using a brush or compressed air. Always disconnect the device before cleaning.

What to do if the device overheats?

Check the ventilation: openings must not be blocked. Keep the device away from heat sources (moving lights, projectors). Make sure the fans are clean. If overheating persists, contact a professional.

Where to find additional information about this product?

Consult the online manual on the official website: www.laserworld.com/fr/manuel-en-ligne. There you will find videos, tutorials, and details on operating modes.

USER MANUAL PL5000RGB MK2 Laserworld

Please spend a few minutes to read this manual fully before operating this laser!

Thank you for purchasing this Laserworld product. Due to continual product developments and technical improvements, Laserworld (Switzerland) AG reserves the right to make modifications to its products. This manual and its content have been made with due care but Laserworld (Switzerland) AG cannot however, take any responsibility for any errors, omissions or any resulting damages forthwith. The brands and product names mentioned in this manual are trade marks or registered trade marks of their respective owners.

Attention: This device is a show laser device for commercial use. This device is not a laser pointer, not suitable for pointing purposes and must not be used as a laser pointer.

Please read manual before operation

Use in enclosed spaces only!

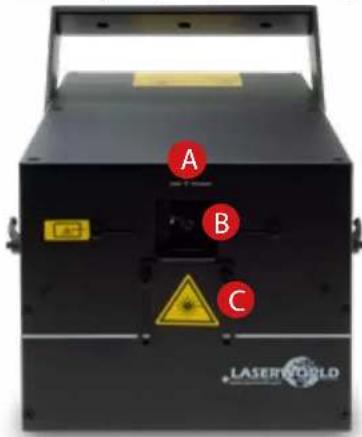

Front Panel | Frontplatte | Panneau frontal

A B C LASER WORLD

A. Emission led | LED: Laseremission | LED témoin - émission laser
B. Laser aperture | Laseraustritts-Fenster | Ouverture laser
C. Beam block | Einstellbarer Strahlfang | Plaque ajustable de protection

Manual / Anleitung / Manuel: Purelight Series Manual / Anleitung / Manuel: Purelight Series

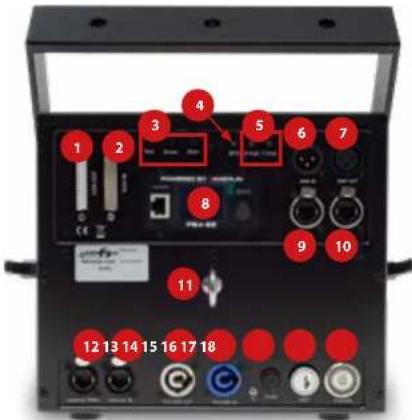

Back Panel | Rückwand | Panneau arrière ShowNET Display

Labeled photo of a portable electronic device with numbered ports and buttons, highlighting key components such as audio, display, and control buttons.

1. ILDA Out | ILDA Ausgang | Sortie ILDA
2. ILDA In | ILDA Eingang | Entrée ILDA
3. Color control | Farbelstellungen | Réglages couleurs
4. Scan Safety System (SFS)
5. X/Y Inversion | X/Y Spiegelung | Miroltement X/Y
6. DMX In | DMX Eingang | Entrée DMX
7. DMX Out | DMX Ausgang | Sortie DMX
8. ShowNET Display
9. LAN: Computer connection | Computeranschluss | Connexion à l'ordinateur
10. LAN: Computer connection | Computeranschluss | Connexion à l'ordinateur
11. Loop for safety cord | Öse für Sicherheitsfangsell | Point d'accroche pour élingue de sécurité
12. Interlock Thru | Interlock Ausgang | Sortie interlock
13. Interlock In | Interlock Eingang | Entrée Interlock
14. Power Out | Strom-Weiterleitung | Recopie électrique
15. Power In | Netzanschluss | Arrivée électrique
16. Fuse | Sicherung | Fusible
17. Key switch | Schlüsselschalter | Interrupteur à clé
18. On/Off switch | Ein/Aus-Schalter | Interrupteur général

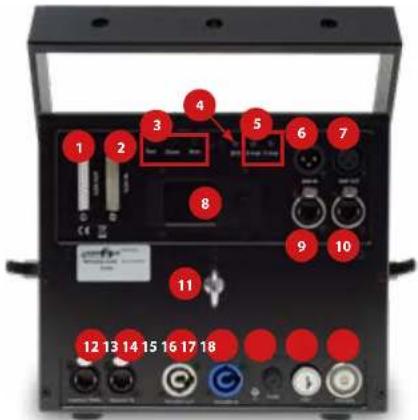

Back Panel | Rückwand | Panneau arrière FB4

Labeled photo of a 18-pin electronic device with numbered components and ports

1. ILDA Out | ILDA Ausgang | Sortle ILDA
2. ILDA In | ILDA Eingang | Entrée ILDA
3. Color control | Farbelstellungen | Réglages couleurs
4. Scan Safety System (SFS)
5. X/Y Inversion | X/Y Spiegelung | Miroltement X/Y
6. DMX In | DMX Eingang | Entrée DMX
7. DMX Out | DMX Ausgang | Sortie DMX
8. FB4 Interface
9. LAN: Computer connection | Computeranschluss | Connexion à l'ordinateur
10. LAN: Computer connection | Computeranschluss | Connexion à l'ordinateur
11. Loop for safety cord | Öse für Sicherheltsfangsell | Point d'accroche pour élingue de sécurité
12. Interlock Thru | Interlock Ausgang | Sortie interlock
13. Interlock In | Interlock Eingang | Entrée Interlock
14. Power Out | Strom-Welterleitung | Recopie électrique
15. Power In | Netzanschluss | Arrivée électrique
16. Fuse | Sicherung | Fusible
17. Key switch | Schlüsselschalter | Interrupteur à clé
18. On/Off switch | EIn/Aus-Schalter | Interrupteur général

Manual: Purelight Series Manual: Purelight Series

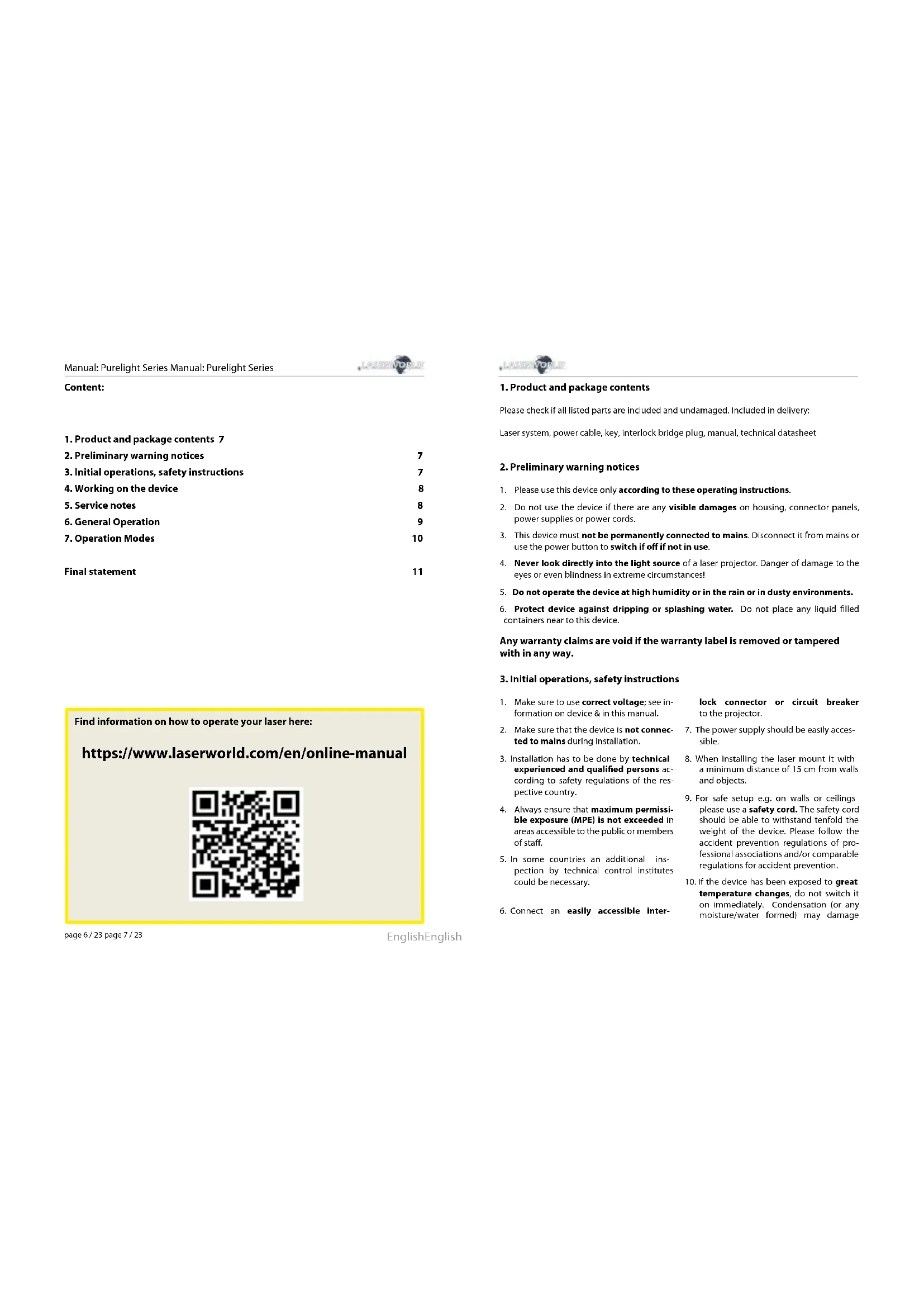

Content:

1. Product and package contents 7
2. Preliminary warning notices 7
3. Initial operations, safety instructions 7
4. Working on the device 8
5. Service notes 8
6. General Operation 9
7. Operation Modes 10

Final statement 11

Find information on how to operate your laser here:

https://www.laserworld.com/en/online-manual

QR code image containing encoded data, no visible human-readable text

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

Laser system, power cable, key, Interlock bridge plug, manual, technical datasheet

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.
2. Do not use the device if there are any visible damages on housing, connector panels, power supplies or power cords.
3. This device must not be permanently connected to mains. Disconnect it from mains or use the power button to switch if off if not in use.
4. Never look directly into the light source of a laser projector. Danger of damage to the eyes or even blindness in extreme circumstances!
5. Do not operate the device at high humidity or in the rain or in dusty environments.
6. Protect device against dripping or splashing water. Do not place any liquid filled containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered with in any way.

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see information on device & in this manual.
2. Make sure that the device is not connected to mains during installation.
3. Installation has to be done by technical experienced and qualified persons according to safety regulations of the respective country.
4. Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff.
5. In some countries an additional inspection by technical control institutes could be necessary.
6. Connect an easily accessible inter-
   lock connector or circuit breaker to the projector.
7. The power supply should be easily accessible.
8. When installing the laser mount it with a minimum distance of 15 cm from walls and objects.
9. For safe setup e.g. on walls or ceilings please use a safety cord. The safety cord should be able to withstand tenfold the weight of the device. Please follow the accident prevention regulations of professional associations and/or comparable regulations for accident prevention.
10. If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation (or any moisture/water formed) may damage

Manual: Purelight Series Manual: Purelight Series

this device.

1. Never use dimmer, RC or other electronically switched sockets. Whenever possible, do not use the laser projector together with large appliances (especially fog machines) on the same mains!
2. Ensure sufficient ventilation and do not place the device on any warm or heat ra-

4. Working on the device

1. This product has no user serviceable parts inside and should only be maintained and serviced by a qualified engineer.
2. Be sure that the mains plug is not connected to the power supply while installing the device.
3. Take off all reflecting things like rings, watches, etc. before starting to work with or at the projector.
4. Only use non-reflecting tools to work on device.
5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wavelength of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of the laser system dramatically and expires any warranty claim.
• Quick on/off switching of this device will reduce durability of the laser diode dramatically.

• Avoid sharp knocks and shocks to this device an endure sufficient protection during transportation. Look after your Laserworld product.
  • To increase durability of your laser, protect device against overheating: -Always ensure sufficient ventilation.

• Do not face spotlights (especially moving heads) to the device.

• Check temperature after approx. 30 minutes with each new installation. If necessary install the projector at a

page 8 / 23 page 9 / 23

diating surface. Especially the ventilation openings must not be covered!

1. Ensure that device does not get overheated. Make sure that the device is not exposed to spotlights (especially moving heads). Heat of spotlights could overheat laser in a little while and leads to a degradation of performance.
2. This unit is intended for indoor use only.

Yellow triangular warning sign with black sunburst symbol (no text or numbers)

placewithdifferenttemperatures.

• Keep the device dry. Protect it from moisture, rain and damp.

• Switch off device when it is not needed. Diodes are switched on and can wear out even if there is no visible laser output.

• Please ensure the fans and heatsinks are clear from dust and debris otherwise the risk of overheating may occur. If the unit or air inlets appear to be blocked, please contact a qualified service engineer to maintain and service the product.

• Removal of the warranty label as well as damages to the device caused by improper handling, neglect of the safety instructions and service notes will void the warranty.

EnglishEnglish

6. General Operation

1. Power

Connect the power cord to the device and to the mains. Make sure that your device is provided with the correct voltage. Wrong voltage could lead to irreparable damages. Please find the correct voltage data in the synoptical table at the end of this manual. Make sure that the device is not directed to people or inflammable objects during installation. To start the device, connect the interlock bridge, insert the key and switch it on, and switch the device on. The "Emission - Laser on" LED at the front side of the device begins to light up when the device is ready for use.

2. Key Switch

There is a key switch at the back of the laser system. Please plug the key to the switch and turn it on. The laser device only runs when the key is inserted and switched on. Prevent misuse! Unplug the key when the laser is unattended to prevent misuse of the system.

3. Fuse

There is a fuse at the back side of the device. If the fuse should blow, please exchange it with a new one. If the problems recurs, please contact your dealer or the Laserworld service department.

4. Safety Presets

This device has an integrated Scan Safety (SFS). Is the Scan Safety active (on), single beams are prevented. If the Scan Safety is switched off, it is possible to create full power single beams - be careful!

Operating the laser system with disabled SFS may not be allowed in some countries. Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff.

5. X/Y Inversion

Use the X, Y buttons to invert the beams resp. patterns on the x-axis and/or y-axis.

6. Colors (not available for PL-6000G)

Use the „red“, „green“ and „blue“ knobs to control the intensity per output color channel.

7. Modes / Functions

The different operation modes can be selected with using the DIP switches at the back of the device. Any change of the operation mode requires a restart of the device (switch the device off and on again or disconnect power and reconnect it again). Do not change any DIP switch settings during operation. Random and dangerous laser output can occur.

8. Turn device off

To turn off the device, use the power button („OFF“), turn the key to ,OFF' and disconnect the power cable from the mains.

Manual: Purelight Series Manual: Purelight Series

7. Operation Modes

This laser system can be operated in many different operation modes.

Information, videos and tutorials are available online!

Find information on how to operate your laser here:

https://www.laserworld.com/en/online-manual

QR code image containing encoded data, no visible human-readable text

page 10 / 23 page 11 / 23

EnglishEnglish

Final statement

Laserworld products are tested and product packaging is inspected before leaving our warehouse.

Users must to follow the local safety regulations and warnings within this manual and adhere to any regulations within its place of use. Damages through inappropriate use will void any liability or warranty of our products.

Due to continual product developments, please check for the latest update of this product manual at www.laserworld.com. If you do have any further questions, then please contact your dealer/place of purchase or use our contact section on our website.

For service Issues, please contact your dealer/place of purchase and ensure only genuine Laserworld spare parts are used in any service repairs.

Errors and Omissions excepted and products are subject to change.
