EN Wireless water alarm 868.3 MHz

List of pictograms used

Safety instructions

Special safety instructions for handling batteries..

Intended use

Information about Wireless Operation

Duty cycle.. Page 11

Included in delivery

Technical data

Device overview

Top of device.. Page 12

Bottom of device.. 12

Operating elements when housing cover opened.. Page 12

Preparation. 12

Inserting the batteries.. 12

Replacing the batteries. 12

Function

Setting up the wireless water detector

Download app / PC software BrematicPRO

Pairing the wireless water detector with the BrematicPRO Gateway

Cleaning the device

Action 13

Disposal

Service

Manufacturer

Declaration of conformity

List of pictograms used

Please read the instructions for use! Observe the warnings and safety instructions!

Caution! Danger of explosion!

Dispose of the packaging and device in an environmentally friendly manner!

Safety instructions

The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using this device, please familiarise yourself with all instructions for use and safety instructions. Only use the device as described and for the indicated purpose. Be sure to include all documentation when passing this device on to others.
WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN! Never leave children alone and unsupervised with the packaging material. It poses a risk of suffocation as children may swallow or inhale small parts or plastic film. Children frequently underestimate the dangers. Always keep children away from the device. It is not a toy.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
Only operate this device indoors.
Do not expose the device to adverse conditions, such as
- continuous sunlight,
heat radiation,

cold,
vibrations.

CAUTION! RISK OF INJURY!

• Do not open the housing. This device has no parts which require maintenance.
  Do not use the device if it is visibly damaged.
  We assume no liability for property damage or personal injury due to improper use or failure to observe the safety instructions! This will void the warranty / guarantee!

Any use not specified in these instructions for use will damage the device. Do not modify the device. Otherwise safe operation is not guaranteed.
You will have to replace the device if water enters it.

Special safety instructions for handling batteries

WARNING! DANGER TO LIFE!

Batteries are not intended for children. Seek immediate medical attention if swallowed!
CAUTION! DANGER OF EXPLOSION! Never

recharge disposable batteries, do not short-circuit and / or open batteries!

Never throw batteries into fire or water!
Do not exert mechanical loads on batteries!

Risk of battery leakage

In the event of a battery leak, immediately remove it from the device to prevent damage!
Avoid contact with the eyes, skin and mucous membranes! In the event of contact with battery acid, flush the affected areas with clean water and seek immediate medical attention!
- Only use the same type of batteries! Do not mix used and new batteries!
- Avoid extreme conditions and temperatures which may affect batteries, e.g. radiators / direct sunlight.
Remove the batteries from the device if they have not been used for a long period!

Risk of device damage

Only use the specified battery type!
Please note the correct polarity when inserting the battery!
If necessary, clean the battery and device contacts before inserting the battery!
Remove drained batteries from the device immediately!

A WARNING! CHEMICAL BURNS!

Keep batteries away from children.

The device contains a lithium button cell. If a new or drained button cell is swallowed or enters the body it can lead to severe internal chemical burns and can cause death within two hours of ingestion. Always ensure that the battery compartment is securely shut. If the battery compartment does not close correctly, stop using the device, remove the battery and keep it away from children.

If you believe that a button cell has been swallowed or has entered someone's body, seek immediate medical attention.
The batteries must be disposed of correctly, even if they have been kept away from children.
Even used batteries can cause injuries.

Intended use

The wireless water detector is solely intended to detect the presence of water in indoor areas and to notify the BrematicPRO Gateway of this.

Information about Wireless Operation

This device uses the 868.3 MHz proprietary wireless protocol. Wireless transmission is implemented using a non-exclusive channel, interference can therefore not be excluded.

The range in building may vary greatly from open areas. In addition to the transmission power and the reception characteristics of the receivers, ambient conditions, e.g. humidity in addition to the structural conditions on site, are important factors.

The range can be significantly reduced in part due to:

• wood, gypsum, concrete, reinforced concrete walls
• proximity to metal and conductive objects
• broadband interference, e.g. in residential areas (DECT phones, mobiles, wireless headphones, wireless speakers, wireless weather stations, baby monitors)
  proximity to electric motors, transformers, mains adapters, computes

Duty cycle

Duty cycle refers to a transmission time limit regulated by law for devices transmitting in the 868 MHz range. It is intended to ensure smooth operation of devices operating in the 868 MHz range. The maximum transmission time of each device is 1% of an hour (corresponding to 36 seconds / hour). Once the 1% limit has been reached it cannot transmit until the time limit of the duty cycle has ended, so after one hour.

Included in delivery

1 x Wireless water alarm
2xButton cells CR2450
1x Adhesive pad
1 x Quick start guide
1 x Instructions for use (digital, available for download)

Technical data

Product designation: WM 868 01 3726

Item no.: 1294210

Radio frequency: 868.3 MHz

Frequency: 868.1 - 868.5 MHz

Max. transmitting power: < 20mW

Duty cycle: < 1% per h

Supply voltage: 2 × 3 V Button cell CR2450

Power consumption: 100mA max.

Battery life span: approx. 2 Years (typically)

Ambient temperature: 0^ to 35^

Protection type: IP20

Alarm output: Piezo signal transmitter (85 dB)

Open area range: approx. 100m

Dimensions (W× H× D) .. 60× 60× 19.7mm

Weight: 43 g

Subject to technical changes without notice.

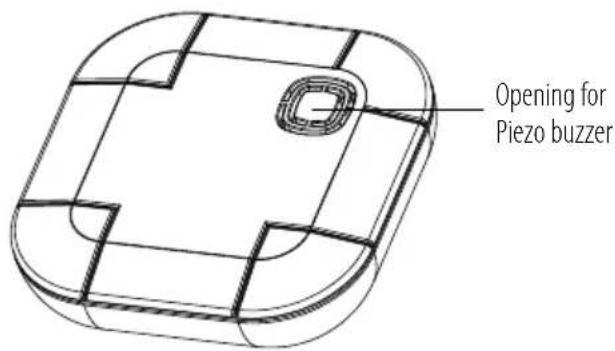

Device overview Top of device

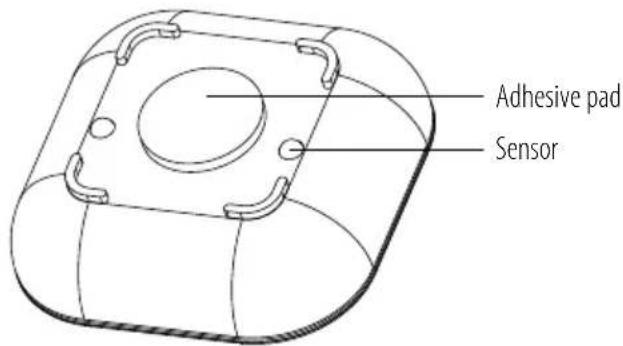

Bottom of device

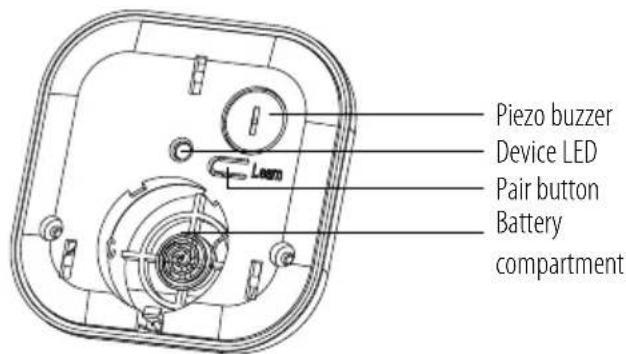

Operating elements when housing cover opened

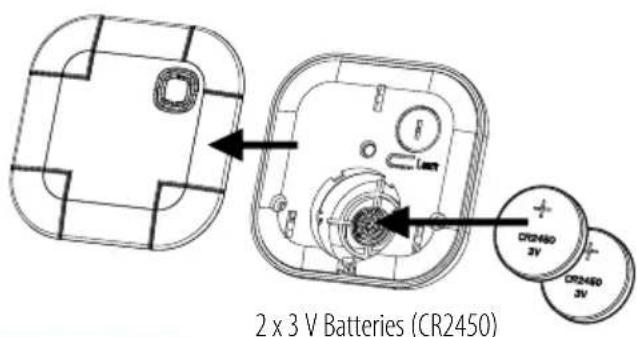

Preparation Inserting the batteries

Remove the housing cover.
Insert the batteries on top of each other into the battery compartment with correct polarity (+ pole pointing upwards) so that they can be fixed in place by the retaining collar.
Press the pair button. The battery status is fine if the device LED flashes. The electronics unit is ready for use.

Note: If the battery is drained, the device LED will flash once every second.

Replacing the batteries

Remove the housing cover.
Press the battery retaining tab back.
Replace the batteries and close the housing cover until it audibly clicks into place.

Function

The wireless water detector is part of the Brennenstuhl Home Automation Systems BrematicPRO, controlled via app or the BrematicPRO PC software. The wireless water detector, with the help of two sensors on the bottom of the device, detects the presence of water indoors and notifies the BrematicPRO Gateway of this. Additionally, an alarm is emitted acoustically through the Piezo signal transmitter. The water level sensor is triggered by a water level of over 1 mm. The device is battery-powered. For this reason, it is flexible and can be used in any location.

Note: A water level of 1.5cm or above may result in water entering the device. You will have to replace the wireless water detector if water enters it.

Setting up the wireless water detector

Place the wireless water detector onto a stable, level surface. Avoid soft surfaces e.g. carpets.
Ensure that the wireless water detector is within the range of the BrematicPRO Gateway.
Test the reception at different times of the day to take into account potential radio interference at different times of the day.
If you want to prevent the water detector from accidentally shifting, use the adhesive pad enclosed to affix the water detector.

Download app / PC software BrematicPRO

The Brennenstuhl Home Automation System BrematicPRO is controlled via the BrematicPRO app/PC software. The app can be downloaded for free from the App Store and Google Play. The PC software is available for download at www.brematic.com/gb/service.

Download on the App Store

GET IT ON Google Play

For more information about the app and how to use it, please visit www.brematic.com/gb/service.

Pairing the wireless water detector with the BrematicPRO Gateway

When linked with the Home Automation System BrematicPRO via the BrematicPRO Gateway, it is possible to use software-based functions with the aid of the app/BrematicPRO PC software. After the sensor has been triggered, actions (tasks) can be triggered via the app / PC software. For example, the wireless switch actuator of a pump can be switched on or an email can be sent.

The app or BrematicPRO PC software is installed and open.

The BrematicPRO Gateway is ready for use.

Keep the device at least 50~cm from the Gateway.
Open the "Settings" menu.
Select the room where you wish to use the device.
Select"Add Device".
Select the frequency "868 MHz".
Under "New Device", select "Sensor / Detector" and click "Continue" to confirm your selection.
Follow the on-screen instructions.
Press and hold the pair button on the device for 3 seconds.

Once both devices have been paired the LED will flash.

Enter a device name, e.g. water level detector.
Select "Add" to assign the device to the room.
Select "Display status" if the wireless water detector should be displayed as a tile in the app.

In this submenu you can also add the device to your favourites.

• First tap "Back" to leave the room, then "Done" to complete the pairing process.

The wireless water detector is now connected to the Home Automation Systems BrematicPRO.

Find more information about the app and how to use it at: www.brematic.com/gb/service

Cleaning the device

Clean the device with a dry, lint-free cloth. For tough dirt, you may also slightly dampen the cloth.
- Do not clean with solvent-based cleaners. These could damage the device surface and markings.

• Never immerse the device in water or other liquids. The device may otherwise be damaged.

Action

Problem Possible cause Action
The LED is flashing. The battery is drained.	Insert a new battery.
Device not detected.	The device is outside the Gateway range.	Reduce the distance to the Gateway.

Disposal

kaging is made from environmentally-friendly materials which can be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life, not in the household waste. Please contact your municipality for information on collection facilities and their opening hours.

Faulty or drained batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and / or the product to the provided recycling facilities.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household bin. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of drained batteries through your local collection facilities.

Service

For questions related to the product, please contact us at www.brematic.com/qb/service.

Tel.: [phone] (toll-free)

Manufacturer

Declaration of conformity

Hugo Brennenstuhl GmbH & Co.KG, hereby declares the wireless system model WM 868 01 3726 to comply with directives 2014/53/EU and 2011/65/EU (RoHS II). The full text of the EU declaration of conformity is available at the following internet address: www.brematic.com/gb/service/konformitaetserklaerung/ke_1294210.pdf

This device complies with the legal, national and European requirements. All company names and product names are trademarks of the respective owners.

All rights reserved.
