| Product Type | Foldable Electric Scooter |
| Brand | Segway / Ninebot |
| Model | Ninebot KickScooter F25I |
| Dimensions (unfolded) | 1143 × 480 × 1160 mm |
| Dimensions (folded) | 1143 × 480 × 495 mm |
| Net Weight | 15.3 kg |
| Payload | 40 – 120 kg |
| Recommended Age | 14 – 60 years |
| Required Height | 120 – 200 cm |
| Max Speed | 25 km/h |
| Typical Range | 25 km |
| Max Slope | 10 % |
| Suitable Terrain | Cycle paths, parks, flat roads |
| Operating Temperature | -10 °C to 40 °C |
| Protection Rating | IPX5 |
| Battery | Lithium-ion 36 V, 275 Wh (7600 mAh) |
| Charging Time | 5 h |
| Motor | 300 W nominal |
| Tires | 10 inches, pneumatic, pressure 40-45 psi |
| Brake | Rear disc brake |
| Speed Modes | ECO (15 km/h), Standard (20 km/h), Sport (25 km/h) |
| Connectivity | Bluetooth 4.0 / 5.0 (mobile app) |
| Lighting | LED front light, LED rear light (turn signals in walking mode) |
| Regular Maintenance | Check tire pressure, tighten screws, clean frame |
Frequently Asked Questions - Ninebot KickScooters F25I SEGWAY
User questions about Ninebot KickScooters F25I SEGWAY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric scooter in PDF format for free! Find your manual Ninebot KickScooters F25I - SEGWAY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Ninebot KickScooters F25I by SEGWAY.

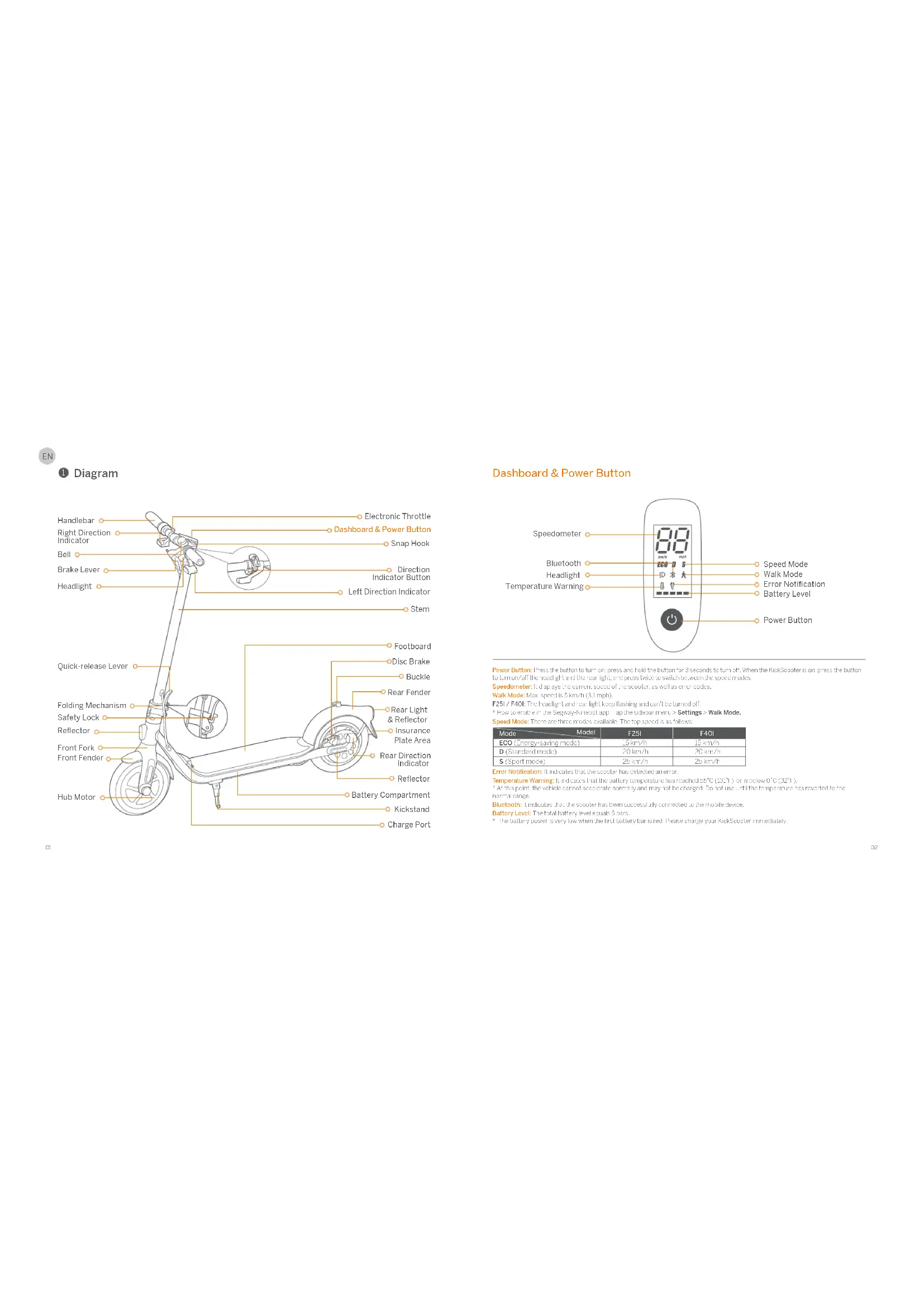

USER MANUAL Ninebot KickScooters F25I SEGWAY
01

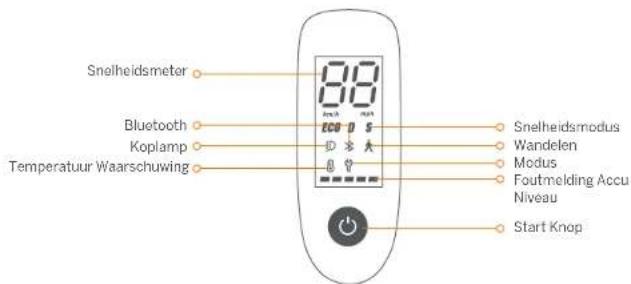

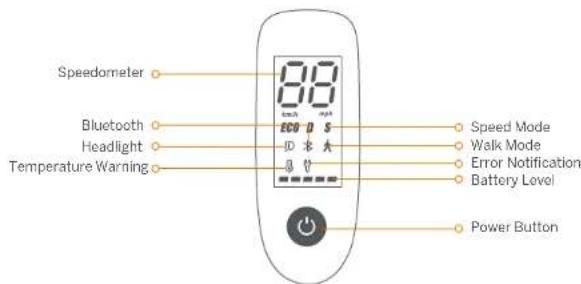

Dashboard & Power Button
Power Button: Press the button to turn on press and hold the button for 3 seconds to turn off. When the KexScocker is on press the button to turn off off the rear light and the rear light and press twice to switch between the speed modes.
Speedometer: It displays the current speed of the scooter, as well as error codes
Walk Mode: Max speed is 3 km/h (2.1 mp)
F251 / F401: The headlight and rear light keep flashing and can't be turned off.
How to enable the Signway Nincetoptap Tap the sidebar menu. > Settings > Walk Mode.
Speed Mode: There are three modes available. The top speed is as follows
| Mode | Model | F25I | F40I |
| ECO (Energy-saving mode) | 15 km/h | 15 km/h | |
| D (Standard mode) | 20 km/h | 20 km/h | |
| S (Sport mode) | 25 km/h | 25 km/h | |
Error Notification: It indicates that the scope has detected an error
Temperature Warning: indicates that the battery temperature has reached 50°C (131°F) or is below 0°C (32°F).
* At this point, the vehicle cannot achieve normally and may not be charged. Do not use until the temperature was reversed to the
Source: FAPES
Bluetooth: Linux does that the secret has been successfully connected to the mobile device.
Battery Level: The total battery level is 5 bars.
* The battery power is very low when the first battery can be used. Please charge your RockScooter immediately.
02
② Specifications
| Item Parameter | ||
| Product | Name | Ninehot KickScooter |
| Model | 7501 | |
| Length × Width × Height | Approx. 1'43 × 480 × 1160 mm (45 × 18.9 × 65.7 in) | |
| Folded Length × Width × Height | Approx. 1'43 × 480 × 495 mm (45 × 18.9 × 19.5 in) | |
| Net Weight | Approx. 25.3 kg (33.7 lbs) | |
| Rider | Payload | 40-100 kg (88-220 lbs) |
| Recommended Age | 14-60 years | |
| Required Height | 120-200 cm (3'-1" = 6'6") | |
| Machine | Max. Speed | Approx. 25 km/h (25.5 mph) |
| Typical Range ^1 | Approx. 25 km (25.5 miles) | |
| Max Slope | Approx. 10% | |
| Transversible orientation | D-cycle lanes, parks, campuses and most of the flat road conditions and typical 2-cycle roads | |
| Operating Temperature | -10-40°C (14-104°F) | |
| Storage Temperature | -10-50°C (14-120°F) | |
| IP Rating | IPX5 | |
| Duration of Charging | Approx. 5 h | |
| Battery | Nominal Voltage | 36 V ≈ |
| Max. Charging Voltage | 12 V ≈ | |
| Charging Temperature | 0 - 40°C (32 - 100°F) | |
| Nominal Capacity | 7600 mAh | |
| Nominal Energy | 275 W | |
| Battery Management System | Over heating, short circuit, over current, over discharge and over charge protection | |
| Motor | Nominal Power 0.3 kW, 300 W | |
| Charger | Output Power | 0.07 kW, 70 W |
| Input Voltage | 100-240 V | |
| Max. Output Voltage | 12 V ≈ | |
| Rated Output | 41 V ≈, 1.7 A | |
| Features | Brake Light | LED Rear Light |
| Speed Nodes | Energy-saving mode, Standard mode and Sport mode | |
| Tire | Tire Pressure | 40 / 5 psi |
| IIRS | 10 inch pneumatic tire |
1) Typical Range tested while ranging with full battery - 45 kg/165 bs) load, 25 °C (77°), at the speed of 16 km/h (9.3 m/s) on average on pavement. * Some of the factors that affect range induct speed, number of stars and dusts ambient temperature, etc.
| Item Parameter | ||
| Product | Name | N robot KickScoter |
| Model | F/01 | |
| Length × Width × Height | Approx. 1143 × 480 × 1150 mm (45 × 18.9 × 45.7 in) | |
| Fullcod Length × Width × Height | Approx. 1143 × 480 × 455 mm (45 × 18.9 × 9.5 in) | |
| Net Weight | Approx. 17.1 kg (37.7 lbs) | |
| Rider | Payload | 40 - 20 kg (88 - 265 lbs) |
| Recommended Age | 14 - 50 years | |
| Required Height | 120-200 cm (3'11" - 6'6") | |
| Machine | Max. Speed | Approx. 25 km/h (15.5 mph) |
| Typical Range1 | Approx. 40 km (24.9 miles) | |
| Max. Slope | Approx. 20% | |
| Traversable Terrain | Bicycloarons, parks, computes and most of the flat load conditions and typical Bear or roads | |
| Operating Temperature | -10-40°C (14-104°F) | |
| Storage Temperature | -10-50°C (14-122°F) | |
| F Rating | 1PX5 | |
| Duration of Charging | Approx. 6.5 h | |
| Battery | Nominal Voltage | 36 V = = |
| Max. Charging Voltage | 42 V = = | |
| Charging Temperature | 0 - 40°C (32 - 104°F) | |
| Nominal Capacity | 13.2 Ah | |
| Nominal Energy | 36V/Wh | |
| Battery Management System | Over-heating, short product, over current, over discharge and over charge protection | |
| Motor | Nominal Power Q 35 kW, 350 W | |
| Charger | Output Power | 0.07 kW, 70 W |
| Input Voltage | 100-240 V | |
| Max. Output Voltage | 42 V = = | |
| Rated Output | 41 V = = 1.7 A | |
| Features | Brake Light | LDD Rear Light |
| Speed Modems | Energy-saving mode: Standard mode and Sport mode | |
| Tire | Tire Pressure 50-55 psi |
typical range tested while moving with a full battery. 75 kg (100 lbs) load 25°C (1/°F), at the speed of 35 km/h (3.9 mph) or average on pavement.
* Some of the factors that affect range in order speed, number of slarts and stops, ambient temperature, etc.
③ Certifications
European Union Compliance Statement Important WEEE information
This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. Please contact your local authority for further details of your nearest designated collection point.
Battery recycling information for Users
This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation, there are separate collection systems for used batteries and accumulators. Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.
Radio Equipment Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.
Restriction of the use of certain hazardous substances (RoHS) Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/853 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").
Machinery Directive
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Machinery Directive 2005/42/EC.
EU Authorised Representative:
Segway-Ninebot Europe
Dynamostraat 7,1014 BN Amsterdam. The Netherlands.
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model F25I, F40I comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU, the machinery directive 2006/42/EC, and the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863. The declaration of conformity can be viewed at the following address: http://cu-en.segway.com/support-instructions
UK Compliance Statement
Radio Equipment Regulations 2017
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017.
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
Ninebol (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
Supply of Machinery (Safety) Regulations 2008
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Supply of Machinery (Safety) Regulations 2008.
UK Authorised Representative:
UKCA Experts Ltd.
Dept 302. 43 Owston Road Carcroft, Doncaster, DN5 8DA, United Kingdom
Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: F251. F40i comply with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017, Supply of Machinery (Safety) Regulations 2008 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
The declaration of conformity can be viewed at the following address: www.segway.com
| Bluetooth | Frequency Band(s) | 2.4000-2.4835 GHz |
| Max. RF Power | 20 mW |
4 Trademark
Ninebot is the registered trademark of Ninebot (Beijing) Tech Co., Ltd. Powered by Segway, Segway and the Rider Design are the registered trademarks of Segway Inc., Bluetooth is the registered trademark of BLUETOOTH SIG, INC.; Android, Google Play are trademarks of Google Inc., App Store is a service mark of Apple Inc., The respective owners reserve the rights of their trademarks referred to in this manual.
The KickScooter is covered by relevant patents. For patent information, go to http://www.segway.com
We have attempted to include descriptions and instructions for all the functions of the KickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your KickScooter may differ slightly from the one shown in this document. Visit the Apple App Store (iOS) or the Google Play Store (Android) to download and install the App.
Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the KickScooter product and documentation without prior notice.
© 2022 Ninebot (Beijing) Tech Co. Ltd. All rights reserved.
(×The Segway-Ninebot App can support KickScooter with built-in Bluetooth)
⑤ Recommended Maintenance Schedule
To ensure safe riding, day to day care and regular maintenance are essential. You, the owner, have control and knowledge of how often you use your scooter, how hard you use it and where you use it. It is the owner's responsibility to perform regular checks and bring your scooter to authorized service center for inspection and service. Please refer to the maintenance schedule below.
Note: This maintenance schedule charges a service fee.
| Item Component | Maintenance method | Every 3 months | every 6 months or every 100 miles (500 km) | After 2 years of the total mileage >3007 miles (5000 km) |
| Mainframe maintenance | Mainframe parts Use a soft, wet cloth to wipe the mainframe clean. | √ | √ | √ |
| Tire pressure | F25-41 Inflat tires to 40 -45 psi. F40B Initiate tires to 50-55 psi Note Remember to inspect the valve capital - infailing. | √ | √ | |
| Tire wear | Check if the tires are cracked, performed, or significantly worn. | √ | ||
| Screws on the stem top | Tighton the six screws fixed with the handlebar and the stem. The suggested torque is 5.5±0.5 N·m. | √ | √ | |
| Tighton the screw on the throttle. The suggested torque is 0.6±0.1 N·m. Tighton the screws on the trigger lever. The suggested torque is 5.5±0.1 N·m. Tighton the screws on the stem top. The suggested torque is 10±0.5 N·m. | √ | |||
| Screws on the folding mechanism | Tighton the two screws' stroke. If the front neck and the folding mechanism, The suggested torque is .06 ± N·m. If the stem gets slightly when being lighted, lighted the screw on the folding mechanism when the trigger is in folded state. The suggested torque is .20±1 N·m. | √ | ||
| Brake disc assembly | Lighted the screws on the crace disc assembly. The suggested torque is .7/40.2 N·m. | √ |
| Item Component | Maintenance method | Event 3 months | Every 6 months or every 310 miles (500 km) | After 2 years of the initial mileage > 3107 miles (5000 km) | |
| Function inspection | Hub motor | To accelerate and deceler the check, the hub motor is stalled or has abnormal sounds. | √ | ||
| Near wheel maintenance | Check if the rear wheel is stalled or gets steady, or the axis shaft is balanced. | √ | |||
| Brake adjustment | If the break is on light/boxer use the 4 mm Allenbey is zoomed the screw on the caliper. Then slightly adjust the brake line (decrease/increase the exposed length), and tagtten the screw again. | √ | |||
| Brake rotor | Spin the wheels, the caliper should be aligned with the rotor and they should cut into the brake pass. | √ | |||
| Tailight Squeeze | the brake level the tailight works normally. | √ | |||
| Headlight Clock | the headlight and seen if light strongly. | √ | |||
| Direction indicators | Toggle the direction indicator button to the left/right respectively, check if the direction indicators on the right/right side face normally. | √ | |||
| Dashdowns | Power on the scooter: the dashdowns works properly. Switch be seen the speed moves, the dashdowns will display the corresponding speed mode icon. | √ | |||
| Bell Ring the bell | The sound block. | √ | |||
| Rover Power coil | The speaker, the lower sound is normal. | √ | |||
| Thirst In | Press and hold the throttle then released, checking for acceleration and deceleration. Note: Re-expect, check if the first end will back to the position. | √ | |||
| Fault selection | After connecting with the Segway/Ninblast app: Update the firmware to the latest version 2) Check if the notification of the corresponding error made and possible causes will prompt when the trigger detects an error. | √ | |||
| Item Component | Maintenance Method | Every 3 months | Every 8 months or every 300 miles (500 km) | After 2 years or the local mileage >2007 miles (5000 ( km) ) | |
| Function Inspection | Charging | Charge the scooter.(2) Check if the current battery power displays on the dashboard.(2) Check the LHD indicator on the battery charger.Charging red, fully charged green | √ | √ | |
| Control buttons | Press or toggle the button 3 times without failure. | √ | √ | ||
| Turning | Lost with left turns and right turns (the storing angle is 60).No resistance only when turning. | √ | √ | ||
| Important parts | Battery assembly | The battery needs to complete other charging and discharges for 600 times or the total in charge is more than 6215 miles (300/30 km).Note: it is recommended to charge once every 60 days for long-term storage. | √ | ||
| Controller | It is required that original Super-Vindependent parts shall be used for reasonable replacements. | ||||
| Motor motor | |||||
| Functional parts | Rear wheel assembly | ||||
| Throttle & Bike lever | |||||
| Front fork assembly | |||||
| Folding mechanical | |||||
| Brake rotor | |||||
| Disc brake assembly | |||||
| Dashboard | |||||
