USER MANUAL UR8350WE Soundmaster

4. Repeat the same procedures until all desired radio stations are stored.

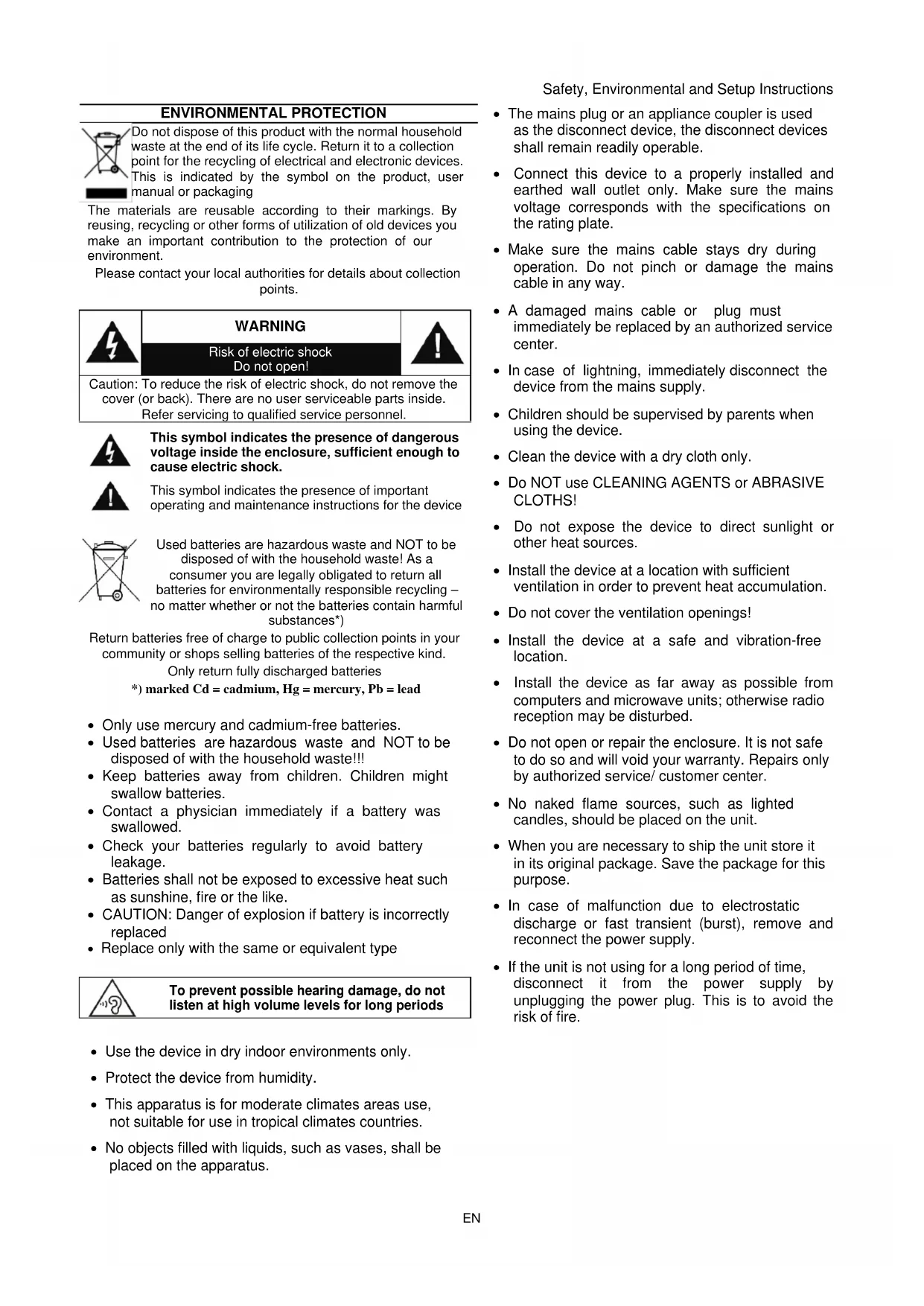

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment. Please contact your local authorities for details about collection points.

Risk of electric shock Do not open! Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

Only use mercury and cadmium-free batteries. Used batteries are hazardous waste and NOT to be disposed of with the household waste!!! Keep batteries away from children. Children might swallow batteries. Contact a physician immediately if a battery was swallowed. Check your batteries regularly to avoid battery leakage. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. CAUTION: Danger of explosion if battery is incorrectly replaced Replace only with the same or equivalent type

To prevent possible hearing damage, do not listen at high volume levels for long periods

Use the device in dry indoor environments only. Protect the device from humidity. This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries. No objects filled with liquids, such as vases, shall be placed on the apparatus. The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable. Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate. Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way. A damaged mains cable or plug must immediately be replaced by an authorized service center. In case of lightning, immediately disconnect the device from the mains supply. Children should be supervised by parents when using the device. Clean the device with a dry cloth only. Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS! Do not expose the device to direct sunlight or other heat sources. Install the device at a location with sufficient ventilation in order to prevent heat accumulation. Do not cover the ventilation openings! Install the device at a safe and vibration-free location. Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed. Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center. No naked flame sources, such as lighted candles, should be placed on the unit. When you are necessary to ship the unit store it in its original package. Save the package for this purpose. In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply. If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.UR8350WE / English Instruction Manual

Battery Compartment (at the bottom)

Before using the unit, please check that local main supply is compatible with the unit. Do not plug or unplug the power cable when your hands wet. When planning not to use this unit for long periods of time disconnect the plug from the wall outlet and if insert batteries in the battery compartment put them out.

OPERATING THE UNIT ON AC POWER

Insert the DC-plug with the end of the cable into the DC jack located at the rear of the unit and the AC-adapter into the wall outlet.

EMERGENCY USE WITH BATTERIES

To play your unit with batteries, the AC-adapter must be disconnected from the unit. Open the battery compartment and insert 4 “AAA” (LR03) batteries (not included) in the battery compartment. Close the battery compartment again. The device can be operated fully functional for up to 24 hours in the event of a power failure and disconnected power supply cable via the inserted batteries. Note: Check your batteries regularly. Old or discharged batteries should be replaced. If the unit is not to be used for longer time or is being used exclusively on AC electrical current, remove batteries from the battery compartment to avoid leakage.UR8350WE / English Instruction Manual

BASIC OPERATION Press the “STANDBY” button to turn the unit on or off. Press the “VOL + / -“ to increase or decrease the volume. DAB MODE For the best reception extend the telescopic antenna complete. If you start the DAB-mode the first time the unit will automatically search the stations which can be received. Press the “MODE” button to select the DAB radio mode. Auto search Press the “SCAN” button, “Autotune Full Scan” will show on the display. The number of the of the DAB stations will be shown on the upper right corner and the unit will automatically play the first station. Press “TUNE / ” to choose the next or previous station. Manual search

1. During DAB mode, press and hold the “ENTER” button to select the manual tune. Press

“TUNE / ” to manual tune the DAB channels.

2. After setting press “ENTER” to confirm.

3. Return to the main manual, “MAN” will be shown on the right top corner. Press “ENTER” to

confirm. “DAB” will be shown on the right top corner.

4. Then you can repeat from step 1 to set the other manual tune channels.

Preset DAB radio stations

1. Choose the desired DAB radio station.

2. Press and hold the “PRESET” button. “Preset Empty 1”will appear in the display, “1” is

flashing in the display.

3. Press “TUNE / ” to choose the desired station number (1-10). Then press the

“ENTER” button to store it.

4. Repeat the same procedures until all desired radio stations are stored.

Recall the saved radio stations

2. Press the “ENTER” button to confirm.

Information display The unit has DAB information modes which are shown on the bottom line of the display. Press the “INFO” button to see the available types: Ensemble Frequency Signal strength Audio Bit Rate Time/Date Ensemble name DLS (Dynamic Label Segment)

2. Press the “SCAN” button to start the search. When a radio station is found, the frequency

on the display will stop running and start playback automatically. If reception is not good, press the “TUNE / ” for fine tuning. Switch between stereo and mono During the FM radio mode press the “ENTER” button to select the audio mode “Auto” or “mono”. To store preset stations is the same as in DAB mode!UR8350WE / English Instruction Manual

Information display The unit has FM information modes which are shown on the bottom line of the display. Press the “INFO” button to see the available types: PTY (program type) Station frequency Signal strength Audio mode Date and Time Radio text

2. Insert an USB drive into the USB port at the top of the unit.

3. The music will play automatically.

4. Press the “SCAN” button to play or interrupt the playback.

5. Press the “TUNE / ” button to select the track backward or forward.

6. Press “PRESET” to choose Repeat one song / Repeat all songs / Random playing.

1. Connect the external audio source to the AUX IN jack at the backside of the unit.

2. Press the “MODE” button to select the AUX mode.

3. Start the playback on your external audio source. Use the controls on your external

device. ALARM Setting Alarm 1

1. Turn the unit in Standby mode and press the “ALARM” button until the Alarm 1 menu is

shown on the display.

2. OFF or ON is flashing to indicate that it can be changed. Press “TUNE / ” to ON and

press “ENTER” to confirm.

3. The hour digits are flashing now. Press the “TUNE / ” to set the hour of the alarm

time. Press “ENTER” to confirm.

4. Now the minutes can be set. Press again “TUNE / ” to set the minutes and press

“ENTER” again to confirm.

5. Select the alarm tone (BEEP Tone1, BEEP Tone2, DAB, FM of USB) with the

button again for confirmation. The settings are saved. Setting Alarm 2

1. Turn the unit in Standby mode and press the “ALARM” button until the Alarm 2 menu is

shown on the display.

2. The other settings are the same as in ALARM 1.

Turn off the Alarm To stop the alarm when he is activated, press the “ALARM” or “STANDBY” button to stop the alarm sound. The alarm will stopped until the next day. If you don´t press the button the alarm sound will automatically stop after 59 minutes. Turn off the alarm completely

1. Press the “ALARM” button until the Alarm 1 or Alarm 2 menu is shown.

2. Press the “TUNE / ” button to set the desired alarm to OFF and press “ENTER” to

Snooze When the alarm tone is on, press the “SNOOZE” button to temporally stop the alarm sound. The alarm tone sounds again after 9 minutes. SLEEP Press the “SLEEP” button to set the sleep timer. You can choose the following settings: OFF – 15 – 30 – 45 – 60 – 90 minutes.

2. Press and hold the “PRESET” button. “ACTIVE BACKLIGHT” is shown on the display.

3. Adjust the desired brightness with the “TUNE / ” button.

4. After 3 seconds the display changes to the “STANDBY BACKLIGHT”. Adjust also the

2. Press and hold the “ALARM” button until you see “SET CLOCK” and the date showing in

3. Press the “TUNE / ” button to adjust the date and time and at least press “ENTER”

to confirm. HEADPHONE

1. Connect your 3.5mm headphone plug to the headphone jack at the backside of the unit.

2. Turn the unit on and the music will come through your headphone. The sound is muted in

this time over the loudspeaker. NOTE: If a headphone is connected also the alarm tone sounds over the headphone! FACTORY RESET Press and hold in DAB mode the “MODE” button until “Press ENTER Key to Reset” is shown on the display. Press the “ENTER” button to reset the unit. TECHNICAL SPECIFICATION Power supply : Use only the supplied power adapter Power input : 100-240V~ 50/60Hz, 0,3A Power output : 5V 1A Battery supply : 4x DC 1.5V AAA type batteries (not included) DAB+ range : 174.928 – 239.200MHz FM range : 87.5 – 108MHz Preset stations : 10 DAB+, 10 FM
