NikolaTesla Libra PRF0147774A - Cooker ELICA - Free user manual and instructions

Product Type	Induction Cooker with Integrated Hood
Brand	Elica
Model	NikolaTesla Libra PRF0147774A
Category	Cooker
Power Supply	Permanent mains connection, voltage and power on rating plate (e.g., 7.4 kW default)
Number of Cooking Zones	4 induction zones (including possible Bridge function)
Cooking Functions	Power Booster, Automatic Heat Up, Temperature Manager, Pause, Timer zones, Bridge
Integrated Hood	Extraction with 3 speeds + 2 Power Boosters, ducted or recirculating version
Integrated Scale	Capacitive scale, max load 10 kg, functions TARE, HOLD, UNIT, LOCK
Pan Detection	Yes, automatic shut-off if no pan present
Safety	Key lock, child safety lock, automatic shut-off, overheating detection, residual heat indicator
Filters	Grease filter (washable), carbon/ceramic filter (oven regenerable)
Filter saturation indicator	Yes, FILTER indicator flashing or steady depending on type
Installation	Built into worktop thickness 2-6 cm (TOP) or 2.5-6 cm (FLUSH), min. distance 5 cm front, 4 cm sides, 50 cm above
Maintenance and Cleaning	Clean after each use, no abrasives, neutral detergent, removable lower tray
Dimensions (approximate)	Standard built-in, width approx. 90 cm (check technical sheet)
Weight	Approx. 20-30 kg (not specified, estimate)
Spare parts and repairability	Filters, screws, carbon kit, Window sensor kit (optional), contact after-sales service

Frequently Asked Questions - NikolaTesla Libra PRF0147774A ELICA

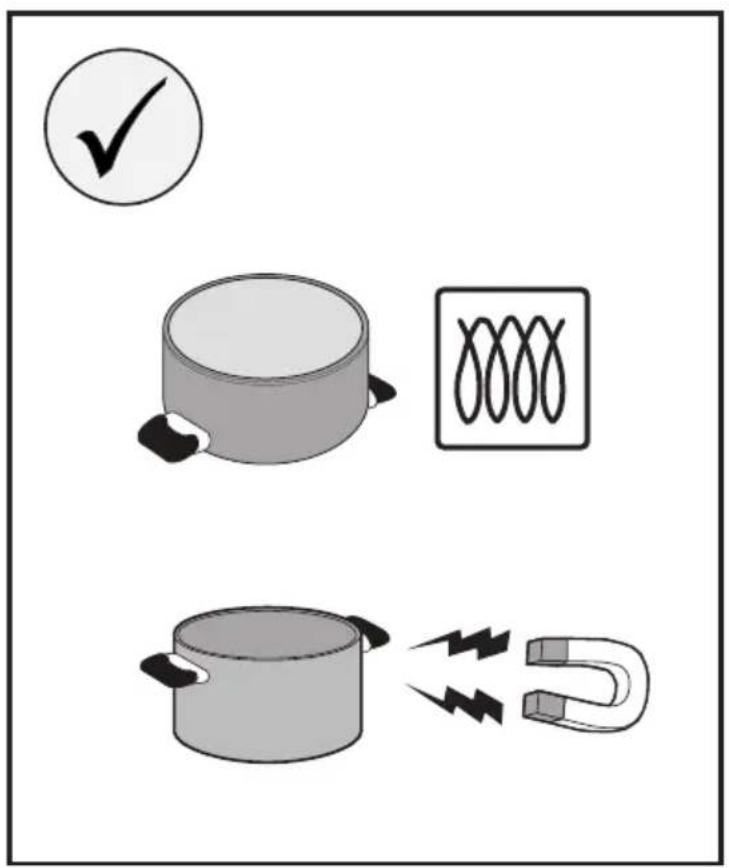

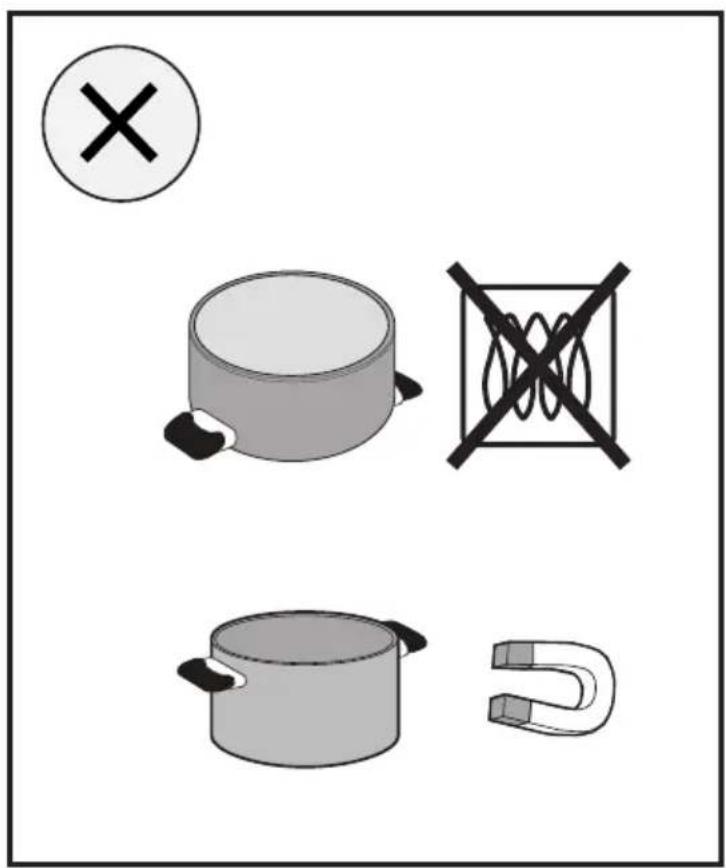

What types of pans should be used on the induction hob?

Use only pans with a ferromagnetic base (test with a magnet). The diameter must match the cooking zone (see manual). Avoid convex, ridged, or aluminium bases.

How to clean the hob?

After each use, let it cool then clean with a soft cloth and neutral detergent. Never use abrasive sponges or harsh chemicals. For overflows, use the drain valve under the hob.

How to maintain the hood filters?

The grease filter must be cleaned once a month (or when indicated), by hand or in the dishwasher at low temperature. The carbon/ceramic filter regenerates in the oven at 200°C for 45 minutes every 2-3 months. Consult the manual for the indicator reset procedure.

What does error code E2 mean?

Error code E2 indicates a high internal temperature. Wait for the hob to cool down before using it again. If the problem persists, unplug and contact after-sales service.

How to activate the Power Booster function?

Slide your finger on the selection bar beyond level 5 for cooking zones (Booster 5 minutes). For the hood, beyond level 3 for Booster 1 (15 min) or Booster 2 (5 min). The symbol 'P' or '4' flashes.

The scale is not working properly, what to do?

Check that the pan is centered on the weighing zone and the diameter does not exceed 20 cm. Turn off the hood to avoid interference. Max load is 10 kg. If the problem persists, reset with the ZERO function.

How to install the cooker?

Installation must be done by a professional. Cut the worktop (thickness 2-6 cm), observe safety distances, connect electrically with an omnipolar circuit breaker. For the hood, choose ducted or recirculating version according to available ducts.

What to do if the hob does not detect the pan?

Ensure the pan is induction-compatible (ferromagnetic base) and centered on the zone. Check that the diameter is sufficient. If code E3 appears, the pan has lost its magnetic properties, replace it.

How to lock the controls to prevent accidental operation?

Press the Key Lock button (padlock symbol) for a few seconds. An indicator lights up. To unlock, repeat the operation. The function locks all keys while keeping the settings active.

Where to find the full manual and accessories?

The manual is available free in PDF format at notice-facile.com. For accessories (filter kit, Window sensor, etc.), visit www.elica.com and www.shop.elica.com.

USER MANUAL NikolaTesla Libra PRF0147774A ELICA

EN Instruction on mounting and use

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

EN WATCH THE INSTALLATION VIDEO

IT GUARDA IL VIDEO DI INSTALLAZIONE

FR REGARDEZ LA VIDÉO D'INSTALLATION

QR code displayed on smartphone screen with adjacent QR code, likely for mobile payment or scanning

Scan QR code

Watch the video

elica

aria nuova

Two identical black silhouette figures of men, no text or symbols present

Illustration of two gloves, one open and one closed, with no text or symbols present.

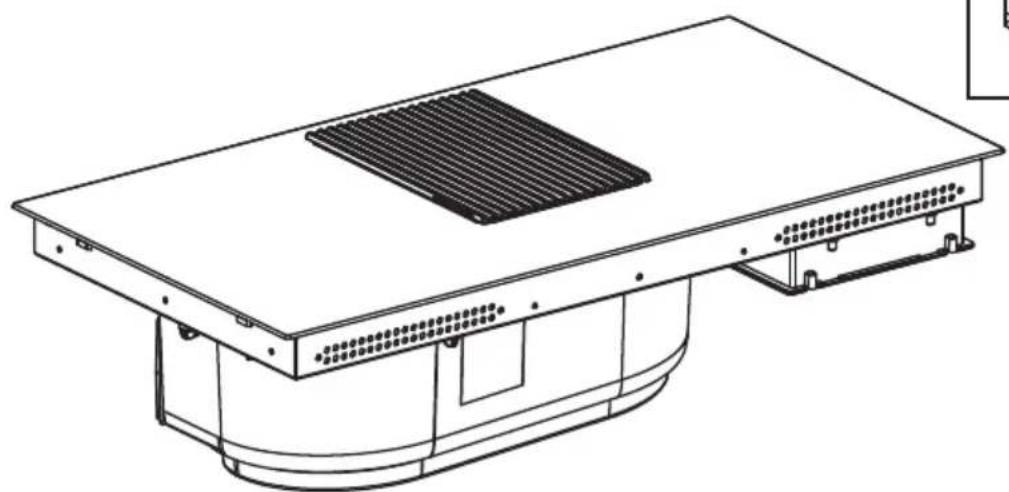

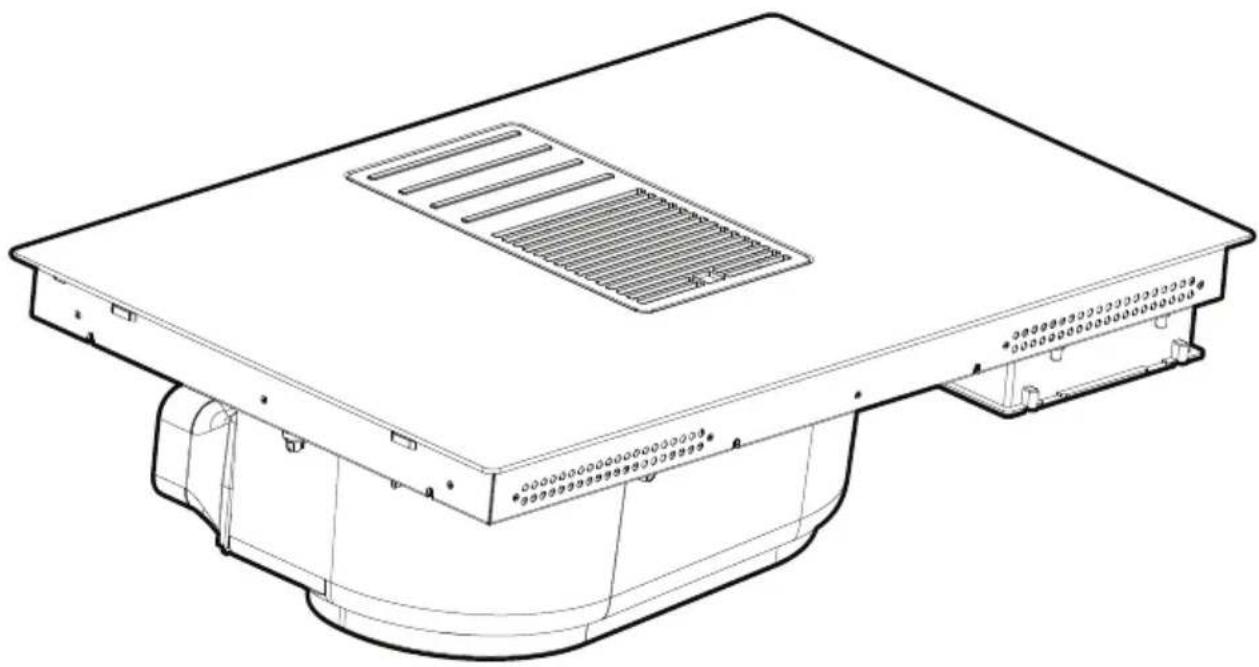

Technical line drawing of a mechanical component with ventilation grating and mounting brackets (no text or symbols)

Simple line drawing of a rectangular object with a 1x label below (no text or symbols on the object itself)

Line drawing of a 3D rectangular prism with a curved cutout, labeled '4x' (no text or symbols on the diagram itself)

Simple line drawing of a 3D rectangular prism with no text or symbols

2x

Technical line drawing of a mechanical structure with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

3x

1x

Simple line drawing of a 3D rectangular prism with no text or symbols

Isometric line drawing of a 3D rectangular block with no text or symbols

Simple 3D rectangular block diagram with label '1x' on the left side (no other text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

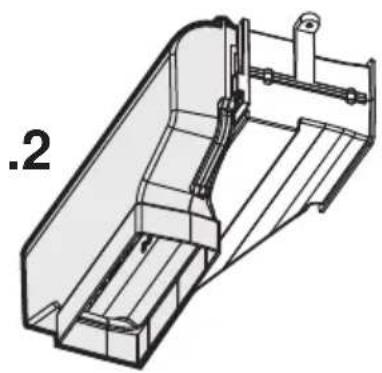

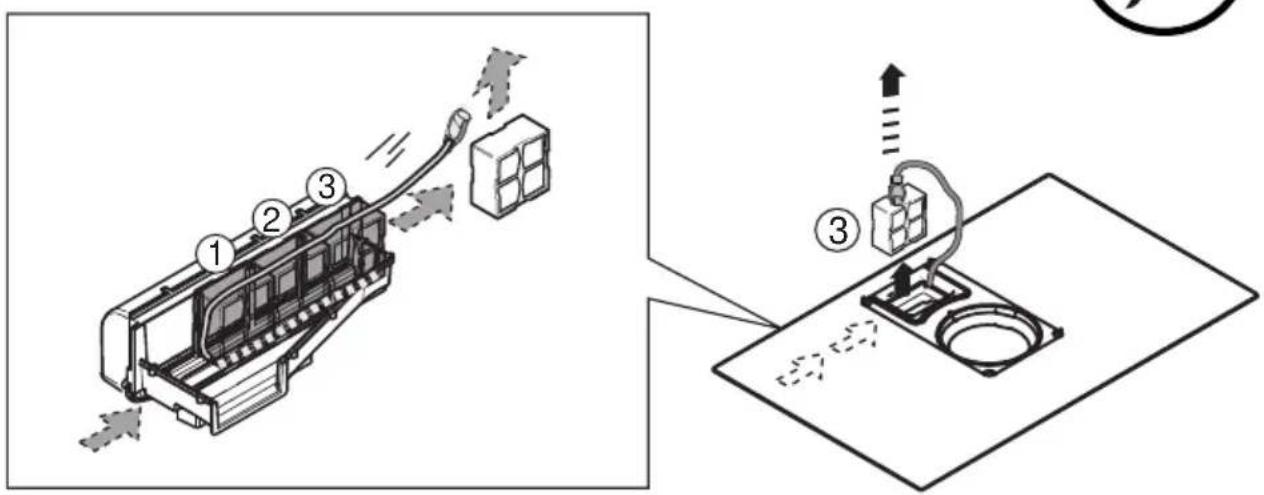

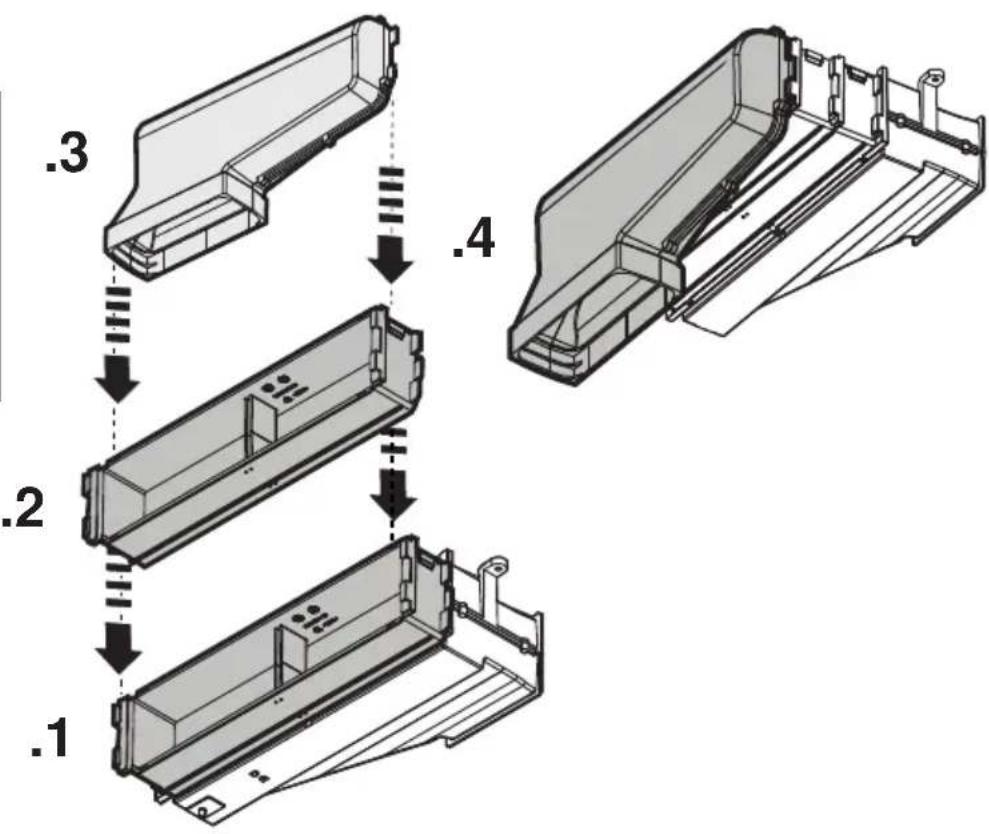

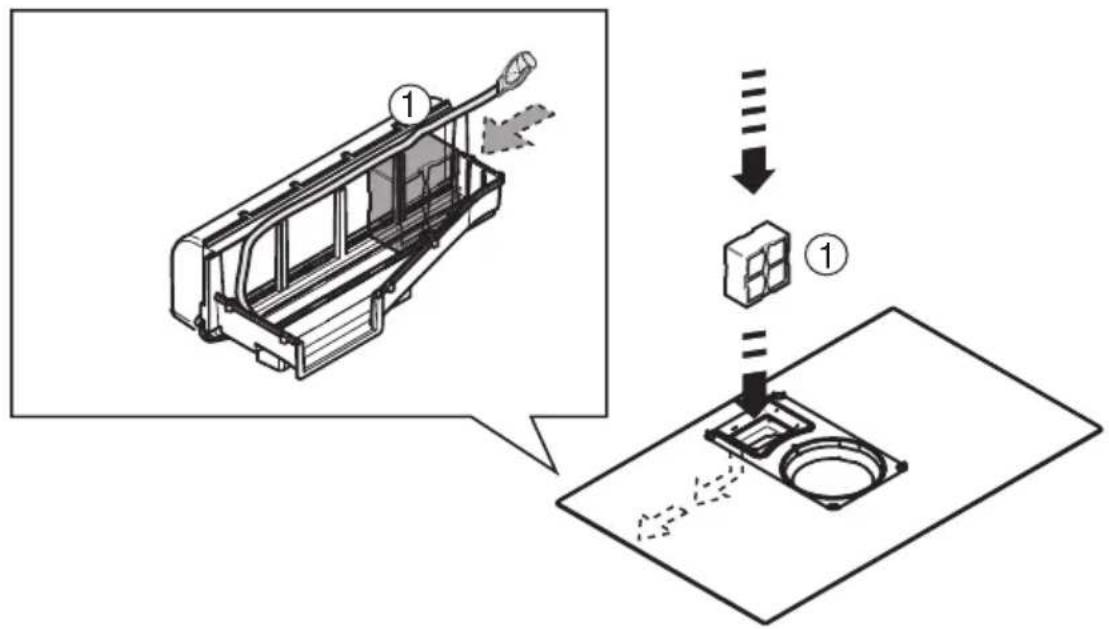

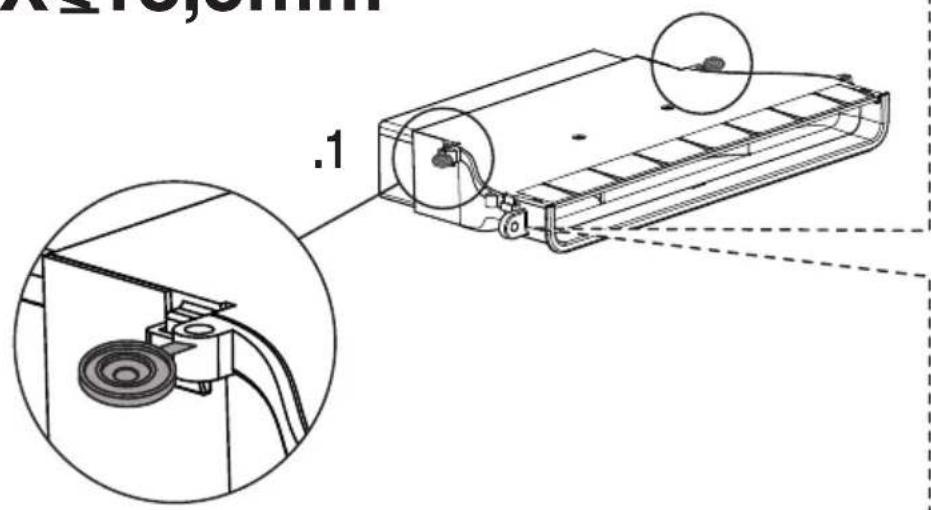

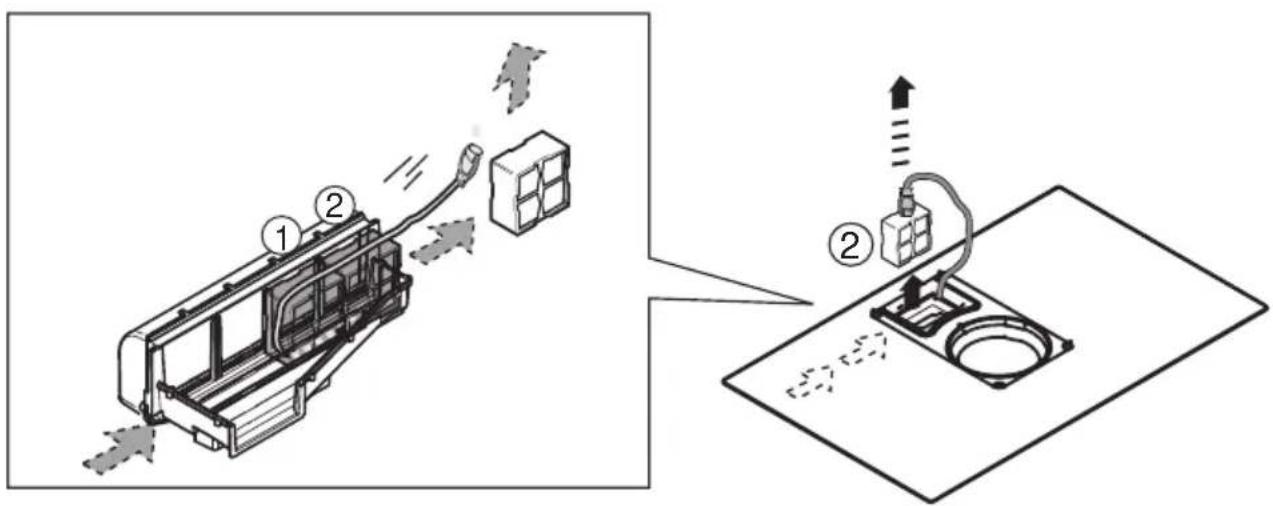

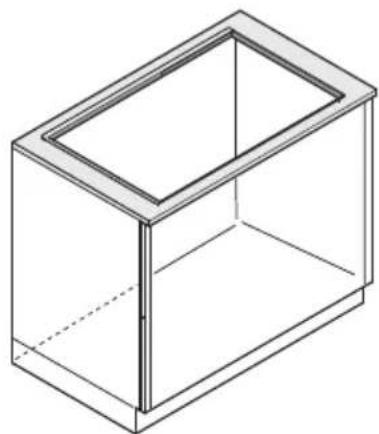

KIT WINDOW

OFF

Simple line drawing of a door with four windows and a sensor icon emitting sound waves (no text or symbols)

ON

Line drawing of an open door with a sound wave icon emitting sound waves (no text or symbols)

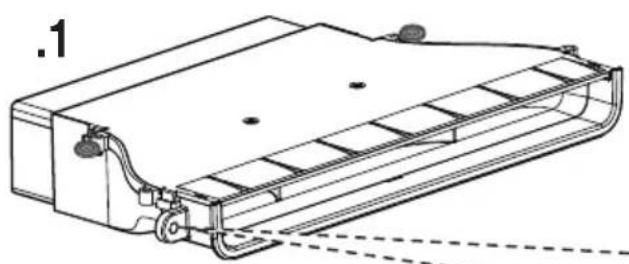

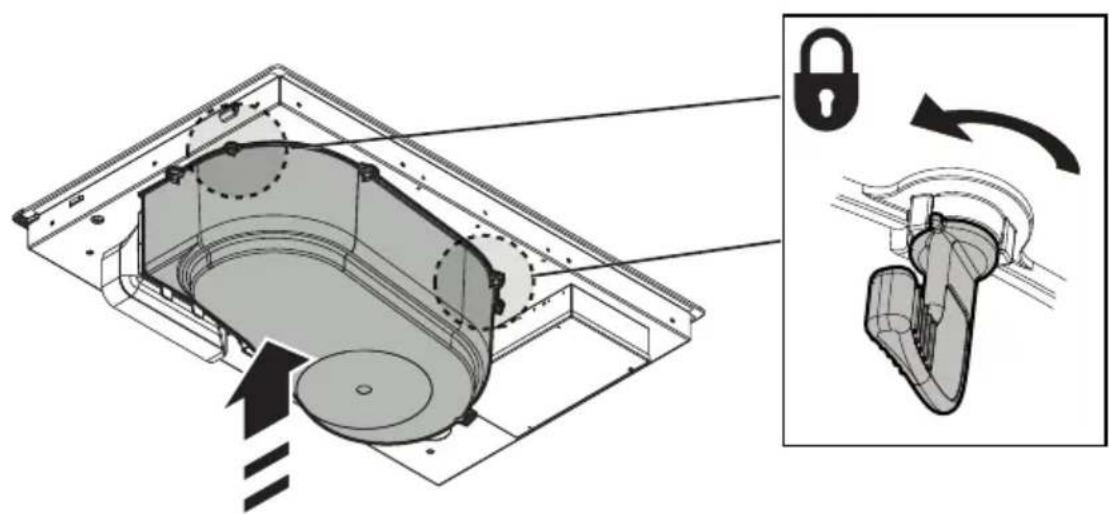

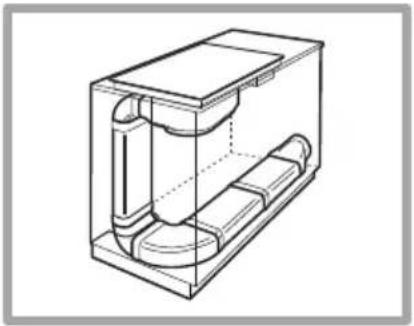

KIT WINDOW

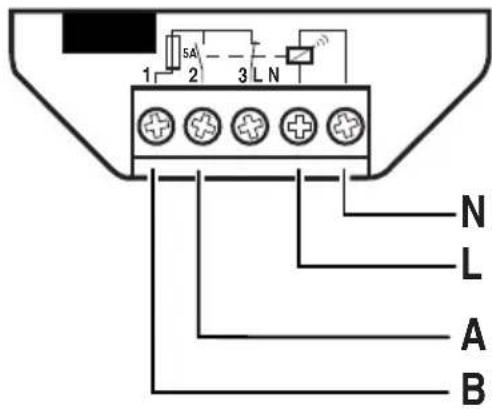

5A 1 2 3 L N N L A B

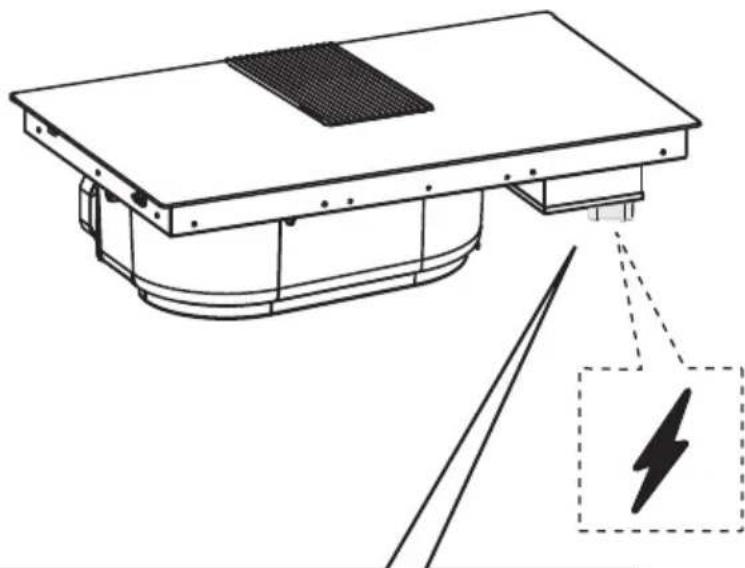

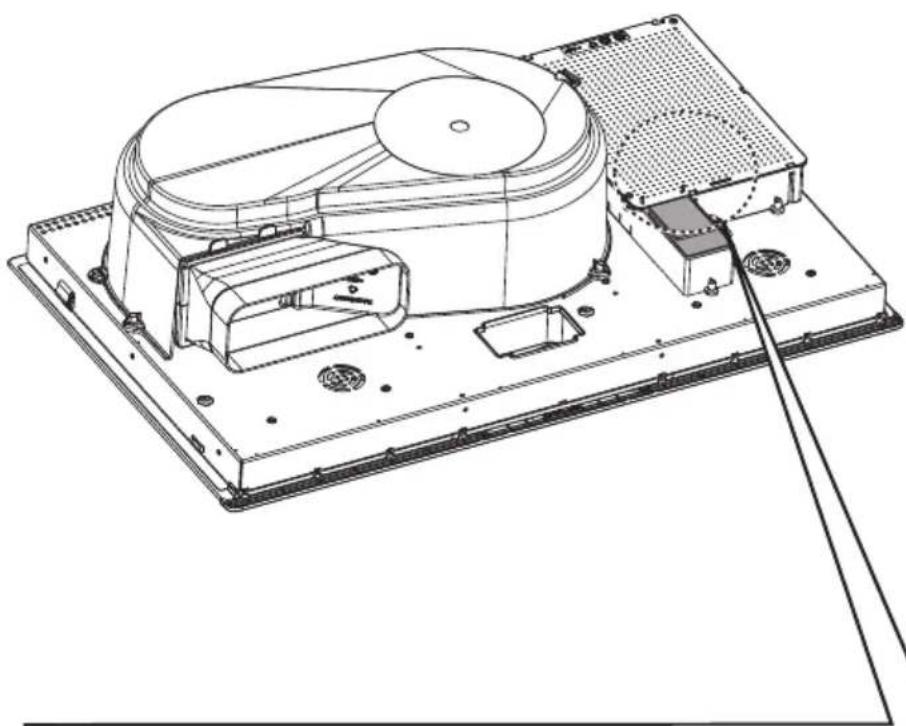

Technical line drawing of a mechanical assembly with a highlighted section showing a lightning bolt symbol (no text or labels present)

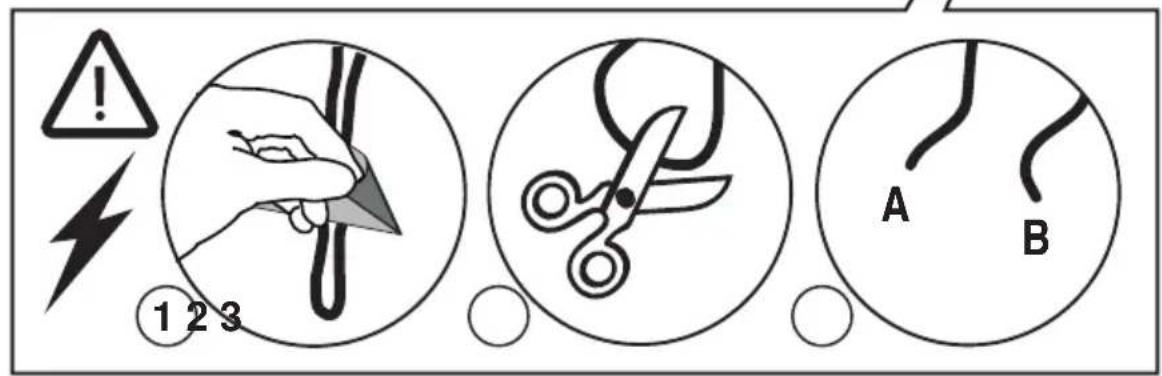

! 1 2 3 A B

Diagram showing a ruler and triangle with measurement markings, likely illustrating a mathematical or engineering concept.

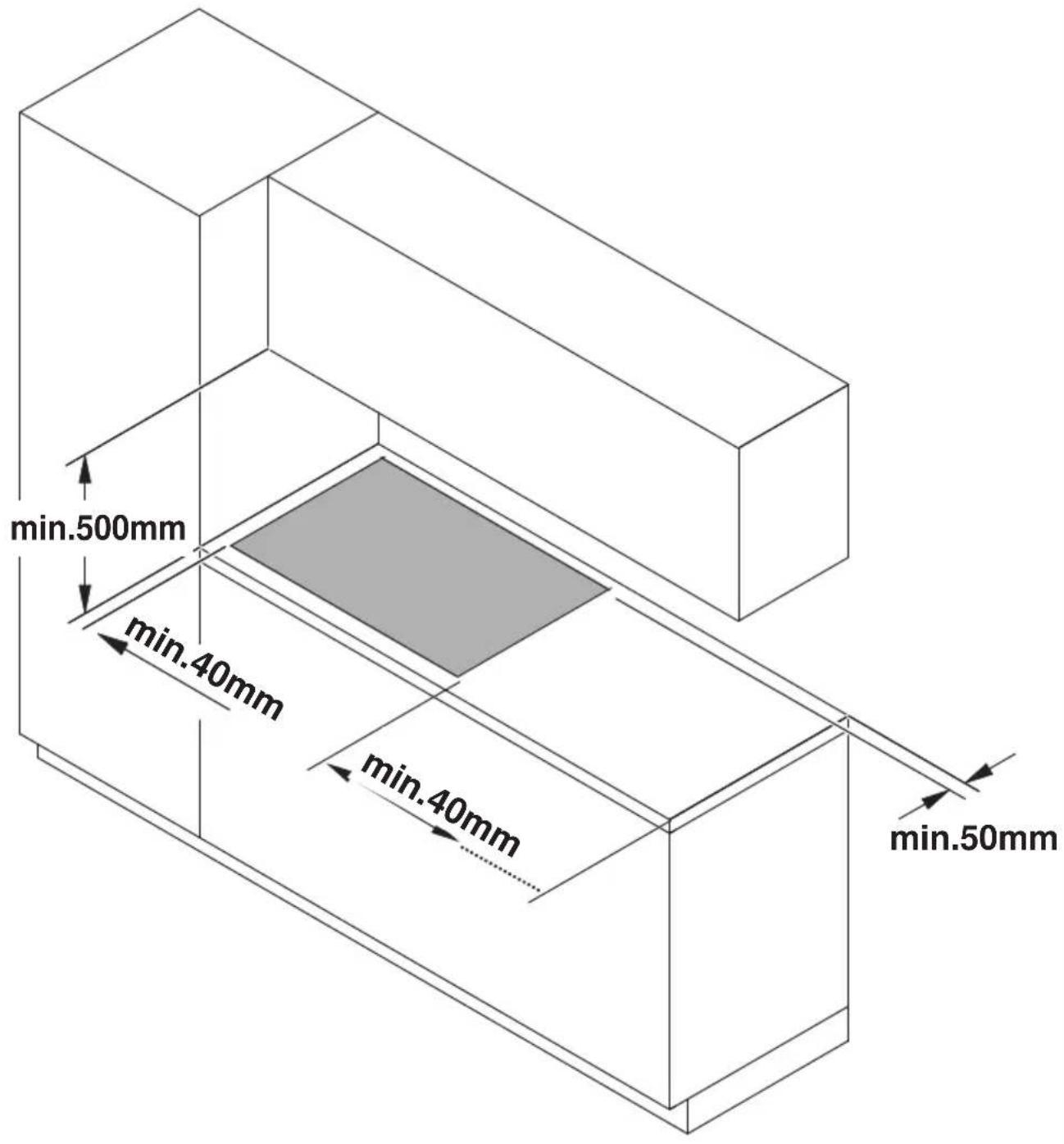

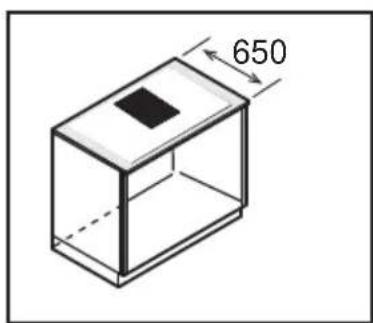

min.500mm min.40mm min.40mm min.50mm

Diagram showing a ruler and a separate ruler with measurement markings

P 1 x 2,8 m

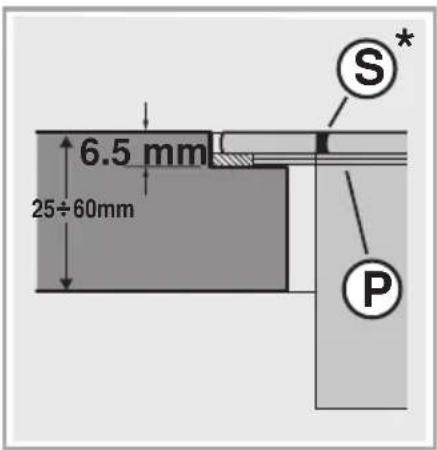

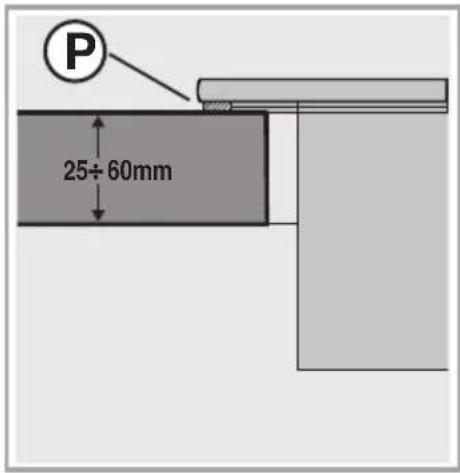

P 25÷60mm

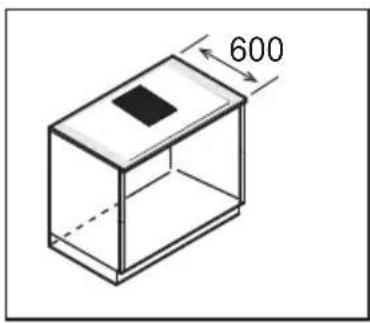

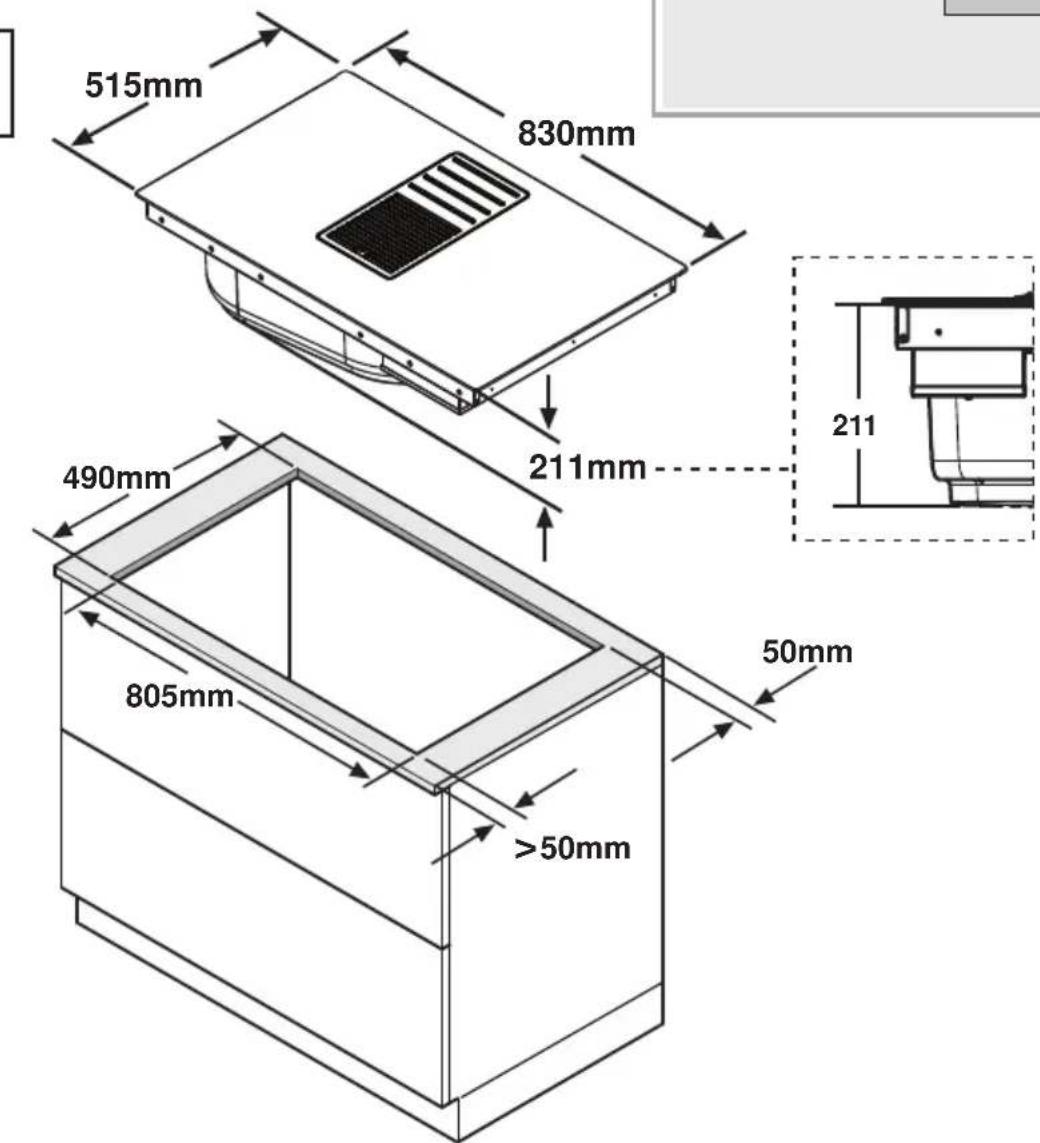

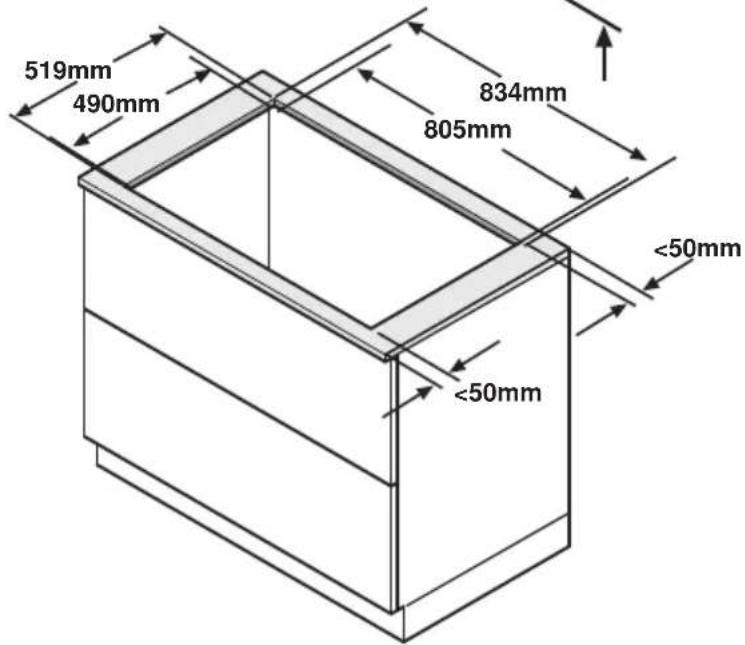

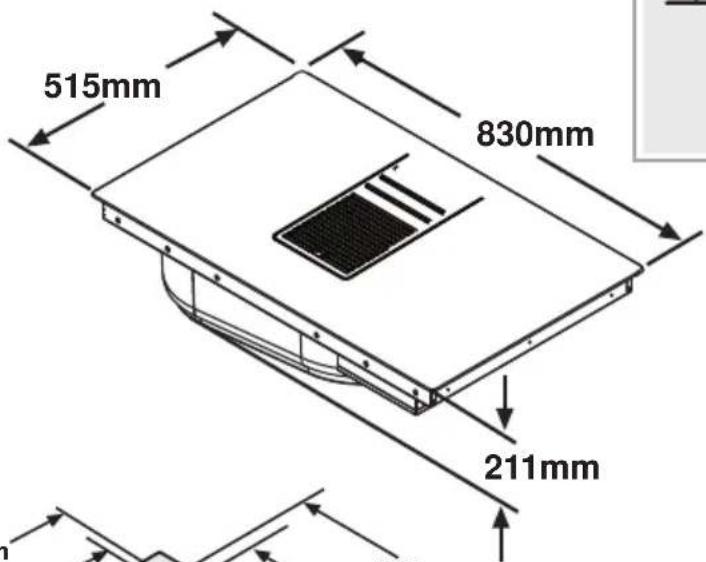

515mm 830mm 211mm 490mm 805mm >50mm 50mm 211

805mm > 50mm 490mm > 50mm

1A

*

P 1 x 2,8 m

6.5 mm 25÷60mm S* P

Diagram showing a ruler and triangle ruler with measurement markings

inst.B

515mm 830mm 211mm

519mm 490mm 834mm 805mm <50mm <50mm

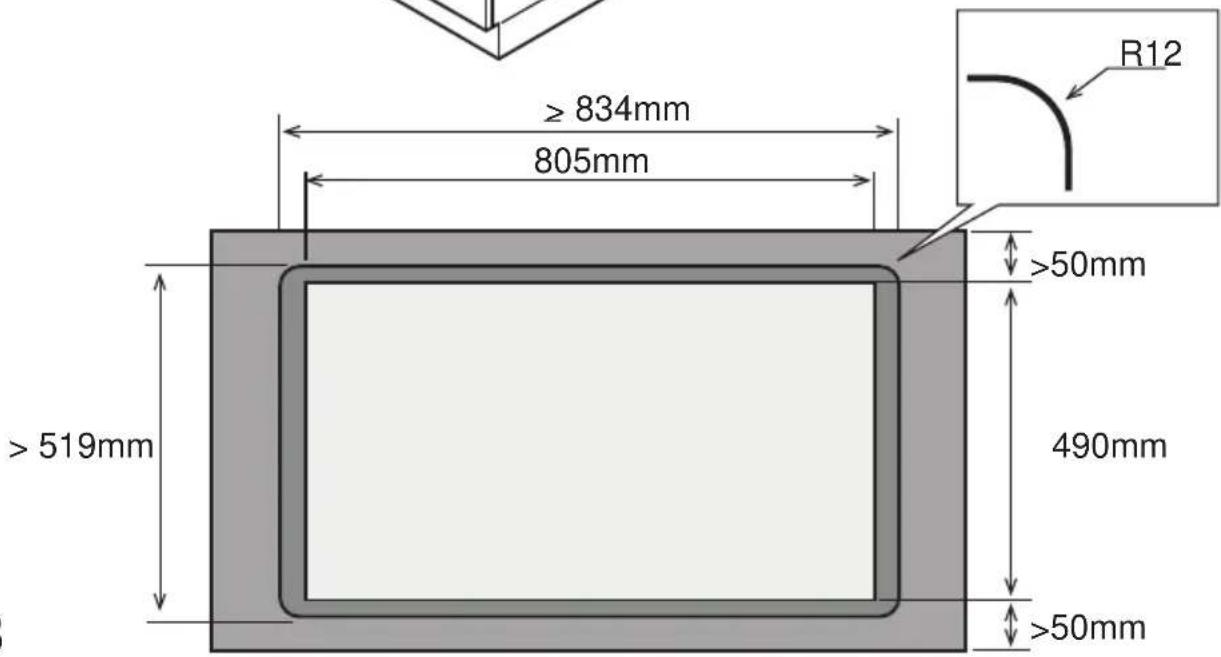

≥ 834mm 805mm R12 >50mm >519mm 490mm >50mm

1B

inst.A

Diagram of a boat's interior with a vehicle and a roof, showing airflow direction (no text or symbols)

Diagram of a wooden plank with diagonal bracing and an arrow indicating direction (no text or symbols)

Illustration of hands holding a bundle of cylindrical objects, with an arrow pointing to one (no text or symbols)

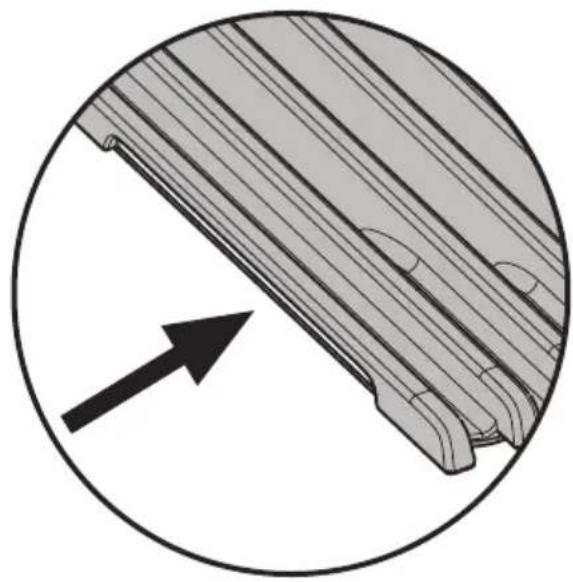

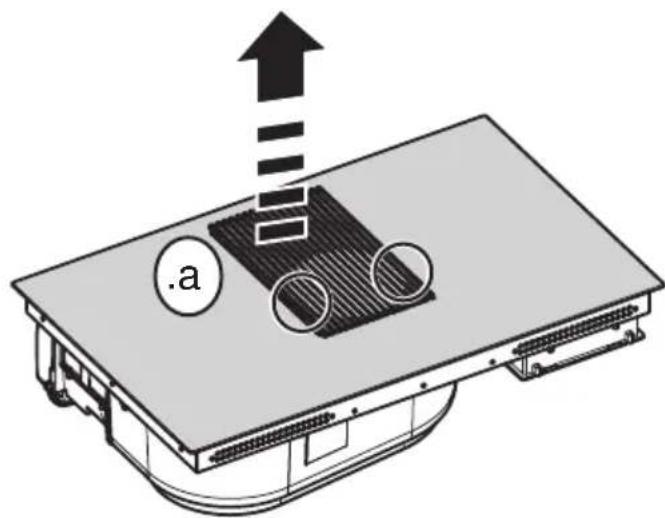

.a .b

.a .b

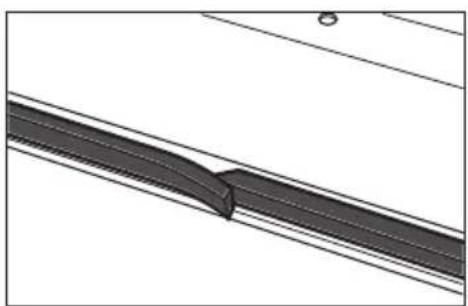

2

inst.A

Technical illustration of a computer monitor module with internal components and directional arrows indicating assembly (no text or symbols)

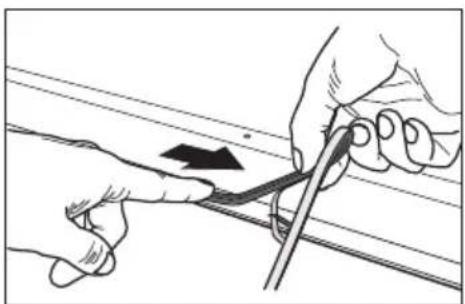

Illustration of hands performing a procedure on a thin wire or fiber (no text or symbols visible)

Illustration of hands using a tool to tie or adjust a cable, with a black arrow indicating the direction (no text or symbols present)

Pure technical line drawing of a mechanical component or pipe connection (no text or symbols)

inst.B

Diagram showing a 3D box with an arrow pointing to its top, and a rectangular frame with directional arrows indicating flow or movement (no text or symbols present)

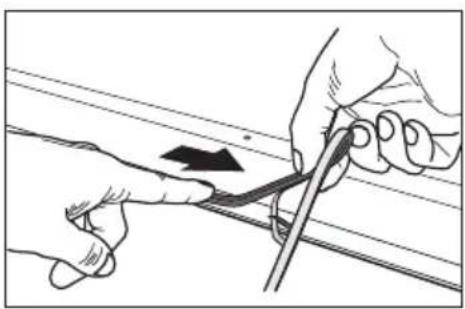

Illustration of hands tying a knot around a curved wire (no text or symbols)

Illustration of hands holding a cable with a pen, no text or symbols present

Pure diagram of a curved pipe or tube with diagonal lines and a circular end, no text or symbols present.

V-Hz

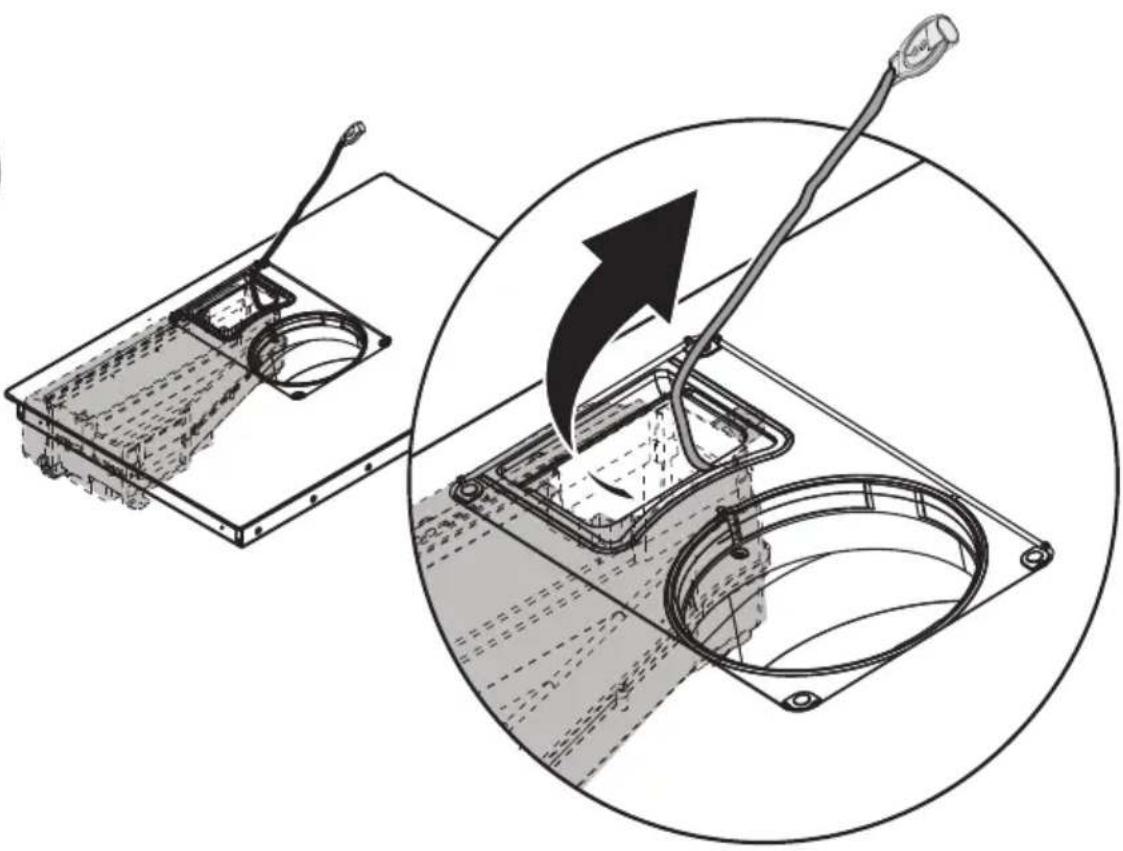

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

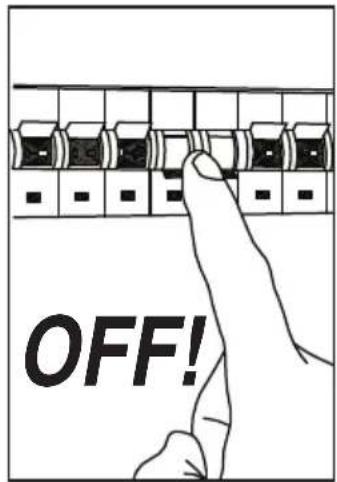

OFF!

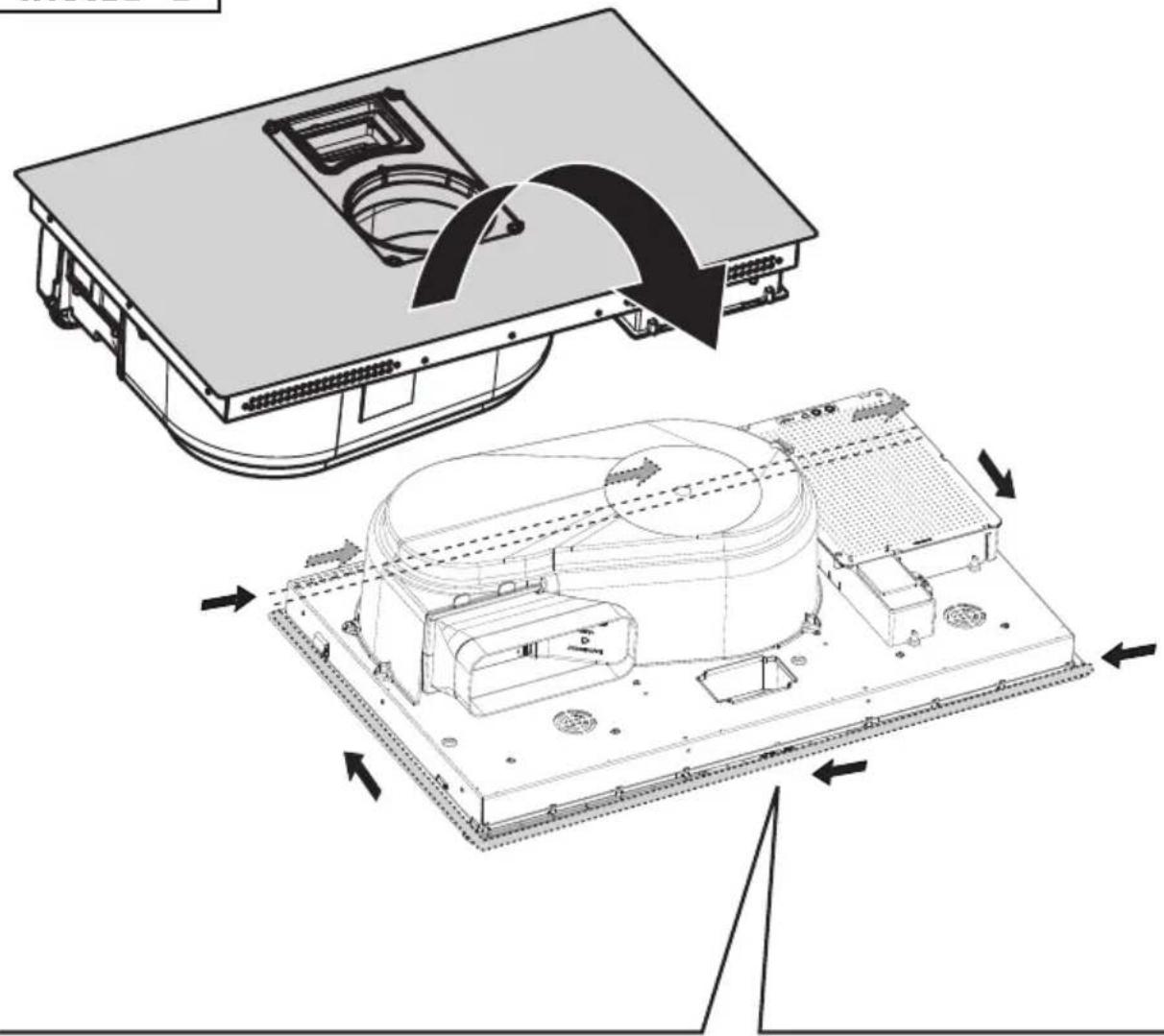

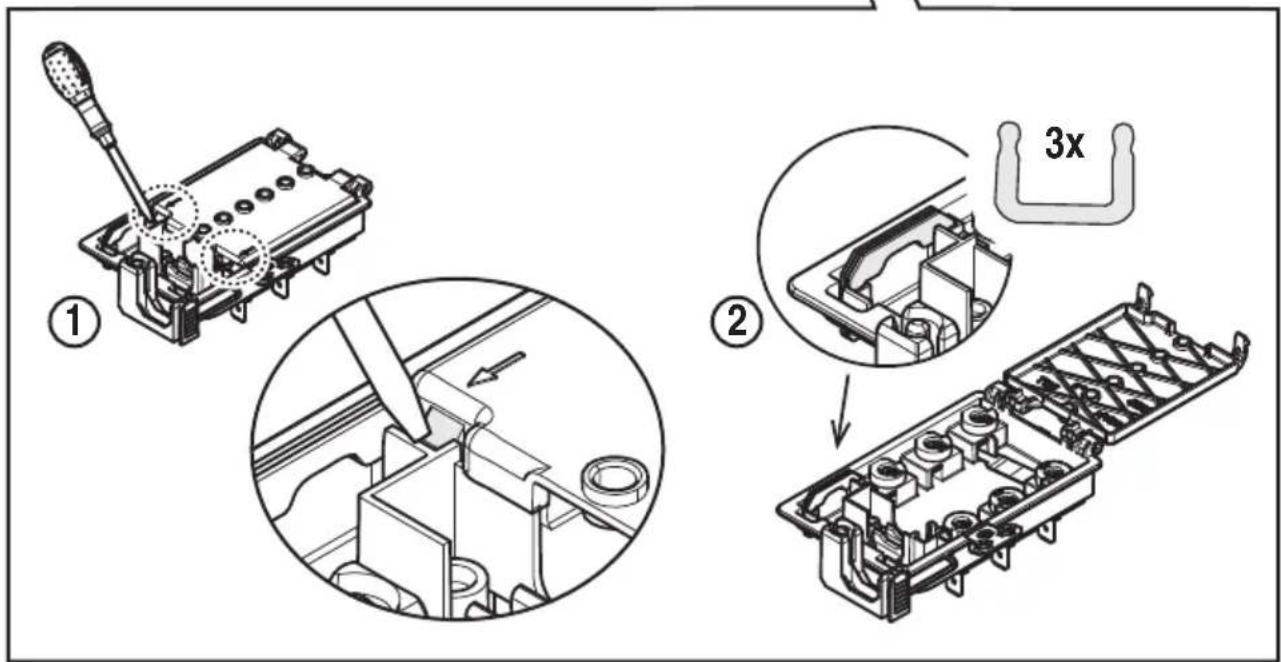

Technical diagram showing mechanical assembly steps with numbered instructions and magnified views

V-Hz

220V-240V \~ 50Hz/60Hz

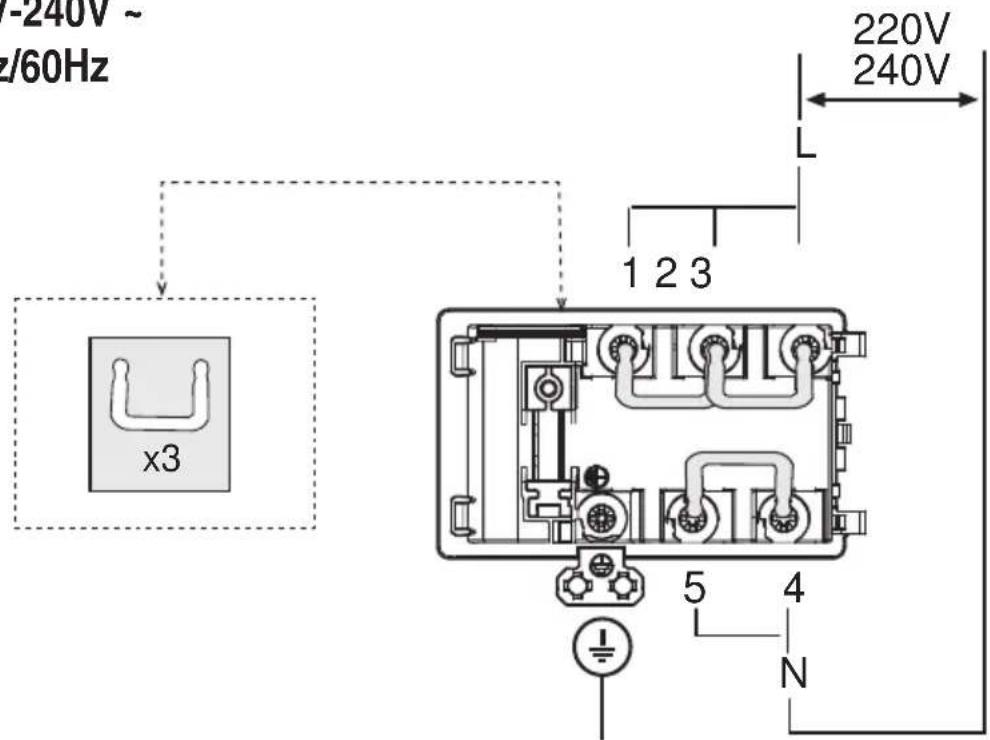

240V ~ z/60Hz 220V 240V L 1 2 3 x3 5 4 N

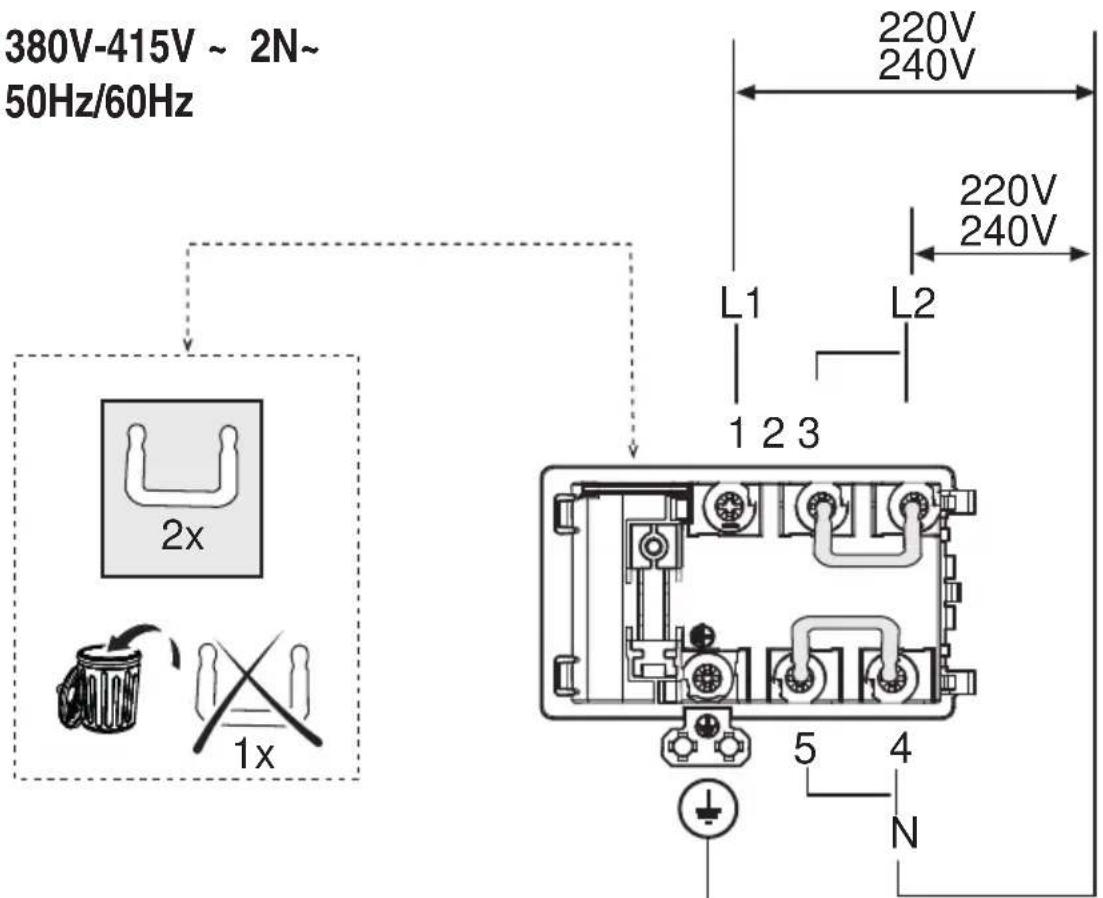

380V-415V \~ 2N\~ 50Hz/60Hz

380V-415V ~ 2N~ 50Hz/60Hz 220V 240V 220V 240V L1 L2 2x 1x 1 2 3 5 4 N

3A

V-Hz

380V-415V \~ 3N\~50Hz/60Hz

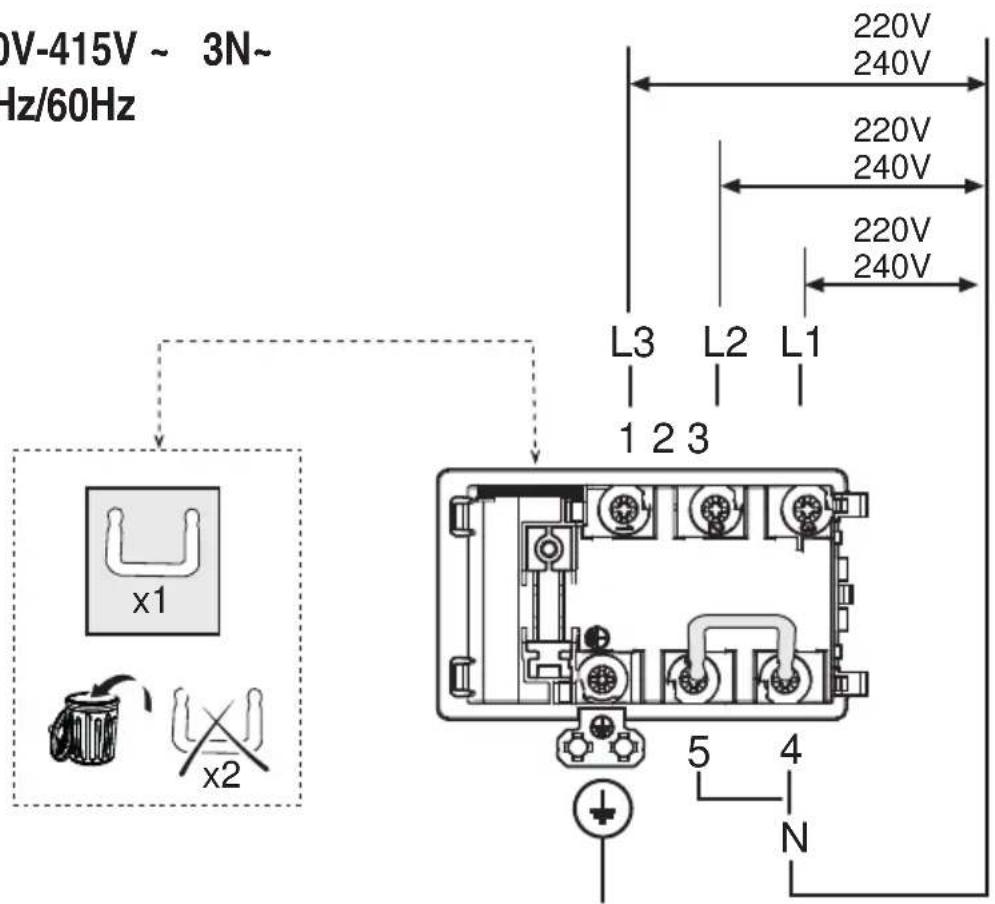

20V-415V ~ 3N~ Hz/60Hz L3 L2 L1 1 2 3 x1 x2 220V 240V 220V 240V 220V 240V 5 4 N

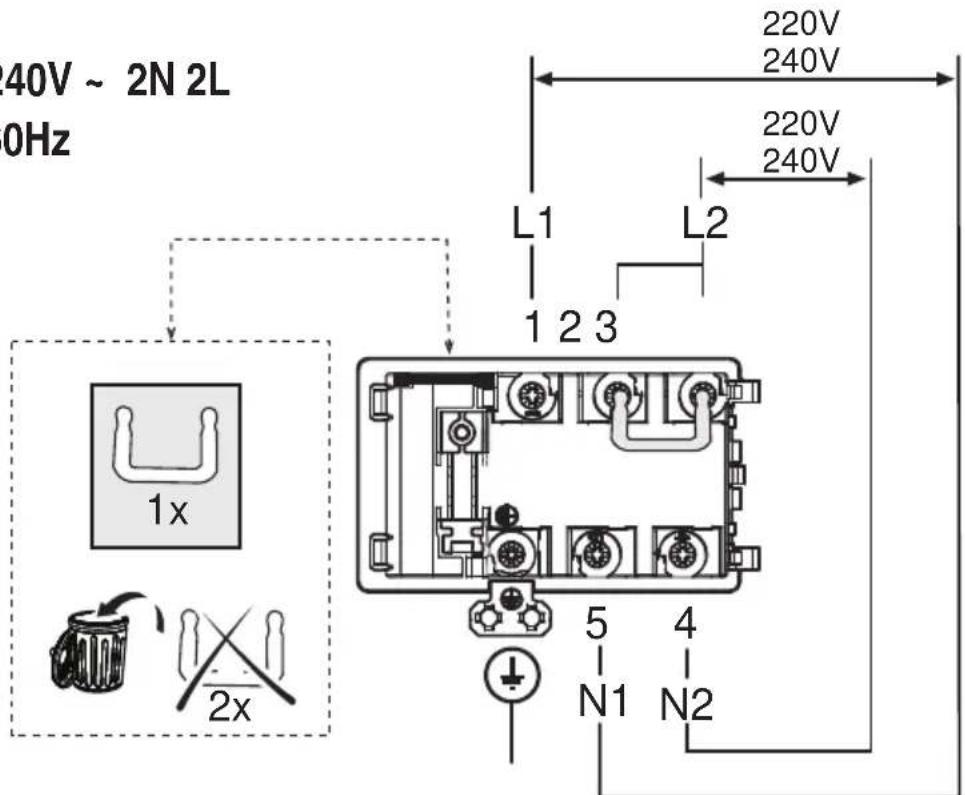

220V-240V \~ 2N 2L 50Hz/60Hz

40V ~ 2N 2L 0Hz L1 1 2 3 L2 220V 240V 220V 240V 1x 2x 5 4 N1 N2

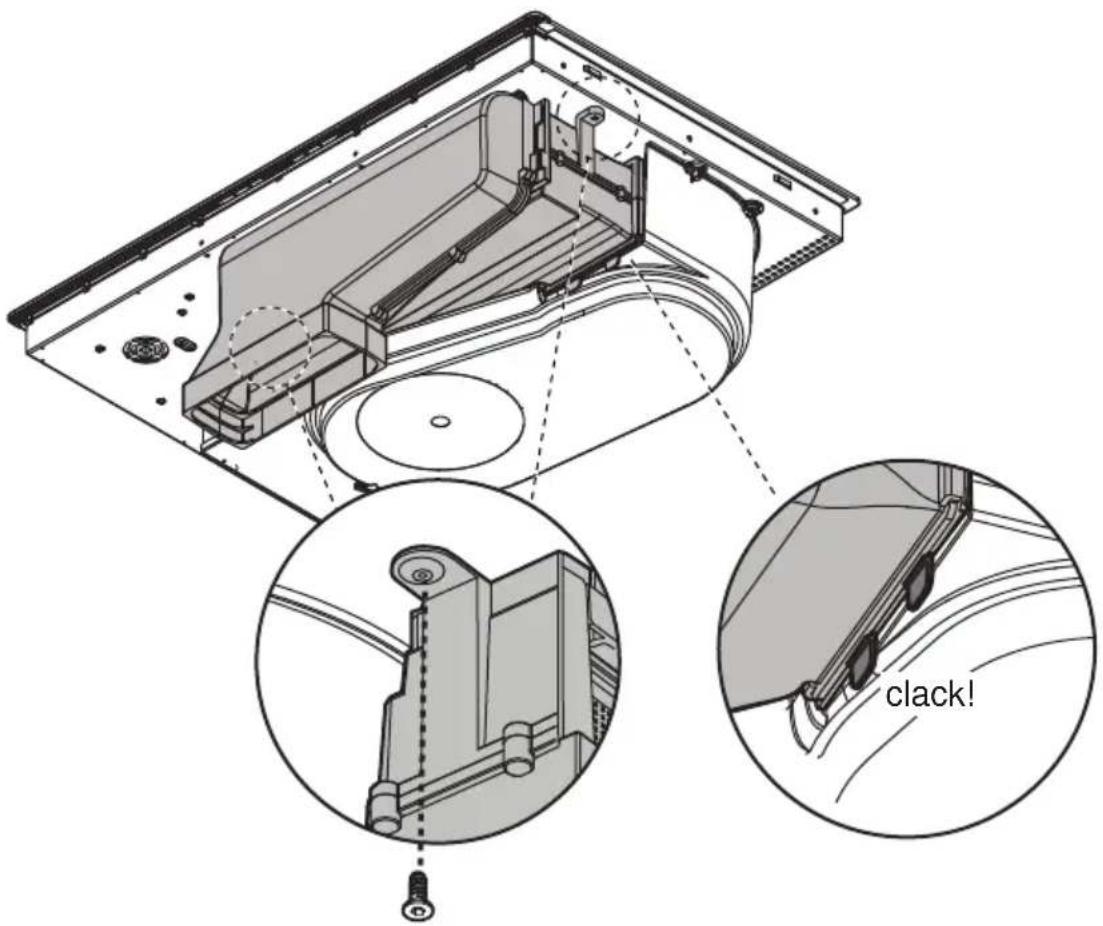

clack!

clack! clack!

3C

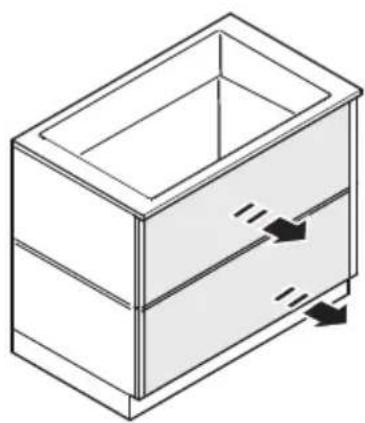

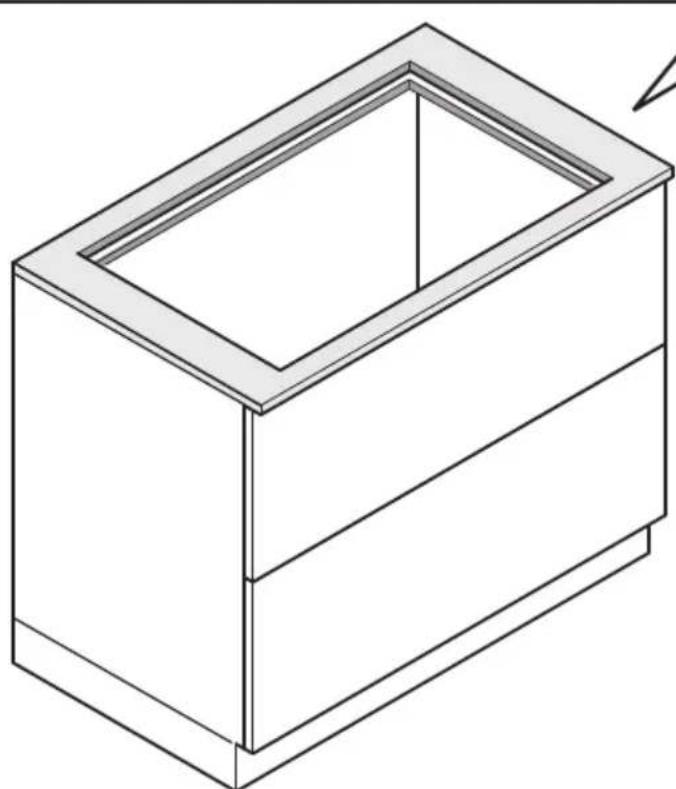

Isometric line drawing of a rectangular box with internal compartments and arrows indicating movement or force (no text or symbols)

Isometric line drawing of a rectangular container with a recessed top (no text or symbols)

OK!

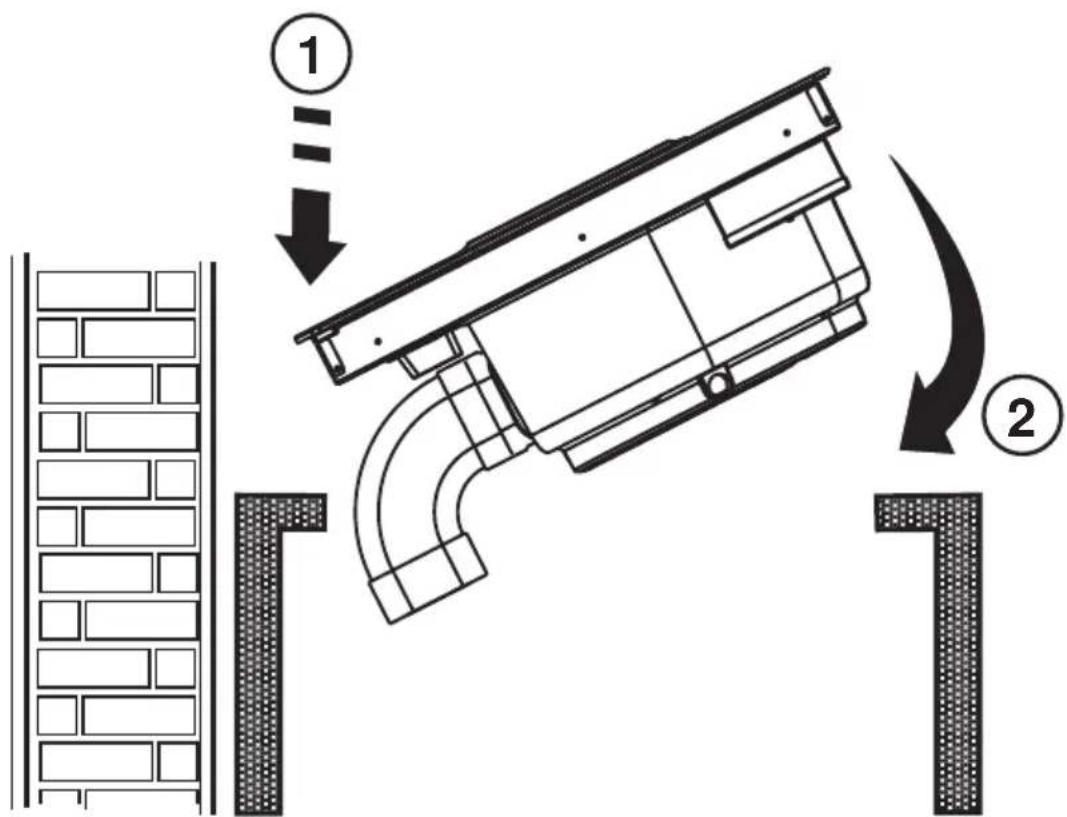

4

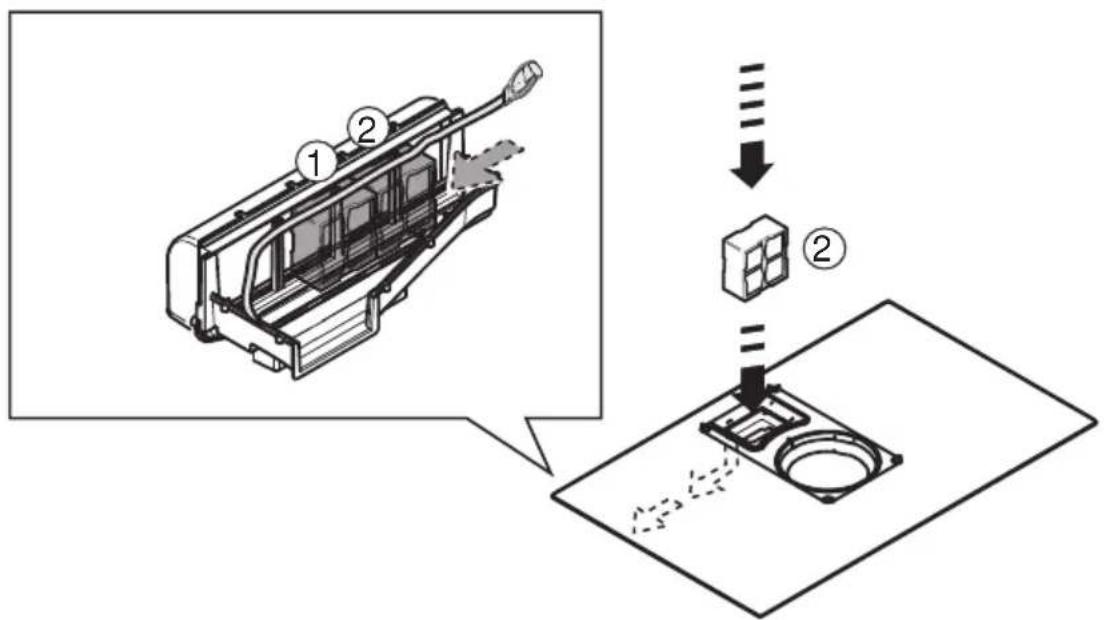

Technical diagram showing assembly of a device with labeled components and directional arrows, including a magnified view of the device's internal structure.

5

inst.B

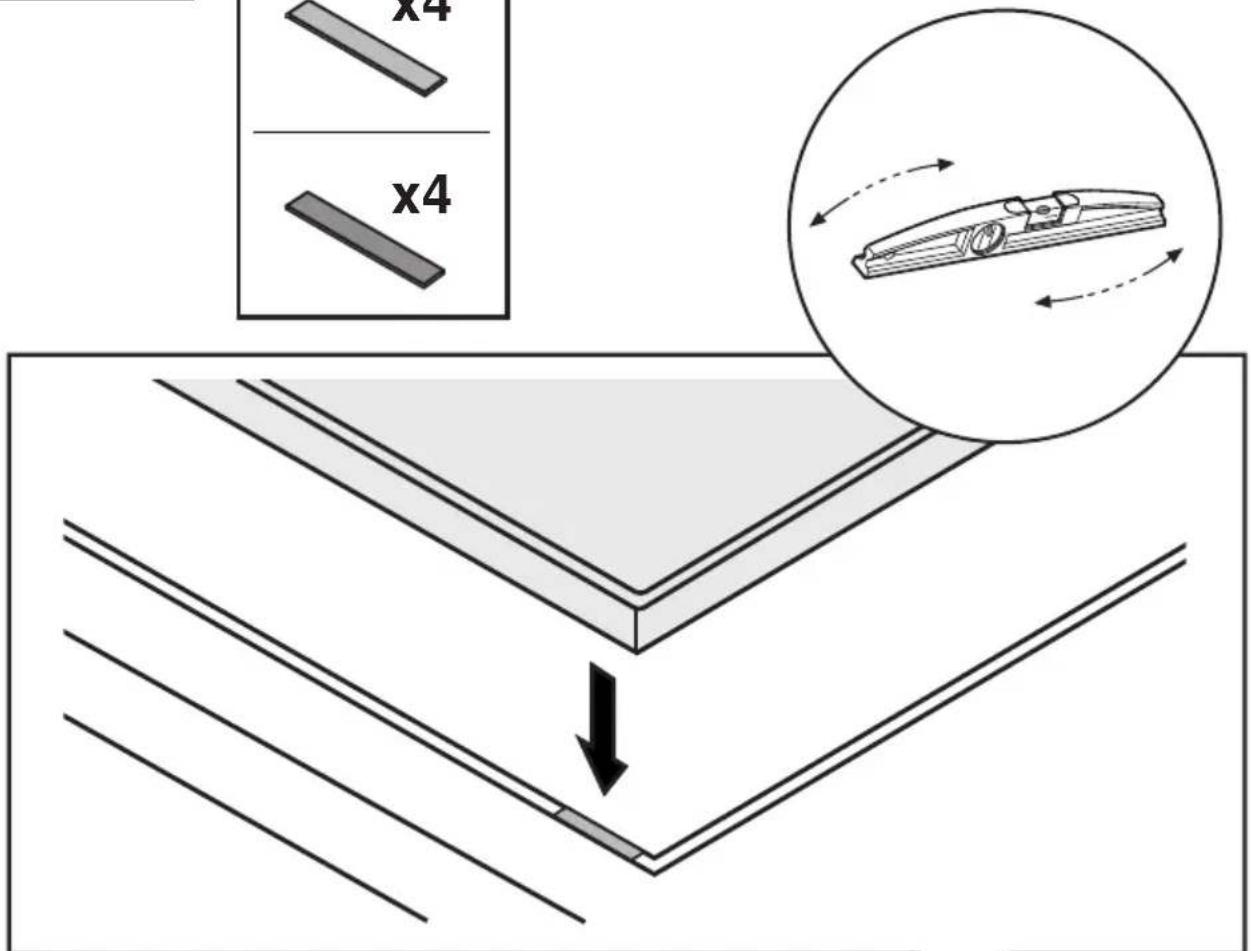

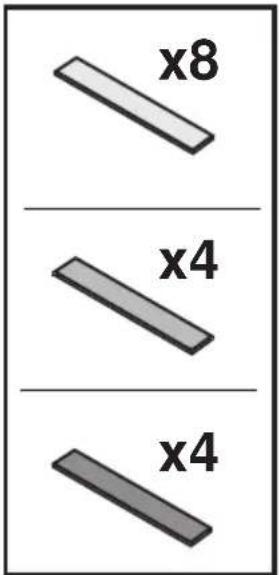

x8 x4 x4

x4 x4

Isometric line drawing of a rectangular box with a recessed top frame (no text or symbols)

Technical line drawing of a mechanical component with internal channels and housing (no text or symbols)

KIT0121007

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

KIT0120996

Technical line drawing of a mechanical device with a cylindrical component inserted into a housing (no text or symbols)

KIT0121000

Simple line drawing of a mechanical component with threaded base and rectangular body, enclosed in a circular frame (no text or symbols)

227x94 - ∅146mm

Simple line drawing of a cylinder inside a circular frame (no text or symbols)

∅150x500mm

Simple 3D illustration of a cylinder inside a circular frame (no text or symbols)

∅150x1000mm

KIT0121003

Simple line drawing of a cylindrical object inside a circular frame (no text or symbols)

∅158x59mm

KIT0121006

Simple line drawing of a 3D cylindrical object inside a circular frame (no text or symbols)

90°

KIT0120991

Simple 3D illustration of a rectangular block inside a circular frame (no text or symbols)

222x89x1000mm

KIT0121001

Simple line drawing of a rectangular box with a handle and two dots, enclosed in a circular frame (no text or symbols)

227x94x80mm

KIT0121004

Simple 3D geometric shape resembling a bent pipe or elbow, enclosed in a circular frame (no text or symbols)

90° 227x288x94mm

KIT0121005

Simple line drawing of a rectangular object inside a circular frame (no text or symbols)

90° 227x94mm

KIT0121008

Simple line drawing of a pipe fitting inside a circular frame (no text or symbols)

227x94 - ∅153mm

KIT0121010

Simple line drawing of a vent with airflow or ventilation duct (no text or symbols)

190x190 - ∅147mm

KIT0121009

Simple line drawing of a vent or airflow system inside a circular frame (no text or symbols)

INT 216X82mm
EXT 290X160mm

www.elica.com
www.shop.elica.com

KIT0121002

Simple line drawing of a rectangular object with curved edges, enclosed in a circular frame (no text or symbols)

15° - 227x94mm

KIT0126810

Simple line drawing of a rolled-up rectangular object with a central pile, enclosed in a circular frame (no text or symbols)

227x94mm

Diagram showing a ruler and triangle ruler with partial text labels on the left side.

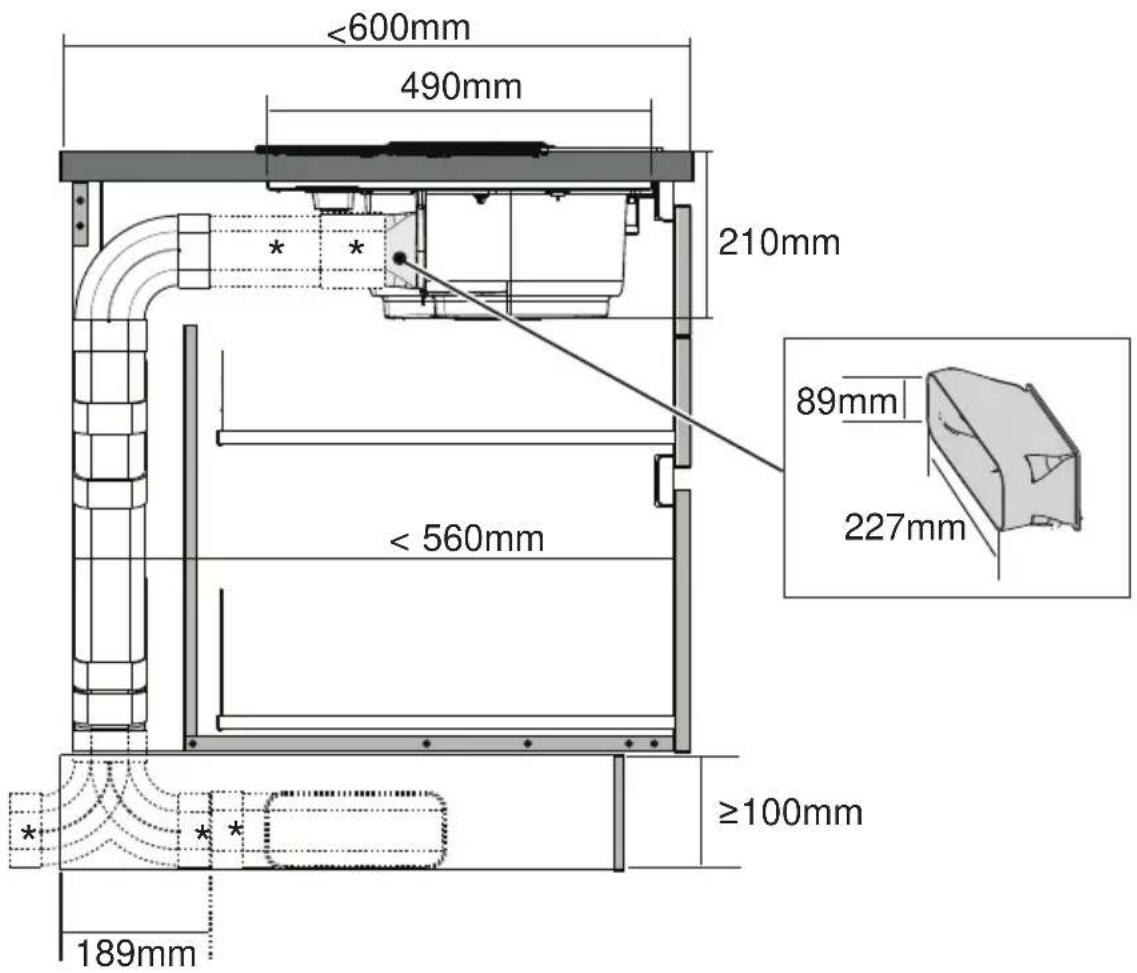

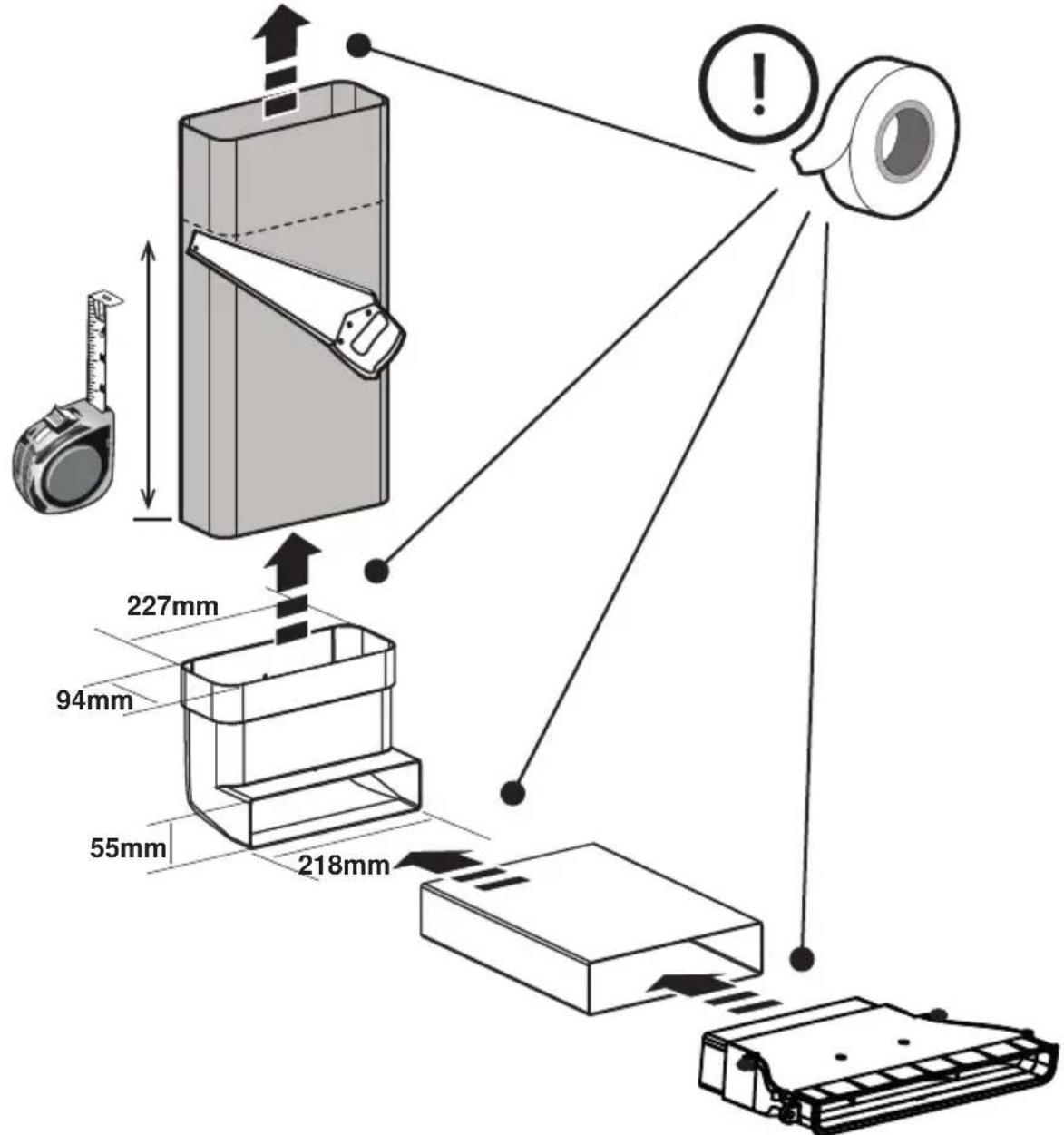

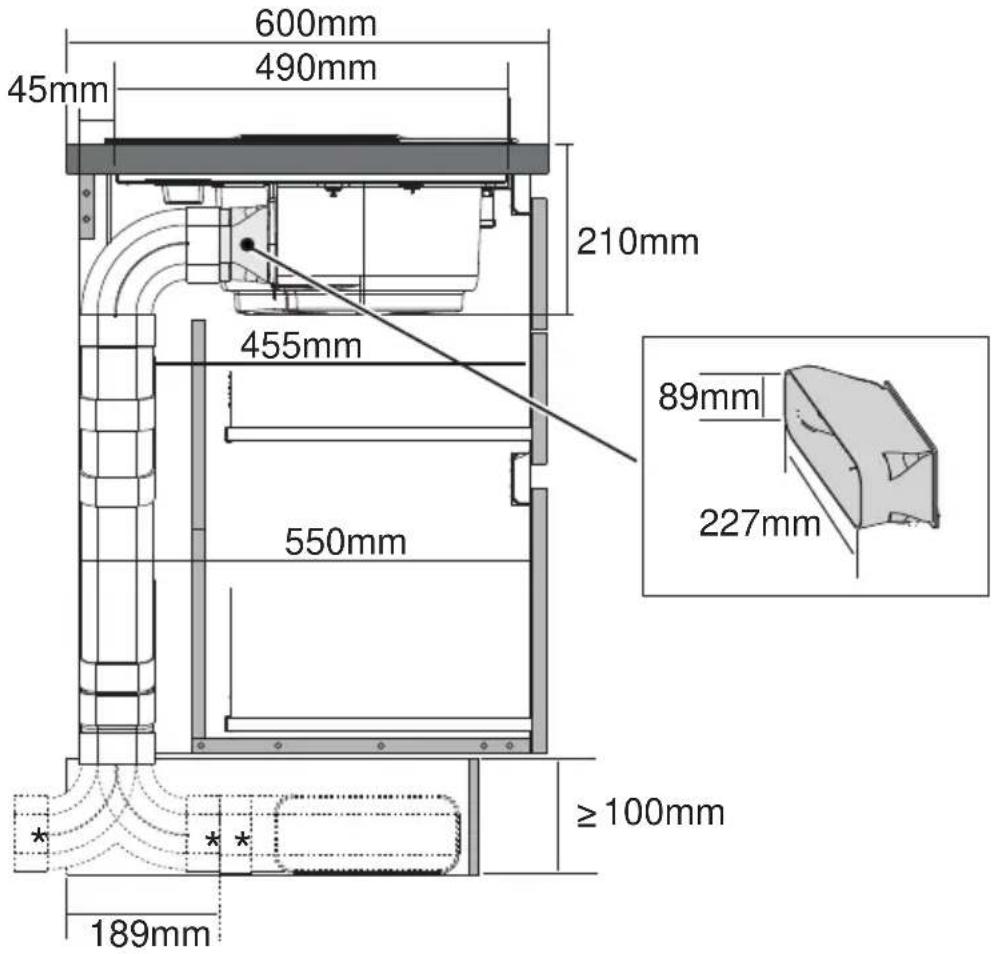

600mm 490mm 45mm 210mm 455mm 89mm 227mm 550mm ≥100mm 189mm

<600mm 490mm 210mm < 560mm 89mm 227mm ≥100mm 189mm

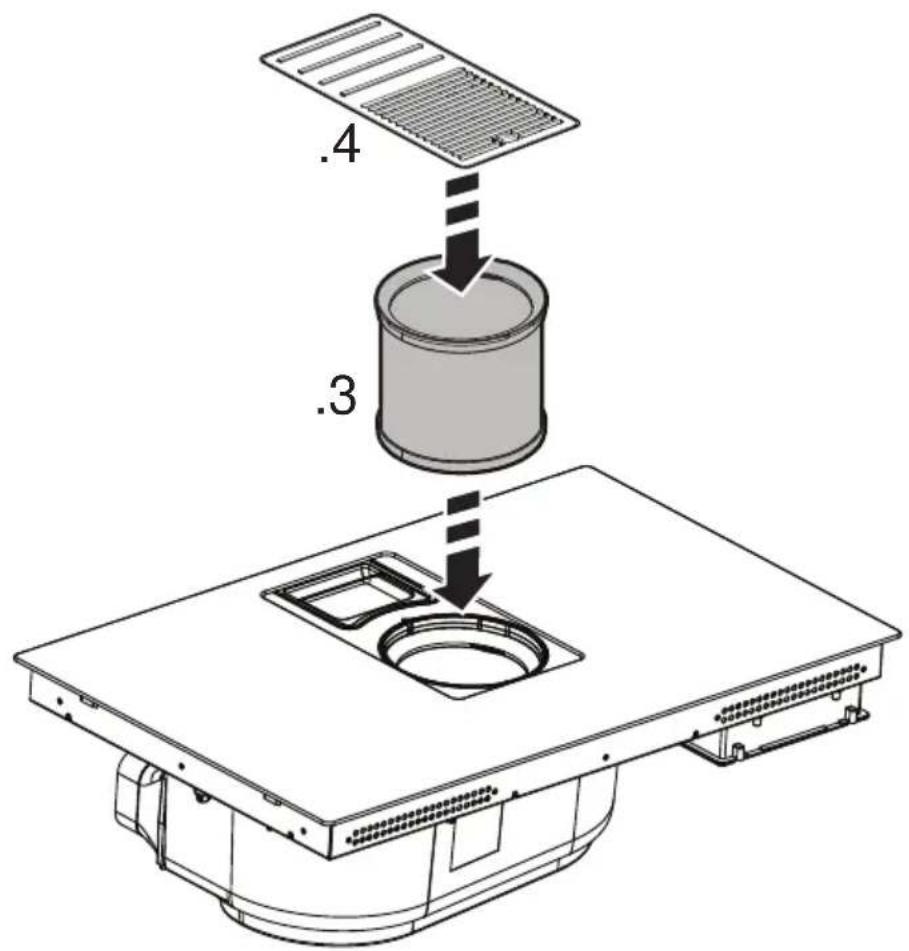

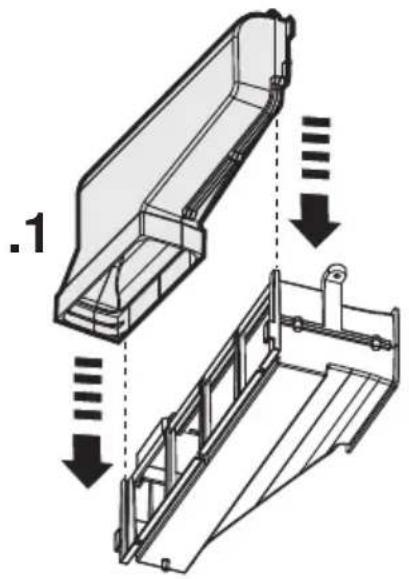

AC019807 AC019807 .1 AC019807 .2 CLACK! CLACK!

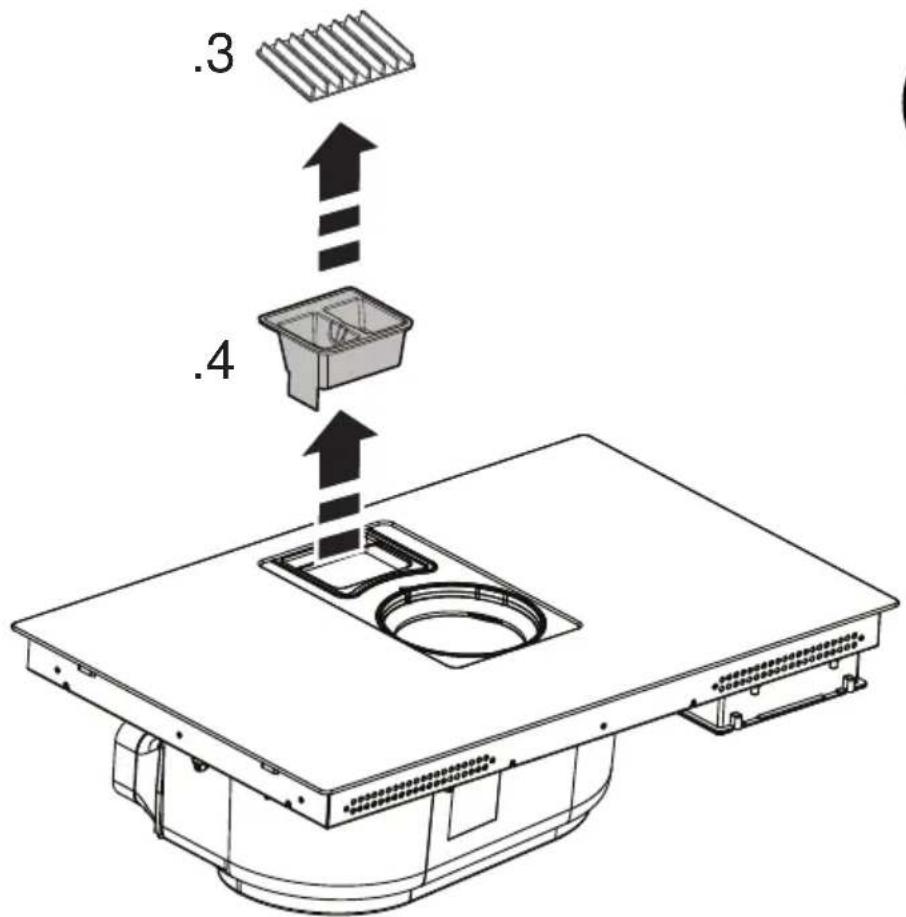

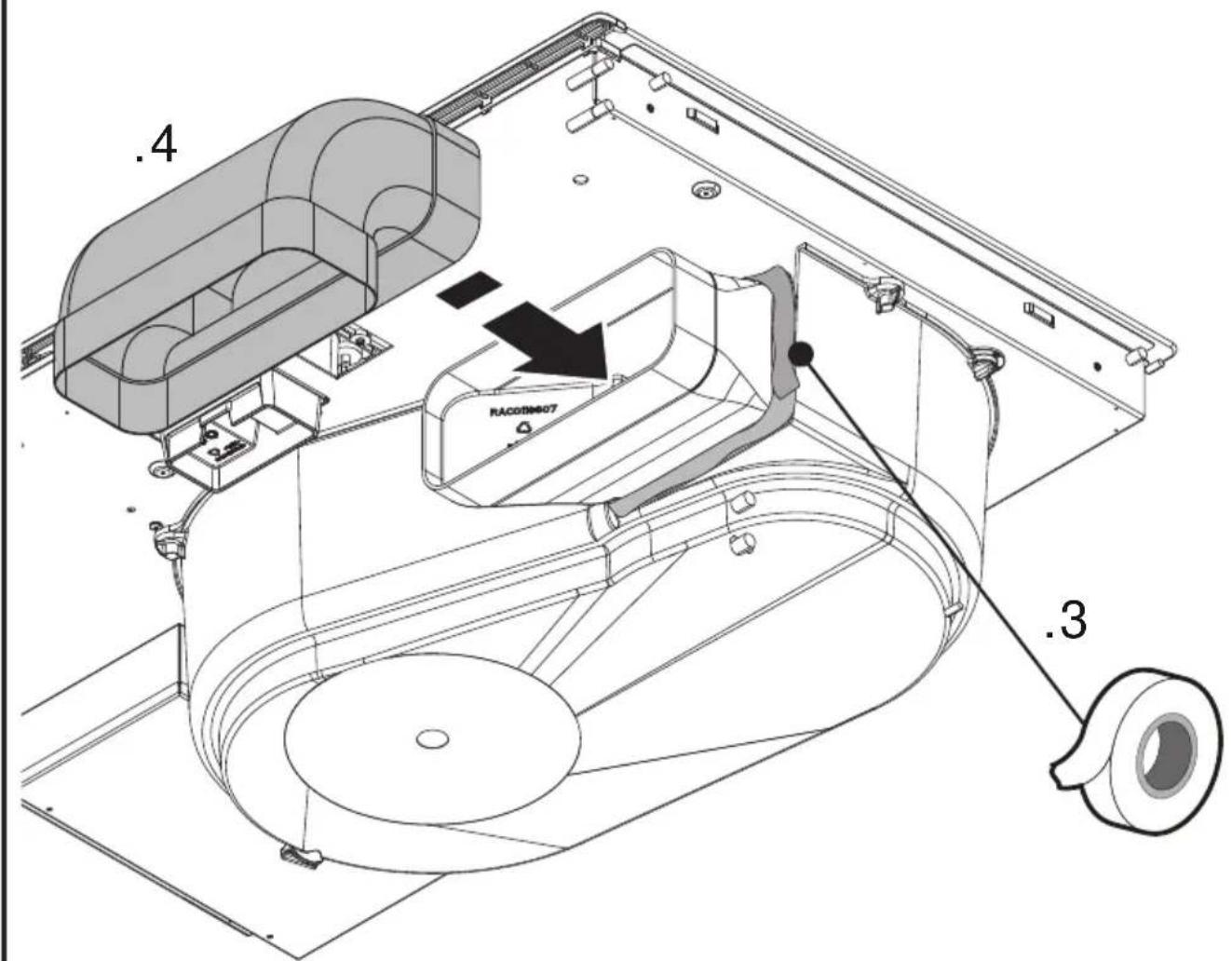

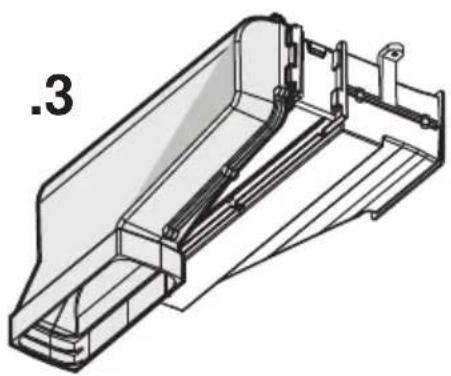

.4 RACODIN007 .3

9

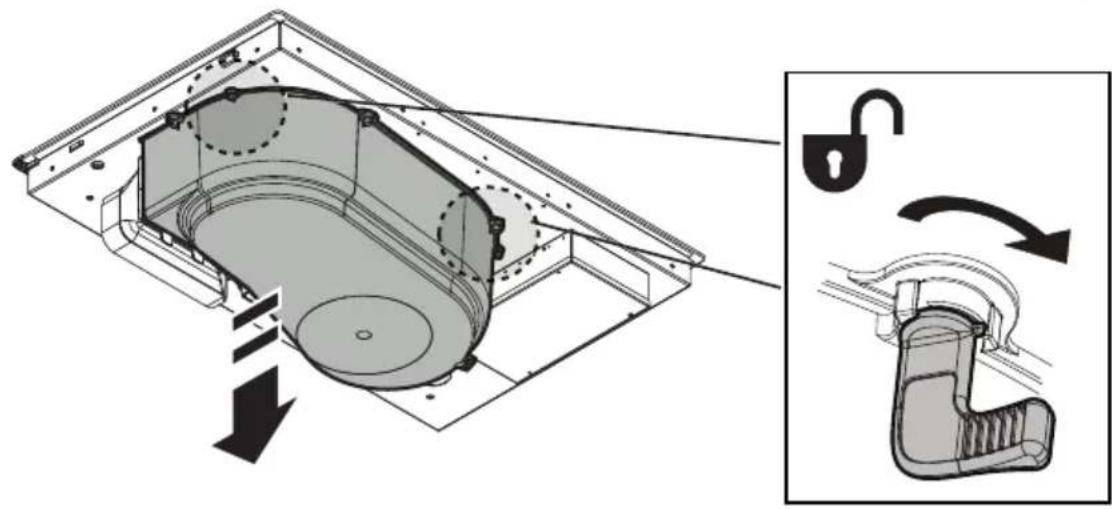

Diagram illustrating a security camera mechanism with labeled components and directional arrows indicating movement.

9.1

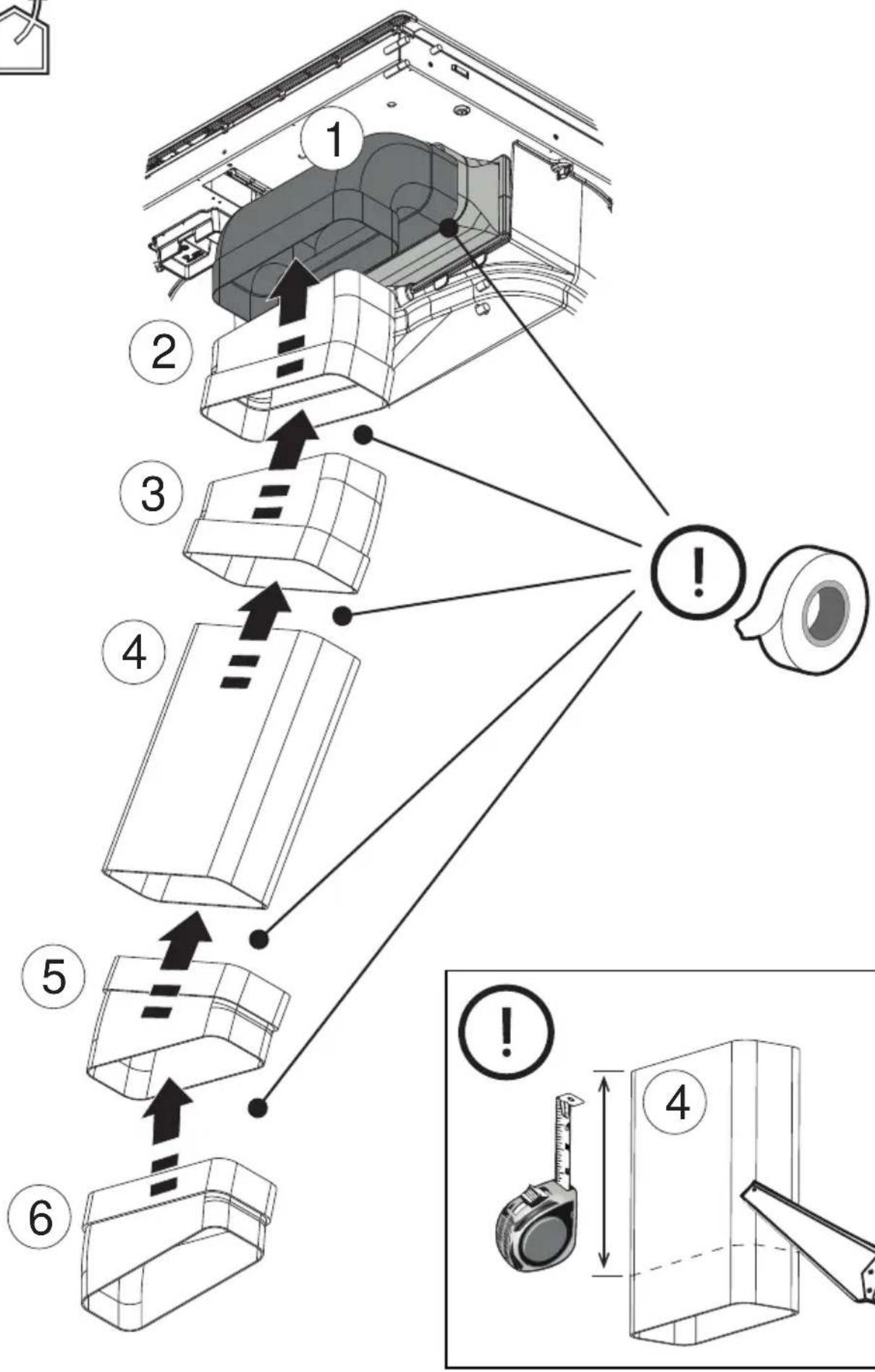

9.2

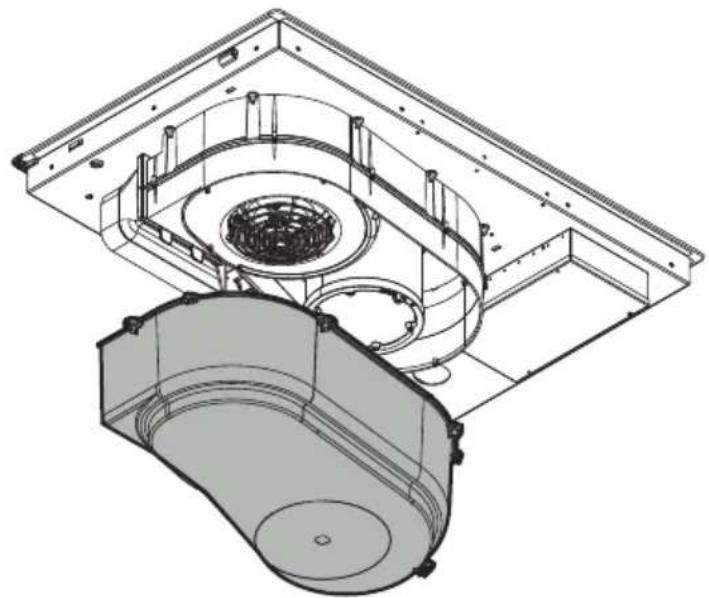

Technical diagram of a vehicle suspension system with a crane lifting a weight, showing structural components and wiring (no text or labels)
        A
        B
        C
        D
        E
        F
    end
    subgraph Component_2
        B
        C
        D
        E
        F
    end
    subgraph Component_3
        B
        C
        D
        E
        F
    end
    subgraph Component_4
        D
        E
        F
    end
    subgraph Component_5
        B
        C
        D
        E
        F
    end
    subgraph Component_6
        F
    end

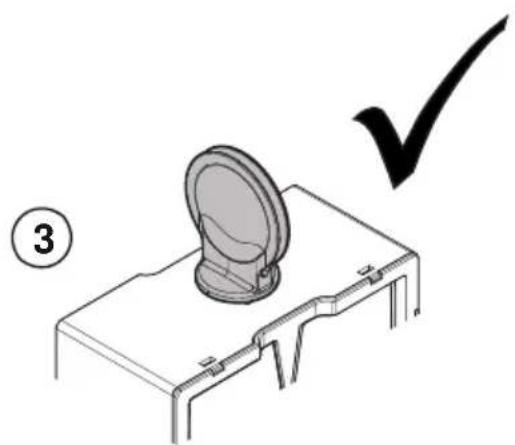

9.3

Technical line drawing of a mechanical device inside a transparent enclosure (no text or symbols)

Technical line drawing of a mechanical assembly or housing (no text or symbols visible)

Technical line drawing of a mechanical assembly inside a transparent housing (no text or symbols)

Technical line drawing of a mechanical component with internal channels and housing (no text or symbols)

KIT0121012

Simple 3D illustration of a rectangular block inside a circular frame (no text or symbols)

218X55X500mm

KIT0121017

Illustration of a rectangular rock or mineral sample with vertical striations, enclosed in a circular frame (no text or symbols)

218x55mm

KIT0121013

Simple 3D illustration of a rectangular block inside a circular frame (no text or symbols)

218X55X1000mm

KIT0126810

Simple line drawing of a folded paper or sheet with no text or symbols

227x94mm

KIT0121015

Simple line drawing of a rectangular box with internal lines, enclosed in a circular border (no text or symbols)

218X55X70mm

KIT0121002

Simple line drawing of a rectangular object inside a circular frame (no text or symbols)

15° - 227x94mm

KIT0121016

Simple 3D geometric shape resembling a bent pipe or elbow bracket, enclosed in a circular frame (no text or symbols)

90° 218X55mm

KIT0121005

Simple line drawing of a rectangular object with rounded ends, enclosed in a circular frame (no text or symbols)

90° 227x94mm
KIT0130427

*

www.elica.com
www.shop.elica.com

Simple 3D geometric shape resembling a folded corner or bracket, enclosed in a circular frame (no text or symbols)

Diagram showing a ruler and triangle ruler with measurement markings

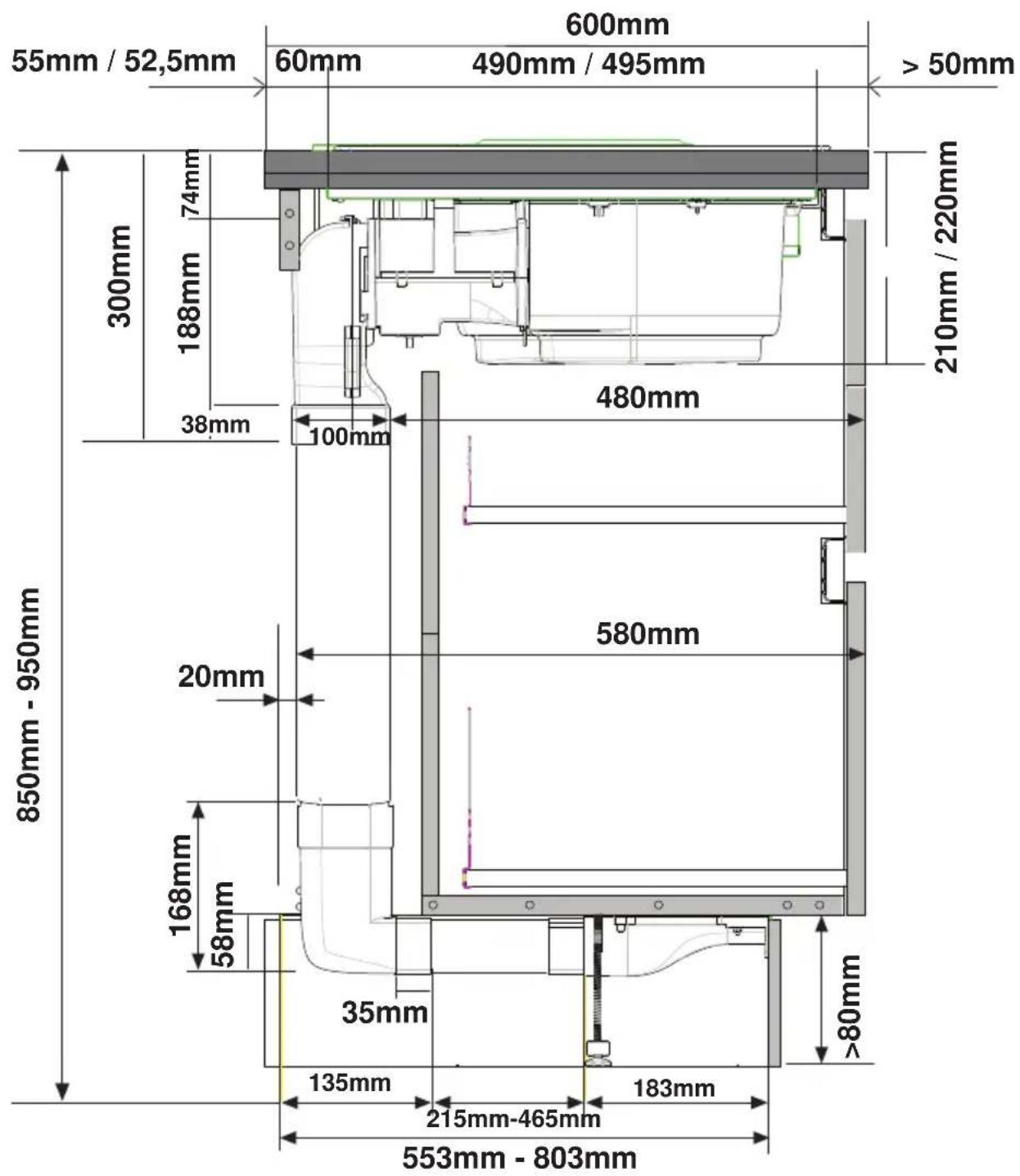

55mm / 52,5mm 600mm 490mm / 495mm > 50mm 300mm 74mm 188mm 38mm 100mm 480mm 210mm / 220mm 850mm - 950mm 580mm 20mm 168mm 58mm 35mm 135mm 215mm-465mm 183mm >80mm 553mm - 803mm

Diagram showing a ruler and a triangular ruler with measurement markings

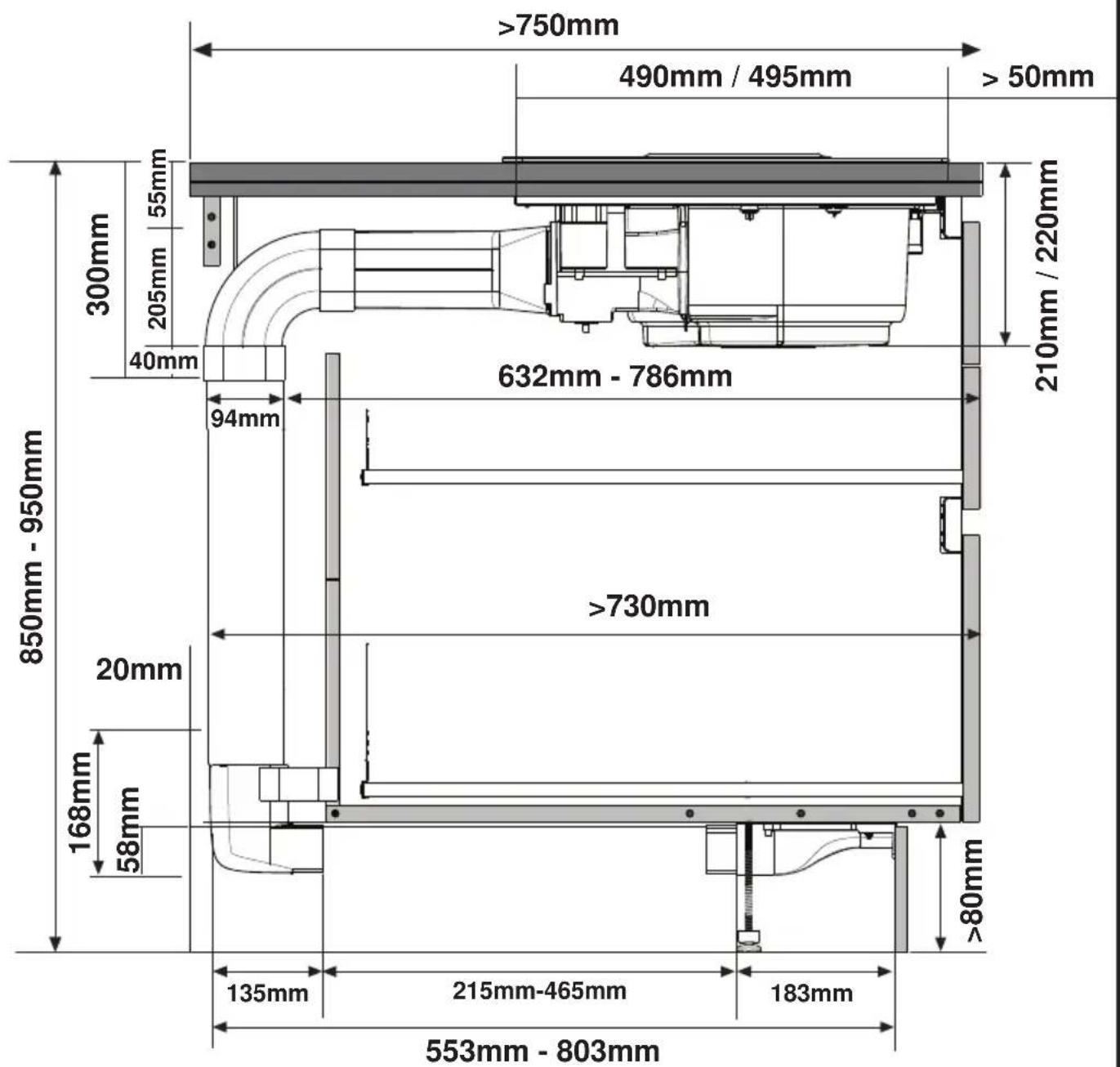

>750mm 490mm / 495mm >50mm 300mm 55mm 205mm 40mm 632mm - 786mm 210mm / 220mm 850mm - 950mm 94mm >730mm 20mm 168mm 58mm 135mm 215mm-465mm 183mm >80mm 553mm - 803mm

Isometric line drawing of a rectangular box with a black square on top and dimension label '600' (no text or symbols beyond the label)

Technical diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols present)

Technical line drawing of a mechanical assembly or housing component (no text or symbols visible)

12A

Isometric line drawing of a rectangular box with a small square cutout on top, labeled '650' (no other text or symbols)

.2 .1

Technical line drawing of a mechanical component with no visible text or symbols

12B

Isometric line drawing of a rectangular box with a small square cutout on top, labeled with dimension 700 (no text or symbols beyond the label)

12C

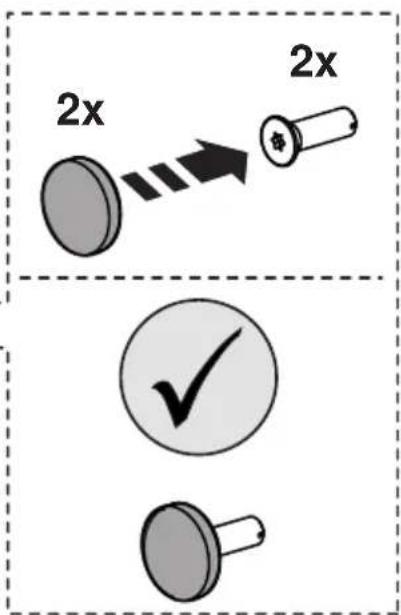

2x 3,5x9,5mm

12.1

Technical diagram of a CD-ROM drive assembly with close-up insets showing clack and mounting details

Technical diagram showing a mechanical assembly with a magnified inset highlighting a curved arrow and component detail (no text or symbols present)

12.2

Diagram illustrating a security camera mechanism with labeled components and directional arrows indicating movement or force.

12.3

12.4

Technical diagram of a vehicle suspension system with a crane lifting a weight, showing structural components and a close-up of the load (no text or labels)

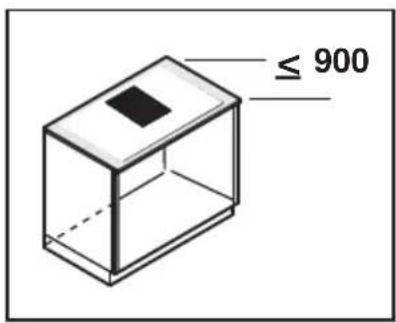

≤ 900

Technical line drawing of a mechanical or electrical component with a grid-patterned top and side brackets (no text or symbols)

227mm 94mm 55mm 218mm

12.5

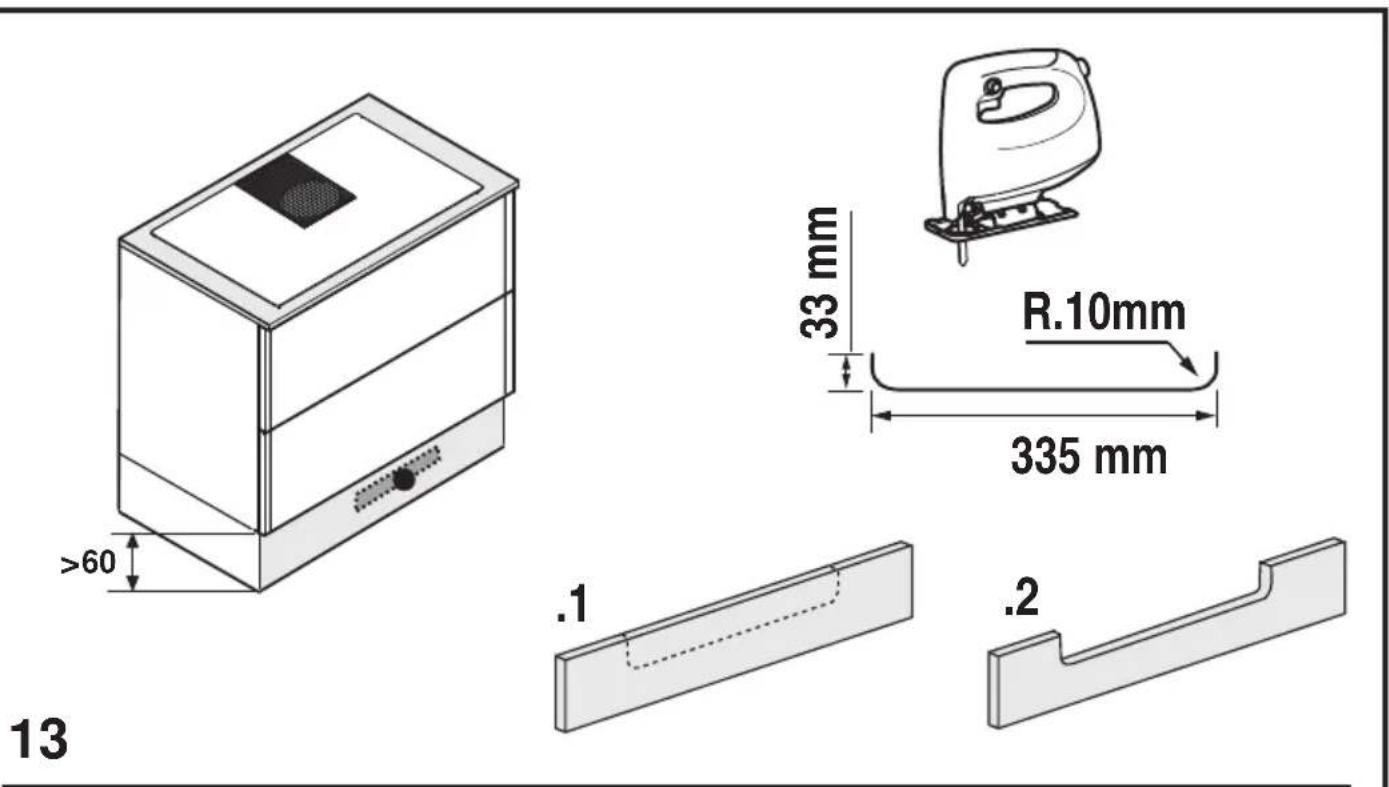

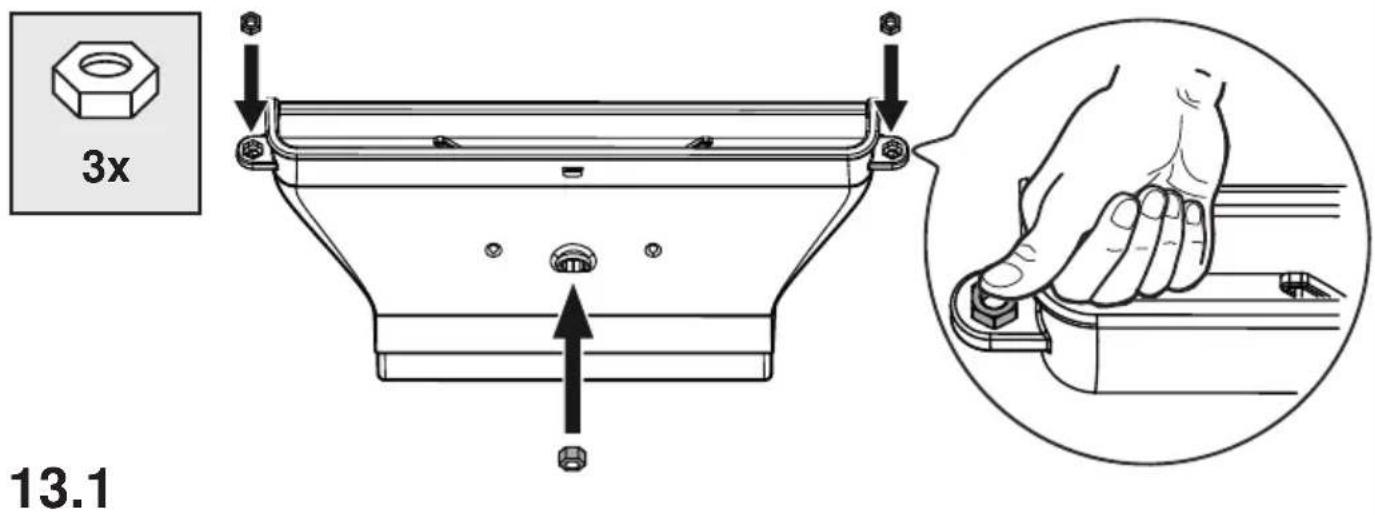

3x 13.1

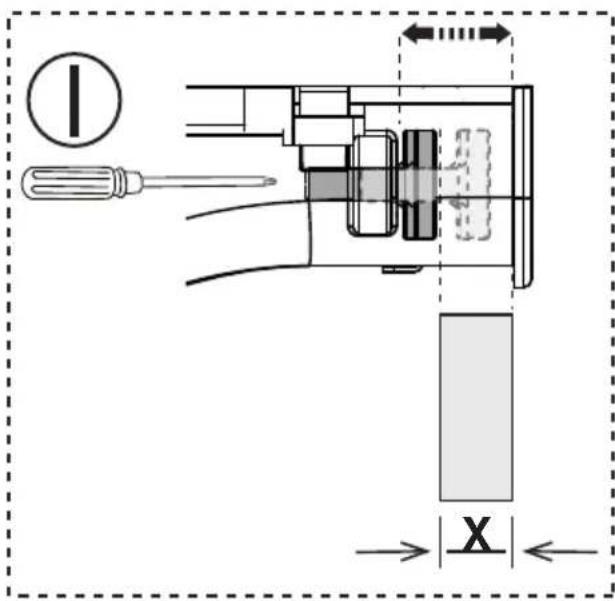

X≤18,5mm

.1

2x 2x ✓ 2x

13.2a

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Pure mechanical diagram showing a shaft and housing assembly without any text, numbers, or symbols

.3 x

Technical diagram of a mechanical assembly with labeled components and directional arrows, including a screwdriver and X-axis indicator.

X ≥18,5mm ≤ 22,5mm

Technical line drawing of a mechanical housing or enclosure with internal components and mounting points (no text or symbols)

2x

[Figure]

Technical line drawing of a mechanical housing or enclosure with internal components and mounting features (no text or symbols)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols visible

13.2b

.1

Technical diagram showing a mechanical assembly with labeled components and a process step, including a magnified view of the component.

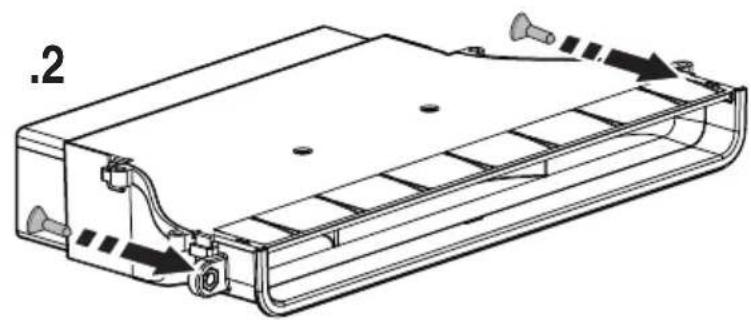

.2

Technical diagram showing a device assembly with numbered components and a 3D model view

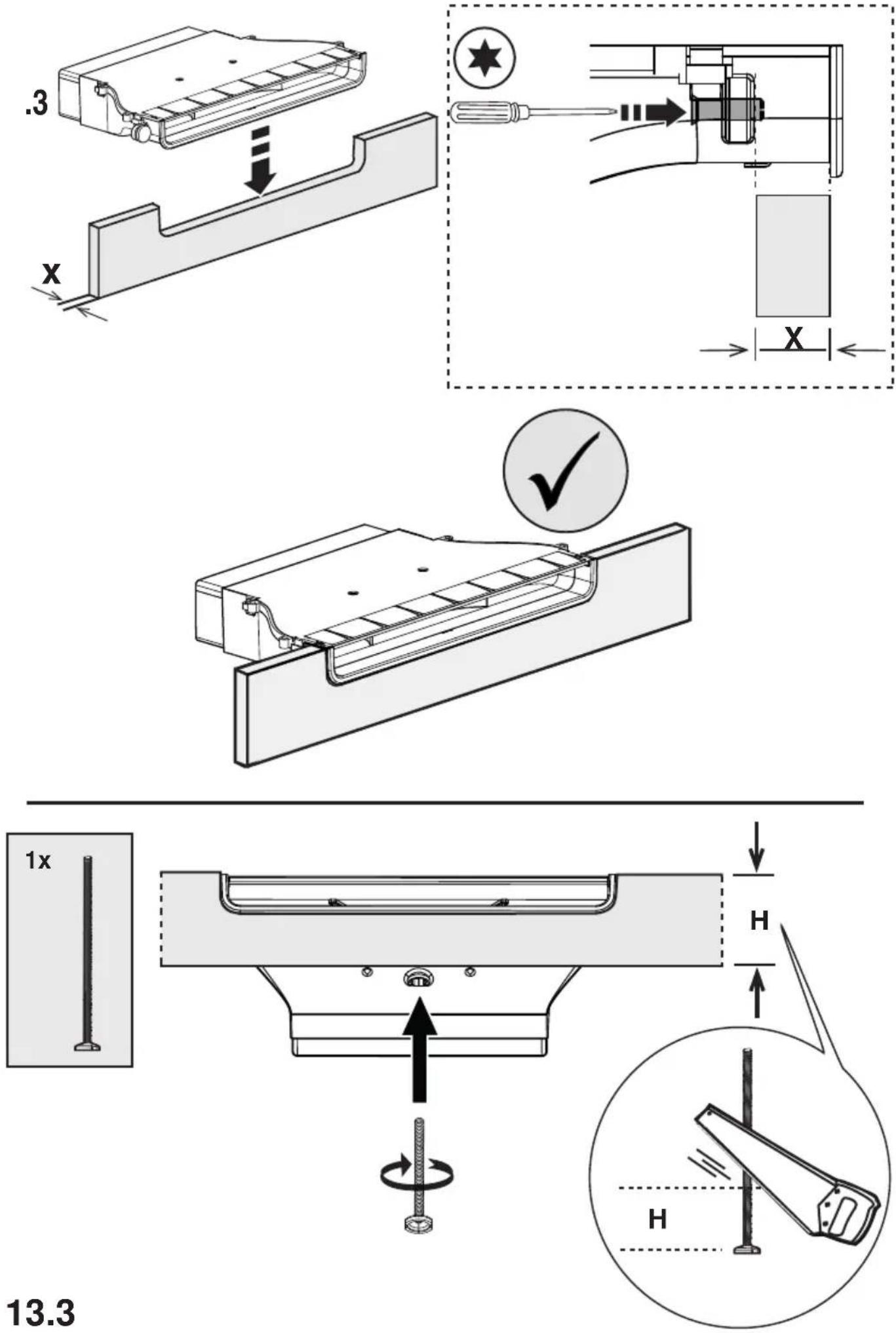

.3

Technical diagram showing a device assembly with numbered components and a magnified view of the main body.

Simple line drawing of a double-ended wrench inside a circle (no text or symbols)

fig.15

fig.16

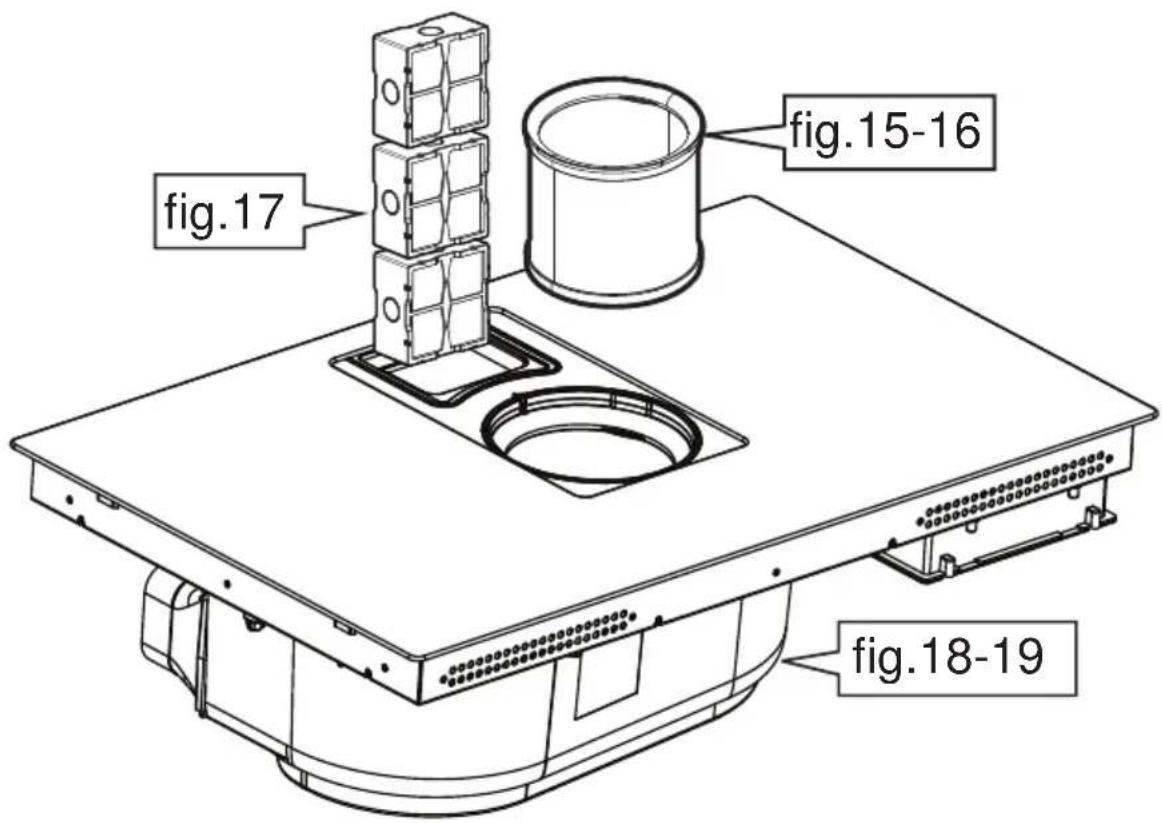

fig.17 fig.15-16 fig.18-19

OK! .1 .2

15

.3 .4

16

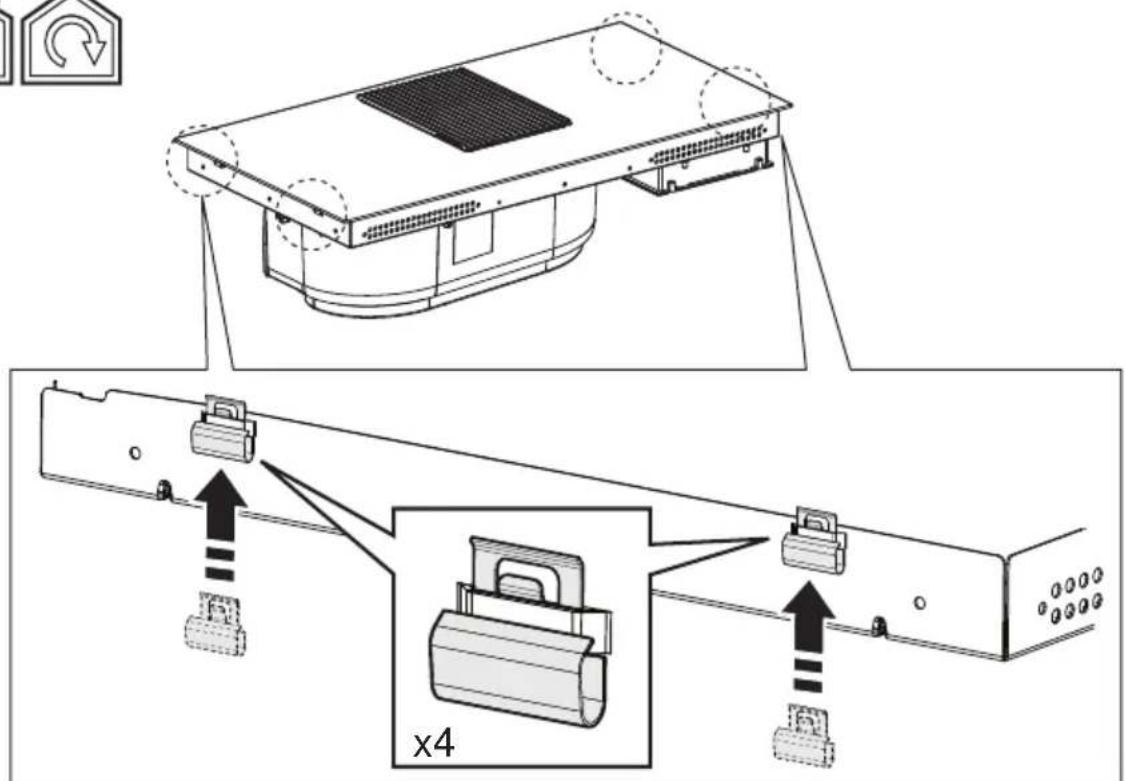

Two black-and-white icons: a house icon with a circular arrow and an exclamation mark below it.

Diagram illustrating a battery charging process with labeled components and instructions

Diagram of a device with a circular component and bidirectional arrow indicating rotation (no text or symbols)

Diagram of a device with a circular component and a checkmark, no text or symbols present

④ ③ ② ① 7A

.1

Technical diagram showing a device with three labeled components and an electrical connection setup, including a schematic view.

.2

Diagram showing a car interior with labeled components and airflow indicators, including a device with a valve and a water tank.

.3

Diagram showing a car chassis with wiring and electrical connections, labeled with parts ① and directional arrows.

.2 .1

.4 .3

Technical line drawing of a mechanical assembly with internal components and mounting holes (no text or symbols)

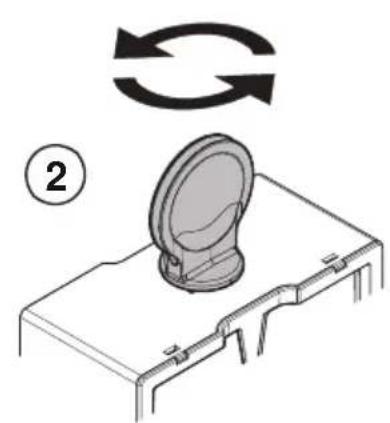

Diagram showing a mechanical component with a circular arrow indicating rotational motion (no text or symbols present)

Diagram of a hand holding a tool with liquid droplets, connected to a curved surface (no text or symbols)

Technical diagram of a mechanical device with internal components and directional arrows, showing a close-up of the component (no text or symbols present)

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Technical illustration of a mechanical device with internal components and a close-up view showing a lock mechanism (no text or symbols present)

4 mm 12

2

2,1 - 3,0 kw

min. ∅ 120mm

1

1,6 - 1,85 kw

min. ∅ 120mm

①—②
③—④

3 - 3,7 kw

min. ∅ 230mm
3

2,1 - 3,0 kw

min. ∅ 120mm

4

1,6 - 1,85 kw

min. ∅ 120mm

Diagram showing cooking process steps: cooking pot, coiled spring, and electric motor with lightning bolt

Safety warning symbols including crossed-out circle, cooking pot, nozzles, and U-shaped magnet

× × ✓ ✓ ✓ - 40 %

Illustration of kitchenware including a plate, cooking pan, and pot (no text or symbols)

Two kitchen utensils with handles, one showing a side dish and the other showing a pan with a decorative swirl (no text or symbols)

Illustration of a frying pan and its side view with an arrow, next to the word 'SI!' (no other text or symbols)

● Residual Heat Indicator

● Temperature Manager (Warming Function)

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4. 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

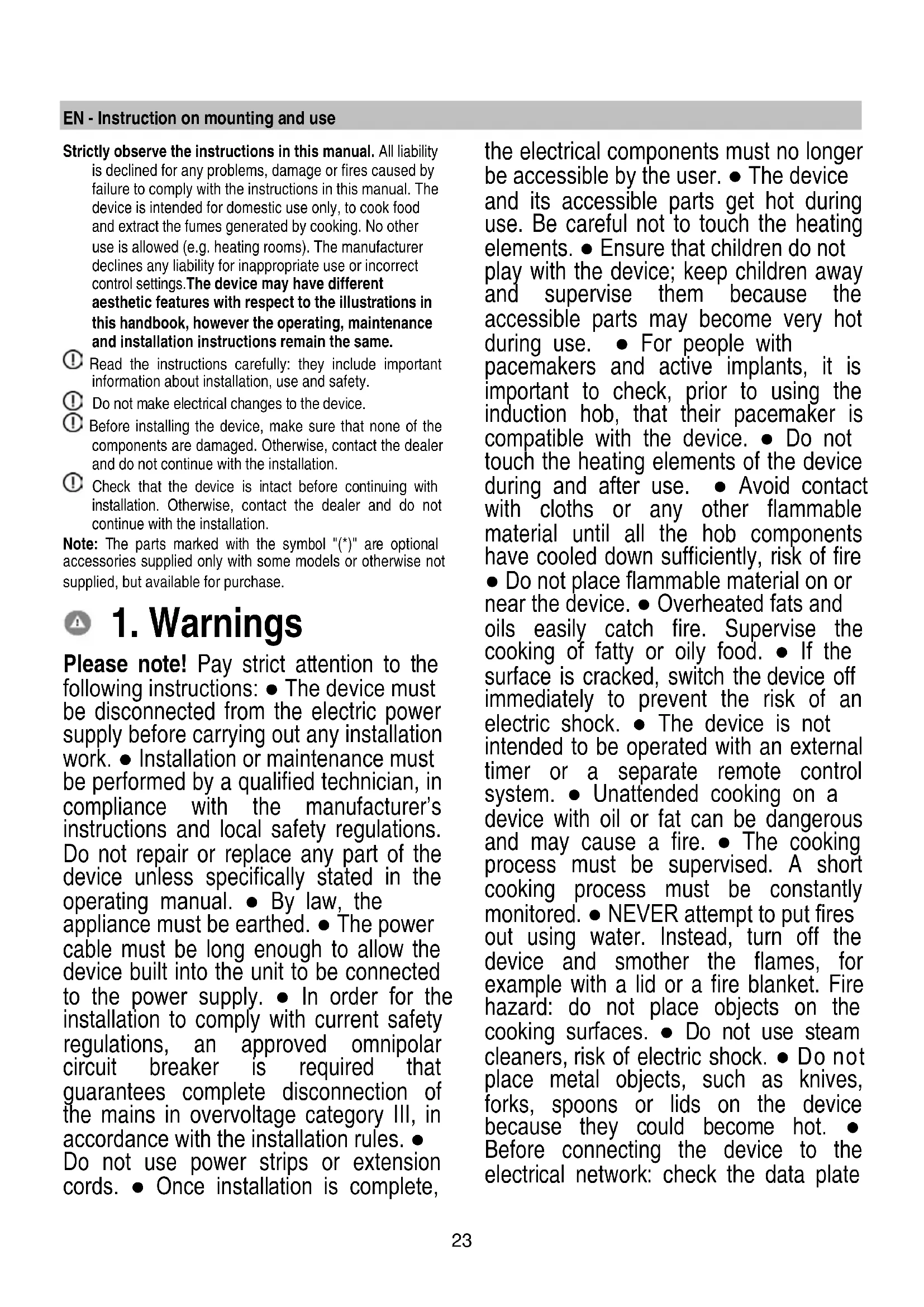

EN - Instruction on mounting and use

Strictly observe the instructions in this manual. All liability is declined for any problems, damage or fires caused by failure to comply with the instructions in this manual. The device is intended for domestic use only, to cook food and extract the fumes generated by cooking. No other use is allowed (e.g. heating rooms). The manufacturer declines any liability for inappropriate use or incorrect control settings. The device may have different aesthetic features with respect to the illustrations in this handbook, however the operating, maintenance and installation instructions remain the same.

Read the instructions carefully: they include important information about installation, use and safety.
Do not make electrical changes to the device.
Before installing the device, make sure that none of the components are damaged. Otherwise, contact the dealer and do not continue with the installation.
Check that the device is intact before continuing with installation. Otherwise, contact the dealer and do not continue with the installation.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

1. Warnings

Please note! Pay strict attention to the following instructions: ● The device must be disconnected from the electric power supply before carrying out any installation work. ● Installation or maintenance must be performed by a qualified technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the device unless specifically stated in the operating manual. ● By law, the appliance must be earthed. ● The power cable must be long enough to allow the device built into the unit to be connected to the power supply. ● In order for the installation to comply with current safety regulations, an approved omnipolar circuit breaker is required that guarantees complete disconnection of the mains in overvoltage category III, in accordance with the installation rules. ● Do not use power strips or extension cords. ● Once installation is complete,

the electrical components must no longer be accessible by the user. ● The device and its accessible parts get hot during use. Be careful not to touch the heating elements. ● Ensure that children do not play with the device; keep children away and supervise them because the accessible parts may become very hot during use. ● For people with pacemakers and active implants, it is important to check, prior to using the induction hob, that their pacemaker is compatible with the device. ● Do not touch the heating elements of the device during and after use. ● Avoid contact with cloths or any other flammable material until all the hob components have cooled down sufficiently, risk of fire ● Do not place flammable material on or near the device. ● Overheated fats and oils easily catch fire. Supervise the cooking of fatty or oily food. ● If the surface is cracked, switch the device off immediately to prevent the risk of an electric shock. ● The device is not intended to be operated with an external timer or a separate remote control system. ● Unattended cooking on a device with oil or fat can be dangerous and may cause a fire. ● The cooking process must be supervised. A short cooking process must be constantly monitored. ● NEVER attempt to put fires out using water. Instead, turn off the device and smother the flames, for example with a lid or a fire blanket. Fire hazard: do not place objects on the cooking surfaces. ● Do not use steam cleaners, risk of electric shock. ● Do not place metal objects, such as knives, forks, spoons or lids on the device because they could become hot. ● Before connecting the device to the electrical network: check the data plate

(on the bottom of the device) to ensure that the voltage and power correspond to the mains supply and that the power socket is suitable. If in doubt, consult a qualified electrician.

Important: ● After use, turn off the hob at the switch and do not rely on the pan detector. ● Prevent liquids from boiling over, so turn the heat down when boiling or heating liquids. ● Do not leave the heating elements turned on with empty pots and pans or with no pans. ● Switch off the relevant hot plate when you have finished cooking. ● Never use aluminium foil for cooking and never place products packaged in aluminium on the hob. The aluminium would melt and irreparably damage your device. ● Never heat a tin or can containing foods without opening it first: it might explode! ● This warning also applies to all other types of hobs. ● High power levels such as the Booster function should not be used to heat certain liquids, such as oil for frying. Excessive heat may be dangerous. In these cases, we recommend the use of a lower power level. ● Containers must be placed directly on the hob and in the centre. Under no circumstances may any other objects be placed between the pan and the hob. ● If the temperature becomes high, the device automatically decreases the power level of the cooking zones. ● Before doing any cleaning or maintenance work, disconnect the device from the mains power supply by removing the plug or turning off the mains switch. Wear protective gloves for all installation and maintenance operations. The device can be used by children over the age of eight and by people with impaired physical, sensory or mental abilities or lacking in experience or the necessary knowledge provided that they are supervised or after they have received instruction about how to safely use the device and understand the inherent dangers. Children must be supervised to ensure they do not play with the device. Cleaning and maintenance must never be performed by children unless they are properly supervised. The room must be properly ventilated when the device is used at the same time as other gas-powered devices, or powered by other fuel. The device must be regularly cleaned both internally and externally (AT LEAST ONCE A MONTH), in strict accordance with the maintenance instructions. Failure to follow the rules for device cleaning and filter replacement and cleaning may result in a fire hazard. Food must never be cooked flambè. Using a naked flame may damage the filters and cause a fire hazard; it must, therefore, be avoided under all circumstances. Extra care must be taken when frying to prevent the oil from overheating and catching fire. PLEASE NOTE: The accessible parts of the device may become hot when the hob is switched on. Please note! Do not connect the device to the electric power supply until installation has been fully completed. The regulations laid down by local authorities must be strictly followed with regard to the technical and safety measures to adopt for fume extraction. The extracted air must not be conveyed through the same ducts used to extract the fumes generated by gas combustion or other types of combustion devices. Never use the device without the grille properly installed! Only use the fastening screws supplied with the device for installation, or if not supplied, purchase the correct type of screws. Use screws of the right length, as indicated in the installation guide. When the device is used together with other devices powered with non-electrical energy, the negative

pressure of the room must not exceed 4 Pa (4 x 10 ^5 bar). This manual must be stored for future consultation at any time. If sold, transferred or moved, it must remain with the device.

This device is marked in compliance with the European Directive 2012/19/EC - UK SI 2013 No3113, Waste Electrical and Electronic Equipment (WEEE). By ensuring that this device is disposed of correctly, the user will help prevent potential negative impacts on the environment and human health.

The symbol on the device or documentation provided indicates that this device must not be treated as domestic waste, but must be taken to a suitable waste collection site for the recycling of electrical and electronic appliances. Dispose of it in accordance with local regulations for waste disposal. For further information about the treatment, recovery and recycling of this device, please contact your local authority, the collection service for household waste or the shop from where the device was purchased.

Device designed, tested and developed in compliance with regulations on:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-6, EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. EN 60350-2;
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-3; EN/IEC 61000-3-12. Recommendations for correct use in order to reduce the impact on the environment: When you start cooking, turn the device on at minimum speed, leaving it on for a few minutes when you have finished cooking. Increase the speed only if there is a large quantity of fumes and steam, using the Booster function only in extreme cases. To keep the odour reduction system running efficiently, replace the carbon filter/s when necessary. To ensure the high performance of the grease filter, clean it when necessary. To improve efficiency and minimise noise, use the maximum duct diameter indicated in this manual.

2. Use

Using the hob

The induction cooking system is based on the physical phenomenon of magnetic induction. The main characteristic of this system is the direct transfer of energy from the generator to the pot.

Advantages:

When compared to electric hobs, your induction hob is:

• Safer: lower temperature on the glass surface.
• Faster: shorter food heating times.
• More accurate: the hob immediately reacts to your commands
• More efficient: 90% of the absorbed energy is transformed

into heat. Moreover, once the pot is removed from the hob, heat transmission is immediately interrupted, avoiding unnecessary heat losses.

2.1 Cooking containers

Only use pans that carry the

symbol.

Important:

to avoid permanent damage to the hob surface, do not use:

• containers with a base that is not perfectly flat;
• metal containers with an enamelled base;
• containers with a rough base, to avoid scratching the hob surface;

- never place hot pots and pans on the surface of the hob's control panel.

Not all pans suitable for induction work in an efficient manner due to the base only partially consisting of ferromagnetic material! When purchasing pots or pans ensure that:

- that the base is made entirely from ferromagnetic material. If this is not the case, the efficacy of the transmission of heat is lessened and the uniformity of heat and the temperature of the pot/pan may not be suitable for cooking.

Illustration of kitchenware including a plate, lid, and pan (no text or symbols)

NO!

- The base does not contain aluminium: the crockery does not heat and may not be recognised by the inductors.

Two grayscale illustrations of frying panes with handles, one showing a side dish and the other showing a cut (no text or symbols)

NO!

- Bases that are not flat or that have rough surfaces. These lower the contact surface area between the inductor and the pan, lowering efficiency and harming the cooking experience.

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

YES!

Important: never put hot pots or pans on the hob control panel surface.

2.1.1 Pre-existing containers

You can check if the pot material is magnetic simply by using a magnet. Pots are not suitable if they are not magnetically detectable. The indications from the previous paragraph also apply here.

2.1.2 Recommended pan bottom diameters

IMPORTANT: if the pots are not of the correct size, the cooking zones will not switch on.

To see the minimum pot diameters for each individual zone, consult the illustrated section of this manual.

To obtain the best results we recommend:

• Using pots and pans with a bottom diameter equal to that of the cooking zone.
• Where possible, keep the cover on the pan during cooking and in particular on pans with a height greater than 22 cm.
• Position the pan in the centre of the cooking zone indicated on the hob.

Using the extractor fan

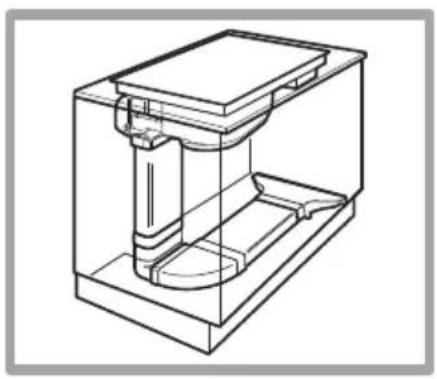

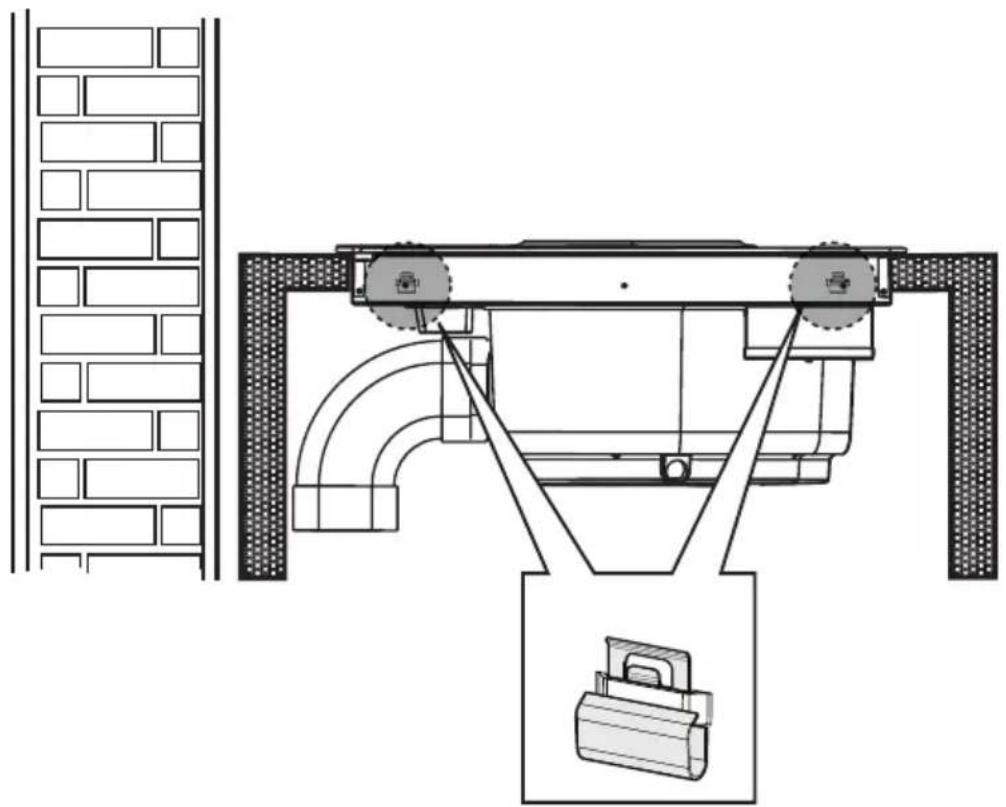

The extraction system can be used in two versions: external extraction and evacuation or as a filter with internal recirculation.

Extraction version

Fig.7

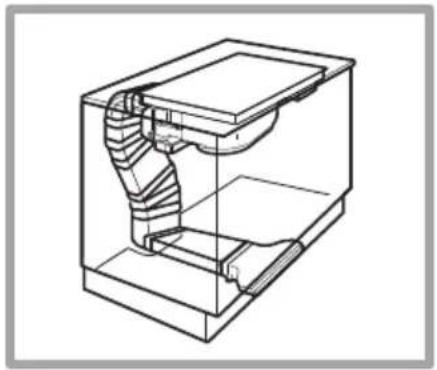

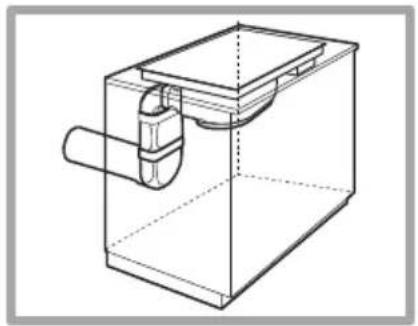

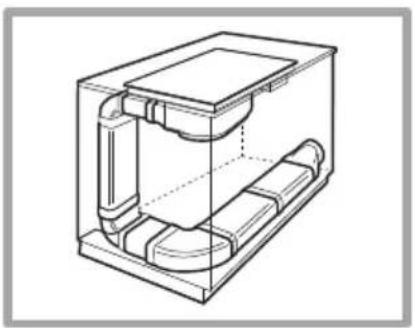

The fumes are evacuated towards the outside through a series of pipes (bought separately) fastened to the supplied connecting flange.

The diameter of the exhaust pipe must be equivalent to the diameter of the connecting ring:

• for rectangular outlets 222 x 89 mm
• for circular outlets ∅ 150 mm (*)

For more information, see the page relative to the extraction version in the illustrated part of this manual. Connect the product to wall-mounted exhaust pipes and holes with a diameter equivalent to the air outlet (connecting flange).

Using wall-mounted exhaust pipes and holes with a smaller diameter may reduce the efficiency of extraction and drastically increase noise levels.

All responsibility in this regard is therefore denied.

Keep duct as short as possible.
① Use ducting with the least possible number of curves (maximum angle: 90°).
① Avoid drastic changes in the ducting diameter.

Filtration version

Fig. 10

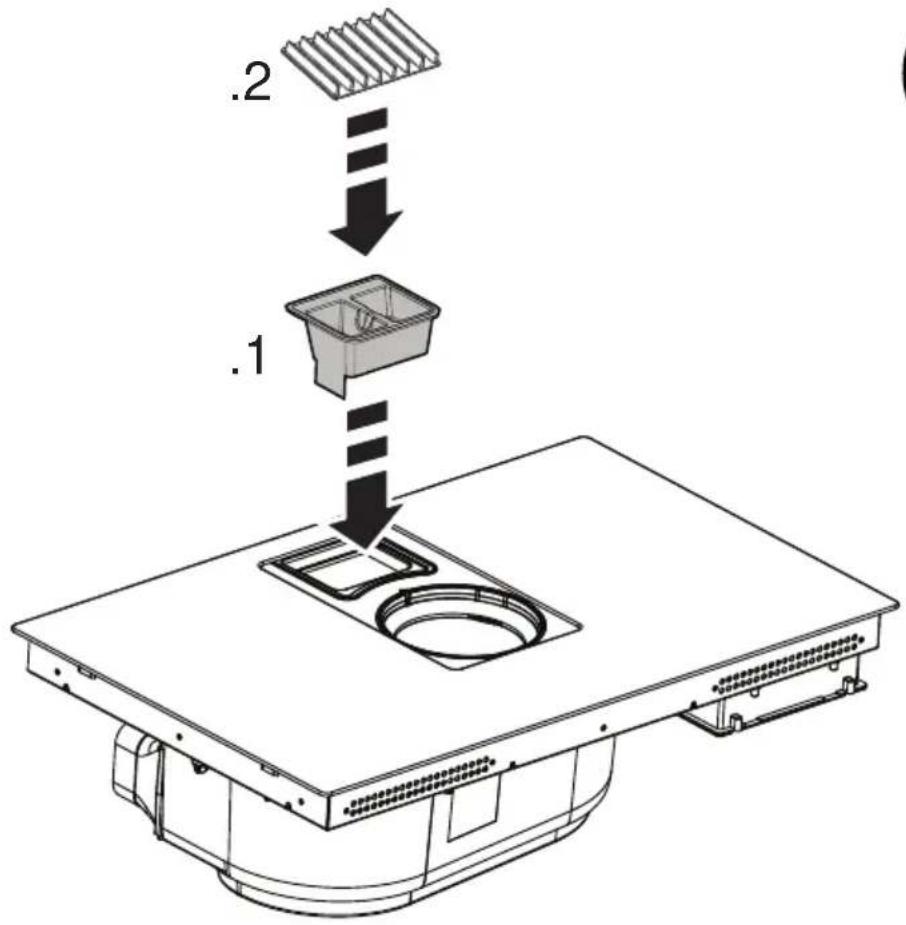

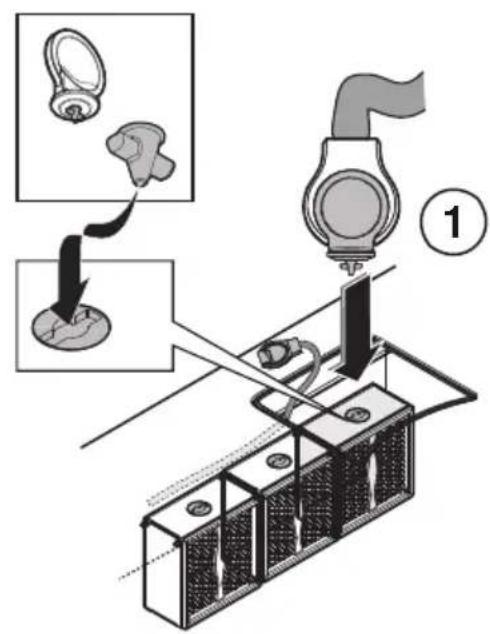

The extracted air will be filtered in special grease filters and odour filters before being sent back into the room. The product is supplied with all parts necessary for standard installation, with the air outlet positioned in the front part of the cabinet plinth. For more information, see the page relative to the filtration version (in the illustrated part of this manual).

Visit the websites www.elica.com and

www.shop.elica.com to check the complete range of available kits for different types of filtration and extraction installations.

3. Installation

- Both electric and mechanical installation must be carried out by specialised personnel.

The electrical appliance is designed to be built into a work top with a thickness of 2-6 cm in the case of TOP installation; 2.5-6 cm in the case of FLUSH installation.

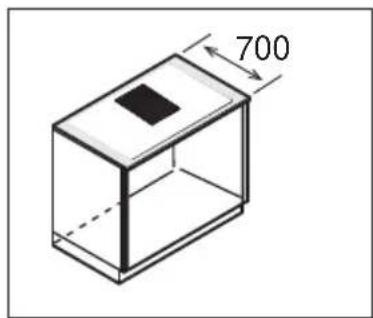

The minimum distance between the hob and the wall must be at least 5 cm in front, at least 4 cm on the sides and at least 50 cm from overhead wall units.

NB = The recommended distances are given as examples: when planning the spaces, the indications of the kitchen manufacturer must be observed.

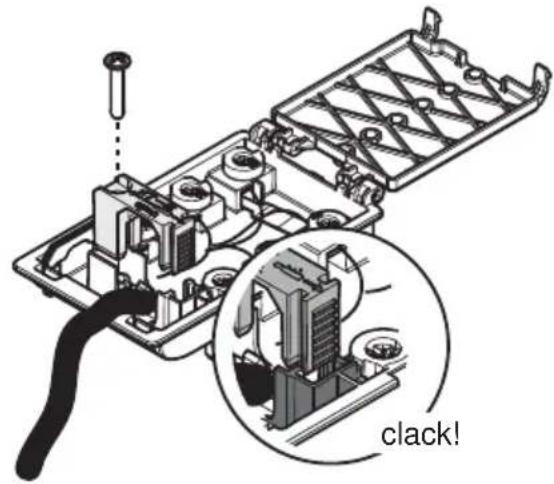

3.1 Electrical connection

Fig. 3

- Disconnect the device from the electric power supply. • Installation must be carried out by professionally qualified personnel with knowledge of the regulations in force for installation and safety. • The manufacturer denies all liability to persons, animals or property if the guidelines provided in this chapter are not followed. • The power cable must be long enough to allow the hob to be removed from the worktop. • Make sure that the voltage on the serial number data plate on the bottom of the device corresponds to that of the domestic environment where it will be installed. • Do not use extension leads.

- The earth power cable must be 2cm longer than the other cables. - If the electrical appliance is not supplied with a power cable, use one with a minimum conductor diameter of 2.5 mm2 for power up to 7200 Watt; for higher power levels, the diameter must be 4 mm2. - The temperature must not reach 50°C above room temperature anywhere along the cable. - The appliance is intended for

permanent connection to the power supply.

- Please note! Before reconnecting the circuit to the mains power supply, make sure that it is working correctly, always check that the power cable is correctly installed. - Please note! The interconnection cable must be replaced by the authorised technical support service or by a person with similar qualifications.

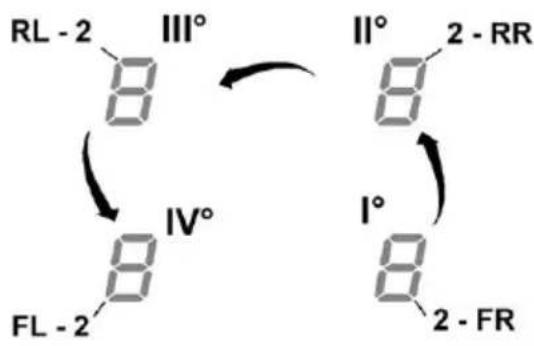

Note : the product is equipped with a Power Limitator function, which allows a maximum power limit to be set The limit must be set at the time of the product's connection to the electrical network or when the electrical network itself is reconnected (within the following 2 minutes). Size the electrical system protection according to the selected Power Limitation level. For the Power Limitation setting sequence, see the Operation section of this manual.

3.3 Mounting

Before starting the installation:

• After unpacking the product, check that it has not been damaged during transport and in the event of problem, please contact the reseller or the Customer support service before installing it.
- Check that the product is the right size for the installation area.

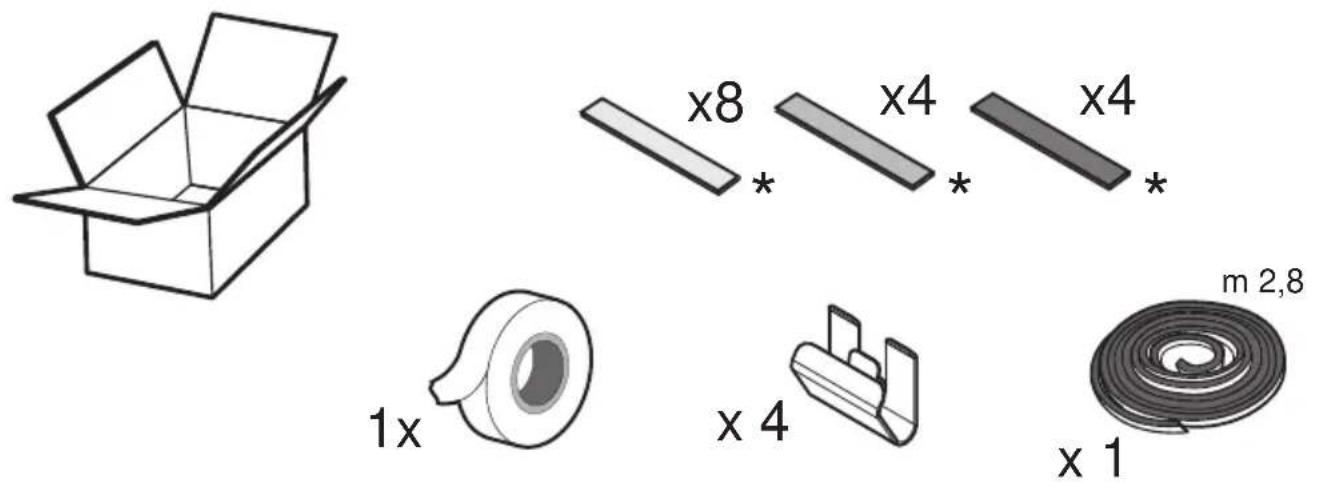

- Check for accessories (e.g. bags containing screws, warranty certificates, etc.) inside the packaging (placed there for transport reasons). Remove and keep them safe, if present.
- Also check that there is a power socket near the installation area.

Preparing the cabinet for installation:

• The product cannot be installed above cooling appliances, dishwashers, heaters, ovens, washing machines and dryers.

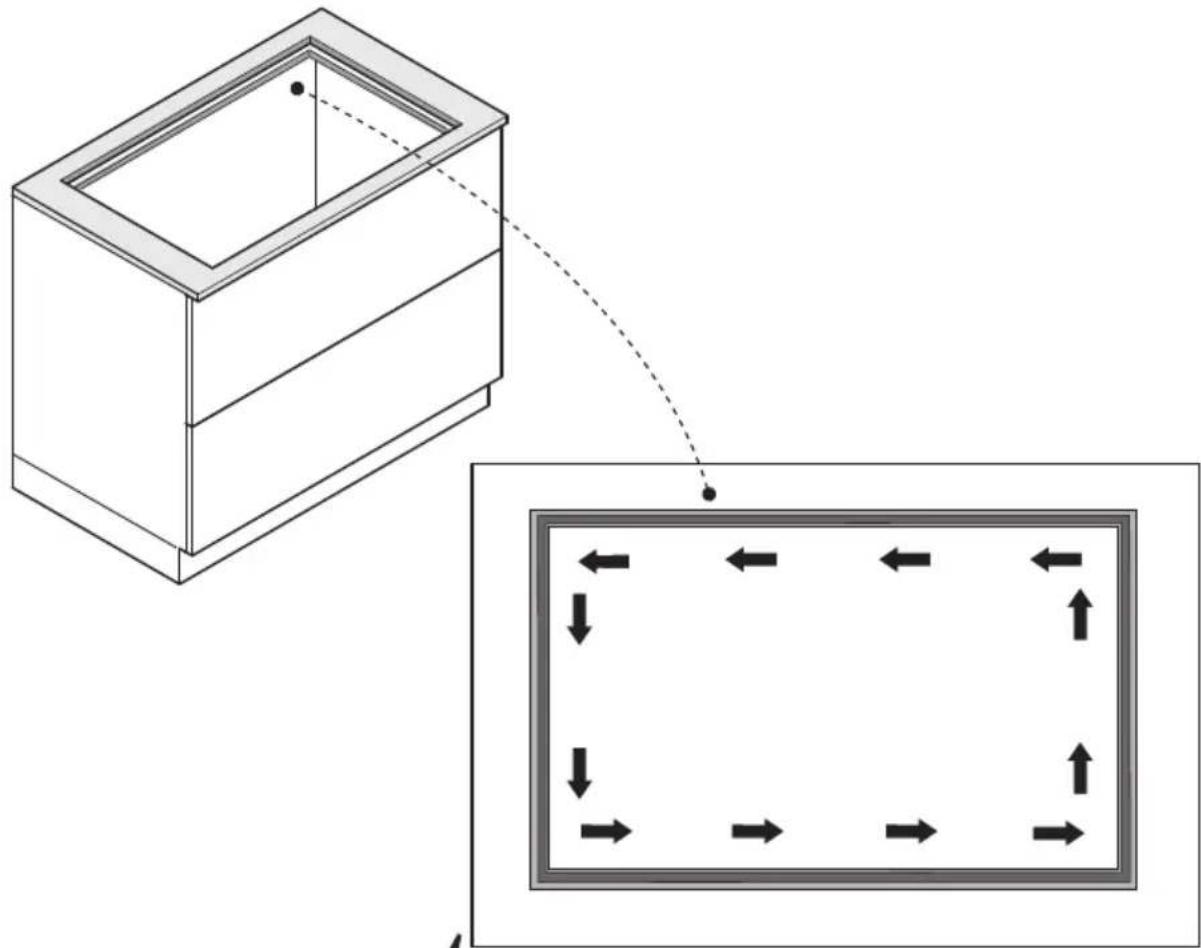

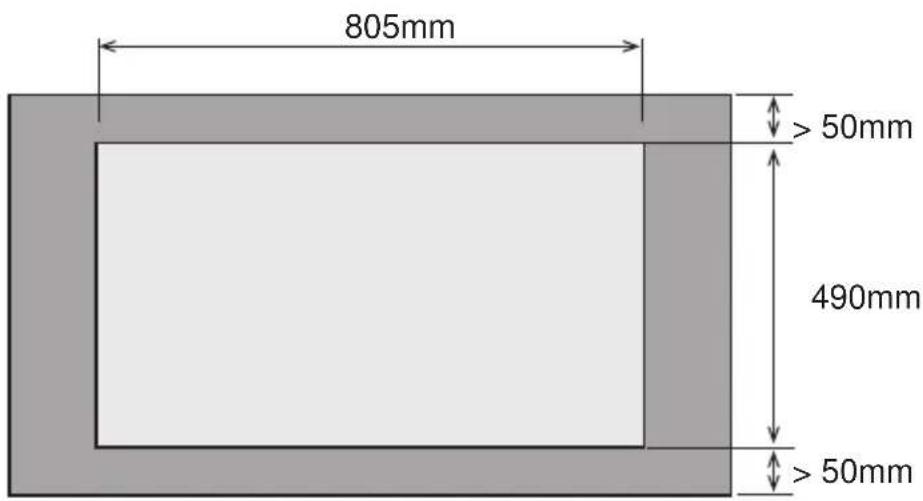

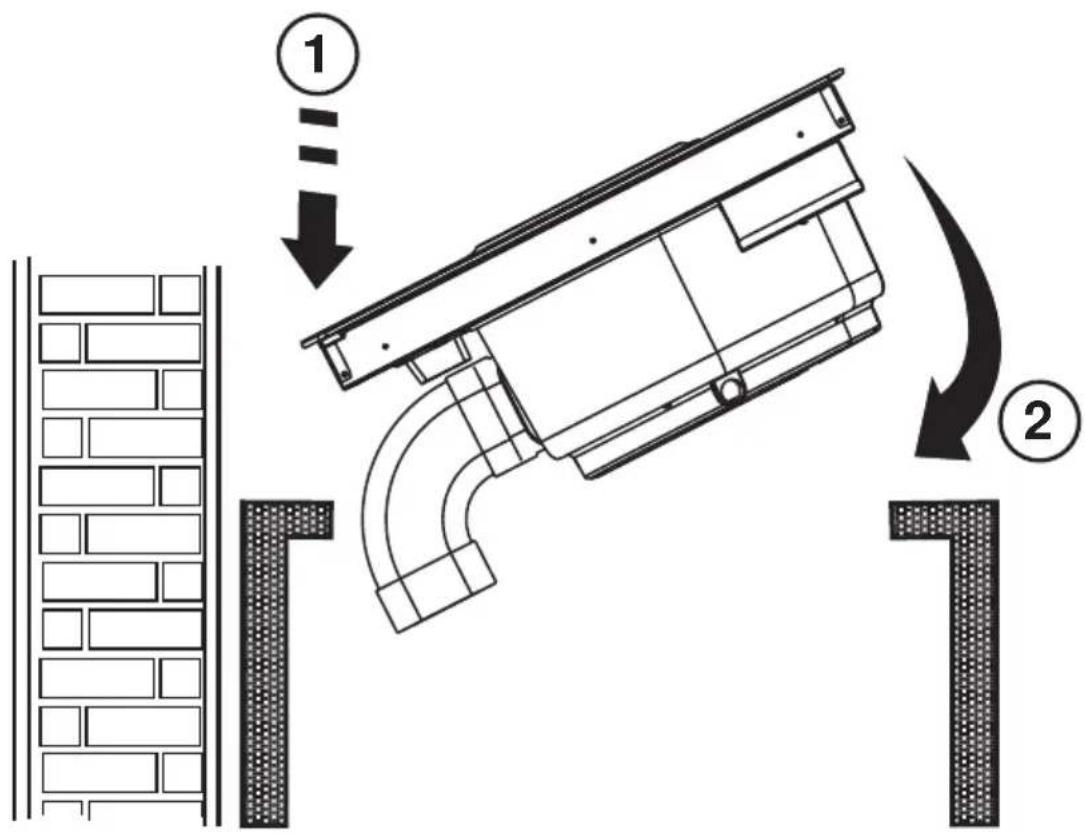

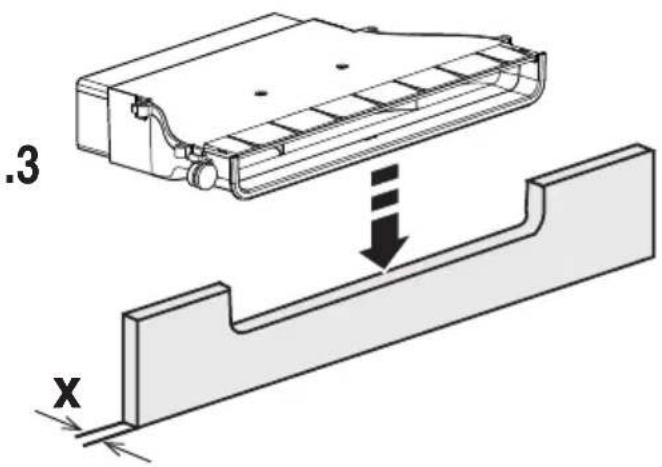

• Create the cut-outs in the cabinet before inserting the hob and carefully remove any shavings or sawdust.

IMPORTANT: use a single-component adhesive sealant (S), which withstands temperatures up to 250°; before installation, thoroughly clean the surfaces to stick and eliminate any substance that may compromise adhesion, (e.g. release agents, preservatives, fats, oil, dust, traces of old adhesives, etc.); the adhesive should be uniformly spread all around the outside of the frame; after sticking, leave the adhesive to dry for about 24 hours.

Fig.1B-2B

Caution! Failure to install screws and fasteners in accordance with these instructions may result in electrical hazards.

Note: to ensure the correct installation of the product, it is recommended to tape the pipes using an adhesive with the following characteristics:

• soft elastic PVC film, with an acrylic-based adhesive
• compliant with DIN EN 60454 regulations
• flame retardant
• excellent resistance to wear
• resistant to temperature fluctuations
• can be used at low temperatures

4. Operation

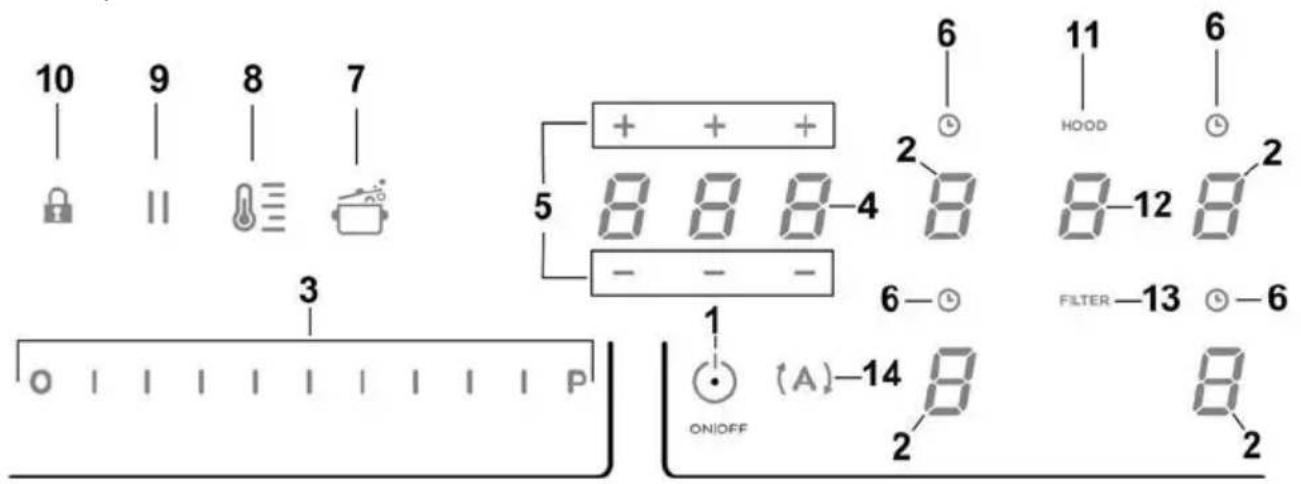

Control panel

10 9 8 7 5 3 6 11 6 HOOD 2 8-12 2 8-12 8 FILTER-13 6 1 (A)-14 ONIOFF 2 8 2

Keys / Display

1. ON/OFF of the hob/extractor
2. Cooking zone selection
   Cooking zone display
3. Increase/Decrease of Power Level and Extraction Power Display of Power Level and Extraction Power
4. Activation "STAND_ALONE" timer Display: "STAND_ALONE" Timer / Cooking Zones Timer
5. Increase/Decrease time Timer "STAND_ALONE" timer / Cooking Zones Timer
6. Activation of Cooking Zones Timer Indicator of Cooking Zones Timer active

7. Automatic Heat Up Activation

8. Temperature Manager activation (Warming Function)

9. Pause
10. Key Lock
11. Indicator Extractor active Activation Filter Saturation Indicator
12. Extractor Selection/Activation Extractor Display

Display saturation carbon/ceramic Filter - Grease filter

1. Reset Filter Saturation
2. Activation of extractor automatic function

USING THE HOB

Before you begin, it is important to know:

All functions of this cooktop are designed to comply with the most stringent safety regulations.

For this reason:

• Some functions will not be activated, or will be automatically deactivated, in the absence of pots on the burners or when they are poorly positioned.
• In other cases the activated functions will be automatically deactivated after a few seconds, if the specific function requires a further setting that has not been selected (e.g.:

"Turn the cooktop on" without "Selecting the cooking zone" and the "Operating temperature", or the "Lock Function" or the "Timer" function).

Caution! In the case (for example) of prolonged use, the cooking zone may not immediately shut down because it is in the cooling phase; the “H” symbol will appear on the cooking zone display, to indicate the execution of this phase. Wait for the display to turn off before approaching the cooking zone.

Cooking zone display

The following is shown on the cooking zone displays:

Cooking zone on	[0743]
Power Level	[377A]
Residual Heat Indicator	[H050]
Pot Detector	[XA70]
Bridge Function active	[8636]
Temperature Manager Function active
Child Lock Function active
Child Pause active	[2H68]
Automatic Heat UP function	[48CW]

Hob characteristics

● Safe Activation

The product is activated only in the presence of pots on the cooking zone: the heating process does not start or is interrupted if there are no pots, or if these are removed.

● Pot Detector

The product automatically detects the presence of pots on the cooking zones.

● Safety Shut Down

For safety reasons, each cooking zone has a maximum operating time, which depends on the maximum power level set.

● Residual Heat Indicator

When one or more cooking zones shut down, the presence of residual heat is indicated by a visual signal on the corresponding zone display, by way of the H" symbol.

Operation

Note: Before activating any functions, the desired zone must be activated

Switch-on

Press (touch) briefly ON/OFF (1) hob/extractor: the symbol

lights up;

continuing to press, all the available functions will become visible for a few moments, e, after which only the main ones will remain active; the others can be used, and will be activated, subsequently, during use of the device.

IMPORTANT:

all the available functions will be illuminated with light intensity, which will become more intense only when they are activated.

Press

again to turn off

Note: This function has priority over the others.

- Selecting the cooking zones

Press (touch) briefly the Selection/Display (2) area corresponding to the desired cooking area.

Power Level

The hob features 9 power levels

Touch and slide your fingers along the Selection bar (3): to the right to increase the level of power;

to the left to decrease the level of power. The power level set will be displayed in the Selection/Display area (2)

● Power Booster

The product features a supplementary power level (after level 9), which remains active for 5 minutes, after which the temperature returns to the previously set value.

Touch and slide with your fingers along the Selection bar (3) (above the level 5) and activate the Power Booster

The Power Booster level is indicated in the Selection / Display area (2) with the symbol" P"

Key Lock

The Key Lock allows cooktop settings to be blocked, thus preventing accidental tampering, leaving set functions active.

Activation:

Repeat the operation to deactivate.

Note: if any other function is pressed during the active Key

Lock, the symbol 🔒, will flash to indicate that the function is in use and must be deactivated if necessary in order to use the hob.

● Automatic Heat UP

The Automatic Heat UP function allows the set power to be reached more quickly; with this function it is possible to cook food faster without the risk of burning it, insofar as the temperature does not exceed the set level. This function is available for power levels 1-8.

Activation:

• from the cooking zone on press (7)
- a flashing "R" is shown in the Display (2) which alternates with the power set in the cooking zone

Increasing the power level of the cooking zone: the Automatic Heat Up function remains active, with the new temperature setting;

Decreasing the power level of the cooking zone: the Automatic Heat function is deactivated.

Note: by selecting another cooking zone at the same time,

the symbol (7) will return to being illuminated with a slight intensity light, and it will be possible to proceed, also

for this area, to activation of the function; the function remains active in the area where it has already been set, as indicated in the Display (2)

● Temperature Manager (Warming Function)

Temperature Manager is a control function that allows the maintaining of heat at a constant temperature, at an optimised power level; ideal to keep ready-cooked foods warm. The Temperature Manager function is activated the first time the

key is pressed

The symbol appears in the display (2) of the zone that is working in the Temperature Manager

Note: by selecting another cooking zone at the same time, the symbol (8) will return to being illuminated with a slight intensity light, and it will be possible to proceed, also for this area, to activation of the function; the function remains active in the area where it has already been set, as indicated in the Display (2)

- Press (8) again to deactivate and switch off, until bringing of the level shown in the Display (2) to "☐".

Note: if there are several zones working in the Temperature Manager (Warming Function), first select the desired zone using the Selection zone (2); the function can also be deactivated via the Selection Bar (3), bringing the Power Level to “☐”.

Pause

The Pause function allows active functions on the cooktop to be suspended, bringing the cooking power to zero.

Activation:

- press “| |” (9) - a flashing “| |” is shown in the displays (2)

To deactivate the function:

- press ||(9) the Selection Bar (3) lights up

- press/slide on the Selection Bar (3) to deactivate the function

Note: deactivation restores the conditions of the hob before the pause; the hob continues to work with the same settings previously set.

Note: if after 10 minutes the Pause Function is not deactivated, the hob switches off automatically.

Note: the Pause Function does not affect the extraction.

● "STAND ALONE" Timer

The Timer function is a countdown independent of the cooking zones (and the extraction zone).

The timer is activated by pressing the Zone/Display (4)

Use the symbols + (5) to set the duration of the Timer, which is displayed in the Zone/Display (4)

Note: wait 10 seconds without pressing any other command, so that the countdown starts.

The format of the Timer is 0.00

- 0. for the times

- 00 for the minutes

Note: the timer can be set up to a maximum of 1h and 59min.

In the Zone/Display (4) the remaining time will be displayed; at the end of the countdown, an acoustic signal will sound

Note: in the display of the countdown, for a time less than 10 minutes, the following format is evident

-0. minutes

- 00 seconds

with fixed light point

To switch off the Timer:

- select Zone/Display (4)

- set the duration of the Timer to 000, via (5) +

● Cooking Zones Timer

The Cooking Timer Zone function is a countdown that can be set, also at the same time, on each cooking zone At the end of the period set, the cooking zones switch off automatically and the user is notified with a dedicated acoustic signal.

Activation of the cooking zone timer function

- Touch (press) the Selection/Display area (2) (power level 10)

- Press

(6) relating to the cooking zone

Use the symbols - + (5) to set the duration of the Timer, which is displayed in the Zone/Display (4)

during setting the symbol Ⓛ (6) is flashing

Note: wait 10 seconds without pressing any other command, so that the Cooking Zone Timer will start.

Note: by pressing and holding Ⓤ (6), the cooking zone timer is reset

If desired, repeat the operation for several cooking zones.

Note: each cooking zone can have a different Timer set; in the display (4) he countdown of the cooking zone selected at that moment will appear; if no zone is selected, pressing the Display (4) will display the "STAND-ALONE" Timer countdown.

The countdown mode is the same as the "STANDALONE" timer one (see previous paragraph "STANDALONE" Timer)

When the timer has finished the countdown, an acoustic signal sounds and the cooking zone switches off.

To switch off the Timer:

- select the cooking zone (2)

- set the duration of the Timer to 000, using -5) +

Power Limitation

The Power Limitation function allows the product to be used while limiting its maximum absorption, adjusting the absorbed power in all active cooking zones, ensuring the hob's total absorbed power doesn't exceed the set maximum absorption level.

Note: the setting must take place with the hob off, without pressing the ■ ON/OFF (1) key, when the hob is connected to the mains, or when the electric mains are reconnected within the following 2 minutes.

To set the Power Limitation:

- press (A)

(which will be flashing, only for the first 2 minutes after powering of the product)

- continuing to hold down (A) press, one at a time, all the areas of Selection/Display (2) of the cooking zones, anticlockwise starting from the front right zone (FR)

• each press will be accompanied by a short audible signal
• once all the Displays (2) have been pressed, it will be

possible to release the key (A)

at this point:

- the Display (2) of the left rear zone (RL) will show in alternate sequence the symbols "C" and "0", indicating that it is possible to perform the setting:

select the Display (2-RL)

then scroll on the Selection bar (3), until the symbols "C" and "8", appear

the Display (2-FL) will show the current setting**

$$ \begin{array}{l} 0 = 7. 4 \mathrm{KW} \ 1 = 4. 5 \mathrm{KW} \ 2 = 3. 1 \mathrm{KW} \ \end{array} $$

** by default the setting is 7.4 KW

To change the Power Limitation setting

• press the Display (2) of the left front area (FL)
• then scroll on the Selection bar (3), to select the new setting
• to save the choice made, press the ON/OFF key (1), for 2 seconds; a prolonged audible signal will be emitted to confirm the successful setting

Bridge Zones

Thanks to the Bridge function, the cooking zones are able to work in a combined manner, creating a single zone with the same power level. This function allows evenly distributed cooking with large-sized pots and pans.

The front "Master" cooking zone can be used in combination with the corresponding "Secondary" cooking zone at the back

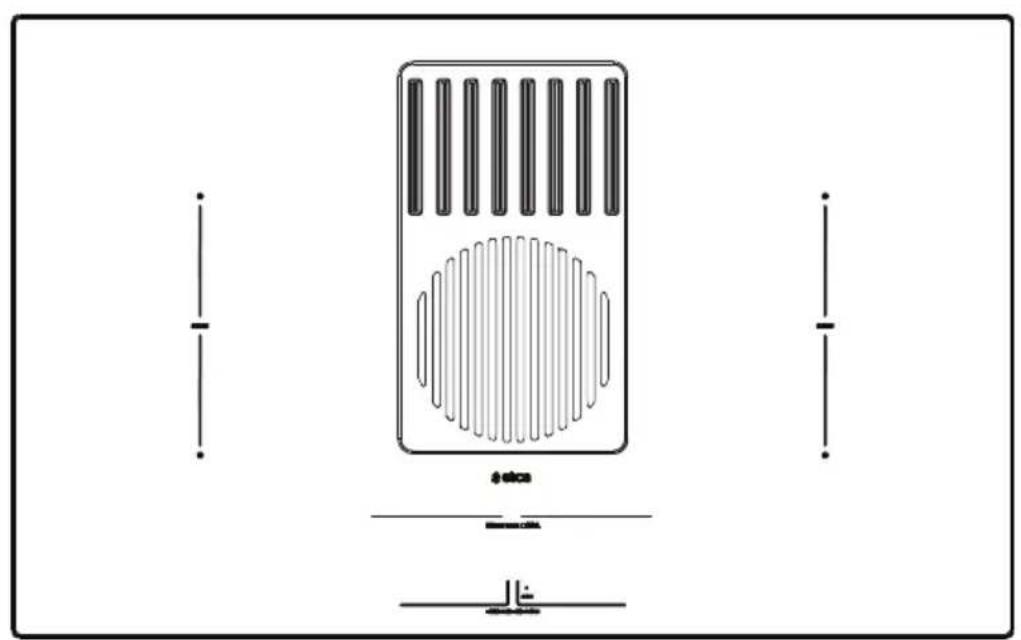

(to check which zones are equipped with this function, see the illustrated part of this manual).

To activate the Bridge Function:

• simultaneously select the two cooking zones you want to use
• the Display (2) of the "Secondary" cooking zone shows the symbol "7"
• using the Selection bar (3), it will be possible to set the Level (Power) of exercise, which will be shown in the Display (2) of the "Master" cooking zone
• to deactivate the Bridge Function simply repeat the same activation procedure

Note: the Cooking Timer Zone, activated during the Bridge Function, causes the automatic shut-down of both cooking zones, as in this case they are considered a single combined area.

USING THE EXTRACTOR FAN

Switch-on

Press (touch) briefly ■ ON/OFF (1) hob/extractor: the symbol

lights up;

continuing to press, all the available functions will become visible for a few moments, e, after which only the main ones will remain active; the others can be used, and will be activated, subsequently, during use of the device.

IMPORTANT:

all the available functions will be illuminated with light intensity, which will become more intense only when they are activated.

Press again to turn off

Note: This function has priority over the others.

● Starting the extractor:

Touch (press) the Selection zone (12) to activate the extractor

● Extraction speed (power):

The extractor is equipped with 3 levels of extraction speed (power)

Touch and slide your fingers along the Selection bar (3): to the right to increase the level of power; to the left to decrease the level of power.

The power level set will be displayed in the Selection/Display area (12)

● Power Booster

The product has 2 additional power levels (above level 3)

— Power Booster 1 : timed for 15 min.

— Power Booster 2 : timed for 5 min. after which the power returns to the previously set level.

Touch and slide with the fingers along the Selection bar (3) (over level 3) and activate the Power Booster 1 The Power Booster level 1 is indicated in the Selection / Display area (12) with the number "4" flashing

Touch and slide with the fingers along the Selection bar (3) (over level 3) and activate the Power Booster 2 The Power Booster level 2 is indicated in the Selection / Display area (12) with the symbol "P" flashing

● Automatic operation

The hood will turn on at the most suitable speed, adapting the extraction capacity to the maximum cooking level used in the cooking zone.

When the cooking zones are switched off, the hood adapts its extraction speed, decreasing it gradually, to eliminate residual vapours and odours.

To activate this function:

Press (A)_(14)

Repeat the operation to deactivate.

Note: if during automatic operation are selected from the Selection bar (3) the speeds from 1 to 3, the automatic operation is interrupted;
if, instead, the Power Boosters are selected, automatic operation will resume at the end of the timing, while in the meantime the symbol ("A") remains flashing.

Note: if the hob automatically shuts down with Automatic mode active, the extractor fan will automatically turn off in a gradual manner.

● Filter saturation indicator

The hood indicates when filter maintenance is needed:

Carbon/ceramic odour filters

“FILTER”(13) comes on

Grease filter

“FILTER”(13) flashes

Note: this function is disabled by default (see how to enable it in the paragraph "Activation filter saturation indicator")

- Reset filter saturation

After performing maintenance on the filters (greases and/or carbon/ceramic), press and hold FILTER" (13) ; "FILTER"(13) turns off, restarting the indicator count.

● Activation filter saturation indicator

This indicator is normally deactivated. To activate it, proceed as follows:

- turn on the extractor hob via 1 ; - with the extraction motor and cooking zones off, press the Selection zone (12) - long press “HOOD” (11) until the letters “F” – “G” appear alternately flashing in the Display (12)

F = carbon/ceramic odour filters G = grease filter

Carbon/ceramic odour filters

- press on the Display (12) when the letter "F" appears - press "FILTER" (13) – flashing light - long press "HOOD" (11) again to confirm the activation of the carbon/ceramic odour filter indicator

Grease filter

- press on the Display (12) when the letter "G" appears - press "FILTER" (13) – fixed light - long press "HOOD" (11) again to confirm activation of the grease filter indicator

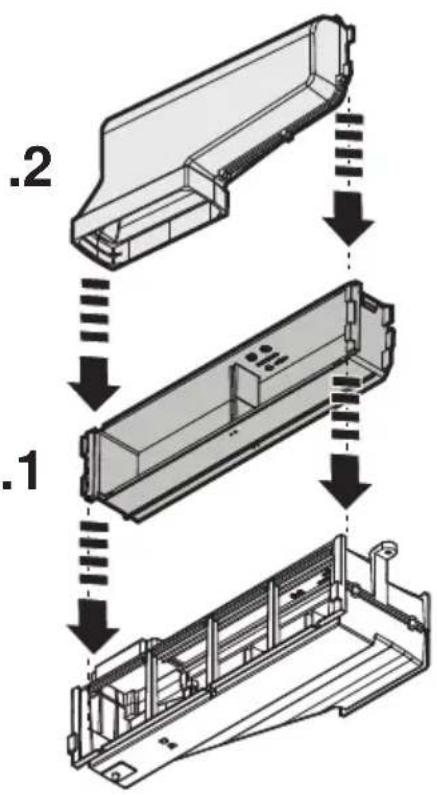

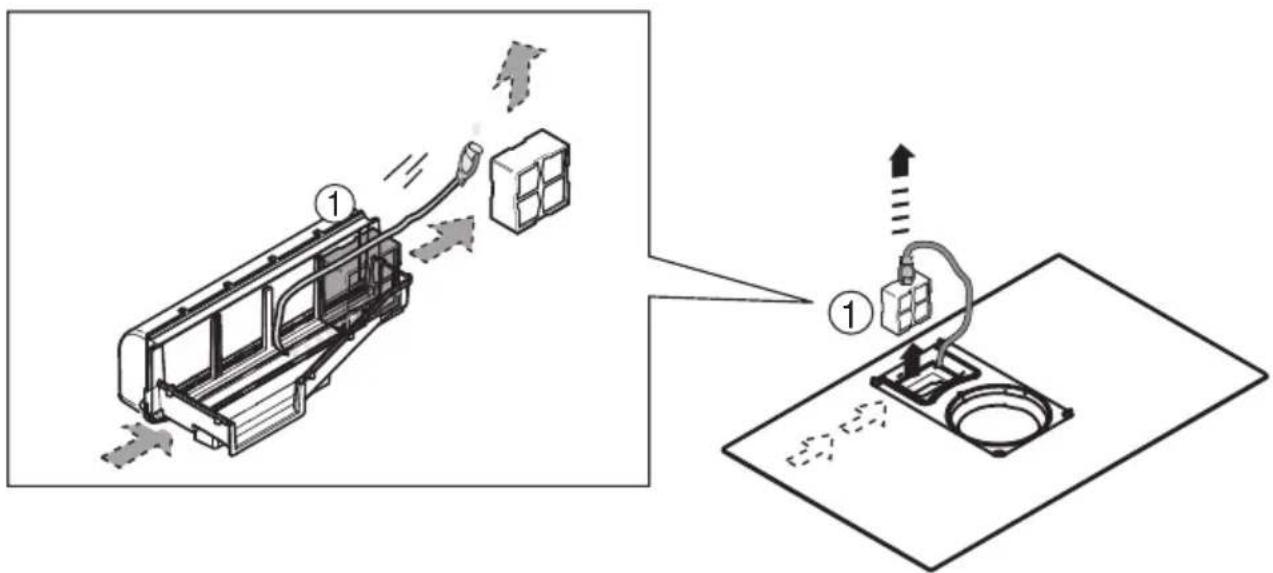

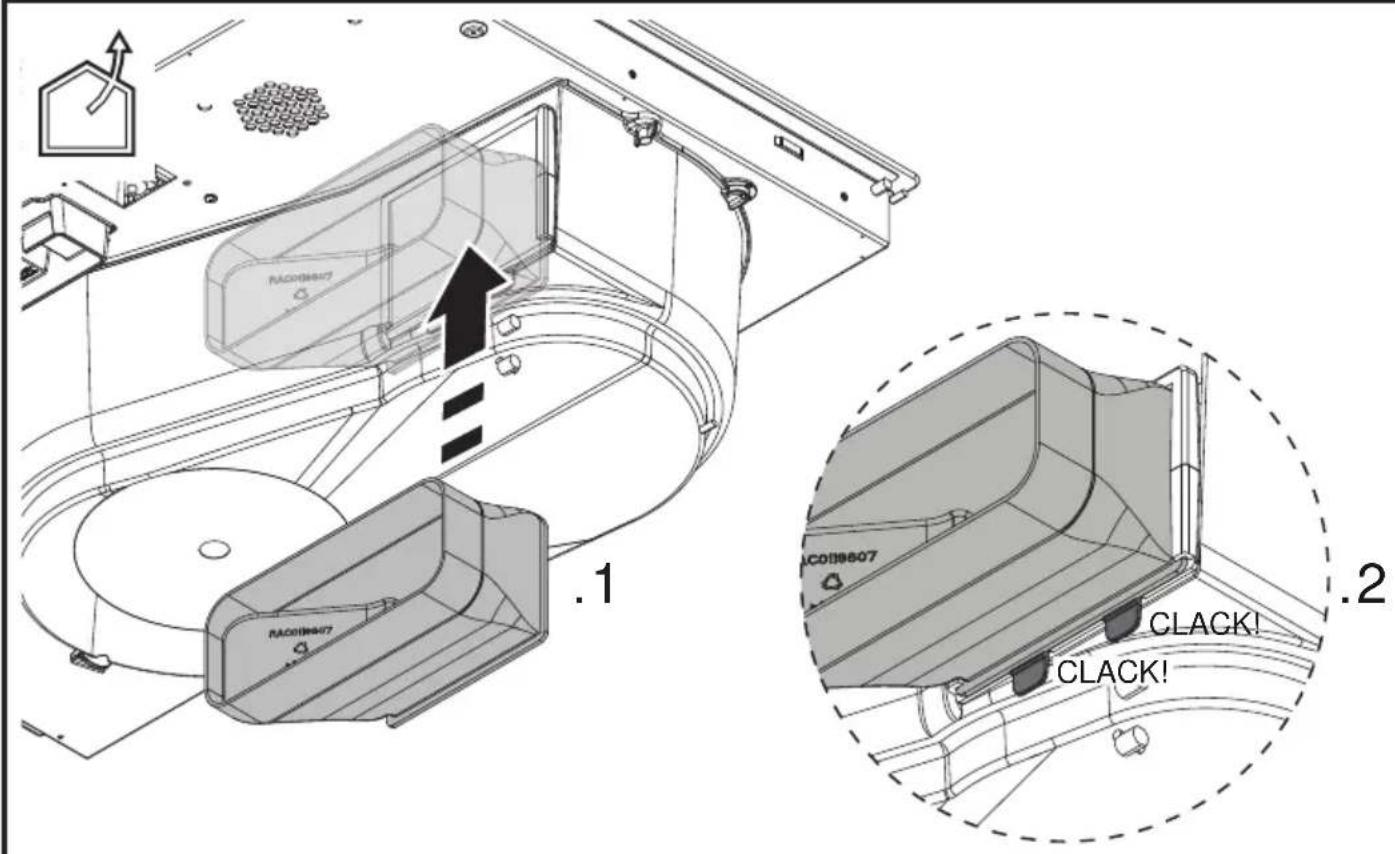

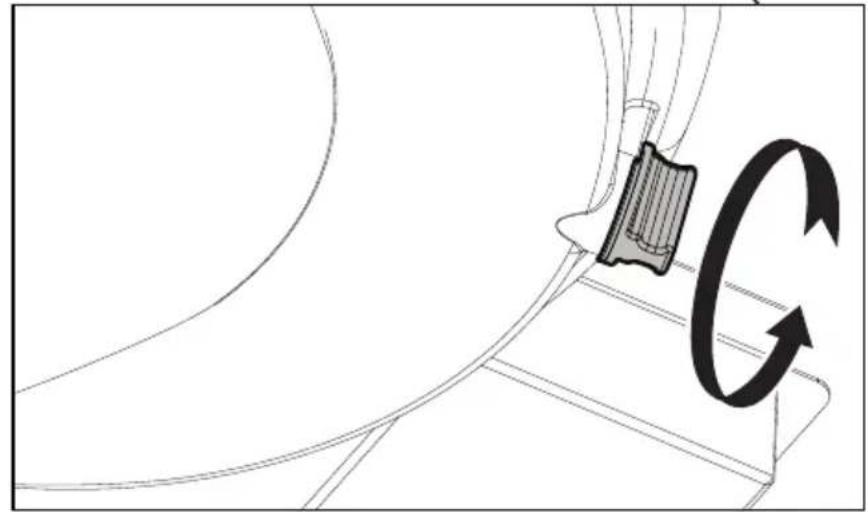

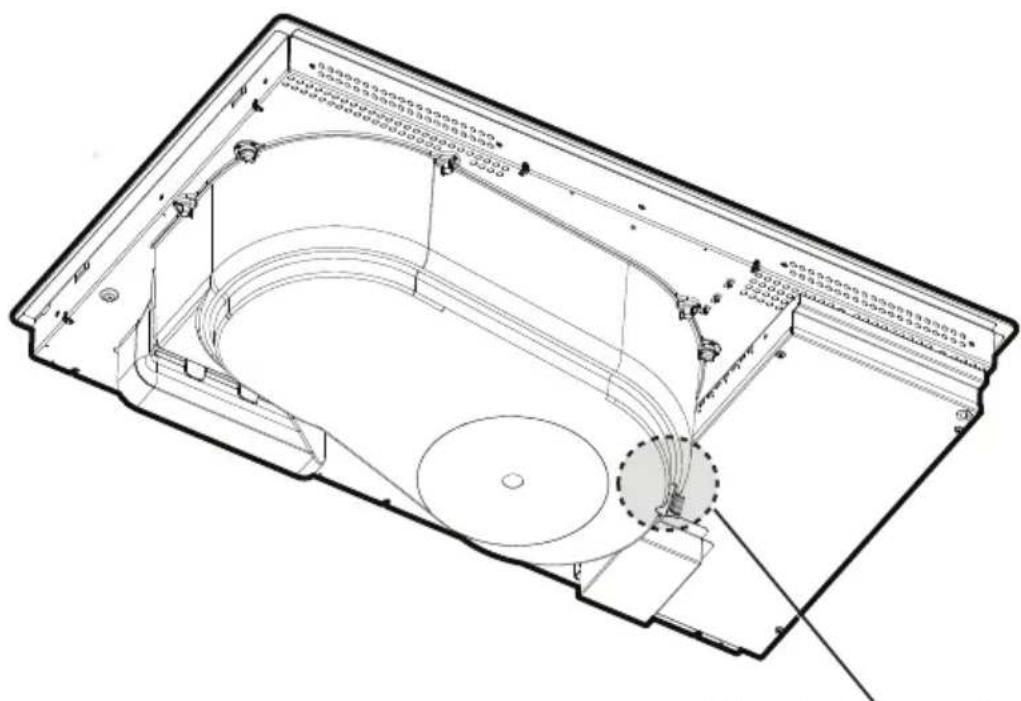

The device can also be used in combination with a Window sensor KIT (not supplied by the manufacturer). If the Window sensor KIT is installed (only in the case of use in EXTRACTOR mode), air extraction will halt every time the window in the room, on which the KIT is applied, is closed.

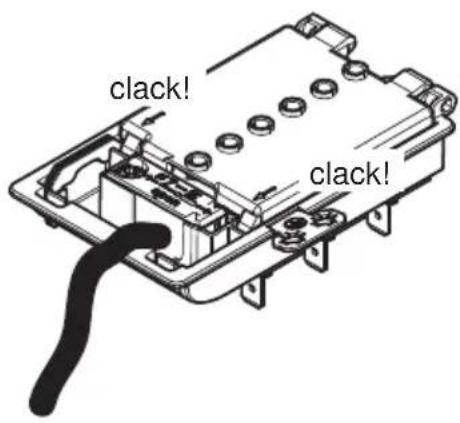

- The KIT must be electrically connected to the device by qualified and specialised technical personnel.

- The KIT must be certified separately in accordance with the safety standards for the component and its use with the device. Installation must be carried out in accordance with current regulations for domestic systems.

PLEASE NOTE:

- the wiring of the KIT to be connected to the device must be part of a certified safety extra-low voltage (SELV) circuit. - the manufacturer of this device declines all liability for any inconvenience, damage or fires caused by defects and/or problems associated with the malfunction and/or incorrect installation of the KIT.

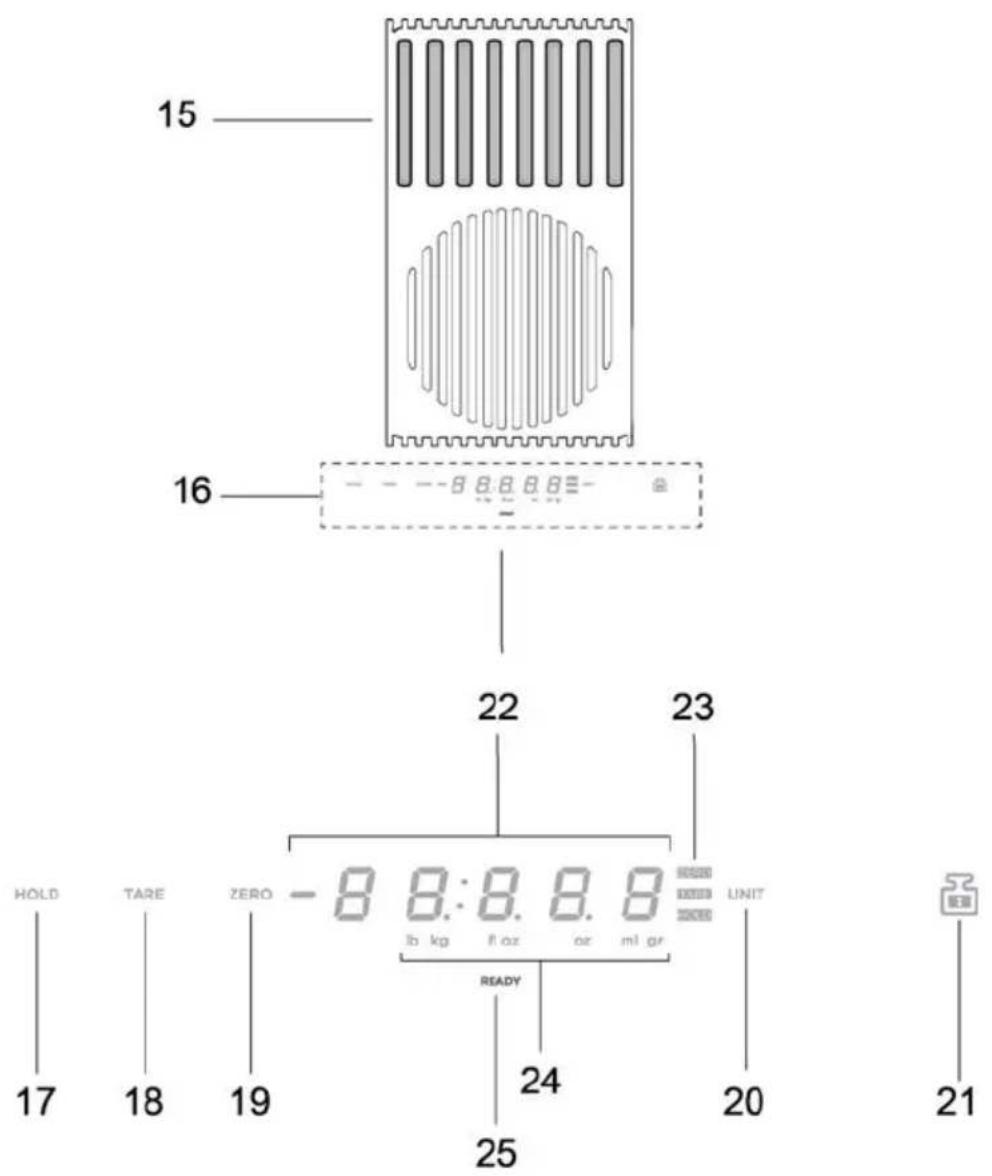

Product - Keys - Display

15 16 22 23 HOLD TARE ZERO -8 8:8.8.8 Ib kg fl oz oz ml gr READY 24 20 UNIT 21 17 18 19 25 20 21

1. Weighing area
2. Display /Commands
3. HOLD function
4. TARE function
5. ZERO function
6. UNIT function
7. LOCK function
8. Numeric display of the scale
9. Indicator of the function in use
   24 Indicator of the unit of
10. measurement in use
11. Scale indicator

USE OF THE SCALE

The product is equipped with a scale for food incorporated

IMPORTANT:

when using the scale with pots or containers larger than ∅ 20cm, it is advisable to switch off the suction of the hood in order to avoid affecting the measurement of the weight; NOTE = The pot or container must always be centred on the weighing area, avoiding to obstruct the suction area. NOTE = the maximum load of the scale is 10KG; consider a tolerance of +/-2g on the value of each individual weighing.

Operation

- Switch-on

To activate the scale tap the weighing area (16) or place the product to be weighed on the area itself; the display (22) activates showing a weight equal to zero or equal to the weight of the product

NOTE = if in the weighing area are already present products and these are removed, the scale will activate showing the weight of the product removed with a negative sign; vice versa, if you add other products, the scale will activate showing only the weight of the last product added

- Switching off

The scale switches off automatically:

• after 2 minutes, if there are no objects on the weighing area
• after 8 minutes, if there are objects on the weighing area

- UNIT function

The scale is set by default on the metric measurement system, in grams; press "UNIT" (20) to change the unit of measurement; the unit of measurement in use is displayed below the display of the scale, in the display (24)

- ZERO function

The function 'ZERO' (19) allows to bring "to zero" the numeric display of the scale, whether there are products in the weighing area or not (15);

NOTE = the indicator ZERO (23) goes off when products are added or removed from the weighing area (and the weight of the products will be shown);

TARE function

The function "TARE" (18) allows to gradually weigh different foods without having to remove them from the weighing area, and be able to have both the weight of each single food that total weight

use:

• position the first product in the weighing area, the display (22) displays the weight "1"
• press "TARE" (18), the weight in the display (22) is reset
• add another product in the weighing area, the display (22) displays the weight "2"
• press again "TARE" (18) the display (22) displays the weight "1" + the weight "2"
  NOTE = it is possible to add products up to the maximum load of the scale
  NOTE = to exclude the weight of container from the total weight, carry out initially the tare through the "ZERO" (19) function
  NOTE= to exit from the function "TARE" press "ZERO" (19)

HOLD function

The function "HOLD" (17) allows to store the weight that you are viewing and then recall it to add it or subtract it from the new weight on the scales; the weight will remain stored in memory until the scale is switched off

use:

• place the product in the weighing area
• keep pressed "HOLD" (17) until the weight in the display starts to flash: the value has been stored
  NOTE = you may proceed by removing the weight from the scale and use it in all its functions
  NOTE = repeat a new long pressure to store a new weight; only the last weight saved will remain in the memory.

By pressing "HOLD" (17) at any time you can view the value stored, it appears and flashes for a few seconds in the display (23); within this time by pressing "HOLD" (17) again the stored weight is added to the weight on the scales; the display (23) displays the total value and the bright feedback "HOLD" (23) remains alight, to inform that the function is still active.

by pressing "HOLD" (17) again the weight stored is subtracted from the weight shown in the display; the display (23) displays the value of the difference and it exits automatically from the function.

Example:

• weight stored: 1KG
• weight on the scale when calling the function: 2KG
• weight "added", that appears in the display: 3KG (1KG+2KG)
• weight "subtracted" before exiting the function: 2KG (3KG - 1KG)+

LOCK function

The “LOCK” function (21) blocks use of the scale to stop it from being activated when various objects are placed in the weighing area.

To activate this function, hold “LOCK” (21) pressed until the scale display turns off;

Do the same to deactivate the function: hold “LOCK” (21) pressed until the scale display turns back on.

NB = after 30 minutes of the "LOCK" function being active, the scale turns off and "LOCK" is deactivated.

4.1 Power tables

Power level		Cooking type	Use of level(display combines the experience and cooking habits)
Max power	Boost Heat quickly		Ideal to quickly increase the temperature of the food up to fast boiling in the case of water or quickly heat cooking liquids
	8-9 Fry - boil		Ideal for browning, starting to cook, frying frozen products, boiling rapidly
High power	7-8	Brown - fry - boil - grill	Ideal for frying, keeping the boil, cooking and grilling (for short times, 5-10 minutes)
	6-7	Brown - cook - stew - fry - grill	Ideal for frying, maintaining a simmer, cooking and grilling (for average times, 10-20 minutes), preheating accessories
Medium power	4-5	Cook - stew - fry - grill	Ideal for stewing, maintaining a light boil, cooking (for longer times). Stir pasta
	3-4	Cook - simmer - thicken - stir	Ideal for slow cooking (rice, sauces, roasts, fish) in the presence of liquid (e.g. water, wine, broth, milk), stirring pasta
	2-3	Cook - simmer - thicken - stir	Ideal for slow cooking (volume less than one litre: rice, sauces, roasts, fish) in the presence of liquid (e.g. water, wine, broth, milk)
Low power	1-2	Melt - thaw - keep warm - stir	Ideal for softening butter, gently melting chocolate, thawing small products
	1	Melt - thaw - keep warm - stir	Ideal for keeping small portions of freshly cooked food warm or keeping the temperature of serving dishes and stirring risotto
OFF	Zero power	Support surface	Hob in stand-by or off (possible presence of residual heat from the end of cooking, signalled by H-L-O)

4.2 Cooking tables

Category of foods	Dishes or type of cooking	Power level and cooking pattern
		First stage	Powers	Second stage	Powers
Pasta, rice	Fresh pasta	Heating water	Booster-9	Cooking pasta and maintaining the boil	7-8
	Fresh pasta	Heating water	Booster-9	Cooking pasta and maintaining the boil	7-8
	Boiled rice	Heating water	Booster-9	Cooking pasta and maintaining the boil	5-6
	Risotto	Frying and roasting	7-8	Cooking	4-5
Vegetables, legumes	Boiled	Heating water	Booster-9	Boiling	6-7
	Fried	Heating oil	9	Frying	8-9
	Sauté	Heating accessory	7-8	Cooking	6-7
	Stewed	Heating accessory	7-8	Cooking	3-4
	Fried	Heating accessory	7-8	Browning fried	7-8
Meats	Roast	Meat browning with oil (if with butter, power 6)	7-8 Cooking 3-4
	Grilled	Pre-heating pan	7-8	Grilling on both sides	7-8
	Browning	Browning with oil (if with butter, power 6)	7-8 Cooking 4-5
	Stew	Browning with oil (if with butter, power 6)	7-8 Cooking 3-4
Fish	Grilled	Pre-heating pan	7-8	Cooking	7-8
	Stew	Browning with oil (if with butter, power 6)	7-8 Cooking 3-4
	Fried	Heating oil or fat	8-9	Frying	7-8
Eggs	Omelettes	Heating pan with butter or fat	6	Cooking	6-7
	Omelettes	Heating pan with butter or fat	6	Cooking	5-6
	Soft boiled/boiled	Heating water	Booster-9	Cooking	5-6
	Pancakes	Heating pan with butter	6	Cooking	6-7
Sauces	Tomato	Browning with oil (if with butter, power 6)	6-7 Cooking 3-4
	Meat sauce	Browning with oil (if with butter, power 6)	6-7 Cooking 3-4
	Béchamel	Preparing the base (melt butter and flour)	5-6	Bring to simmering point	3-4
Desserts, creams	Custard	Boil the milk	4-5	Keep simmering	4-5
	Puddings	Boil the milk	4-5	Keep simmering	2-3
	Rice pudding	Heat the milk	5-6	Keep simmering	2-3

5. Maintenance

Hob maintenance

Caution! Before any cleaning or maintenance, make sure the cooking zones are switched off and the heat indicator has turned off.

5.1 Cleaning

The hob must be cleaned after each use.

Important:

Do not use abrasive sponges, scouring pads. Their use, over time, may ruin the glass.

Do not use chemical irritants, such as oven sprays or stain removers.

After each use, leave the hob to cool and clean it to remove deposits and stains caused by food residue.

Sugar or food with a high sugar content damages the hob and must be immediately removed.

Salt, sugar and sand may scratch the glass surface.

Use a soft cloth, paper towel or specific products to clean the hob (follow the Manufacturer's instructions).

DO NOT USE STEAM JET CLEANERS!!!

Important:

If liquids accidentally or excessively leak out of the pots, the drain valve located on the lower part of the product can be opened so as to remove any residue and be able to clean in conditions of maximum hygiene.

Fig. 18

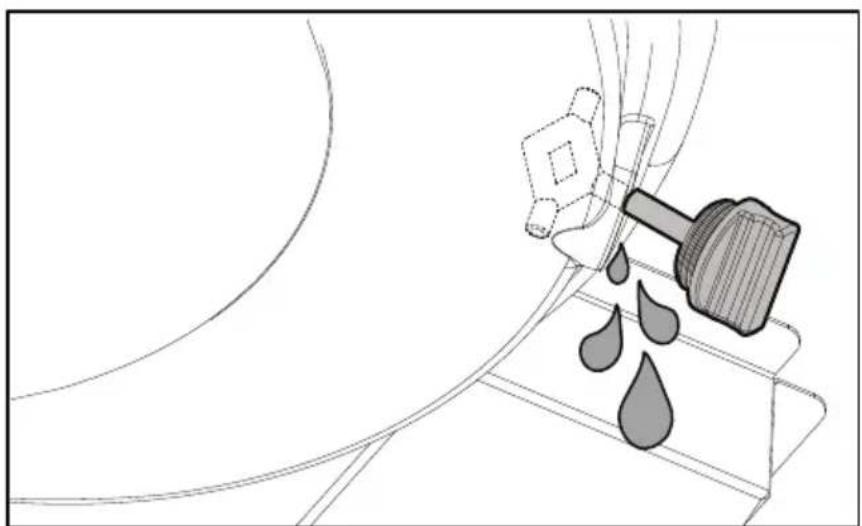

For a more complete and in-depth clean, the lower tray can be completely removed.

Fig. 19

Cleaning the metal grille:

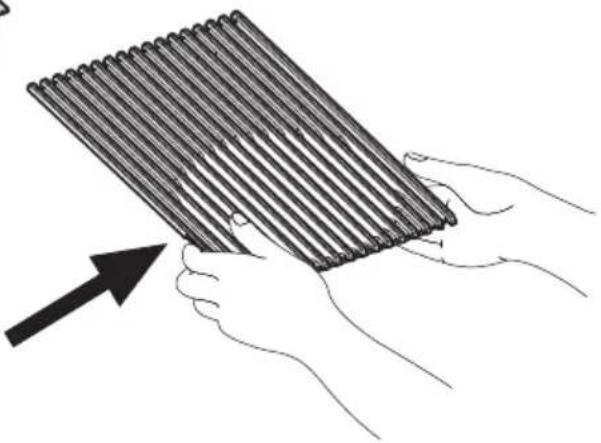

The grille must be washed by hand with hot water and neutral detergent, then dried thoroughly to prevent oxidation.

Extractor fan maintenance

Cleaning

For cleaning, use ONLY a cloth moistened with neutral liquid detergents. DO NOT USE CLEANING UTENSILS OR TOOLS!

Avoid the use of products containing abrasives.

DO NOT USE ALCOHOL!

Grease filter

Traps grease particles generated by cooking.

Must be cleaned once per month (or when the filter saturation indication system indicates this need), with non-aggressive detergents, either manually or in the dishwasher at a low temperature and in a short cycle.

When cleaned in the dishwasher, the metal grease filter may discolour, but its filtering characteristics remain unchanged.

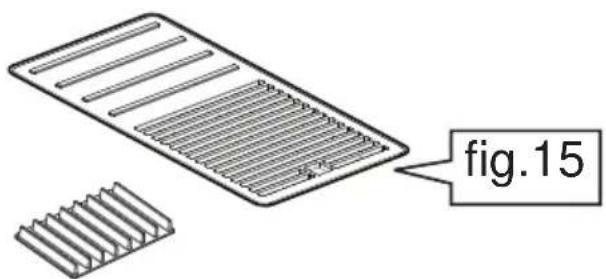

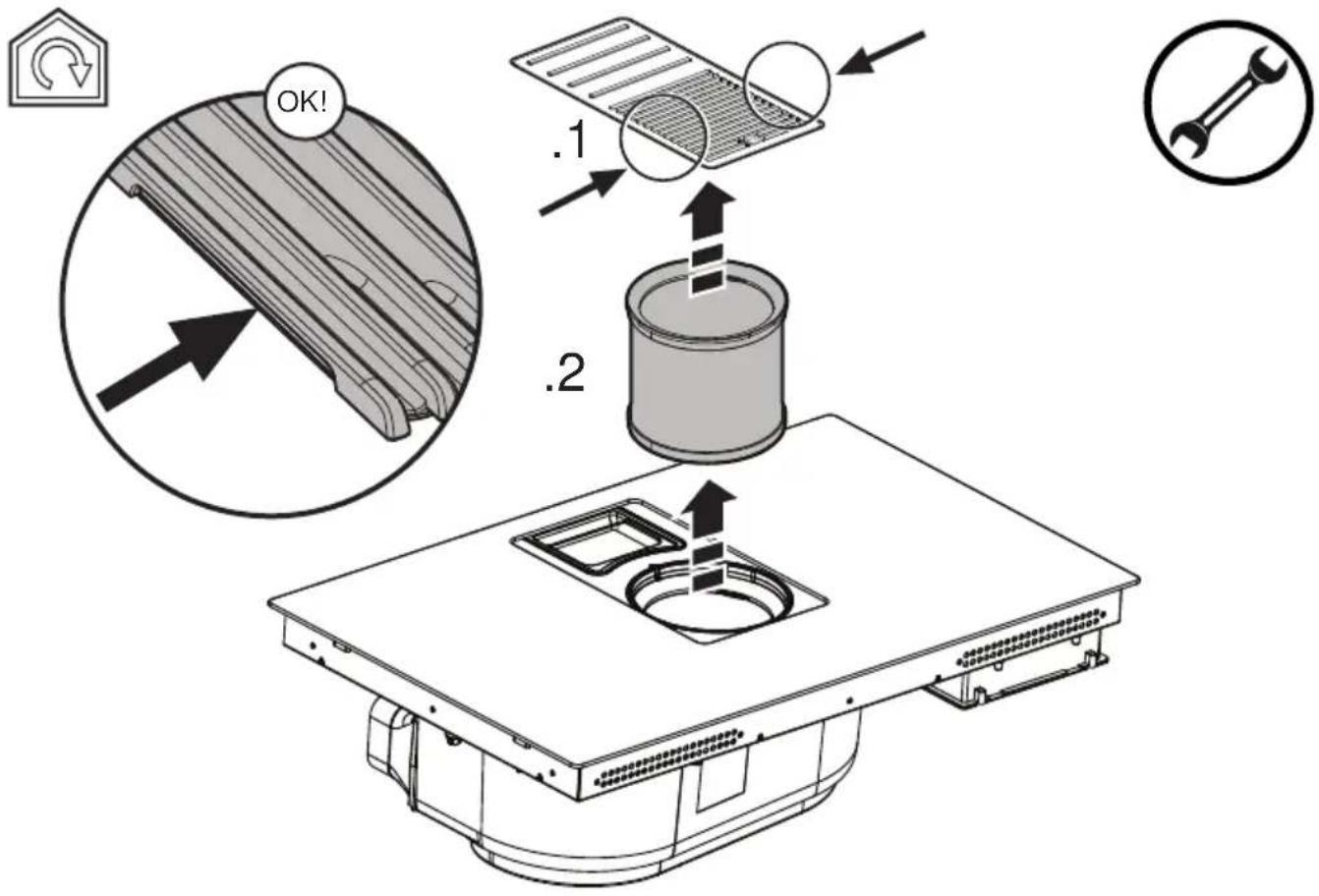

Fig. 15

Activated Carbon Filter - Ceramic

(Only for Filtration Version)

Traps unpleasant odours generated by cooking.

The product comes with a set of odour filters. The saturation of the odour filters can occur after somewhat prolonged use depending on the type of cooking and how regularly the grease filter is cleaned. The odour filters can be thermally regenerated every 2/3 months in an oven pre-heated to 200^ C for 45 minutes. The correct regeneration of the filter ensures that it can constantly filter efficiently for 5 years.

Warning! Do not leave filters on the bottom of the oven, but place it on a baking tray and position it at a mid height..

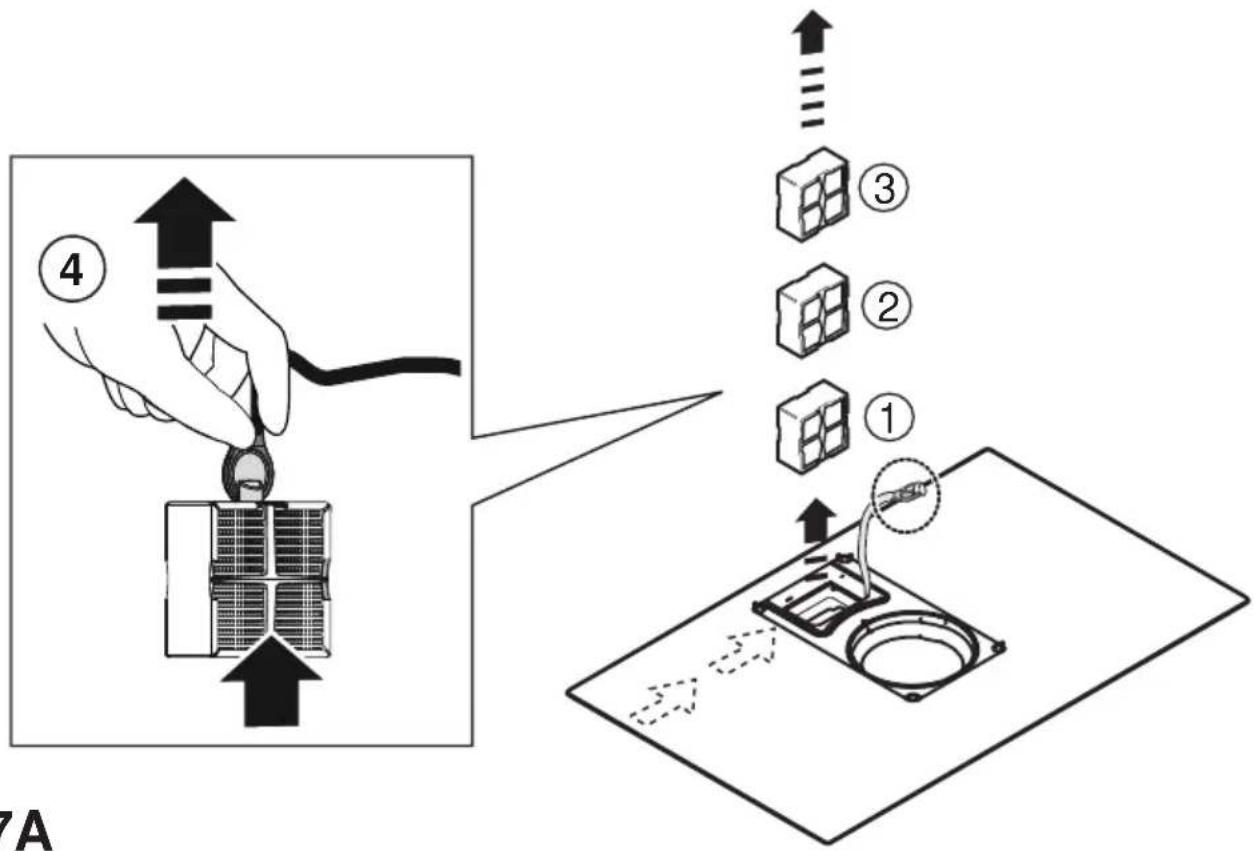

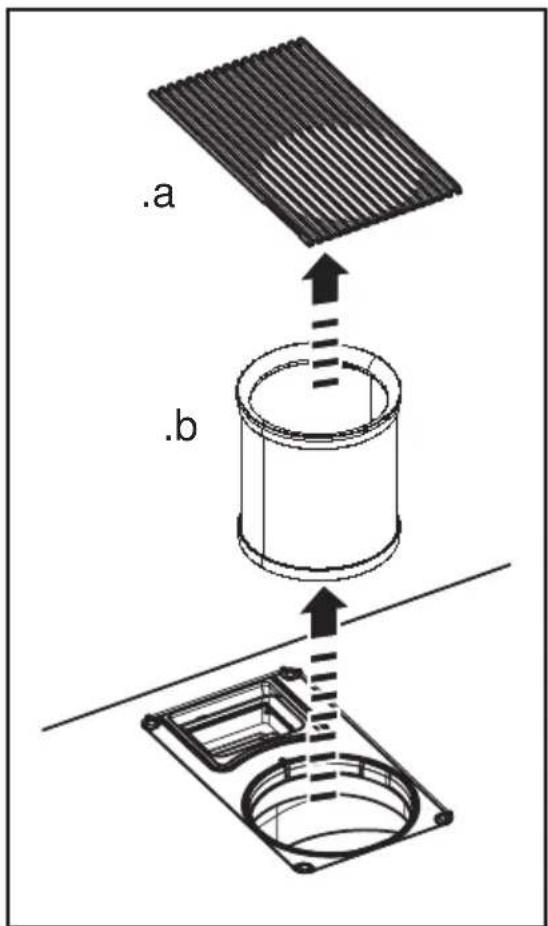

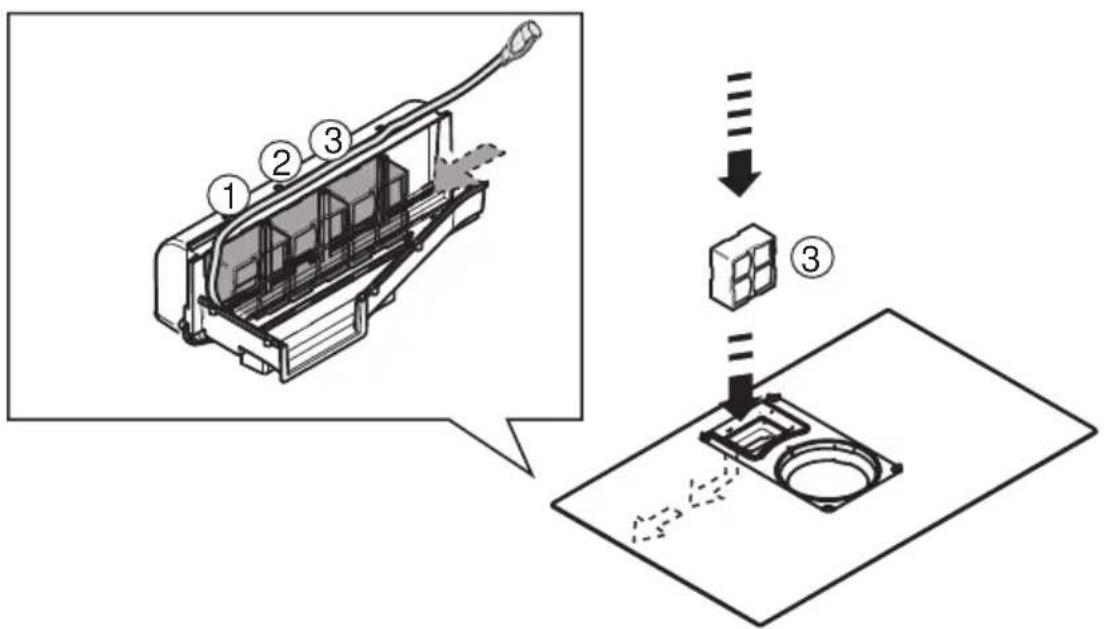

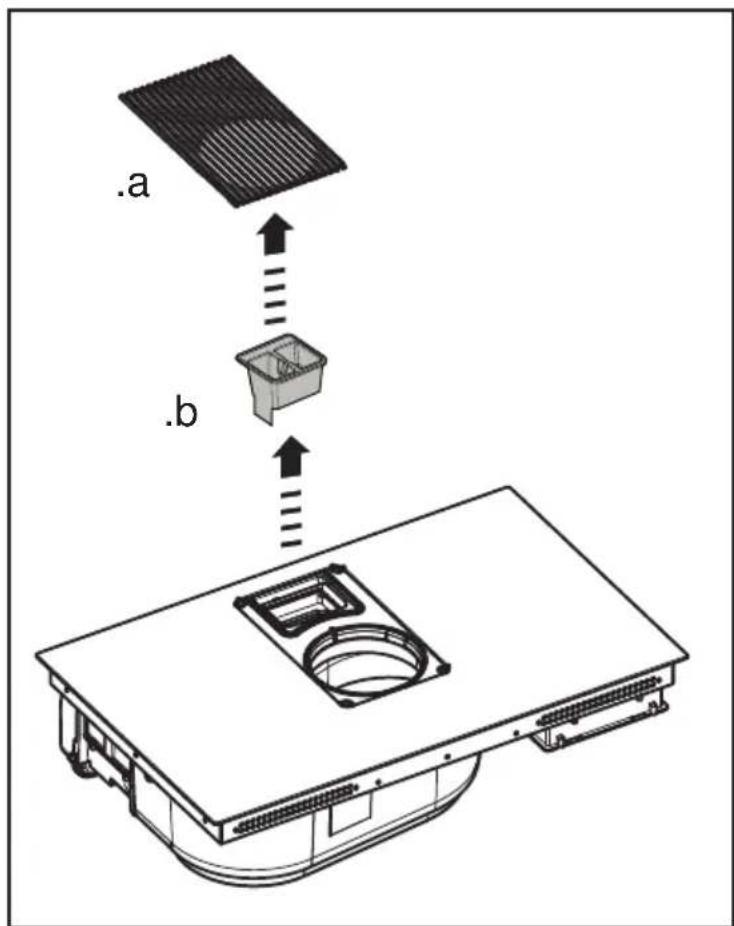

Fig. 17 - 17a - 17b - 17c

5.2 Troubleshooting

ERROR CODE	DESCRIPTION	POSSIBLE CAUSES	ERROR REMOVAL
E2	The command zone switches off due to an excessively high temperature	The temperature inside the electronic parts is too high	Wait for the hob to cool before reusing it
E3 Container unsuitable		Loss of magnetic properties	Remove the pot
E5	Communication problems between the user interface and induction module	Electricity is not reaching the module; The power cable is incorrectly connected or faulty	Disconnect the hob from the electrical network and check the connection
For all other error signals ( E ... U ... C ... )	Call customer service and report the error code

5.3 Customer service

Before contacting Customer Service

1. Check that you cannot solve the problem yourself based on the points described in "Troubleshooting".

2. Switch the device off and on again to see if the problem resolves itself.

If the fault persists after the above checks, contact the nearest Customer Service.

Illustration of kitchenware including a cooking pan, lid, and pot (no text or symbols)

NEIN!

Two grayscale illustrations of cooking utensils, one with a side pan and another with a side pan (no text or symbols)

NEIN!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

JA!

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of kitchenware including a cooking pan, lid, and pan (no text or symbols)

NON!

Two grayscale illustrations of frying panes with handles, one showing a side dish and the other showing a side pan with a griddle (no text or symbols)

NON!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

OUI!

- 0. minutes - 00 secondes

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

5.3 Service assistance

Illustration of kitchenware including a plate, pot, and lid (no text or symbols)

NEE!

Two grayscale illustrations of frying panes with handles, one showing a side dish and the other showing a pan with a griddle (no text or symbols)

NEE!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

JA!

● Residual Heat Indicator [Indicator restwarmte]

- selecteer Zone/Display (4)

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

● Indicator verzadiging filters

● Activering indicator verzadiging filters

Illustration of kitchenware including a cooking pan, lid, and pot (no text or symbols)

¡NO!

Two black-and-white illustrations of frying panes with handles, one showing a circular pattern and the other showing a circular interior (no text or symbols)

¡NO!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

¡sí!

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of kitchenware including a cooking pan, lid, and pot (no text or symbols)

NÃO!

Two grayscale illustrations of frying panes with handles, one showing a circular pattern and the other showing a square (no text or symbols)

NÃO!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

SIM!

● Residual Heat Indicator (Indicador Calor Residual)

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of cooking utensils including a pan, lid, and pot (no text or symbols)

OXI!

Two grayscale illustrations of cooking utensils, one with a lid and handle, the other showing a pan with a circular grille (no text or symbols)

OXI!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

NAI!

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

● Bridge Zones [Zώνες Γέφυρας]

Illustration of cooking utensils including a plate, pan, and pot (no text or symbols)

NEJ!

Illustration of two frying panes with different interior designs (no text or symbols)

NEJ!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

JA!

● Key Lock (Knapplås)

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of kitchenware including a stove, pan, and lid (no text or symbols)

EI!

Two kitchen utensils: a flat pan with a side panel and a closed pan with a circular vent (no text or symbols visible)

EI!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

KYLLÄ!

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4. 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of cooking utensils including a pan, lid, and pan (no text or symbols)

NEI!

Two grayscale illustrations of frying panes with different interior designs (no text or symbols)

NEI!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

JA!

Viktig: Ikke sett varme kjeler på overflaten til platetoppens kontrollpanel.

Display for kokesoner

Display for kokesoner

● Safe Activation (sikker igangsetting)

Produktet aktiveres kun när det finnes kjeler/gryter plassert på sonene. Oppvarmingsfasen vil ikke starte opp (eller den avbrytes) hvis det ikke finnes gryter på platen.

● Residual Heat Indicator (restvarmeindikator)

● Power Booster (forsterkernivå)

Produktet er utstyrt med et ekstra effektnivå (over nivået som forblir aktivt i 5 minutter før effektnivået går tilbake til forrige nivå.

● Key Lock (Tastelås)

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

** standard innstilling er 7,4 KW

Illustration of kitchenware including a cooking pan, a pot, and a lid (no text or symbols)

NEJ!

Two black-and-white illustrations of frying panes with handles and different interior designs (no text or symbols)

NEJ!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

JA!

● Safe Activation (Sikker aktivering)

● Key Lock (Tastblokering)

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of kitchenware including a cooking pan, a lid, and a pot (no text or symbols)

Two grayscale illustrations of frying panes with different interior designs (no text or symbols)

NIE!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

TAK!

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of kitchenware including a pan, lid, and pot (no text or symbols)

NE!

Two grayscale illustrations of cooking utensils: a flat pan with a circular lid and a side pan with a circular cutterhead (no text or symbols)

NE!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

ANO!

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of cooking utensils including a plate, pot, and lid (no text or symbols)

NIE!

Two grayscale illustrations of cooking utensils, one with a side panel showing a square pan and the other with a circular lid (no text or symbols)

NIE!

Illustration of a frying pan and its side view showing a cooking step (no text or symbols)

ÁNO!

$$ 0 = 7, 4 \mathrm{kW} $$

$$ 1 = 4, 5 \mathrm{kW} $$

$$ 2 = 3, 1 \mathrm{kW} $$

* predvolené nastavenie je 7,4 kW

NEPOUŽÍVAJTE ALKOHOL!

Protitukový filter

Illustration of kitchenware including a plate, cooking pan, and pot (no text or symbols)

NEM!

Two grayscale illustrations of frying panes with handles, one showing a side dish and the other showing a closed pan (no text or symbols)

NEM!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

IGEN!

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of kitchen utensils including a plate, pot, and lid (no text or symbols)

HE!

Two grayscale illustrations of frying panes with handles, one showing a side dish and the other showing a side dish (no text or symbols)

HE!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

ДА!

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of kitchenware including a pan, lid, and pot (no text or symbols)

Two grayscale illustrations of cooking utensils, one with a side pan and another showing interior panes (no text or symbols)

Illustration of a frying pan with a lid and an arrow indicating the handle (no text or symbols)

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of kitchenware including a plate with a cross symbol, a pan with lid, and a pot (no text or symbols)

HET!

Two grayscale illustrations of frying panes with handles and a circular lid, shown from different angles (no text or symbols)

HET!

Illustration of a frying pan and its side view (no text or symbols)

ДА!

Illustration of cooking utensils including a pan, lid, and pot (no text or symbols)

Two kitchen utensils with handles, one showing a circular cutout and the other showing a pan with a central knob (no text or symbols)

Illustration of a pan and a cooking pan (no text or symbols)

TAK!

Illustration of kitchenware including a plate, pan, and lid (no text or symbols)

Two grayscale illustrations of cooking utensils: a flat pan with lid and a pan with lid open showing interior contents (no text or symbols)

БОЛМАЙДЫ!

Illustration of a cooking pan and its side view (no text or symbols)

БОЛАДЫ!

Illustration of kitchenware including a cooking pan, lid, and pan (no text or symbols)

El!

Two grayscale illustrations of frying panes with handles, one showing a side dish and the other showing a closed pan (no text or symbols)

El!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

JAH!

teised selles jaotises toodud juhised.

$$ 0 = 7, 4 \mathrm{kW} $$

$$ 1 = 4, 5 \mathrm{kW} $$

$$ 2 = 3, 1 \mathrm{kW} $$

** Vaikeseadistus on 7,4 kW.

Illustration of kitchenware including a cooking pan, lid, and pot (no text or symbols)

NE!

Two grayscale illustrations of frying panes with handles, one showing a circular cutout and the other showing a circular cutter (no text or symbols)

NE!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

TAIP!

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of kitchenware including a cooking pan, lid, and pot (no text or symbols)

NÊ!

Two grayscale illustrations of frying panes with different interior designs (no text or symbols)

NÊ!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

JĀ!

Illustration of kitchenware including a cooking pan, lid, and pot (no text or symbols)

NE!

Two black frying panes with handles, one showing a circular lid and the other showing a circular vent with a central knob (no text or symbols)

NE!

- Dno koje nije ravno ili je sa hrapavom površinom. Takva dna oduzimaju kontaktnu površinu između induktora i posuđa, smanjujući efikasnost i pogoršavajući iskustvo kuvanja.

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

DA!

Važno: nikada ne stavljajte vruće lonce i tave na površinu kontrolne ploče.

● Power Level (nivo snage)

Ploča za kuvanje ima 9 nivoa snage Dodirnite i klizite prstima po Traci za Izbor (3): prema desno za povećavanje nivoa snage; prema levo za smanjivanje nivoa snage.

• svaki put kad pritisnete, emituje se kratki zvučni signal
• posle pritiskanja svih Display (displeja) (2), moguće je pustiti taster (A)

u ovom trenutku:

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

** zadana postavka je 7,4 KW

Za promenu podešavanja funkcije Power Limitation (ograničenje snage)

• pritisnite Display (displej) (2) prednje leve zone (FL)
• posle toga klizite po Traci za izbor (3), za postavljanje novog podešavanja
• za snimanje izvršenog izbora pritisnite taster ON/OFF (1), na 2 sekunde; emitira se dugi zvučni signal, kao potvrda izvršenog podešavanja

● Bridge Zones (most područja)

Zone za kuvanje, zahvaljujući funkciji Bridge, mogu raditi u kombinovanom načinu, stvarajući jedinstvenu zonu kuvanja sa istim nivoom snage. Ta funkcija omogućuje ujednačeno kuvanje i sa posudama velikih dimenzija.

Može se koristiti u kombinaciji prednja zona za kuvanje "Master" sa odgovarajućom zadnjom zonom za kuvanje "Sekundarna"

NEMOJTE KORISTITI ALKOHOL!

Filter za mast

Zadržava čestice masti nastale kuvanjem.

Mora se čistiti jednom mesečno (ili kada to zahteva sistem indikatora zasićena filtera), sa blagim deterdžentima, ručno ili u mašini za suđe, na niskim temperaturama i kratkom ciklusu.

Illustration of kitchenware including a cooking pan, lid, and pot (no text or symbols)

NE!

- da dno ne vsebuje aluminija: posoda se ne segreva ker induktorji morda je niti ne prepoznajo.

Two grayscale illustrations of cooking utensils: a flat pan with a side panel and a pan with a circular opening (no text or symbols)

NE!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

DA!

● Pot Detector (Zaznava posode)

$$ 0 = 7, 4 \mathrm{kW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of kitchenware including a plate with lid and a pot with lid (no text or symbols)

NE!

- Dno ne smije sadržavati aluminij: posuđe se ne zagrijava i induktori ne mogu prepoznati takvo posuđe.

Two grayscale illustrations of cooking utensils: a flat pan with a circular lid and a closed pan with a circular cutter (no text or symbols)

NE!

- Dna koja nisu ravna ili su s hrapavom površinom. Oduzimaju kontaktnu površinu između induktora i posuđe, smanjujući učinkovitost i pogoršavajući iskustvo kuhanja.

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

DA!

● Power Level (Razina snage)

• pri svakom pritisku, oglašava se zvučni signal
• kada se pritisnu svi Display (zasloni) (2), tipka se može otpustiti (A)

u tom trenutku:

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

** zadana postavka je 7,4 KW

Za promjenu postavki Power Limitation (ograničenje snage)

• pritisnite Display (zaslon) (2) lijeve prednje zone (FL)
• zatim klizite po Traci za odabir (3), za unošenje novih postavki
• za spremanje odabira pritisnite tipku ON/OFF (UKLJ/ISKLJ) (1), 2 sekunde; u znak potvrde uspješnog podešavanja oglasit će se dugotrajni zvučni signal

● Bridge Zones (most područja)

Zone kuhanja zahvaljujući funkciji Bridge, mogu raditi u kombiniranom načinu, stvarajući jedinstvenu zonu kuhanja s istom razinom snage. Ta funkcija omogućuje ujednačeno kuhanje i s posudama velikih dimenzija.

Može se koristiti u kombinaciji prednja zona za kuhanje "Master" sa odgovarajućom stražnjom zonom za kuhanje "Sekundarna"

NEMOJTE KORISTITI ALKOHOL!

Filtar za mast

Illustration of cooking utensils including a pan, lid, and pan (no text or symbols)

HAYIR!

Two kitchen utensils: a flat pan with a side dish and a closed pan with a circular cutter (no text or symbols visible)

HAYIR!

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

EVET!

● Safety Shut Down (Emniyetli Kapatma)

$$ 0 = 7, 4 \mathrm{KW} $$

$$ 1 = 4, 5 \mathrm{KW} $$

$$ 2 = 3, 1 \mathrm{KW} $$

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

Illustration of kitchenware including a cooking pan, lid, and pot (no text or symbols)
