M7X - Effect machine Antari - Free user manual and instructions

Product Type	Smoke Machine (Fog Generator)
Brand	Antari
Model	M7X
Dimensions (L x W x H)	345 x 1193 x 385.7 mm
Weight	11.5 kg
Power Supply	120 V 60 Hz or 230 V 50 Hz
Fuse	100 V: T6.3 A 250 V; 230 V: 9 A 250 V
Heating Power	1550 W
Preheat Time	Approx. 5 minutes
Emission Range	5 m high, 1 m wide
Tank Capacity	2.4 L
Liquid Consumption	25 ml / 10 seconds
Recommended Fluid	Antari FLC water-based
Control Options	DMX512, manual, timer, wireless remote
DMX Channels	9 channels
Power Connection	Neutrik Powercon
DMX Connection	XLR 3-pin and 5-pin
Delivery Contents	1 x M-7 RGBA Fogger, 1 x W-2 wireless controller, 1 x power cable, 1 x user manual
Maintenance and Cleaning	Clean with a dry cloth; purge with distilled water before storage; replace fuse with identical model
Safety	Minimum distance of 50 cm around the unit; do not use unattended; do not mix flammable liquids; use only Antari FLC fluid

Frequently Asked Questions - M7X Antari

Which fluid to use with the M7X machine?

Use only high-quality water-based fog fluid Antari FLC or any other fluid recommended by your dealer. Using other fluids may damage the machine and void the warranty.

How to use the W-2 wireless remote?

The W-2 wireless remote controls smoke and LEDs. First pair it by holding the [DOWN] button while powering on. Buttons A, B, C, and D can be configured in the menu for macros or chases. Range is about 50 meters in direct line of sight.

What to do if the machine does not produce smoke?

First check that the machine is powered on and preheating is complete (display shows 'Ready to Fog'). Ensure the tank contains fluid and that smoke mode is activated (VOLUME button). If the problem persists, check the fuse and contact your Antari dealer.

How to clean and maintain the machine?

Unplug the unit before any maintenance. Clean the exterior with a dry cloth. For prolonged storage, purge the tank with distilled water. Use an air compressor or soft brush to remove dust from ventilation openings. Operate the machine at least once a month to prevent clogging.

How to replace the fuse?

First unplug the unit. Replace the fuse with an identical model (100 V: T6.3 A 250 V; 230 V: 9 A 250 V). Reset the circuit breaker to 'ON' and test operation.

How to set up the DMX connection?

Use XLR 3-pin or 5-pin connectors. Set the DMX address in the menu (Address: 1 to 504). The machine uses 9 DMX channels: channel 1 for smoke, channels 2-5 for LEDs (red, green, blue, amber), channel 6 for chase, channel 7 for speed, channel 8 for master dimmer, and channel 9 for strobe.

How to set Timer mode?

In the menu, select 'Timer' and set the interval (10 to 360 seconds) and duration (1 to 5 seconds). Activate Timer mode with the [UP]/[TIMER] button on the control panel.

Can I pair multiple remotes?

Yes, up to 10 wireless transmitters can work with one receiver. To pair a new transmitter, power off the machine, hold the [DOWN] button, power on, and release when the screen blinks. Then follow the menu instructions to connect or disconnect transmitters.

What are the important safety precautions?

Install the machine in a well-ventilated area with at least 50 cm of free space around it. Never use unattended. Do not mix flammable liquids. Use only a 3-prong grounded outlet. Protect the unit from moisture and do not open it (no user-serviceable parts inside).

What to do in case of liquid spill or overheating?

In case of liquid spill, immediately unplug the unit and clean with a damp cloth. If liquid gets inside, unplug and contact your Antari dealer. In case of overheating (due to dust or fluid), turn off the machine, clean ventilation openings, and let it cool before reuse.

USER MANUAL M7X Antari

Please read the following safety information carefully before operating the machine. Information includes important safety information about installation, usage, and maintenance. Pay attention to all warning labels and instructions in this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local Antari dealer for help.

• Keep this device dry.
  Always connect to a grounded circuit to avoid risk of electrocution.
• Before connecting machine to power, always check voltage indicate on machine match to your local AC voltage. Do not use the machine if AC power voltage does not match.
• Disconnect the machine from AC power before servicing and when not in use.
• This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, immediately unplug the machine and contact your local Antari dealer for advice.
• No user serviceable and modifiable parts inside. Never try to repair this product, unauthorized technician may lead machine to damage or malfunction.
  For adult use only. Never leave the machine running unattended.
• Installed in well ventilated area. Provide at least 50 cm space around the machine.
• Never add flammable liquid of any kind to the machine.
• Make sure there are no flammable materials close to the machine while operating.
• Only use Antari fluid. Other fluid may lead to heater clog and malfunction.
• If the machine fails to work, unplug the machine and stop operation immediately. Contact your local Antari dealer for advise.
  Before transporting the machine, make sure the fluid tank is completely drained.
• Smoke fluid may present health risks if swallowed. Do not drink smoke fluid. Store it securely. In case of eye contact or if fluid is swallowed immediately look for medical

advice.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check all content to ensure that all parts are present and have been received in good condition. If any parts appear damaged or mishandled from shipping, notify the shipper immediately and retrain the packing material for inspection.

What is included: 1 x M-7 RGBA Fogger

1 x W-2 Wireless Remote

1 x Power Cord

1 x User Manual

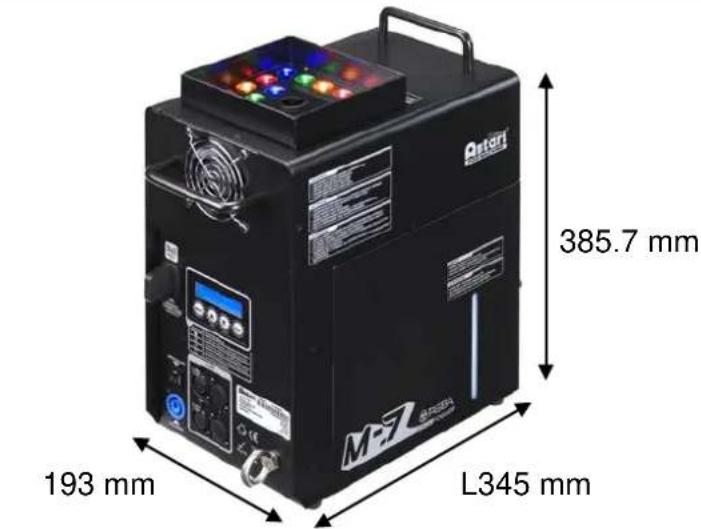

Product Dimension

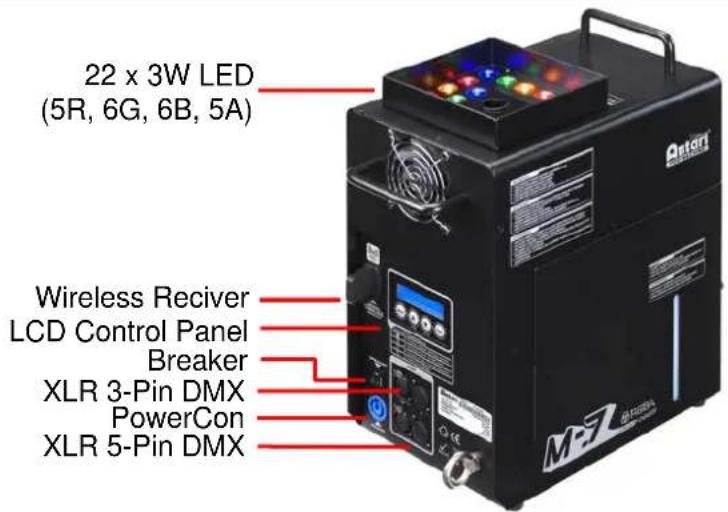

Product Overview

Setting Up

Step 1: Place the machine on a flat surface and in a suitable large area with at least 50~cm open space around the machine.

Step 2: Fill the fluid tank with Antari approved fluid.

Step 3: Connect the machine to suitable rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine.

Always connect the machine to a protected circuit and ensure it is properly grounded to avoid risk of electrocution.

Step 4: Turn on the machine and allow it to heat up. Heat up takes approximately 5 mintues. Once the machine has reached operating temperature, the LCD display will show "Ready To Fog". Now the machine is ready for operation.

Step 5: To start making fog, locate the Volume button on the control panel, and press the button to start making fog.

Step 6: To turn off the machine, press STOP button and turn Powercon to the OFF position.

Operation

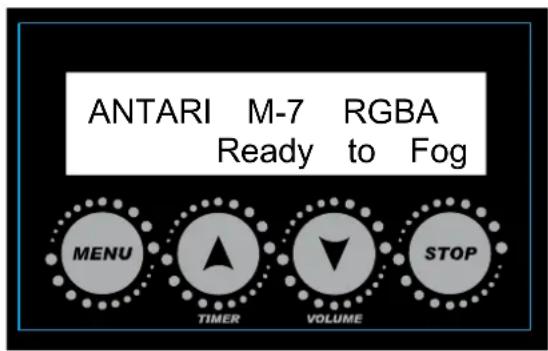

Control Panel Operation

The machine can be operated with onboard digital control interface

Button Function
[MENU]	Scroll through setting menu
▲ [UP]/[TIMER]	Up/Activate Timer function
▼ [DOWN]/[VOLUME]	Down/Activate Volume function
[STOP]	Deactivate Timer/Volume function

Control Menu

DMX512

Address: 1

Set DMX address from 1 to 504

Stand Alone

Set Master

Set machine as Master of Slave unit

Color Mode

On

Turn LED On or Off

Color Mode

Marco:01

Set LED output color from macro 1 to 10

Color Mode

Chase:01

Set LED chase from 1 to 15

Timer

Interval 15 Sec

Set interval from 15 to 360 seconds

Timer

Duration 5 Sec

Set duration from 1 to 5 seconds

Wireless Setting

On

Turn On or Off wireless control

Wireless Setting
Button A:M01

Set wireless remote button function macro color 1 to 10 or chase 1 to 15 and off.

Wireless Setting
Button B:M01

Set wireless remote button function macro color 1 to 10 or chase 1 to 15 and off.

Wireless Setting
Button C:M01

Set wireless remote button function macro color 1 to 10 or chase 1 to 15 and off.

Wireless Setting
Button D:M01

Set wireless remote button function macro color 1 to 10 or chase 1 to 15 and off.

LED Setting Fog Only

Setting for LED to turn on with fog only or always on.

LED Fade Out Delay:0Sec

Set LED delay time from 0 to 5 seconds.

Run Last Setting On

Turn On/Off run last setting function

2 Second Jet Mode Off

Turn On/Off 2 Second Jet Mode

W-DMX Power Off

Turn On/Off W-DMX

W-DMX Reset Off

Rest W-DMX connection

Wireless Operation

Wireless remote control system W-2 consists of a transmitter equipped with four buttons to activate four user configurable LED setting and fog; with an onboard receiver attach to the rear panel of M-7 RGBA.

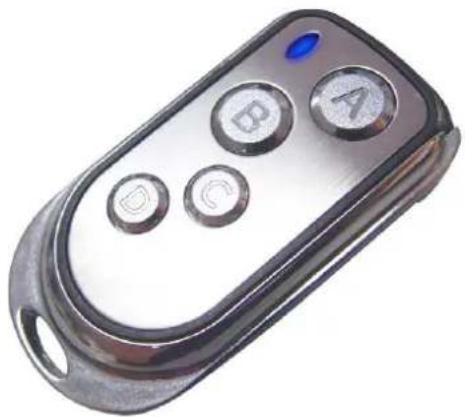

W-2 Wireless Transmitter

Wireless Receiver

Wireless settings are configurable through onboard control panel, refer to control menu section to setup each buttons.

In a free open space the effective distance is 50 meters, actual usage depending on obstacle level the effective distance is 10-25 meters.

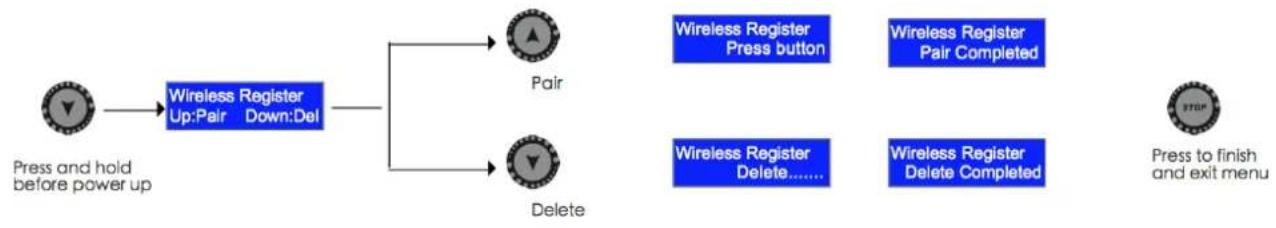

Registering transmitter

Transmitter can be pair or deleted from the receiver. Each receiver can pair up to 10 transmitters. Follow below steps to pair or delete transmitter from receiver.

Step 1: Power off M-7 RGBA Fogger

Step 2: Press and hold [DOWN] button

Step 3: Turn power on and release [DOWN] button when LCD display blinks

Step 4: Follow the menu instruction to pair or delete transmitter

Transmitter battery replacement

If effective distance seems to be decreased, it is possible the battery level are low and require replacement. In order to replace the battery, undo the three screws on the back of transmitter to release the cover. Replace with same type and specification of battery which is 27A 12V

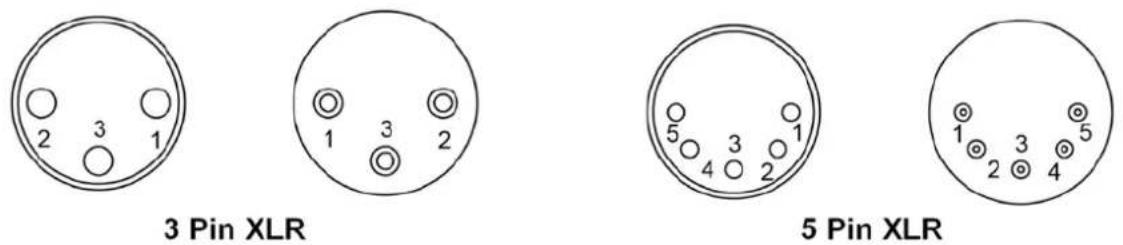

DMX Connector Pin Assignment

The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate pin assignment information

Pin Function
1 Ground
2 Data-
3 Data+

DMX Channel Function

Channel 1	DMX Value Range	Function
Fog	0 - 4	Fog Off
	5 - 255	Fog On
Channel 2	DMX Value Range	Function
Red LED 0-255	0-100%
Channel 3	DMX Value Range	Function
Green LED 0-255	0-100%
Channel 4	DMX Value Range	Function
Blue LED 0-255	0-100%
Channel 5	DMX Value Range	Function
Amber LED 0-255	0-100%
Channel 6	DMX Value Range	Function
Chase 1-15		Chase 1
	16-31	Chase 2
	32-47	Chase 3
	48-63	Chase 4
	64-79	Chase 5
	80-95	Chase 6
	96-111	Chase 7
	112-127	Chase 8
	128-143	Chase 9
	144-159	Chase 10
	160-175	Chase 11
	176-191	Chase 12
	192-207	Chase 13
	208-223	Chase 14
	224-255	Chase 15
Channel 7	DMX Value Range	Function
Chase Speed	0-255	0-255 step per min
Channel 8	DMX Value Range	Function
Master Dimmer 0-255	0-100%
Channel 9	DMX Value Range	Function
Strobe	0-255	1-20 Hz

Fluid

Use Antari FLC Water-based Fluid for the best effect for the M-7 RGBA Fogger. The

machine is tested and calibrated with this liquid to get the best output performance.

Warranty will be void if any other type of liquid is used, improper use of liquid may lead to machine failure and malfunction.

Service and Maintenance

• Do not allow the machine to become contaminated.
• Remove dust from air vents with air compressor, vacuum or a soft brush.
  Only use a damp cloth to clean the casing.
• Before storing run distilled water through the system to help avoid condensing the pump or heater.
  It is recommended to run the machine on a monthly basis in order to achieve best performance and output condition.
• Excessive dust, liquid and dirt built up will degrade performance and cause overheating.

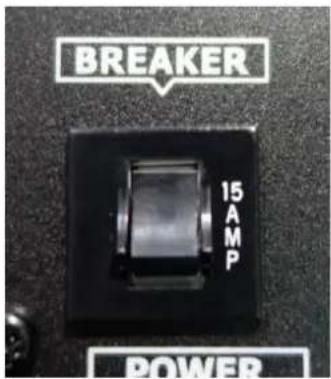

Breaker Reset

Disconnect AC power before reset breaker. Only replace fuse with same type and rating.

Step 1: Disconnect AC power

Step 2: Flip breaker to ON position

Step 3: Turn on machine to test

Breaker

$$ 1 2 0 \mathrm {V} = 1 5 \mathrm {A} 2 5 0 \mathrm {V} $$

$$ 2 3 0 V = 9 A 2 5 0 V $$

Technical Specifications

Input voltage 120V 60Hz or 230V 50Hz

Breaker 120V = 15A250V

230V = 9A250V

Heater 1550W

Warm-up time 5 min. (approx.)

Coverage volume Height 5 Meters,Width 1 Meter

Max. operating time 8 seconds burst

Fluid tank capacity 2.4 L

Fluid consumption 25 ml/10 sec.

Recommended Fluid Antari FLC Water-based Fluid for the best effect

Control option DMX 512, Manual, Timer, Wireless remote

DMX channels 9 channels

Power connection Neutrik Powercon

DMX data connection 3-pin and 5-pin XLR

Dimension L345 x W193 x H385.7 mm

Dry weight 11.5 kg

Mode d'emploi

Notices de Sécurité

Wireless Setting
Button C:M01

LED Setting Fog Only

2 Second Jet Mode Off

Max. operating time 8 seconds

$$ 2 3 0 V = 9 A 2 5 0 V $$

Technische Daten

Spannungsversorgung

$$ 1 2 0 V = 1 5 A 2 5 0 V $$

$$ 2 3 0 V = 9 A 2 5 0 V $$

Heizelement 1550W

$$ 1 2 0 V = 1 5 A 2 5 0 V $$

$$ 2 3 0 V = 9 A 2 5 0 V $$

規格資料

$$ 2 3 0 V = 9 A 2 5 0 V $$

電熱管 1550瓦

預熱時間 (約)5分鐘

煙霧覆蓋量 高度5公尺，寬度1公尺

最長輸出時間 8秒持續輸出

油桶容量 2.4公升

煙油消耗量 25毫升/10秒

適用煙霧油

控制方式

DMX 通道

電源連接座

DMX數據連接座

外型尺寸

浮重 11.5kg

Antari FLC 氣柱機專用煙霧油
