Product type	Bird's nest swing
Brand	Playtive
Model	IAN 384896
Category	Swing
Maximum load	50 kg
Diameter	Approximately 113 cm
Adjustable height	105 to 180 cm
Usage	Outdoor, private
Recommended age	Over 36 months
Main materials	Steel, polyester, rope
Approximate weight	5 kg
Power supply	None (manual)
Main functions	Swinging, height adjustment
Maintenance	Grease hooks and eyelets regularly
Cleaning	Water and cloth, no harsh products
Safety	Adult supervision, check before each use
Spare parts	Available during the warranty period
Repairability	Spare parts available
Warranty	2 years (conformity)
General information	Not suitable for children under 36 months. For domestic use only.

Frequently Asked Questions - IAN 384896 Playtive

How to install the swing?

Assembly must be carried out by an adult. Insert the side reinforcements into the flaps, assemble them, then attach the hangers with the hooks. Use suspension hooks of at least 10 mm with safety function. Ensure that the fixing is secure (wooden beam, metal or concrete ceiling).

What is the maximum supported weight?

The maximum load capacity is 50 kg.

From what age can this swing be used?

It is suitable for children over 36 months (3 years). Younger children should not use it due to risk of falling.

Can the swing be used indoors?

The item is designed for outdoor use. It can be used indoors if ceiling height allows, but a safety distance of at least 2 m from obstacles must be maintained.

How to adjust the height of the swing?

The height is adjusted via the rings at the top of the ropes. Pull the rope to adjust between 105 and 180 cm. Both ropes must be equal in length for perfect balance.

What maintenance is required?

Before each use, check the hooks, rings and eyelets. Grease the metal parts regularly with a water-resistant lubricating grease. Clean with a damp cloth and water only.

Are spare parts available?

Yes, spare parts essential for using the product are available during the warranty period. Contact customer service.

How to clean the swing?

Clean only with water and a soft cloth. Never use harsh or abrasive cleaning products.

What are the important safety instructions?

Use must be under adult supervision. Check before each use that all fixings are tight. The distance to the ground must be at least 35 cm. Do not mount the swing above hard surfaces (concrete, asphalt).

What is the warranty period?

The legal warranty of conformity is 2 years from delivery of the product. Additional commercial warranties may apply.

USER MANUAL IAN 384896 Playtive

DELTA-SPORT HANDELSKONITOR GWH

Instructions for use

NL BE

NESTSCHOMMEL

Gebruiksoanwijzing

C1

ZÁVĚSNÁ HOUPAČKA

Náved k použití

(5)

COLUMPIO NIDO

Before reading, fold out the illustration page and get to know all of the functions of your unit.

CS/IE Usage and safety information Page 09

1 x Schraubenschlüssel (4)

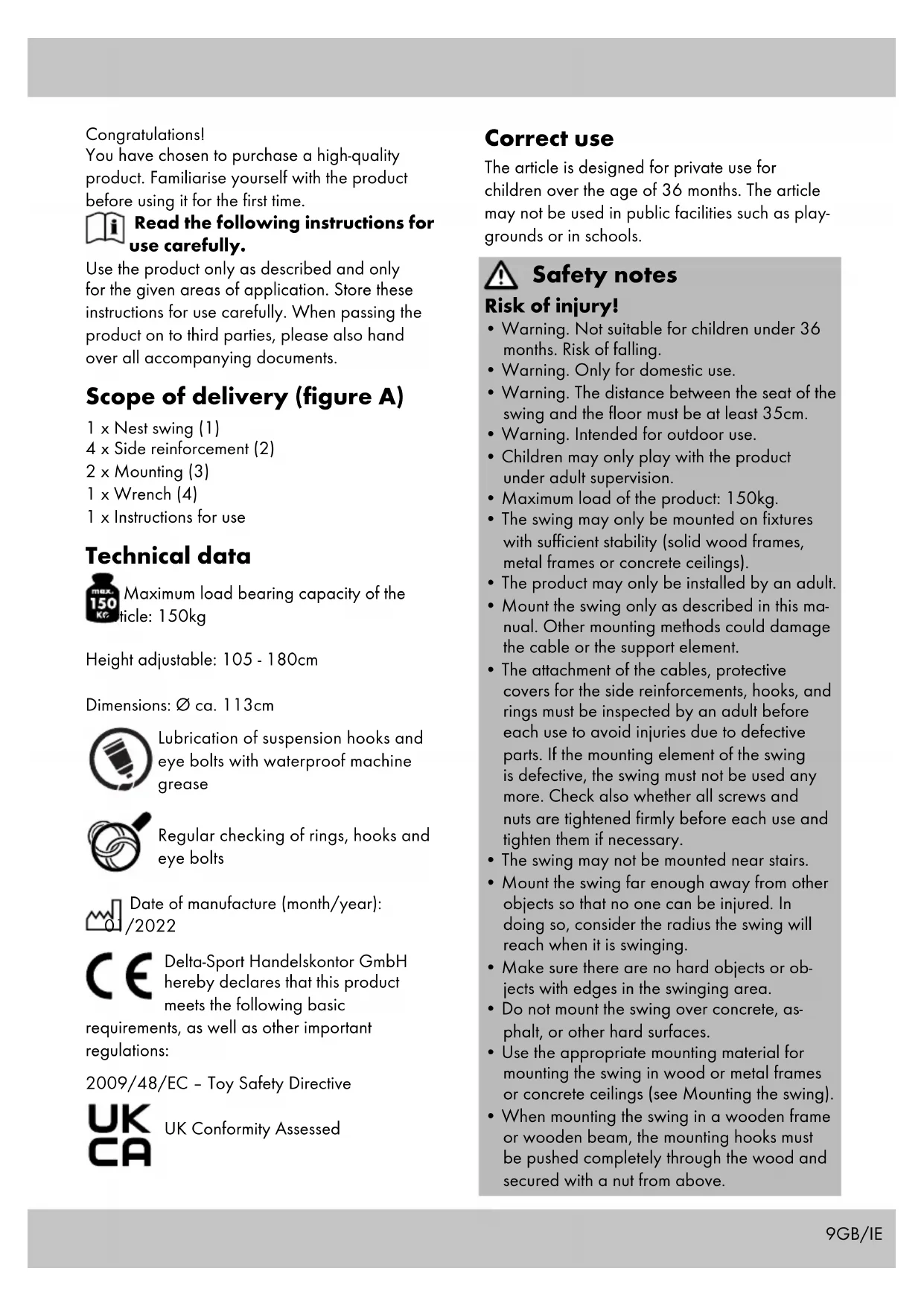

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of delivery (figure A)

1 x Nest swing (1)

4 x Side reinforcement (2)

2 x Mounting (3)

1 x Wrench (4)

1 x Instructions for use

Technical data

Maximum load bearing capacity of the ticle: 150kg

Height adjustable: 105 - 180cm

Dimensions: ∅ ca. 113cm

Lubrication of suspension hooks and eye bolts with waterproof machine grease

Regular checking of rings, hooks and eye bolts

Date of manufacture (month/year): /2022

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic

requirements, as well as other important regulations:

2009/48/EC - Toy Safety Directive

UK Conformity Assessed

Correct use

The article is designed for private use for children over the age of 36 months. The article may not be used in public facilities such as playgrounds or in schools.

Safety notes

Risk of injury!

• Warning. Not suitable for children under 36 months. Risk of falling.
• Warning. Only for domestic use.
• Warning. The distance between the seat of the swing and the floor must be at least 35cm.

- Warning. Intended for outdoor use.

• Children may only play with the product under adult supervision.

• Maximum load of the product: 150kg.

- The swing may only be mounted on fixtures with sufficient stability (solid wood frames, metal frames or concrete ceilings).

• The product may only be installed by an adult.

- Mount the swing only as described in this manual. Other mounting methods could damage the cable or the support element.

- The attachment of the cables, protective covers for the side reinforcements, hooks, and rings must be inspected by an adult before each use to avoid injuries due to defective parts. If the mounting element of the swing is defective, the swing must not be used any more. Check also whether all screws and nuts are tightened firmly before each use and tighten them if necessary.

- The swing may not be mounted near stairs.

- Mount the swing far enough away from other objects so that no one can be injured. In doing so, consider the radius the swing will reach when it is swinging.

- Make sure there are no hard objects or objects with edges in the swinging area.

- Do not mount the swing over concrete, asphalt, or other hard surfaces.

- Use the appropriate mounting material for mounting the swing in wood or metal frames or concrete ceilings (see Mounting the swing).

- When mounting the swing in a wooden frame or wooden beam, the mounting hooks must be pushed completely through the wood and secured with a nut from above.

• Make sure your child does not wear a helmet or clothing with cords when using this product because these may get caught and the child could be injured.
• Do not jump off the swing while it is swinging. Only get off the swing when it has come to a stop.
• Make sure there is enough room between the swing and other people and objects so that no one can be injured.
• The product should be a suitable safe distance of at least 2m from buildings, stairs, fences, walls, water, overhanging branches, clotheslines, electrical lines, and other obstacles.
• Note that the swing can become hot in strong sunlight.
• No technical alterations may be made to the product.

Swing assembly

Use commercially available waterproof machine grease to lubricate the metal suspension rings of the nest swing as well as any suspension hooks that you yourself provide that are exposed to constant friction.

1. Select a level and clean surface with enough room to assemble the swing.
2. Lay the nest swing (1) out on the floor.
3. Guide the four side reinforcements (2) through the straps on the edge of the nest swing. When inserting the side reinforcements, make sure one thin end points to one thick end.
4. Push the four side reinforcements together. The drill holes of each pair of side reinforcements must overlap precisely (figure B).
5. Loosen the pre-assembled nuts on the mounting brackets (3) and remove them as well as one washer.
6. Put a hook with the remaining washer through a drill hole from above.
7. Put the second washer on from underneath.
8. Secure the hook with a nut (figure C).

Attach the swing only to fittings that you can guarantee with absolute certainty to be of sufficient strength. For assembly use standard commercial swing hooks with a minimum thickness of 10 mm and with a safety feature to prevent them from inadvertently coming loose. With wooden beams the attachment must go right through the wood and be locked from above to ensure sufficiently secure connection.

Different attachment hooks

Only mount the swing on suitable mounts. These are:

No. 1: closed mounting hooks that are fastened to the swing elements with a carabiner hook (figure D).

No. 2: standard commercial swing hooks with a safety feature to prevent them from inadvertently coming loose (figure E).

Note! The eye on the mounting eye (1) must be attached transverse to the swing direction so that the attachment element of the swing is not damaged too badly during use.

Setting the height of the swing element

The height of the seat can be set using the ring on the upper end of the swing. Once you have set the length of the rope it will tighten itself when load is placed on the swing (figure F). Set the length on both sides in such a way that the swing is absolutely horizontal.

Maintenance (figure G)

Check the product's rings, hooks and eye bolts regularly to ensure their good order and condition and use commercially available waterproof machine grease to periodically lubricate the suspension rings that come with the product as well as any suspension hooks that you yourself provide. An alternative is to use an adhesive chain grease.

Storage, cleaning

When not in use, always store the product clean and dry at room temperature.

Clean only with water and wipe dry afterwards with a cloth.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations.

Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol – which is meant to reflect the recycling cycle – and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 384896_2107
