USER MANUAL IAN 292922 Playtive

Befare reading, fold out the ilustrative page and get in know of of the functions of your unit.

Klap den med. Ilustratioene og inden du laeier oem gag dig aetolfgedes harrig mad olele, casipuith fihimilien.

Example 1. In page 204 has illustrations of the law of addition and subtraction, which are used in the text. The basic operations are: product, subtract, and division.

M

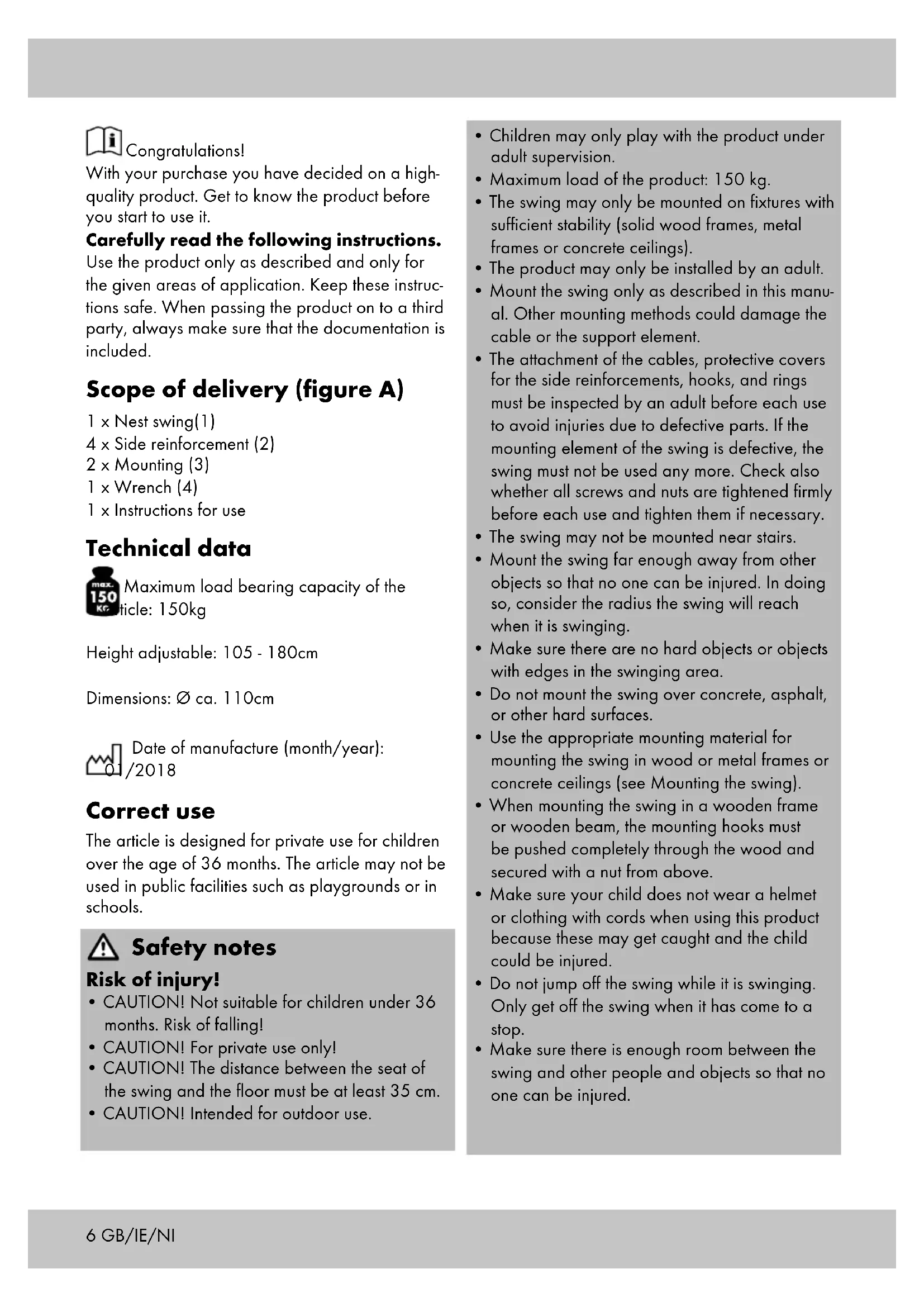

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Scope of delivery (figure A)

1 x Nest swing(1)
4× Side reinforcement (2)
2 × Mounting (3)
1 x Wrench (4)
1 x Instructions for use

Technical data

Maximum load bearing capacity of the ticle: 150kg

Height adjustable: 105 - 180cm

Dimensions: ca. 110cm

Date of manufacture (month/year): /2018

Correct use

The article is designed for private use for children over the age of 36 months. The article may not be used in public facilities such as playgrounds or in schools.

Safety notes

Risk of injury!

• CAUTION! Not suitable for children under 36 months. Risk of falling!
• CAUTION! For private use only!
• CAUTION! The distance between the seat of the swing and the floor must be at least 35~cm .
• CAUTION! Intended for outdoor use.

Children may only play with the product under adult supervision.
Maximum load of the product: 150kg
- The swing may only be mounted on fixtures with sufficient stability (solid wood frames, metal frames or concrete ceilings).
- The product may only be installed by an adult.
- Mount the swing only as described in this manual. Other mounting methods could damage the cable or the support element.
- The attachment of the cables, protective covers for the side reinforcements, hooks, and rings must be inspected by an adult before each use to avoid injuries due to defective parts. If the mounting element of the swing is defective, the swing must not be used any more. Check also whether all screws and nuts are tightened firmly before each use and tighten them if necessary.
- The swing may not be mounted near stairs.
- Mount the swing far enough away from other objects so that no one can be injured. In doing so, consider the radius the swing will reach when it is swinging.
- Make sure there are no hard objects or objects with edges in the swinging area.
- Do not mount the swing over concrete, asphalt, or other hard surfaces.
- Use the appropriate mounting material for mounting the swing in wood or metal frames or concrete ceilings (see Mounting the swing).
- When mounting the swing in a wooden frame or wooden beam, the mounting hooks must be pushed completely through the wood and secured with a nut from above.
Make sure your child does not wear a helmet or clothing with cords when using this product because these may get caught and the child could be injured.
- Do not jump off the swing while it is swinging. Only get off the swing when it has come to a stop.
- Make sure there is enough room between the swing and other people and objects so that no one can be injured.

• The product should be a suitable safe distance of at least 2m from buildings, stairs, fences, walls, water, overhanging branches, clotheslines, electrical lines, and other obstacles.
  Note that the swing can become hot in strong sunlight.
• No technical alterations may be made to the product.

Swing assembly

• Select a level and clean surface with enough room to assemble the swing.
  Lay the nest swing (1) out on the floor.
  Guide the four side reinforcements (2) through the straps on the edge of the nest swing. When inserting the side reinforcements, make sure one thin end points to one thick end.
  Push the four side reinforcements together. The drill holes of each pair of side reinforcements must overlap precisely (Fig. B).
  Loosen the pre-assembled nuts on the mounting brackets (3) and remove them as well as one washer.
  Put a hook with the remaining washer through a drill hole from above.
  Put the second washer on from underneath.
• Secure the hook with a nut (Fig. C). Only attach the swing to installations for which you can guarantee sufficient stability with absolute certainty. Use at least 10mm thick screw hooks for the assembly that are bent through at least 540^ or completely closed in order to prevent unintentional release. On wooden beams the attachment must be inserted through all the wood and locked from above in order to achieve a sufficiently secure connection.

Different attachment hooks

Only mount the swing on suitable mounts. These are:

No. 1: closed mounting hooks that are fastened to the swing elements with a carabiner hook (Fig. D).

No. 2: round hooks that are bent 540^ to prevent unintended loosening (Fig. E).

Note! The eye on the mounting eye (1) must be attached transverse to the swing direction so that the attachment element of the swing is not damaged too badly during use.

Setting the height of the swing element

The height of the seat can be set using the ring on the upper end of the swing. Once you have set the length of the rope it will tighten itself when load is placed on the swing (figure F). Set the length on both sides in such a way that the swing is absolutely horizontal.

Storage, cleaning

Always store the product in clean and dry condition at room temperature.

Only use water to clean and wipe it dry with cleaning cloth.

IMPORTANT! Never clean the product with aggressive cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations.

Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN:292922

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

NI Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
