Product type	Bird's nest swing
Brand	Playtive
Model	IAN 327441
Maximum load	50 kg
Adjustable height	105 to 180 cm
Seat diameter	Approx. 113 cm
Recommended age	From 36 months
Usage	Outdoor
Materials	Steel, textile
Color	Not specified
Minimum distance to ground	35 cm
Safety distance	At least 2 m from obstacles
Safety	Adult supervision required, check fasteners before each use
Maintenance	Clean with water and wipe with a cloth, avoid harsh chemicals
Storage	Store in a dry and clean place
Warranty	3 years from date of purchase
Package contents	1 bird's nest swing, 4 side braces, 2 suspensions, 1 key, manual
Spare parts	Available during the warranty period

Frequently Asked Questions - IAN 327441 Playtive

What is the maximum weight supported by the swing?

The maximum load is 50 kg for the seat.

How to adjust the swing height?

Use the ring at the top end of the swing to adjust the height between 105 and 180 cm. The rope locks when loaded.

What are the important safety instructions?

Always supervise children, check fasteners before each use, and ensure a distance of at least 2 m from obstacles. Not suitable for children under 36 months.

Can the swing be used indoors?

It is designed for outdoor use, but can be used indoors if the installation is sturdy enough and the area is clear.

How to clean the swing?

Clean with water and a soft cloth. Do not use harsh chemicals.

What are the recommended mounting supports?

Use swing hooks at least 10 mm thick with a safety function. Mount the swing on sturdy structures (solid wood, metal, concrete).

How long is the warranty?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects.

What to do if a part is damaged?

Stop using immediately. Contact customer service via the hotline in the manual. Spare parts are available during the warranty period.

Can the swing be left outside permanently?

Store it in a dry, clean place when not in use, especially during strong sunlight or bad weather.

How to assemble the swing?

Follow the assembly instructions: insert the side braces into the flaps, assemble them, then attach the suspensions with the provided nuts and washers.

USER MANUAL IAN 327441 Playtive

Circular empty tray with a dark inner object and two hanging strings (no text or symbols visible)

NEST SWING

DELTA-SPORT HANDELSKONTOR GMBH

Wingkamp A • DB21397 Homburg

C. 陈美华

12/2019

2016 Sport N: N 7271

GB 重 NI

NEST SWING

Instructions for use

FR BE

BALANÇOIRE NID D'OISEAU

Before reading, told out the illustration page and got to know all of the functions of your crit.

(21)

G6/IE/N Usage and safety information Page 26

Diagram of a rope knot with a hook and rope tied at the end, no text or symbols present

E ①

F

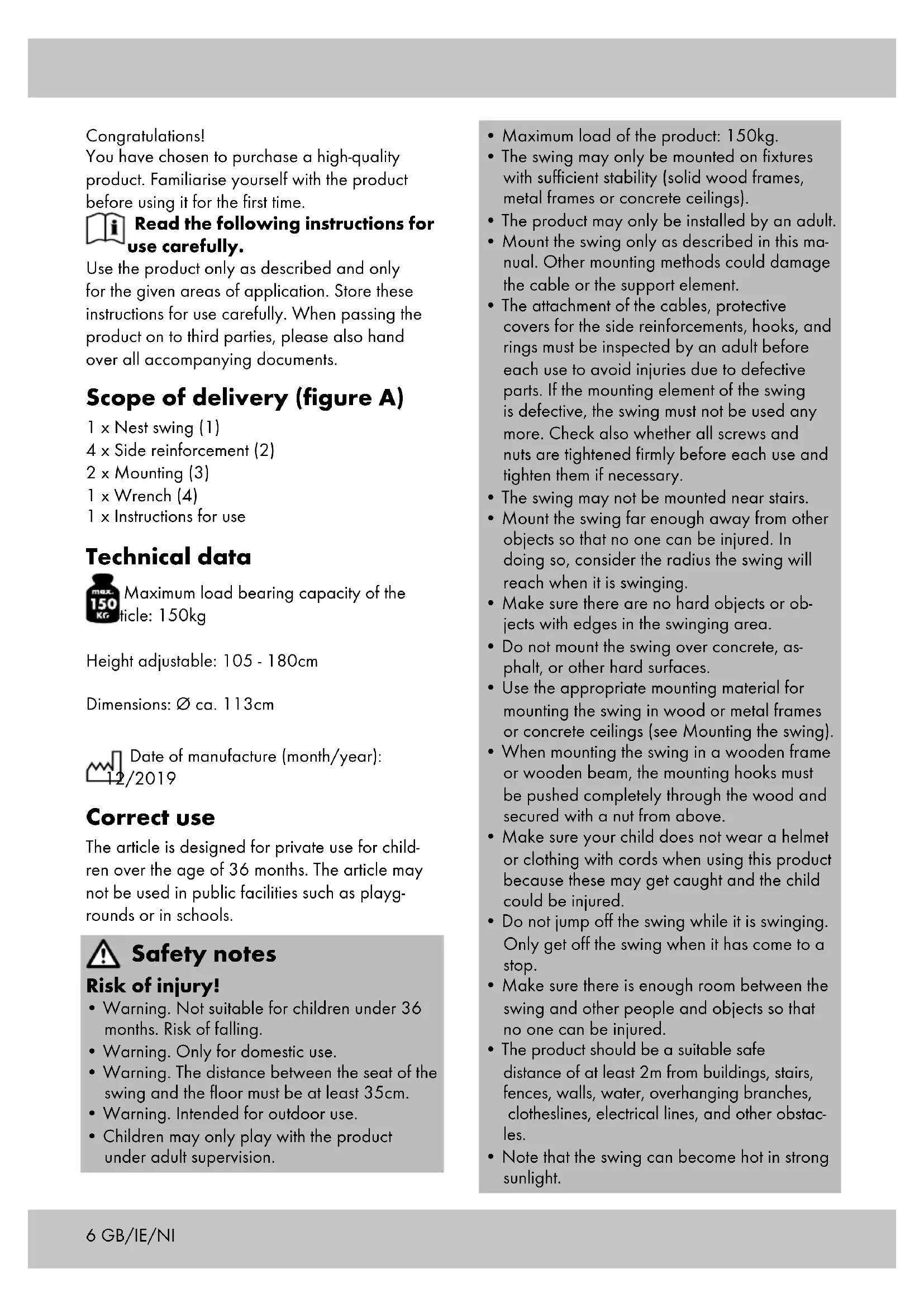

Congratulations!

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of delivery (figure A)

1 x Nest swing (1)
4 x Side reinforcement (2)
2 x Mounting (3)
1 x Wrench (4)
1 x Instructions for use

Technical data

Maximum load bearing capacity of the ticle: 150kg

Height adjustable: 105 - 180cm

Dimensions: ∅ ca. 113cm

Date of manufacture (month/year): /2019

Correct use

The article is designed for private use for children over the age of 36 months. The article may not be used in public facilities such as playgrounds or in schools.

Safety notes

Risk of injury!

• Warning. Not suitable for children under 36 months. Risk of falling.
• Warning. Only for domestic use.
• Warning. The distance between the seat of the swing and the floor must be at least 35cm.
• Warning. Intended for outdoor use.
  • Children may only play with the product under adult supervision.

• Maximum load of the product: 150kg.
- The swing may only be mounted on fixtures with sufficient stability (solid wood frames, metal frames or concrete ceilings).
• The product may only be installed by an adult.
- Mount the swing only as described in this manual. Other mounting methods could damage the cable or the support element.
- The attachment of the cables, protective covers for the side reinforcements, hooks, and rings must be inspected by an adult before each use to avoid injuries due to defective parts. If the mounting element of the swing is defective, the swing must not be used any more. Check also whether all screws and nuts are tightened firmly before each use and tighten them if necessary.
- The swing may not be mounted near stairs.
- Mount the swing far enough away from other objects so that no one can be injured. In doing so, consider the radius the swing will reach when it is swinging.
- Make sure there are no hard objects or objects with edges in the swinging area.
- Do not mount the swing over concrete, asphalt, or other hard surfaces.
- Use the appropriate mounting material for mounting the swing in wood or metal frames or concrete ceilings (see Mounting the swing).
- When mounting the swing in a wooden frame or wooden beam, the mounting hooks must be pushed completely through the wood and secured with a nut from above.
- Make sure your child does not wear a helmet or clothing with cords when using this product because these may get caught and the child could be injured.
- Do not jump off the swing while it is swinging. Only get off the swing when it has come to a stop.
- Make sure there is enough room between the swing and other people and objects so that no one can be injured.
- The product should be a suitable safe distance of at least 2m from buildings, stairs, fences, walls, water, overhanging branches, clotheslines, electrical lines, and other obstacles.
- Note that the swing can become hot in strong sunlight.

- No technical alterations may be made to the product.

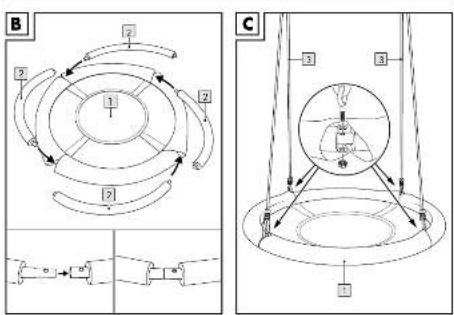

Swing assembly

1. Select a level and clean surface with enough room to assemble the swing.
2. Lay the nest swing (1) out on the floor.
3. Guide the four side reinforcements (2) through the straps on the edge of the nest swing. When inserting the side reinforcements, make sure one thin end points to one thick end.
4. Push the four side reinforcements together. The drill holes of each pair of side reinforcements must overlap precisely (figure B).
5. Loosen the pre-assembled nuts on the mounting brackets (3) and remove them as well as one washer.
6. Put a hook with the remaining washer through a drill hole from above.
7. Put the second washer on from underneath.
8. Secure the hook with a nut (figure C).
   Attach the swing only to fittings that you can guarantee with absolute certainty to be of sufficient strength. For assembly use standard commercial swing hooks with a minimum thickness of 10 mm and with a safety feature to prevent them from inadvertently coming loose. With wooden beams the attachment must go right through the wood and be locked from above to ensure sufficiently secure connection.

Different attachment hooks

Only mount the swing on suitable mounts.

These are:

No. 1: closed mounting hooks that are fastened to the swing elements with a carabiner hook (figure D).

No. 2: standard commercial swing hooks with a safety feature to prevent them from inadvertently coming loose (figure E).

Note! The eye on the mounting eye (1) must be attached transverse to the swing direction so that the attachment element of the swing is not damaged too badly during use.

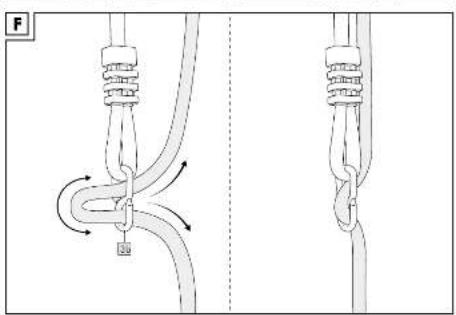

Setting the height of the swing element

The height of the seat can be set using the ring on the upper end of the swing. Once you have set the length of the rope it will tighten itself when load is placed on the swing (figure F). Set the length on both sides in such a way that the swing is absolutely horizontal.

Storage, cleaning

When not in use, always store the product clean and dry at room temperature.

Clean only with water and wipe dry afterwards with a cloth.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol - which

is meant to reflect the recycling cycle – and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 327441_1904

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
