Product type	Swing
Brand	Playtive
Model	IAN 96811
Usage	Private family use, indoor and outdoor
Recommended age	3 to 14 years
Maximum user weight	100 kg
Minimum user weight	5 kg
Minimum seat-to-ground distance	35 cm
Assembly	By an adult
Mounting	On solid wood scaffolding, metal, or concrete ceilings
Hook type	Closed hook or round hook bent at 540°
Height adjustment	Via ring on the upper end of the rope
Maintenance	Clean with water only, dry with a cloth
Storage	In a dry and temperate place
Warranty	3 years from the date of purchase
Spare parts service	www.delta-sport.com

Frequently Asked Questions - IAN 96811 Playtive

From what age can my child use this swing?

The swing is designed for children aged 3 to 14 years. Not suitable for children under 36 months due to the risk of strangulation from the rope.

What is the maximum weight supported?

The maximum user weight is 100 kg. The minimum weight is 5 kg.

How to adjust the height of the swing?

The height is adjusted via the ring located at the upper end of the rope. Adjust each rope so that the swing is perfectly horizontal.

Can the swing be installed outdoors?

Yes, it is suitable for indoor and outdoor use. Ensure it is mounted on a stable support and protected from the weather.

What types of supports are needed for installation?

The swing must be mounted on stable installations such as solid wood scaffolding, metal, or concrete ceilings. Use sturdy screw hooks of at least 10 mm.

How to maintain the swing?

Clean it only with water and a cloth. Do not use acidic cleaners. Store it in a dry and temperate place.

What to do in case of a crack on the mount?

As soon as the mounting element shows cracks or fissures, do not use the swing and replace the part.

Is the swing under warranty?

Yes, the warranty is 3 years from the date of purchase, covering material and manufacturing defects. Keep the receipt.

Where to find spare parts?

Spare parts are available at www.delta-sport.com, section Service - Lidl spare parts service.

Can I use the swing on concrete?

No, do not mount the swing on concrete, asphalt or other hard surfaces. Use wood or metal supports with a through-fixation.

USER MANUAL IAN 96811 Playtive

Instructions for use 4 - 8

FI

Käyttöohje 9-13

SE

Bruksanvisning 14 - 18

DK

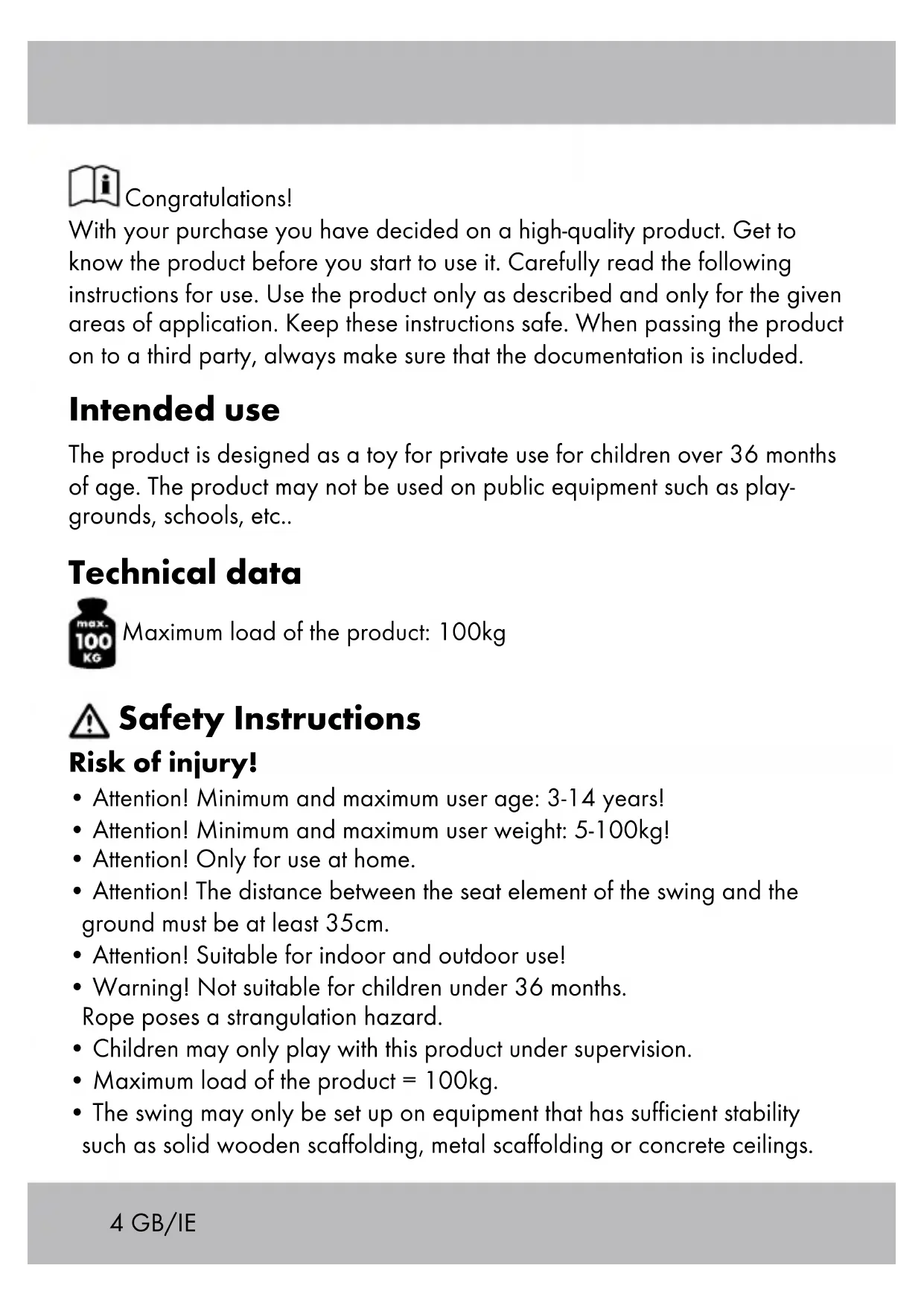

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following instructions for use. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Intended use

The product is designed as a toy for private use for children over 36 months of age. The product may not be used on public equipment such as play-grounds, schools, etc..

Technical data

Maximum load of the product: 100kg

Safety Instructions

Risk of injury!

• Attention! Minimum and maximum user age: 3-14 years!
• Attention! Minimum and maximum user weight: 5-100kg!
• Attention! Only for use at home.
• Attention! The distance between the seat element of the swing and the ground must be at least 35cm.
• Attention! Suitable for indoor and outdoor use!
• Warning! Not suitable for children under 36 months.
  Rope poses a strangulation hazard.
  • Children may only play with this product under supervision.
  • Maximum load of the product = 100kg.

• The swing may only be set up on equipment that has sufficient stability such as solid wooden scaffolding, metal scaffolding or concrete ceilings.

• An adult must perform the installation.

• An adult must check the stability after installation.
• Only install the swing as described in these instructions, other methods of fastening may damage the cord or the holding element.
• An adult must inspect the fastening of the cords, the knots in the cord beneath the swing unit, the hooks and the rings before each use.

Discontinue use of the swing as soon as the fastening element of the swing becomes brittle and you can see the metal on the inside.

- Do not use the swing near stairs.

- The product may only ever be used by one person.

- Fasten the swing leaving enough space from other objects so that no one can be injured. Pay attention to the radius that the swing makes when it swings.

- Make sure that there are no hard objects or objects with sharp edges in the area of the swing.

- Do not fasten the swing over concrete, asphalt or any other hard surfaces.

- Use the appropriate fastening material (see Swing Assembly) for each installation in wooden or metal equipment as well as in concrete ceilings.

- The fastening hooks must be completely inserted through the wood and fixed by a locknut from above when fastening into wooden equipment or wooden beams.

Swing Assembly

Tip

Only fasten the swing to equipment for which you can guarantee adequate strength with absolute confidence. To prevent unintentional detachment use 10mm strength screw hooks minimum for assembly, which are bent by at least 540° or which are completely closed. The fastening hooks must be completely inserted through the wood and fixed by a locknut from above in wooden beams to accomplish an adequately secure connection.

Different fastening hooks

Only fasten the swing unit to an appropriate retention system.

These are:

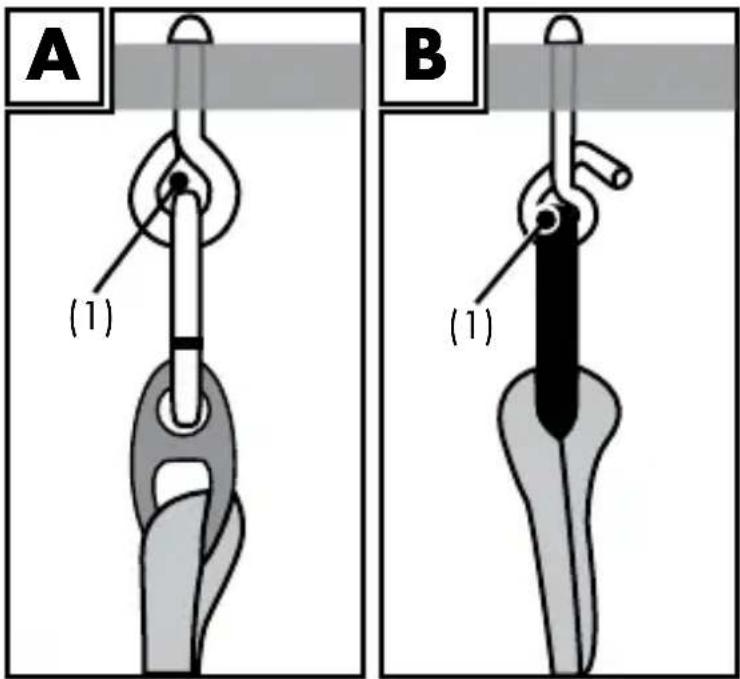

No. 1: a closed retaining grommet, which is secured to the swing element by a carabiner (Fig. A).

No. 2: a circular hook, which is bent by at least 540^ to prevent unintentional detachment (Fig. B).

A (1) B (1)

Tip!

The eye of the retaining grommet (1) must be attached at a right angle to the direction of the swing so that the fastening element of the swing is not damaged too much during use.

C X

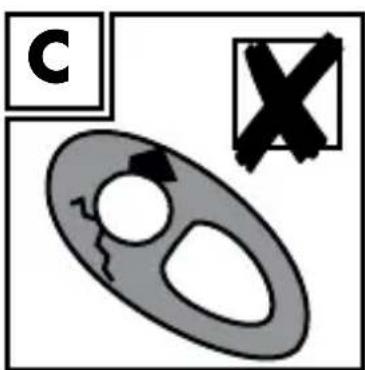

⚠️ Discontinue use of the swing as soon as the fastening element shows fractures or cracks on the upper grommet (Fig. C).

Height adjustment of the swing unit

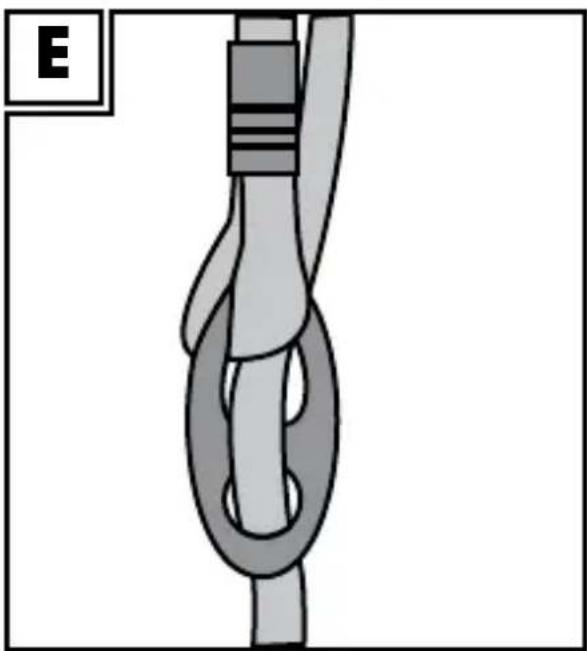

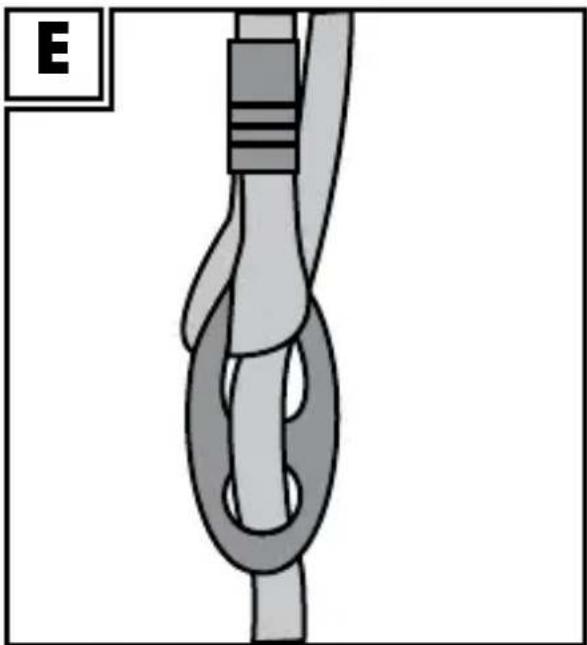

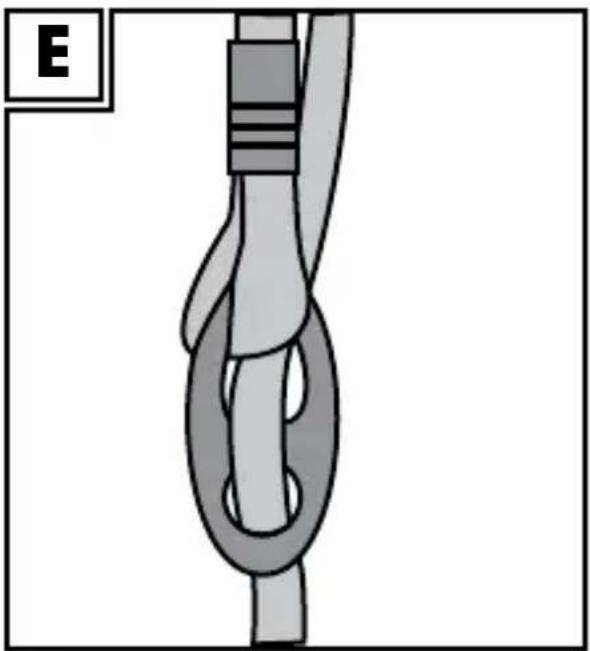

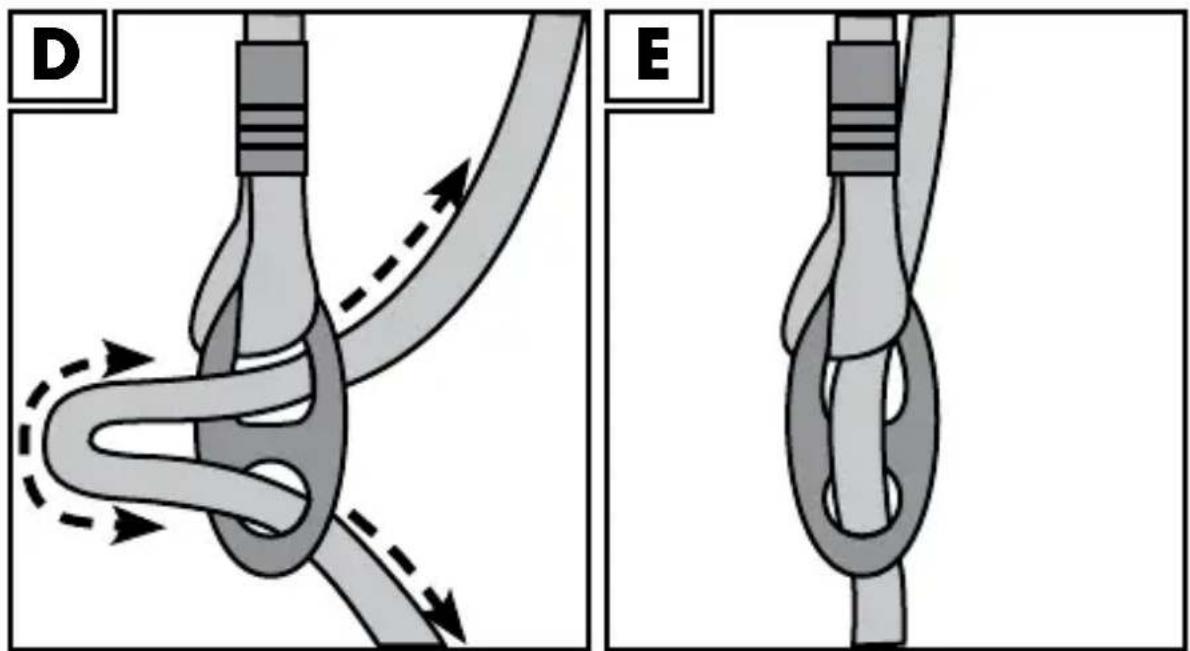

The height of the seat can be adjusted by means of the ring at the top of the swing. It pulls itself tight again (Fig. D) after you have adjusted the length of the cord (Fig. E).

D E

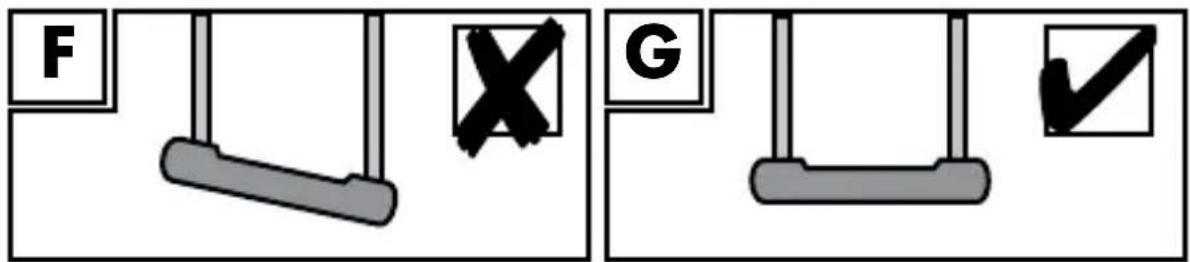

Adjust the length of both ropes so that the swing is absolutely balanced (Fig. G).

F G

Maintenance, Storage

Please always remember that regular maintenance and cleaning contribute to the safety and the preservation of your product.

Always dry the product and store it clean in a temperature controlled space. IMPORTANT! Only use water for cleaning, never use strong cleaning products. Wipe dry afterwards with a cleaning cloth.

Disposal

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

3 Years Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt. The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you. Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 96811

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone] (0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

You can also find spare parts for your product at:

www.delta-sport.com, category Service - Lidl Spare Parts Service
