EOP 2046 - Electric oven DELONGHI - Free user manual and instructions

Product type	Electric oven
Brand	DELONGHI
Model	EOP 2046
Net weight	5.5 kg
Power	1400 W
Voltage	220-240 V
Frequency	50/60 Hz
Cooking functions	Delicate cooking, grill, keep warm, traditional cooking, pizza, panini
Included accessories	Panini grill, 30 cm pizza grill, drip tray, reversible panini plate
Door	Glass
Housing material	Steel and glass
Cleaning	Unplug before cleaning. Do not immerse the appliance. Clean accessories with soapy water.
Safety instructions	Do not touch hot parts. Do not use if the cord is damaged. Keep out of reach of children.
Repairability	Do not disassemble yourself. Contact an authorized service center.
Intended use	Household use only
Positioning	On a horizontal surface, back against the wall, at least 85 cm high
Warranty	See terms at authorized center

Frequently Asked Questions - EOP 2046 DELONGHI

How to use the oven for the first time?

Before first use, remove all packaging. Heat the empty oven at maximum thermostat for at least 15 minutes to eliminate new odors. Ventilate the room. Then wash the accessories with soapy water.

What cooking functions are available?

The oven offers several functions: delicate cooking, grill, keep warm, traditional cooking, pizza and panini (toasts).

How to clean the oven?

Always unplug the appliance before cleaning. Never immerse the oven in water. Clean the inside with a damp cloth and the accessories with soapy water. Avoid using abrasive products.

Can I use the oven under a shelf?

No, it is forbidden to operate the appliance under a hanging cabinet or near flammable materials (curtains, drapes). Leave enough space for ventilation.

What to do if the glass door is damaged?

If the door is chipped, scratched, or scratched, it is recommended to have it replaced at an authorized service center. Glass is fragile: do not hit it and do not pour cold liquids on it when hot.

The oven does not heat, what to check?

Check that the plug is properly connected and that the cord is not damaged. Make sure the thermostat is set to a cooking position. If the problem persists, contact an authorized service center.

Can I use the oven for purposes other than cooking?

No, this oven is designed exclusively for cooking food. Do not use it as a heat source and do not introduce paper, cardboard or plastic.

How to use the Panini function?

Use the supplied Panini grid. Place the food (bread, cheese, etc.) on the grid and insert it in the oven. Select the Panini function and monitor the cooking.

Where can I find spare parts?

Contact a De'Longhi authorized after-sales service center. Do not attempt to repair the appliance yourself.

How to dispose of the oven at the end of its life?

Do not dispose of the appliance with household waste. Dispose of it at a selective collection center or at a retailer providing this service, in accordance with European directive 2002/96/EC.

USER MANUAL EOP 2046 DELONGHI

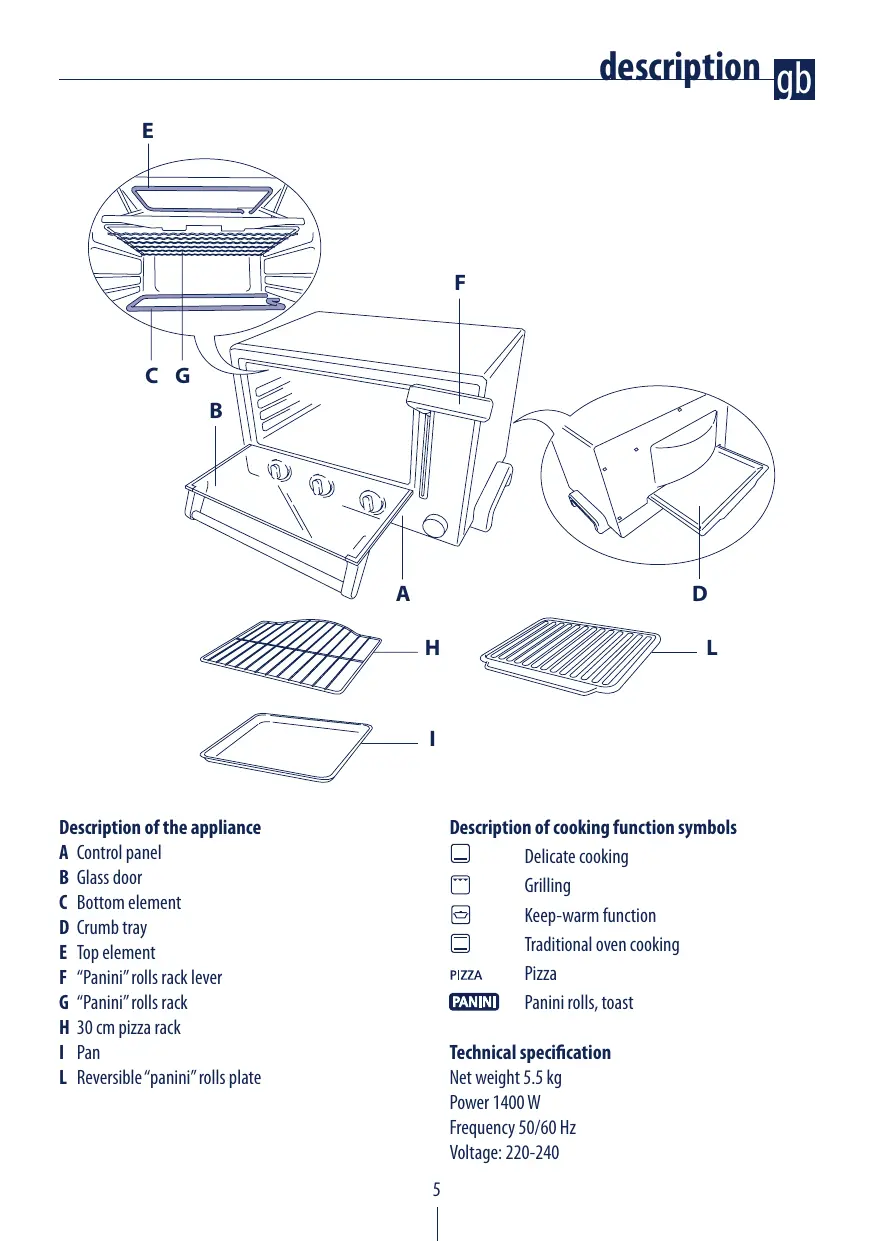

Description of the appliance

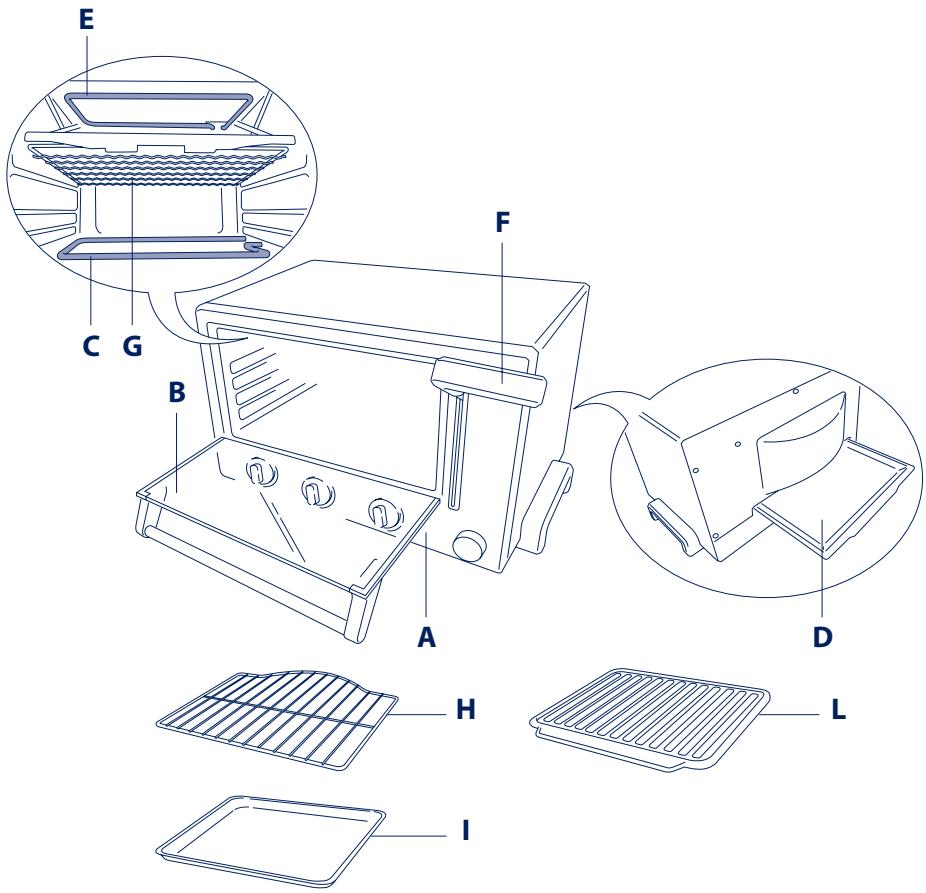

A Control panel B Glass door C Bottom element D Crumb tray E Top element F "Panini" rolls rack lever G "Panini" rolls rack H 30 cm pizza rack Pan L Reversible "panini" rolls plate

Description of cooking function symbols

Delicate cooking

Grilling

Keep-warm function

Traditional oven cooking

PIZZA

Pizza

PANINI

Panini rolls, toast

Technical specification

Net weight 5.5 kg

Power 1400W

Frequency 50/60 Hz

Voltage: 220-240

• Read all the instructions carefully before using the appliance. This oven has been designed to cook food. It may never be used for other purposes, modified or tampered with in any way.
• Place the appliance on a horizontal surface at a height of at least 85 cm and out of reach of children.
• Wash all accessories before use. Before plugging into the mains, make sure that: The mains voltage corresponds to the voltage indicated on the rating plate. The mains socket has a minimum rating of 16A and an earth wire.

The manufacturer declines all liability in the event that this important accident-prevention rule is not respected.

• Before using the oven for the first time, remove any paper and other material inside the oven such as protective cardboard, booklets, plastic bags, etc. Before using for the first time, operate the oven empty with the thermostat at maximum for at least 15 minutes to eliminate the "new" smell and any smoke caused by the presence of protective substances applied to the elements before transport. During this operation, ventilate the room.

IMPORTANT: When you have unpacked the appliance, make sure the door is undamaged and working correctly. The door is made from glass and is therefore fragile. If it is visibly chipped, scored or scratched, it should be replaced. While using, cleaning or moving the appliance, avoid slamming or knocking the door violently. Do not pour cold liquid onto the glass while the appliance is hot.

• When in operation, the door and accessible external surfaces could become very hot. Always use the knobs, handles and buttons. Never touch metal parts or the glass. Use oven gloves if necessary. This electrical appliance operates at high temperatures which could cause burns.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Do not move the appliance while in use.
• Do not use the appliance if:
• The power cable is faulty
• The appliance has been dropped, is visibly damaged or malfunctions. Should this occur, to avoid all risk take the appliance to your nearest authorised service centre.
• Do not let the power cable dangle and avoid touching hot parts of the oven. Never unplug the appliance by pulling on the power cable. If you intend to use an extension, make sure it is in good condition, that the plug is earthed and that the cross section of the wires is at least equal to that of the power cable provided with the appliance.
• To avoid all risk of electric shock, never immerse the power cable, plug or appliance itself in water.
• Never position the appliance near heat sources.
• Do not leave inflammable products near the oven or under the work surface where it is located.
• Bread may burn. Never leave the oven unattended during toasting or grilling. Never operate the appliance under a wall cupboard or shelf or near inflammable materials such as curtains, blinds, etc.
• Do not use the appliance as a heat source.
• Never place paper, cardboard or plastic inside the oven and never rest anything on top of the appliance (utensils, wire racks, other objects).
• Never insert anything into the ventilation openings. Make sure they are unobstructed. If food or other parts of the oven catch fire, never try and put out the flames with water. Close the door, unplug from the mains and smother the flames with a damp cloth. This oven is not designed for built-in installation.
• When the door is open, remember:
• never exert excessive pressure with overly heavy objects or pull the handle downwards;
• never rest heavy containers or boiling saucepans just out of the oven on the open door.
• Given differences in legislation, if the appliance is used in a country other than that where it was bought, have it checked by Customer Services. For your personal safety, never take the appliance to pieces on your own. Always contact Customer Services. This appliance is designed for domestic use only. Professional or inappropriate use, or failure to observe the instructions absolves the manufacturer from all responsibility and invalidates the guarantee.
• When not in use and before cleaning, always unplug the appliance. If the power cable is damaged, it must be replaced by the manufacturer, an authorized service center, or a qualified electrician to eliminate all risk. This appliance conforms to EC Directive 2004/108 on Electromagnetic Compatibility and EC Regulation 1935/2004 of 27/10/2004 on materials intended for contact with food. This appliance must not be operated by a timer or a separate remote control system. The appliance must be placed and operated with the back next to the wall.

Keep these instructions

Important information for correct disposal of the product in accordance with EC Directive 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection center or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances

separately, the product is marked with a crossed-out wheeled dustbin.

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.

WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard.

With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow:

Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

Technical specifications

Technical characteristics

Net weight 5.5 kg

Power 1400W

Frequency 50/60 Hz

Voltage 220-240 V

Read the instructions carefully before using the appliance. Keep these instructions for future reference.

It should not be used for other purposes nor should it be modified or altered in any way.

The oven must be placed at a distance of 85 cm from the wall, and it should be placed out of reach of children. Wash the protective parts before use. When connecting to the water supply, ensure that: The mains voltage corresponds to the value indicated on the characteristics plate. The appliance is equipped with a grounding connection.

The manufacturer is not liable for any damage resulting from failure to follow the safety rules above.

Before using the oven for the first time, remove all materials contained inside, such as protective cardboard, manuals, plastic bags, etc. Before first use, let the appliance operate empty, with the thermostat set to maximum temperature, for at least 15 minutes.

CAUTION: When removing the oven from the packaging, check its integrity. Since the glass door is fragile, it is recommended to request replacement if it has been damaged, scratched, or cracked. Also, during use of the oven, cleaning, and maintenance, avoid hitting the door, pulling it with force, and throwing cold water onto the glass when the oven is hot.

When the appliance is in operation, the temperature of the door and other external surfaces may be very high. Always use the handles, knobs, and grips. Do not touch the metal surfaces or the glass of the oven. If necessary, use gloves. - The electric oven operates at very high temperatures that can cause burns. Do not allow the use of the appliance by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are supervised or instructed by a person responsible for their safety. Supervise children and ensure they do not play with the appliance. Do not move the oven while it is operating. Do not use the appliance if: The power cord is damaged. The appliance has previously shown malfunctions or improper operation. In these cases, to avoid any danger, the appliance must be repaired by an authorized service center. Do not let the power cord hang or come into contact with hot parts of the oven. Never disconnect the appliance by pulling the power cord. If you need to use an extension cord, ensure it is in good condition, has a ground wire, and has a conductor cross-section at least equal to that of the oven's power cord. To avoid any risk of electric shock, never immerse the oven, the plug, or the cord in water or any other liquid.

Do not use the appliance outdoors. Do not use the appliance near water or when hands are wet. Do not place the appliance near flammable materials. The ψωμί (bread) may burn. Always supervise the appliance when it is in use. Do not leave the appliance operating unattended. Do not use the appliance for heating the environment. Do not place paper, cardboard, or plastic in the toaster, and do not place anything on top of it (e.g., dishes, cutlery, or other objects). Do not place any object on the slots. Do not cover them. In case the food inside the appliance catches fire, do not attempt to extinguish the flames with water. Leave the door closed, unplug the appliance, and extinguish the flames with a damp cloth. This appliance is suitable for household use. When opening the door, be careful of the steam: do not expose yourself to large amounts of steam or pull the handle downwards. Do not place heavy utensils or hot pans removed from the oven on the open door. Taking into account the regulations, contact the authorized service center to repair the appliance, if it is to be used for commercial purposes. For your own safety, never attempt to repair the appliance yourself. Contact the authorized service center. This appliance has been designed for domestic use only. Any commercial or improper use, or failure to follow the instructions, releases the manufacturer from any liability and voids the warranty. Always unplug the appliance when not in use and before cleaning. In case of damage to the power cord, replacement must be carried out by the manufacturer, its authorized service center, or a similarly qualified person, in order to avoid any hazard. This appliance complies with Directive 2004/108/EC on electromagnetic compatibility and with Regulation (EC) No. 1935/2004 of 27/10/2004 regarding materials intended to come into contact with food. The appliance must not be operated with an external timer or a remote control system. The appliance must be placed and operated on the same side near the wall.

Read these instructions

Information for the correct disposal of the product in accordance with the European Directive 2002/96/EC

PANINI Housky, topinky

Technical data

Net weight 5.5 kg

Power 1400 W

Frequency 50/60 Hz

Voltage 220-240 V

Water after 14 minutes

Korv (3)

20 min.

Water after 11 minutes

Farska burgargare (2)

25 min.

Turn after 13 minutes

Sausages (4)

26 min.

Turn after 14 minutes

Grill skewers 500 g

26 min.

Turn after 14 minutes.

Red sausages (3)

20 min.

Turn after 11 minutes.

Hamburgers (2)

25 min.

Turn after 13 minutes.

Frankfurter sausages (4)

26 min.

Vend after 14 minutes.

Kd pä spyd 500 g

26 min.
