USER MANUAL Cloud Buds HYPERX

Find the language and latest documentation for your HyperX Cloud Buds here.

HyperX Cloud Buds Installation Guide

For instructions in English
Para instrucciones en Español
. . . . Für Anleitungen in Deutsch
Pour des instructions en Français
...... Per le istruzioni in Italiano
Por as instruções em Português
Instrukcje w języku Polskim
Для инструкции на Русском
C. Turkce talimatlar icin
日本語マニュアル用
한국어 안내
......คำแนะนำภาษาไทย
Đế xem hướng dẫn bằng tiếng Việt

Simplified Chinese ..简体中文说明书

Traditional Chinese ....繁體中文說明

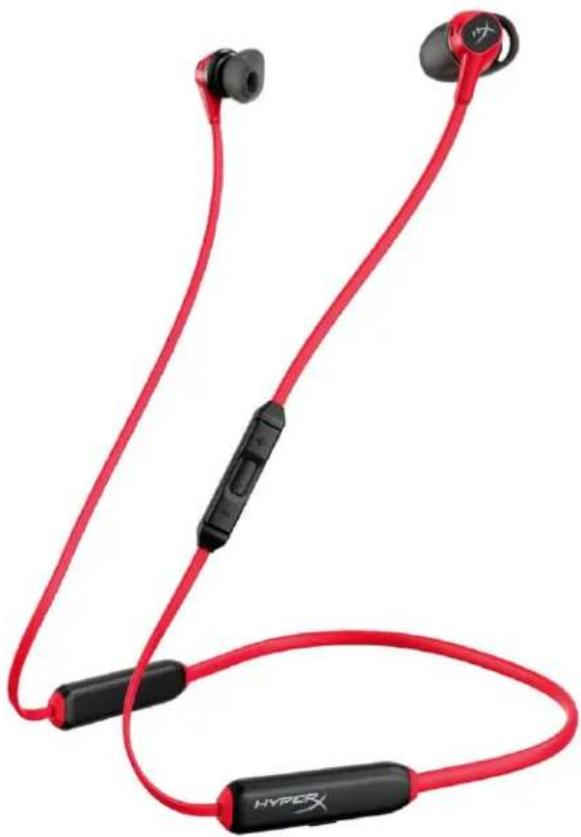

Red and black hybrid earbuds with brand logo (no text or symbols on body)

Part Numbers

HEBBXX-MC-RD/G

TABLE OF CONTENTS

Overview....3

Specifications....4

Fitting the HyperX Cloud Buds to your Ears....5

Changing Ear Tips 5

Controls....6

Power Button 6

Volume Buttons 6

Multifunction Button 6

Headset Charging ....7

Status LED Indicators....7

Factory Reset....7

Questions or Setup Issues? 7

Overview

A

Line drawing of a medical device with two connectors and a coiled tube (no text or symbols)

B

Six technical line drawings of a car interior and side views, showing different shapes and internal components (no text or symbols)

C

Pure electrical circuit lines without any symbols

D

Diagram of a rectangular object with diamond pattern and attached cable, labeled '支' (no text or symbols on the object itself)

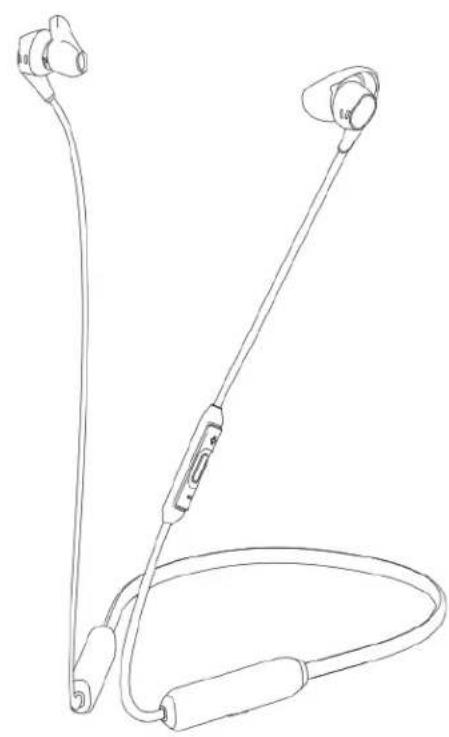

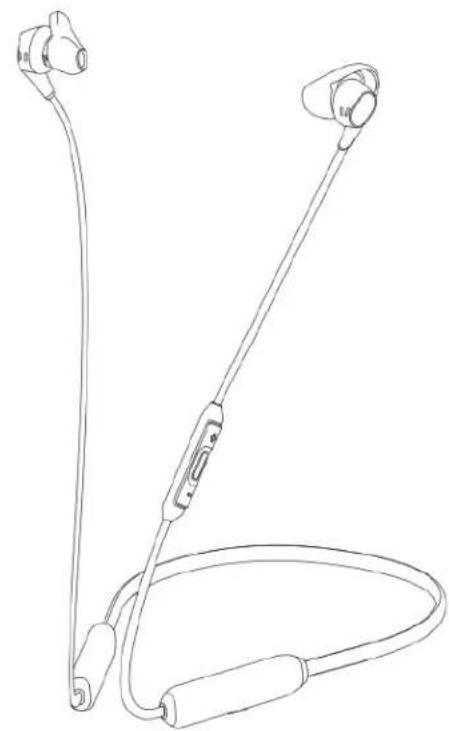

A. HyperX Cloud Buds
B. Interchangeable ear tips
C. USB-C charge cable

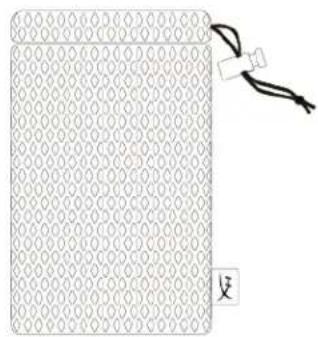

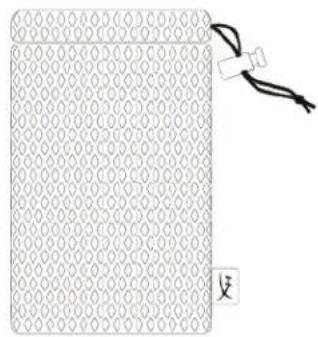

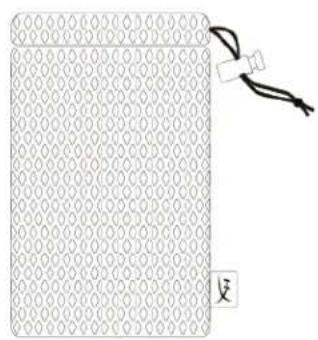

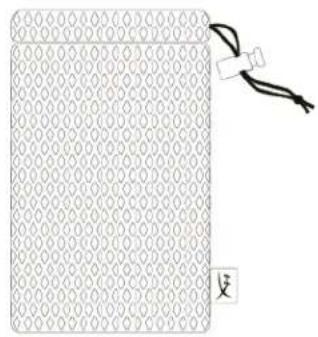

D. Carrying case

Specifications

Headphone

Speaker driver : Dynamic with Neodymium magnets

Type: Neckband

Frequency response: 20Hz - 20kHz

Impedance: 65.2 Ω

Sound pressure level: 104±3 dB 1mW at 1kHz

T.H.D: ≤2% at 200-3kHz

Weight: 27.5g

Charge cable length: USB-C to USB-A: 0.2m

Inline Microphone

Element: Electret condenser microphone

Polar pattern: Omni-directional

Frequency response: 100Hz - 7.2kHz

Open circuit sensitivity: -16.5dBV (1V/Pa at1kHz)

Battery Life\*

Bluetooth: 10 hours

Bluetooth

Bluetooth version: 5.1

Wireless range**: Up to 10 meters / 33 feet

Supported codecs: aptX™, aptX™ HD, SBC

Supported profiles: A2DP, AVRCP, HFP, HSP

*Tested at 50% headphone volume

**Wireless range may vary due to environmental conditions

Fitting the HyperX Cloud Buds to your Ears

Medical illustration showing ear anatomy with labeled parts and directional arrows indicating measurement or insertion.

1. Insert ear tip into ear.

2. Tuck stabilizer flap into ear fold.

Changing Ear Tips

1. Remove original ear tip by gripping the stabilizer flap and stretching ear tip over the hook on the nozzle.

1. Place new ear tip on the nozzle of the ear bud.

1. Pull the stabilizer flap to stretch the nozzle over the hook

Controls

Power Button

Pure electrical circuit lines without any symbols

Power On/Off

Hold for 2 seconds to turn on or off.

Bluetooth® Pairing

1. With the headset off, hold the power button for 5 seconds to enter pairing mode. The LED indicator will flash red and blue and a voice prompt will play.
2. On your Bluetooth® enabled device, search and connect to "HyperX Cloud Buds." Once connected, the indicator LED will flash blue every 5 seconds and a voice prompt will play.

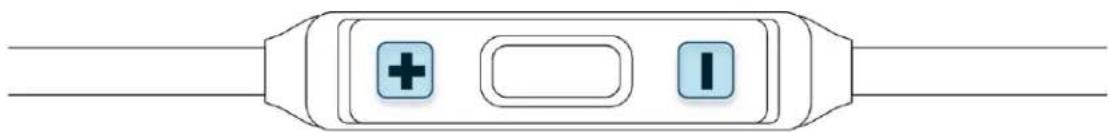

Volume Buttons

Pure electrical circuit lines without any symbols

Press the + and - buttons to adjust the volume level up or down.

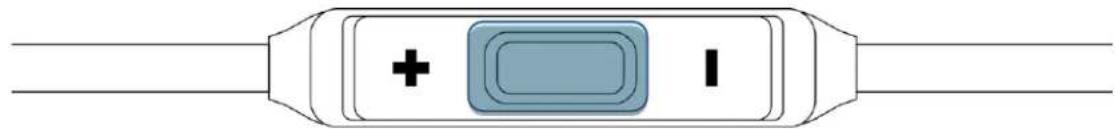

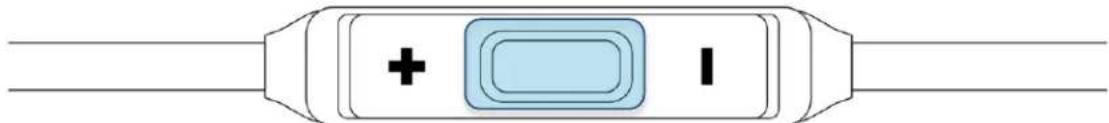

Multifunction Button

Pure electrical circuit lines without any symbols

Status	1 Press	2 Presses	3 Presses	Long Press
Playing Media	Play/Pause	Skip Track	Previous Track	Activate Mobile Assistant
Receiving Call	Answer Call	X	X	Reject Call
In Call	End Call	Swap Calls	X	X

Note: Button functionality may differ depending on connected device.

Headset Charging

When the headset is connected to a charger with the USB charge cable, the status LED will indicate the charge status. The headset will take approximately 3 hours to fully charge.

Status LED	Charging Status
Breathing red	Charging
Off	Fully charged

Status LED Indicators

The status LED on the headset indicates the current state of the headset.

Status LED	Headset Status
Flash blue every 5 seconds	Connected to a device
Flash blue every 2 seconds	Not connected to a device
Pairing mode	Flashing red and blue
Factory reset	Flash blue 5 times and light up red for 1 second

Factory Reset

To perform a factory reset on the headset, hold the power and volume up buttons together for 7 seconds. The status LED will flash red and blue 2 times, followed by solid red for 1 second. At the same time, the headset will play two low beeps. After this, the headset will automatically turn off.

Questions or Setup Issues?

Contact the HyperX support team at: hyperxgaming.com/support/headsets
