USER MANUAL Crêpière Tradi' 109011 LAGRANGE

CONDITIONS DE GARANTIE

BESCHRIJVING VAN HET APPARAAT

Read these instructions carefully and keep them for future reference.

Check that the voltage of the power supply is the same as that indicated on the appliance's nameplate.

Always unwind the cord completely.

If the power cable is damaged, in order to avoid any danger it must be replaced

LAGRANGE, its after-sales service persons with similar qualifications approved by LAGRANGE.

Put your unit on a flat and dry surface.

Place the appliance away from easily flammable objects (curtains, etc.).

Never put the unit near a source of heat.

Never place the appliance on hot surface or near a flame.

Connect the cord to a 10/16A outlet with a ground connection.

If you use an extension cord, you must use a model equipped with a ground connection and wires of section greater than or equal to 1mm^2

This unit may be used by children eight years of age or older and by people with reduced physical, sensorial or mental capacities or a lack of experience and knowledge as long as they receive supervision or instructions for the safe use of the unit and as long as they understand the dangers involved.

Children must not play with the unit.

The unit should not be maintained and cleaned by children unless they are over the age of eight and are supervised.

Keep the unit and the power cord out of reach of children under the age of 8 years.

It is recommended that you connect the unit to an installation including a residual current system having a breaking current not exceeding 30mA . Never immerse the appliance in water or any other liquid, be it for cleaning or any other purpose. Never place it in the dishwasher.

Do not use or store the appliance outside, and keep it in a dry place.

Never move the appliance by pulling the power cord. Ensure that the power cord cannot be caught accidentally, to prevent any risk of the appliance falling.

Do not wind the cord around the appliance, or bend it, and do not allow it to come into contact with the cooking plates.

Do not touch the top of the device or other hot parts during or after use.

Do not drop the unit as it could be damaged.

These units are not intended to be operated by means of an exterior timer or by a separate remote control system.

When the unit is not being used or is left without surveillance and before dismantling or cleaning, disconnect it from the electrical power supply.

Before any cleaning operation, unplug your unit and let it cool down completely.

Never use the unit as an extra source of heating. If your unit is damaged, do not contact the LAGRANGE

Department.

For your safety, use LAGRANGE accessories and spare parts adapted to your unit. This unit is intended for use in household and similar applications such as:

• kitchen areas reserved for the personnel of stores, offices and other professional environments;
  -farms;
• use by customers of hotels, motels and other residential environments;
• bed and breakfast type environments.

This unit is not intended for use in restaurant cooking or similar applications.

DESCRIPTION OF THE UNIT

1. Detachable aluminium plate for one large crepe (35cm diameter)
2. Unfinished wood handles
3. Trim in stainless steel
4. Thermoplastic base
5. Batter spreader in wood
6. A spreader tool rinse
7. Large wooden spatula
8. Ladle
9. Indicator light
10. Thermostatic control
11. 2 meters removable cord

According to the model:

1. An aluminium plate for 7 small 11 cm crepes
2. Small wooden spatulas (x7)

Tradi Crepe maker

Model 10901X

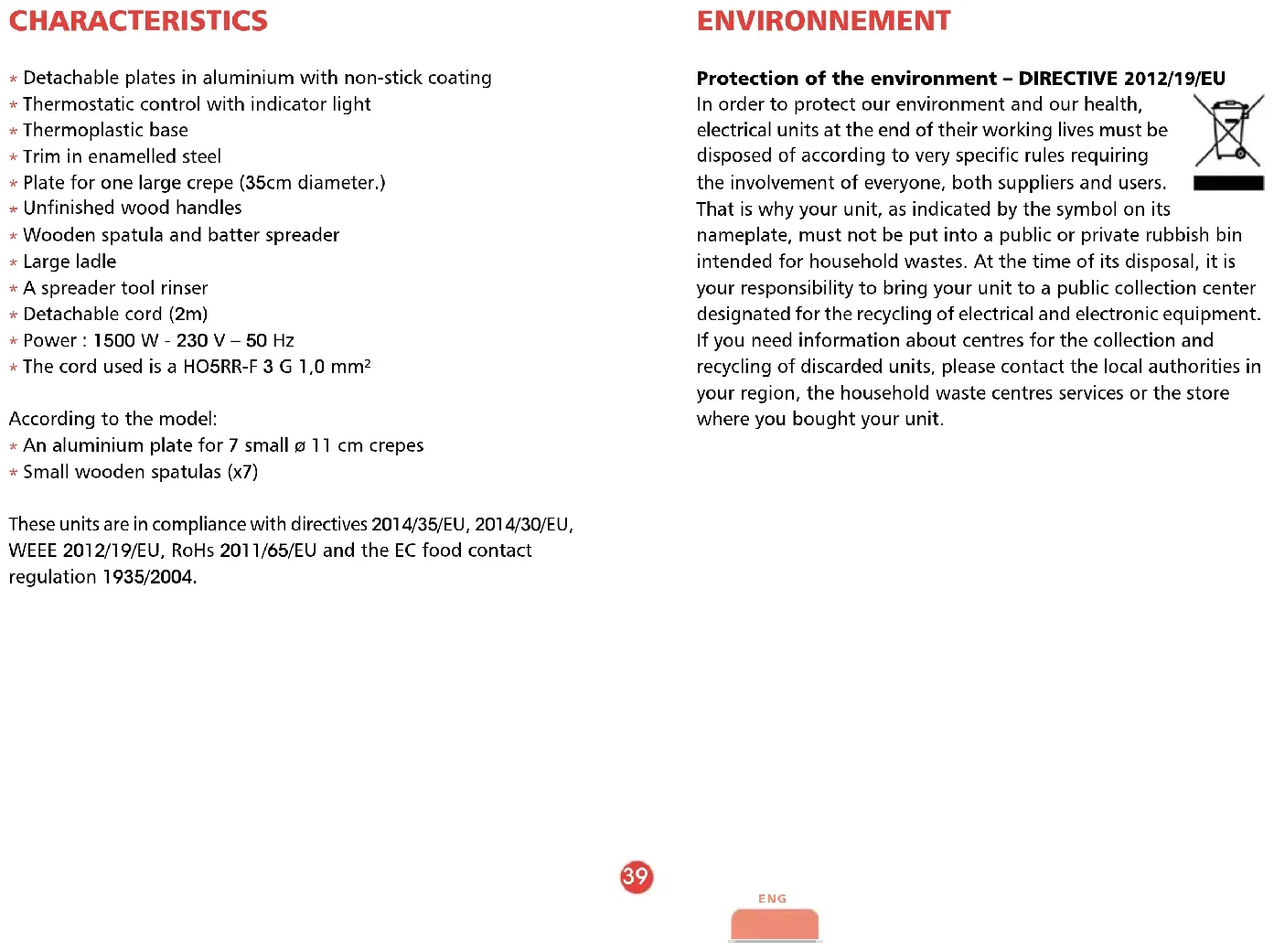

CHARACTERISTICS

• Detachable plates in aluminium with non-stick coating
• Thermostatic control with indicator light
  *Thermoplastic base
  * Trim in enamelled steel
• Plate for one large crepe (35cm diameter.)
• Unfinished wood handles
• Wooden spatula and batter spreader
• Large ladle
  *A spreader tool rinse
• Detachable cord (2m)
• Power : 1500 W - 230 V - 50 Hz
  *The cord used is a HO5RR-F 3 G 1,0 mm2

According to the model:

• An aluminium plate for 7 small Ø 11 cm crepes
• Small wooden spatulas (x7)

These units are in compliance with directives 2014/35/EU, 2014/30/EU, WEEE 2012/19/EU, RoHs 2011/65/EU and the EC food contact regulation 1935/2004.

ENVIRONMENT

Protection of the environment - DIRECTIVE 2012/19/EU

In order to protect our environment and our health, electrical units at the end of their working lives must be disposed of according to very specific rules requiring the involvement of everyone, both suppliers and users.

That is why your unit, as indicated by the symbol on its nameplate, must not be put into a public or private rubbish bin intended for household wastes. At the time of its disposal, it is your responsibility to bring your unit to a public collection center designated for the recycling of electrical and electronic equipment. If you need information about centres for the collection and recycling of discarded units, please contact the local authorities in your region, the household waste centres services or the store where you bought your unit.

START-UP AND USE

FIRSTUSE

• As you unwrap your unit, make sure that you carefully remove all of the packing elements and all of the bags and packaging labels.
• Make sure that all of the parts and accessories are present and intact.
• A new unit can smoke and/or release odors during the first use. To limit this release of smoke and odours, it is recommended that you let the unit heat up for 10 minutes and then let it cool down for about 30 minutes.

START-UP AND USE

• Fully extend the cable and examine it carefully before using it.
• Plug in your crepe-maker. Set thermostat to maximum.
• Pre-heat for 8 minutes.
• Fill accessory stand with water and set it in place.
• Lightly grease the cook plate. To do this, use a small, soft-bristled brush or a piece of kitchen paper lightly moistened with oil. Do not omit to grease the cook plate - it is very important (even with the non-stick coating).

MAKING A LARGE CREPE

• Fill the ladle with crepe batter and pour it on the centre of the plate.
• Take the batter spreader, holding the handle lightly between thumb and first two fingers - do not grip too tightly. Place it on the batter then spread the batter, using a turning movement (do not press down). There's a knack to it!
• Use the spatula to 'lift' the crepe and prevent it from sticking. Place the bevelled edge of the spatula on the edge of the cook plate and 'lift' the crepe by running the spatula around the edge of the crepe with a circular movement. Always start at the outer edge and gradually work towards the centre.

IMPORTANT: Rinse the batter spreader after each use. Wipe the spatula carefully in order to remove any batter particles that may have stuck to it.

• To turn the crepe over, take a table napkin and fold it in four. Slide the spatula under the crepe. Go right up to the centre. Place the napkin over the crepe in such a way that the crepe is sandwiched between the spatula and the napkin. Then turn the crepe over and return it to the cook plate.

IMPORTANT: The first side of the crepe MUST be cooked thoroughly before attempting to 'lift' the crepe.

• Then, fold the crepe as you require: in two, into four, into a roll, into a pocket, etc.

N.B.: cooking time varies as a function of temperature and thickness of crepe. As a guide, you can make at least 20 crepes per hour. This rises to 35 crepes per hour, depending on the consistency of the batter and the thickness of the crepe.

USING THE ADJUSTABLE THERMOSTAT

Position 1 and 2:reheat your crepes or pancakes that you may have prepared in advance to serve them hot.

Positions 3 and 4: garnish your crepes or pancakes by cooking an egg, melting cheese or butter, or by adding anything that tempts you.

Position 5: cooking temperature for your crepes and pancakes.

MAKING MINI-CREPES:

• Use the ladle that came with the device. Fill it with crepe batter and pour this into the moulds. Spread out the batter with the underside of the ladle.
• Loosen and flip the pancakes with the supplied spatulas.

STOPPING THE UNIT

* Set thermostat to 'off' position. Unplug the cord from the mains, then disconnect the cord from the appliance.

MAINTENANCE

WARNING: Always unplug appliance and allow to cool completely before cleaning. Never submerse the appliance in water. Never use oven cleaners or other stripping products.

External housing of appliance: use a sponge moistened with washingup liquid. Do not use abrasive products.

Non-stick plate: clean using a non-abrasive sponge, hot water and a little washing up liquid.

IMPORTANT: never use harsh products (caustic sprays, etc.).

Accessories: the ladle is dishwasher safe. We recommend that wooden accessories are washed using a sponge moistened with a washing-up product.

WARNING: do not leave the wooden spatulas and spreader soaking in water; do not clean them in the dishwasher.

RECIPES

Ingredients (for about 12 pancakes): 250g of flour, 2 eggs, 3 tablespoons of sugar, 25g butter, 1/2 teaspoon of salt, 3 tablespoons of oil, 1 tablespoon of rum, 1/2 litre of milk.

Tip the flour into a bowl. Make a well in the middle of the flour and break 2 eggs into it. Add the sugar, salt, butter, and oil. Stir constantly with a wooden spoon while gradually adding the liquid ingredients until you obtain a very runny batter. Add the rum. Let the mixture stand at least half an hour.

Tip: the batter must be very liquid if you want to make very thin crepes. The clearer the mixture, the lighter the pancakes. Feel free to add one or two glasses of water if you need to thin the mixture. You will see that different combinations of ingredients are possible, so give free rein to your imagination!

SWEET CREPES

XAVIEREBFOOD'S CHESTNUT CREPES

Ingredients: 250g of chestnut flour. 4 eggs, 2 tablespoons of brown sugar. 500ml of milk. 3 tablespoons of coconut oil.

Tip the chestnut flour in a bowl, make a well in the middle of the flour and break the eggs into it. Add the sugar and the coconut oil. Gradually add the milk by constantly stirring with a wooden spoon. Add the remaining milk and whisk until you get a smooth batter. Make your chestnut crepes with your crepe pan.

You could pour a strawberry or raspberry coulis over your crepes, or experiment with other toppings.

MÉGANE DIÉTÉCIENNE SWIRLING TWO-TONE CREPES

Ingredients: 200g of wheat flour, 500ml of semi-skimmed milk, 2 eggs, 15ml of sunflower oil, 3 tablespoons of sugar, salt, cocoa, vanilla extract.

Tip the flour in a bowl, make a well in the middle of the flour and break the eggs into it. Add the sugar, a pinch of salt, and the oil. Gradually add the milk by constantly stirring with a wooden spoon. Add the remaining milk and whisk until you get a smooth batter. Evenly divide this mixture between two bowls, add cocoa to one bowl and liquid vanilla extract to the second.

Use a small plastic squeeze bottle with a fine nozzle (like a ketchup bottle) to get the most impressive swirling or spiralling effect.

Fill the bottle with a small amount of chocolate crepe batter, heat the crepe pan and make a swirl, starting at the centre of the pan. Then pour the vanilla crepe batter over the top and spread it out with the spreader as you would when making a normal crepe. Naturally, you can also do the opposite.

Serve as is or with your selection of topping.

SAVOURY CREPES

PINK CRÉP'DWICH BY CLARISSE VILAIN, @BETTERCLAF

Ingredients:

For the batter: 350g of buckwheat flour, 1 teaspoon of salt, 1 egg, 50 cl water, 25 cl beetroot juice, butter or sunflower oil.

For the Pink Crep'swich topping: 3 tablespoons of cream cheese, sprigs of chives, 1 large slice of organic smoked salmon, 30g of cucumber strips, 30g of radishes, 30g of green pepper, 15g of pickles.

Crepe batter preparation: beat the egg separately, tip the flour in a bowl, make a well in the middle of the flour and pour the beaten egg into it. Add salt, a knob of melted butter, or a tablespoon of sunflower oil, gradually add the water while constantly stirring with a wooden spoon, then add the beetroot juice and whisk until you get a smooth batter.

To make a "Pink Crep'dwich": make 2 pink crepes using the crepe batter recipe supplied with your crepe pan. Spread 1.5 tablespoons of cream cheese over each crepe. Sprinkle the chopped chives and the pieces of smoked salmon over the first crepe. Place the cucumber strips, the diced green pepper, radishes and pickles on the second crepe. Place the second one on top of the first crepe, then gently roll. Wrap in baking paper and your sandwich is ready to eat.

CHEESE CREPES

Ingredients (for about 12 crepes): 150 to 200g of Gruyere or Gruyere cream, 2 tablespoons of milk, 1 tablespoon of butter.

Cook the crepes and keep them warm. Melt the cheese with the milk and the butter. Drizzle over the crepes, fold them in 4, and serve on a very hot dish warmed in a warming tray.

Variation: you can replace the Gruyere with Parmesan cream to have Parmesan-filled crepes.

BLINIS

SIMPLE BLINIS

Ingredients: 300g of flour, 3 eggs, half a litre of milk, 15g of baker's yeast, salt.

Dissolve the yeast in 3 tablespoons of warm milk. Tip the flour into a bowl then add the salt, egg yolks, and yeast. Mix well. Add the milk gradually. Cover and leave to rise for 3 hours at room temperature. Just before cooking the blinis, beat the egg whites until stiff then gradually mix them into the batter.

Savoury blinis can be served with strips of smoked fish, lumpfish roe, crumbled hard-boiled eggs, Roquefort or another strong cheese ... You can also serve blinis as a dessert with sweet toppings: jam, honey, candied fruit ... In this case, add a tablespoon of sugar to the batter mixture.

BUCKWHEAT BLINIS

Ingredients: 200 g of buckwheat flour, 100 g of wheat flour, 3 eggs, 3 dl of milk, 10 g of brewer's yeast, 1 pinch of salt.

Dissolve the yeast in a little warm water. Mix the different flours in a bowl. Gradually add the milk, egg yolks, yeast, and a pinch of salt. Let the mixture stand for about an hour. Just before cooking the blinis, beat the egg whites until stiff then gradually mix them into the batter. Serve the blinis with fish (salmon, sea bream ...) or lumpfish roe.

PANCAKES

AMERICAN PANCAKES

Ingredients: 300g of flour, 50g of sugar, 3 eggs, 40g of butter, 30cl of milk, 1/2 sachet of baking powder, 1 vanilla pod or 1 sachet of vanilla sugar, 1 pinch of salt

Combine all the dry ingredients in a large bowl: the flour, sugar, vanilla sugar or seeds from the vanilla pod (split in half and scraped out with a knife), the pinch of salt, and the baking powder.

Melt the butter in a double boiler or using a microwave on low power. Form a well in the centre of the mixture for adding the eggs, the melted butter, and half the milk.

Mix well to avoid lumps and gradually add the rest of the milk. When you have finished mixing you should have a smooth, thick, pancake batter. Pour a small ladle of batter onto the hot and greased crepe pan, without spreading it. Turn the pancake over as soon as you see bubbles forming on the surface.

Your delicious pancakes can be savoured with maple syrup, jam, or a spread of your choice.

GUARANTEE TERMS

Guarantees for LADuBefoldEappliances.

Your unit is guaranteed for 2 years.

In order to receive an additional year of guarantee free of charge, register on the web site L(AGRAgge.fr).

The guarantee includes parts and labour and covers manufacturing defects.

The guarantee does not cover deterioration due to poor use or nonobservance of the instructions for use or breakage due to falling.

THIS GUARANTEE APPLIES TO HOUSEHOLD USES. IT CANNOT APPLY TO PROFESSIONAL OR SEMI-PROFESSIONAL USES.

The legal guarantee due from the seller does not in any way exclude the legal guarantee due from the Manufacturer for manufacturing flaws or defects according to articles 1641 to 1649 of the Civil Code. In the event of a breakdown or malfunction, contact your retailer. In the event of technical defects observed within one week of purchase, the units will be exchanged.

Beyond this period, they will be repaired by the LAGRANGE after-sale service.

To benefit from this guarantee, the user must present a copy of the invoice specifying the date of purchase of the unit.

Duration of availability of spare parts

In accordance with article L 111-2 of the consumer code, the availability of spare parts that we provide for a repairable product is 5 years as of its date of manufacturing. However, this availability is only guaranteed in the country where the product was purchased.

Shipping costs for returns

After the first year which benefits from the dealer's guarantee, you will only have to pay the costs for returning the product to the factory. We will ship it back to you at our expense as quickly as possible.

If you have any other questions about our products, you can contact us at the following address:

LAGRANGE
