Product Type	Keystone panel for DIN rail mounting
Brand	Tripp Lite
Compatible Models	N063-008-ENC (blank), N063-008-6A-SH (pre-connected with 6A couplers)
Number of Ports	8 keystone RJ45 ports
Mounting Type	DIN rail mounting (push to lock)
Dimensions (approx.)	Height: 10 cm, Width: 15 cm, Depth: 5 cm
Weight (approx.)	0.5 kg
Housing Material	Durable plastic
Power Supply	None (passive)
Main Functions	Allows RJ45 cable patching and termination, DIN rail mounting, adjustable module orientation
Included Accessories	Wood screws (2), machine screws (4), grounding cable, washer, labels (4), user documentation
Installation	DIN rail mounting, connect cables or keystone modules, grounding required
Module Orientation	360° rotation with click, clip release
Maintenance and Cleaning	Clean with a dry, lint-free cloth
Safety	Grounding cable provided for electrical safety
Spare Parts and Repairability	RJ45 keystone modules sold separately, standard mounting screws
Warranty	Limited lifetime warranty (replacement of defective product)
General Information	Compliant with DIN standards, Eaton brand, manufactured 2024

Frequently Asked Questions - N063008ENC Tripp Lite

How to install the panel on a DIN rail?

Place the housing on the DIN rail and push until you hear a locking click. To remove, release the button provided.

Do the N063-008-ENC and N063-008-6A-SH models have installation differences?

Yes. The blank model (N063-008-ENC) requires terminating connections on each RJ45 module before snapping them in. The pre-connected model (N063-008-6A-SH) comes with 6A couplers; just connect the patch cables.

How to secure an RJ45 module in the panel?

Use the 'LATCH' marking to orient the module, place it on the edge of the panel and snap it in until it is firmly in place.

What to do if a module does not snap in correctly?

Check the module orientation (LATCH marker) and ensure it is pushed fully into the slot. If necessary, gently remove it using the release clip.

How to orient the modules after installation?

Rotate the module bezel in the desired direction until you hear a click. To change direction, press the clip on the housing to release the module.

What is the purpose of the provided grounding cable?

The grounding cable connects the panel to ground to ensure electrical safety and prevent interference. Attach it to the designated ground point.

Can I use keystone modules other than Tripp Lite?

The panel accepts standard RJ45 keystone modules. Check mechanical and electrical compatibility before use.

What is the warranty for this product?

Eaton (Tripp Lite) offers a limited lifetime warranty against defects in materials and workmanship. It does not cover normal wear, misuse, or indirect damages.

How to clean the panel?

Use a dry, lint-free cloth to dust. Do not use chemicals or liquids.

Where can I find the detailed manual or spare parts?

The manual is available on the Tripp Lite website (notice-facile.com). For spare parts (modules, screws), contact Eaton customer service or an authorized reseller.

USER MANUAL N063008ENC Tripp Lite

8-Port DIN Rail Mount Keystone Panel

Models:

N063-008-ENC

(Blank)

N063-008-6A-SH

(Pre-Terminated)

Espanol 9

Français 17

Deutsch 25

Italiano 33

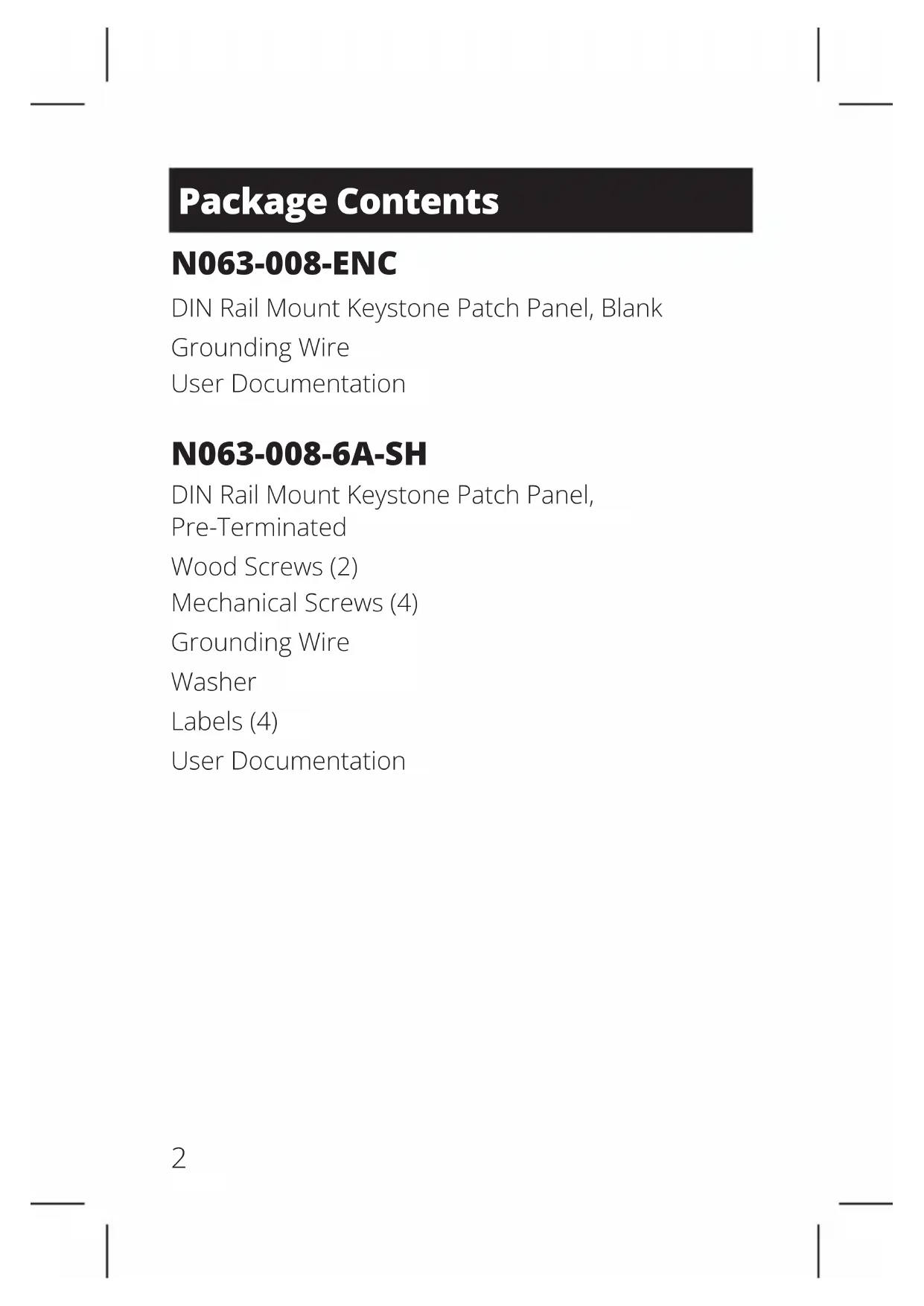

Package Contents

N063-008-ENC

DIN Rail Mount Keystone Patch Panel, Blank

Grounding Wire

User Documentation

N063-008-6A-SH

DIN Rail Mount Keystone Patch Panel,

Pre-Terminated

Wood Screws (2)

Mechanical Screws (4)

Grounding Wire

Washer

Labels (4)

User Documentation

Installation

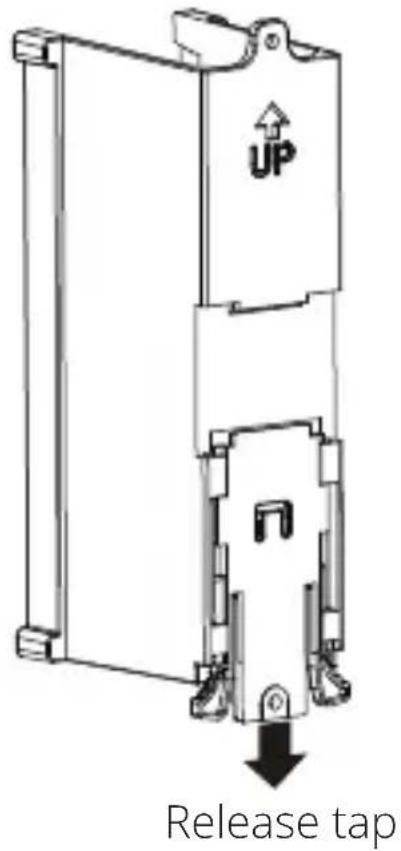

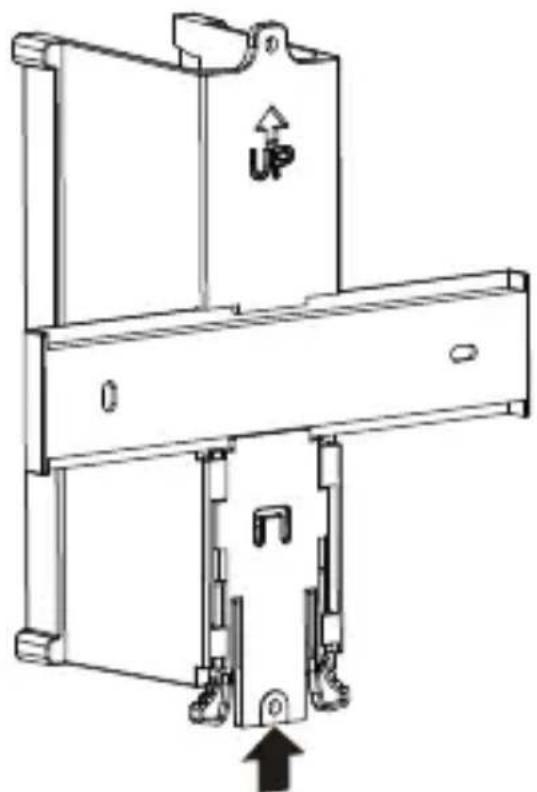

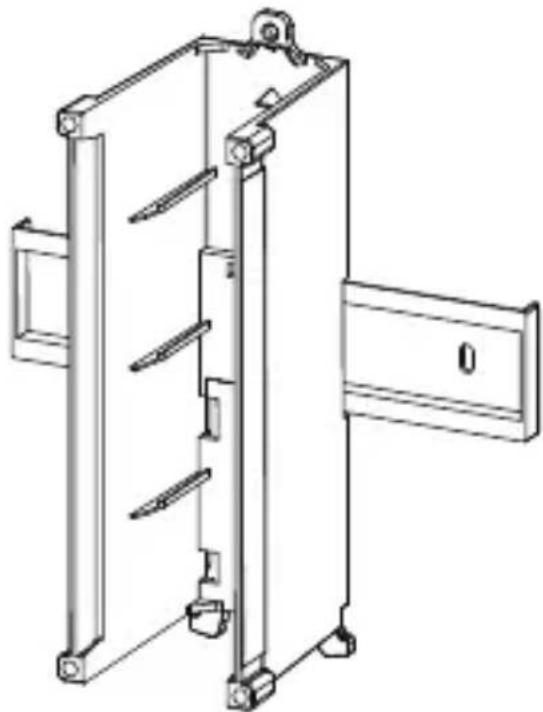

1 Attach the box to the DIN rail.

Push to lock box to DIN rail

Installation

2 (N063-008-ENC Only): Finish cable terminations on each RJ45 module.

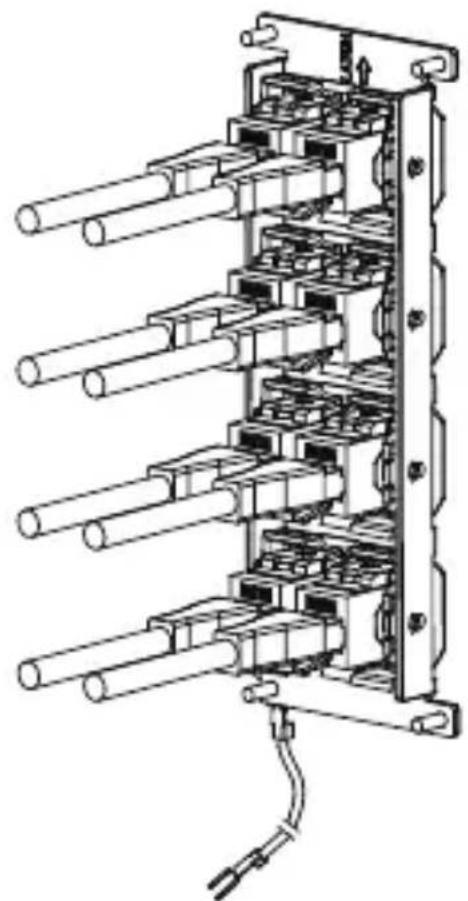

(N063-008-6A-SH Only): Plug in necessary patch cable on each RJ45 in-line coupler from the back of the panel. Then, skip ahead to Step 5.

Installation

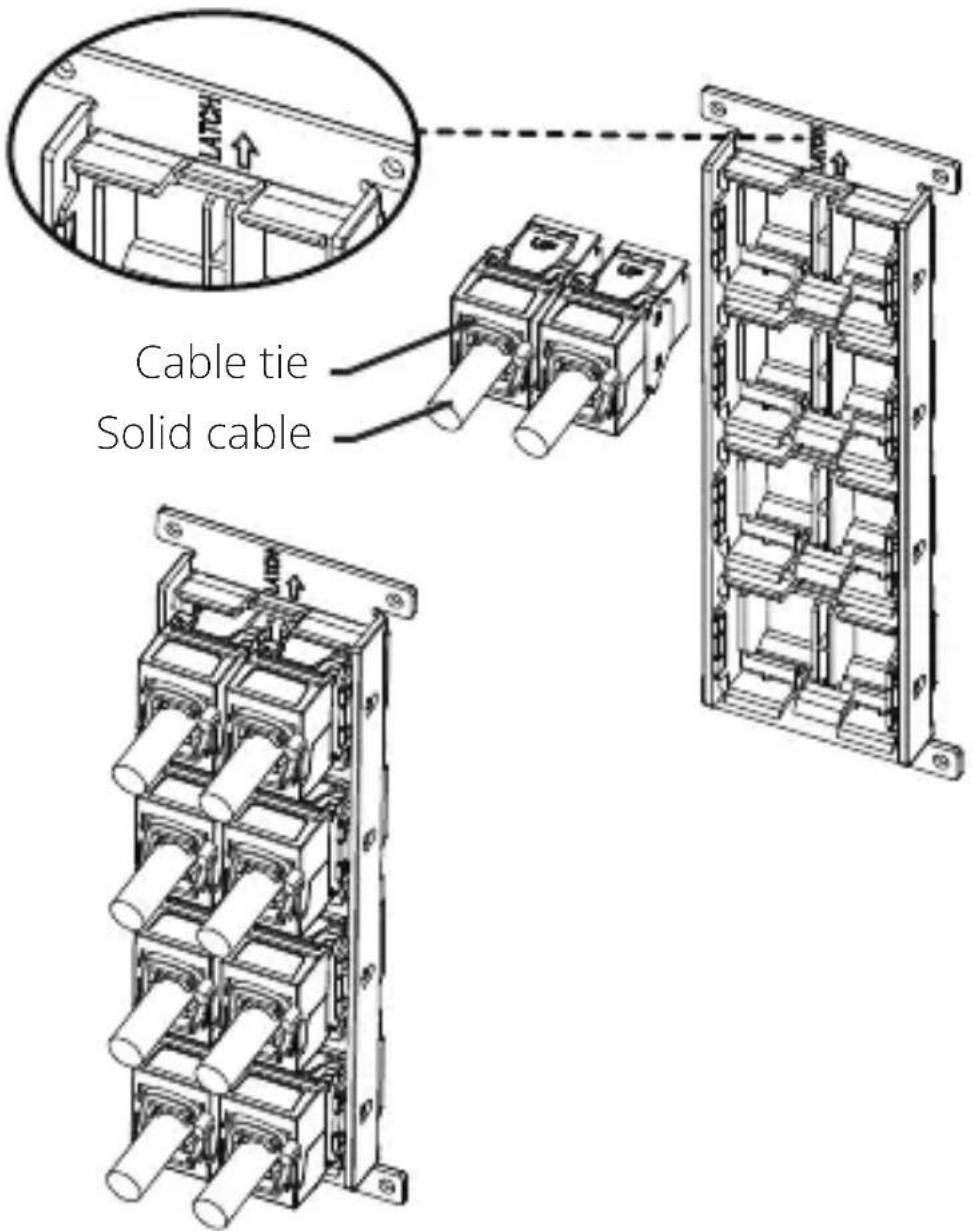

3 Use the "LATCH" marking to locate the module direction. Place the assembled RJ45 module onto the back of the panel.
4 Snap each RJ45 module onto the panel until all RJ45 modules are installed.

Installation

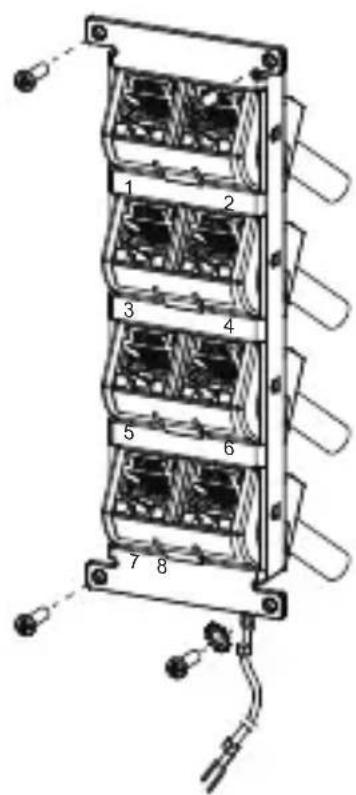

5 Use screws to attach the panel with terminated jacks to the box.

Note: N063-008-6A-SH is pre-terminated with 6A couplers.

Attach the grounding wire

Installation

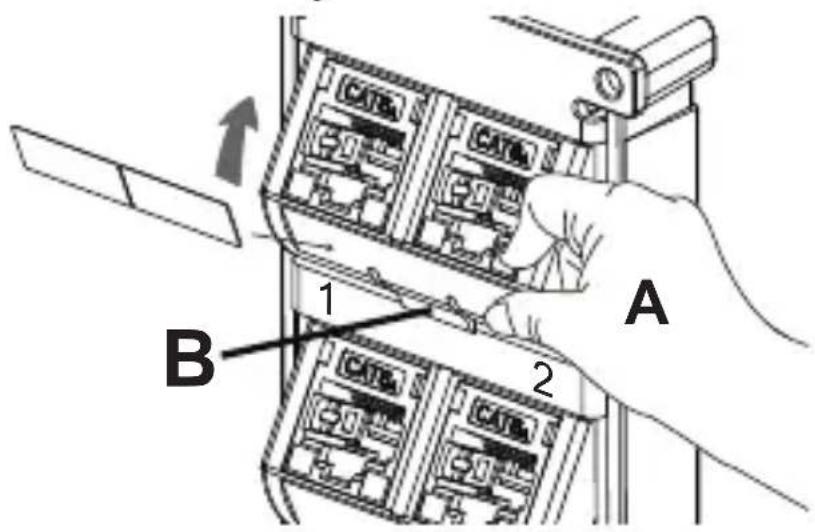

6 To adjust the modules:

A Rotate the bezel to the desired direction until you hear a clicking sound.
Press the clip onto the bezel to release the bezel and change the direction.

Warranty

Lifetime Limited Warranty

Eaton warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for life. If the product should prove defective in material or workmanship within that period, we will, subject to the foregoing terms and limitations, replace the product, in its sole discretion, as your exclusive remedy for our breach of the limited warranty. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair.

Warranty

THIS LIMITED WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. Eaton MAKES NO WARRANTYES OTHER THAN THE LIMITED WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED; AND THIS WARRANTY EXPRESSLY EXCULES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations or exclusion of implied warranties, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate, or safe for the use intended. Because individual applications are subject to great variation, we make no representation or warranty as to the suitability or fitness of these devices for any specific application.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
