| Product type | Programmable kettle |
| Brand | Lagrange |
| Model | Programmable 509013 |
| Capacity | 1.2 L |
| Body material | Polished stainless steel |
| Power supply | 230 V, 50 Hz |
| Adjustable temperatures | 40 °C, 60 °C, 80 °C, 100 °C |
| Keep warm function | Up to 2 hours |
| Descaling filter | Removable |
| Base | 360° rotation, cord storage |
| Safety device | Dry boil protection |
| Water level window | Yes |
| Light indicators | 4 temperature indicator lights |
| Cord type | H05VV-F 3G 0.75 mm² |
| Compliance | CE, RoHS, WEEE, food contact |
| Warranty | 2 years (3 years after online registration) |
| Availability of spare parts | 5 years from manufacturing date |
| Recommended maintenance | Monthly descaling |
Frequently Asked Questions - Programmable 509013 LAGRANGE
User questions about Programmable 509013 LAGRANGE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual Programmable 509013 - LAGRANGE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Programmable 509013 by LAGRANGE.
USER MANUAL Programmable 509013 LAGRANGE
Type 509
FR
NED
DEU
GB
CONSIGNES DE SÉCURITÉ
CONDITIONS DE GARANTIE
BESCHRIJVING VAN HET APPARAAT
Read these instructions carefully and keep them for future reference.
Poor use of this unit can lead to injury to people and damage to property.
Only use this product for its intended use. The company cannot be held liable in the event of damage or injuries due to poor use or handling of the product.
The product is only intended for houseful uses and in the manner indicated in the instructions.
Only to be used with 230V, 50Hz power supplies.
Never put your kettle, the cord or the base into water or any other liquid. Water must not get into the base of the unit.
Do not use the unit if you have wet feet or hands.
Do not expose the unit to high temperatures or to direct sunlight. Protect it from moisture, dust and all corrosive substances.
Do not let your kettle function without supervision and keep it out of reach of children or people who are not competent to use it.
This appliance may be used by children aged 8 years and over, under supervision, if they have received instructions about how to use the appliance in complete safety and if they have been made aware of the dangers involved. Cleaning and maintenance should not be performed by children, unless they are aged 8 or over and are supervised.
The appliances may be used by persons whose physical, sensory or mental capacities are reduced or who lack experience and knowledge if they are supervised, if they have received instructions about how to use the device in complete safety and if they have been made aware of the dangers involved.
Keep the appliance and its cable out of the reach of children under the age of 8.
Children must not play with this appliance.
Put the unit on a flat, dry and heat-resistant surface.
Always keep your kettle as far as possible from the edge of the counter top.
Do not cover the unit.
Do not use it without water.
The level of water in the kettle must be between the "MIN" and "MAX" water level indications.
Make sure that the cover is properly closed before use.
Do not touch any parts other than the lateral handle during operation because they are very hot (risk of burns).
Do not move the unit during its use.
Be careful of the steam which is very hot when opening the cover.
*Careful, the unit remains hot after its use.
Always let the unit cool down before storing it or cleaning it.
Do not let the cord hang over the counter top.
Keep the kettle, the cord and the unit away from all sources of heat, hot objects or open flames.
Unplug the unit when it is not heating, during cleaning or before opening the cover of the unit.
Do not pull the power cord or the unit itself in order to unplug it.
*Never put your unit on a hot surface.
Never let the kettle operate without surveillance.
Never use the unit for a purpose other than its primary function.
Do not use the unit if it has fallen and if it shows visible deterioration, in order to avoid danger.
If your kettle is damaged, do not use it and contact the LATORANGE
Department.
If your kettle is damaged, do not try to repair it yourself. All unauthorized modifications or repairs to your unit will lead to the cancellation of the guarantee.
For your safety, use only LAGRANGE accessories and spare parts adapted to your unit.


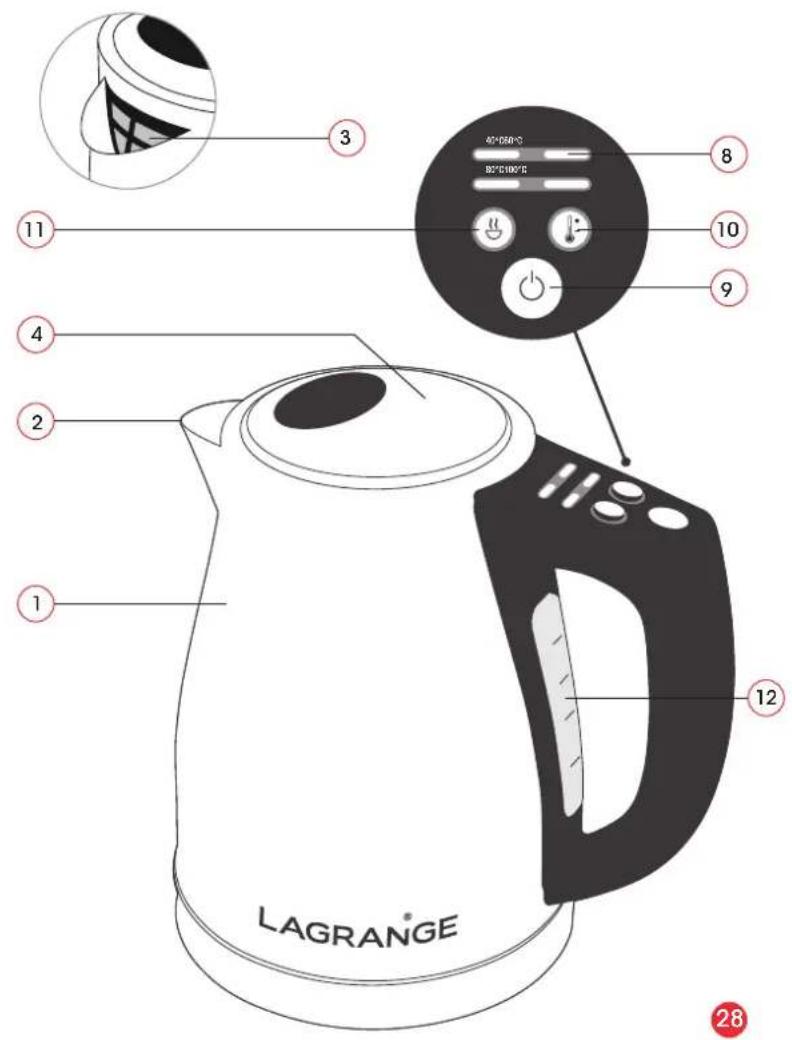

LAGRANGE 1 2 3 4 5 6 7 8 9 10 11 12 28DESCRIPTION OF THE UNIT
- 1.2L stainless steel frame
- Pouring spout
- Removable anti-scale filter
- Easy-open cover
- Base with 360^ rotation
- Cord storage box
- Cord
- Luminous temperature indicator
- On/Off button
- Temperature selection button
- Button for the keep warm function
- Water level indicator window
KETTLE PROGRAMMABLE
Type 509
* Polished stainless steel body
* Capacity: 1.2L
* Anti-scale filter
* Cover unlocking button
* Cover
* 4 temperature indicators (40°C, 60°C, 80°C, 100°C)
* Temperature adjustment button
* Keeping warm button
* On/Off button
* Water level indicator window
* Anti-dry boiling system
* The cord used is a H05VV-F 3 G 0,75mm ^2 .
These units are in compliance with directives 2014/35/EU, 2014/30/EU, WEEE 2012/19/EU, RoHS 2011/65/EU and the CE food contact regulation 1935/2004.
ENVIRONMENT
Protection of the environment – DIRECTIVE 2012/19/EU
In order to protect our environment and our health, electrica the end of their working lives must be disposed of accordin specific rules requiring the involvement of everyone, both and users. That is why your unit, as indicated by the symb nameplate, must not be put into a public or private garbage can intended for household wastes.
At the time of its disposal, it is your responsibility to bring your unit to a public collection center designated for the recycling of electrical and electronic equipment. If you need information about centers for the collection and recycling of discarded units, please contact the local authorities in your region, the household waste collection services or the store where you bought your unit.
STARTING AND USE
BEFORE THE 1ST USE
* Fill the unit with water up to the maximum level ("MAX").
* Turn on the unit as described in the section "use of the unit". Let the water boil.
* Pour out the water once it has boiled.
* Repeat the operation a second time.
* The unit is ready for use.
USE OF THE UNIT
* Open the cover using the button.
* Fill the unit with water up to the desired level, observing the level requirements.
* Close the cover and make sure that it is properly locked in place.
* Put the kettle on its base.
* Turn on the unit by plugging it in. The 100°C indicator light will go on.
* Adjust the temperature using the setting button. There are 4 temperature choices: 40^ , 60^ , 80^ , and 100^ . The temperature indicator will go on once the temperature has been chosen.
* Press the on/off button.
* When the temperature indicator is flashing, the water is heating up.
- Once the selected temperature has been reached, the indicator light stops blinking and stays on.
- The use can be interrupted at any time by pressing the on/off button.
- By default, the unit is programmed to heat to 100^ . If you want this temperature, press the on/off button.
* Once the water has come to this temperature, you can maintain it by pressing the keep warm button.
- Adjust to the desired temperature, press the keep warm button and then the on/off button.
- Once the keep warm function has been activated, the button will light up. The function can be deactivated by pressing the keep warm button again or by pressing the on/off button. The keeping warm time is 2 hours.
- When the keep warm function is activated, the temperature cannot be changed.
- The unit keeps the keep warm temperature used in memory. If you want to modify this temperature, you must do so during a new use of the unit.
- The unit can be adjusted to heat the water and then keep it warm. To do this, press the temperature selection button, then select the temperature maintaining mode, then turn on the kettle with the on/off button to heat the water. Once the water is heating, the temperature button flashes until the water is hot, and then the light becomes constant. The temperature maintaining button goes from stable to blinking. The unit goes into keep warm mode once the temperature has been reached.
Advice: You can wind the cord up in the storage support located under the base.
Anti-dry boiling system
If the MIN water level is not observed, the boil-dry protection device, which is the kettle's safety mechanism, will be activated, turning the kettle off. In this case, disconnect the kettle and wait for 15 minutes before using it again.
UPKEEP
For cleaning the unit, you should take care to:
* Always unplug the unit and let it cool down before washing it.
* Do not put the base, the cord or the plug into water. Do not allow water to enter the base of the kettle.
* Clean the kettle and the base with a moist cloth. If the kettle is very dirty, add a small amount of soap.
* Do not use scouring pads, steel wool or any form of powerful solvents or abrasive cleaning products to clean the unit, because they can damage the exterior surfaces of the unit.
* Remove the scale filter by pulling it up and clean it using a brush. Put it back in place once it has been cleaned.
* IMPORTANT! Let the unit dry completely after cleaning before using it again. The unit should not be used if the base or the underside of the kettle is wet.
* Make sure that the unit is dry and clean before storing it.
SCALE REMOVAL
The presence of scale increases progressively with use.
Once a month, fill you kettle with white vinegar diluted with water (1/3, 2/3) and leave it cold to react for 2 hours or more. Rinse several times with tap water.
You can also use scale remover for coffee makers, following the manufacturer's instructions
GUARANTEE TERMS
Guarantees for LACGEABIDAppliances.
Your appliance is guaranteed for 2 years.
In order to receive an additional year of guarantee free of charge, register on the LwAGRIeNCEW.lagrange.fr)
The guarantee includes parts and labor and covers manufacturing defects. The guarantee does not cover deterioration due to poor use or non-observance of the instructions for use or breakage due to falling.
THIS GUARANTEE APPLIES TO HOUSEHOLD USES. IT CANNOT APPLY TO PROFESSIONAL OR SEMI-PROFESSIONAL USES.
The legal guarantee due from the seller does not in any way exclude the legal guarantee due from the Manufacturer for manufacturing flaws or defects according to articles 1641 to 1649 of the Civil Code. In the event of a breakdown or malfunction, contact your retailer. In the event of technical defects observed within one week of purchase, the units will be exchanged.
Beyond this period, they will be repaired by the LAGRANGE after-sale service.
To benefit from this guarantee, the user must present a copy of the invoice specifying the date of purchase of the unit.
Duration of availability of spare parts
In accordance with article L 111-2 of the consumer code, the availability of spare parts that we provide for a repairable product is 5 years as of its date of manufacturing.
However, this availability is only guaranteed in the country where the product was purchased.
Shipping costs for returns
After the first year which benefits from the dealer's guarantee, you will only have to pay the costs for returning the product to the factory. We will ship it back to you at our expense as quickly as possible.
If you have any other questions about our products, you can contact us at the following address:
