USER MANUAL ST30 SABO

= 96,0 dB(A) Vibration a

= 96,0 dB(A) Vibration a

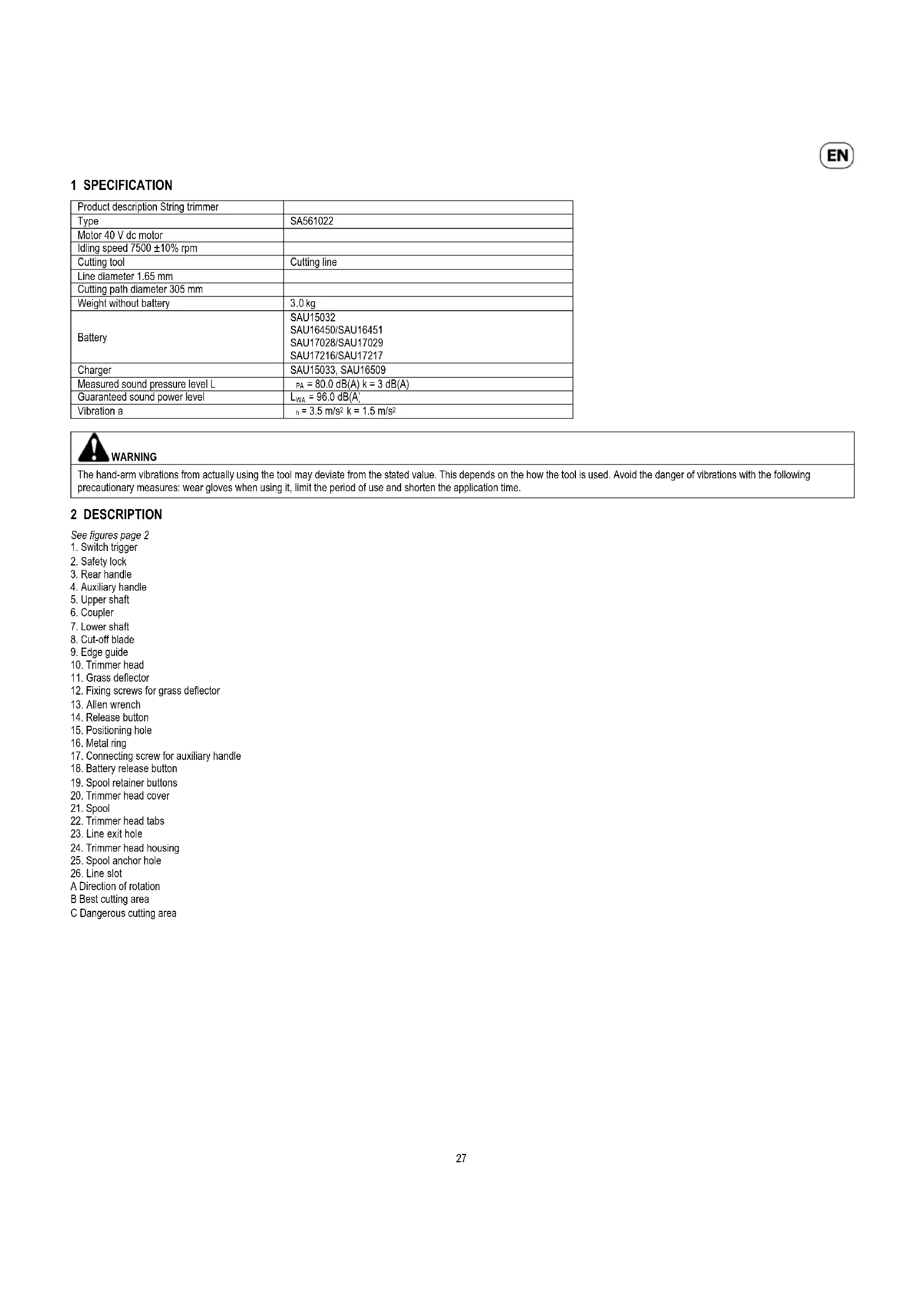

Motor 40 V dc motor Idling speed 7500 ±10% rpm Cutting tool Cutting line Line diameter 1.65 mm Cutting path diameter 305 mm Weight without battery

= 80.0 dB(A) k = 3 dB(A) Guaranteed sound power level

WARNING The hand-arm vibrations from actually using the tool may deviate from the stated value. This depends on the how the tool is used. Avoid the danger of vibrations with the following precautionary measures: wear gloves when using it, limit the period of use and shorten the application time. 2 DESCRIPTION See figures page 2

12. Fixing screws for grass deflector

17. Connecting screw for auxiliary handle

20. Trimmer head cover

24. Trimmer head housing

A Direction of rotation B Best cutting area C Dangerous cutting area28 3 EXPLANATION OF THE IDENTIFICATION PLATE ON THE STRING TRIMMER 1 Speed range 2 Cutting area 3 Rated voltage 4 Product description 5 CE conformity mark 6 QR code 7 Do not dispose of this device with household waste. The device, accessories and packaging must be returned for recycling in accordance with environmental guidelines. 8 Date of production 9 Production identification number 10 Type description 11 Instruction, prohibition and warning information 12 Guaranteed sound power level

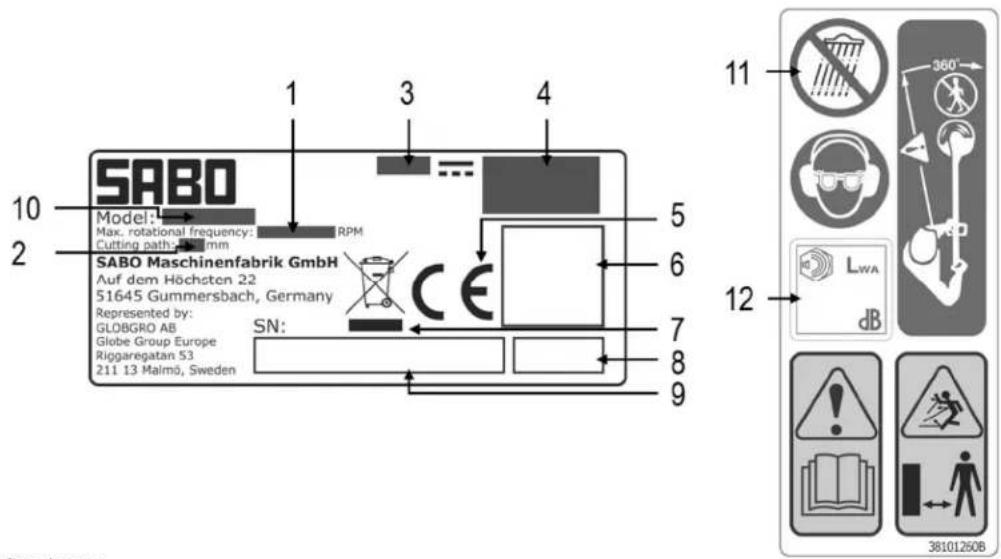

4 EXPLANATION OF THE SYMBOLS

The following symbols are shown on your device. Familiarise yourself with these symbols and note their meaning. A good understanding of these symbols will assist you in using the product better and more safely.

SYMBOL DESCRIPTION/EXPLANATION

Read and understand all the instructions before using the product. Follow all the warnings and safety instructions. When using this device, wear safety goggles and ear protection. Do not expose the device to rain or moisture. Objects on the ground, such as stones, may be thrown and cause injury and physical damage. All persons and animals nearby must maintain a distance of at least 15 m. Make sure that the entire work area around you is free of all persons and animals.29 The following signal words and meanings indicate the degree of risk associated with this product. SYMBOL SIGNAL MEANING

DANGER: Describes an immediate dangerous situation that, if it is not prevented, can lead to death or serious injuries.

WARNING: Describes a possible dangerous situation that, if it is not prevented, can lead to death or serious injuries.

ATTENTION! Describes a possible dangerous situation that, if it is not prevented, can lead to minor and moderate injuries. ATTENTION! (without safety symbol) Describes a situation which can lead to material damage. NOTE Describes information that will help you better understand the operation of the device. TECHNICAL MAINTENANCE The maintenance requires the highest levels of caution and knowledge and therefore should only be performed by an expert. We recommend that you take the device to a nearby approved dealer for repair. In servicing the device, only original replacement parts may be used. WARNING Use of a power tool can lead to other objects hitting you in the eyes and cause serious eye injuries. Before working with power tools, always wear safety goggles with side protection and, if applicable, with face protection. We recommend vision safety mask, which can be used with normal glasses or standard safety goggles with side protection. Always wear eye protection that corresponds to standard EN 166. 5 INTENDED USE

• The device may only be used for the following purposes: o This product is only suitable for outdoor use. o This product is intended for use to cut grass, weeds and other similar plants at or above ground height. o The cutting level must be roughly parallel to the surface of the ground. Any use going beyond this is considered not proper; the manufacturer is not liable for any damage resulting from such use, the risk is borne by the user alone. Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.

• Special care is required during use in public areas, parks, sports facilities, on roads and in agricultural and forestry operations.

• The product must not be used to cut or trim hedges, bushes, trees or other plants, for which the cutting level is not parallel to the surface of the ground.

• Please note that this device is not designed for commercial, trade or industrial use. We accept no warranty claims for devices that are used in commercial, trade or industrial operations or similar activities.

• The use of any additional equipment and attachments not approved by the manufacturer is prohibited. If such additional equipment and attachments are used, the CE conformity and guarantee are considered null and void. Unauthorised modifications to this string trimmer exclude the manufacturer from liability for any damage resulting from these modifications

• There is a residual risk despite the intended use and particular care of the user. Use the device with care at all times. Possible dangers are: o Flying cuttings, earth and smaller stones. o Damage to hearing if you do not wear ear protection. o Injuries to eyes or face if safety goggles or face protection is not worn. Safety datasheet Your string trimmer has been developed and produced with the highest levels of reliability, user-convenience and user safety. It maintained carefully, the device will work reliably and fault-free for many years.

6 GENERAL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Never operate the machine while people, especially children, or pets are nearby. Distractions can cause you to lose control.

• Do not use the device in bad weather if there is any risk of a lightning strike. Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.30

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

• Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

All safety information regarding the handling, storage, safekeeping, transport, disposal of the lithium-ion battery and first-aid measures and measures for combating fires is contained in the "Product safety datasheet" at www.sabo-online.com under Instructions. Information hotline for lithium ion batteries [phone] Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. INSTRUCTION

• Read the instructions carefully. Be familiar with the controls and the correct use of the machine.

• Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.

• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.31 PREPARATION

• Check the battery for signs of damage and ageing before use. If the battery is damaged during use, switch off the device and immediately remove the battery. Do not use the device if the battery is damaged or worn.

• Before use, always visually inspect the machine for damaged, missing or misplaced guards or shields.

• Never operate the machine while people, especially children, or pets are nearby. OPERATION

• Keep wirings or cords away from cutting means.

• Wear eye protection and stout shoes at all times while operating the machine.

• Avoid using the machine in bad weather conditions especially when there is a risk of lightning.

• Use the machine only in daylight or good artificial light.

• Never operate the machine with damaged guards or shields or without guards or shields in place.

• Switch on the motor only when the hands and feet are away from the cutting means.

• Do not to touch moving hazardous parts before the machine is switched off and the moving hazardous parts have come to a complete stop.

• Always remove the battery from the power tool o whenever the machine is left unattended, o before clearing a blockage, o before checking, cleaning or working on the machine, o after striking a foreign object, o whenever the machine starts vibrating abnormally.

• Take care against injury to feet and hands from the cutting means.

• Always ensure that the ventilation openings are kept clear of debris.

• Residual risks: Even when the machine is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool’s construction and design: a) Damage to eyes if an effective eye protection is not worn. b) Damage to lungs if an effective dust mask is not worn. c) Damage to hearing if effective hearing protection is not worn. d) Health defects resulting from vibration emission if the power tool is being used over longer period of time or not.

MAINTENANCE AND STORAGE

• Always remove the battery from the power tool.

• Use only the manufacturer’s recommended replacement parts and accessories.

• Inspect and maintain the machine regularly. Have the machine repaired only by an authorized repairer.

• When not in use, store the machine out of the reach of children.

7 SAFETY INFORMATION FOR STRING TRIMMER

• This device may be used by children aged 8 and above and by persons with impaired physical, sensory or mental aptitude or lack of experience and knowledge if they are supervised or have received instructions about the safe use of the device and the related dangers.

• Children must not play with the device.

• Cleaning and maintenance may not be performed by unsupervised children.

• The battery must be removed from the device before it is disposed of.

• The battery must be disposed of safely.

• Avoid unergonomic postures. Make sure you have a firm footing and keep your balance at all times. This allows you to control the power tool better in unexpected situations.

• Wear clothing appropriate for the conditions. Do not wear loose-fitting clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery and long hair can be trapped in moving parts.

• This device is not suitable for use by persons (including children) with impaired physical, sensory or mental aptitude or lack of experience and knowledge unless they are supervised or have been instructed in the use of the device by a person responsible for their safety.

• Children should be supervised in order to ensure they do play with the device. KEEP THESE INSTRUCTIONS SAFE. READ THEM REGULARLY AND EXPLAIN THEM TO ANYONE WHO MAY WANT TO USE THIS DEVICE. IF YOU LEND THIS DEIVCE, PLEASE ALSO PASS ON THESE INSTRUCTIONS. 8 ASSEMBLY UNPACKING This product must be assembled before the first use.

• Carefully remove the product and accessories from the box. Check whether all the objects listed in the packing list are included. In some cases these may already be pre-fitted on the device in the specified position. In these cases the disassembly and reassembly of the unit is necessary. WARNING Do not use this product if parts listed on the packing list are already fitted to your product when you unpack it. The parts on this list have not been prefitted to the product by the manufacturer and must be fitted by the customer. The use of a product that has not been correctly fitted can lead to serious injuries. PACKING LIST

• Carefully inspect the product and make sure that no damage has occurred during the transport.

• Do not immediately dispose of the packaging material until you have carefully inspected and successfully used the product.32 WARNING If any of the parts are damaged or missing, wait until the parts have been replaced before using the device. Using this product with damaged or missing parts can lead to serious injuries. WARNING Do not try to modify this device or attach accessories that have not been recommended for this device. Any changes or incorrect use of this device can be very risky and lead to possible serious physical injuries. WARNING In order to avoid injuries, always remove the battery from the device before fitting parts. ATTACHING THE GRASS DEFLECTOR (11) See figure 1 and 2 WARNING The cut-off blade (8) attached to the grass deflector (11) is sharp. Avoid contact with the blade. Contact can lead to serious injuries. Never use the device with a defective or missing grass deflector.

• Turn the string trimmer so that you can reach the trimmer head (10).

• Remove the fixing screws for grass deflector (12) with a Phillips screwdriver (not included).

• Attach the grass deflector (11) to the trimmer head.

• Align the screw holes on the grass deflector with the screw holes on the trimmer head.

• Tighten the screws (12). WARNING Even if you know the device well, the highest caution must be taken when using it. Even a momentary lapse of attention can result in serious injuries. WARNING When using a power tool, always wear safety goggles with side protection. Failure to wear this equipment may lead to objects hitting you in the eyes, resulting in serious injuries. WARNING Never use blades, hammering devices, wires or ropes on this product. Do not use attachments or accessories that are not recommended by the manufacturer of this device. Using attachments or accessories that are not recommended can lead to serious injuries.

ASSEMBLING THE SHAFT

• Loosen the bottom screw on the coupler with the allen wrench (13).

• Press the release button (14) on the lower shaft (7).

• Press and hold the release button (14) while pushing the lower shaft (7) into the coupler (6).

• Rotate the lower shaft (7) until the release button (14) engages in the positioning hole (15).

• Manually tighten the bottom screw on the coupler with the allen wrench (13).

• Loosen the connecting screw for auxiliary handle (17) from the auxiliary handle (4).

• Position the metal ring (16) on the lower shaft (7) and align it with the auxiliary handle (4).

• Attach the auxiliary handle (4) to the lower shaft (7) above the metal ring (16).

• Adjust the auxiliary handle (4) to a position that is comfortable for you.

• Tighten the connecting screw for auxiliary handle (17). 9 COMMISIONING

• Hold the string trimmer in your right hand by the rear handle (3) and hold the auxiliary handle (4) in your left hand.

• Hold the device tight during use.

• The string trimmer should be held in a comfortable position.33

• Replace a damaged battery or charger.

• Stop the machine and wait for the motor to come to a stop before removing the battery.

• Read, understand and follow the procedures in the operating instructions for the battery and the charger. See figure 5

• Insert the battery in the string trimmer. Align the bar on the battery with the guide in the battery shaft.

• Allow the latch on the bottom of the battery to lock in place and make sure the battery is securely inserted before beginning use.

• Press and hold the battery release button (18) on the top of the battery while you remove the battery from the battery shaft.

• To stop the string trimmer, press and hold the safety lock (2) and also press the switch trigger (1).

• To continue using the string trimmer, release the safety lock (2) and continue holding the switch trigger (1).

• To stop the string trimmer, release the switch trigger (1). WARNING Noise: A certain amount of noise from the machine is unavoidable. High noise levels during work is only allowed during certain times. Observe the quite periods and limit working time to a minimum. Persons who are not working with the device or who are remaining nearby must wear ear protection. Vibration: Always wear safety and anti-vibration gloves. Excessive vibrations can cause Raynaud's syndrome or carpel tunnel syndrome. If you experience an unpleasant feeling while using the machine or if the skin on your hands becomes discoloured, stop working. Schedule reasonable rest periods. Frequent and regular users should carefully check the conditions of their hands and fingers. WARNING Keep the string trimmer away from the body at all times and keep it at a safe distance. Any contact with the trimmer head or blade while the unit is in use can lead to serious injuries. OPERATING TIPS See figure 8

• Hold the trimmer head to the right of the body at all times. Otherwise the grass deflector cannot provide full protection.

• Hold the machine firmly with both hands at all times during operation.

• Cut high grass from top to bottom. This prevents grass from winding around the shaft housing and the spool, which could lead to damage to the device due to overheating. If grass wraps around the trimmer head or the shaft housing See figure 5 and 6

• Remove the grass on the trimmer head or the shaft housing.

• Hold the string trimmer tilted slightly forward. This achieves the best cutting results.

• Move the machine from right to left to prevent thrown debris toward the operator.

• Use the tips of the cutting line to cut and cut grass starting from the edge of the lawn. Do not push the trimmer head into the middle of uncut grass.

• Frequent contact between the cutting line with stationary objects such as curbstones, walls, fences, trees, can result in increased wear and tear and cause the line to break.

• Avoid cutting trees and shrubs. Tree bark, wood trim, exterior wall cladding, and fence posts can be easily damaged by the thread.

AUTOMATICALLY SETTING THE CUTTING LINE LENGTH

See figure 9 and 10 NOTE The machine has an auto-feed head. It will damage the machine if you hit the head to try to advance the line.34 NOTE If the cutting line does not automatically advance, it can be tangled or empty.

• When the machine is on, release the switch trigger (1).

• Wait two seconds and press the switch trigger (1) again. NOTE The cutting line lengthens each time the switch trigger (1) is stopped and started by approximately 1 cm (0.4 ") until the cutting line reaches the cut-off blade (8) and the cut-off blade cuts off the excess length.

MANUALLY SETTING THE CUTTING LINE LENGTH

See figure 6, 7 and 9

• Press the spool retainer buttons (19) and pull the cutting line to pull it out manually.

• After lengthening the cutting line, always return the machine to its normal position before starting it again.

• This string trimmer is equipped with an automatic line feed. Lengthen the line whenever you hear the motor running faster than normal or when the cutting performance deteriorates. This will maintain optimal performance and keep the cutting line long enough to lengthen it properly.

• The cut-off blade (8) is located on the grass deflector (11) and shortens the cutting line in order to obtain the optimum cutting line length.

10 GENERAL MAINTENANCE AND CARE

WARNING Only use original spare parts when replacing parts. The use of other parts can lead to danger or damage your device. WARNING To avoid serious injuries during cleaning or to carry out other maintenance work, always remove the battery from the tool first. The product should be inspected for damaged, missing or loose parts, such as screws, nuts, bolts, covers, etc. before every use. Tighten all the fastenings and covers and do not use the product until all the missing or damaged parts have been replaced. Do not use solvents to clean plastic parts. Most plastics can be damaged by different types of commercial solvent. Use a clean cloth to remove dirt, dust, oil, lubricants etc. Before service work:

• Store the machine in a cool and dry place.

• Wear appropriate and close-fitting clothing, protective gloves and protective goggles. WARNING Never allow brake fluids, petrol products based on oils, etc. come into contact with plastic parts. Chemicals can damage, weaken or destroy plastic, which can lead to serious injuries.

CLEANING THE MACHINE

• Clean the machine after use with a damp towel that is moistened with neutral cleaning agent.

• Do not use aggressive cleaning agents or solvents to clean the plastic parts or handle.

• Keep the trimmer head free of grass, leaves or excess grease.

• Keep the air openings clean and free of dirt to prevent overheating and damage to the motor or to the battery.

• Do not spray water on the motor or the electrical components. Only the parts listed in the spare parts list are authorised for repair or replacement by the customer. All other parts have to be replaced by the authorised customer service.

see figure 7, 10 and 11

• Press both trimmer head tabs (22) on the side of the trimmer head cover (20) while you remove them.

• Remove the old spool (21).

• When inserting the new spool, make sure that the cutting line is in the line slot (26) for the new spool. Make sure that the end of the cutting line is coming about 15 cm out the slot.

• Insert the new spool so that the cutting line and the line exit hole (23) are aligned. Guide the cutting line through the line exit hole (23).

• Reattach the trimmer head cover (20) by pushing the trimmer head tabs (22) into the slots inside the trimmer head housing (24) until they lock into place.35

• Remove the spool (21) from the trimmer head housing (24). NOTE Remove any old cutting line that may still be on the spool. NOTE Use only nylon cutting line with a diameter of 1.65 mm. IMPORTANT You must mount the cut-off blade (8) if you are using the trimmer head (10).

• Cut two cutting lines with an approximate length of 3 m.

• Bend one end of the cutting line 6.35 mm (1/4”).

• Insert one end of the cutting line into one of the spool anchor holes (25).

• Wrap the cutting lines with your finger evenly and firmly between the cutting lines in the specified direction around the spool. Do not wind the cutting line beyond the outer ribs of the spool.

• After the last turn, place one cutting line in each of the line slots (26) on the opposite side.

11 STORING THE STRING TRIMMER

• Remove the battery from the trimmer before storing the string trimmer.

• Store it in a location out of the reach of children.

• Keep the battery away from the corrosives such as garden chemicals and salt.

• Keep an unused battery away from paperclips, coins, keys, screws, nails and all other objects that could connect the contacts.

• A short circuit of the battery can cause burns or fires. Store the battery in a dry place and at a temperature below 27°C.

• Never store discharged batteries. A battery that is too warm must be allowed to cool before charging.

• The battery's charge will diminish during storage. The higher the temperature, the faster the discharge. Recharge the batteries monthly if they are being stored for a longer period. This increases the life and maintains performance.

• Remove the battery from the device before adjusting settings, replacing accessories or after use. This prevents the risk of your device being switched on inadvertently or unsupervised.

• Secure the string trimmer during transport in order to prevent damage and injuries. Clean the device before storage. ENVIRONMENTAL PROTECTION

• Environmental protection should be an essential and prioritised aspect when using the machine. Do not disturb your surroundings when using the device.

• Strictly observe the local provisions for disposal of the packaging, oil, petrol, filters, damaged parts or all other polluting materials. These materials must not be disposed of with domestic waste, but instead must be collected separately and disposed of at a recycling site that recycles the materials.

• Strictly observe the local provisions for disposal of the cut waste. The device must not be disposed of in the regular waste, but instead must be disposed of at a recycling site according to the local provisions. 12 TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES SOLUTION

The machine does not start when you press the switch trigger (1). There is no electrical contact between the machine and the battery.

insert the battery. The battery is empty. Charge the battery. The safety lock button (2) and the switch trigger (1) are not pressed in sequence

• Press the safety lock (2) on the battery and hold it down.

• Push the switch trigger (1) to start the machine. The machine stops when you cut. The grass deflector (11) is not mounted to the machine.

Attach the grass deflector to the machine. Heavy cutting line is used. Use only nylon cutting line with a diameter of

mm. Grass winds around the motor shaft and the trimmer head.

Carefully remove the grass from the motor shaft and/or the trimmer head. The motor is overloaded.

• Free the trimmer head from the grass. See the section "If grass wraps around the trimmer head or the shaft housing" in these operating instructions.

• You can continue using the motor when the load has been removed.

• As you are cutting, move the trimmer head into and out of the grass you want to cut and do not cut more than 20 cm in a pass. The battery or the machine is too hot.

• Let the battery cool until its temperature is reduced.

Let the machine cool for approx. 10 minutes.36 There is no electrical contact between the machine and the battery.

insert the battery. The battery is empty. Charge the battery. The cutting line does not lengthen. The cutting line is stuck. Oil with silicon spray. There is not enough cutting line on the spool. Install a new spool. For this, see the section in these instructions about replacing the cutting line. The cutting line is worn and too short.

Pull the line while pushing the trimmer head. The cutting line is wound around the spool. Remove the cutting line from the spool and wind it up. For this, see the section in these instructions about replacing the cutting line. The cutting line keeps breaking. The machine is not used properly.

• Cut with the tip of the cutting line and avoid contact with rocks, walls and other hard objects.

Advance the cutting line regularly for full cutting breadth. Grass winds around the shaft housing and the trimmer head. High grass is cut too close to the ground.

• Cut high grass from top to bottom.

• Do not cut more than 20 cm in each pass to prevent grass wrapping around. The cutting line is not cutting well. The cut-off blade (8) is dull.

• Sharpen the cut-off blade (8) with a file or replace it. The vibrations are increasingly significantly. The line is worn down on one side and did not advance when it was supposed to. Make sure that the cutting line can move freely on both sides. Move the cutting line to check.

13 DISPOSING OF THE DEVICE

Do not dispose of electric devices with household waste. Dispose of these devices at recycling centres. Contact the relevant authorities or your retailer for information about this. Separate collection of used products and packaging allows materials to be recycled. The reuse of materials helps to prevent pollution and reduces the demand for raw materials. Dispose of batteries at the end of their service life and in a manner that respects the environment. The battery contains material that is dangerous to you and to the environment. Therefore, it must be disposed of separately in a facility that accepts lithium-ion batteries.

= 96,0 dB(A) Trilling a

= 96,0 dB(A) Vibrazione a

EU DECLARATION OF CONFORMITY

Manufacturer: SABO Maschinenfabrik GmbH Address: Auf dem Höchsten 22, 51645 Gummersbach, Germany Represented by: GLOBGRO AB, Globe Group Europe Riggaregatan 53, 211 13 Malmö, Sweden Name and address of the person authorised to collate technical files: Name: Peter Söderström Address: Riggaregatan 53, 211 13 Malmö, Sweden We herewith declare that the product Category: 40 V String trimmer Model: SA561022 Serial number: see product identification plate Year of manufacture: see product identification plate

• complies with the corresponding conditions of the Machinery Directive (2006/42/EC)

• complies with the conditions of the other following Directives: o EMC Directive 2014/30/EU o Directive 2000/14/EC on noise emissions as amended by 2005/88/EU o RoHS Directive 2011/65/EC as amended by 2015/863/EC and we also declare that the following (parts/conditions from) European harmonised standards have been applied, which were valid on the date of creation of the declaration of conformity: EN 60335-1, EN 50636-2-91 EN 62233
