User manual

CONTENT

Bike structure and functions 2

Preparation before riding 3

Packing list 4

Functions LCD display 5

Buttons and functions 5

LCD display and precautions 6

Charging and maintaining battery 7

Maintenance 8

Troubleshooting 9

Safety precautions 10

Technical parameters 11

Service information 12

Service and Warranty 12

Warranty card 12

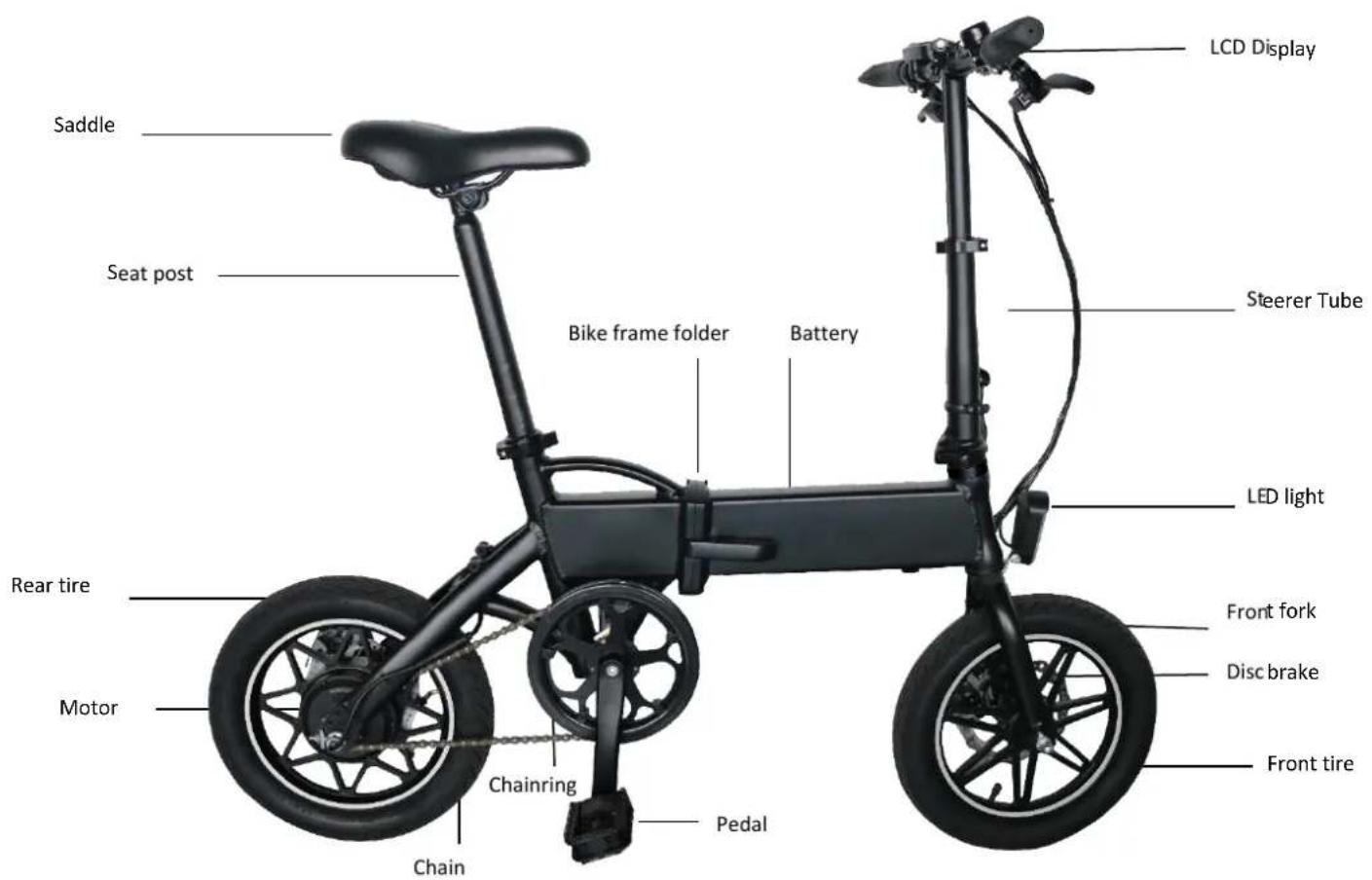

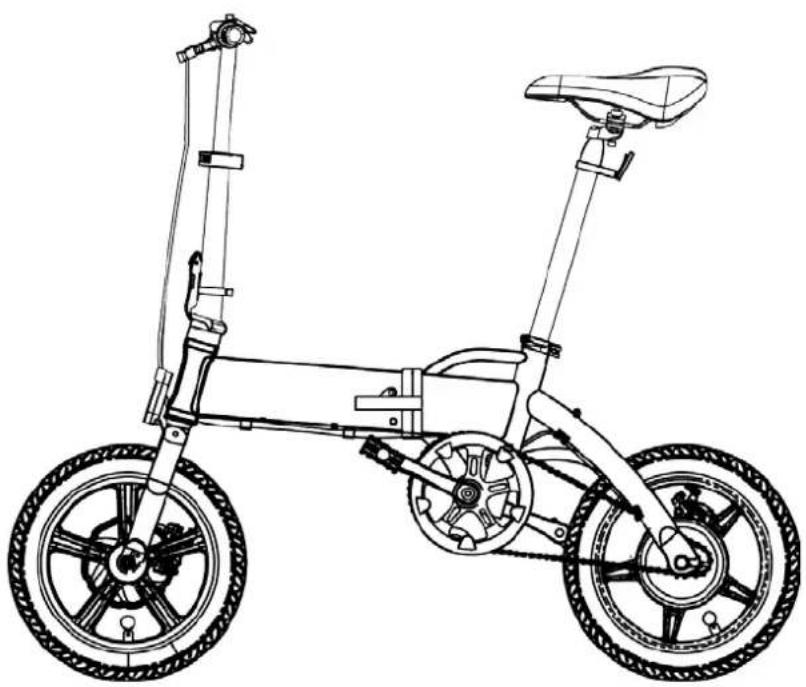

BIKE STRUCTURE & FUNCTIONS

Picture is for reference purposes only, the actual product can vary due to product modifications

PREPARATION BEFORE RIDING

1. Please read this manual carefully in order to completely familiarize yourself with the electric bike, its performance, functions and requirements.
2. Check the electric bike completely, including the brakes, tires, handlebars, folder and detachable parts, to ensure the product is in good working order.
3. Check the electric circuit to ensure the battery level is sufficient to go on the road. If not, the battery should be fully charged.
4. Check if the braking system and the brake-power-off functions are in good working order. If not, do not use the bike and refer to our after sales customer service immediately.

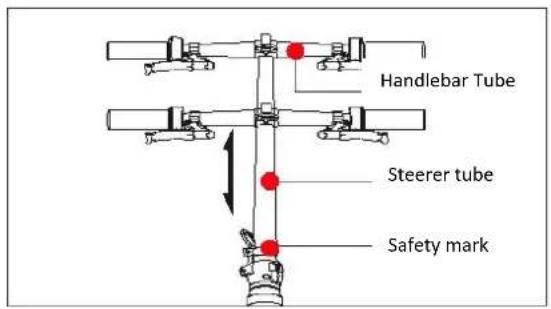

5. The steerer tube should be inserted at the minimum depth (safety mark) of the stand tube, fasten it with the quick release lock (Picture 1).

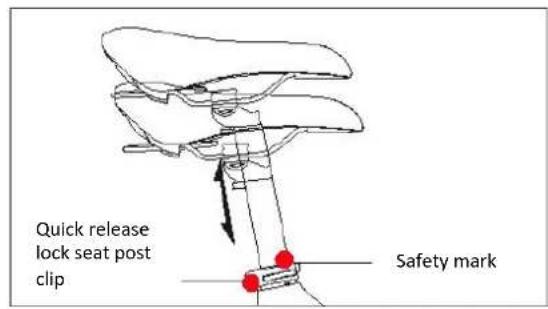

6. The seat tube height can be adjusted to your own requirements, however it should be inserted at a minimum depth (safety mark), fasten the seat tube with the quick release lock (picture 2).

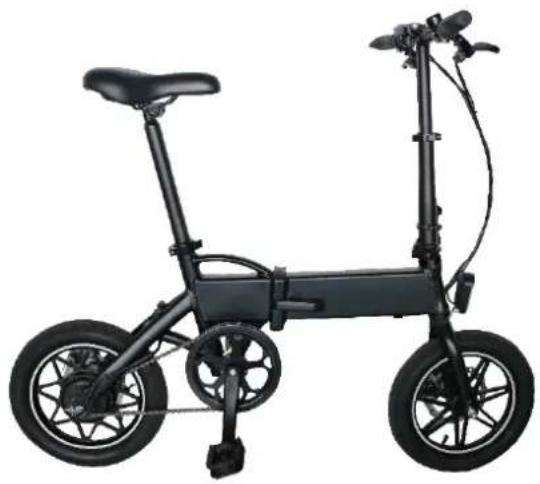

PACKING LIST

Black electric bicycle with four wheels and a top seat, shown in isometric view against white background (no text or symbols visible)

Manual

Charger

FOLDING

Folding process

1. Adjust the seat tube and the crank: release the quick-release lock to insert the seat tube at the bottom, fasten it again and turn the left crank angle to 90° anticlockwise (picture 1)

2. Adjust the front handles: release the steerer tube handle to turn the horizontal handle bar backward and fasten it, so that the display will be well protected.

Release the lock to fold down the steerer tube and fix the handle bar at the desired height within the safety parameters, so it doesn't touch the ground (picture 2).

1. Fold the bike frame: open the folder lock, fold the front wheel almost parallel with the rear wheel part, to complete the whole folding process (picture 3).

Black and white illustration of a folding bicycle with wheels and a seat (no text or symbols)

1.

Black-and-white illustration of a bicycle with visible wheels and suspension (no text or symbols)

2.

Side profile of a motorcycle with visible wheel, suspension, and front-mounted gear (no text or symbols)

3.

Image is for illustrative purpose only

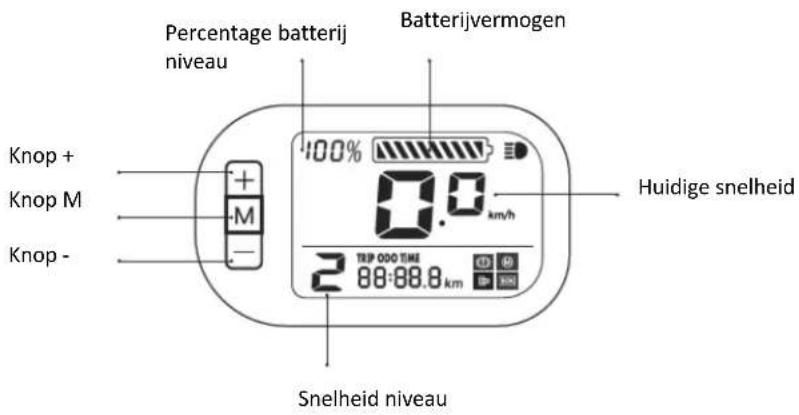

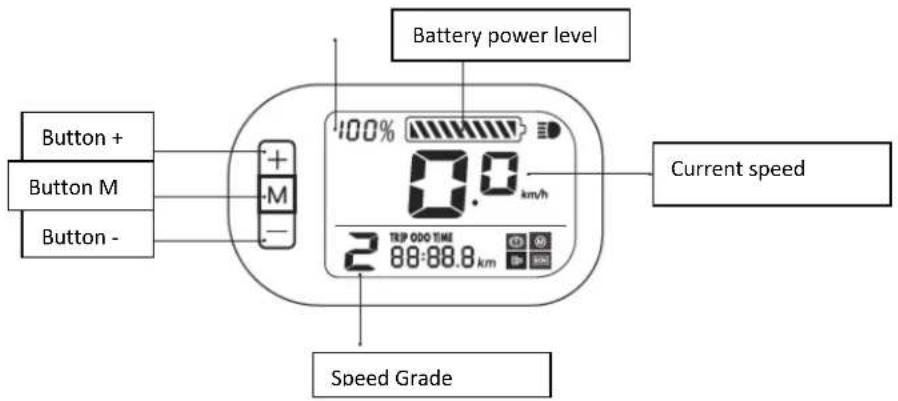

FUNCTIONS LCD DISPLAY

Buttons

Button M	Long press (3 sec.): turn on/off powerShort press: scroll through functions (trip mileage/total mileage/running time
Button +	Long press: turn on/off front lightShort press: increase speed grade
Button -	Short press: decrease speed grade

Display functions

	Grade 0: Riding without power support
	Grade 1: low speed, ± 12km/h
[AHOD]	Grade 2: medium speed, ± 18km/h
[SHEH]	Grade 3: high speed, 25km/h
[XDSC]	Lights up when front light is on
	Lights up when using brakes
	Lights up with throttle problem
[28OC]	Lights up with motor problem
[W3ZT]	Lights up with controller problem
[42VX]	Displays Single trip mileage/Total mileage/Riding time

LCD Display

1) Pedal assisted mode: long press the M button to start the electric bike, you can now ride the electric bike supported by also using the pedals.
2) Electric driving mode: after pressing the M button, turn the right throttle to drive the electric bike without you using the pedals.
3) Cycling mode: Directly drive the bike by using the pedals only, without turning the power on, or select "0" gear under pedal assisted mode.

Safety precautions

Use the display in a safe and responsible way. Do not insert or remove the display when the electric bike is under power.

1. Avoid extreme shocks and bumps.
2. Do not modify anything of the settings of the LCD display, this can cause the display to not work properly. It also will render the guarantee null and void.
3. Contact our customer service center in case the display doesn't function properly.

Charging procedure

1) Always check before charging the battery if the indicated rated output voltage of the charger matches the battery voltage. Also check if the charger input voltage matches the power supply voltage.
2) When you need to charge the battery, place the charger at a ventilated location and connect the charger to the charging port, then connect the charger to the power supply. Check if the wire plug is correctly connected to the power supply.
3) The charger indicator turns green, indicating that the battery is completely charged. If the battery is completely discharged it can take 3-4 hours (max. 6 hours) to recharge the battery completely.
4) After charging the battery, first disconnect the plug from the power supply, then you disconnect the charger from the charger port. Warning: never leave the charger connected to the power supply if it is not charging.

Battery maintenance:

Do not overcharge the lithium battery, immediately disconnect the charger from the power supply as soon as the indicator turns green.

1) Do not place anything on the battery or charger while charging, this may cause the charger or battery to overheat, risking severe material and personal damages. Always use the original charger, not doing so, will render the warranty null and void.
2) You can charge the battery as soon as it runs low, otherwise it will reduce its performance and lifespan. By using the battery in a correct way, it will have a capacity of at least 80%. However, eventually the battery performance will reduce and will need to be replaced.
3) To extend its lifespan keep the battery stored in a dry and cool place at a temperature between -10^ - 20^ , avoiding direct sunlight. Charge the battery every 30 days, when you are not using it for a longer period.
4) Do not short circuit the battery on purpose, this will cause severe material and personal damage. All damages caused by misuse will render the warranty null and void.
5) Do not throw away the battery with normal household rubbish. Take it to your council waste disposal service to be recycled.
6) If you have any further questions about the use, maintenance, storage or disposal of the battery, please contact our customer service.

MAINTENANCE

1) Make sure the front and rear wheel are in the middle of the fork (front wheel) and frame (rear wheel). The wheel must have an even spoke tension, otherwise it will cause a misbalance making your bike to wobble. If there is a problem with the spokes, contact our customer service center.
2) The bike rim should be smooth and clean, otherwise it can hinder riding your bike.
3) The Bohlt R140 electric bike is equipped with a high quality chain, keep it clean and lubricated regularly.
4) Before riding your bike, check if the brake pads are in good working order.
5) Avoid riding your bike under rainy, snowy and wet conditions. If you really need to ride in these conditions be aware keeping more following distance, as you will need more distance for sudden stops. Always keep a moderate speed.
6) Check the tires regularly for cracks, damage and normal wear and tear. Make sure the inner tire and air faucet are well placed on the bike rim. Please contact our customer service center if you have any questions about maintenance of your electric bike.

No power assistance when the bike is turned on	1. No power	1. Check if the battery is installed correctly2. Check if battery needs charging
Not enough mileage	1. Battery not fully charged2. Tire pressure is low3. Frequent brakes/starts/reduces riding performance4. After a longer period the performance will reduce5. Due to low temperature environment	1. Check if the charger is working properly2. Check the tire pressure before riding3. Try not to brake and start the bike unnecessarily4. Replace the battery5. Normal phenomenon
Battery cannot be charged	1. Charger is probably not plugged in2. Battery temperature too low3. Battery temperature too high	1. Check if the plug is loose2. Wait until the temperature goes back to normal3. Wait until temperature becomes normal
Display not working	1. No power2. Adaptor faulty3. Meter faulty	1. Check battery condition2. Contact after-sales service for replacement3. Contact after-sales service for replacement
The motor doesn’t work when powered on	1. Brake is working2. Meter faulty	1. Check brake2. Contact after-sales service for replacement

SAFETY PRECAUTIONS

1. Mileage of the electric bike is affected by the following factors: remaining battery, tire condition, speed mode, weight of the rider, road conditions, weather conditions and frequent stops and accelerations.
2. Check the following features before riding your bike: battery status, tire pressure, braking distance and braking strength. Please note that the left brake corresponds to the rear wheel and the right brake to the front wheel, always use the rear brake first.
3. Always wear suitable protective gear while riding. If you lend your bike to other people, make sure that they also wear protective gear and that they are familiar with the functions of the electric bike. When you stop the bike, adjust the speed mode to "0" or press the brake tight.
4. Always follow the traffic rule and obey local traffic laws.
5. The bike is equipped with required safety reflectors, keep them clean and do not remove them.
6. When you are riding in the dark, you need to use the front and tail light, to be clearly visible to other road users.
7. Please maintain your bike regularly.
8. Do not update, add accessories or modify the electric bike, without consulting the seller/manufacturer. This will render the warranty null and void.
9. When starting your bike, select "0" or "1", then accelerate gradually. Do not start with the throttle or by turning the handle bar. Do not go up steep slopes, keep the speed grade under mode "2".

Model	Bohlt R140
Frame material	Aluminum 6061
Tire	14”
Max. load	110KG
Max. speed	25KM
Mileage	Assist mode 32KM
Brake system	Front and rear disc brake
Battery type	Lithium
Battery specification	26V/4.0AH
Charge time	3-4H
Motor	250W
Waterproof	IP54
Climbing angle	≤ 15^
Nett weight	16KG

Remarks:

1. Maximum mileage is subjected to weight, road and weather conditions and riding behaviour etc. The average mileage is tested under the following conditions: Load of 65kg, temperature of 25°C, flat road, wind < 10km/h and full power.
2. Always use the original battery when charging the electric bike.
3. The warranty will be null and void with any unauthorized modifications on the electric bike.

SERVICE AND WARRANTY

Please refer to our internet site www.bohlt.nl for detailed service and warranty terms.

Warranty card

Name
Contact
Address
Date of purchase
Model
Bike frame nr.
Purchase platform
Order nr.

BOHLT

R140
