Crossfire - Barbecue Klarstein - Free user manual and instructions

Product Type	Vertical gas barbecue
Brand	Klarstein
Model	Crossfire
Model Number	10033288
Power	3.35 kW
Gas Consumption	239 g/h
Gas Type	Butane-propane mixture
Regulator Pressure	50 mbar
Injector Size	0.85 mm
Compatible Gas Cartridge	EN417 thread
Ignition	Piezoelectric
Usage	Outdoor only
Safety Distance	0.6 m minimum from flammable materials
Cooking Surface	Grill and frying basket included
Frying Basket	Dishwasher safe
Aroma Bowl	Included
Heat Shield	Included
Legs	4 removable legs
General Maintenance	Damp cloth and mild detergent
Plastic Parts Maintenance	Soapy water, no abrasive
Storage	Clean and dry place, cartridge removed
Safety	Do not use indoors, wear gloves, keep children away
Certification	0359-18PIN: 0359CS02552
Compatibility Countries	DE, AT, CH, SK

Frequently Asked Questions - Crossfire Klarstein

How to light the Crossfire barbecue?

Turn the gas knob to OFF. Connect the gas cartridge. Open the gas valve to maximum position (9 o'clock). Press the gas knob for a maximum of 5 seconds, then briefly press the red piezoelectric ignition button. Hold the gas knob pressed for 5 to 20 seconds until the burner glows red.

What type of gas to use with the Crossfire?

Use a mixture of butane and propane (LPG) with a pressure regulator of 50 mbar and a hose compliant with BSEN 16129:2013. The cartridge must have an EN417 thread.

Can the barbecue be used indoors?

No, the Crossfire barbecue is strictly for outdoor use in a well-ventilated area. Never use it in an enclosed or covered room.

How to detect a gas leak?

Prepare a soapy solution (1 part detergent to 3 parts water). Apply it to the hose connections after opening the gas to the 9 o'clock position. If bubbles form, there is a leak. Never use an open flame.

How to clean the Crossfire barbecue?

Wait for the appliance to cool down and close the gas valve. Clean with a damp cloth and mild detergent. For plastic parts, use soapy water and rinse. The frying basket can go in the dishwasher.

Is the frying basket dishwasher safe?

Yes, the frying basket is dishwasher safe. For the container, use a mild detergent or scouring powder for stubborn stains, then rinse.

What is the power of the barbecue?

The maximum power is 3.35 kW, with a gas consumption of 239 g/h.

How to change the gas cartridge?

Close the gas valve to the '-' position (clockwise). Unscrew the empty cartridge counterclockwise. Screw on the new cartridge clockwise. Check the seals and perform a leak test before use.

What to do if the burner does not light?

If the burner does not light after two attempts, wait 5 minutes before trying again. If the problem persists, contact your dealer or a qualified service provider. Do not attempt to repair it yourself.

How to maintain the plastic parts of the barbecue?

Wash the plastic parts with a soft cloth and soapy water, then rinse with clean water. Do not use abrasive, degreasing, or concentrated cleaning products.

USER MANUAL Crossfire Klarstein

QR code image containing encoded data, no visible human-readable text

INHALT

Exploded view diagram of a microwave oven with labeled parts including tray, grating, and control knobs

1

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and an inset showing a grid-like structure (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Technical line drawing of a mechanical device with internal components and a circular inset view (no text or symbols)

Technical line drawing of an electronic device with internal components and a rotating button (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical device with internal components and a rotating housing (no text or symbols)

Pure electrical circuit symbols without any text or labels

Piezo-Zündung

Gaskopf

Technical illustration of three mechanical assembly steps showing gear meshing and shaft alignment (no text or symbols)

WARTUNG

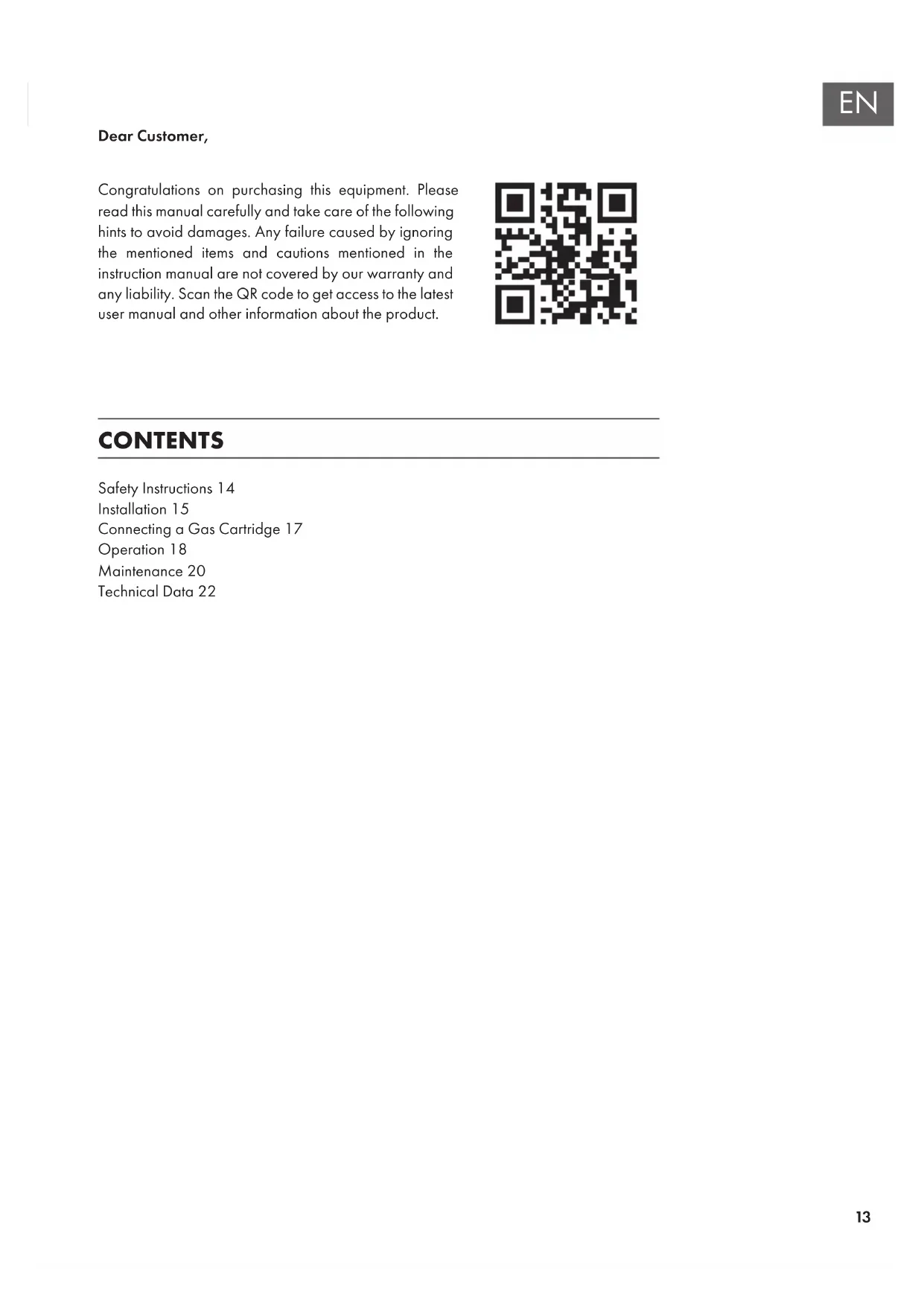

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 14

Installation 15

Connecting a Gas Cartridge 17

Operation 18

Maintenance 20

Technical Data 22

SAFETY INSTRUCTIONS

Read the following safety hints carefully. Keep this manual for later reference

Use outdoors only

• This appliance is forbidden to use as heater anywhere
• Temperature at ceramic burner 800°C
- Accessible parts may be very hot
- Keep young children away
- This appliance must be kept away from inflammable materials at least 0.6m du ring use
- Use appliance always on horizontal solid surface
- Do not move the appliance during use or when still hot
- Turn off the gas supply at the gas cylinder after use
- Do not use the appliance if it is damaged or has a worn gas-seal
- Only operate the grill handle or hot parts, when wearing protective-gloves
• Air-Vents and -holes must be kept clean and open all times
- Do not modify the appliance. The parts sealed by the manufacturer shall not be manipulated by the user
- Change the gas cartridge outside. Changing the gas cartridge must be carried out away from any source of ignition
- Avoid twisting the flexible hose
- Check that burners are extinguished before disconnecting the gas cartridge.
- Check the gas - seals before connecting a new gas cartridge to the appliance.
- When using this appliance in wet weather, humidity will condense below the gas cartridge. To avoid the accumulation of water on the table, it is recommended that a solid pan is placed under the gas cartridge when in use.
- Adequate ventilation is vital for combustion and efficiency performance of the Beef Chef rotisserie grill. Never use the appliance in any enclosed or covered area.
- When the wind speed is above 2 m/s, don't use gas grill facing the wind and move to sheltered areas.

INSTALLATION

Scope of supply

1		*1	4		*1
2		*1	5		*4
3		*1

Assembly

Exploded view diagram of a microwave oven with labeled parts including tray, grating, and control knobs

1

2

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

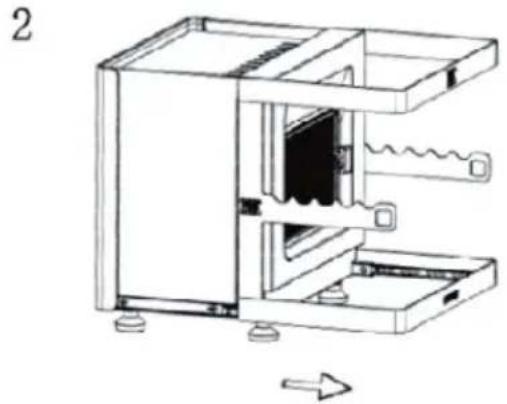

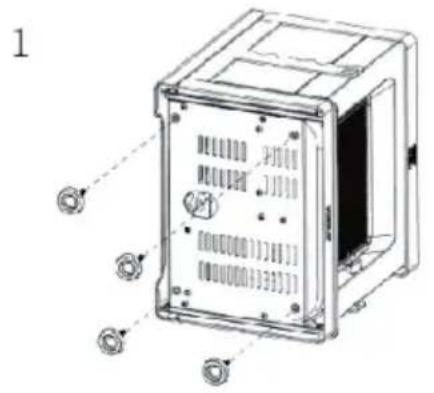

Install feet at the bottom. Pull out grill frame

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

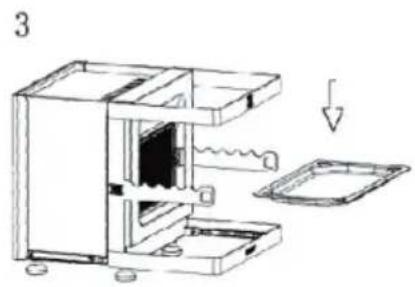

Insert flavour tray

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

Insert neat shield

Technical diagram of a mechanical device with internal components and an inset showing a grid-like structure (no text or symbols)

Insert grill basket

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Operate on horizontal solid surface only.

CONNECTING A GAS CARTRIDGE

This appliance is only suitable for use with low-pressure butane-propane mix gas and fitted with the appropriate low-pressure regulator via a flexible hose. (Regulator certified to BSEN 16129:2013). If the regulator seals are missing or leaking, it is prohibited to continue to use. Check the seals before connecting a new gas cartridge to the appliance.

1. Open the back door, turn the regulator switch knob clockwise "-" to min position.

Technical line drawing of a mechanical device with internal components and a circular inset view (no text or symbols)

1. Turn gas cartridge clockwise to connect the gas pressure-valve regulator.

2. Turn the regulator switch knob anticlockwise "+" to max position to open the gas and turn the regulator switch knob clockwise "-" to min position to close the gas.

3. To change the gas-cartridges, turn the regulator switch knob clockwise "-" to min position and then turn empty gas cartridge anticlockwise to disconnect from gas regulator.

Technical line drawing of an open industrial machine with internal components and a rotating base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with internal components and a rotating housing (no text or symbols)

IMPORTANT: Cartridges must be stored outdoors in an upright position and out of the reach of children. The cartridge must never be stored where temperatures can reach over 50 °C. Do not store the cartridge near flames or other sources of heat.

OPERATION

Lighting the grill

1. Turn control knob to the 'OFF' position.
2. Connect the gas cartridge to the rotisserie grill following the instructions.
3. Turn on the gas supply at the regulator switch knob anti-clockwise "+" to max position.
4. To light the burner, push down and turn the burner control knob to 9 o'clock position, wait for maximum 5 seconds and press the piezoelectric igniter button once. Keep the control knob pushed for further 5-20 seconds until the burner starts to glow.

Pure electrical circuit symbols without any text or labels

Piezoelectric igniter

Control knob

1. If the burner has not lit after two attempts, turn off the control knob and wait 5 minutes before retrying the ignition sequence.
2. When the burner has lit, the burner rate can be adjusted by turning the burner control knob anti-clockwise to any position between MAX (A) and MIN( ) positions.
3. To turn off the grill, turn the regulator switch knob clockwise "-" to min position. Once the burner has extinguished, turn the control knob to the "OFF" position.

IMPORTANT: If the burner has not lit after several attempts, consult your gas dealer, or the store where you purchased the rotisserie grill, or a qualified service provider for assistance or repair. Never try to rectify the problem yourself.

Using the grill basket

Warning: Danger of scalding

Use protective gloves when touching the hot cooking grill handle during operation.

Locking- slider- clamp

Technical line drawings of mechanical components with no visible text or symbols

MAINTENANCE

Cleaning, care and storage of the appliance

All cleaning and maintenance should be carried out when the rotisserie is cool and with the gas supply turned OFF at the gas cartridge.

Remove gas cartridge from gas compartment when not using it for long periods. Before storing, clean the appliance of excess fat, with a damp cloth using a mild detergent solution as the cleaning agent. Store the appliance in a clean dry environment. Do not store your gas cartridge indoors. Store in a ventilated area and keep away from direct sunlight.

Plastic surfaces: Wash with a soft cloth and hot soapy water solution. Rinse with water. Do not use abrasive cleaners, degreasers or a concentrated grill cleaner on plastic parts.

Rotisserie grill basket and DRIP PAN: Use a mild soapy water solution. Non-abrasive scouring powder

can be used on stubborn stains then rinse with water. It is suitable for dishwashers.

To check for leaks

Before use, please check for leaks!

Never check for leaks with a naked flame, always use a soapy water solution.

• If there is a leak on your appliance (smell of gas), take it away immediately into a ventilated flame free location.
  • If you check for leaks on your appliance, do it outside.
• Make 4-6 tablespoons of leak detecting solution by soapy water (mixing 1 part washing up liquid with 3 parts water).
• Ensure the switch knob is OFF"-". Connect the cartridge to the regulator and then turn on the gas.
• Brush the soapy water on to the hose and all joints. If bubbles appear, you have a leak, which must be rectified before use.
• Retest after fixing the fault. Turn off the gas after testing.
• If a problem is found and you cannot solve it yourself. do not attempt to cure leakage but consult your dealer.

Regulator and hose

• Use only regulators and hose approved for LPG at the above pressures 50 mbar. The life expectancy of the regulator is estimated as 10 years. It is recommended that the regulator is changed within 10 years of the date of manufacture. Please check production date on your instructions.
• The use of the wrong regulator or hose is unsafe; always check that you have the correct items before operating.
• The hose and regulator used must conform to the relevant standard for the country of use. The length of the horse must be 0.3 m(maximum). Warn or damaged hose must be replaced. Ensure that the hose is not obstructed, kinked, or in contact with any part of the rotisserie grill other than at its connection.

Regulator seals

Seals

TECHNICAL DATA

Model number 10033288
Countries DE - AT - CH - SK
Heat input 3.35 kW			0359-18PIN: 0359CS02552a
Consumption 239 g/h
Types of gas Butan-ProPan Mix
Outlet pressure of the regulator 50 mbar
Injector size 0.85 mm
Gas cartridges Vapour pressure- Butane-propane mix
Use cartridge with EN417 thread only. The following models shall be used only: Campingaz-CV470PLUS / Coleman-3000004541 / Weber-26100 / Cadac-CA445-N / Optimus-8019963 / PRIMUS - P220261, P220251 / JETBOIL - JETPWR-450 /EDELRID - 733074500000. It may be hazardous to attempt to fit other types of gas cartridge.
USE OUTDOORS ONLY
The surface temperature of the fuel element can be more than 800°C.When used, safety distance to flammable objects must be at least 0.6 m.Only use this device on horizontal solid surfaces.Accessible parts can be very hotKeep children awayThe appliance must not be moved when grilling or cooling down.After use, close the valve on the pressure regulator on the cartridge or gas bottle.In case of damage or leaking rubber valve seal, DO NOT put the device into operation.ALWAYS use grill gloves when operating the grill basket/hot surfaces Ventilation slots and air supply must always remain clean and open.Do not make any structural changes to the appliance.
Chal-Tec GmbH, Wallstr 16, 10179 Berlin, Germany
