Bluwave 05 - Indoor filter Ferplast - Free user manual and instructions

Product type	Internal filter
Brand	Ferplast
Model	Bluwave 05
Dimensions (L x W x H)	27.5 x 7.5 x 32 cm
Total filter volume	5.3 L
Maximum pump flow	500 L/h
Maximum pump head	80 cm
Pump power	6.5 W
Recommended heater power	100-150 W (BLUCLIMA range)
Recommended for tanks	up to 200 L
Number of filtration compartments	5 compartments, 3 stages
Filtration types	Mechanical (large and fine mesh sponges), biological (BLURINGS and BLUBALLS cartridges), adsorbent (activated carbon sponge)
Pump	BLUPOWER centrifugal, fixed power
Nozzle	Adjustable spray bar nozzle
Intake grilles	Dual intake (high and low), right and left
Heater compartment	Yes, for BLUCLIMA heater (optional)
Included filter media	Mechanical sponges, biological cartridges, adsorbent sponge, 2 BLUSTART capsules
Mounting	Glass brackets (3-12 mm), suction cups, silicone, slides for CAYMAN/DUBAI aquariums
Mechanical maintenance	Rinse sponges every 2-3 weeks, replace every 6 months
Adsorbent maintenance	Replace adsorbent sponge every 2-3 weeks or every 6 months
Pump maintenance	Clean every 2 months, descale with soft brush
Spare parts	Use only Ferplast parts (BLUMEC, BLURINGS, BLUBALLS, etc.)
Safety	Check voltage, use 30 mA circuit breaker, do not plug before installation, do not exceed 35°C
Warranty	Manufacturing defects, excludes wear, misuse, filters and foam

Frequently Asked Questions - Bluwave 05 Ferplast

How to install the Bluwave 05 filter in the aquarium?

Place the filter inside the tank, on the side or at the bottom. Use the provided brackets (for glass 3 to 12 mm), suction cups, or fix it with silicone. Ensure the water level is between the min and max marks. Plug in the pump after filling the tank.

What types of filtration are integrated in the Bluwave 05?

The Bluwave 05 offers three stages: mechanical filtration (coarse and fine mesh sponges), biological filtration (cartridges with BLURINGS and BLUBALLS), and adsorbent filtration (sponge impregnated with activated carbon).

How to clean the mechanical filtration sponges?

Rinse the sponges every 2 to 3 weeks in aquarium water (not tap water, to avoid killing bacteria). Replace them every 6 months with Ferplast BLUMEC parts.

When should the adsorbent sponge be replaced?

The adsorbent sponge loses its effectiveness after 2 to 3 weeks. Replace it regularly with a new one, or you can keep it as a mechanical filter by rinsing it every 2-3 weeks. In any case, change it every 6 months.

How to maintain the Bluwave 05 pump?

Unplug the pump and heater, remove the pump-sponge-tube assembly, detach the pump from the tube. Clean limescale deposits with a small soft brush (BLU 9037 kit). Do not use detergents. Reassemble in reverse order.

Can I use a heater in the dedicated compartment?

Yes, the compartment is designed to accommodate a heater from the BLUCLIMA range by Ferplast (100-150 W for the Bluwave 05). Make sure the power is suitable for your aquarium.

What aquarium volume can the Bluwave 05 filter?

The Bluwave 05 is recommended for tanks up to 200 liters. Its maximum flow rate is 500 L/h and its maximum head height is 80 cm.

How to accelerate filter maturation?

Use the provided BLUSTART capsules. Place one capsule in the first compartment for tanks up to 150 L, or two for over 150 L. Wait 10-12 days before introducing the first fish and test water parameters with a MULTISTICK TESTER.

What safety precautions should I follow?

Check that the voltage matches your mains supply. Use a 30 mA residual-current circuit breaker. Do not plug in the filter before filling the tank. Never run the pump out of water. A damaged cable requires complete pump replacement.

Where can I find spare parts for the Bluwave 05?

Ferplast spare parts (BLUMEC, BLURINGS, BLUBALLS labels, etc.) are available from your usual retailer. Using non-Ferplast parts voids the warranty.

USER MANUAL Bluwave 05 Ferplast

1 Filter body
2 Connection
3 Canisters
4 Biological filtering material
5 Filter cover
6 Pump
7 Adjustable circulation jet
8 Mechanical filter (fine sponge)
9 Pump delivery pipe
10 BLUCLIMA heater compartment (optional)
11 Mechanical filter (coarse sponge)
12 Adsorbent filter
13 Water intake grills

BLUWAVE 05/07

1 Filter body
2 Connection
3 Pump delivery pipe
4 Biological filter cartridges
5 Adsorbent filter
6 Pump
7 Filter cover
8 Adjustable circulation jet
9 Canister
10 BLUCLIMA heater compartment (optional)
11 Mechanical filter (coarse sponge)
12 Mechanical filter (fine sponge)
13 Removable bulkhead
14 Water intake grills

BLUWAVE 09

1 Filter body
2 BLUMODULAR
3 Spray-bar
4 Biological filter cartridges
5 Adsorbent sponge
6 Connector
7 Filter cover
8 Adjustable circulation jet
9 BLUCLIMA heater compartment (optional)
10 Removable bulkhead
11 Water intake grills

FR

BLUWAVE 03

Close-up of a battery pack with metallic rings and two circular components (no visible text or symbols)

BLUWAVE

RICAMBI ED ACCESSORI

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

BLUWAVE

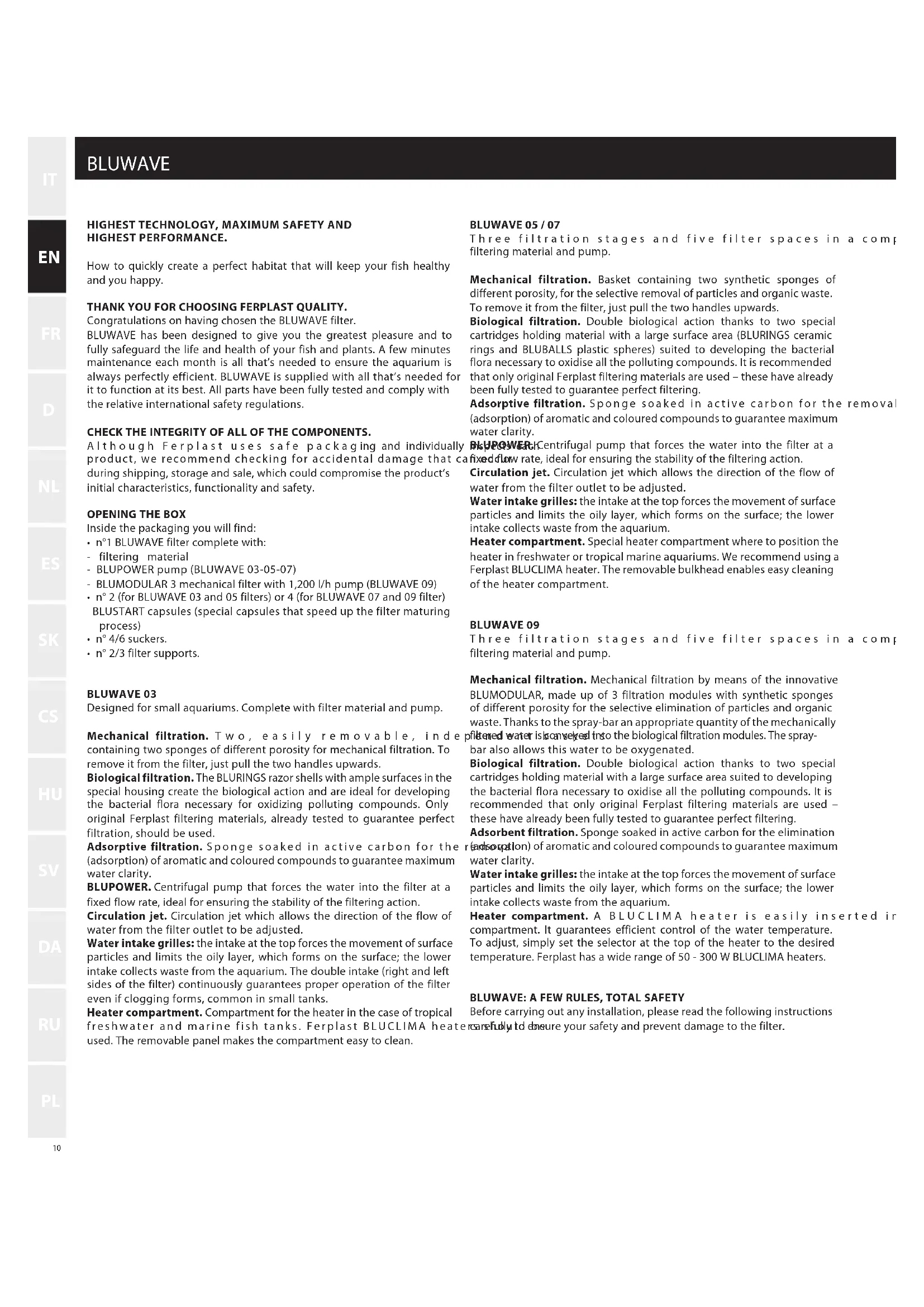

HIGHEST TECHNOLOGY, MAXIMUM SAFETY AND HIGHEST PERFORMANCE.

How to quickly create a perfect habitat that will keep your fish healthy and you happy.

THANK YOU FOR CHOOSING FERPLAST QUALITY.

Congratulations on having chosen the BLUWAVE filter.

BLUWAVE has been designed to give you the greatest pleasure and to fully safeguard the life and health of your fish and plants. A few minutes maintenance each month is all that's needed to ensure the aquarium is always perfectly efficient. BLUWAVE is supplied with all that's needed for it to function at its best. All parts have been fully tested and comply with the relative international safety regulations.

CHECK THE INTEGRITY OF ALL OF THE COMPONENTS.

Although Ferplast uses safe packaging and individually product, we recommend checking for accidental damage that can during shipping, storage and sale, which could compromise the product's initial characteristics, functionality and safety.

OPENING THE BOX

Inside the packaging you will find:

• n°1 BLUWAVE filter complete with:
• filtering material
• BLUPOWER pump (BLUWAVE 03-05-07)
• BLUMODULAR 3 mechanical filter with 1,200 l/h pump (BLUWAVE 09)
• n° 2 (for BLUWAVE 03 and 05 filters) or 4 (for BLUWAVE 07 and 09 filter) BLUSTART capsules (special capsules that speed up the filter maturing process)
• n° 4/6 suckers.
• n° 2/3 filter supports.

BLUWAVE 03

Designed for small aquariums. Complete with filter material and pump.

Mechanical filtration. Two, easily removable, inde containing two sponges of different porosity for mechanical filtration. To remove it from the filter, just pull the two handles upwards.

Biological filtration. The BLURINGS razor shells with ample surfaces in the special housing create the biological action and are ideal for developing the bacterial flora necessary for oxidizing polluting compounds. Only original Ferplast filtering materials, already tested to guarantee perfect filtration, should be used.

Adsorptive filtration. Sponge soaked in active carbon for the (adsorption) of aromatic and coloured compounds to guarantee maximum water clarity.

BLUPOWER. Centrifugal pump that forces the water into the filter at a fixed flow rate, ideal for ensuring the stability of the filtering action.

Circulation jet. Circulation jet which allows the direction of the flow of water from the filter outlet to be adjusted.

Water intake grilles: the intake at the top forces the movement of surface particles and limits the oily layer, which forms on the surface; the lower intake collects waste from the aquarium. The double intake (right and left sides of the filter) continuously guarantees proper operation of the filter even if clogging forms, common in small tanks.

Heater compartment. Compartment for the heater in the case of tropical freshwater and marine fish tanks. Ferplast BLUCLIMA heat used. The removable panel makes the compartment easy to clean.

BLUWAVE 05 / 07

Three filtration stages and five filter spaces in a comp filtering material and pump.

Mechanical filtration. Basket containing two synthetic sponges of different porosity, for the selective removal of particles and organic waste. To remove it from the filter, just pull the two handles upwards.

Biological filtration. Double biological action thanks to two special cartridges holding material with a large surface area (BLURINGS ceramic rings and BLUBALLS plastic spheres) suited to developing the bacterial flora necessary to oxidise all the polluting compounds. It is recommended that only original Ferplast filtering materials are used – these have already been fully tested to guarantee perfect filtering.

Adsorptive filtration. Sponge soaked in active carbon for the removal (adsorption) of aromatic and coloured compounds to guarantee maximum water clarity.

BLUPower Centrifugal pump that forces the water into the filter at a fixed flow rate, ideal for ensuring the stability of the filtering action.

Circulation jet. Circulation jet which allows the direction of the flow of water from the filter outlet to be adjusted.

Water intake grilles: the intake at the top forces the movement of surface particles and limits the oily layer, which forms on the surface; the lower intake collects waste from the aquarium.

Heater compartment. Special heater compartment where to position the heater in freshwater or tropical marine aquariums. We recommend using a Ferplast BLUCLIMA heater. The removable bulkhead enables easy cleaning of the heater compartment.

BLUWAVE 09

Three filtration stages and five filter spaces in a comp filtering material and pump.

Mechanical filtration. Mechanical filtration by means of the innovative BLUMODULAR, made up of 3 filtration modules with synthetic sponges of different porosity for the selective elimination of particles and organic waste. Thanks to the spray-bar an appropriate quantity of the mechanically filtered water is conveyed into the biological filtration modules. The spray-bar also allows this water to be oxygenated.

Biological filtration. Double biological action thanks to two special cartridges holding material with a large surface area suited to developing the bacterial flora necessary to oxidise all the polluting compounds. It is recommended that only original Ferplast filtering materials are used – these have already been fully tested to guarantee perfect filtering.

Adsorbent filtration. Sponge soaked in active carbon for the elimination (adsorption) of aromatic and coloured compounds to guarantee maximum water clarity.

Water intake grilles: the intake at the top forces the movement of surface particles and limits the oily layer, which forms on the surface; the lower intake collects waste from the aquarium.

Heater compartment. A BLUCLIMA heater is easily inserted in compartment. It guarantees efficient control of the water temperature. To adjust, simply set the selector at the top of the heater to the desired temperature. Ferplast has a wide range of 50 - 300 W BLUCLIMA heaters.

BLUWAVE: A FEW RULES, TOTAL SAFETY

Before carrying out any installation, please read the following instructions carefully to ensure your safety and prevent damage to the filter.

PRELIMINARY WARNINGS

• Ensure that the voltage shown on the appliance corresponds to that of your home electrical power supply.
• Make sure your home is protected by an automatic safety breaker switch with an operating current of no more than 30 mA.
• Do not connect the filter to the power supply before correctly completing all the installation procedures (including filling the aquarium with water).
  • The filter is intended only for indoor use
  • Always disconnect the filter from the electric power supply before carrying out any maintenance.
  • Always ensure that the water level stays above the minimum level and below the maximum; both are shown on the front of the BLUWAVE filter.
• Connect the plugs to your electric power supply leaving a loop in the cable below the electrical socket to prevent drops of water running down the cable and into the power supply (1).
• The pump power supply cable cannot be repaired or replaced; if damaged, the whole pump or heater must be replaced.
• Check that the filter intake grilles are not blocked.
  • The water temperature must not exceed 35^ C.

INSTALLING THE BLUWAVE FILTER

Position the BLUWAVE filter inside the aquarium (on the side or back).

You can use:

- the special brackets to be applied to the guides on the back of the filter, adjusted to the thickness of the aquarium glass from 3 to 12 mm (5);

- the 4/6 special suckers: we recommend applying these to the back of the filter before immersing it in the water;

- silicone for aquariums, available from your retailer;

- the special guides on the upper frame of the aquarium, if this is a CAYMAN aquarium (4a); if it is a DUBAI model set the special hooks before fixing it to the frame guides (4b).

- When setting up a tropical aquarium it is important that a heater is used. A range of BLUCLIMA heaters from 30 to 300W is available.

- If you are setting up an aquarium for freshwater tropical fish, we recommend laying about 2 cm of fertilized gravel on the bottom of the aquarium and covering it with 2-3 cm of grit or gravel. Decorate the aquarium as you please (your local retailer will be able to help and advise you).

- Fill the aquarium by pouring water onto a dish placed on the bottom to prevent the material used to create the base from being moved about. In general, it is advisable to mix tap water with about 50% demineralised water for aquariums; however, this percentage may vary according to the chemical contents of your tap water and the right amount of demineralised water from your retailer).

- Set the required heater temperature (if present) according to the type of fish and plants chosen (e.g. for freshwater tropical fish the average temperature is about 25-26°C).

- Put 1 (aquariums up to 150 litres) or 2 (aquariums over 150 litres) capsules of BLUSTART filter activator (2) in the first filter compartment. Before arranging the plants in the aquarium, we recommend waiting at least one day to allow time for the water to stabilise.

1

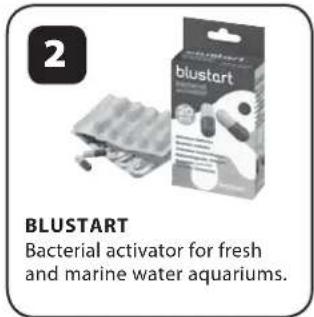

2 BLUSTART Bacterial activator for fresh and marine water aquariums.

ase 3 (get advice

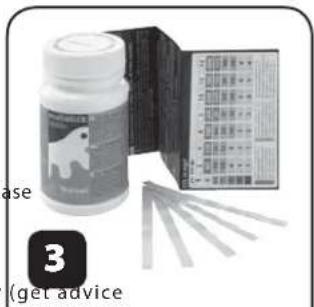

MULTISTICK TESTER

Simultaneously measures 5 parameters in a few minutes: pH, KH, GH, NO, NO. Indirect measurement of CO concentration in fresh water.

N.B.

• To care for and protect your fish, it is strongly advised to wait until the filter has matured: the first fish should only be introduced after the addition of BLUSTART filter activator capsules. Before carrying out this operation, the water's main parameters should be checked using the special MULTISTICK TESTER (3) available from your dealer, who can also suggest the ideal water temperature, hardness, etc., depending on the types of fish and plants that you decide to raise in your tank. These parameters should be frequently retested.
• During the filter maturing period, add a small quantity of dry food each day: this will help the formation of bacterial flora.
• When adding the fish, insert the remaining BLUSTART filter activator capsules in the first filter compartment.
  • We recommend not putting too many fish into the aquarium all at once, but building up to the maximum population gradually.

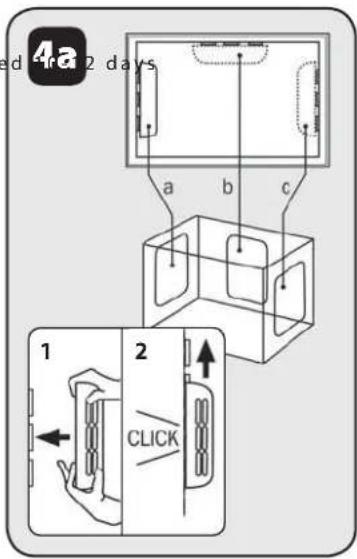

ed 4a 2 da 5 a b c 1 2 ↑ CLICK

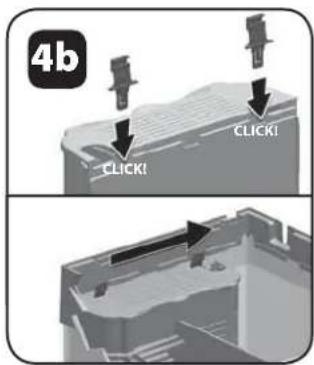

4b CLICK!

Close-up of a mechanical component with metallic rings and circular features (no visible text or symbols)

BLUWAVE

The main maintenance procedures we recommend are:

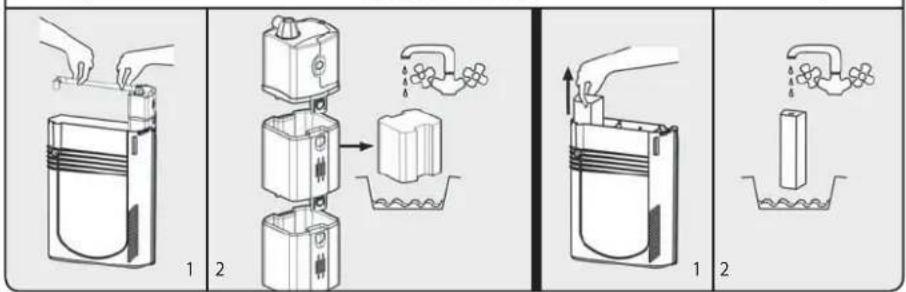

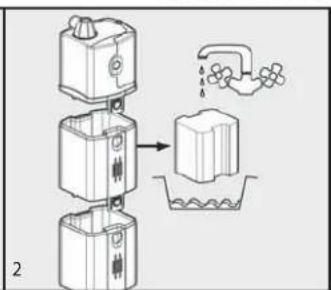

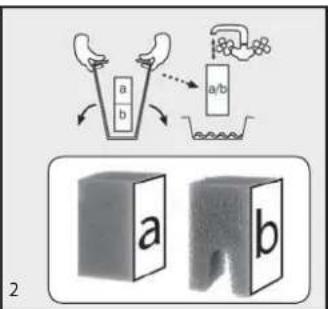

• Rinsing all the mechanical filtration sponges at least every 2-3 weeks:
  A BLUWAVE 03;
  C BLUWAVE 05 and 07, when replacing them, ensure that the right order is maintained (fine sponge top (a), coarse sponge below (b);
  E BLUWAVE 09.

• Replacing the mechanical filtration sponges at least every 6 months. Only use BLUMEC spare parts.

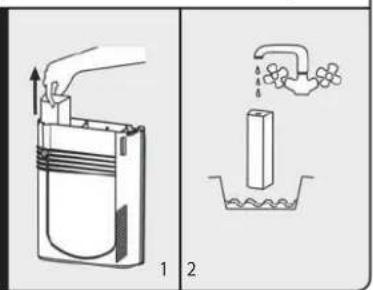

• The effect of the adsorbent sponge ceases in about 2-3 weeks; we therefore advise, if necessary, replacing it with a Ferplast replacement sponge available from leading retailers or leaving it in the filter to perform a mechanical function, rinsing it every 2-3 weeks. In any case, it should be changed at least every 6 months:
  B BLUWAVE 03;
  D BLUWAVE 05-07;
  F BLUWAVE 09.

BLUCARBON active carbon granules or the BLUZEOLITE zeolite may also fit into this section.

• During periods when the fish are being treated with a solution added to the water for illness or disease, the adsorbent sponge should be removed from the filter (so this does not reduce the beneficial effects of the treatment). When the treatment is over, we recommend putting in a new sponge.
  • Always keeping the filter intake grilles clean.

• Checking the pump at least every 2 months and cleaning it when necessary in the following way:

• disconnect the pump and heater from your electric power supply;
• unscrew the filter top;
• remove the pump unit, adsorbent sponge and return pipe from the filter, pulling it upwards (B - D - F);
• remove the pump from the return pipe, remove the front section and remove the rotor. In the BLUWAVE 09 remove the BLUMODULAR together with the relative spray-bar (G - H - I). If necessary, replace the rotor with an original Ferplast spare part;
• remove any lime scale or impurities with soft brush BLU 9037 (never use detergents or chemical substances);
• re-assemble the unit following these instructions in reverse.

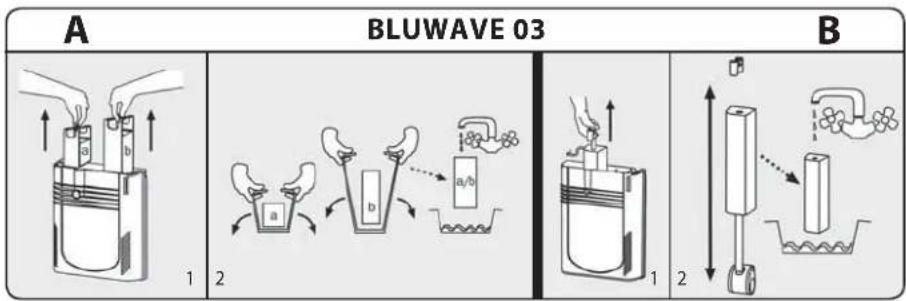

A BLUWAVE 03 B 1 2 a b a/b 1 2

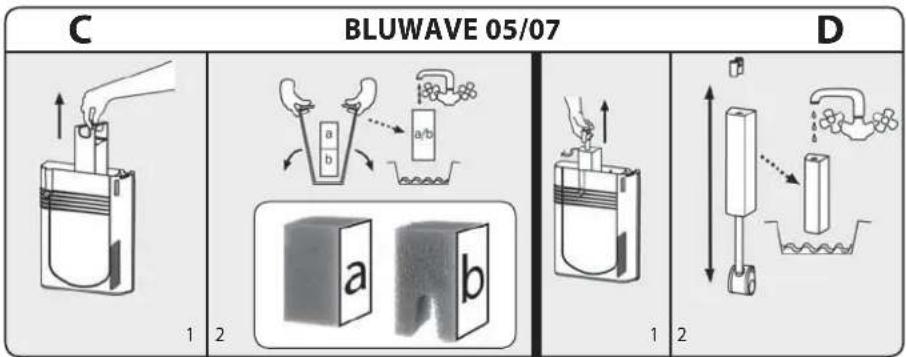

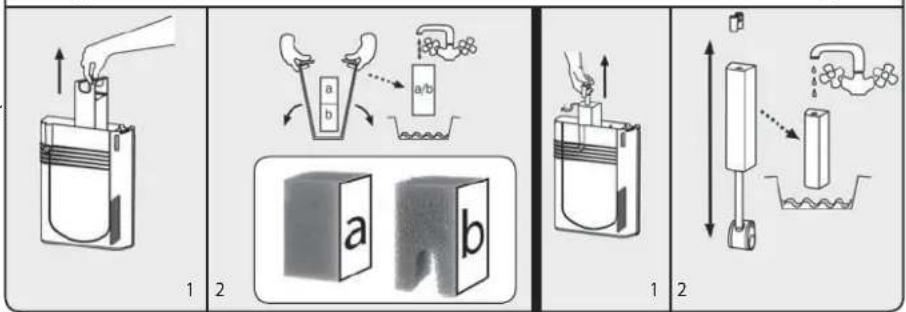

C BLUWAVE 05/07 D 1 2 a b a b 1 2

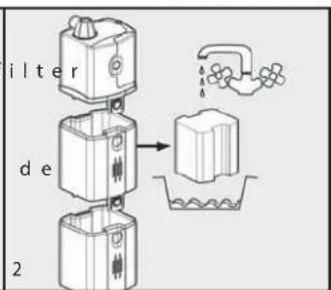

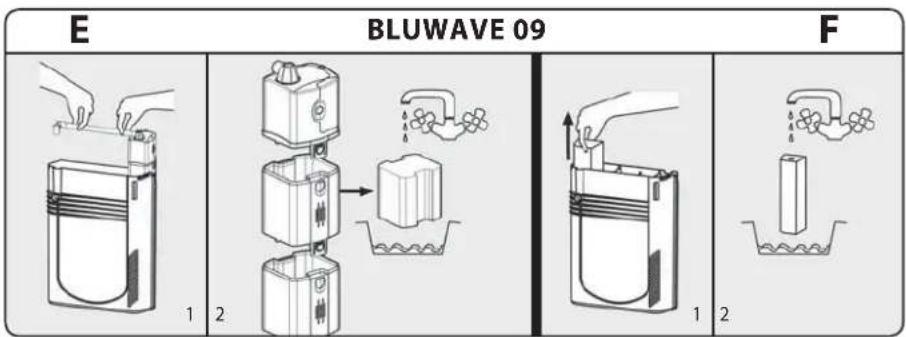

E BLUWAVE 09 1 2 F 1 2

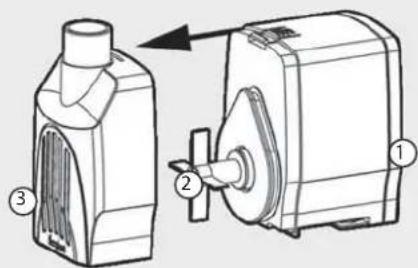

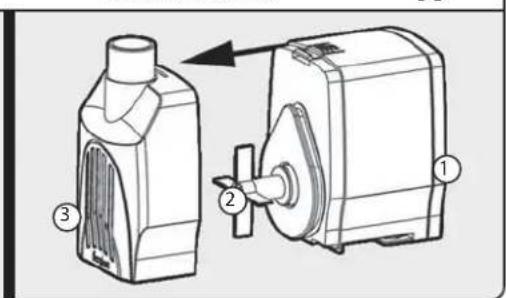

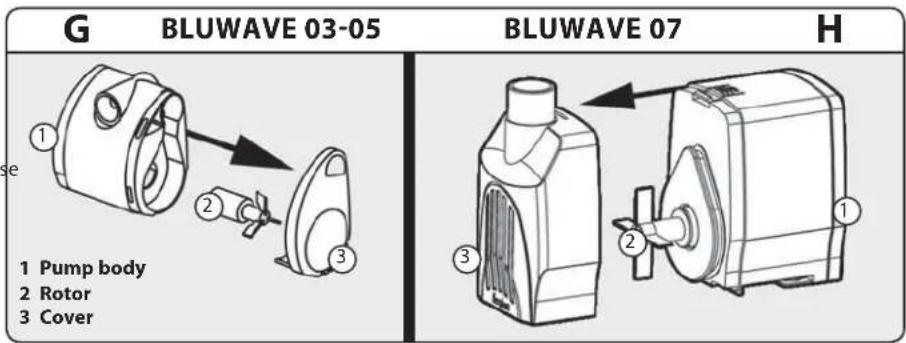

G BLUWAVE 03-05 BLUWAVE 07 H 1 Pump body 2 Rotor 3 Cover

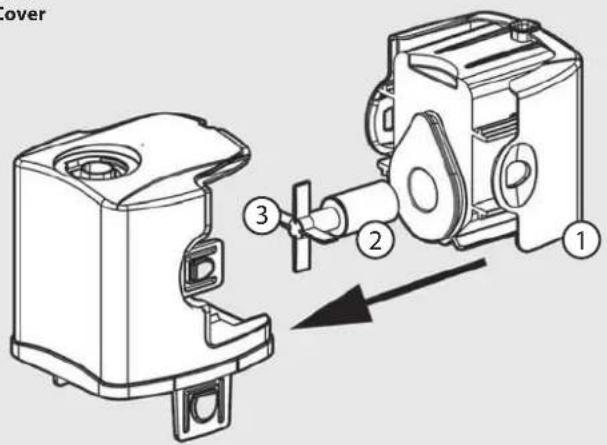

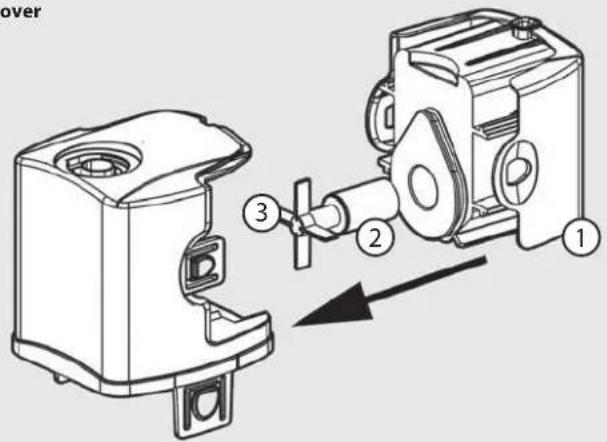

BLUWAVE 09

1 Pump body
2 Rotor
3 Cover

Cover 1 2 3

IMPORTANT

• The biological materials should not be washed. Therefore, we suggest never removing them from the filter so they retain their active bacterial properties.
  • However if you think it beneficial to replace these biological materials with others of a different type to Ferplast's, put them into the two cartridges separately, leaving a period of at least 2-3 weeks between each introduction (BLUWAVE 05, 07 and 09 filters).
• Use only original Ferplast parts to replace any filter components. The use of non Ferplast parts nullifies the guarantee. BLURINGS and BLUBALLS spare parts are available at your local retailer.

BLUWAVE: water conditions always under your control

BLUWAVE automatically ensures the best possible living conditions for fish and plants because it correctly controls all the water properties.

The water in the aquarium is actually a complex solution defined by numerous chemical and physical 'readings': temperature, acidity (pH), total and carbonic hardness (GH, KH), content in polluting substances (PO4, NH3, NO2, NO3), etc. If you want to, you can study more on these subjects in specialist literature; for now, though, it is important to know that with the BLUWAVE filter... it simply isn't necessary to become an expert in chemistry!

SPARE PARTS AND ACCESSORIES

Every part of the BLUWAVE filter can be easily replaced. The parts are available from the retailer where you bought the filter. A full range of updated Ferplast accessories is always available for adapting your filter to your individual needs. To replace part and always ensure the full working order and safety of your product, use only Ferpla parts. Installing non-Ferplast parts nullifies the guarantee.

GUARANTEE

Ferplast guarantees the BLUWAVE filter and all its parts and accessories within the limits provided for in this paragraph and the legal regulations currently in force. The guarantee only covers manufacturing defects and provides for free repair or replacement. The guarantee does not cover damage and/or defects caused by carelessness, wear and tear, usage not in accordance with the instructions and warnings in this booklet, accide improper use, incorrect repairs and purchases not confirmed by receipt. The sponges and filtering materials are not covered by guarantee.

IMPORTANT

Within the European Union the barred rubbish container symbol indicates that the product, at the end of its lifecycle, needs to be sent to separate collection point for electrical and electronic waste and cannot be disposed of together with domestic solid waste.

To ensure correct product disposal, please dispose of this product in compliance with the law provisions of the country where the product is found.

Dimensions:L = widthW = depthH = height

Total volume

Maximum pump flow

Maximum pump head

Pump power

Recommended heater power

Recommended for tanks of litres (l)

BLUWAVE	L x W x H cm	L	l/h	cm	W	BLUCLIMA	L max
03	21 x 6,5 x 25	2,6	350	50	5,5	50/75 W	75
05	27,5 x 7,5 x 32	5,3	500	80	6,5	100/150 W	200
07	34 x 9,5 x 39	12090011,5			12	200/300 W	300
09	34 x 9,5 x 39	11,6	1200	150	16	300 W	500

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

BLUWAVE

HAUTE TECHNOLOGIE, SECURITÉ MAXIMALE ET FONCTIONNEMENT OPTIMAL

BLUWAVE: PEU D'OBLIGATIONS, SÉCURITÉ MAXIMALE

Product packaging and barcode image showing a bottle, barcode, and striped items with visible labels and numbers

MULTISTICK TESTER

Close-up of a mechanical component with metallic rings and circular features (no visible text or symbols)

BLUWAVE

ENTRETIEN DU FILTRE BLUWAVE

Diagram illustrating a mechanical device with labeled parts and water flow, showing components like a piston, valve, and drain.

C

Diagram illustrating a mechanical setup with labeled components and directional arrows, including a container with steam rising and a pump with water flowing.

E

Illustration of hands holding a cylindrical object with a curved body, no text or symbols present

BLUWAVE 09

Diagram illustrating a mechanical assembly process with labeled components and water displacement diagram

F

Diagram illustrating a mechanical device with labeled parts and water level indicator, showing two different states of operation.

G
envoi, retirea G BlUWAVE 03-05 rotor. Dans le

1 Corps de pompe 2 Rotor 3 Couvercle de la pompe

BLUWAVE 07

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or assembly.

BLUWAVE 09

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

BLUWAVE

Product packaging and test tube with labeled sample swatches and a numbered item '3' in the corner.

MULTISTICK TESTER

Close-up of a mechanical component with metallic parts and circular features (no visible text or symbols)

BLUWAVE

DIE REINIGUNG DES FILTERS BLUWAVE

Technical diagram showing two mechanical components with numbered parts and directional arrows indicating motion or assembly.

BLUWAVE 09

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

BLUWAVE

HOOGSTE TECHNOLOGIE, HOOGSTE VEILIGHEID,

HOOGSTE FUNCTIONALITEIT.

Product packaging and blister pack of blustard (no visible text or symbols)

BLUSTART

Product packaging and test tube with labeled sample images and a numbered item '3' in the corner.

MULTISTICK TESTER

Close-up of a mechanical component with metallic rings and circular features (no visible text or symbols)

BLUWAVE

DE BLUWAVE FILTER ONDERHOUDEN

Diagram illustrating a mechanical device with labeled parts and water flow, showing components like a piston, valve, and drain.

BLUWAVE 05/07
D

C

Diagram of a hand holding a container with an upward arrow, no text or symbols present

a/b a b

Diagram of a hand pressing down on a cylindrical container with an upward arrow (no text or symbols)

Diagram illustrating a water filtration or disinfection process with labeled components and flow direction

F

E
BLUWAVE 09

ers van de f de p om pen 1

ilter de 2

Diagram of a hand inserting a component into a container with an arrow indicating direction (no text or symbols)

Simple line drawing of a faucet pouring liquid into a water-filled container (no text or symbols)

BLUWAVE 07
H

G
BLUWAVE 03-05

Diagram of a mechanical device with labeled parts (no text or symbols present)

Diagram showing a container with internal structure and labeled parts, including numbered annotations ① and ②.

Line drawing of a mechanical device with a numbered label (1) on the side, no text or symbols present.

BLUWAVE 09

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

BLUWAVE

ALTA TECNOLOGÍA, MÁXIMA SEGURIDAD Y GRAN FUNCIONALIDAD

Product packaging and test strip with labeled sample swatches and a barcode panel showing color codes

MULTISTICK TESTER

Mide 5 parámetros

Close-up of a battery pack with metallic clamps (no visible text or symbols)

BLUWAVE

MANTENIMIENTO DEL FILTRO BLUWAVE

Diagram illustrating four different experimental setups for a water filtration or gas collection process, labeled 1 and 2.

B

C
BLUWAVE 05/07

Diagram illustrating four experimental setups for measuring a submerged object, showing liquid transfer, heating, and water displacement.

E
BLUWAVE 09
F

Diagram illustrating four steps of a water treatment procedure, showing hand positioning and washing process with labeled diagrams.

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

BLUWAVE

NAJMODERNEJŠIA TECHNOLÓGIA. MAXIMÁLNA BEZPEČNOST. NAJVYŠŠÍ VÝKON.

Product display of a small bottle with animal logo and grid of test strips, no visible text or symbols

MULTISTICK TESTER

Close-up of a battery pack with metallic components and a numbered label '5' in the corner (no readable text or symbols on the main subject)

BLUWAVE

ÚDRŽBA FILTRA BLUWAVE

Diagram of a piston-cylinder system with two labeled components (a and b) and upward arrows indicating flow direction (no text or symbols present)

BLUWAVE 03

B

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a valve, drop, and water tank.

C

BLUWAVE 05/07

a b a/b a b 2

D

Diagram illustrating a water tap system with a submerged object and a hand holding a water droplet, showing water flow direction.

E

Line drawing of hands holding a cylindrical object with a curved handle, no text or symbols present

BLUWAVE 09

Diagram illustrating a mechanical or hydraulic system with labeled components and water flow direction

F

Diagram of a hand inserting a component into a container with arrows indicating direction (no text or symbols)

Simple line drawing of a faucet above a water bottle with a drop falling, no text or symbols present.

BLUWAVE 07
H

G
BLUWAVE 03-05

Technical diagram showing two mechanical components with numbered parts and directional arrows indicating motion or assembly.

BLUWAVE 09

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

BLUWAVE

NEJMODERNĚJŠÍ TECHNOLOGIE.

MAXIMÁLNÍ BEZPEČNOST.

NEJVYŠŠÍ VÝKON.

Product packaging and test strip with labeled sample swatches and a barcode panel

MULTISTICK TESTER

Close-up of a mechanical component with metallic rings and circular features (no visible text or symbols)

BLUWAVE

ÚDRŽBA FILTRU BLUWAVE

Diagram of a piston-cylinder system with two labeled components (a and b) and upward arrows indicating flow direction (no text or symbols present)

BLUWAVE 03

B

Diagram illustrating a mechanical setup with a piston, spring, and water displacement, including a hand valve diagram.

C

by plnila fu 1

BLUWAVE 05/07

nkci a/b a b 2

D

Simple line drawing of a hand pressing down on a container with an upward arrow (no text or symbols)

Diagram illustrating a water filtration or drainage system with labeled components and flow direction

E

Illustration of hands holding a container with liquid, no text or symbols present

BLUWAVE 09

Diagram illustrating a mechanical or cleaning process with labeled components and water displacement diagram

F

Diagram of a hand inserting a component into a container with an arrow indicating direction (no text or symbols)

Simple line drawing of a faucet pouring liquid into a water-filled container (no text or symbols)

Pure mechanical diagram showing a lever and base with no text or symbols

Technical diagram showing two mechanical components with numbered labels and directional arrows indicating motion or assembly.

BLUWAVE 09

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

BLUWAVE

A LEGMODERNEBB TECHNOLÓGIA. MAXIMÁLIS BIZTONSÁG.

A LEGMAGASABB TELJESÍTMÉNY.

Close-up of a mechanical component with metallic rings and circular features (no visible text or symbols)

BLUWAVE

A BLUWAVE SZÜRÖ KARBANTARTÁSA

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

BLUWAVE

BÄSTA TEKNOLOGI, MAXIMAL SÄKERHET, HÖGSTA PRESTANDA.

Close-up of a mechanical component with metallic rings and circular features (no visible text or symbols)

BLUWAVE

BLUWAVE FILTER UNDERHÅLL

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

BLUWAVE

DEN NYESTE TEKNOLOGI, DEN ST∅RSTE SIKKERHED, DEN H∅JESTE YDEEVNE.

BLUWAVE: FÅ REGLER, FULD SIKKERHED

Close-up of a mechanical component with metallic rings and circular features (no visible text or symbols)

BLUWAVE

BLUWAVE FILTERETS VEDLIGEHOLD

1 Pumpe
2 Rotor
3 Cover

Technical diagram of a mechanical device with numbered parts and directional arrow indicating assembly or operation

VIGTIGT

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

BLUWAVE

Product packaging and test tube with labeled sample swatches and a barcode image

MULTISTICK TESTER

Close-up of a mechanical component with metallic rings and circular features (no visible text or symbols)

BLUWAVE

УХОД ЗА ФИЛЬТРОМ BLUWAVE

Diagram of a piston-cylinder system with two hands holding blocks labeled a and b, showing fluid flow direction (no text or symbols)

BLUWAVE 03

B

Diagram illustrating a water level measurement setup with a pump, water drop, and water displacement indicators

C

1

BLUWAVE 05/07

a b a/b a b

1

D

Diagram illustrating a water tap system with a submerged object and a hand pouring liquid into a basin, accompanied by explanatory text.

F

E

Illustration of hands holding a small object into a container with liquid inside (no text or symbols)

BLUWAVE 09

Diagram illustrating a mechanical device with a hand pouring liquid into a container, showing components like a valve and a wash.

Diagram of a hand inserting a component into a container with arrows indicating direction (no text or symbols)

Simple line drawing of a faucet pouring liquid into a cylinder above a water-filled basin (no text or symbols)

BLUWAVE 07
H

G
BLUWAVE 03-05

① ② ③ Корпус насоса

Technical diagram showing two mechanical components with numbered parts and directional arrows indicating motion or assembly.

BLUWAVE 09

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

BLUWAVE

NAJNOWSZA TECHNOLOGIA, PEŁNE BEZPIECZEŃSTWO, DOSKONAŁE PARAMETRY.

Close-up of a mechanical component with metallic rings and circular features (no visible text or symbols)

BLUWAVE

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

PRODUCTION SITES

Ferplast S.p.A. Headquarters

Via 1° Maggio, 5 - Zona Industriale - 36070 Castelgomberto - Vicenza/Italia, P.O. Box 10

Tel. [phone]

Fax [phone]

Ferplast Slovakia s.r.o.

RM 2008, No. 18, Huanchengxi Road - Hangzhou 310006, P.R. China

Tel. [phone]

Fax [phone]

Dawnwood Square, Hillridge Road - Martland Mill Industrial Estate, Wigan WN5 0LQ/U.K.

Tel. [phone]

Fax [phone]

Ferplast Ukraine

Prospekt Myru, 57 - 10004 Zhytomyr/Ukraine

Tel. [phone]

Fax [phone]

Black-and-white underwater photo of a coral reef with fish swimming among dense plants (no visible text or symbols)

Black-and-white underwater photo of a coral reef with fish swimming nearby (no text or symbols visible)

363110-3
