USER MANUAL Enco Air OPPO

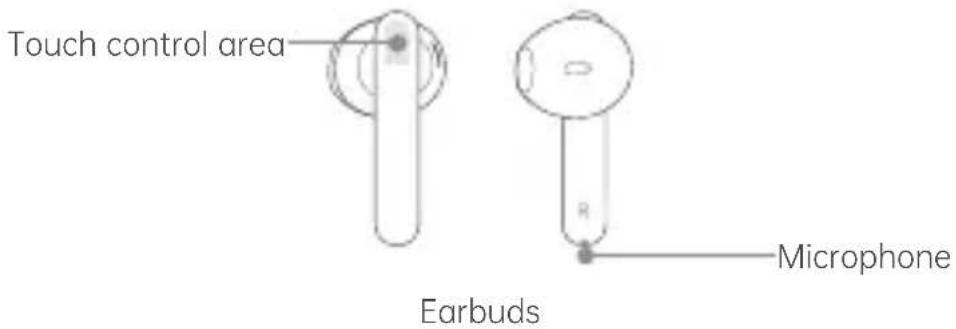

Română Čeština MagyarCopyright © Guangdong OPPO Mobile Telecommunications Corp., Ltd. 2021. All rights reserved. 52070169 V1.0 Earbuds model: ETl61 MADE IN CHINAOverview and package contents This box contains a pair of OPPO Enco Air True Wireless Earbuds, a charging case, a USB-C charging cable, a quick start guide, and a safety guide. Quick Start Guide Safety Guide USB-C port Indicator Charging case Microphone Earbuds Touch control area English 1Auto reconnection When you open the charging case with your OPPO Enco Air earbuds inside, your earbuds will automatically reconnect to the most recently connected device. If they cannot find or fail to connect to the most recently connected device, they will enter pairing mode which will allow them to be connected to another device. Bluetooth pairing

If you are using your OPPO Enco Air earbuds for the first time, open the charging case with your earbuds inside. The earbuds will automatically enter pairing mode. Turn on Bluetooth on your phone:

• Pairing for the first time: Open the charging case with your earbuds inside, and your earbuds will automatically enter pairing mode. You can begin pairing your phone or any other device by going to the device's Bluetooth setup page and finding "OPPO Enco Air".

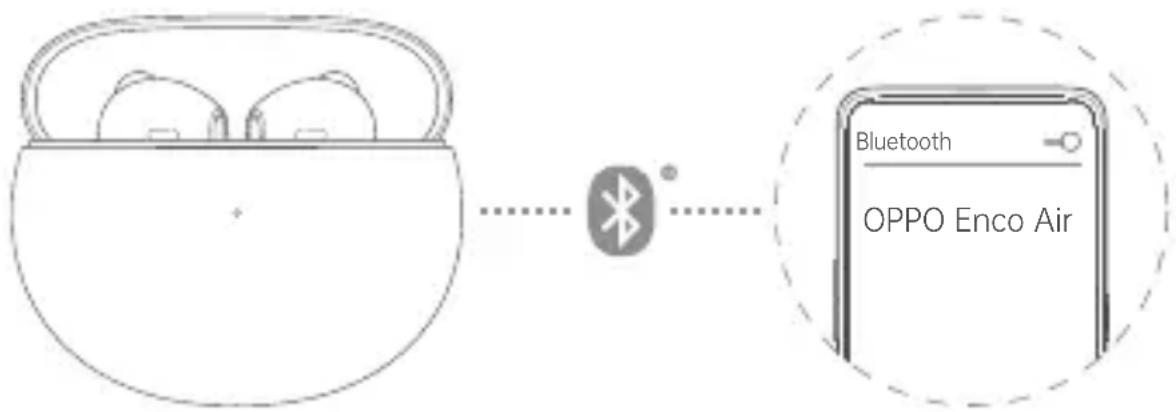

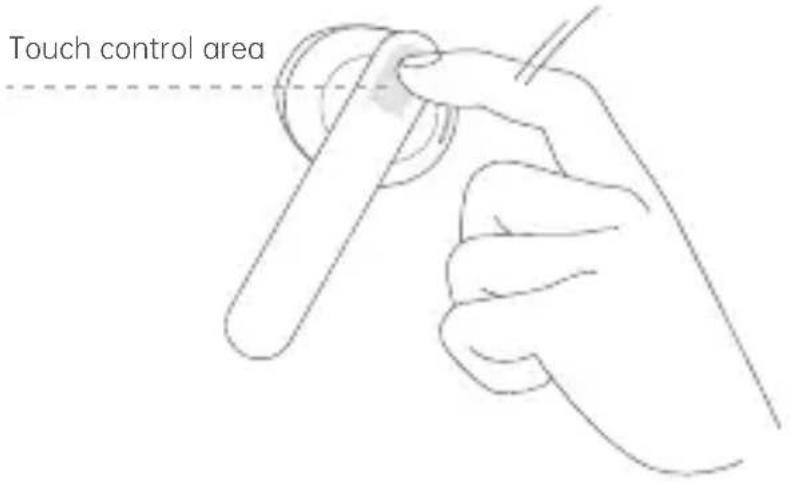

• Quick pairing: Hold your OPPO Enco Air earbuds near an OPPO phone that has Bluetooth turned on. A popup will appear on your phone. Complete pairing according to the onscreen instructions. ※ Note: Only some OPPO phone models support quick pairing. For details, visit www.oppo.com. Pairing with other devices Automatically enter pairing mode: If your OPPO Enco Air earbuds have automatically reconnected to the last connected device, disconnect the Bluetooth on that device first, and your earbuds will automatically enter Bluetooth pairing mode. You can now pair your earbuds with a new device on the device's Bluetooth setup page. Manually enter pairing mode: Wear your earbuds and touch and hold the control areas on both earbuds for 4 seconds. Your earbuds are ready to be paired after you hear 4 beeps. You can now pair your earbuds with a new device on the device's Bluetooth setup page. Bluetooth OPPO Enco Air English 2Charging Battery level

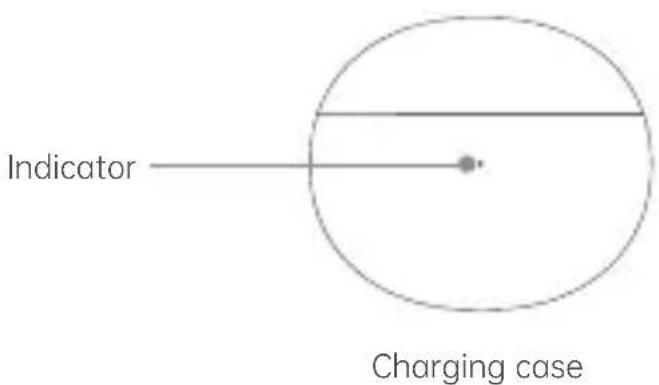

• When your earbuds are inside the charging case, the indicator shows the battery level of the earbuds. When you remove your earbuds from the charging case, the indicator shows the battery level of the charging case itself.

• Different indicator colors are used to show the battery level: red indicates low, yellow indicates medium, and green indicates full or sufficient. Charging your earbuds To charge your earbuds, put them inside the charging case and close the case lid. Charging the charging case To charge your charging case, connect it to a power source using the included USB-C charging cable. The indicator will light up when charging. Yellow indicates charging in progress, and green indicates that charging is complete. ※ Charge the charging case and earbuds regularly. Leaving your earbuds or charging case fully discharged for more than two months may damage the battery inside. ※ Make sure the charging pins of the earbuds and charging case are dry and clean before charging. Otherwise, they can be damaged by corrosion. Touch controls Function Next track Answer/End calls Voice Assistant Left Double-tap Double-tap Triple-tap Right Double-tap Double-tap Triple-tap ※ Voice Assistant is available only on some phone brands or models. English 3Reset to factory settings Touch and hold the touch control areas on both earbuds for 15 seconds until you hear an alert tone. This will reset the earbuds to factory settings. Custom settings You can customize touch control settings for the left and right earbuds on your phone. ColorOS Go to "OPPO Enco Air - EARBUDS FUNCTIONS" on the Bluetooth setup page of your phone to customize settings. ※ Available on phones running ColorOS 11.0 and later versions. Android Find the "HeyMelody" app in your app store and install it. You can customize touch settings in the app. ※ Available on phones running Android 6.0 and later versions. ※ Go to the product details page on OPPO's official website to view the list of app stores where the "HeyMelody" app is available. Touch control area English 4Specifications ※ All these specifications were obtained based on tests in OPPO laboratories. The battery capacity, media playback time, and charging times were tested in OPPO laboratories at a temperature of 25°C using an OPPO standard charger. The actual results may differ slightly based on environmental factors and the charger used. ※ This guide is provided for reference only. Functions and features may differ depending on the product. Earbuds model Charging case model Driver Frequency response range Microphone sensitivity Bluetooth codec Bluetooth version Bluetooth range Battery type Battery capacity Media playback time (50% volume) Charging time* Charging input (charging case) ETl61 ETl62 12 mm dynamic driver 20 Hz - 20 kHz -38 dBV/Pa AAC/SBC

10 m Rechargeable Li-ion Battery 25 mAh (earbuds) 440 mAh (charging case) 4 h (single charge) 24 h (with charging case)

1.5 h (earbuds + charging case)
