Product Type	Immersion mixer (low-speed drill mixer)
Brand	Silverline
Model	123557
Power Supply	230 V ~ 50 Hz
Rated Power	600 W
No-load Speed	0 – 800 min⁻¹
Max. Torque	52 Nm
Chuck Capacity	1,5 – 13 mm
Dimensions (L × W × H)	280 × 80 × 210 mm
Weight	2,15 kg
Protection Rating	IP20
Protection Class	II (double insulation)
Sound Pressure Level	89 dB(A) (K = 3 dB)
Sound Power Level	100 dB(A)
Weighted Vibrations	5,07 m/s² (uncertainty 1,5 m/s²)
Compatible Materials	Plaster, paints, coatings, coating compounds (aqueous liquids and powdery materials)
Prohibited Use	Food preparation, powdery compounds (graphite), saline solutions, corrosive agents
Rotation Direction	Reversible (reverse button)
Variable Speed	Yes, dial from 0 to 800 rpm
Continuous Operation	Yes, lock button
Included Accessories	Auxiliary handle, D-handle, chuck key, 1 pair of carbon brushes
Maintenance	Cleaning with a damp cloth and mild detergent; lubrication of moving parts; replacement of carbon brushes by an approved service center
Spare Parts and Repairability	Available from Silverline dealer or at toolsparesonline.com; repair by a qualified professional
Warranty	3 years (registration within 30 days at silverlinetools.com)

Frequently Asked Questions - 123557 SILVERLINE

What types of materials can I mix with the Silverline 123557?

This immersion mixer is designed to mix aqueous liquids with powdery materials such as tile adhesive, plaster, cement, mortar, paints, varnishes and resins. It is not suitable for food preparations or corrosive compounds.

How to install the auxiliary handle?

Screw the auxiliary handle (2) onto the device clockwise and hand tighten. Do not overtighten to avoid damaging the device.

How to adjust the rotation speed?

Use the speed regulator (9) located on the device. Turn it clockwise to increase the speed (0 to 800 rpm) and counterclockwise to decrease it. Never change the speed when the device is running.

Can I use this device in the rain or in a humid environment?

No, the device is rated IP20 and must not be exposed to rain or moisture. Use it only in a dry place.

How to activate continuous operation?

Press the trigger switch (8), then simultaneously press the continuous operation button (7). Release the trigger then the button. To deactivate, press and release the trigger again.

What regular maintenance is required?

Keep the device clean by wiping it with a damp cloth and a mild detergent. Lubricate moving parts with a suitable lubricant spray. Regularly check the tightness of screws and the condition of the power cord.

How to replace the carbon brushes?

The carbon brushes wear out over time. If the motor loses power or produces excessive sparks, have them replaced by an approved service center. The device is supplied with a spare pair of brushes.

What are the essential safety precautions?

Always wear safety goggles, a dust mask, hearing protection and gloves. Disconnect the device before any adjustment or accessory change. Do not use the device if you are tired or under the influence of substances.

How to change the rotation direction?

Use the rotation direction switch (6) located near the trigger. Slide it to the desired position. Never change the rotation direction when the device is running.

What to do in case of a breakdown?

First consult the manual for troubleshooting. If the problem persists, contact Silverline support at ([phone] or visit www.silverlinetools.com/fr-FR/Support. Repairs must be carried out by a qualified repairer using genuine parts.

USER MANUAL 123557 SILVERLINE

600W Mixing Drill Low Speed

FR Perceuse-melangeuse basse vitesse 600 W
DE Putzruhrer mit niedriger Geschwindigkeit, 600 W
ES Taladro mezclador de bajo velocidad 600 W
IT Trapano miscelatore a bassa velocità 600 W
NL 600 W Mixboormachine met lage snelheid
PL Mieszalnik do klejów i zapraw 600 W

Register online: silverlinetools.com

silverlinetools.com

English .06
Français 12
Deutsch............18
Espanol. 24
Italiano............30
Nederlands .36
Polski 42

Introduction

Thank you for purchasing this Silverline product. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instruction. Ensure all users of the product read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection

Wear eye protection

Wear breathing protection.

Wear head protection.

Wear hand protection

Conforms to relevant legislation and safety standards

Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!

Read instruction manual

Class II construction (double insulated for additional protection)

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

DO NOT use in rain or damp environments!

Technical Abbreviations Key

V Volts
~, AC Alternating current
A, mA Ampere, milli Amp
n0 No load speed
Ø Diameter
Hz Hertz
W, kW Watt, kilowatt
/min or min-1	Operations per minute
rpm Revolutions per minute
dB(A) Decibel sound level (A weighted)
m/s2	Metres per second squared (vibration magnitude)

Specification

Voltage: 230V~, 50Hz

Power. 600W

No load speed: 0-800min-1

Max torque 52Nm

Chuck capacity: 1.5-13mm

Ingress protection: IP20

Protection class:

Cable length: 2m

Dimensions(LxWxH) 280x80x210mm

Weight: 2.15kg

As part of our ongoing product development, specifications of

Silverline products may alter without notice.

Sound and vibration information:

Sound pressure L_ 89dB(A)

Sound power Lw 100dB(A)

Uncertainty K 3dB

Weighted Vibration: .5.07m/s

Uncertainty: 1.5m/s

The sound intensity level for the operator may exceed 85dB(A)

and sound protection measures are necessary.

WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.

Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www. osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. There is the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Carefully read and understand this manual and any label attached to the tool before use. Keep these instructions with the product for future reference. Ensure all persons who use this product are fully acquainted with this manual.

Even when used as prescribed it is not possible to eliminate all residual risk factors. Use with caution. If you are at all unsure of the correct and safe manner in which to use this tool, do not attempt to use it.

General Power Tool SafetyWarnings

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents.
d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Specific Safety

Additional Safety for Standard Drills

For safety relating to protective clothing/equipment and general health hazards relating to power tools; refer to General and Electrical Safety sections in this manual

• Important: It is imperative to follow all national safety regulations concerning installation, operation and maintenance
• Do not allow anyone under the age of 18 years to use this tool, and ensure that operators are qualified and familiar with the operating and safety instructions
• When using the drill, use safety equipment including safety glasses or shield, ear defenders, and protective clothing including safety gloves. Wear a dust mask if the drilling operation creates dust
• Use metal and voltage detectors to locate concealed electric, water or gas lines. Avoid touching live components or conductors
• Extension cable reels used with this tool must be completely unwound. Minimum conductor cross section: 1.0mm^2
• When using this tool outdoors, connect to a power supply with an RCD device and minimum 1.5mm2 extension cable with water protected plugs in good working order
• Ensure that the lighting is adequate
• Ensure that the drill bit is securely fixed in the chuck. Insecure drill bits can be ejected from the tool causing a hazard
• Ensure that the drill bit is in NOT contact with the workpiece prior to starting up the tool
• Before drilling, check that there is sufficient clearance for the drill bit under the workpiece.
• Use both hands when operating this tool
• Use auxiliary handles supplied with the tool
• Do not put pressure on the tool, to do so would shorten its service life
• Drill bits get hot during operation, allow to cool prior to handling them
• Never use your hands to remove sawdust, chips or waste close by the bit
• If you are interrupted when operating the drill, complete the process and switch off before looking up
  Where possible, use clamps or a vice to hold your work
  Always disconnect the drill from the electric supply before changing a bit
• Examine the chuck regularly for signs of wear or damage. Have damaged parts repaired by a qualified service centre
  Always wait until the drill has come to a complete stop before putting it down
• On completion of the work, disconnect the tool from the power source and remove bit from the tool
  Periodically check all nuts, bolts and other fixings and tighten where necessary.

Additional Safety Information for Mixing Power Tools

• This tool is designed for mixing water-based liquids with powdered building materials including, but not limited to, dispersion thin set, sealing and levelling compounds, cement, grout, textured coatings, etc.
• With the correct accessory attached, this tool may be used to blend paints, varnish, resins and other coatings
• This tool is NOT intended to be used with dusty compounds such as graphite, or with salt solutions, corrosive agents or liquid manure
• This product does NOT satisfy food hygiene standards and is NOT to be used for preparing foodstuff or as a kitchen appliance
• Always use the CORRECT mixing paddle or accessory for the material being mixed. Working with an incorrect accessory might overload the tool and lead to spillage, insufficient blending or personal injury
• Always inspect the power cord and connector before use. If you locate any damage, have the cord replaced by a qualified electrician before attempting to use the tool
• Before use, check the accessories are safely installed
  NEVER use the tool in damp or wet locations. If the tool gets wet, ensure it is disconnected from the power supply and ensures it dries COMPLETELY before further use
• ALWAYS position yourself securely, maintain sure-footing and operate the tool with BOTH hands
  DO NOT attempt to mount the tool on a stand or tripod. NEVER leave the tool running unattended
• Unplug the tool from the mains power supply after EVERY use, to avoid accidental switch-on
• Always route the power cord towards the rear of the operator, AWAY from the tool and work area. Ensure that the cable does not present a tripping hazard for the operator and other people in the vicinity
• If you are using this tool with an extension lead, always unwind the cable completely.

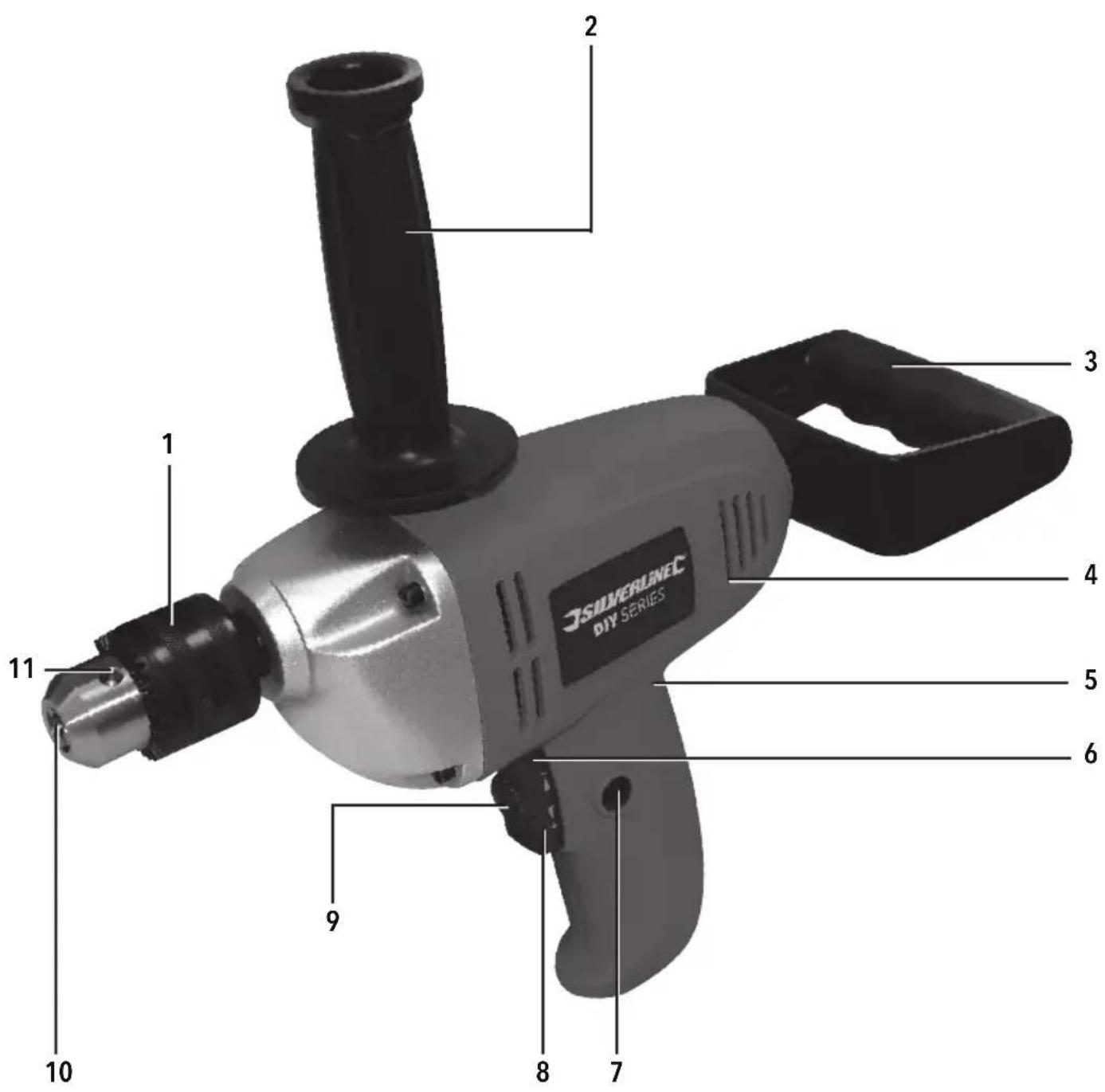

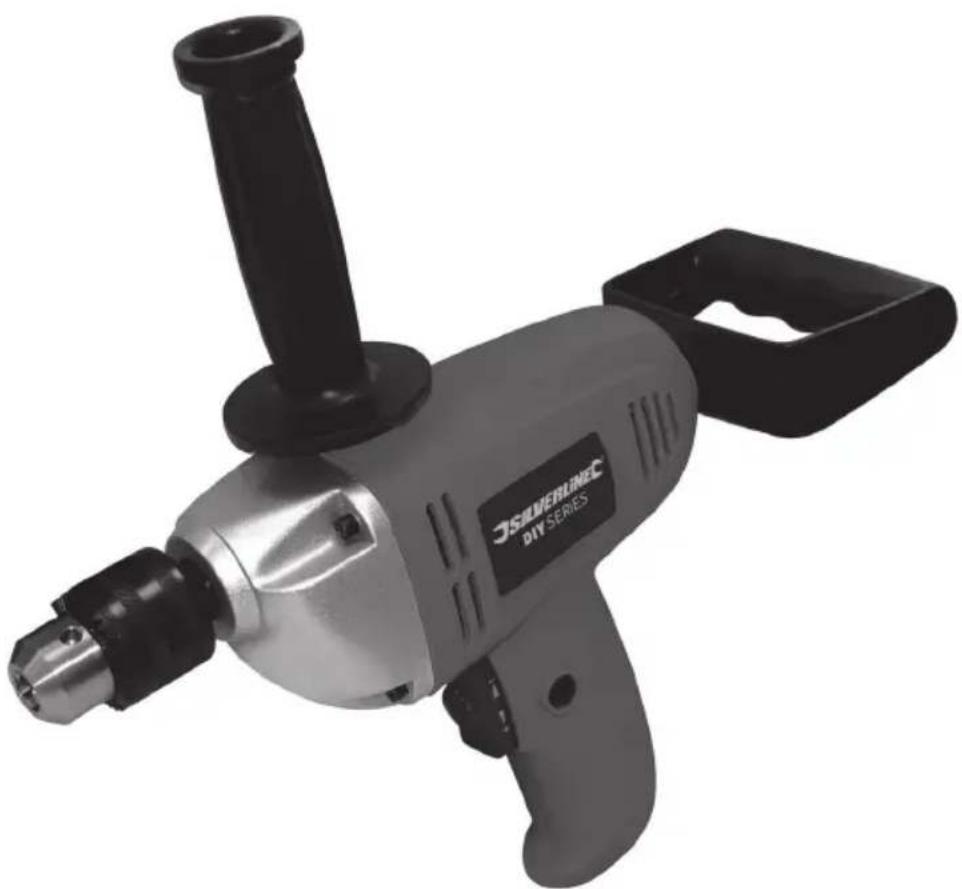

Product Familiarisation

1. Chuck Collar
2. Auxiliary Handle
   3.1 Handle
3. Motor Vents
4. Main Handle
5. Forward/Reverse Switch
6. Lock ON Button
7. ON/OFF Trigger Switch
8. Variable Speed Control Dial
9. chuck Jaws
10. chuck Key Slot
11. Chuck Key

Accessories not shown:

1xCarbonBrushes(pair)

Intended Use

Low speed mixing drill for mixing multi-finish plaster, textures, floor paints and coatings and medium duty drilling of wood and metal

Unpacking Your Product

• Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions
• Ensure all parts of the product are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this product

Before Use

WARNING: Ensure the tool is disconnected from the power supply before attaching or changing any accessories, or making any adjustments.
WARNING: Always use this tool with the Auxiliary Handle (2) and D-Handle (3) fitted. Using without the Handles fitted may result in personal injury

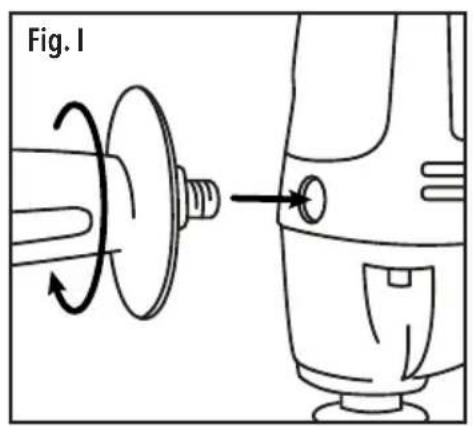

Installing the Auxiliary Handle

• Screw the Auxiliary Handle (2) clockwise into the drill and tighten by hand (Fig. 1)

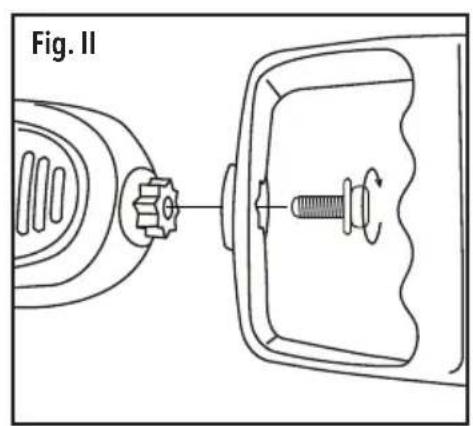

Installing the D-Handle

See Fig. II

• Remove the 13mm hex bolt from the end of the drill using a suitable spanner (not supplied)
• Thread the 13mm hex bolt through the hole on the D-Handle
• Select the position at which the Handle is to be attached, locating the Handle on the 8 point spline of the drill
• Attach the Handle to the drill tightening the 13mm hex bolt in a clockwise direction
• Ensure the Handle is secure

Note: DO NOT overtighten the 13mm hex bolt as this may damage the tool.

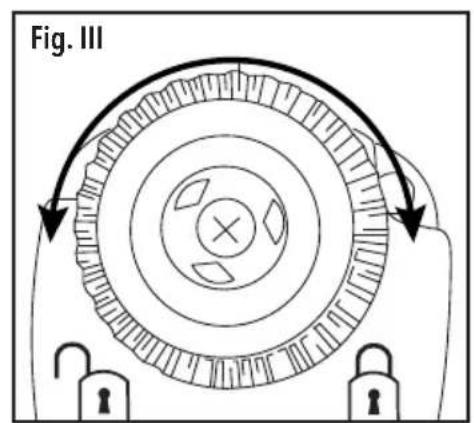

Operating the Keyed Chuck

• The Chuck Jaws (10) can be opened and closed using the Chuck Key (12) and Chuck Collar (1)
  To close the Jaws rotate the Chuck Collar clockwise (Fig. III)
  To open the Jaws rotate the Chuck Collar anti clockwise (Fig. III)
• The Chuck Key should be used to tighten and release the Jaws by inserting the Key into the Chuck Key Slot (11) and turning the Key in the corresponding direction (Fig. IV)
  DO NOT open or close the Chuck using the drill, this will damage the tool
• ALWAYS ensure that the Chuck Key is removed from the Chuck before operating

Installing accessories in the Keyed Chuck

• Open the Chuck Jaws (10) fully (see 'Operating the Keyed Chuck')
  Fully insert the accessory centrally into the Chuck
• Tighten the Chuck Collar by hand until it the Jaws grip the accessory

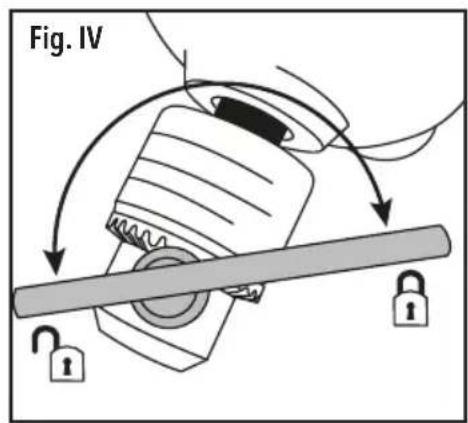

  Use the Chuck Key to tighten the Chuck
• Remove the Chuck Key and run the tool (see 'Operation') to check that the accessory is located and does not wobble
• If the accessory is not located centrally repeat the installation procedure

Operation

WARNING: ALWAYS wear eye protection, adequate respiratory and hearing protection, as well as suitable gloves, when working with this tool.

Direction control

WARNING: NEVER change the direction of rotation while the tool is running. This may cause permanent damage to the tool.

The direction of rotation can be set using the Forward/Reverse Switch (6)

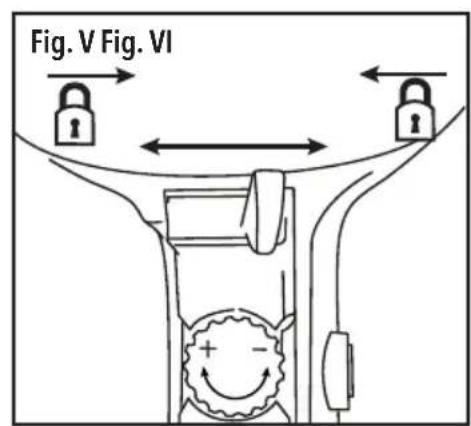

- Slide the Switch to the required position (Fig. V)

Adjusting tool speed

WARNING: NEVER adjust the tool speed while the tool is running. This may cause permanent damage to the tool.

The speed of the tool can be varied between 0-800rpm

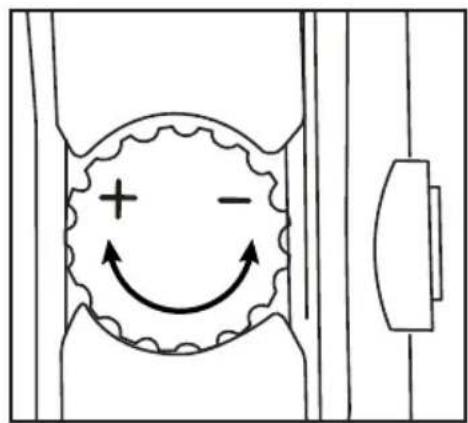

- To adjust the tool speed, rotate the Variable Speed Control Dial clockwise to increase the speed and anticlockwise to decrease the speed (Fig. VI)

Note: When the tool speed is set to low speed, the Trigger Switch will not fully depress. This is normal and not a fault with the tool.

Switching ON & OFF

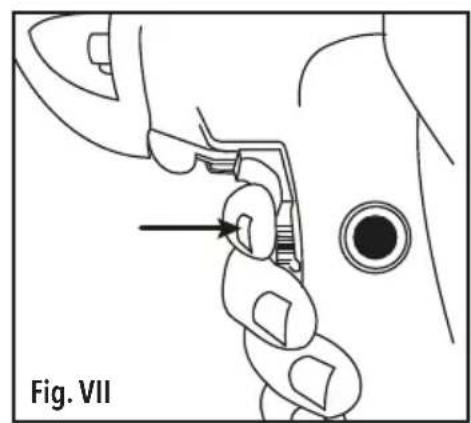

To start the drill squeeze the ON/OFF Trigger Switch (8)(Fig. VII)
To stop the drill release the ON/OFF Trigger Switch

Note: This tool features a lock ON mechanism, which allows the tool to be used without having to constantly squeeze the ON/OFF Trigger Switch to operate.

To activate the lock ON mechanism:

1. Squeeze the ON/OFF Trigger

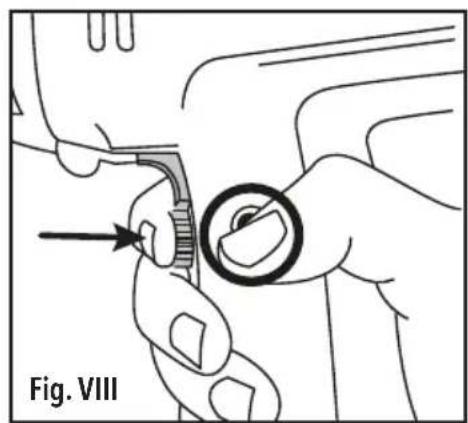

2. Simultaneously press the Lock ON Button (7)(Fig. VIII)
3. Release the Trigger followed by the Lock ON Button
4. When the Trigger is now released it will remain in the ON position
   To deactivate the lock ON mechanism, squeeze and release the ON/OFF Trigger

Drilling wood

WARNING: DO NOT inhale wood dust. Wear adequate breathing protection. Some wood dust may be toxic.

• Ensure that drill bits are suitable for wood, and are within the maximum capacity of this tool (see 'Specification')
• ONLY apply moderate pressure to the drill bit, ensuring efficient cutting and prolonged drill bit life

Drilling metal

• Ensure that drill bits are suitable for the grade of metal being drilled, and are within the maximum capacity of the tool (see 'Specification')
  To ensure accuracy, mark the intended hole position using a hammer and centre punch

WARNING: The drill bit and the workpiece will become very hot when drilling metal. DO NOT touch the bit and never allow it to come into contact with combustible materials when hot. Always use a suitable lubricant or cutting fluid, and drill at appropriate speeds.
- ONLY apply moderate pressure to the drill bit, ensuring efficient cutting and prolonged drill bit life
- Use a countersink bit to remove sharp burrs from the hole, preventing cuts and other kinds of injury

Accessories

• A full range of accessories including drill bits is available from your Silverline stockist
• Spare parts can be obtained from toolsparesonline.com

Maintenance

WARNING: ALWAYS disconnect from the mains power supply before carrying out any maintenance/cleaning of tool.

General Inspection

Regularly check that all the fixing screws are tight
- Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool

Cleaning

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the tool's service life. Clean the body of your tool with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes
• Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents
• Never use caustic agents to clean plastic parts

Lubrication

• Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant

Brushes

Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
If you suspect that the brushes may be worn, have them replaced at an authorised service centre

Contact

For technical or repair service advice, please contact the helpline on ([phone]

Web:silverlinetools.com/en-GB/Support

Address:

Powerbox

Boundary Way

Lufton Trading Estate

Yeovil, Somerset

BA22 8HZ, United Kingdom

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:

• Your personal details
  Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorized by: Silverline

Declaresthatthe

Name/model: 600W Mixing Drill Low Speed

Type/serial no:123557

Conforms to the following Directives:

• Machinery Directive 2006/42/EC
  EMC Directive 2014/30/EU
  RoHS Directive 2011/65/EU
  EN60745-1:2009+A11:2010
  EN60745-2-1:2010
  EN55014-1:2006+A1:2009+A2:2011
  EN55014-2:2015
  EN61000-3-2:2014
  EN61000-3-3:2013

The technical documentation is kept by: Silverline

Notified body: Interek

Date: 03/05/2018

Mr Darrell Morris

Managing Director

Name and address of the manufacturer:

Powerbox International Limited, Company No. 06897059. Registered address:

Powerbox, Boundary Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, United Kingdom.

Introduction

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GroBbritannien

Chuck capacity: 1,5-13 mm

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA211WU,GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU,GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU,UK

GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
