| Product type | Plaster mixer (immersion mixer) |
| Brand | Silverline |
| Model | 264219 |
| Power | 1220 W |
| Supply voltage | 230 V~50 Hz |
| No-load speed | 0-480 / 0-800 min⁻¹ (2 speeds) |
| Mixing capacity | 120 litres |
| Paddle diameter | 140 mm |
| Shaft thread | M14 x 2 (female thread) |
| Dimensions (L x W x H) | 300 x 190 x 300 mm |
| Weight | 3.44 kg |
| Cable length | 2 m |
| Protection rating | IP20 |
| Protection class | Class II (double insulation) |
| Sound pressure (LpA) | 85 dB(A) |
| Sound power (LWA) | 96 dB(A) |
| Vibration (main handle) | 4.79 m/s² (uncertainty K=1.5 m/s²) |
| Main functions | Mixing plaster, cement, renders, paints, varnishes, etc. |
| Maintenance and cleaning | Clean with a soft damp cloth; brush ventilation slots; clean paddle immediately after use |
| Safety | Double insulation, emergency stop, continuous operation button, mandatory use of a residual current device (RCD) |
| Spare parts and repairability | Replaceable carbon brushes at an approved service centre; mixing paddles available from Silverline |
| Warranty | 3 years (registration within 30 days at silverlinetools.com) |
Frequently Asked Questions - 264219 SILVERLINE
User questions about 264219 SILVERLINE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hand blender in PDF format for free! Find your manual 264219 - SILVERLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 264219 by SILVERLINE.
USER MANUAL 264219 SILVERLINE
1220W Plaster Mixer 140mm
Français ......10
Deutsch......16
Español......22
Italiano ......28
Nederlands ......34
Polski ......40
Introduction
Thank you for purchasing this Silverline product. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the product read and fully understand this manual. Keep these instructions with the product for future reference.
Description of Symbols
The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.
Wear hearing protection
Wear eye protection
Wear breathing protection
Wear head protection
Wear hand protection
WARNING: To reduce the risk of injury, user must read instruction manual
Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!
Caution!
WARNING: Moving parts can cause crush and cut injuries.
Class II construction
(double insulated for additional protection)
Conforms to relevant legislation and safety standards.
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Technical Abbreviations & Symbols Key
| V Volts | |
| ~, a.c. Alternating current | |
| A, mA Ampere, milli-Amp | |
| n0 | No load speed |
| ^ Degrees | |
| ∅ Diameter | |
| Hz Hertz | |
| d.c. Direct current | |
| W, kW Watt, kilowatt | |
| min ^1 | Operations per minute |
| dB(A) Decibel sound level (A weighted) | |
| m/s ^2 | Metres per second squared (vibration magnitude) |
Specification
Voltage: 230V\~50Hz
Power: 1220W
No load speed: 0-480 / 0-800min ^-1
Output drive thread: M14 x 2 female thread
Mixing paddle diameter: 140mm
Mixing capacity: 120Ltr
Power cord length: 2m
Ingress protection: IP20
Protection class:
Dimensions (L x W x H): 300 x 190 x 300mm
Weight: 3.44kg
As part of our ongoing product development, specifications of Silverline products may alter without notice.
Sound and vibration information:
Sound Pressure L_p2 : 85dB(A)
Sound Power L _dd : 96dB(A)
Uncertainty K: 3dB
Weighted vibration a (main handle): 4.79m/s
Uncertainty K: 1.5m/s ^2
The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.
WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.
WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.
WARNING: The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. There is the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.
Sound levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.
General Power Tool Safety Warnings
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
g) When used in Australia or New Zealand, it is recommended that this tool is ALWAYS supplied via Residual Current Device (RCD) with a rated residual current of 30mA or less.
h) Use proper extension cord. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents.
d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers.
Electrical Safety
• This tool is double insulated and therefore no earth wire is required
- Always ensure the tool's plug matches the outlet socket
• Always check that the voltage supply is the same as that specified on the rating label of the tool
- Avoid damaging the cable or plug. If the cable or plug show signs of damage or wear, get it repaired by an authorised service agent or a qualified electrician
• For UK the plug uses a 13A fuse (BS 1362)
Mixer Safety Instructions
a) Hold the tool with both hands at the intended handles. Loss of control can cause personal injury.
b) Ensure sufficient ventilation when mixing flammable materials to avoid a hazardous atmosphere. Developing vapour may be inhaled or be ignited by the sparks the power tool produces.
c) Do not mix food. Power tools and their accessories are not designed for processing food.
d) Keep the cord away from the working area. The cord may be entangled by the mixer basket.
e) Ensure that the mixing container is placed in a firm and secure position. A container that is not properly secured may move unexpectedly.
f) Ensure that no liquid splashes against the housing of the power tool. Liquid that has penetrated the power tool can cause damage and lead to electric shock.
g) Follow the instructions and warnings for the material to be mixed. Material to be mixed may be harmful.
h) If the power tool falls into the material to be mixed, unplug the tool immediately and have the power tool checked by a qualified repair person. Reaching into the bucket with the tool still plugged in can lead to electric shock.
i) Do not reach into the mixing container with your hands or insert any other objects into it while mixing. Contact with the mixer basket may lead to serious personal injury.
j) Start up and run down the tool in the mixing container only. The mixer basket may bend or spin in an uncontrolled manner.
Additional Safety Information for Mixing Machines
- This machine is designed for mixing water-based liquids with powdered building materials including, but not limited to thinset, sealing and levelling compounds, cement, grout, textured coatings, etc.
- With the correct accessory attached, this tool may be used to blend dispersion paints, varnish, resins and other coatings
- This machine is NOT intended to be used with dusty compounds such as graphite, or with salt solutions, corrosive agents or liquid manure
- This product does NOT satisfy food hygiene standards and is NOT to be used for preparing food or as a kitchen appliance
- Always use the CORRECT mixing paddle or accessory for the material being mixed. Working with an incorrect accessory might overload the tool and lead to spillage, insufficient blending or personal injury
- Always inspect the power cord and connector before use. If you locate any damage, have the cord replaced by a qualified electrician before attempting to use the machine
- Before use, check the accessories are safely installed
- NEVER use the machine in damp or wet locations. If the machine gets wet, ensure it is disconnected from the power supply and ensures it dries COMPLETELY before further use
- ALWAYS position yourself securely, maintain sure-footing and operate the tool with BOTH hands
- DO NOT attempt to mount the tool on a stand or tripod. NEVER leave the machine running unattended
- Unplug the machine from the mains power supply after EVERY use, to avoid accidental switch-on
- Always route the power cord towards the rear of the operator, AWAY from the machine and work area. Ensure that the cable does not present a tripping hazard for the operator and other people in the vicinity
- If you are using this machine with an extension lead, always unwind the cable completely.
WARNING: This tool may ONLY be connected to power supplies that are protected by an RCD device. Test the function of any RCD regularly.

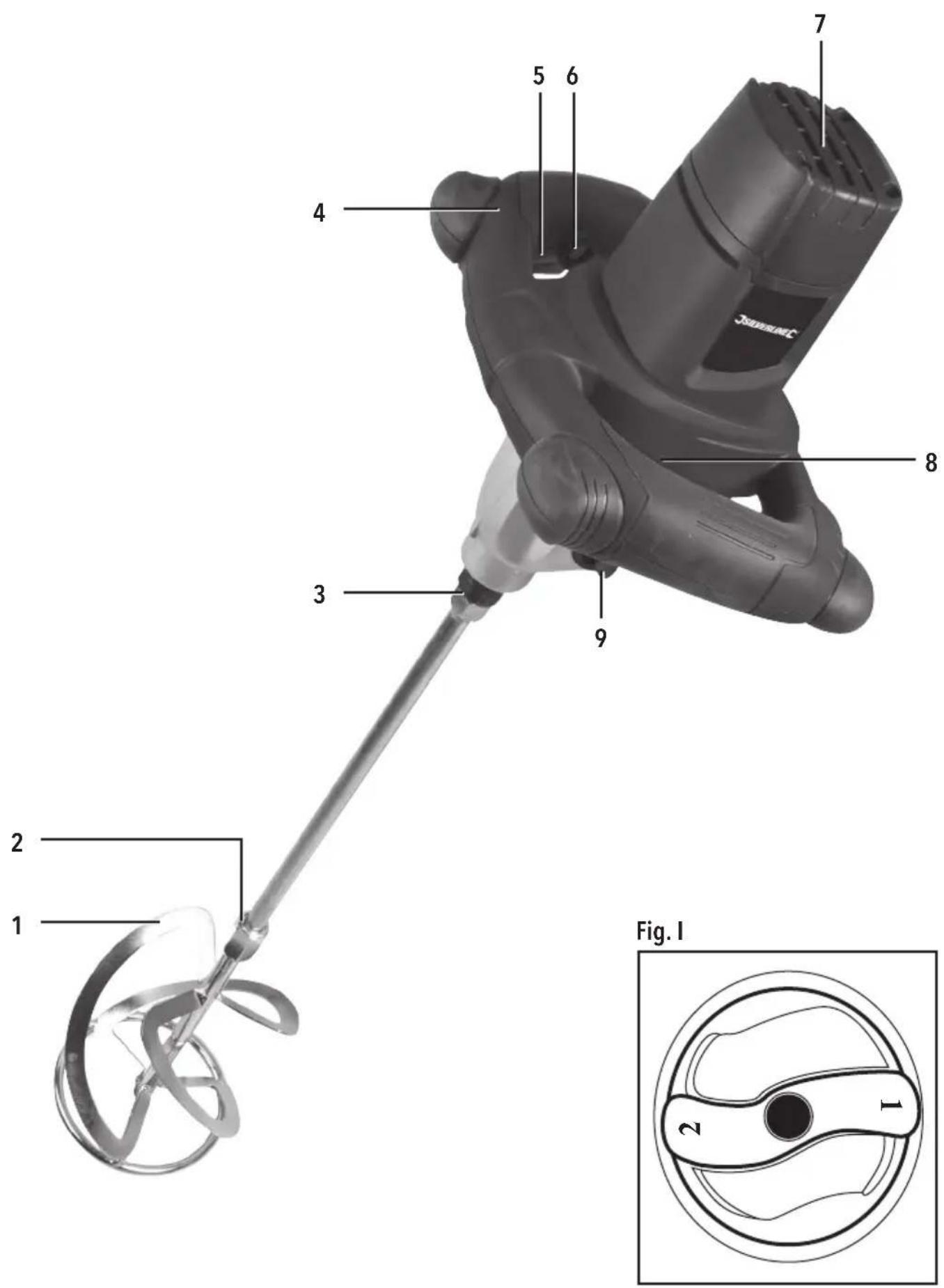

Product Familiarisation
| 1) Mixing Paddle |
| 2) Attachment Point |
| 3) Output Drive |
| 4) Handles |
| 5) ON/OFF Trigger Switch |
| 6) Switch Lock Button |
| 7) Motor Vents |
| 8) Variable Speed Dial |
| 9) Gear Switch |
Intended Use
Hand-held electric paddle mixer used for the preparation of plaster, cement, levelling compounds, emulsions and similar building and decorating materials.
The tool must ONLY be used for its intended purpose. Any use other than those mentioned in this manual will be considered a case of misuse. The operator, and not the manufacturer, shall be liable for any damage or injury resulting from such cases of misuse. The manufacturer shall not be liable for any modifications made to the tool, nor for any damage resulting from such modifications.
Unpacking Your Tool
- Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions
- Ensure all parts of the product are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this product
Before Use
⚠ WARNING: Ensure the tool is disconnected from the power supply before attaching or changing any accessories, or making any adjustments.
Attaching a mixing paddle
WARNING: Always disconnect from the power supply before attaching/changing accessories.
WARNING: Never fit any attachment with a maximum speed lower than the no load speed of the machine.
• This plaster mixer is equipped with an M14 female Output Drive (3)
- M14 threaded mixing paddles are fitted by screwing them into the Output Drive. Tighten with a suitable spanner
- Ensure that the mixing paddle is securely tightened before use
Operation
WARNING: ALWAYS wear eye protection, adequate respiratory and hearing protection, as well as suitable gloves, when working with this tool.
Switching ON and OFF
WARNING: Always ensure that the power cord is not interfering with the mixing paddle or presenting a tripping hazard for the operator or other personnel in the vicinity.
Note: The Switch Lock Button provides the dual function of preventing accidental operation of the ON/OFF Trigger Switch; and also locking the ON/OFF Trigger Switch in the ON position for continuous use.
- Grip the mixer firmly by the Handles (4), with both hands
- To start the mixer, press the Switch Lock Button (6) to release the ON/OFF Trigger Switch (5)
- Press and hold the ON/OFF Trigger Switch
- Press the Switch Lock Button to lock the tool in the 'ON' position
• To stop the mixer, squeeze the ON/OFF Trigger Switch and release

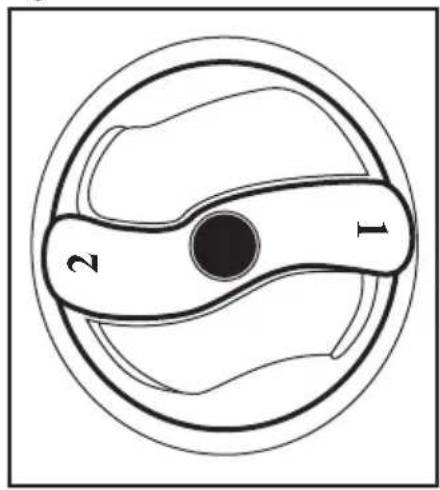

Gear selection
- The mixer is fitted with 2 gears, a higher torque lower speed gear (0-480min ^-1 ) suitable for higher viscosity liquids which need less rapid mixing and a higher speed gear (0-800min ^-1 ) for lower viscosity liquids
- Select the required gear using the Gear Switch (9), (Fig. 1)
Note: Never change gear while the mixer is operating.
Speed selection
• The mixer is fitted with variable speed control
- To alter the speed, simply adjust the Variable Speed Dial (8). The higher the number, the faster the speed
Mixing of material
WARNING: ALWAYS wear adequate personal protection equipment when mixing compounds, including safety goggles or a face shield, breathing protection (specific to the material used), gloves (suitable for the material used), hearing protection, and a hard hat where required.
WARNING: This tool is designed for two-handed operation. Never use with one hand, or attempt to mount stationary or prop-up against another object.
Note: ALWAYS refer to the compound manufacturers mixing requirements and recommendations.
- The shape and size of a mixing paddle that is ideal for a specific application will depend on the type of material being mixed:
^c Substances with a low viscosity such as dispersion paint, varnish, thinset, sealing and levelling compounds, cement, grout etc., will require a mixing paddle with a left-hand twist
° Substances with a high viscosity, such as ready-mixed plaster, concrete, screed, putty and epoxy resin, will require a mixing paddle with a right hand twist - It is important to keep the paddle moving throughout the bulk of the material whilst mixing, as opposed to keeping it in one central position in the mixing container. Mix until compound is completely blended
WARNING: DO NOT overload the motor whilst mixing. When you recognise a significant drop in speed, switch off immediately to avoid damage to the tool. Consider changing to a different mixing paddle or accessory more suitable for the material.
WARNING: When you have completed the mixing procedure, allow the mixer to come to a complete stop before lifting it out of the material. Make sure not to contaminate the environment and clean-up potential spillage.
WARNING: To avoid damage to the machine and cross-contamination between different materials, always clean the mixing paddle immediately after use. Don't let the material dry on the accessory. Also, refer to the paragraph 'Cleaning' in the 'Maintenance' section below.
Accessories
- A range of accessories for your tool, including mixing paddles in numerous sizes and for different compounds, is available from your Silverline stockist. Spare parts can be obtained from toolsparesonline.com
Maintenance
WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.
General inspection
- Regularly check that all the fixing screws are tight. They may vibrate loose over time
- Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool
Cleaning
WARNING: ALWAYS wear protective equipment including eye protection and gloves when cleaning this tool.
- Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine's service life
- Clean the body of your machine with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes
- Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents
- Never use caustic agents to clean plastic parts
- Use water, a suitable cleaning solution, or mild solvent to clean rests of material off the accessory. Wear appropriate protection equipment whilst cleaning, including eye, hand and breathing protection
Lubrication
- Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant
Brushes
• Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
- If you suspect that the brushes may be worn, have them replaced at an authorised Silverline service centre
Storage
- Store this tool carefully in a secure, dry place out of the reach of children
- ALWAYS remove all material from the accessory, clean and dry the tool before storage
Contact
For technical or repair service advice, please contact the helpline on (+44) 1935 382 222
Web: silverlinetools.com
UK Address:
Toolstream Ltd.
Boundary Way
Lufton Trading Estate
Yeovil, Somerset
BA22 8HZ, United Kingdom
EU Address:
Toolstream B.V.
Hogeweg 39
5301 LJ Zaltbommel
The Netherlands
Disposal
Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.
- Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
- Contact your local waste disposal authority for information on the correct way to dispose of power tools
Troubleshooting
Problem Possible cause Solution
| No function when ON/OFF Trigger Switch (5) is operated | No power Check power supply | |
| Defective ON/OFF Trigger Switch Replace the ON/OFF Trigger Switch at an authorised Silverline service centre | ||
| Excessive splashing while mixing | Speed setting too fast Select a slower speed | |
| Mixing paddle incompatible with compound being mixed Fit a suitable mixing paddle | ||
| Insufficient mixing results | Wrong speed settings Try different speeds, to determine best mixing performance | |
| Mixing paddle incompatible with compound being mixed Fit a suitable mixing paddle | ||
| Decreased performance, visible sparking from Motor Vents (7), intermittent failures | Carbon brushes worn Replace the carbon brushes at an authorised Silverline service centre | |
Silverline Tools Guarantee
This Silverline product comes with a 3 year guarantee
Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.
Registering your purchase
Registration is made at silverlinetools.com by selecting the Guarantee Registration button.
You will need to enter:-
- Your personal details
• Details of the product and purchase information
Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.
Terms & Conditions
Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.
PLEASE KEEP YOUR SALES RECEIPT
If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.
If this product develops a fault after the 30-day period, return it to:
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.
You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.
Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.
All work will be carried out by Silverline Tools or its authorised repair agents.
The repair or replacement of the product will not extend the period of guarantee
Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.
Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.
The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered:
- The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.
- If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.
What is not covered:
Silverline Tools does not guarantee repairs required as a result of:
- Normal wear and tear caused by use in accordance with the operating instructions e.g. blades, brushes, belts, bulbs, batteries etc.
- The replacement of any provided accessories such as drill bits, blades, sanding sheets, cutting discs and other related items.
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.
- Use of the product for anything other than normal domestic purposes.
- Change or modification of the product in any way.
- Use of parts and accessories which are not genuine Silverline Tools components.
- Faulty installation (except if installed by Silverline Tools).
- Repairs or alterations carried out by parties other than Silverline Tools or its authorised repair agents.
- Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.
Introduction
Silverline Tools Service Centre
PO Box 2988
Yeovil
Silverline Tools Service Centre
PO Box 2988
Yeovil
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, VK
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK

