USER MANUAL 07329 Gourmetmaxx

www.service-shopping.de

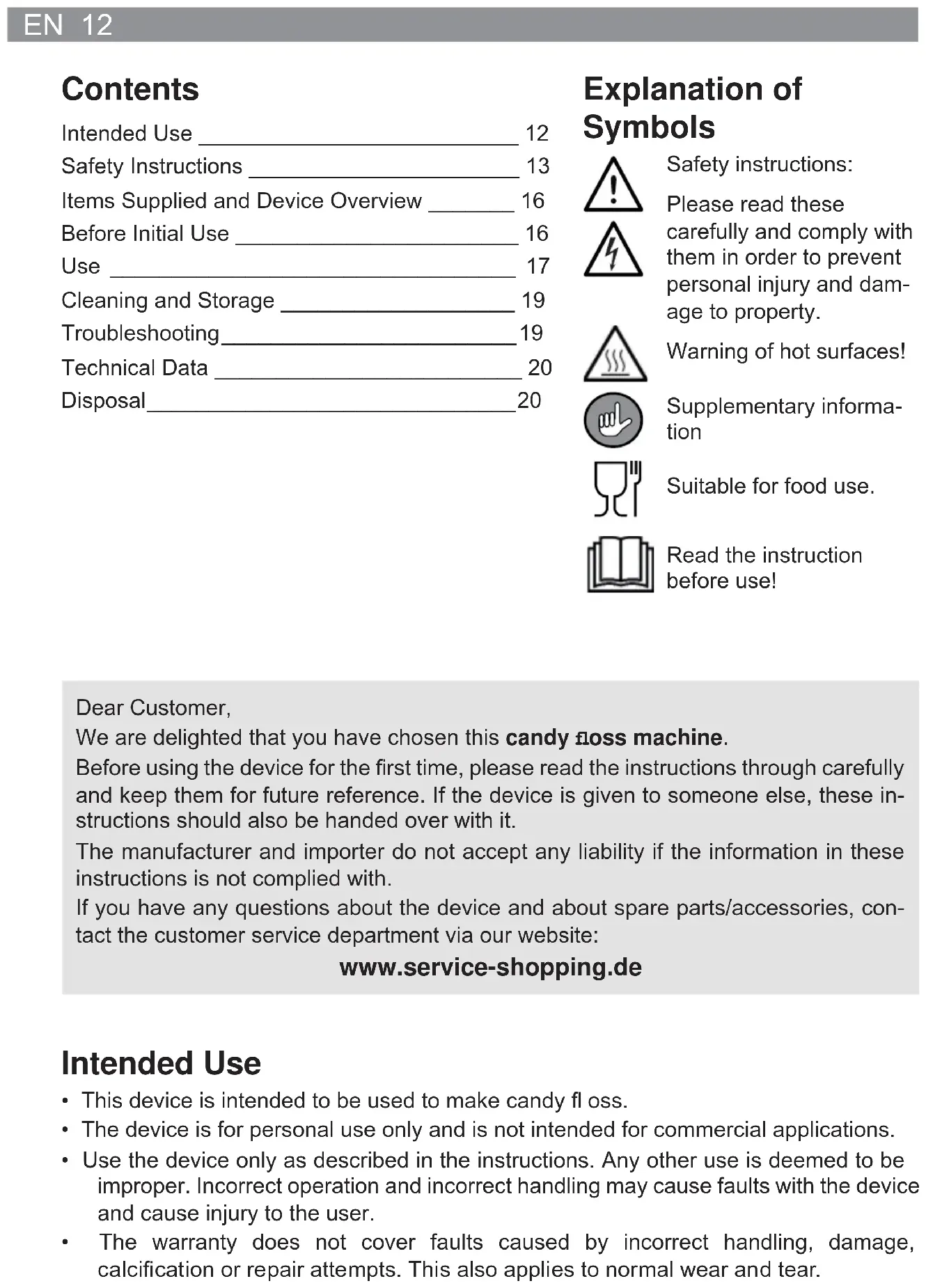

Safety Instructions 13

Items Supplied and Device Overview 16

Before Initial Use 16

Use 17

Cleaning and Storage 19

Troubleshooting 19

Technical Data 20

Disposal 20

Explanation of Symbols

Safety instructions:

Please read these carefully and comply with them in order to prevent personal injury and damage to property.

Warning of hot surfaces!

Supplementary information

Suitable for food use.

Read the instruction before use!

Dear Customer,

We are delighted that you have chosen this candy floss machine.

Before using the device for the first time, please read the instructions through carefully and keep them for future reference. If the device is given to someone else, these instructions should also be handed over with it.

The manufacturer and importer do not accept any liability if the information in these instructions is not complied with.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website:

www.service-shopping.de

Intended Use

• This device is intended to be used to make candy floss.
• The device is for personal use only and is not intended for commercial applications.
• Use the device only as described in the instructions. Any other use is deemed to be improper. Incorrect operation and incorrect handling may cause faults with the device and cause injury to the user.
• The warranty does not cover faults caused by incorrect handling, damage, calcification or repair attempts. This also applies to normal wear and tear.

Safety Instructions

This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from this.
Children must not play with the device.

• Cleaning and user maintenance may not be performed by children, unless they are older than 8 years of age and are supervised.

Children younger than 8 years of age and animals must be kept away from the device and the mains cable.

Warning of hot surfaces! The device will become very hot during use. Make absolutely sure that you do not come into contact with any heated parts during and after use of the device.

• The device must always be disconnected from the mains power when it is left unattended and before assembling, disassembling or cleaning the device.
• Do not make any changes to the device. Also do not replace the mains cable yourself. If the device, the mains cable or the mains plug of the device is damaged, it must be replaced by the manufacturer or customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.
  The device is not designed to be operated with an external timer or a separate remote control system.
  ■ ATTENTION: Note the cleaning instructions in the "Cleaning and Storage" chapter!

Dangers of Injury

• Keep the device and packaging material away from children and animals! There is a risk of injury and suffocation.
  Never reach into the bowl when the device is switched on and keep hair and clothing away from it!
  Make sure that the connected mains cable does not present a trip hazard. The mains cable must not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.
  Always allow the device to cool down sufficiently before you clean it and/or store it away.

Danger of Electric Shock and Fire

Use the device only in closed rooms.
Always set up the device with a sufficient amount of clear space on all sides and clear space above it (approx. 30 cm).
The device should only be connected to a properly installed plug socket with safety contacts. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device. Only use suitable extension cables whose technical data is the same as that of the device.
- Never immerse the device, mains cable or mains plug in water or other liquids and ensure that they cannot fall into water or become wet.
Should the device fall into water, switch off the power supply immediately. Do not attempt to pull it out of the water while it is still connected to the mains power!
- Do not use the device if it has malfunctioned or been dropped in water. Have it checked in a specialist workshop before using it again.
- Never touch the device, mains cable or mains plug with wet hands when these components are connected to the mains power.
- Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
Always pull the mains plug and never the mains cable.
■ ATTENTION: Danger of fire! Sugar residues on the two heat pipes may cause the device to overheat. Keep the heat pipes clean. Allow the device to cool down and remove sugar residues with a wooden or plastic utensil.
- Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
- Do not operate the device in a very damp environment or in the vicinity of combustible material.
- Do not cover the device during operation in order to prevent it from catching fire. Provide adequate ventilation while the device is in operation.
- Do not place any combustible materials, such as cardboard, plastic, paper or candles, on or in the device.

Do not place food that is wrapped in cling film or plastic bags in or on the device.
Always check the device for damage before putting it into operation. Only use it if the device, mains cable and mains plug have no signs of damage!

Avoiding Damage to Material, Property and the Device

Always place the device on a dry, flat and firm surface that is not sensitive to heat.
- Do not use the device for longer than 30 minutes without stopping. The device could overheat and be damaged. Switch it off and allow it to cool down completely.
- Maintain sufficient clearance from other sources of heat such as hotplates or stoves, and from gas sources, in order to avoid damage to the device.
- Do not expose the device to extreme temperatures, strong temperature fluctuations, direct sunlight or moisture.
Before putting the device into operation, check whether the device is clean and dry and has been correctly assembled.

The device must not be moved during operation.
Do not drop the device or allow it to be knocked violently.
Do not pull or carry the device by the mains cable.

Make sure that the mains cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces.
- Only the accessory parts supplied by the manufacturer should be used. If accessory parts which are not authorised by the manufacturer are used, all warranty and guarantee claims are void.
- Do not use any caustic or abrasive cleaning agents to clean the device. These can damage the surface.

Notes on Hygiene

The device should be cleaned before you use it for the first time. It is possible that production residues may still be adhering to the surfaces. It is essential that you follow the cleaning instructions in the "Before Initial Use" chapter.
Clean the device after each use to prevent germ formation (see the "Cleaning and Storage" chapter).
- Keep the device clean.

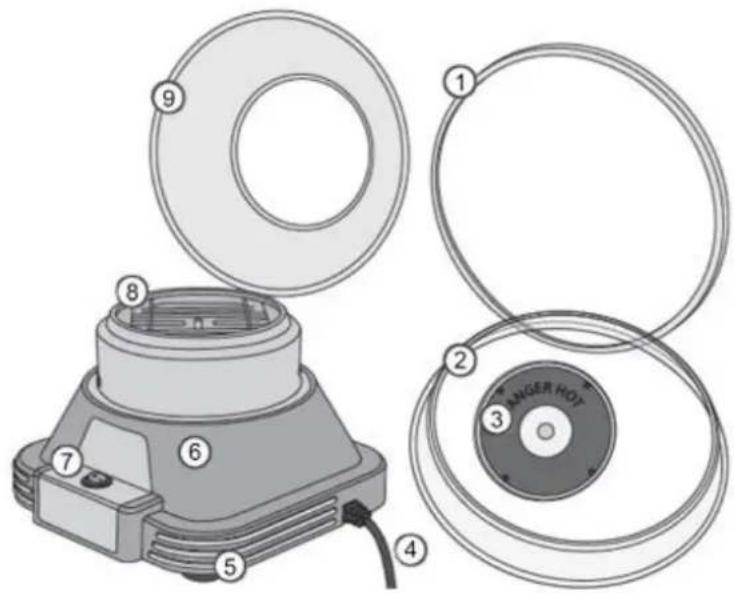

Items Supplied and Device Overview

1 Locking ring
2 Protective edge
3 Sugar container
4 Mains cable
5 Suction feet
6 Base
7 On/Off switch
8 Heat pipes
9 Bowl

Not shown:

• Measuring spoon
  Woodenskewers (10 x)

Before Initial Use

ATTENTION!

Danger of suffocation from plastic film and bags! Keep children and animals away from the packaging material.
Please note: You may notice a strange smell the first time you use the device. We therefore recommend that you initially operate the device for a few minutes WITHOUT any contents in order to burn off any production residues that may remain. During this time, make sure the room is well ventilated, e.g. with wide-open windows!
There may still be some production residues on the device. To avoid harmful effects to your health, thoroughly clean the device before you use it for the first time.

1. Unpack the items supplied and check them for completeness (see the "Items Supplied and Device Overview" chapter) and transport damage. If the device, mains plug or mains cable does have damage, do not use the device!), but contact our customer service department.
2. Before using the device, remove all packaging materials and any labels that may be on the device and are used for protection during transportation or for advertising.
3. Clean the device and the accessories (see the "Cleaning and Storage" chapter). Then dry the device and accessories well.
4. Assemble the device (see the "Assembly" section).
5. Place the device on a dry, heat-resistant, flat surface with sufficient clearance on all sides and above (around 30~cm ).
6. Connect the device to a mains socket that has been properly installed. Make sure that the mains cable does not present a trip hazard.
7. Switch the device on by moving the On/Off switch (7) to Position I (On). Allow the device to heat up for around 5 minutes to remove any production residues.

17 EN

1. Switch the device off by moving the On/Off switch (7) to Position 0 (Off).
2. Remove the plug from the socket.
3. Allow the device to cool down and then clean it again.

Assembly

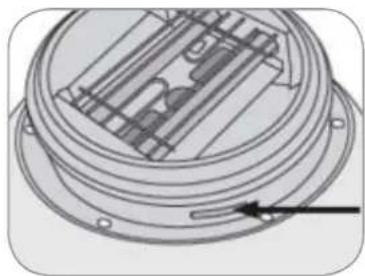

1. Place the bowl (9) onto the base (6) and carefully press it down.

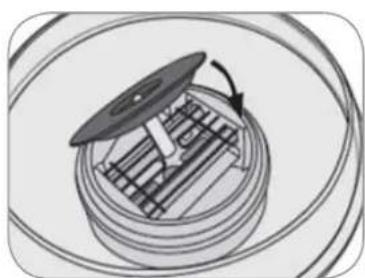

1. Rotate the bowl (9) anticlockwise. Make sure that the locking lugs on the bowl (9) fit securely in the metal locks on the base (6). You must feel them engage.

2. Place the locking ring (1) onto the protective edge (2) and press it on firmly on the lower border of the protective edge (2). You must hear and feel it engage.

3. Place the protective edge (2) with the locking ring (1) onto the bowl (9). Press the locking ring (1) down firmly on the upper edge of the bowl (9). You must hear and feel it engage.

1. Place the sugar container (3) onto the base (9). Make sure that the slip-on sleeve on the bottom of the sugar container (3) sits securely on the axis of the base (6).

Perform the steps in reverse to dismantle the device.

Use

ATTENTION!

Before putting the device into operation, check whether the device is clean and dry and has been correctly assembled.
Never reach into the bowl when the device is switched on and keep hair and clothing away from it!
■ ATTENTION: Danger of burns! The device will become hot during use. Make absolutely sure that you do not come into contact with any heated parts during and after use of the device.
■ ATTENTION: Danger of fire! Sugar residues on the two heat pipes may cause the device to overheat. Keep the heat pipes clean. Allow the device to cool down and remove sugar residues with a wooden or plastic utensil.
- Do not use the device for longer than 30 minutes without stopping. The device could overheat and be damaged. Switch it off and allow it to cool down completely.

• Only standard commercial sugar is suitable for making candy floss. Do not use glucose or a similar type of sugar.

• Only use suitable skewers made of wood to pick up the candy floss. Skewers made of other materials are not suitable.

• Place the device on a dry, level, firm and heat-resistant surface. Press the suction feet (5) firmly onto the surface.

• Connect the device to a mains socket that has been properly installed. Make sure that the mains cable does not present a trip hazard.
• Switch the device on by moving the On/Off switch (7) to Position I (On). The device heats up and the sugar container (3) begins to rotate. Allow the device to preheat for 5 minutes without any contents.
• Switch the device off by moving the On/Off switch (7) to Position 0 (Off). Wait until the sugar container (3) comes to a standstill.

1. Use the measuring spoon that is also supplied to fill the sugar container (3) with sugar.

Tip: Break up colourful little sweets and add them to the sugar. This will produce colourful candy floss with different flavours. ATTENTION: Do not place any whole sweets or sweets with flings into the device!

1. Switch the device on by moving the On/Off switch (7) to Position I (On). The device heats up and the sugar container (3) begins to rotate. Strands of sugar begin to form.

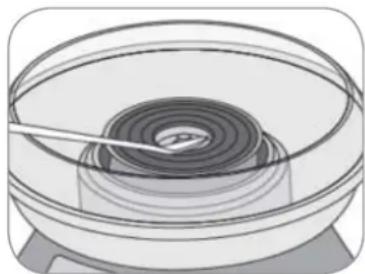

2. Grab a wooden skewer and hold it vertically in the bowl (9). Make sure that you do not touch the sugar container (3).
3. Move the wooden skewer in a circular motion around the sugar container (3). Twist it between your fingers as you do this.

As soon as a little candy floss has stuck to the wooden skewer, hold it at a slight angle. Keep twisting the wooden skewer between your fingers. This makes it easier to coil up the strands of sugar.

1. Keep repeating step 8 until the desired quantity of candy floss is on the wooden skewer.
2. Switch the device off by moving the On/Off switch (7) to Position 0 (Off).
3. Remove the plug from the socket.

If you want to add more sugar, please note the following: Switch off the device and wait until the sugar container (3) has come to a standstill before you add any more sugar. This is important for ensuring that no sugar gets onto the heat pipes (8). Sugar residues on the heat pipes (8) may cause the device to overheat.

Cleaning and Storage

ATTENTION!

• Allow the device to cool down completely before cleaning it.
  ■ ATTENTION: Danger to life due to electric shock! Remove the mains plug from the plug socket before cleaning the device! Never immerse the device, the mains cable or the mains plug in water or other liquids.
  Do not spray cleaning agents directly onto the device.
  The locking ring, the bowl and the measuring spoon are dishwasher-safe.

• Do not use corrosive or abrasive cleaning agents, rough sponges or knives to clean the device. These could damage the surfaces.

• Make sure that the device has completely cooled down, is switched off and has been disconnected from the mains power!

• Dismantle the device (see the "Assembly" section).
• Clean the base with a soft cloth and a little mild detergent.
• Clean the detachable plastic parts, the measuring spoon and the sugar container (3) with a little detergent and warm water. The locking ring (1), the bowl (9) and the measuring spoon can also be cleaned in the dishwasher.

The wooden skewers which are supplied are only suitable for one-time use.

1. Dry the device and the accessories thoroughly before you store them all away.
2. Store the device in a dry place that is protected from sunlight and is not accessible to children and animals.

Troubleshooting

If the device stops working properly, first check whether you are able to correct the problem yourself.

Do not attempt to repair a defective electrical device yourself!

Problem Possible cause / solution
The device does not work.	• Is the plug inserted in the socket correctly? • Is the socket defective? Try another socket. • Check the fuse of your mains connection.
Odour produced	• You might notice a slight odour caused by production residues the first time you use the device. However, this is harmless and will cease as you use the device.

Technical Data

Article number: 07329

Model number: SBL-2807

Voltage supply: 220 - 240 V ~ 50 Hz

Power: 500 W

Protection class:

Capacity of sugar container: approx. 60 g

Customer Service / Importer:

DS Produkte GmbH

Am Heisterbusch 1

19258 Gallin

Germany

Tel.: [phone]

(Calls to German landlines are subject to charges. The cost varies depending on the service provider.)

Disposal

The packaging material is recyclable. Please dispose of it in an environmentally friendly manner and take it to a recycling centre.

Dispose of the article in an environmentally friendly manner. It should not be disposed of in the normal household waste. Please dispose of it at a recycling centre for used electrical and electronic devices. You can obtain more information from your local authorities.
