| Product type | Food processor / Multi-function chopper |
| Brand | Sinbo |
| Model | SHB 3101 |
| Power | 350 W |
| Bowl capacity (solid foods) | 350 ml |
| Bowl capacity (liquids) | 200 ml |
| Maximum continuous operation time | 1 minute |
| Speeds | Normal and Turbo (pulse) |
| Blade material | Stainless steel |
| Bowl material | Plastic |
| Safety lid | Yes |
| Power supply | Mains, 220-240 V |
| Cleaning the motor unit | Wipe with a damp cloth |
| Cleaning accessories | Hand wash |
| Safety | Do not immerse the motor unit, do not use without bowl |
| Intended use | Household use only |
| Warranty | Not specified |
Frequently Asked Questions - SHB 3101 SINBO
User questions about SHB 3101 SINBO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Food Processor in PDF format for free! Find your manual SHB 3101 - SINBO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SHB 3101 by SINBO.
USER MANUAL SHB 3101 SINBO
EN
FR
NL
DE
ES
RU
UA
HR
AR
PT


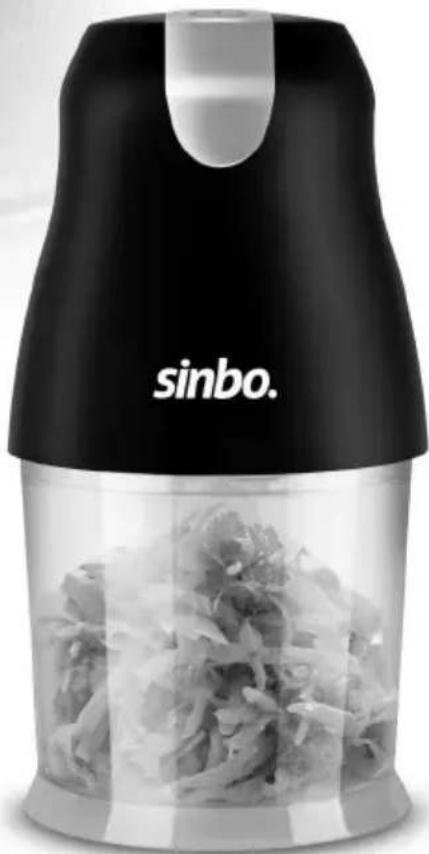

Black and white photo of a Sinbo food blender with visible contents inside (no text or symbols on the device itself)
www.sinbo.com
CÍHAZIN TANITIMI • DRAWING FOR THE STRUCTURE • DESCRIPTION DES PIÈCES
Children being supervised not to play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

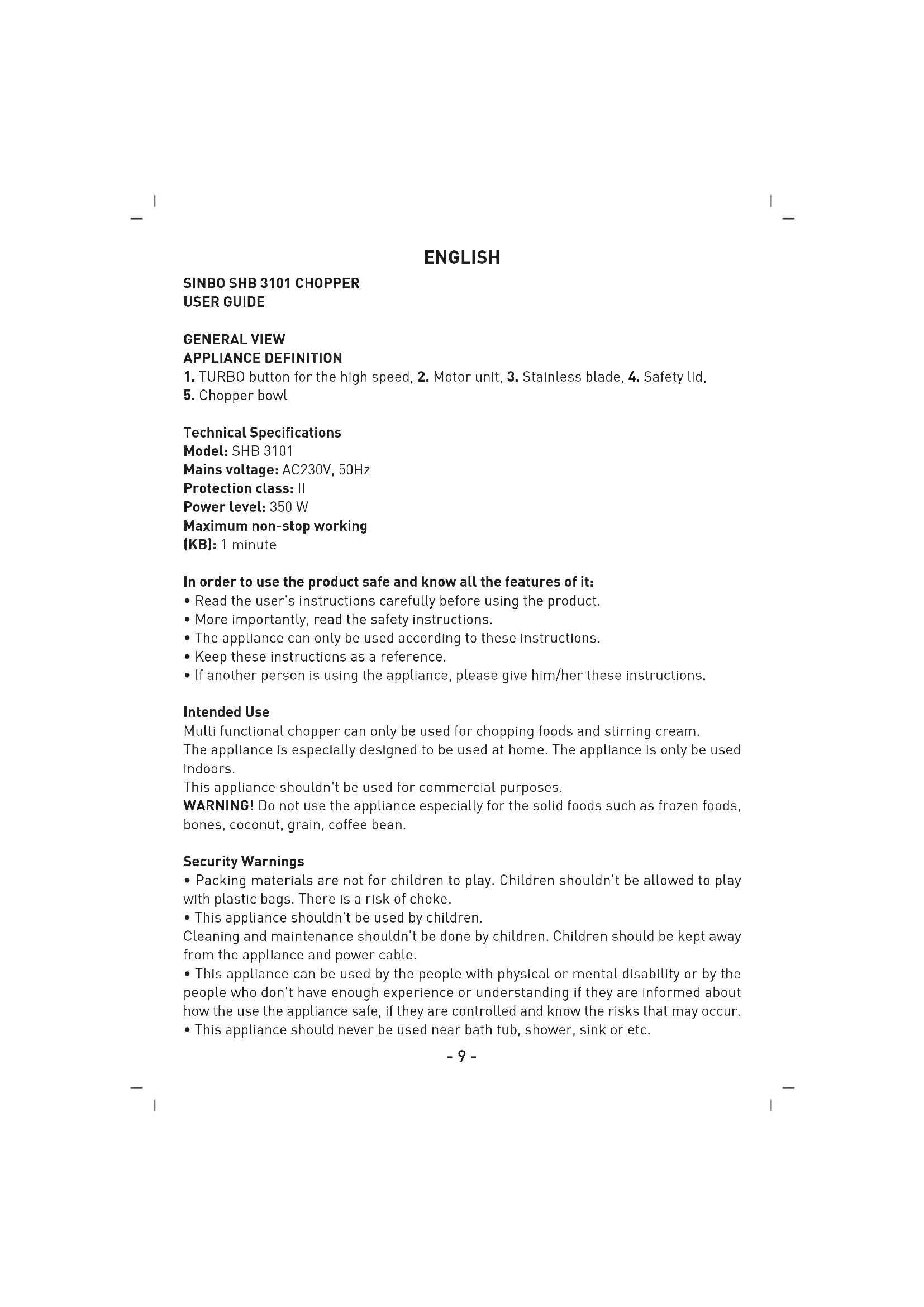

SINBO SHB 3101 DOĞRAYICI KULLANIM KILAVUZU
GENEL GÖRÜNÜM CİHAZIN TANIMI
- TURBO button for the high speed, 2. Motor unit, 3. Stainless blade, 4. Safety lid,
- Chopper bowl
Technical Specifications
Model: SHB 3101
Mains voltage: AC230V, 50Hz
Protection class: ||
Power level: 350 W
Maximum non-stop working
(KB): 1 minute
In order to use the product safe and know all the features of it:
- Read the user's instructions carefully before using the product.
- More importantly, read the safety instructions.
- The appliance can only be used according to these instructions.
- Keep these instructions as a reference.
- If another person is using the appliance, please give him/her these instructions.
Intended Use
Multi functional chopper can only be used for chopping foods and stirring cream.
The appliance is especially designed to be used at home. The appliance is only be used indoors.
This appliance shouldn't be used for commercial purposes.
WARNING! Do not use the appliance especially for the solid foods such as frozen foods, bones, coconut, grain, coffee bean.
Security Warnings
- Packing materials are not for children to play. Children shouldn't be allowed to play with plastic bags. There is a risk of choke.
- This appliance shouldn't be used by children.
Cleaning and maintenance shouldn't be done by children. Children should be kept away from the appliance and power cable. - This appliance can be used by the people with physical or mental disability or by the people who don't have enough experience or understanding if they are informed about how the use the appliance safe, if they are controlled and know the risks that may occur.
-
This appliance should never be used near bath tub, shower, sink or etc.
-
Motor unit, power cable and main plug should be kept away from water.
- Protect motor unit from water and moisture.
- If motor unit gets wet, unplug the main plug immediately. Check the appliance before using again.
- Do not touch the appliance with wet hands.
- If the appliance gets into water, unplug the main plug immediately. Before using the appliance again, be sure that it is safe.
- To prevent the liquid get into the motor unit, fill the reservoir with maximum 200 ml liquid.
- When the appliance is assembled completely, plug it in again.
- Plug the main plug into a properly assembled, coherent with the measuring sheet features and voltage and easy to reach plug. After plug the appliance in, the plug should be easy to reach.
- Be sure that power cable is not damaged by the sharp edges and warmth.
Do not wind the cable around the appliance. - Even after the appliance is off, there is still a connection with the power cable. To disconnect it, unplug the main plug.
- While using the appliance, be sure that power cable is not compressed or smashed.
- While unplugging the main plug, always pull the plug not the cable.
- Unplug the mail plug
.... if there is a detect, .... if you are not using the appliance, .... before assembling or disassembling the appliance,
..... after cleaning and
.... during the storm. - If there is a visible damage on the appliance or power cable, do not use the appliance.
- Do not modify the application in order to avoid any risks. Besides, do not change the power cable on your own. Repair should only be performed by Repair Center or Service Center.
- The blade is sharp. Hold it carefully. While washing by hand, water should be clear enough for you to see the knives easily.
- Do not start up the appliance without reservoir.
- Do not touch the circular blades. Do not touch circular parts with spoon or any other kitchen appliances. Keep your hair or loose clothing away from circular parts.
- After the appliance is turned off, the blade still continues to rotate. Wait before removing the reservoir's lid.
WARNING! Risk of Financial Damage - Filling level for solid foods is 350 ml.
- Filling level for liquids (such as cream) is 200 ml.
-
The appliance is designed to work for maximum 1 minute without any intervention. Thereafter, the appliance should be kept turned off in the room temperature until it gets cold.
-
In order to avoid any damage that may occur in the appliance, if the blade doesn't rotate or rotates slowly, stop mixing immediately.
Unplug the main plug and check if there is anything that blocks the reservoir or if the food is too solid. Also, check if the appliance is assembled properly. - Do not start the appliance when it is empty because it would cause the motor to get hot too much.
- Only use original accessories.
- Do not use firm or abrasive cleaning materials.
WARNING! In order to avoid any damage that may occur in the appliance, if the blade doesn't rotate or rotates slowly, stop mixing immediately. If this happens, unplug the main plug and check if there is anything that blocks the reservoir or if the food is too solid. Also, check if the appliance is assembled correctly.
Cutting Blade
Field of Application
Cutting blade is used for chopping solid foods such as onion, carrot, cheese, nut.
Food Preparation
- Usage
.... shouldn't pass the filling level which is maximum 350 ml for solid foods or .... which is maximum 200 ml for liquids.
- Wash the food.
• Dice the food (approximately 2-3 cm) - Take off the outer shell of nut. Inner shell can be used if wanted, for instance with almonds.
- Remove the roots of the plants.
- Remove the bones of the meat, remove nerves and skin.
Worksheet
Content Recommended amount Recommended procedure time/speed
| Onion (cut into four pieces) | 100 g Pulse/TURBO | |
| Garlic (a whole clove) | 100 g Pulse/TURBO | |
| Walnut 50 g 2 x 8 seconds TURBO | ||
| Almond 50 g 1 x 10 seconds (to the bowl) 1 x 30 seconds (smooth) TURBO | ||
| Cheese (like Gouda, cold) | 100 g 4 x 15 seconds TURBO | |
| Salami 130 g 3 x 5 (approximately 2 cm) | seconds TURBO | BOSliced beef |
| 250 g 3 x 12 seconds TUR | ||
| 100 g 3 x 5 seconds normalCarrot | ||
| 130 g 4 x 15 seconds TURBODried fruits | ||
| 100 g Pulse/TURBOIce cubes | ||
NOTE: This specified procedure time and speed is a general information.
- The actual amounts may be different according to the amount of foods and their suitability.
- Check the results again according to how small the food is.
- Start it with short PULSE (1 pulse: approximately 1 second)
Assemblage of the appliance
WARNING: Do not fill the reservoir at the maximum level as the cutting blade may block the reservoir according to foods solidity and suitability.
Pay attention to the instructions for different foods in this "Worksheet" section.
-
Place the reservoir that is on the reservoir's lid.
-
Place the blade.
-
Place the prepared food to the reservoir.
-
Place the actuator's lid onto reservoir and place two little recess' into the hollows in the reservoir then rotate the actuator's lid clockwise until it is placed completely.
-
Place the motor unit to the top corner of the actuator's lid.
-
Plug the main plug in according to technical data given.
Chopping
- For a normal speed, press down the motor unit and then release it again.
- For a high speed, also press down TURBO button.
- Start it with short PULSE (1 Pulse: approximately 1 seconds) Pulse's length and number depends on foods amount and their suitability. Check the features specified in "Worksheet" section.
- Check the result again. If the food isn't chopped properly:
- Unplug the main plug, take out motor unit and shake the reservoir carefully.
- If food sticks to the reservoir, rotate the actuator's lid anticlockwise and take out. Use a spatula and push down the pieces.
- Plug the main plug in again and before start up bring the pieces together.
Cleaning
Clean the appliance before the first use.
- Before cleaning the appliance unplug the main plug.
- Motor unit, power cable and main plug should be kept away from water.
While washing by hand, water should be clear enough for you to see the knives easily.
Do not use firm or abrasive cleaning materials.
Disassemble of the appliance
- Unplug the main plug.
- Take out the motor unit.
- Rotate the actuator's lid anticlockwise and take out.
- Take out the reservoir's lid.
- Take out the cutting blade from the reservoir carefully.
How to clean properly
- If necessary, wipe the motor unit and power cable with a wet rag. Wait for motor unit to dry before using it again.
- Wash all accessories by hand except motor unit.
- Wait for all pieces to dry before using the appliance again or put it away.
Some Cleaning Tips
- To prevent foods from drying, clean the appliance as soon as possible after using.
• After using salty or acidic foods, dry the cutting blade carefully.
Storage
Keep the appliance away from children.
In order to avoid accidents, main plug shouldn't be plugged into while keeping it away.
- Keep the appliance away from high temperature and moisture.
Troubleshooting
If the appliance isn't working properly, please try to check the control list and fix the problem on your own.
Do not try to fix the appliance in any condition on your own.
Defect
Probable causes/Action
It isn't working
Is the appliance connected to the power supply?
Check the connection.
Is the top corner of the actuator's lid clean?
Cutting blade doesn't rotate or it rotates hard.
- Turn it off immediately, unplug the main plug and check it. :
-Is there a blockage on the reservoir?
-Is the food too solid?
-Is the appliance assembled properly?
Is the reservoir watered due to the solid food? - It is normal and doesn't affect working.
