Product Type	Barbecue
Brand	Sinbo
Model	SBG-7102
Fuel Type	Charcoal
Cooking Area	Approximately 45 cm diameter
Dimensions (L x W x H)	50 x 40 x 30 cm
Weight	10 kg
Material	Steel with heat-resistant paint
Grill Grate Material	Chrome-plated steel
Adjustable Air Vent	Yes
Ash Catcher	Removable tray
Legs	Folding legs with locking mechanism
Handles	Heat-resistant plastic handles
Assembly Required	Yes, basic assembly
Cleaning	Clean grill with brush; empty ash after each use
Maintenance	Oil grill to prevent rust; store in dry place
Safety Features	Stable base, heat shield, cool-touch handles
Spare Parts Available	Grill grate, ash tray, legs
Repairability	Modular design; parts replaceable
Warranty	1 year limited
Recommended Use	Outdoor cooking, camping, backyard
Max Load	Up to 15 kg of food

Frequently Asked Questions - SBG-7102 SINBO

How do I assemble the Sinbo SBG-7102 barbecue?

Assembly is straightforward: attach the legs using the provided screws, place the grill grate on the support, and secure the ash tray underneath. Refer to the user manual for detailed steps.

What type of fuel does this barbecue use?

The SBG-7102 is designed for charcoal fuel. Do not use gas or other fuels as it may damage the unit.

How do I clean the barbecue after use?

Wait for the barbecue to cool completely. Remove the grill grate and wash with warm soapy water. Use a brush to scrub off residue. Empty the ash catcher and wipe the interior with a damp cloth.

Can I use this barbecue indoors?

No, this barbecue is for outdoor use only. Using it indoors can cause carbon monoxide poisoning and fire hazards.

How do I control the temperature?

Adjust the air vent at the bottom to control airflow. More air increases temperature, less air reduces it. Keep the lid closed for even heat.

What should I do if the grill grate rusts?

Clean the rust with a wire brush, then apply a thin coat of cooking oil to prevent further rust. For severe rust, replace the grate.

Is assembly tool-free?

Some screws require a screwdriver (not included). Basic tools like a Phillips screwdriver are recommended.

How do I dispose of charcoal ashes?

Ensure ashes are completely cool (wait at least 24 hours). Place them in a metal container with a lid, then dispose with regular trash.

Can I cook with the lid open?

Yes, but cooking with the lid open results in direct heat and faster cooking. Closing the lid creates an oven effect for even cooking.

Where can I find spare parts?

Spare parts such as the grill grate, ash tray, and legs can be ordered through Sinbo customer service or authorized dealers. Check the manual for part numbers.

USER MANUAL SBG-7102 SINBO

Please read these instructions carefully and keep them before starting to use the appliance to prevent malfunctions due to misuse.

Warning: Misuse may harm the user and damage the appliance.

1. Check whether the voltage of the location you will use your appliance in is compatible with the voltage specified on the product.
2. Ensure that the socket is grounded to avoid risk of electric shock. Make sure that the plug is safely plugged in.
3. Do not reel or bend the power cord or do not apply excessive force, otherwise the cable shall be damaged. If the power cord is damaged, it must be replaced by professionals to prevent risk of electric shock. Do not attempt to replace the power cord yourself.

Warning: If you will use an extending cord, select the extending cord you will use considering the power consumption of the appliance.

1. Keep power cord away from hot surfaces.
2. Do not attempt to disassemble and open the part that contains the electrical assembly.

Warning: If the appliance falls into water by accident, unplug it immediately and show it to authorized technical service before using it again.

1. This appliance is not fit for use of children. Do not leave the appliance unattended where there are children or when the appliance is running.

2. Do not place your product next to or on any hot surface (How plate, electrical stove etc.)

3. Place your appliance on a level, strong surface.

4. Do not leave the appliance unattended while running.

5. The temperature of accessible surfaces might be hot when the appliance is running.

6. Coal or similar flammable fuels should not be used in this appliance.

7. Do not keep flammable materials like paper, plastic in or near your appliance.

8. Make sure that the tray is in place while grilling.

9. Never leave a kitchen appliance on the grill while it is hot.

10. Make sure that there is water in the tray before starting the appliance.

11. Using accessories not recommended by the manufacturer company may cause injuries.

12. Watch out for splashing fat when grilling foods with fat.

13. Always unplug your appliance after use.

14. Wait for the appliance to cool down completely before removing the tray, cleaning the appliance or storing it.

15. Do not use your appliance for reasons other than specified.

16. It is recommended that you use the box you purchased while storing the appliance.

Warning: Malfunctions caused by not observing the instructions in this manual or misuse of the appliance are outside the scope of warranty. The expressions on the device or in the user manual can be changed without prior notice.

PARTS OF THE APPLIANCE

1. Body, 2. Mesh grill, 3. Tray, 4. Power cord with thermostat adjustment, 5. Stainless resistance, 6. Tray resting plastic

TECHNICAL SPECIFICATIONS

• High power for fast heating: 2000 Watts
- 5-stage thermostat adjustment levels
- Removable grill and tray
- Easy to clean
• Non-heating handles
- Suitable for use in all environments
- Long-life stainless resistance
• Large cooking surface: 350x240mm
• Dripping tray that stores fat
• Non-flammable and does not emit toxic gases
• Healthy and delicious cooking
- AC230V, 50Hz

SETTING UP THE APPLIANCE

Place your tray on the 4 resting plastics on the body.

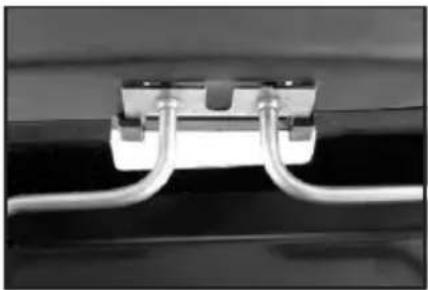

Slide the resistance sheet found on the heating resistance through the slot on the tray.

Plug the legs of the resistance sheet on the heating resistance to the slots on the body.

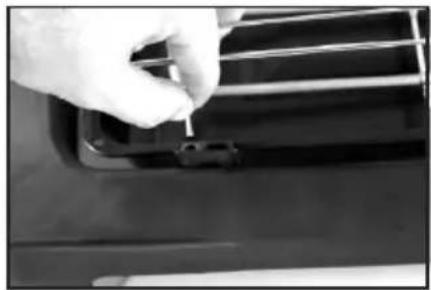

Place your mesh grill to the holes on the tray resting plastics on the body.

Plug your thermostat adjusted power cord to the resistance as show in the picture

Your grill is ready for use.

USING THE APPLIANCE

• Take your appliance out of its box.
- Wipe the body of the appliance with a damp cloth.
- Clean the tray and mesh grill of your appliance thoroughly.
- Fill the lower surface of the dripping tray with water as desired.

Warning: The height of water you will fill in your appliance should not exceed the resistance entrance port on the tray.

- Adjust the thermostat on the power cord to the appropriate stage according to the cooking duration of the food you will cook, and turn on your appliance by plugging it in.

- Place your food on the grill.

- Turn your food over occasionally as you cook.

• Take your food off the grill when cooked.

- For best results, take the excessive fat on the grill with a paper towel between grills.

- Adjust the thermostat on the power cord to the appropriate stage according to the cooking duration of the food you will cook, and turn on your appliance by plugging it in. - Place your food on the grill. - Turn your food over occasionally as you cook. - Take your food off the grill when cooked. - For best results, take the excessive fat on the grill with a paper towel between grills.

Note: Smoke might be emanated from the heating resistance during first use; this is normal.

Warning: When turning off your appliance, unplug the plug first, and not the adapter.

CLEANING AND MAINTENANCE

• Bring the On/Off switch to '0' position.
• Unplug the appliance and wait for it to cool down.
  • Take the excessive fat on the grill with paper towel.
• Remove the resistance unit.
• Remove the dripping tray from the base.
• Wipe the resistance unit with a damp cloth.
• Clean the grill and dripping tray with a soft cloth or sponge under hot water with dishwashing detergent. You can wash your dripping tray on dishwasher as well.
• Reassemble the appliance after the parts dry.

ENVIRONMENT FRIENDLY DISPOSAL

You can also contribute to environmental protection!

Please do not forget to adhere to local regulations.

Take the non-operational electrical appliance to the suitable disposal centers.

There is no situation that might harm human health or the environment during use.

• This appliance is for use in home and similar environments:
• in personnel kitchen areas in shops, offices or other working areas;
• in farm houses;
• by customers in hotels, motels or other accommodation units;
• in places supplying rooms and breakfast service.

HOT SURFACE

• The outer surface may get hot when the appliance is operating.
• The surfaces are liable to get hot during use.

- The appliance is not intended to be operated by means of an external timer or separate remote control system.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- WARNING: Charcoal and similar combustible fuels must not be used with this appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Regarding to instructions for cleaning surfaces in contact with food, thanks to refer to the section "Cleaning and Maintenance".

• Maximum water level: 1.5lt.
