SAH-6107 - Humidifier SINBO - Free user manual and instructions

Product Type	Ultrasonic Humidifier
Model	SAH-6107
Brand	SINBO
Dimensions (W x D x H)	Approx. 20 x 20 x 30 cm
Weight	Approx. 1.2 kg
Power Supply	AC 220-240V, 50Hz
Power Consumption	25 W
Water Tank Capacity	3.5 L
Mist Output	Up to 300 ml/h
Noise Level	< 35 dB
Coverage Area	Up to 25 m²
Functions	Mist adjustment, auto shut-off, indicator light
Control Type	Rotary knob
Material	ABS plastic
Color	White
Cleaning	Wipe with soft cloth; descale weekly
Filter Requirement	No filter; uses ultrasonic vibration
Spare Parts Available	Replacement transducer, water tank
Repairability	Basic user maintenance; professional service for electronics
Safety Features	Auto shut-off when water empty, overheat protection
Certifications	CE, RoHS

Frequently Asked Questions - SAH-6107 SINBO

How often should I clean the humidifier?

Clean the tank and ultrasonic plate at least once a week. Use a mixture of water and white vinegar to remove mineral deposits.

What type of water should I use?

Use distilled or demineralized water to prevent white dust. Tap water may cause mineral buildup.

Can I add essential oils?

No, this model is not designed for essential oils. Adding oils may damage the device.

Why is the humidifier not producing mist?

Check if the water tank is empty or if the device needs cleaning. Mineral deposits on the transducer can reduce mist output.

How long does a full tank last?

At maximum mist output, approximately 12 hours. At minimum setting, up to 20 hours.

Is the humidifier noisy?

The SAH-6107 operates at less than 35 dB, which is very quiet, similar to a whisper.

Does it have an automatic shut-off?

Yes, the humidifier automatically turns off when the water tank is empty to prevent damage.

Can I use it in a baby's room?

Yes, it is safe for baby rooms. Place it out of reach and ensure stable placement.

What is the coverage area?

It can effectively humidify rooms up to 25 square meters.

How do I adjust the mist level?

Turn the rotary knob clockwise to increase mist output, counterclockwise to decrease.

USER MANUAL SAH-6107 SINBO

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

CİHAZIN KULLANIMI

Before operating this appliance, please read these instructions completely.

SPECIFICATION

• 360 degree adjustable mist nozzle
• Variable mist control
- Auto-off function
- Removable water tank Silent operation
- Night light
- Clean brush included
• AC220-240V, 50/60Hz, 30W

• Automatic protection in case water runs dry

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet [230Va.c.].
3. Do not use two-way socket with other appliance.
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
5. Do not place the unit near gas stove, electric stove or in a heated oven.
6. Put the unit on flat stable surface; keep it away from the edge of counter to avoid accident.
7. Close supervision is necessary when any appliance is used by or near children.
8. To protect against electric shock, do not immerse the base in water.
9. Do not force the Adjustable Mist Nozzle to a certain angle. To adjust the angle, resettle it.
10. Do not attempt to empty, fill and tilt the humidifier while it is working.
11. Do not use the unit for outdoor use.
12. Do not use this unit other than its intended use.
13. For household use only.
14. Save this instruction for future reference.

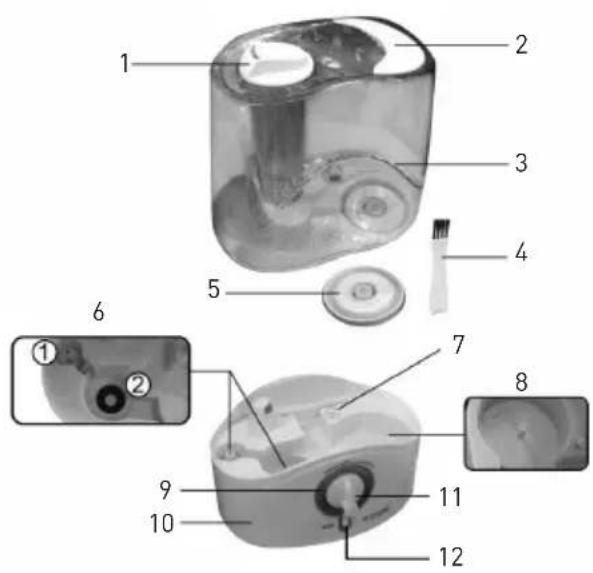

DESCRIPTION OF PARTS

1. Adjustable Mist Nozzle
2. Handle
3. Water Tank
4. Cleaning Brush
5. Water Tank Cover
6. Transducer
7. Safety Floater
8. Silicon Ring
9. Power Indicator
10. Water Basin
11. Elumi-glow LED
12. Base
13. Mist Control Knob
14. Elumi-glow button

HOW TO USE

1. Remove the Adjustable Mist Nozzle.
2. Lift the Water Tank and turn upside down.
3. Open the Water Tank Cover.
4. Fill the Water Tank with water but not all the way to the water tank rim.
5. Lock the Cover back on.
6. Turn the Water Tank upside down and return to the base.
7. Put the Adjustable Mist Nozzle back on.
8. Plug the unit into the convenience outlet.
9. Turn the Mist Control Knob to the desired setting.
10. After a few seconds mist will start emitting out of the Adjustable Mist Nozzle.
11. Turn OFF after use.

NOTE: It is normal to hear a dripping sound when mist output is at a high level.

If the Power Indicator:

BLUE- the unit is functioning properly.

RED- the unit is empty (refill water tank).

CLEANING AND MAINTENANCE

1. Unplug the unit from the convenience outlet before cleaning.
2. Wipe the base of the unit with damp cloth.
3. Do not use abrasive materials to avoid scratches.

CLEANING AND MAINTENANCE

How to Clean the Water Tank

1. Fill the water tank with water.
2. Put a mild detergent and then shake it well.
3. While shaking, hold it with both hands and do not hold it with the handle.
4. After shaking, remove the water and rinse it thoroughly.

NOTE: The water tank should be cleaned once a week.

How to Clean the Transducer & Water Basin

1. To remove the water residue, pour approximately 2 tbsp. of white vinegar and add water into the water basin. Make sure it fills the entire water basin but not all the way to the rim.
2. Leave the water with vinegar for at least one half hour.
3. Brush the solution in the transducer and in the areas encrusted with water residue. Use the brush provided by the unit or with soft bristled brush.
4. Discard the solution and rinse it thoroughly.

NOTE: Clean the Transducer & Water Basin at least once a month to prevent the accumulation of water residue.

TROUBLE SHOOTING

Humidifier does not work at all.

Make sure it is properly plugged into the convenience outlet and the Mist Control Knob is in ON position.

The Light Indicator is on but no mist or very little is being emitted.

Make sure that nothing blocks the Adjustable Mist Nozzle.

Check if there is water in the tank.

White dust appears outside the humidifier.

The water you are using might have too minerals. Change to distilled or filtered water.
