USER MANUAL SMX 2735 SINBO

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

ÖNEMLİ UYARILAR

Labeled diagram of kitchen appliances including a blender, blender, and blender with numbered parts

CİHAZIN ÖZELLİKLERİ

Close-up of a kitchen mixer with a hand mixer and handle, labeled A (no text or symbols on the device itself)

CİHAZIN KULLANIMI

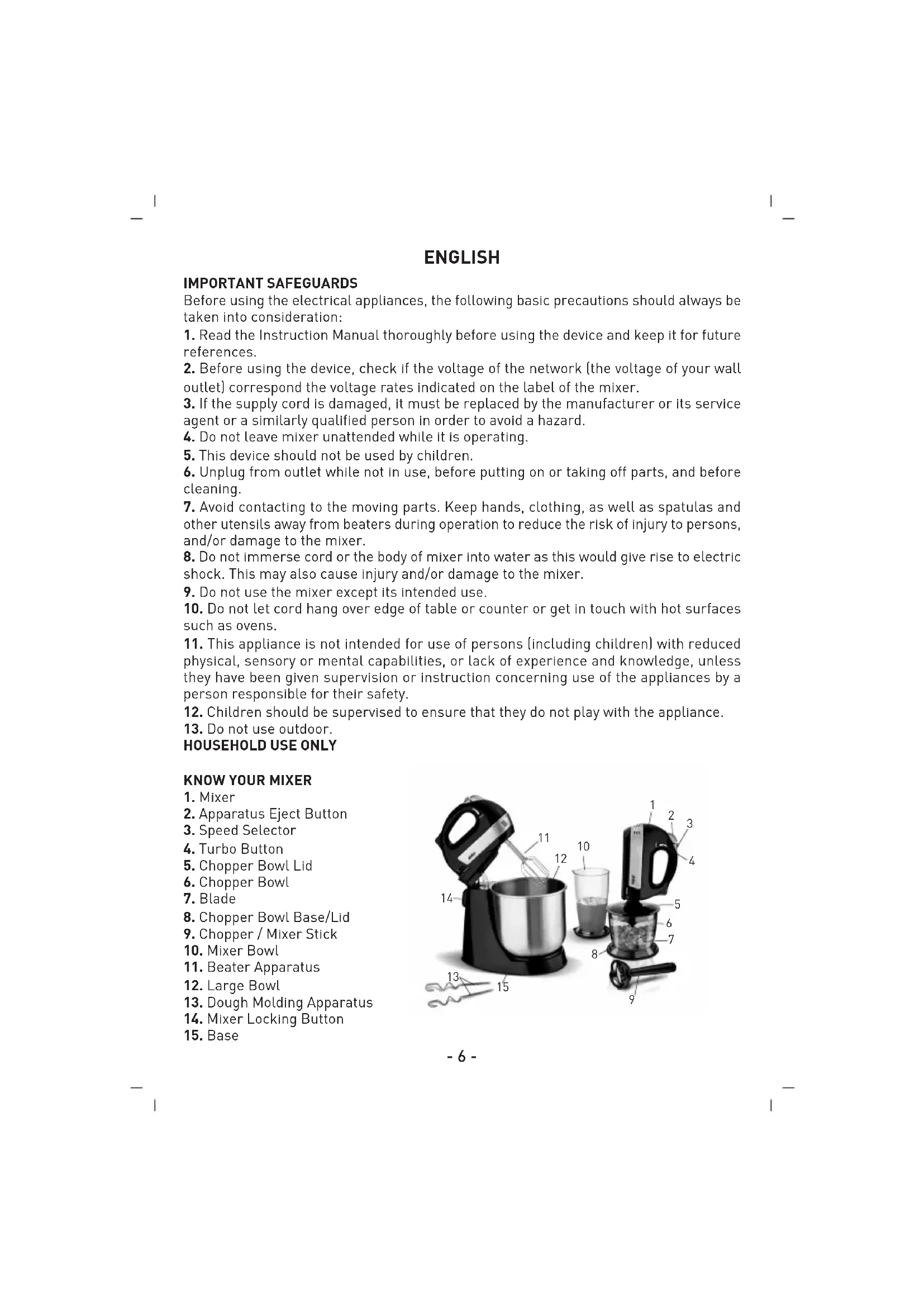

Before using the electrical appliances, the following basic precautions should always be taken into consideration:

1. Read the Instruction Manual thoroughly before using the device and keep it for future references.
2. Before using the device, check if the voltage of the network (the voltage of your wall outlet) correspond the voltage rates indicated on the label of the mixer.
3. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
4. Do not leave mixer unattended while it is operating.
5. This device should not be used by children.
6. Unplug from outlet while not in use, before putting on or taking off parts, and before cleaning.
7. Avoid contacting to the moving parts. Keep hands, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons, and/or damage to the mixer.
8. Do not immerse cord or the body of mixer into water as this would give rise to electric shock. This may also cause injury and/or damage to the mixer.
9. Do not use the mixer except its intended use.
10. Do not let cord hang over edge of table or counter or get in touch with hot surfaces such as ovens.
11. This appliance is not intended for use of persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.
13. Do not use outdoor.

HOUSEHOLD USE ONLY

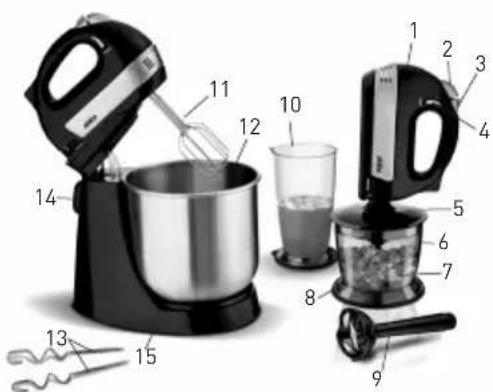

KNOW YOUR MIXER

1. Mixer
2. Apparatus Eject Button
3. Speed Selector
4. Turbo Button
5. Chopper Bowl Lid
6. Chopper Bowl
7. Blade
8. Chopper Bowl Base/Lid
9. Chopper / Mixer Stick
10. Mixer Bowl
11. Beater Apparatus
12. Large Bowl
13. Dough Molding Apparatus
14. Mixer Locking Button
15. Base

Labeled diagram of kitchen equipment including a mixer, blender, and blender with numbered parts

KNOW YOUR MIXER

1.5 speeds
2. Turbo function with safety device. Turbo function only works when the appliance is operating
3. Eject button with safety device: blocked while the appliance is functioning
4. Steel dough hooks and beaters, chopper, stick blender, measuring cup included
5. Stand mixer with bowl
6. AC230V, 50Hz 300W

Before using the handle/stand mixer, be sure the power cord is unplugged from the power outlet and the speed selector is in the OFF ("0") position.

1. Place the hand mixer to the stand, to separate the hand mixer push forward. While pressing the head locking button (A) bend the mixer head.

2. Affix the right mixing or beating apparatus. Dough hooks are only used for mixing and kneading dough, mixer apparatus are only used for mixing and beating eggs and similar materials.

Close-up of a kitchen mixer with an open handle and metal bowl, labeled A (no text or symbols on the device itself)

Note: Beaters can be inserted in either socket, as the beaters are identical. For dough hooks, the one with washer can only be inserted into the big socket and the other one can only be inserted into small socket. The two dough hooks cannot be inserted reverse sockets.

1. Place the larger bowl its cradle.

2. Lower the head and mixing / beater apparatus to the mixer bowl, to do this, while you are holding the device at one hand, press the locking button with the other. When the head reaches right position, a "click" sound will be heard.

USING YOUR MIXER

1. Ensure that the unit is at the OFF position, and then plug in the power source.
2. Turn the speed selector to your desired setting, there are 5 different speed settings. The device will start to operate. When you press the turbo button, the speed will increase 25 %.
   Caution: Do not place knife, metal spoon, fork or similar objects into the bowl while using the device.
3. When using the device, the max operation period of each time shall not exceed 3 minutes and there should be minimum 1 minute rest time between two consecutive cycles. When kneading yeast dough, it is suggested that the speed selector is adjusted to a low speed first and then the speed should be increased to achieve the best results.
4. When mixing is completed, turn the speed selector to OFF position, unplug the cord from power outlet.
5. Press the head locking button and bend the head of the mixer till it fixes in horizontal position.

USING YOUR MIXER

1. If necessary you can scrape the excess food particles from the beaters or dough hooks by rubber or wooden spatula.
2. Hold the beaters/dough hooks with one hand and press the Eject button firmly down with the other hand, remove the beater/dough hooks.

Caution: Before pressing the eject button to remove the apparatus, the speed button should be placed to OFF ("0") position. While the device is operating, definitely do not press the eject button.

1. The hand mixer can be used separately from the stand base.

Cleaning and Maintenance

1. Unplug the appliance and wait it completely cool down before clean.
2. Wipe over the outside surface of the head with a dampened cloth and polish with a soft dry cloth.
3. Wipe any excess food particles from the power cord.
4. Wash the mixer bowl, beaters and dough hooks in warm soapy water and wipe dry. The beaters, mixer bowl and dough hooks may be washed in the dishwasher.

COOKERY TIPS

1. Refrigerated ingredients, for example butter and eggs should be at room temperature before mixing begins. Taken from the refrigerator such kind of materials previously.
2. Do not over-beat. Be careful that you only mix/blend mixtures at the rate recommended in your recipe. Fold into dry ingredients only until just combined. Always use the low speed.
3. To eliminate the possibility of shells or deteriorated-off eggs in your recipe, break eggs into separate container first, then add to the mixture.
4. Always start mixing at slow speeds. Gradually increase to the recommended speed as stated in the recipe.
5. Climatic conditions should be taken into consideration. The required mixing time and the results achieved may vary by seasonal temperature fluctuations, temperature of ingredients and their textures.

FRANÇAIS

SMX 2735 MIXEUR AVEC BOL MODE D'EMPLOI

Labeled diagram of kitchen equipment including a hand mixer, blender, and blender with numbered parts

DESCRIPTION DU MIXEUR

Close-up of a kitchen mixer with an open handle and metal bowl, labeled 'A' pointing to the side (no text or symbols on the main subject)

Labeled diagram of kitchen equipment including a blender, blender, and blender with numbered parts

DEN MIXER KENNENLERNEN

Close-up of a kitchen mixer with handle and side arm, labeled A (no text or symbols on the device itself)

Labeled diagram of kitchen equipment including a hand mixer, blender, and blender with numbered parts

CONOCER SU BATIDORA

Close-up of a kitchen mixer with handle and side arm, labeled A (no text or symbols on the device itself)

Labeled diagram of kitchen equipment including a blender, blender, and blender with numbered parts

ОПИСАНИЕ МИКСЕРА

Close-up of a kitchen mixer with an open lid and handle, labeled 'A' pointing to the mixing bowl (no text or symbols on the main subject)

Labeled diagram of kitchen appliances including a blender, mixing bowl, and hand mixer with numbered parts

ОПИС ПРИЛАДУ

Close-up of a kitchen mixer with handle and whisk, labeled A (no text or symbols on the device itself)

Labeled diagram of kitchen equipment including a blender, blender, and stand mixer with numbered parts

التعريف بالخلاط

.1 خلاط

.2. زرّ个别 الوحدات

Close-up of a kitchen mixer with an open handle and metal bowl, labeled A (no text or symbols on the main subject)

Labeled diagram of kitchen equipment including a hand mixer, blender, and water dispenser with numbered parts

OPIS MIKSERA

1. Metlice za gnje ^v cenje
2. Gumb za zaklju ^v cavanje miksera
3. Baza/Postolje

PRIJE POČETKA UPORABE MIKSERA:

Prije po četka sklapanja štapnog/stolnog miksera uvjerite se da utika c miksera nije umetnut u utičnicu i da se gumb za pode savanje brzine nalazi u poziciji "0".

Close-up of a kitchen mixer with handle and whisk (no text or symbols visible)

RUKOVANJE MIKSEROM

1. Uvjerite se da se aparat nalazi u poziciji 0 i nakon toga umetnite utika c u uti cnicu.
2. Gumb za odabir brzine podesite u željenu poziciju. Postoji 5 postavki brzine. Aparat će početi da radi i pritiskom na gumb Turbo brzina se pove' cava za 25%.

Upozorenje: Tijekom rada aparata u posudu za mije sanje ne ubacujte no z, metalnu ka siku, vilicu i sli cne objekte.

1. Aparat treba koristiti najduže 3 minute u kontinuitetu i između dvije uzastopne uporabe treba praviti pauzu od najmanje 1 minute. Za postizanje najboljih rezultata kod pripreme tijesta s kvascem mije sanje po cnite sa niskom brzinom i postepeno je pove cavajte.
2. Nakon mije sanja sastojaka gumb za odabir brzine podesite u poziciju 0 i izvucite utika c iz uti cnice.
3. Pritisnite na gumb za zaklju ^v cavanje glave miksera i podignite glavu miksera u uspravan polo ^z zaj.

4. Po potrebi višak hrane zadržane na metlicama uklonite uz pomoć plastične ili drvene spatule.

5. Jednom rukom uzmite metlice za mije sanje/gnje cenje a drugom rukom cvrsto pristisnite na gumb za izbacivanje metlica i izvadite metlice iz miksera.

Labeled diagram of kitchen appliances including a blender, blender, and blender with numbered parts
