Product Type	Manual vegetable slicer (mandoline)
Brand	de Buyer
Model	La Mandoline 001150
Main Material	Stainless steel and composite polymers
Finish	Satin brushed stainless steel
Horizontal Blade	Double blade in cutlery-grade stainless steel (micro-serrated "micro lobes" side and wavy side)
Julienne Blades	3 interchangeable combs: 2 mm, 4 mm, and 10 mm in pro quality stainless steel
Cube Cutting System	Integrated and patented, enables cutting cubes, diamonds, and waffles
Cut Types	Smooth slices, scalloped slices, julienne, cubes, diamonds, waffle
Adjustable Cutting Thickness	From 0 to 10 mm (engraved marks on the frame)
Safety	Carriage and pusher required, non-slip silicone feet, no contact with blades
Stability	Rear feet with stainless steel bezels for enhanced grip
Improved Glide	Honeycomb-patterned ramp with special pro non-stick coating
Carriage Capacity	Large capacity, pusher with pins and spring for holding
Storage	Foldable feet, removable storage box encased under the frame for combs
Maintenance	Entire unit dishwasher safe (hand washing recommended for blades)
Warranty	2 years against manufacturing defects
Box Contents	Frame, carriage with brushed stainless steel pusher, double horizontal blade, 3 julienne combs (2-4-10 mm) and their storage box, cube cutting system
Available Option	Extra-long pusher (ref. 2012.55) for long cuts
Usage	Professional and domestic, robust and durable

Frequently Asked Questions - La Mandoline 001150 de Buyer

How to adjust the cutting thickness on the de Buyer Mandoline?

Loosen the two wing nuts on either side of the ramp slightly. Adjust the ramp height using the engraved marks on the frame (0 to 10 mm). Retighten the wing nuts to lock the ramp. Do not overtighten.

How to use the cube cutting system to make cubes?

Place the horizontal blade on the micro-serrated side. Insert the chosen julienne comb. Set the ramp to the corresponding CUBE vertical mark (e.g., CUBE 4 for 4 mm comb). Place the product in the carriage, position the longest notch (90°) at the stop. Make a first pass, then bring the carriage back, turn it a quarter turn, and push again. Repeat.

How to clean the Mandoline 001150?

The entire mandoline can go in the dishwasher. The comb storage box is removable. For optimal cleaning, wash the blades and combs by hand with a brush for the teeth. Wipe dry and store away from moisture.

How to change the blades and julienne combs?

For the double horizontal blade, insert it on the left side of the mandoline until it clicks. To remove it, press the side button. For the julienne combs, turn the mandoline over, open the 2 locks, align the marks, insert the comb, and close the locks. Always handle by the gripping areas.

How to make waffle julienne cuts?

Use the horizontal blade on the wavy side and a julienne comb of at least 4 mm. Adjust the cutting height to your preference. Perform a back-and-forth motion while keeping the axis straight.

Can I cut soft fruits (tomatoes, bananas) without crushing them?

Yes, use the horizontal blade on the micro-serrated side ("micro lobes") which allows slicing soft fruits and vegetables without crushing them. Set the desired thickness.

How to store the julienne combs?

The combs are stored in their removable storage box encased under the frame. Simply unclip it to remove. The combs are identified by a color code and the spacing indicated.

What is the maximum cutting thickness?

The maximum cutting thickness is about 10 mm. The ramp adjusts from 0 to 10 mm using the engraved marks on the frame.

Is the mandoline dishwasher safe?

Yes, the entire mandoline can be washed in the dishwasher. However, it is recommended to wash the blades and combs by hand to extend their lifespan.

How to use the optional long pusher (ref. 2012.55)?

The extra-long pusher attaches to the mandoline for cutting long vegetables (zucchini, carrots) into sticks or giant fries. It consists of a plastic carriage and a pusher with spikes. It does not allow making waffle, cube, or diamond cuts. Use a back-and-forth motion.

USER MANUAL La Mandoline 001150 de Buyer

The vegetable/fruit slicer "La Mandoline Ultra"

evolves and becomes :

LA MANDOLINE REVOLUTION

La Mandoline

米米米米米米

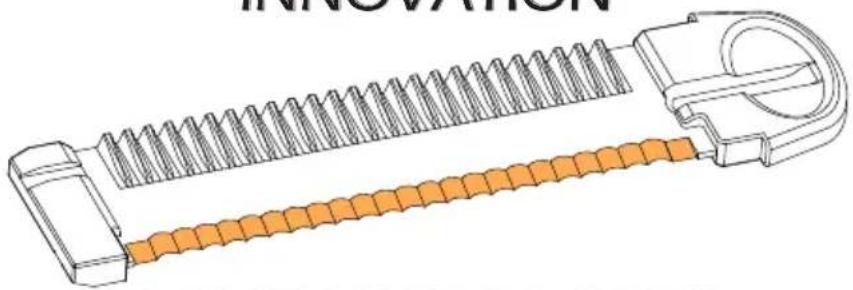

INNOVATION

LAME MICROLOBES

LOBED EDGE BLADE

MADE IN FRANCE

modèle déposé

Design and utility patented

BVCert.6054661

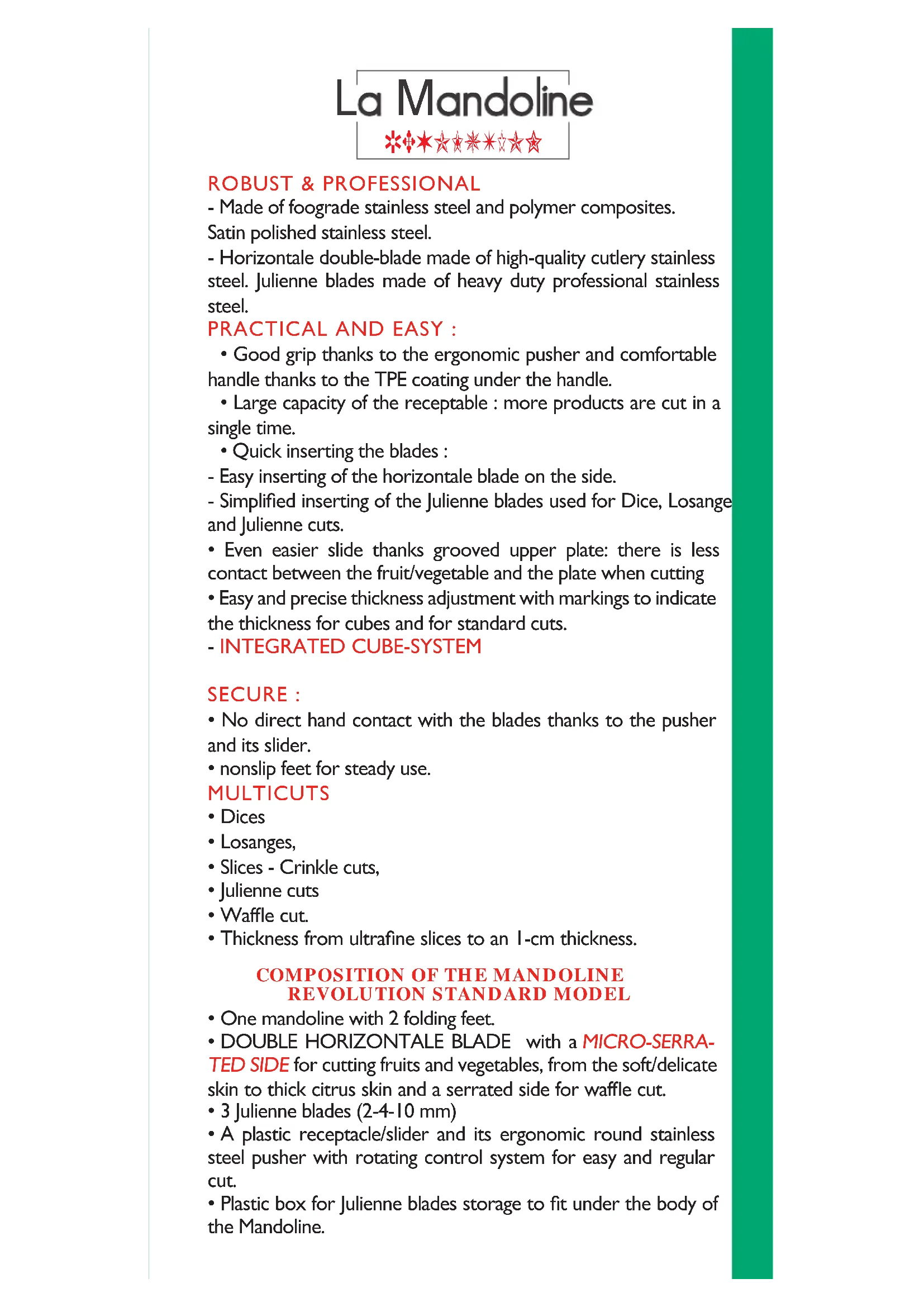

The vegetable/fruit slicer "La Mandoline REVOLUTION" is guaranteed for 2 years against manufacturing defect and when used under normal conditions. All documents, information, characteristics and photographs in this manual are for information only and are not warranted. We disclaim liability in event of inaccuracy thereof. We reserve the right to make any changes therein without prior notice.

• Made of foograde stainless steel and polymer composites.
  Satin polished stainless steel.
• Horizontale double-blade made of high-quality cutlery stainless steel. Julienne blades made of heavy duty professional stainless steel.

PRACTICAL AND EASY :

• Good grip thanks to the ergonomic pusher and comfortable handle thanks to the TPE coating under the handle.
• Large capacity of the receptable : more products are cut in a single time.

• Quick inserting the blades :

• Easy inserting of the horizontal blade on the side.

• Simplified inserting of the Julienne blades used for Dice, Losange and Julienne cuts.
• Even easier slide thanks grooved upper plate: there is less contact between the fruit/vegetable and the plate when cutting
• Easy and precise thickness adjustment with markings to indicate the thickness for cubes and for standard cuts.

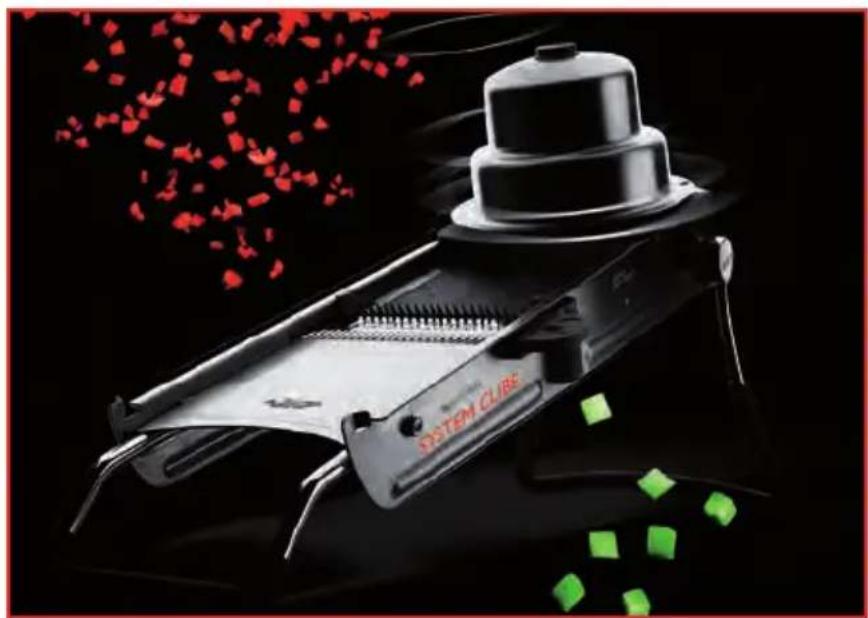

• INTEGRATED CUBE-SYSTEM

SECURE:

• No direct hand contact with the blades thanks to the pusher and its slider.
• nonslip feet for steady use.

MULTICUTS

Dices
Losanges,
- Slices - Crinkle cuts,
Julienne cuts
Waffle cut.
- Thickness from ultrafine slices to an 1-cm thickness.

COMPOSITION OF THE MANDOLINE REVOLUTION STANDARD MODEL

• One mandoline with 2 folding feet.
• DOUBLE HORIZONTAL BLADE with a MICRO-SERRATED SIDE for cutting fruits and vegetables, from the soft/delicate skin to thick citrus skin and a serrated side for waffle cut.
  3 Julienne blades (2-4-10 mm)
• A plastic receptacle/slider and its ergonomic round stainless steel pusher with rotating control system for easy and regular cut.
• Plastic box for Julienne blades storage to fit under the body of the Mandoline.

COMPOSITION OF THE MANDOLINE REVOLUTION - MASTER MODELE

La Mandoline

********

• Multi-cuts : Dice, losange, slice, Julienne, waffle, crinkle cuts
• Easy adjustment and use
• Robust and professional
  -Total safety
  -With integrated DICING «CUBE SYSTEM»

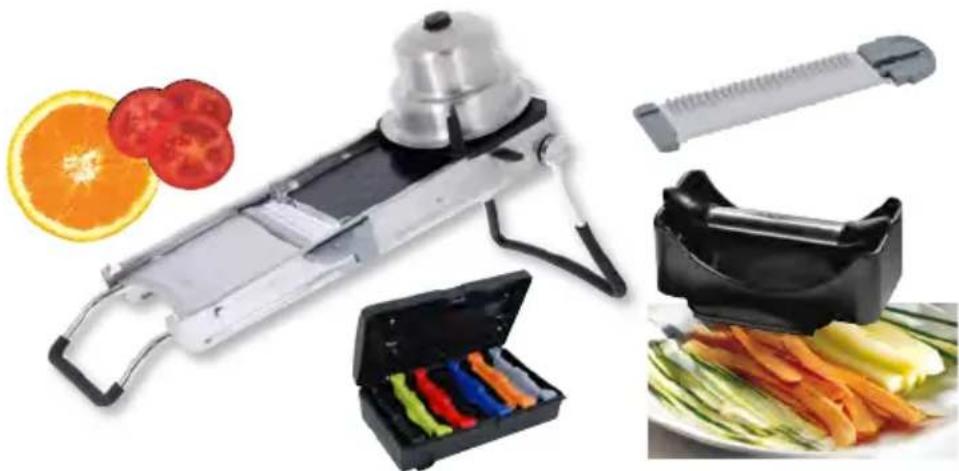

ADVANTAGES:

• special PRO SLIDE coating on the upper plate improving considerably the slide, even when dry products are cut.
• DOUBLE HORIZONTAL BLADE with a MICRO-SERRATED SIDE for cutting fruits and vegetables, from the soft/delicate skin to thick citrus skin and a serrated side for waffle cut.
• 2 CAPS made of cast stainless steel = improved resistance of the feet.
• STAINLESS STEEL PROTECTIVE PUSHER with rotating control system for easy and regular cut.
  -6 JULIENNE blades 2-3-4-5-7 and 10mm

Feet

• La Mandoline has folding feet and can be easily stored.
• A non-skid coating covers the feet base to ensure a secure and steady use.
• La Mandoline can be used either directly on the working surface or above a container.

Inserting of blades

The blades are very sharp so please always handle the blades by holding it by their handle. Never make any adjustment by direct hand contact with the sharp edge or by using a metal object. This is not only for safety reasons, but it also might damage the blade.

HORIZONTALE DOUBLE-BLADE

• La Mandoline REVOLUTION has one double horizontal blade - one micro serrated side and one serrated side - to produce slices or crinkles.
• Choose the cut - slice or crinkle - with the chosen side facing up the Mandoline handle.

The horizontal blade is to be inserted in La Mandoline on the left side. This blade should be pushed all the way in. A soft snap will confirm a complete insertion.

• To remove the straight blade, press the small pusher on the side of the blade.

JULIENNE BLADES

• La Mandoline REVOLUTION has different Julienne horizontale blades (with spacings 2 - 4 - 10mm ) to produce sticks and French fries.
• To pick out them easily: each Julienne blade has its own colour and is marked to indicate the spacing.
• Julienne blades are stored in a plastic box to fit under the body of the Mandoline.

• Loosen the upper plate with the tightening knobs before inserting the Julienne blade. bolt
• Turn over the Mandoline; the dicing «cube system» must be set up. Open the bolts.
• Insert the blade; the markers on the Julienne blade and those on the Mandolinc must fit.
• When the blade is its place, lock the bolts.

The slider and its pusher

• La Mandoline REVOLUTION is delivered with its slider and its pusher. They protect fingers from the sharp blades and they must be used at all times. Just slide the slider on the frame of la Mandoline. It can not go off the rails.
• Food should be placed into the slider (oversized vegetables or fruits) should be pre-cut in order to fit in the slider).
• Place the pusher in the middle of the slider.
• The hand-held pusher actually pushes the food toward the blades. The interior pushing plate of the pusher has prongs and pins to secure the food in place. The pushing plate is mounted on a spring which helps to press the food and then slowly releases it as the vegetables or fruits diminish after each cut.

ROTATING CONTROL SYSTEM

• The slider and its pusher are equipped with a rotating control system to cut casier and more regularly.

Notch 90^ to control rotation for dicing and waffle cuts.

Notch 45^ to control rotation for Diamond and waffle cuts.

Stop of the slider

• The stop of the slider blocks the rotating movement. This enables to cut regularly.

• The stop is also used as a rest to stay always in line when Julienne are cut.

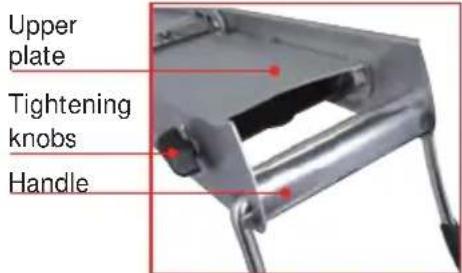

The thickness adjustment mechanism

• The upper plate allows for adjusting the thickness of the cuts.
• The thickness can be set up to a maximum of around 10mm (3/8").

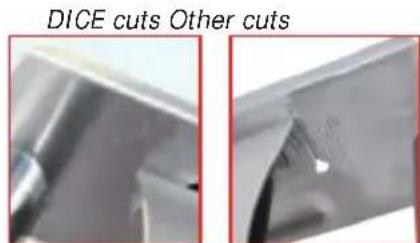

Thickness Adjustment Markers

• There are two tightening knobs on either side of La Mandoline, which are to be loosened when changing the thickness of the slices (1); there is no need to secure the tightening knobs too strongly, as it is secure once you feel a reasonable resistance.

Once the knobs are loosened, the upper plate can freely slide up and down and in turn increases or decreases the thickness of the cut (2).

• Once the desired thickness is obtained the knobs should then be tightened again to produce the new thickness.

1

2

ADVICE :

• For all the cuts in general, place the oblong food product in the slider along its length and slightly inclined on one side.
• Remove the storage box for Julienne blades during use and replace it for storage.
• For easier cutting of hard products, press on the central shaft of the pusher during the with up-and-down movement.

FOR HORIZONTAL CUTS with the horizontal blade used by itself, REMOVE THE DICING CUBE SYSTEM: move back the slider to place it on the dicing Cube System (1) and lock both bolts on the frame of the Mandoline (2).

Slices

Crinkle cuts

Waffle cut

• Use the serrated side of the horizontal blade. Adjust the thickness to a very thin thickness between 0 and 2 (see the thickness markers from 0 to 10 on the frame); this thickness can be adjusted according to the product consistency. Push up the upper plate(1): place your other hand below the lower portion of the top plate and raise it as much as possible. Then tighten the knobs. Insert the horizontal blade and remove the dicing Cube System.

2

To cut slices, choose the side of the horizontal blade: micro serrated side or serrated side according the required cut. No Julienne blade is placed.

Insert the horizontal blade.

Adjust the thickness. Cut the product with up-and-down movement.

1

m = 311

STICKS AND FRENCH FRIES

Insert the horizontal blade using its straight micro serrated side. Choose the required Julienne blade in its storage box under the Mandoline. Adjust the thickness (see the markers from 0 to 10 on the frame). Cut the product with up-and-down movement.

Be careful: stay always in line when cutting to avoid cutting dices/ losanges.

Use the stop of the slider as a rest when Julienne are cut.

storage box 3 Julienne blades

stop of the slider

Examples of Julienne cuts

2 mm

4 mm

10 mm

To realize oversized French fries with the 10-mm Julienne blade, push down the upper plate to the lowest level when you adjust the thickness (press on the plate). The upper plate and the Julienne blade go down.

CRINKLE STICKS

It is also possible to cut CRINKLE STICKS: insert the horizontal blade using its SERRATED side. Choose the required Julienne blade in its storage box under the Mandoline : for such cuts, it is possible to use Julienne blades from spacement 4 mm.

THE CUTS

DICES

• Insert the horizontal blade using its straight micro serrated side.
• Place the choosen Julienne blade - Be sure that the upper plate is loosened and can free move.
• Adjust the thickness according to the vertical DICES markers engraved on the Mandoline frame. Then lock the plate. (ex: if you use the 4-mm blade, adjust the upper plate on the vertical marker CUBE 4).
• Place the product in the slider, put the pusher on the slider using the side with the longer notch (1), push the slider down (2) and throw away the first cut food products which are not dices.
• Push the slider then back to the top and once the slider is completely above the blade, rotate it one quarter turn. The stop of the slider controls the rotation. Maintaining the rotated position push the slider down over the blade (4) and again back to the top. Repeat the movements until the product is completely cut.

1 Use notch 90^ to control rotation for dicing cuts.

2

3

4

10 mm

DIAMONDS

• The cutting method is the same as for dices. Just make a smaller rotation than 1/4 turn.

Use notch 45^ to control rotation for Diamond cuts

ADVICES：

• For an easy cut, move the slider fast when cutting.

• Be careful: if the upper plate is too low (if the thickness is too large), the dices don't come off. Then adjust the thickness.

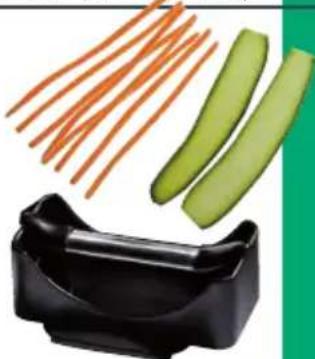

OPTIONAL: EXTRA-LONG PUSHER (réf.2012.55)

LONG CUTS

The Mandoline REVOLUTION MASTER is supplied with an EXTRA-LONG PUSHER + its slider:

• to cut long vegetables in sticks (zucchini, carott, horse radish, ...)

• to cut tagliatelles of potatoes, cucumbers, zucchini,...

• to cut extra-large French fries, etc.

II is NOT possible to cut waffles, dices or losanges with the long pusher.

Composition of the extra-long pusher: the plastic long slider holds the food to be cut and the long rectangular plastic pusher with stainless steel handle protects the fingers from the sharp blade. Barbs on the sole of the pusher enable long food product to be held during cutting.

Use in place of the standard slider and round pusher. Same putting into service.

Cut the food product with up-and-down movement.

CLEANING AND STORAGE

• The body and the feet of la Mandoline are made of stainless steel and are dishwasher safe.
• Wipe la Mandoline after cleaning and store it in a dry place.
• The storage box for Julienne blades placed under the Mandoline can be removed for cleaning.

Slider and pusher (plastic or stainless steel)

For detailed cleaning, the slider can be removed. In order to remove the slider, simply slide it off the mandoline frame.

For detailed cleaning the pusher can be taken apart. There is a cap at its very top, which releases the shaft separating the ergonomic top from the lower interior plate and freeing the spring. In order to release the cap it must be loosened with a turn to the left. The stainless steel needles cannot be removed. After cleaning, reverse the operation to reassemble all pusher parts.

Blades

The horizontal blades and the Julienne blades are made of high-quality carbon steel and are dishwasher safe, however, their life span will be increased if hand-washed. A brush may be used to clean between the sharp teeth of the julienne blades.

ADVICES :

For an always optimal use, pour some time to time a little quantity of foodgrade oil in the dicing Cube System

Grease regularly the uprights of the frame for better sliding.

PRECAUTIONS

La Mandoline de Buyer is a vegetable/fruit slicer designed to grant you most security when you make your cuts. However La Mandoline requires the use of sharp blades which must be cautiously manipulated. Please respect the following advices:

• The receptacle and its pusher protect fingers from the sharp blades and they must be used at all times.
• The Mandoline frame and the blades (horizontal blades and Julienne blades) must always be manipulated by their handles.
• Never make any adjustment by direct hand contact with the sharp edge
• Keep out of the reach of children.
