Product Type	Vegetable and fruit slicer (mandoline)
Brand	de Buyer
Model	Swing Plus 001100
Materials	Stainless steel and technical polymer frame; hardened special steel blades and combs
Number of Blades Included	1 double horizontal blade (micro-lobe serrated and wavy)
Number of Combs Included	1 double Julienne comb (4 mm and 10 mm sides)
Cutting Thickness Adjustment	From 0.5 mm to 10 mm via adjustment knob
Cutting Functions	Smooth or wavy slices, waffle cut, sticks, julienne (4 and 10 mm)
Push Block	Ergonomic push block with needles and integrated spring
Safety	Carriage with push block preventing any contact with the blade; non-slip silicone feet
Cleaning	Dishwasher safe (unit and accessories)
Storage	Foldable rear foot for minimum footprint
Origin	Made in France
Warranty	2 years against manufacturing defects
Dimensions (L x W x H)	Approximately 38 x 12 x 10 cm (estimated)
Weight	Approximately 1.5 kg (estimated)

Frequently Asked Questions - Swing Plus 001100 de Buyer

How do I adjust the cutting thickness on the Swing Plus?

Turn the adjustment knob located under the support plate. First push the knob down, then turn it to adjust the thickness from 0.5 mm to 10 mm. The plate moves vertically according to the chosen height.

How do I insert the blade or comb?

For the blade, insert it into the left side of the mandoline following the rail until it clicks. For the comb, insert it into the right side. Always hold by the gripping area and do not touch the sharp edges.

Can I cut hard vegetables like carrots or beets?

Yes, the mandoline is designed to cut firm vegetables. To facilitate cutting, lightly moisten the support plate. Always use the carriage and push block for safety.

How do I make fries or sticks?

Use the Julienne comb (4 or 10 mm) in combination with the smooth horizontal blade (micro-lobe side). Place the comb upward, insert it, then use the carriage with the vegetable to cut.

Can I wash the mandoline in the dishwasher?

Yes, the entire mandoline and its accessories (blades, combs, carriage, push block) are dishwasher safe. However, hand washing extends the life of the blades.

How do I disassemble the push block for cleaning?

Turn the top part of the push block to the right to unlock it. Separate the body from the inner part and release the spring. The needles are not removable. Reassemble by reversing the operation.

What types of cuts can I make with the Swing Plus?

Smooth slices (micro-lobe blade), wavy slices (wavy blade), waffle cuts (wavy blade with rotation of the push block), and sticks/julienne (4 and 10 mm combs).

Is the mandoline stable during use?

Yes, the feet are coated with non-slip silicone. The rear foot unfolds for optimal stability. You can use it on a work surface or directly on a container.

How do I store the mandoline to save space?

Fold the rear foot to reduce the footprint. Store it in a dry place. Blades and combs can be kept in the storage box provided with the Julienne 2/7 mm option.

What if the blade or comb does not click into place?

Check that you are inserting the blade/comb into the correct rail (left for blade, right for comb). Push firmly until you hear a click. If the problem persists, clean the rails and try again.

USER MANUAL Swing Plus 001100 de Buyer

The vegetable/fruit slicer "Swing Plus" is guaranteed for 2 years against manufacturing defect and when used under normal conditions. All documents, information, characteristics and photographs in this manual are for information only and are not warranted. We disclaim liability in event of inaccuracy thereof. We reserve the right to make any changes therein without prior notice.

Close-up of a metallic screw with threaded shaft and mounting bracket (no text or symbols visible)

Close-up of a hand holding a plastic clip attached to a black plastic clip (no text or symbols visible)

Close-up of a hand holding a small transparent object with a yellow arrow pointing to it, next to a metallic screw-like object (no text or symbols visible)

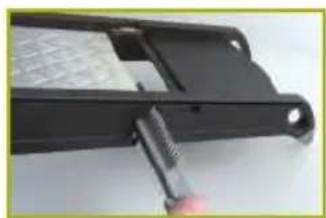

DOUBLE-PEIGNES JULIENNE

Close-up of a metallic tool with evenly spaced teeth (no text or symbols visible)

Close-up of a black plastic clip holding a metal tool, with no visible text or symbols

Close-up of a mechanical component with a red dashed circle highlighting a section, no visible text or symbols

Black plastic mechanical component with a flanged top and base (no text or symbols visible)

3D rendered image of a gray mechanical component with a circular top and rectangular base (no text or symbols)

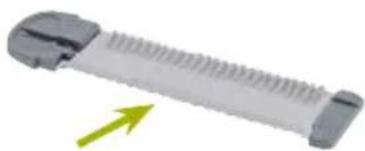

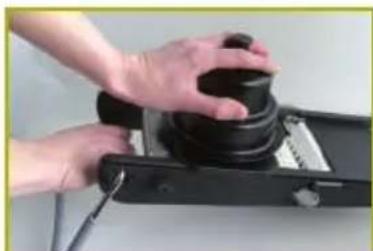

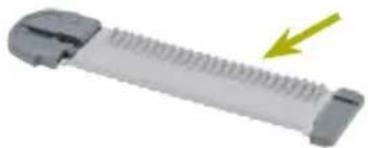

LES COUPES

Close-up of hands operating a black electronic device with a coiled cable (no visible text or symbols)

Two abstract organic shapes: a green spiral shell and a red textured circular form (no text or symbols)

Close-up of a metallic screwdriver with a yellow arrow indicating direction (no text or symbols)

Coupe ondulée

Close-up of a mechanical component with a yellow arrow pointing to it (no text or symbols visible)

Two types of plastic brushes: a cylindrical brush and a multi-pronged brush, with no visible text or symbols.

Close-up of a mechanical component with a red arrow pointing to a specific part (no visible text or symbols)

Replacer la boîte

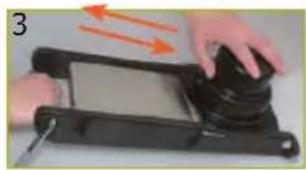

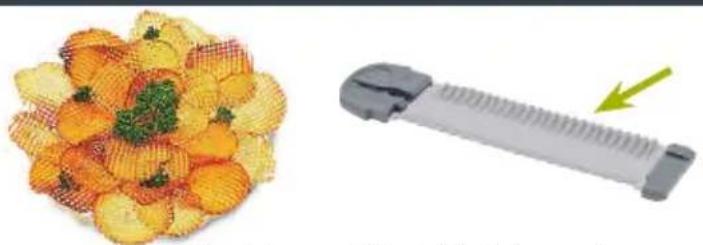

LA COUPE GAUFRÉE

Illustration of a dish with orange and yellow slices and a green vegetable, alongside a plastic tool with a green arrow (no text or symbols)

Hand pressing a black button on a black device with orange arrows indicating motion (no text or symbols visible)

Close-up of hands operating a black mechanical device with a circular button, no visible text or symbols

Close-up of a hand holding a black electronic device with a scroll, no visible text or symbols

ENTRETIEN

Close-up of a hand pressing down on a black cylindrical object with a yellow arrow on the top (no text or symbols visible)

Black mechanical components including a cylindrical pin, flange, and washer (no text or symbols visible)

Lames et peignes

- Made of stainless steel and technical polymer • Blades made of high-quality cutlery stainless steel •

EFFICIENT

- Easy and precise cut • Large capacity of the receptable • more products are cut in a single time • Precise thickness adjustment thanks to tightening knobs • from ultrafine slices (0,5 mm) to an one-centimeter thickness •

COMPACT

Light • easy to handle • Folding upper foot •

PRACTICAL

- Easy inserting of the blades on the side • Easy thickness adjustment • Good grip thanks to the ergonomic pusher • Easy cleaning • Dishwasher safe •

SECURE

- No direct hand contact with the blades thanks to the pusher and its slider • nonslip feet for steady use •

MULTICUTS

Slices • Crinkles • Waffle cut • Julienne cut •

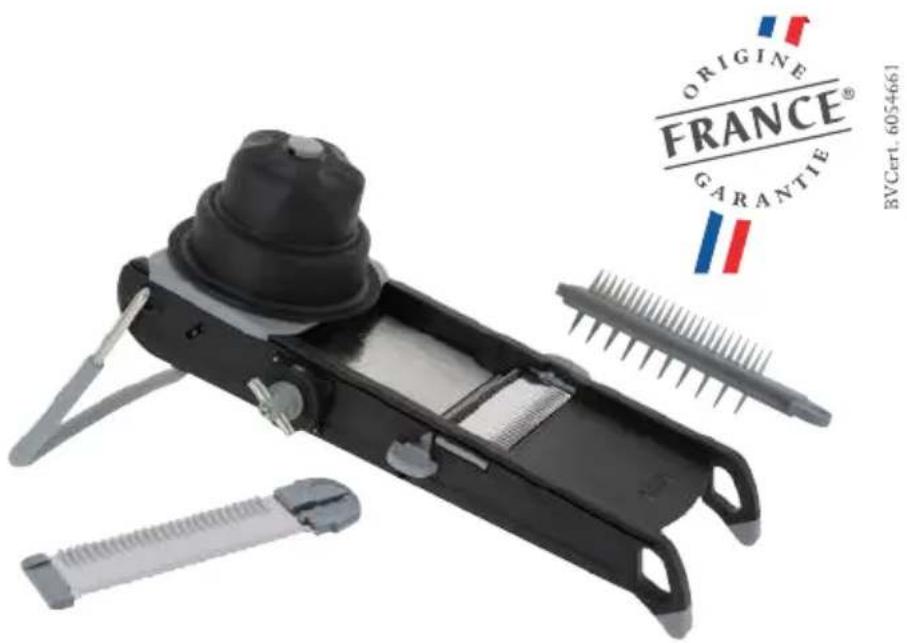

COMPOSITION

La Mandoline Swing PLUS

• Stainless steel - polymer composite Mandoline Adjustable 1 to 10-mm thick cuts.
  • A double horizontale blade - micro-serrated and serrated
  • A double Julienne blade 4/10 mm
  • Receptacle for vegetables / fruits
• Ergonomic pusher

Feet

• La Mandoline Swing has one folding upper foot and can be easily stored.
• A non-skid coating covers the feet base to ensure a secure and steady use.
• La Mandoline Swing can be used either directly on the working surface or above a container.

Inserting of blades

The teeth are very sharp so please always handle the blade by holding it by its handle.

Never make any adjustment by direct hand contact with the sharp edge or by using a metal object. This is not only for safety reasons, but it also might damage the blade.

Close-up of a hand holding a small gray object, possibly a tool or component (no visible text or symbols)

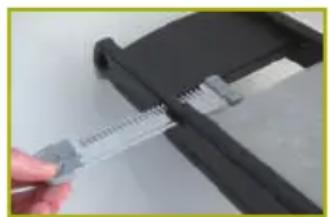

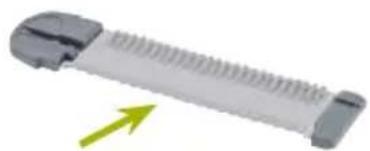

DOUBLE HORIZONTAL BLADE

• La Mandoline Swing Plus has one double horizontal blade - one straight lobe-edged side and one serrated side - to produce slices or crinkles.

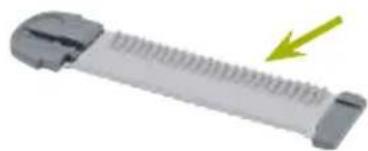

• Choose the cut - slice or crinkle – with the chosen side facing up the Mandoline handle.

The horizontal blade is to be inserted in La Mandoline on the left side. A double rail guides the blade for perfect insertion. This blade should be pushed all the way in. A soft snap will confirm a complete insertion.

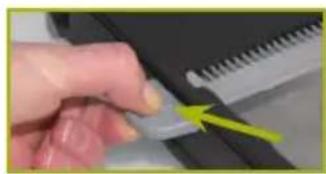

- To remove the straight blade, press the small pusher on the side of the blade.

Close-up of a metallic screw with threaded shaft and mounting bracket (no text or symbols visible)

Close-up of a hand holding a plastic clip attached to a black plastic clip (no text or symbols visible)

Close-up of a hand holding a small object with a yellow arrow pointing to it, next to a spiral notebook (no text or symbols visible)

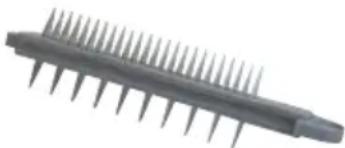

DOUBLE JULIENNE BLADE

• La Mandoline Swing Plus has double verticale blades to produce Julienne cuts, sticks or French fries.
• Choose the cut with the chosen side facing up.
• The double Julienne blade is to be inserted in the slicer Swing Plus on the right side. A double rail guides the blade for perfect insertion. This blade should be pushed all the way in. A “clac” will confirm a complete insertion.

Close-up of a metallic tool with evenly spaced pins (no text or symbols visible)

Close-up of a hand using a grater to cut a black plastic tray (no text or symbols visible)

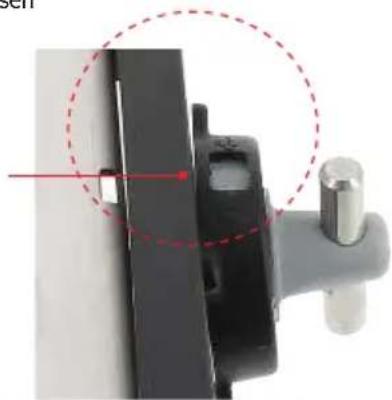

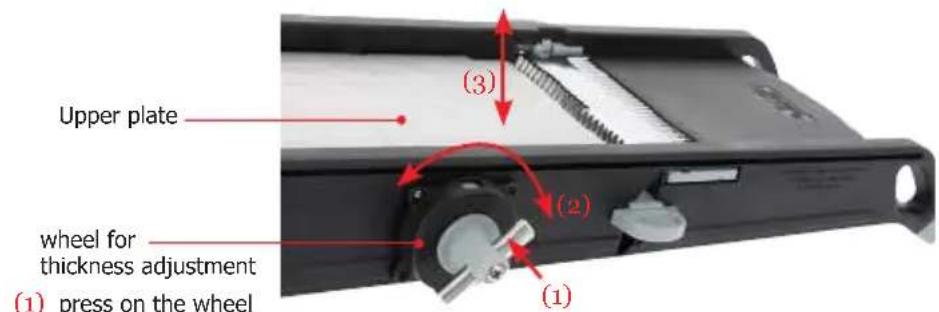

The thickness adjustment mechanism

• The upper plate allows for adjusting the thickness of the cuts. The thickness can be set up to a maximum of around 10mm (3/8").
• Easy thickness adjustment thanks to a wheel. The upper plate easily slides up and down
• Marking in mm of the cutting thickness on the wheel for a precise adjustment.

(1) press on the wheel
(2) Keep the wheel pressed while turning to adjust the thickness
(3) The plate slides according to the chosen thickness

- Marking in mm of the cutting thickness on the wheel

Close-up of a mechanical clamp or bracket with a red dashed circle highlighting a specific part (no text or symbols visible)

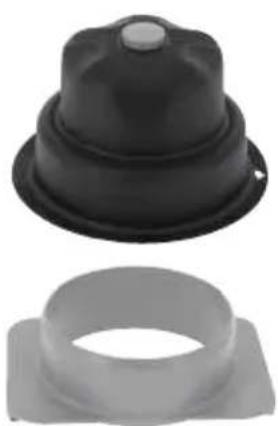

The slider and its pusher

• La Mandoline Swing Plus is delivered with its receptacle and its pusher. They protect fingers from the sharp blades and they must be used at all times.
• Just slide the receptacle on the frame of la Mandoline. It can not go off the rails.
• Food should be placed into the receptacle (oversized vegetables or fruits should be pre-cut in order to fit in the receptacle).

- Place the pusher in the middle of the receptacle.

- The hand-held pusher actually pushes the food toward the blades. The interior pushing plate of the pusher has prongs and pins to secure the food in place. The pushing plate is mounted on a spring which helps to press the food and then slowly releases it as the vegetables or fruits diminish after each cut.

Two types of plastic components: a black cap-like object and a gray ring-like object (no text or symbols visible)

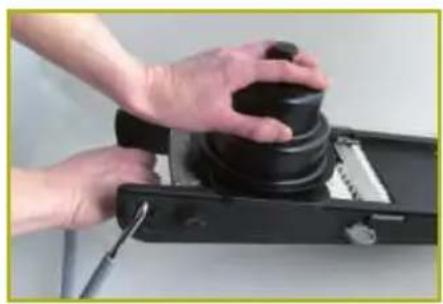

PUTTING INTO SERVICE

Advise for an even easier cutting : dampen the upper plate before cutting

Close-up of hands operating a black industrial control device with a handle (no visible text or symbols)

Slices

Two abstract 3D shapes: a green spiral shell and a red textured form (no text or symbols)

Close-up of a metallic screw with a yellow arrow indicating direction (no text or symbols)

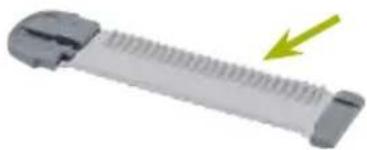

Crinkle cuts

Close-up of a metallic tool with threaded end and a green arrow pointing to it (no text or symbols visible)

- The serrated blade should always be used by itself.

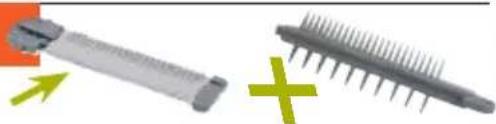

Sticks & French fries

Two mechanical components with arrows indicating direction, one metallic and one striped, the other green plus sign (no text or symbols)

- Please note that when using the julienne blade, the straight horizontale blade must be inserted.

DOUBLE-BLADE JULIENNE 4/10 mm REF.2015.92

Spacing 4 mm Spacin

OPTION: DOUBLE-BLADE JULIENNE 2/7 mm REF.2015.93

delivered with its storage box

Spacing 2 mm Spacin

The storage box for Julienne blades placed under the Mandoline must be removed during use or for cleaning.

Remove the box

Close-up of a mechanical component with a red arrow pointing to a feature (no visible text or symbols)

Replace the box

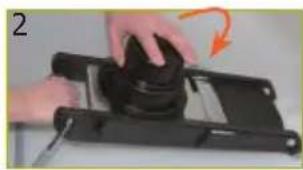

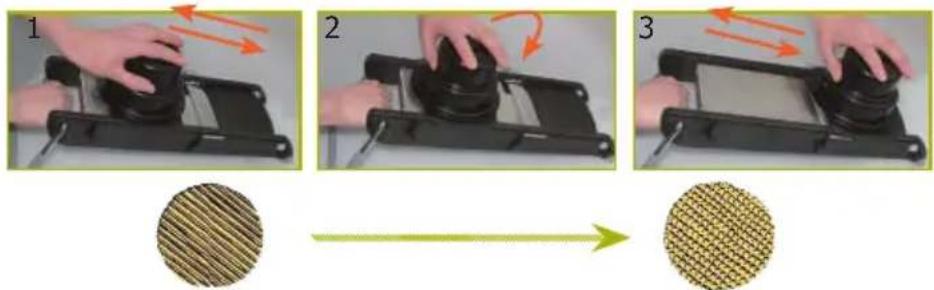

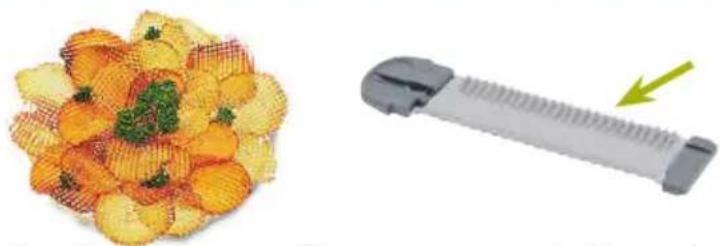

THE WAFFLE CUT

Illustration of a food item with green herbs and a plastic tool (no text or symbols)

- La Swing Plus slicer allows to cut waffles on a secure way. For this cut, the serrated blade must be inserted. Furthermore, the waffle cut requires that the thickness be adjusted to a very thin thickness.

- A waffle cut is obtained by turning the pusher round a quarter after each cut. A single cut cannot make a waffle cut as two uninterrupted cuts at opposing angles are required. The pusher offers unparalleled safety because, unlike other mandolines on the market, the pusher can be used when creating waffle cuts.

CLEANING

- The body and the feet of la Mandoline are made of stainless steel and are dishwasher safe.

- Wipe la Mandoline after cleaning and store it in a dry place.

1 2Receptacle and pusher

The receptacle and the pusher will still need to be washed regularly. Both pieces, like La Mandoline, are dishwasher safe. For detailed cleaning, the receptacle can be removed.

In order to remove the receptacle simply slide it off the mandoline frame.

For detailed cleaning the pusher can be taken apart. There is a cap at its very top, which releases the shaft separating the ergonomic top from the lower interior plate and freeing the spring. In order to release the cap it must be loosened with a turn to the left. The stainless steel needles cannot be removed. After cleaning, reverse the operation to reassemble all pusher parts.

Close-up of a hand pressing down on a black circular object with a green arrow (no text or symbols visible)

Black mechanical components including a cylindrical pin, flange, and washer (no text or symbols visible)

Blades

The horizontal blades and the Julienne blades are made of high-quality carbon steel and are dishwasher safe, however, their life span will be increased if hand-washed. A brush may be used to clean between the sharp teeth of the julienne blades.

PRECAUTIONS

• La Mandoline de Buyer is a vegetable/fruit slicer designed to grant you most security when you make your cuts. However La Mandoline requires the use of sharp blades which must be cautiously manipulated. Please respect the following advices:
• The receptacle and its pusher protect fingers from the sharp blades and they must be used at all times.
• The Mandoline frame and the blades (horizontal blades and Julienne blades) must always be manipulated by their handles.
• Never make any adjustment by direct hand contact with the sharp edge
• Keep out of the reach of children.

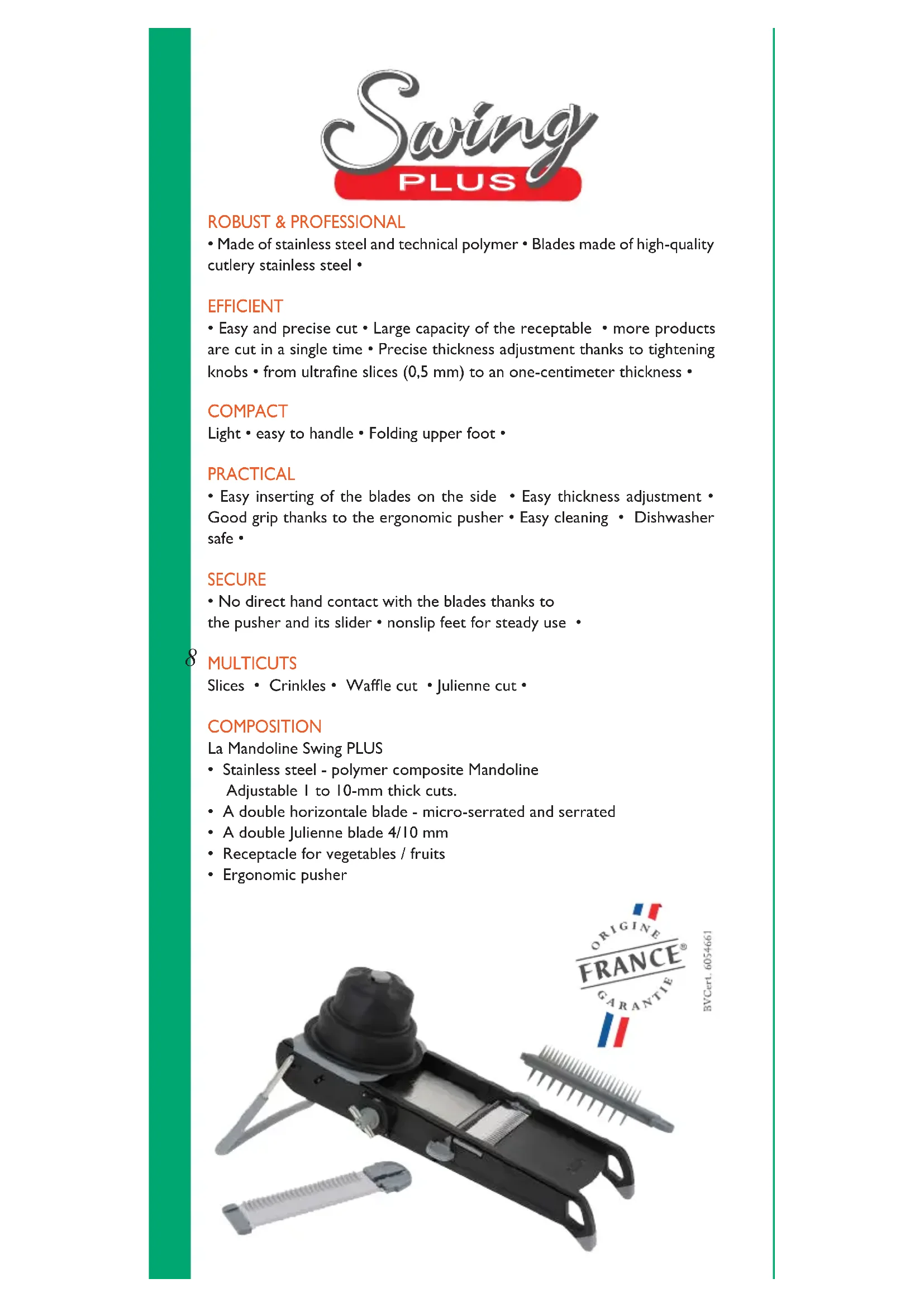

Swing PLUS

ROBUST & PROFESSIONNELL

Close-up of a metallic screw or fastener with threaded shaft and clamped end (no text or symbols visible)

Close-up of a hand holding a plastic clip attached to a black plastic tray (no text or symbols visible)

Close-up of a hand pressing a small metallic clip with a yellow arrow pointing to it (no text or symbols visible)

JULIENNE DOPPELTKLINGE

Close-up of a metallic tool with evenly spaced spikes (no text or symbols visible)

Close-up of a hand using a grater to cut a textured surface (no text or symbols visible)

Close-up of a mechanical clamp or bracket component with a red dashed circle highlighting a specific part (no text or symbols visible)

Black plastic mechanical component with a circular top and flange (no text or symbols visible)

3D rendered image of a gray mechanical component with a circular top and rectangular base (no text or symbols)

SCHNEIDEN

Close-up of hands operating a black industrial device with a handle (no visible text or symbols)

Scheiben

Two food items: a green striped vegetable and a red curly, flower-like object (no text or symbols)

Close-up of a metallic screwdriver with a yellow arrow pointing to it (no text or symbols visible)

geriffelte Scheiben

Close-up of a mechanical component with a yellow arrow pointing to it (no text or symbols visible)

Two mechanical components: a cylindrical tool and a multi-pronged screw with a green cross symbol (no text or labels)

16

Close-up of a mechanical component with a red arrow pointing to a detail (no visible text or symbols)

die Box einstellen

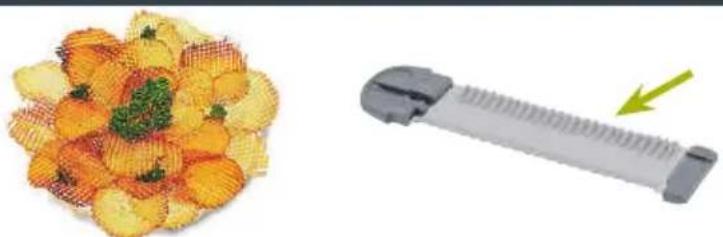

WAFFELSCHNITT

Illustration of a food item with green herbs and sliced vegetables alongside a plastic tool (no text or symbols)

Close-up of a hand pressing down on a black circular object with a green arrow symbol (no text or symbols visible)

Black mechanical components including a cylindrical spring, flange, and housing (no text or symbols visible)

Klingen

Close-up of a metallic screw or bolt with threaded shaft and flange (no visible text or symbols)

Close-up of a hand holding a plastic bag attached to a black plastic clip (no text or symbols visible)

Close-up of a hand pressing a small electronic component with a yellow lightning bolt (no visible text or symbols)

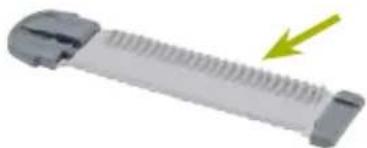

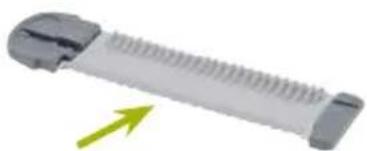

DUBBELE KAM JULIENNE

Close-up of a black hairpin with evenly spaced teeth (no text or symbols visible)

Close-up of a hand using a grater to cut a black plastic component (no text or symbols visible)

Black plastic cap with a flared rim and central knob (no text or symbols visible)

3D rendered image of a gray cylindrical object with a rectangular base, no text or symbols visible

Close-up of hands operating a black industrial device with a handle and cable (no visible text or symbols)

schijfjes

Two food items: a green striped banana and a red curly, twisted rose (no text or symbols)

Close-up of a metallic screwdriver with a yellow arrow indicating compression (no text or symbols)

gegolfde snit

Close-up of a mechanical component with a yellow arrow pointing to a textured surface (no text or symbols visible)

Two types of hairbrushes shown side by side, one with a green arrow pointing to the first pair and the other with a yellow plus sign (no text or symbols)

Close-up of a mechanical component with a red arrow pointing to a section (no visible text or symbols)

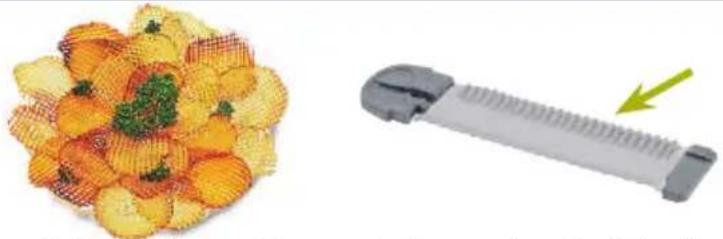

GEWAFELDE SNIT

Two food items: a pile of orange bananas with green herbs next to a plastic tool (no text or symbols visible)

Close-up of a hand pressing down on a black cylindrical object with a green arrow pointing to the top surface (no text or symbols visible)

Black mechanical components including a cylindrical spring, a pin, and a circular head (no text or symbols visible)

Messen en kammen
