Product type	Drip coffee maker
Brand	De'Longhi
Model	ICMI211.BZ Future / ICMI211.BK
Power supply	220-240 V ~ 50/60 Hz
Power consumption	1000 W
Weight	2.5 kg
Maximum capacity	10 cups (1.25 L)
Coffee type	Ground coffee for filter
Filter	Permanent nylon filter (reusable)
Carafe	Glass, graduated
Main functions	On/Off with indicator light, Aroma button (slow flow), automatic shut-off after 40 min, warming plate
Indicators	Transparent water level, on/off and Aroma indicator lights
Included accessories	Measuring spoon, permanent filter
Cleaning and maintenance	Do not immerse, clean with a soft damp cloth
Descaling	Every 60 cycles, with descaling product for drip coffee makers
Safety	Automatic shut-off, protected warming plate, power cord not user-replaceable
Intended use	Household use only
Warranty	Void if descaling not performed regularly
Compliance	EU directives (Low Voltage, EMC, standby)
Country of origin	Not specified

Frequently Asked Questions - DISTINCTA ICMI211.BZ FUTURE, DISTINCTA ICMI211.BK DELONGHI

How to prepare coffee?

Open the lid, pour water into the tank up to the mark corresponding to the number of cups, place the permanent filter in the filter holder, add the ground coffee (1 scoop per cup), close the lid, place the carafe on the warming plate, press the On/Off button. Coffee starts to flow after a few seconds.

What if coffee flows slowly?

This probably indicates a need for descaling. Descale the machine with a special product for drip coffee makers every 60 cycles.

How to use the Aroma function?

Press the Aroma button before brewing for a slower water flow, which releases more aromas. Ideal for small amounts of coffee. The light turns on to confirm.

Does the machine turn off automatically?

Yes, the coffee maker turns off automatically 40 minutes after the coffee stops flowing. You can also turn it off manually by pressing the On/Off button.

How to clean the coffee maker?

Before cleaning, unplug and let cool. Clean the exterior with a soft damp cloth. Never immerse the machine in water. The permanent filter can be cleaned under water.

What type of coffee to use?

Use medium ground coffee for drip coffee makers. Recommended amount is one level scoop (5 g) per cup. Adjust to taste.

How to descale?

Dilute a descaling product in water according to instructions, pour into the tank, place the carafe, turn on the machine and let it brew one cup, stop and let it sit for 15 minutes. Repeat then rinse with 3 tanks of clean water.

Why does coffee taste sour?

This may be due to insufficient rinsing after descaling. Rinse the machine with several tanks of clean water as indicated in the descaling section.

Can I use paper filters?

The appliance comes with a permanent nylon filter. You can also use paper filters of appropriate size if you prefer.

What to do if the carafe is not in place?

Do not remove the carafe during brewing as this stops the flow into the carafe but not the coffee production. Serve quickly to avoid coffee spilling onto the warming plate.

USER MANUAL DISTINCTA ICMI211.BZ FUTURE, DISTINCTA ICMI211.BK DELONGHI

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.

WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the

following code:

Green and yellow:

Earth

Blue:

Neutral

Brown:

Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

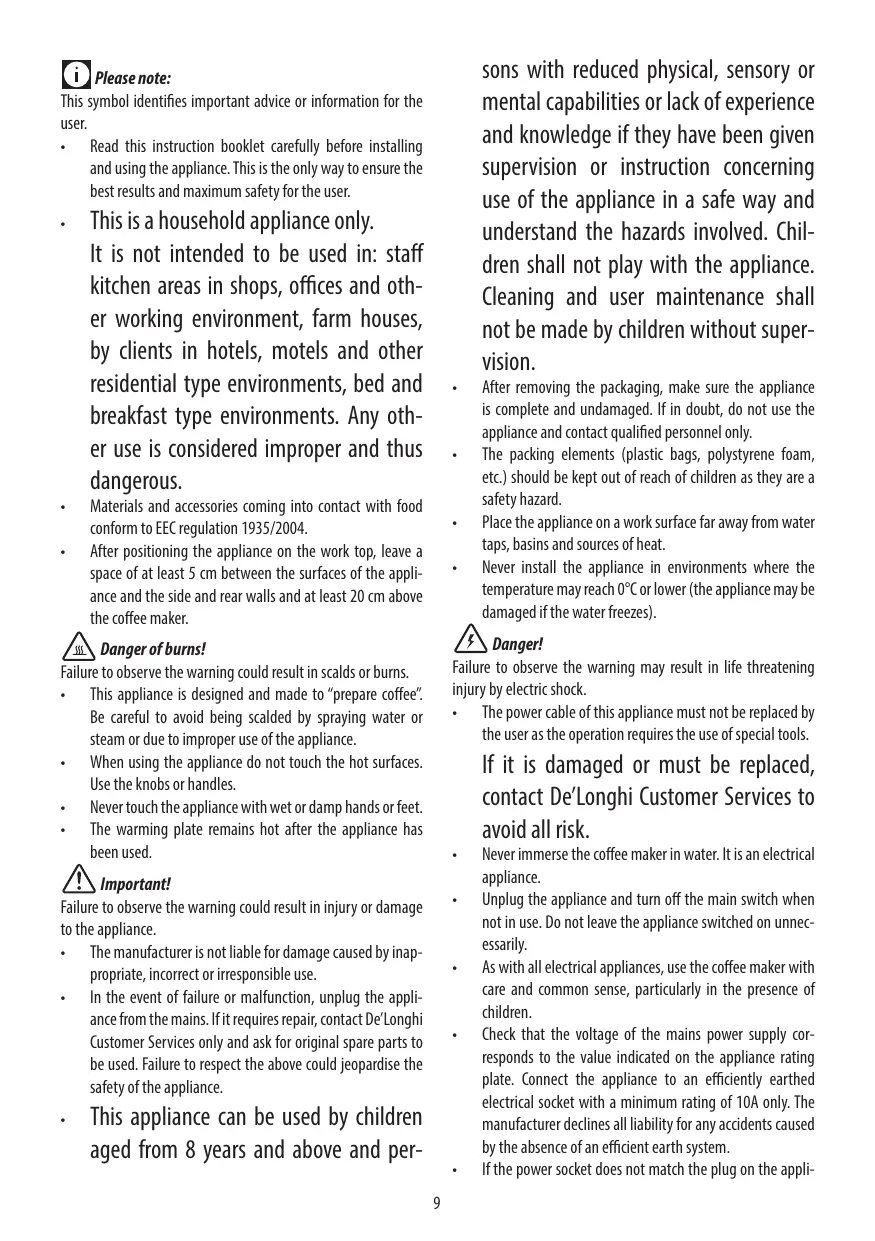

Note:

This symbol identifies important advice or information for the user.

• Read this instruction booklet carefully before installing and using the appliance. This is the only way to ensure the best results and maximum safety for the user. This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environments, bed and breakfast type environments. Any other use is considered improper and thus dangerous. Materials and accessories coming into contact with food conform to EEC regulation 1935/2004. After positioning the appliance on the work top, leave a space of at least 5 cm between the surfaces of the appliance and the side and rear walls and at least 20 cm above the coffee maker.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

• This appliance is designed and made to "prepare coffee". Be careful to avoid being scalded by spraying water or steam or due to improper use of the appliance.
• When using the appliance do not touch the hot surfaces. Use the knobs or handles.
• Never touch the appliance with wet or damp hands or feet.
• The warming plate remains hot after the appliance has been used.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

• The manufacturer is not liable for damage caused by inappropriate, incorrect or irresponsible use.
• In the event of failure or malfunction, unplug the appliance from the mains. If it requires repair, contact De'Longhi Customer Services only and ask for original spare parts to be used. Failure to respect the above could jeopardise the safety of the appliance. This appliance can be used by children aged from 8 years and above and per

sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

After removing the packaging, make sure the appliance is complete and undamaged. If in doubt, do not use the appliance and contact qualified personnel only. - The packing elements (plastic bags, polystyrene foam, etc.) should be kept out of reach of children as they are a safety hazard. - Place the appliance on a work surface far away from water taps, basins and sources of heat. - Never install the appliance in environments where the temperature may reach 0°C or lower (the appliance may be damaged if the water freezes).

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• The power cable of this appliance must not be replaced by the user as the operation requires the use of special tools. If it is damaged or must be replaced, contact De'Longhi Customer Services to avoid all risk.
• Never immerse the coffee maker in water. It is an electrical appliance.
• Unplug the appliance and turn off the main switch when not in use. Do not leave the appliance switched on unnecessarily.
• As with all electrical appliances, use the coffee maker with care and common sense, particularly in the presence of children.
• Check that the voltage of the mains power supply corresponds to the value indicated on the appliance rating plate. Connect the appliance to an efficiently earthed electrical socket with a minimum rating of 10A only. The manufacturer declines all liability for any accidents caused by the absence of an efficient earth system. If the power socket does not match the plug on the appli

ance, have the socket replaced with a suitable type by a qualified electrician.

• When filling the water tank or removing the jug from the machine, avoid spilling liquid on the plug or power cable.

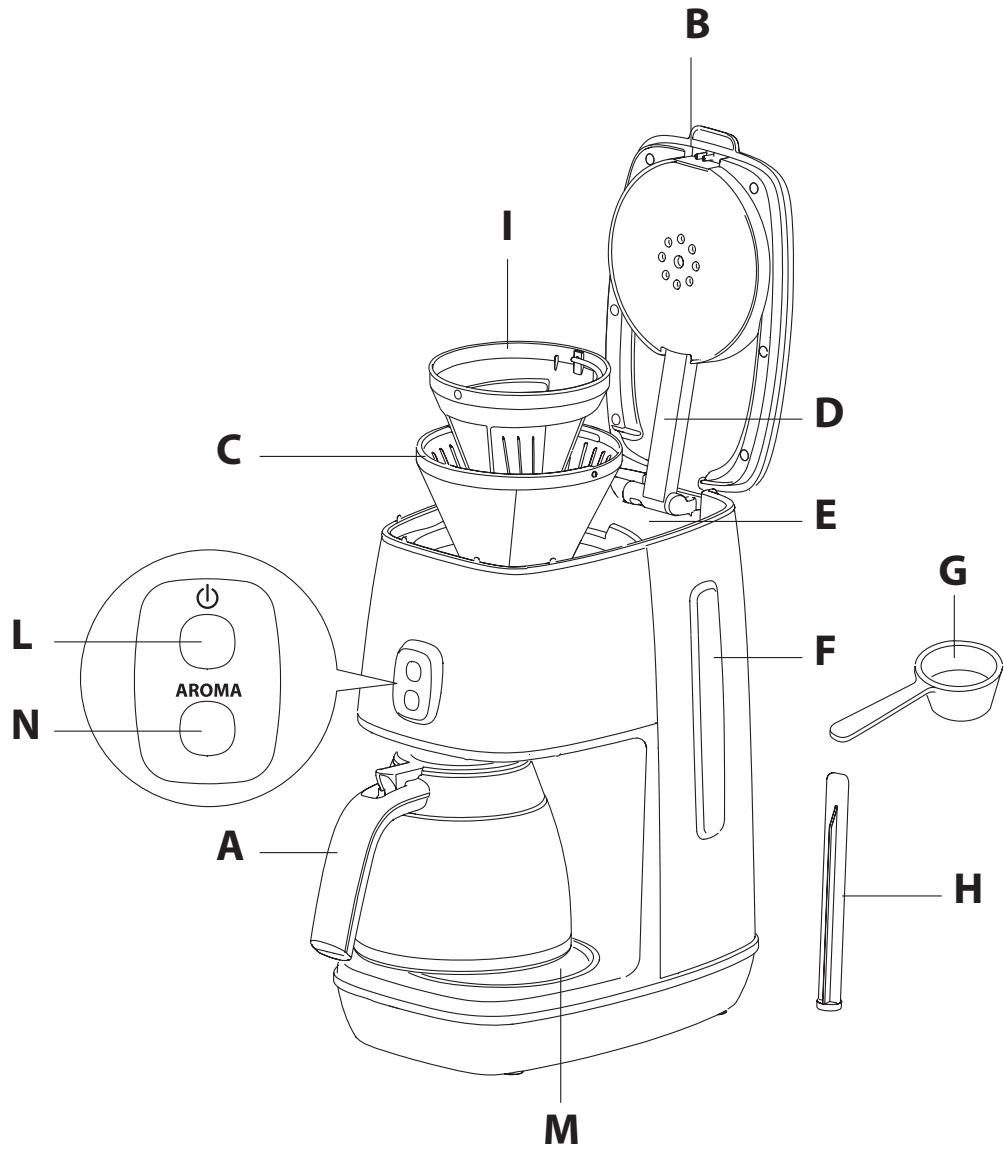

Description of appliance

A. Glass jug B. Lid C. Filter holder for drip coffee D. Shower E. Water tank compartment F. Water level window G. Measure H. Water tank filter I. Permanent nylon filter L. "On/stand-by" button with light M. Warming plate N. Aroma button with light

How to make drip coffee

i Please note: the first time the appliance is used, all accessories and the internal circuits must be washed through by making at least two jugs of coffee without using pre-ground coffee.

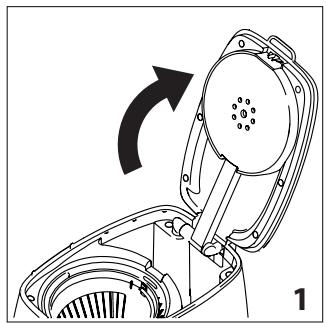

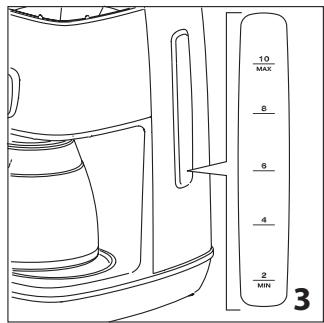

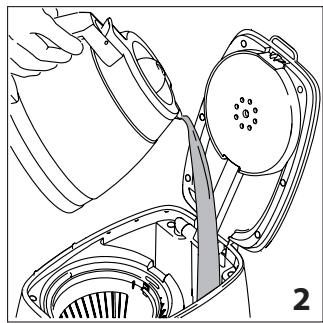

• Open the lid (B) (fig. 1) and use the jug (A) to pour clean cold water into the water tank compartment (E) up to the level indicated for the number of cups of coffee you want to make (fig. 2). Check the water level in the tank through the level window (F) (fig. 3). It is recommended to use the jug provided as a measure, as the maximum capacity of the jug and the tank are the same. Position the permanent nylon filter (I) within the filter holder (C) (fig. 4).

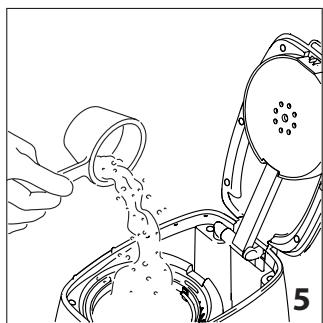

• Place the pre-ground coffee in the filter using the measure (G) provided and level it evenly (fig. 5). Use good quality, medium pre-ground coffee for drip coffee makers. The type of blend has a considerable influence on the coffee you make. Therefore, you should try various types of coffee to find the one best suited to your taste.

Recommended quantities:

No. cups	No. measures (*)
10	10
8	8
6	6
4	4
2	2

(*) 1 level measure = 1 tablespoon (5 g)

For a stronger taste, we suggest adding 1 more measure per cup.

The quantities given in the table are indicative and should be adapted to your personal taste and the type of coffee. Never exceed the maximum quantity of 5 measures. The type of blend has a considerable influence on the coffee you make. Therefore, you should try various types of coffee to find the one best suited to your taste.

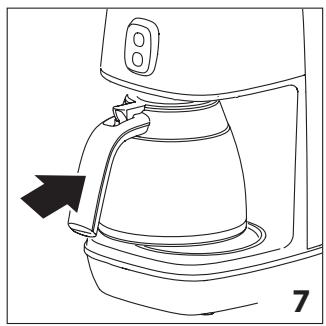

• Close the lid (B) and place the closed jug on the plate (fig. 7).

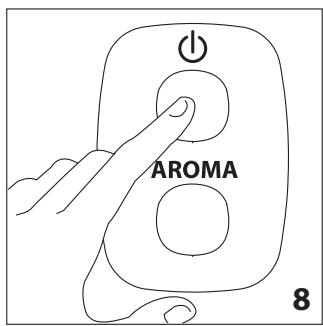

• Press the button (L) (fig. 8). The light on the switch indicates that the coffee maker is operating. Coffee delivery will start after a few seconds. It is completely normal for the appliance to give off steam while the coffee is percolating. The coffee maker emits a beep when delivery begins, then three beeps when it ends. The taste of the coffee can be optimized by pressing the AROMA button (N). This function enables a percolation process that releases the water in the filter more slowly. Filtering a little at a time improves the flavor and aroma of the coffee. To enable the function, press the aroma button (the light on the button comes on). To disable the function, press the button again. It is recommended to use the AROMA button when you do not want to make a full jug of coffee.
• If you leave the button (L) pressed after percolation has finished, the plate will keep the coffee at the ideal temperature. The appliance goes off automatically 40 minutes after coffee delivery ends. To turn the warming plate (M) off, press the button (L) again. For a new brewing cycle, switch off the appliance by pressing the button (L) and restart. Please note: removing the jug before all the coffee requested has been delivered does not interrupt coffee making, but merely blocks flow into the jug. If you want to pour out a little coffee immediately, you should do so as rapidly as possible to avoid the coffee overflowing.

Cleaning and maintenance

Before maintenance or cleaning of the appliance, turn it off, unplug it from the mains socket, and allow it to cool.

• Do not use solvents or abrasive detergents to clean the coffee maker. Just wipe with a soft damp cloth.

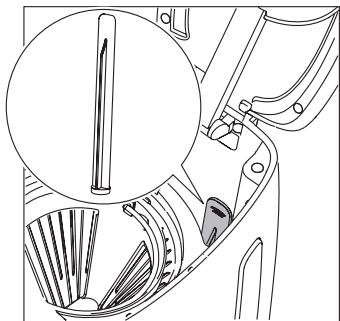

• Never immerse the coffee maker in water. It is an electrical appliance. The water tank filter (H) can be reached through the lid (B) (fig. 6). Clean when necessary.

Descaling

If the water in your area is hard, limescale builds up over time. These deposits may affect correct operation of the appliance. You are recommended to descale the coffee maker every 60 coffee making cycles. To descale, always use special commercially available descaling products for drip coffee makers.

1. Dilute the product in the jug, following the instructions on the descaler pack.
2. Pour the solution into the water fill compartment.
3. Place the jug on the warming plate (M).
4. Press the button (L), percolate the equivalent of one cup then turn the appliance off.
5. Leave the solution to work for 15 minutes, then repeat operations 4 and 5.
6. Turn the appliance on and deliver the water until the tank is completely empty.
7. Rinse by operating the appliance with water only at least 3 times (3 complete tanks of water).

Failure to clean as described above invalidates the guarantee.

Technical data

Mains voltage: 220-240V-50/60Hz

Absorbed power: 1000W

Weight: 2.5 kg

Disposing of the appliance

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

CE The appliance complies with the following EC directives:

Low Voltage Directive 2006/95/EC and subsequent amendments; EMC Directive 2004/108/EC and subsequent amendments EC Regulation 1275/2008 for standby

Troubleshooting

Problem	Probable cause	Solution
The coffee takes longer to brew.	The coffee maker needs to be desca-led.	Descale the machine as described in the section DESCALING.
The coffee has an acidic taste.	Insufficient rinsing after descaling.	Rinse the machine as described in the section DESCALING.

iN.B:

If the water in your area is hard, scale will build up over time. Scale can affect the operation of the appliance. It is recommended to descale the boiler every 60 working days. To descale, use a special descaling agent for coffee machines.

1. Dissolve the agent in water, following the instructions on the packaging;
2. Pour the solution into the water reservoir;
3. Place the container on the heating plate (M);
4. Press the button (L), and let out an amount equal to one cup, then switch off the appliance;
5. Leave the solution to act for 15 minutes.

1. Before turning on the machine, make sure the reservoir is filled with water. 7. Turn on the machine, which can only work with at least 3 liters of water (3-liter water reservoir).

Guarantee is valid only if the use is carried out regularly as described above.

Technical data

Supply voltage: 220-240V-50/60Hz

Power: 1000W

Weight: 2.5 kg

Disposal of the device

According to European Directive 2002/96/EC, do not dispose of the device with household waste, but hand it over to an official collection point for separate waste collection.

CE conformity declaration:

- Low Voltage Directive 2006/95/EC and subsequent amendments; EMC Directive 2004/108/EC and subsequent amendments; Regulation CE 1275/2008 regarding standby power consumption

Troubleshooting

Power: 1000 W

Weight: 2.5 kg

CE marking according to EU directives:

2006/95/EC Low Voltage Directive; EMC 2004/108/EC Directive; Ecodesign requirements for energy-related products in accordance with EC 1275/2008

Mэсene	ыктумал себбì	Шешimi
Кофейн Kaй hayы Na yazbipak yakbit Kejetι.	К о Ф eЖасавиштын Kaftын Тазанay Kepek.	Курсылсын Kaftын KAKТ А 3 А Л AуБ eлIMидец Сипатталгандай etin Тазаныз.
Кофейн дэмi Кышьлт biom.	Кak тазанayдан coн Дурьс Шайлмаган.	Курсылсын KaKТАЗЛАУБ eлIMидец Сипатталгандай etin Шайынз.

TECHNICAL SPECIFICATIONS

This product complies with the requirements of the following directives:

Voltage:

Power:

Frequency:

Power consumption:

Weight:

De'Longhi Appliances s.r.l.

via L.Seitz, 47 - 31100 Treviso Italy

BnaJI.3eun,4731100TpeBnOITaIIMyUJinKacalFaH.

For further information, please contact the authorized representative in your country.

"De'Longhi" S.r.l.

127055 Moscow, Macekey K

Tel.: [phone]

The device is intended for use in medical institutions. The manufacturer reserves the right to make changes to the design without prior notice.

It is possible to install the device on a wall using the mounting holes on the back of the housing. (Mounting holes: ASSCC, where A - year of manufacture, SS - month of manufacture, CC - serial number, starting from 1992 in automatic mode. Example: Ser. No 30411, year of manufacture - 2003, month of manufacture - 4)
