Always follow basic safety precautions when using this product to reduce risk of injury from fire or electric shock. 1 Read and understand all instructions in the documentation that comes with the printer. 2 Use only a grounded electrical outlet when connecting this product to a power source. If you do not know whether the outlet is grounded, check with a qualified electrician. 3 Observe all warnings and instructions marked on the product. 4 Unplug this product from wall outlets before cleaning. 5 Do not install or use this product near water, or when you are wet. 6 Install the product securely on a stable surface. 7 Install the product in a protected location where no one can step on or trip over the power cord, and the power cord cannot be damaged. 8 If the product does not operate normally, see the troubleshooting section in the onscreen user guide on the Starter CD for your operating system. 9 There are no user-serviceable parts inside. Refer servicing to qualified service personnel.

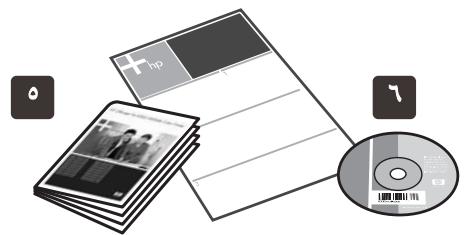

6) Starter CD (software and electronic documentation), and 7) optional automatic two-sided printing accessory (duplex unit) (available with the HP Officejet Pro K850dn).

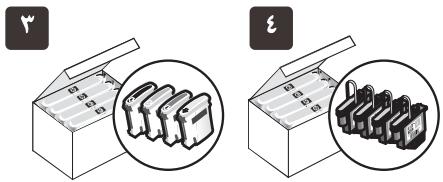

Check the package contents. 1) Printer, 2) power supply and power cord, 3) four ink cartridges: black (B), cyan (C), magenta (M), yellow (Y), 4) four printheads, 5) printed documentation (setup poster and this Getting Started Guide),

Step 1: Remove the packing tapes and materials. Remove all packing tapes from the printer.

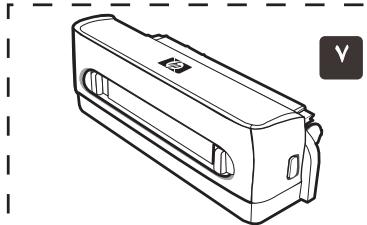

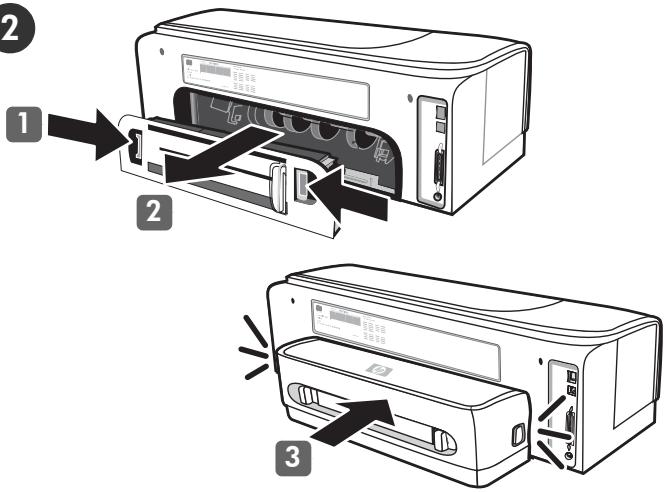

Step 2: Install the optional duplex unit (HP Officejet Pro K850dn). 1) Push the release buttons on the rear-access panel towards each other. 2) Pull the panel out of the printer. 3) Insert the duplex unit into the printer until it clicks.

Schritt 1: Entfernen der Verpackungsklebestreifen und des Verpackungsmaterials. Entfernen Sie alle Verpackungsklebestreifen vom Drucker.

3) Align each cartridge with its color-coded slot, and then insert each cartridge into its slot. To ensure proper contact, press down firmly on each cartridge until it snaps into place. Note: All four ink cartridges must be correctly installed for the printer to work. 4) Close the ink cartridge cover.

Step 3: Install the ink cartridges. 1) Press and release the ink cartridge cover to open the cover. 2) Remove each ink cartridge from its package. Caution: HP recognizes each customer’s choice but cannot guarantee the quality or reliability of non-HP ink cartridges. Printer services or repairs required as a result of using non-HP ink cartridges are not covered under warranty.

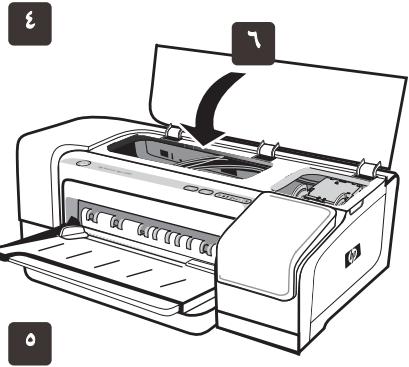

Step 4: Install the printheads. 1) Open the top cover. 2) Lift the printhead latch. 3) Remove each printhead from its package, and then remove the protective tape from each printhead.

4) Insert each printhead into its color-coded slot, and then press down firmly on each printhead to ensure proper contact. 5) Close the printhead latch, pressing down to ensure it is in the locked position. 6) Close the top cover.

Schritt 4: Einsetzen der Druckköpfe. 1) Öffnen Sie die obere Abdeckung. 2) Heben Sie die Druckkopfverriegelung an. 3) Nehmen Sie die Druckköpfe aus der Verpackung, und ziehen Sie jeweils die Schutzfolie ab.

5) Press the button on top of the paper guide and slide the guide to the right until the guide stops at the edge of the media. 6) Press the input tray lock (a), and push the tray in until it stops at the edge of the media (b). 7) Lower the output tray. 8) Extend the output tray.

Step 5: Load paper in the printer. 1) Raise the output tray. 2) Press the input tray lock (a), and extend the input tray (b). 3) Press the button on top of the paper guide and slide the guide to the left to the outermost position. 4) Insert up to 150 sheets of A4- or Letter-size paper, print-side down, along the right side of the input tray until the paper stops.

Step 6: Connect the power cord and turn on the printer. 1) Connect the power supply to the printer. 2) Connect the power cord to the power supply. 3) Connect the other end of the power cord to an alternating current (AC) power outlet. 4) Press (Power button) to turn on the printer.

To ensure the best possible print quality, the printer aligns the printheads. At the beginning of the alignment process, the Power light blinks and the printer prints a status page. At the end of the process, the printer prints two alignment pages. Printhead alignment takes approximately 8 minutes. Do not open any covers or push any buttons until the pages have printed. If the printer does not print, see “Troubleshooting” on page 17.

Schritt 6: Anschließen des Netzkabels und Einschalten des Druckers. 1) Schließen Sie das Netzteil an den Drucker an. 2) Schließen Sie das Netzkabel an das Netzteil an. 3) Schließen Sie das andere Ende des Netzkabels an eine Steckdose für Wechselspannung an. 4) Drücken Sie (Netztaste), um den Drucker einzuschalten.

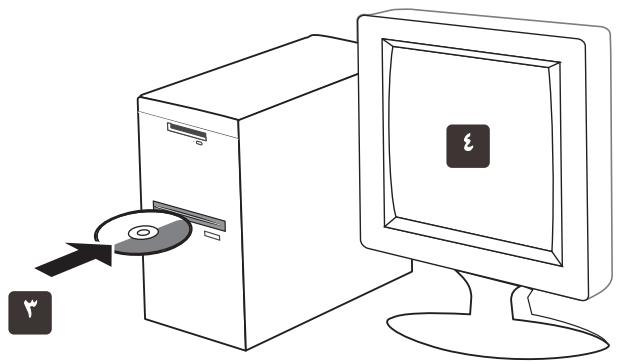

USB or parallel connection: 1) Close any running applications and insert the Starter CD into the CD drive. If the CD menu does not start automatically, double-click the setup icon on the Starter CD. 2) On the CD menu, click Install (Windows) or Install Driver (Mac OS), and follow the onscreen instructions. 3) Connect the USB ( ) or parallel ( ) cable (sold separately) when prompted. Note: Connect only a parallel cable or a USB cable — not both.

Step 7: Connect the printer. See the following instructions for your connection type (USB, parallel, or network). For more information about installing software, see the onscreen user guide on the Starter CD.

Network (HP Officejet Pro K850): 1) Connect the network cable to the connector and to an available port on the network hub, switch, or router. CAUTION: Do not plug the network cable into a port labeled WAN, Uplink, or Internet in the hub, switch, or router.

Note: It is recommended that the printer and the computers that use it be on the same subnet. Repeat the step if the network connector Link light does not turn on. See “Problems connecting to a network” in the onscreen user guide. 2) Locate the printer hardware address on the back of the printer and write it down. You might need this information for network configuration.

Netzwerk (HP Officejet Pro K850): 1) Schließen Sie das Netzwerkkabel an den geeigneten Druckeranschluss sowie an einen freien Anschluss des Hubs, Switch oder Routers des Netzwerks an. ACHTUNG: Stecken Sie das Netzwerkkabel nicht in einen mit “WAN”, “Uplink” oder “Internet” beschrifteten Anschluss des Netzwerkgeräts.

Step 8: Test the printer software installation. After you complete the software installation and connect the printer to the computer, print a document from an application that you use frequently to ensure that the software is installed correctly. If the document does not print, see “Troubleshooting” on page 17.

3) Insert the Starter CD into the CD drive. If the CD menu does not start automatically, double-click the setup icon on the CD. 4) On the CD menu, click Install (Windows) or Install Driver (Mac OS), and follow the onscreen instructions to install the software using the hardware address to identify the printer on your network. For information about sharing the printer on a network, see the onscreen user guide.

Step 9: Register the printer. Register the printer to receive important support and technical information. If you do not register your printer during software installation, you can register later at www.register.hp.com.

Finding more information. Your printer is ready to use. For information about using the printer and troubleshooting, as well as warranty information, see the following resources: • Onscreen user guide and Readme file on the Starter CD • HP Instant Support and embedded Web server (see the onscreen user guide) • Product support site at www.hp.com/support/officejetprok850

Schritt 9: Registrieren des Druckers. Registrieren Sie den Drucker, damit Sie Kundenunterstützung und wichtige technische Informationen erhalten. Wenn Sie den Drucker nicht während der Installation der Software registrieren, können Sie dies später unter www.register.hp.com nachholen.

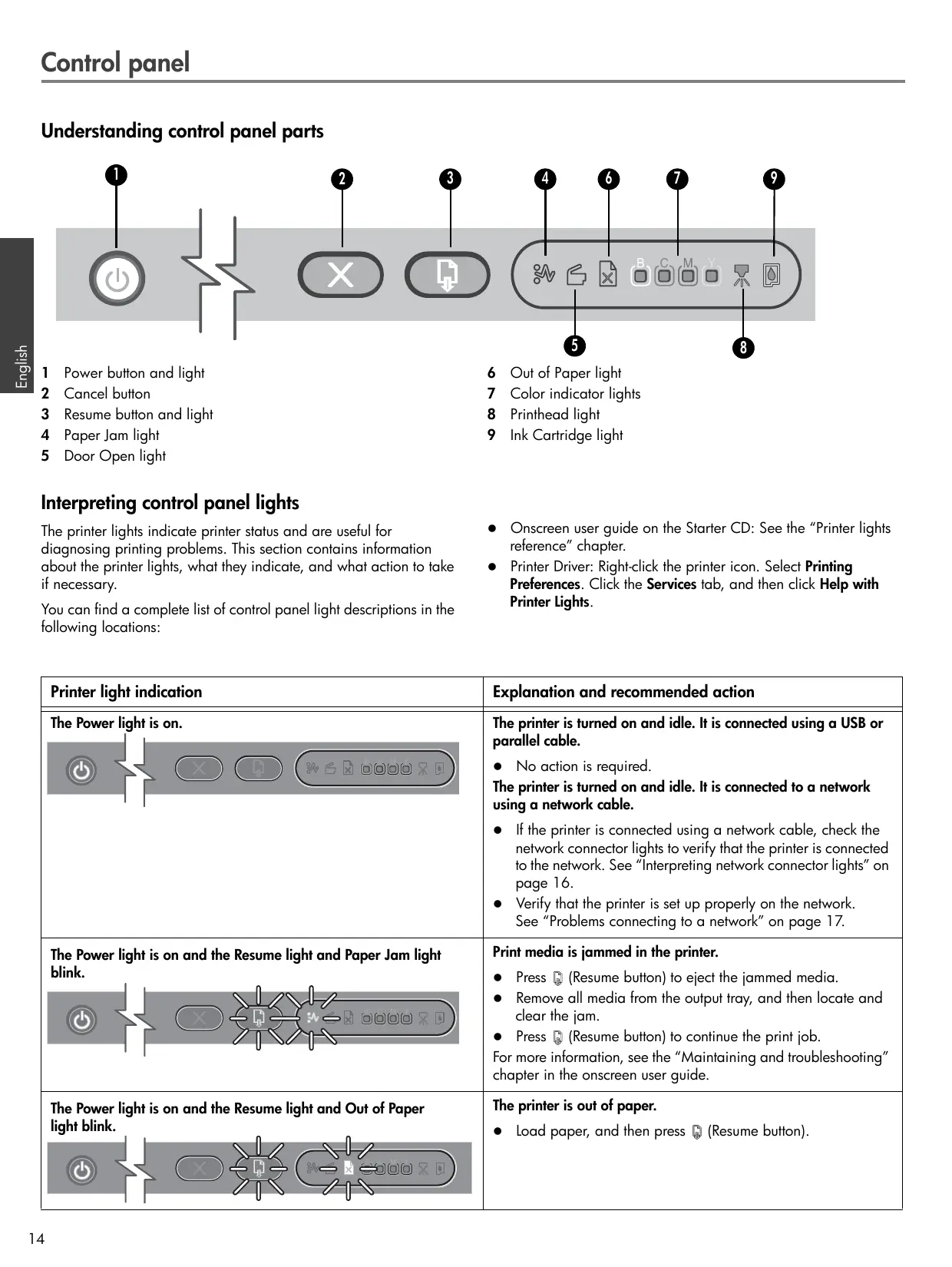

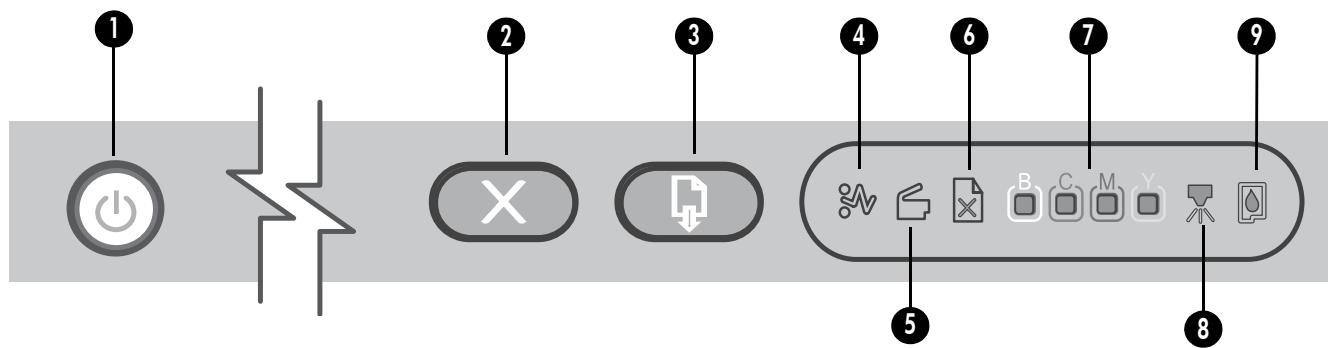

Control panel Understanding control panel parts

Out of Paper light Color indicator lights Printhead light Ink Cartridge light

Interpreting control panel lights The printer lights indicate printer status and are useful for diagnosing printing problems. This section contains information about the printer lights, what they indicate, and what action to take if necessary. You can find a complete list of control panel light descriptions in the following locations:

Onscreen user guide on the Starter CD: See the “Printer lights reference” chapter. z Printer Driver: Right-click the printer icon. Select Printing Preferences. Click the Services tab, and then click Help with Printer Lights. z

Printer light indication

Explanation and recommended action

The Power light is on.

The printer is turned on and idle. It is connected using a USB or parallel cable. No action is required. The printer is turned on and idle. It is connected to a network using a network cable.

If the printer is connected using a network cable, check the network connector lights to verify that the printer is connected to the network. See “Interpreting network connector lights” on page 16. z Verify that the printer is set up properly on the network. See “Problems connecting to a network” on page 17. z

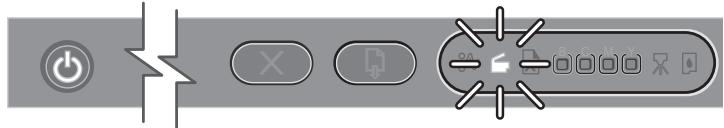

The Power light is on and the Resume light and Paper Jam light blink.

Print media is jammed in the printer. Press (Resume button) to eject the jammed media. Remove all media from the output tray, and then locate and clear the jam. z Press (Resume button) to continue the print job. For more information, see the “Maintaining and troubleshooting” chapter in the onscreen user guide. z z

The Power light is on and the Resume light and Out of Paper light blink.

The printer is out of paper. z

Printer light indication

Explanation and recommended action

The Power light and the Door Open light are on.

A cover is not closed completely. z

The rear-access panel or the duplex unit is not inserted completely. z

Make sure the rear-access panel or duplex unit (HP Officejet Pro K850dn Color Printer) is inserted completely in the back of the printer.

The Power light is on, and the Door Open and Printhead lights are on.

The printhead latch is not secured.

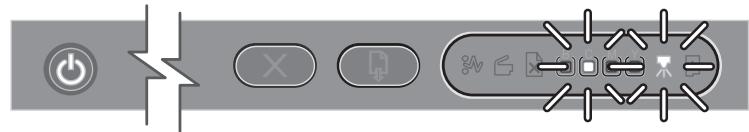

The Power light is on, and the Printhead light and one or more of the color indicator lights blink.

One or more of the printheads needs attention.

The Power light, the Printhead light, and one or more of the color indicator lights are on.

One or more of the printheads is missing.

Open the top cover and press down firmly on the printhead latch to ensure that it is secured properly.

The Power light is on and the Door Open light blinks.

Make sure all covers are completely closed.

Reinstall the appropriate printheads, close all covers, and then try to print. z If the error persists, turn the printer off, and then on again. z If the error persists, clean the printhead contacts. For more information, see the “Maintaining and troubleshooting” chapter in the onscreen user guide. z If the error persists, replace the printhead or printheads indicated. For information about ordering supplies, see the “HP supplies and accessories” chapter in the onscreen user guide. z

Make sure that the protective tape on the printhead has been removed.

Reinstall the printheads, close all covers, and then try to print.

The Power light is on and one or more of the color indicator lights is on.

An ink cartridge is low on ink and will need to be replaced soon.

The Power light is on and one or more of the color indicator lights blinks.

An ink cartridge is out of ink and must be replaced before you can continue printing.

No action is required.

Replace the ink cartridge indicated. For information about ordering supplies, see the “HP supplies and accessories” chapter in the onscreen user guide.

Printer light indication

Explanation and recommended action

The Power light, the Ink Cartridge light, and one or more of the color indicator lights are on.

One or more of the ink cartridges is missing. z z

Install the ink cartridges and try to print. If the error persists, replace the ink cartridge or cartridges indicated. For information about ordering supplies, see the “HP supplies and accessories” chapter in the onscreen user guide.

Network connector Link light Activity light

Interpreting network connector lights Network connector light indication

Explanation and recommended action

Link light is on. Activity light is off.

The printer is connected to the network but is not receiving or transmitting data over the network. The printer is turned on and idle. z

Link light is on. Activity light blinks.

The printer is receiving or transmitting data over the network. z

Link light is off. Activity light is off.

No action is required.

The printer is turned off or is not connected to the network. z

No action is required.

Turn on the printer. If the printer is already turned on and a network cable is connected, see “Problems connecting to a network” on page 17.

Troubleshooting Problems printing an alignment page

Problems connecting to a network

Note: Printhead alignment takes approximately 8 minutes. At the end of the process, two alignment pages print. Do not open any covers or push any buttons until the alignment pages have printed.

Note: After correcting any of the following, run the setup program again.

Power light is on and not blinking. When the printer is first turned on, it takes approximately 45 seconds to warm up. No lights on the control panel are lit or blinking and that the printer is in the Ready state. If lights are lit or blinking, see “Control panel” on page 14. Power supply, power cord, and other cables are working and firmly connected to the printer. All packing tapes and materials are removed from the printer. Printheads and ink cartridges are properly installed in their correct color-coded slots. Press down firmly on each one to ensure proper contact. Ensure you have removed the tape from each printhead. Printhead latch and all covers are closed. Rear-access panel or duplex unit is locked into place. Media is loaded correctly in the tray and is not jammed in the printer.

General network troubleshooting If you are unable to install the printer software, verify that: z z z z z

All cable connections to the computer and the printer are secure. The network is operational and the network hub is turned on. All applications, including virus protection programs and personal firewalls, are closed or temporarily disabled. Make sure the printer is installed on the same subnet as the computers that will be using the printer. If the installation program cannot discover the printer, print the configuration page, locate the IP address, and then enter the IP address manually in the installation program. If you are using a computer running Windows, make sure that the network ports created in the printer driver match the printer IP address: 1 Print a configuration page. For instructions, see “Configuration page” on page 18.

Problems installing software

2 From the Windows desktop, click Start, click Settings, and then click Printers; or click Start, and then click Printers and Faxes (depending on the operating system).

Verify installation preliminaries

3 Right-click the printer icon, click Properties, and then click the Ports tab.

The computer meets the system requirements (see the onscreen user guide on the Starter CD). z Before installing software on a Windows computer, ensure all other programs are closed. z If the computer does not recognize the path to the CD drive that you type, ensure you are specifying the correct drive letter. z If the computer cannot recognize the Starter CD in the CD drive, inspect the CD for damage. Also, you can download the printer driver from www.hp.com/support/officejetprok850.

4 Select the TCP/IP port for the printer, and then click Configure Port.

Reinstall the printer software z

If you are using Windows and the computer cannot detect the printer, run the uninstall utility to perform a clean printer driver uninstallation. On the starter CD, click Utilities, and then click Uninstaller. Restart your computer, and re-install the printer driver.

Check the printer to ensure the following:

5 Compare the IP address listed in the dialog box and make sure it matches the IP address listed on the configuration page. If the IP addresses are different, change the IP address in the dialog box to match the address on the configuration page. 6 Click OK twice to save the settings and close the dialog boxes. If the Link light on the network connector does not turn on, make sure that all of the “General network troubleshooting” conditions listed above are met. z Though it is not recommended that you assign the printer a static IP address, you might resolve some installation problems (such as a conflict with a personal firewall) by doing so. For more information, see the onscreen user guide on the Starter CD. z

Resetting printer network settings If the printer is unable to communicate with the network, reset the printer network settings: While holding down (Power button), press (Resume button) three times, and then release (Power button). z If you have installed the printer driver, uninstall and then re-install the printer driver. Note: For late-breaking information, see the Readme file and release notes or visit the product support website at www.hp.com/support/officejetprok850. z

Troubleshooting and configuration tools The following tools are available for troubleshooting or configuring the printer. For more information about these tools, see the onscreen user guide on the Starter CD.

Use the configuration page to view current printer settings, to help troubleshoot printer problems, and to verify installation of optional accessories, such as a duplex unit. The configuration page also contains a log of recent events. If the printer is connected to a network, an additional network configuration page prints; this page shows the network settings for the printer. If you need to call HP, print the configuration page before calling.

To print a configuration page While holding down

(Power button), press

one time, and then release

Embedded Web server (EWS) When the printer is connected to a network, you can use the printer’s EWS to view status information, change settings, and manage the printer at your computer.

To open the EWS In a supported Web browser on your computer, type the IP address that has been assigned to the printer. For example, if the IP address is 123.123.123.123, type the following address into the Web browser: http://123.123.123.123. The IP address for the printer is listed on the configuration page.
