Product type	Karaoke system with WiFi and touchscreen
Brand	Auna
Model	Pro Spin 8
Article number	10040306
Screen	12.1-inch touchscreen
Power supply	7.4V battery or AC 100-220V mains
Playback functions	USB, SD, TF, Bluetooth, HDMI
Included microphones	2 UHF wireless microphones
Microphone range	10-15 meters
Bluetooth frequency	2.402 – 2.48 GHz
Bluetooth power	4 dBm
Max. external storage	USB/TF card up to 128 GB (NTFS format)
Remote control	Yes, with navigation and settings functions
Audio settings	Volume, echo, bass, treble, mic priority
Network connectivity	Built-in WiFi
Auxiliary input	AUX IN (3.5 mm)
Auxiliary output	AUX OUT
Care and cleaning	Clean with a dry soft cloth; do not use abrasive products
Safety	Do not expose to water or heat sources; unplug during storms
Spare parts	Contact the manufacturer for approved replacement parts
General information	Compliant with Directive 2014/53/EU; recycle according to local regulations

Frequently Asked Questions - Pro Spin 8 Auna

How to connect the system to WiFi?

Press the SET button on the remote, go to network settings, select your WiFi network and enter the password.

How to use the wireless microphone?

Insert a battery into the compartment, turn the switch to ON, and adjust the mic volume via the MIC VOL knob on the device.

What to do if no sound comes from the speakers?

Check the main volume (VOLUME), ensure mute mode is not activated, and that mic priority (MIC PRI) is disabled if only the mic works.

How to connect a smartphone via Bluetooth?

Press the BT button on the device, then on your smartphone search for Pro Spin 8 in the Bluetooth list. The range is about 10 meters.

Why is the remote control not working?

Check that the remote control battery is installed correctly and charged. Point the remote at the device's receiver.

How to disable the original voice during karaoke?

Press the TRACK button on the remote. Note that some files do not allow disabling the original voice.

What types of storage media are compatible?

The device supports USB drives and TF cards up to 128 GB in NTFS format for playing audio and video files.

How to reset the device to factory settings?

Press SET on the remote, go to 'General settings', select 'Factory settings' and confirm 'Yes'.

The touchscreen is not responding correctly, what to do?

Restart the device by turning it off and on. If the problem persists, check the calibration settings in the menu or contact technical support.

Can I sing with a wired microphone?

Yes, the device has a MIC IN (6.35 mm jack) input for connecting a wired microphone, in addition to the two included wireless microphones.

USER MANUAL Pro Spin 8 Auna

INHALTSVERZEICHNIS

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 18

Device Overview 19

Function Keys and Connections 20

Remote Control 21

Installation and Operation 22

Settings 22

Using the Wireless Microphone and Precautions 25

Troubleshooting 25

Disposal Considerations 27

Declaration of Conformity 27

TECHNICAL DATA

Item number 10040306
Power supply (battery) 7,4 V
Functions USB / SD / TF / BT
Accessories 2 UHF microphones
Max. microphone rangeUHF frequencyMicrophone transmitting power	10-15 m863–865 MHz10 mv
BT frequencyRadio-frequency power	2,402–2,48 GHz4 dBm
Screen size 12,1 inch

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.
  • Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

- Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.

- Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Note: This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

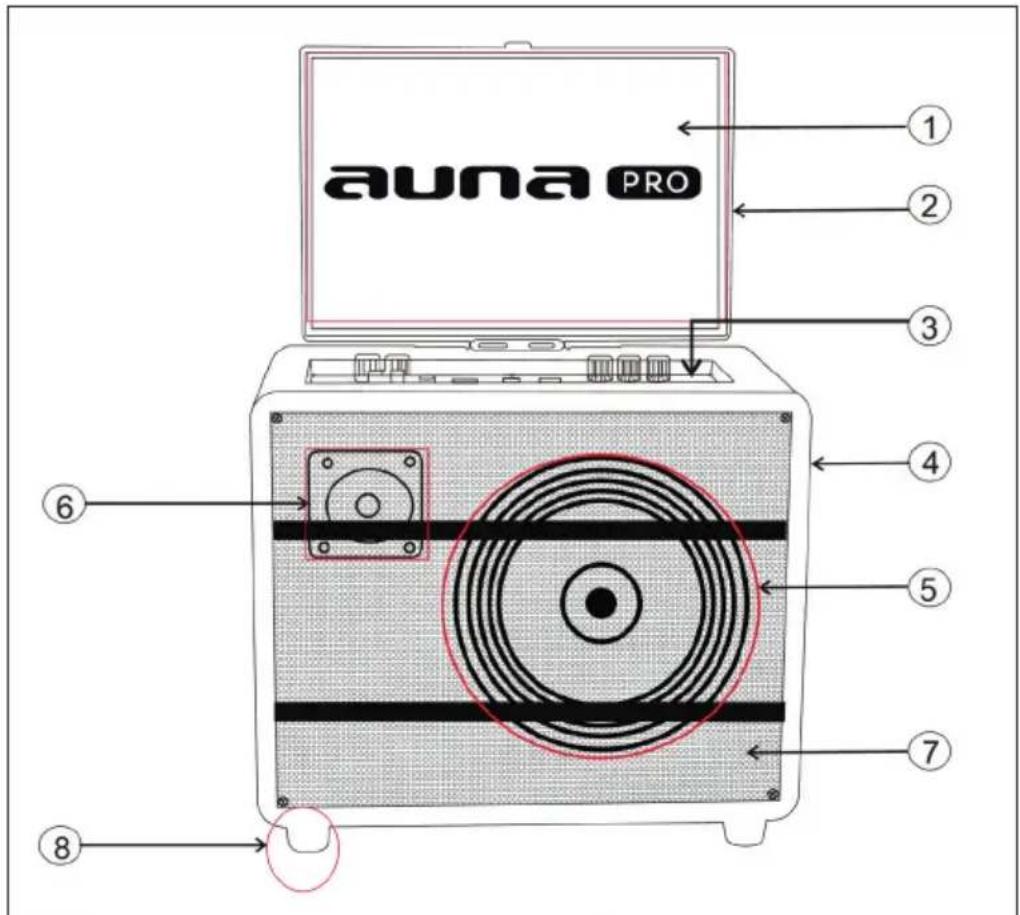

DEVICE OVERVIEW

1	Touch screen	5	Subwoofer
2	12.1 inch screen	6	Tweeter
3	Controls	7	Metal mesh
4	Wooden case	8	Plastic stand

FUNCTION KEYS AND CONNECTIONS

POWER ON/OFF - On/Off button	MIC PRIOR - Microphone fade-out function on/off
DC 12V IN - Extra battery	MIC VOL - Microphone volume control, microphone volume adjustment
PREV - Previous title	ECHO - Microphone reverb, adjusting the microphone hall setting
NEXT - Next title	MIC IN - Microphone connection, cable microphone connection
LEFT/ RIGHT - To the left/right	AUX IN - Audio input for connecting external devices; available on some models
OK - Confirm or open selected option	BASS - Turn clockwise: increase bass; Turn counterclockwise: reduce bass
RETURN - Return to previous page TREBLE	- Treble setting
ACC.P - Music Track function for Vocal accompaniment	VOLUME - Main volume control
MUSIC - Music playback	USB - USB port; video or audio files can be played back; supports USB media up to 128 GB in NTFS format
BT - Activate the BT mode; a mobile BT device can be connected and the music of the device can be played back via BT	TF - Insert a TF card to play video or audio files; the unit supports TF cards up to 128 GB
AC INPUT 100-220 V - mains connection HDMI - HDMI connector
0-9 - Number buttons to select a title	AUX OUT - Audio output for connecting external devices

REMOTE CONTROL

1	ON/OFF - Turn LCD screen on/off (standby)	7 SET - System settings
2	APP - Open multiple application pages	8	VOD - Video on Demand (YouTube)
3	PREV (previous title) / NEXT (next title)	9 MEDIA - Multimedia Player
4 MENU - Menu settings 10 UP - High and previous title
5 HOME - Home page call 11 RETURN - Back
6	MICROPHONE PRIORITY - microphone priority	12 DOWN - Down and next title

INSTALLATION AND OPERATION

WLAN setting

Press the SET button on the remote control. In the network settings, locate the wireless network you want to connect to and then enter the password.

Media Playback

1 For media playback, press the MULTIMEDIA speed dial button on the remote control.
2 Select the playback media: Local memory, USB device, memory card, etc.

Establishing a BT connection

1 Press the BT key to activate the BT mode.
2 Activate BT on the external BT device that you want to connect to your device. Search the device list of the external device for „Pro Spin 8“ to connect the external BT device to your device. If the connection cannot be established, restart the device or try again.
3 After the BT connection has been successfully established, you can play music on the external device, which will then be played back via the device. To ensure that the connection of the music signal remains stable, make sure that the external device is within the BT range.
4 This device can be used with iPads, iPhone, Samsung, HTC, Huawei, Xiaomi, etc. (2.1*DER version). A2DP stereo playback is supported.
5 The BT range is approximately 10 meters.

SETTINGS

Press the SET button on the remote control. Select the setting screen.

General Settings

• Language selection: Press the OK button to select Chinese or English as the output language.
• Product Information: Displays the current external hard disk capacity.
• Factory Default: Select „Yes“ to reset the unit to factory defaults.
• Exit: Exits the previous menu.

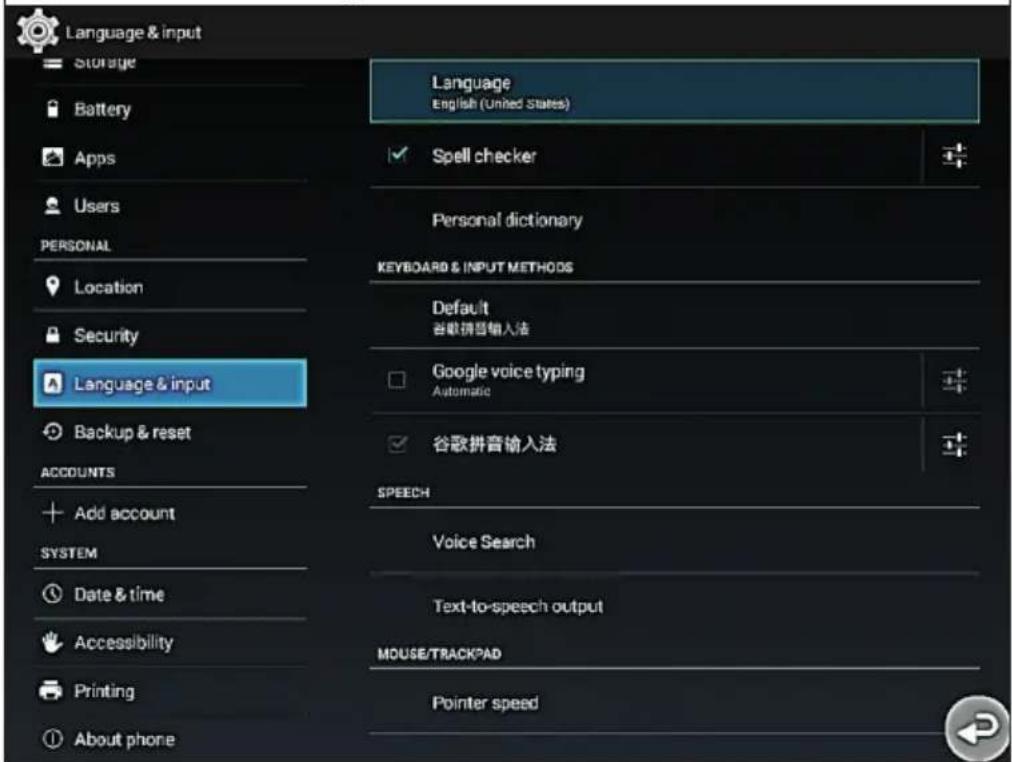

Figure 1: Language selection

Figure 2: Device information

Figure 3: Resetting to factory settings

Energy Setting

• Backlight: Press the OK button to adjust the backlight of the screen (note: the brighter the screen, the higher the energy consumption).
• Back: Press the RETURN button to exit the current setting and return to the previous menu item.

USING THE WIRELESS MICROPHONE AND PRECAUTIONS

1 Open the battery compartment, insert the battery and observe the polarity.
2 Set the microphone switch to „ON“. If the battery light does not blink or is permanently on, check that the battery is empty or that the batteries are inserted the wrong way round in the battery compartment.
3 Adjust the microphone volume. While singing, adjust the volume on the microphone volume control for best results.

TROUBLESHOOTING

Problem Possible cause and solution
The next track cannot be played back.	The repeat function is set to repeat only the current track. Set the function to repeat all tracks or activate random playback.
The name of a track is only partially displayed.	This is because unavailable characters are included in the title name.
The unit turns off automatically. The battery is empty and must be charged or replaced.
The remote control does not work. Align the remote control so that the illuminated end of the remote control is facing the receiver on the unit and replace the remote control batteries if necessary.
There's no sound coming from the speakers.	The volume is off or too low, turn it on or turn the volume up.
No sound is heard while pictures are displayed.	The screen sound has been turned off with the remote control. Check that the audio and video output is turned on.
The original voice reproduction cannot be deactivated during karaoke singing.	Press the TRACK button on the remote control to turn off the original voice. The original voice may not be deactivated because the selected video file does not support it.
No sound reproduction via the wireless microphone	Turn on the wireless microphone or replace the wireless microphone batteries.
The name of a title is displayed in characters.	The original title name is traditional Chinese or contains characters from other countries. Only simplified Chinese or English titles can be displayed.
The next track is not played automatically.	The "Play a title" mode has been activated. Deactivate it.
There is no sound during BT playback.	Turn on the unit and set the maximum volume of the external BT unit.
During karaoke singing, only the microphone has sound.	The MICROPHONE PRIORITY function has been activated. Deactivate it.
No connection to the WLAN can be established.	Check the distance between the device and the wireless router and reduce it if necessary or restart the router.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type [designation of type of radio equipment] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10040306

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Pro Spin 8 is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10040306
