USER MANUAL DMM230 MULTIMETRIX

Industrial Multimeter

Industrie-Multimeter

Multimetro Industriale

Multímetro Industrial

1. INSTRUCTIONS GÉNÉRALES....2

8888 1 2 3 4 5 6 7 8 9 10 11 HDD MAX HND FLOW DC 10A 10A HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW HDD MAX FLOW

Diagram of a multimeter with labeled terminals and an analog voltmeter connected to a power source

Diagram of a multimeter with labeled terminals and internal components, showing connections to a battery.

Diagram of a multimeter with labeled ports and connection points, showing digital display and terminal connections

Diagram of a multimeter with labeled terminals and a battery symbol, showing connections to the right terminal.

Line drawing of a multimeter with analog terminals and a circuit connection (no text or symbols)

Illustration of a digital multimeter with circuit board and battery connections (no text or symbols)

Diagram of a multimeter with labeled terminals and connections, showing measurement points and polarity indicators

Diagram of a multimeter with labeled components and polarity indicators

Diagram of a multimeter connected to a power source with polarity labels

1.1 Precautions and safety measures....19

1.1.1 Before using 19
1.1.2 When using the instrument....20
1.1.3 Symbols 20
1.1.4 Instructions 20
1.1.5 Cleaning 21

1.2 Guarantee 21
1.3 Maintenance....21
1.4 Unpacking - Repacking....21

2. GENERAL INSTRUCTIONS....22

2.1 Controls and Terminals 22
2.2 Symbols and Abbreviations....22

3. OPERATING INSTRUCTIONS ......23

3.1 DC voltage measurements 23
3.2 AC voltage measurements (frequency, duty cycle)....23
3.3 DC current measurements....24
3.4 Temperature measurements....25
3.5 Capacity measurements 25
3.6 AC current measurements (frequency, duty cycle)....25
3.7 Resistance measurements 26
3.8 Continuity test....27
3.9 Diode test....27
3.10 Duty cycle/frequency measurements (Electronic) 28
3.11 Autoranging/Manual selection 28
3.12 MAX/MIN 28
3.13 Relative mode....29
3.14 Backlighting 29
3.15 HOLD....29
3.16 AUTO POWER OFF 29
3.17 Low battery indication 29

4. MAINTENANCE 30

4.1 Battery installation....30
4.2 Replacing the fuses....31

5. TECHNICAL FEATURES....31

1. GENERAL INSTRUCTIONS

1.1 Precautions and safety measures

1.1.1 Before using

You have just acquired a DMM230 RMS multimeter. Thank you for your confidence. It measures AC/DC Voltage, AC/DC Current, Resistance, Frequency (electrical & electronic), and test diodes and Continuity. It features a waterproof, rugged design for heavy duty use. Proper use and care of this multimeter will provide many years of reliable service. This multimeter complies with the IEC 61010-1 and IEC 61010-2-033 standards concerning electronic measurement instruments. For your own safety and to prevent damage to the instrument, follow the instructions in this manual.

Be careful to adhere to storage conditions.

This handheld autonomous instrument was designed for:

- Indoor use

- Use in pollution 2 degree environments

- In altitudes lower than 2,000 meters

- In temperatures ranging from 5°C to 40°C

- It can be used up to 1,000 V on category III circuits or 600 V on category IV circuits.

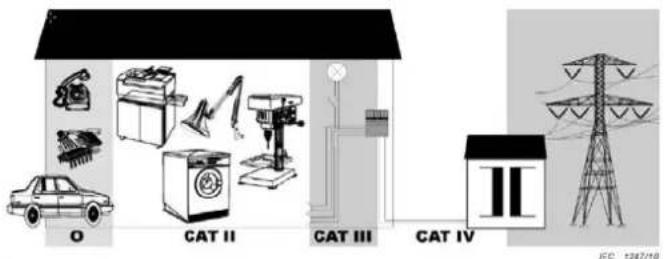

MEASUREMENT CATEGORIES (IEC 61010-2-033)

CAT II: MEASUREMENT CATEGORY II is applicable to test and measuring circuits connected directly to utilization points (socket outlets and similar points) of the low-voltage MAINS installation. This part of the installation is expected to have a minimum of two levels of overcurrent protective devices between the transformer and the connecting points of the measuring circuit.

Example : measurements on MAINS CIRCUITS of household appliances, portable tools and similar equipment.

CAT III: MEASUREMENT CATEGORY III is applicable to test and measuring circuits connected to the distribution part of the building's low-voltage MAINS installation. This part of the installation is expected to have a minimum of one level of over-current protective devices between the transformer and possible connecting points.

Example : measurements on distribution boards (including secondary electricity meters), circuitbreakers, wiring, including cables, bus-bars, junction boxes, switches, socket -outlets in the fixed installation, and equipment for industrial use and some other equipment such as stationary motors with permanent connection to the fixed installation.

CAT IV: MEASUREMENT CATEGORY IV is applicable to test and measuring circuits connected at the source of the building's low-voltage MAINS installation. This part of the installation could have no over-current protective devices between the transformer and connecting points of the measuring circuit.

Example : measurements on devices installed before the main fuse or circuit breaker in the building installation.

O CAT II CAT III CAT IV

Key

Q: Other circuits that are not directly connected to MAINS

CAT II MEASUREMENT CATEGORY III

CAT III MEASUREMENT CATEGORY III

CAT IV: MEASUREMENT CATEGORY IV

1.1.2 When using the instrument

• Never exceed the protection limiting values indicated in the specifications for each type of measurement.
• When the multimeter is connected to the circuits to be measured, do not touch any unused terminals.
• Before changing function, disconnect the measurement leads from the circuit measured.
• Never measure resistances or test diodes, etc., on a live circuit.

1.1.3Symbols

According to WEEE directive 2002/96/EC

Refer to the user's manual

Risk of electric shock

Double insulation

1.1.4 Instructions

Before opening the instrument, disconnect it from the circuits to be measured and make sure that you are not charged with static electricity, which could irreparably damage the instrument's internal elements.

1.1.5 Cleaning

Disconnect external circuit leads and turn off the instrument. Clean with a damp cloth and soap. Never use abrasive products or solvents. Make sure the instrument is perfectly dry before using it again.

1.16 Protection factor (PF)/Humid Environment

This instrument has a PF67 protection factor, which means that it is extremely waterproof and will not be damaged by water immersion (when turned off).

However, the instrument and its accessories must be completely dry (including inside measurement terminals) before being used again.

1.2 Guarantee

This equipment is guaranteed against any material or manufacturing flaws, as specified in the general terms of sale.

During the guarantee period (1 year), the instrument can only be repaired by the manufacturer, who reserves the right to repair the instrument or to exchange all or part of it. If the equipment is returned to the manufacturer, the outgoing transport costs are borne by the customer.

The guarantee is not applicable in the following cases:

1. improper use of the equipment or use in conjunction with incompatible equipment;

2. modifications to the equipment without the explicit authorisation of the manufacturer's technical department;

3. work carried out on the instrument by a person not approved by the manufacturer;

4. adaptation for a specific application, not included in user's manual

5. knocks, falls or prolonged immersion.

1.3 Maintenance

Return your instrument to your distributor for any work to be done within or outside of the guarantee.

1.4 Unpacking - Repacking

The equipment underwent thorough mechanical and electronic testing before shipment. All necessary precautions were taken to ensure that you receive the instrument in good condition. We recommend you check the equipment quickly on delivery to detect any damage that may have occurred during transport. If there is any damage, inform the carrier immediately. If you ship this instrument on elsewhere, it is preferable to use the original packaging and indicate the reasons for reshipment as clearly as possible in a note enclosed with the equipment.

2. GENERAL INSTRUCTIONS

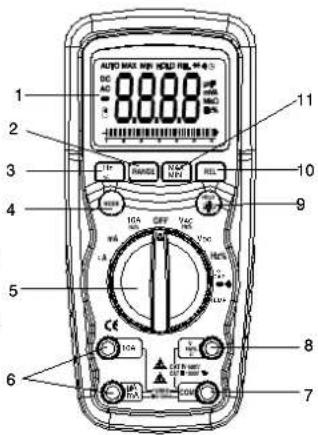

2.1 Controls and Terminals

1. 6,000 count LCD display
2. RANGE key
3. Hz and % key
4. Mode key
5. Function switch
6. mA, μA and 10A input terminals
7. COM input terminal
8. Positive V+, Ω, Temp, μF input t
9. HOLD and Backlight key
10. RELATIVE key
11. MAX/MIN key

1 2 3 4 5 6 7 8 9 10 11 DC 8888 OFF 10A REF 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 5 RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A RISK 10A

Tilt stand and battery compartment are on rear of unit.

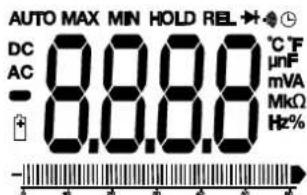

2.2 Symbols and Abbreviations

AUTO MAX MIN HOLD REL DC 8.8.8 0 °C F AC μF - mVA MkΩ Hz

	Auto power off	Hz	Hertz (frequency)
•))	Continuity	V	Volts
	Diode test	%	Duty cycle
	Battery status	REL	Relative Measurement
μ	micro ( 10^-6 ) (amps)	AUTO	Autoranging
m	milli ( 10^-3 ) (volts, amps)	HOLD	Display hold
A	Amps	MIN	Minimum
k	kilo ( 10^3 ) (ohms)	MAX	Maximum
M	mega ( 10^6 ) (ohms)	AC	Alternating current
Ω	Ohms	DC	Direct current
°F	Degrees Fahrenheit	n	nanofarad ( 10^-9 ) capacity
°C	Degrees Celsius	F	Farads capacity
-	Negative Polarity	||||||||||	Bargraph

22 DMM230

3. OPERATING INSTRUCTIONS

Risk of electrocution. High-voltage circuits, both AC and DC, are very dangerous and should be measured with great care.

1. Always turn the function switch to the OFF position when the multimeter is not in use.
2. If "OL" appears on screen during a measurement, the value exceeds the range you have selected. Choose a higher range.

3.1 DC voltage measurements

Do not measure DC voltages if a motor on the circuit is being switched ON or OFF. Voltage surges may occur and damage the multimeter.

1. Set the function switch to the VDC position.
2. Insert the black test lead banana plug into the negative COM terminal. Insert the red test lead banana plug into the positive + terminal.
3. Apply the test probes to the points of the circuit to be tested.
4. The voltage measured is displayed on screen.

3.2 AC voltage measurements (frequency, duty cycle)

Risk of Electrocution. The test probes may not be long enough to reach the live parts in certain sockets whose contacts are recessed too deeply. As a result, the reading may show 0 volts when the wall socket is live. Make sure the test probes are touching the live parts before assuming that no voltage is present.

Do not measure AC voltages if a motor on the circuit is being switched ON or OFF. Voltage surges may occur that can damage the multimeter.

1. Set the function switch to the VAC/Hz/% position.
2. Insert the black test lead banana plug into the negative COM terminal.

Insert red test lead banana plug into the positive + terminal.

1. Apply the test probes to the points of the circuits to be tested.

2. Voltage measured is displayed on screen.

3. Press the Hz% key to display "Hz".

4. Frequency measured is displayed on screen.

5. Press the Hz% key again to display “%”.

6. Duty cycle is displayed in percentage.

Diagram showing a multimeter connected to a voltage source with polarity labels

3.3 DC current measurements

Do not make 20 A current measurements for longer than 30 s. Exceeding 30 seconds may cause damage to the multimeter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM terminal.
2. For current measurements up to 6000μA DC, set the function switch to the μA position and insert the red test lead banana plug into the μA/mA terminal.
3. For current measurements up to 600mA DC, set the function switch to the mA position and insert the red test lead banana plug into the μA/mA terminal.

4. For current measurements up to 20A DC, set the function switch to the 10A position and insert the red test lead banana plug into the 10A terminal.

5. Press the MODE key to display "DC" on screen.

6. Remove power from the circuit to be tested, then open the circuit at the point where you wish to measure the current.

7. Apply test probes to the points of the circuit to be tested.

8. Apply power to the circuit.

9. Current measured is displayed on screen.

Illustration of a digital multimeter with circuit board and battery (no text or symbols)

3.4 Temperature measurements

1. Set the function switch to the Temp position.
2. Insert probe connector banana plugs into the negative COM and positive Temp terminals in keeping with polarity.
3. Press the MODE key to indicate °F or °C
4. Touch the Temperature Probe head to the part whose temperature you wish to measure.
5. The temperature measured is displayed.

Line drawing of a multimeter with an attached power supply (no text or symbols visible)

The temperature probe is fitted with a type K mini connector. A mini connector to banana plug adaptor is supplied for connection to the terminals.

3.5 Capacity measurements

To avoid any risk of deterioration, turn off the circuit to be tested and unload capacitors before making capacity measurements.

1. Set the function switch to the Ω CAP ➕ position.
2. Insert the black test lead banana plug into the negative COM terminal. Insert the red test lead banana plug into the positive + terminal.
3. Press the MODE key to display "nF" on screen.
4. Apply test probes to the tips of the capacitor to be measured.
5. The measurement may take up to 3 minutes or more for large capacitors, due to load time.
6. Wait until the displayed measurement settles before ending the test.
7. The capacity value is displayed on screen.

Diagram of a multimeter with labeled terminals and connection points, showing polarity indicators

3.6 AC current measurements (frequency, duty cycle)

Do not make 20 A current measurements for longer than 30 s. Exceeding 30 seconds may cause damage to the multimeter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM terminal.

2. For current measurements up to 6000 A AC, set the function switch to the A position and insert the red test lead banana plug into the A/mA terminal.

3. For current measurements up to 600mA AC, set the function switch to the mA position and insert the red test lead banana plug into the A/mA terminal.

4. For current measurements up to 20A AC, set the function switch to the 10A position and insert the red test lead banana plug into the 10A terminal.

5. Press the MODE key to display "AC" on screen.

6. Remove power from the circuit to be tested, then open the circuit at the point where you wish to measure current.

7. Apply test probes to the points of the circuit to be tested.

8. Apply power to the circuit.

9. Read the current in the display.

10. Press the Hz% key to display "Hz".

11. Frequency measured is displayed on screen.

12. Press the Hz% key again to display “%”.

13. Duty cycle is displayed in percentage.

14. Press the Hz% key to return to current measurement.

3.7 Resistance measurements

To avoid any risk of deterioration, remove power from the circuit to be tested before making resistance measurements.

Line drawing of a digital multimeter with circuit components and wiring (no text or symbols)

1. Set the function switch to the position.
2. Insert the black test lead banana plug into the negative COM terminal.
3. Insert the red test lead banana plug into the positive + terminal.
4. Press the MODE key to indicate "Ω".
5. Apply the test probes to the points of the circuit to be tested. It is best to disconnect one side of the part to be tested so the rest of the circuit will not interfere with the measurement. The value measured is displayed.

3.8 Continuity test

To avoid electric shock, never measure continuity on circuits or wires that have voltage on them.

1. Set the switch to the · position.
2. Insert the black lead banana plug into the negative COM terminal. Insert the red test lead banana plug into the positive + terminal.
3. Press the MODE key to display □ and "Ω" screen.
4. Apply test probes to the points of the circuit to be tested.
5. All resistance higher than 100 Ω will stop the instrument's sound alert. If the circuit is open, "OL" is displayed on screen.

Illustration of a multimeter with circuit components and a resistor (no text or symbols)

Diagram of a multimeter with labeled terminals and circuit components, showing connections to a terminal point.

The temperature probe is fitted with a type K mini connector. A mini connector to banana connector adaptor is supplied for connection to the input banana terminals.

3.9 Diode test

To avoid any risk of deterioration, remove power from the circuit to be tested before making any diode measurements.

1. Set the function switch to the position.
2. Insert the black test lead banana plug into the negative COM terminal and the red test lead banana plug into the positive + terminal.
3. Press the MODE key to display ➤ and V □□□□ on screen.

Diagram of a multimeter with labeled terminals and a diode symbol below, showing polarity indicators.

1. Apply test probes to the terminals of diode to be tested. Direct voltage is usually expressed by a value between 0.4 and 0.7 V. Reverse voltage is indicated by "OL". Short-circuit elements display a value close to 0V, open elements "OL" in both polarities.

3.10 Duty cycle/frequency measurements (Electronic)

1. Set the function switch to the "Hz %" position.
2. Press the Hz% key to display "Hz" on screen.
3. Insert the black lead banana plug into the negative COM terminal and the red test lead banana plug into the positive + terminal.
4. Apply test probes to the points of the circuit to be tested.
5. The frequency measured is displayed on screen.
6. Press the Hz% key again to display “%” on screen.
7. Duty cycle is displayed in percentage.

Diagram of a multimeter connected to a voltmeter with polarity labels and connections

3.11 Autoranging/Manual selection

When the multimeter is first turned on, it automatically goes into Auto-ranging and this automatically selects the best range for the measurements being made. This is generally the best mode for most measurements. For measurement situations requiring manual selection proceed as follows:

1. Press the RANGE key. The "AUTO" display indicator will turn off.
2. Press the RANGE key several times to scroll through the available ranges until the one you want is selected.
3. To exit the Manual selection mode and return to Autoranging, press and hold down the RANGE key for 2 seconds.

Manual ranging does not apply to Frequency measurements.

3.12 MAX/MIN

When using the MAX/MIN function in Autoranging mode, the multimeter will "lock" into the range that is displayed on the LCD when MAX/MIN is activated. If a MAX/Min reading exceeds that range, "OL" will be displayed. Select the adequate range before entering MAX/MIN mode.

1. Press the MAX/MIN key to activate the MAX/MIN measurement mode. The display icon "MAX" will appear. The multimeter will display and hold the maximum measurement until another maximum value is reached.
2. Press the MAX/MIN key again to display the "MIN" icon. The multimeter will display and hold the minimum measurement until another minimum value is reached.
3. To exit MAX/MIN mode, press and hold the MAX/MIN key for 2 seconds.

3.13 Relative mode

Relative mode enables relative measurement results to be obtained in relation to a stored reference value. The displayed value is the difference between the stored reference value and the value measured.

1. Perform the measurement as described in the operating instructions.
2. Press the REL key to store the displayed measurement. The "REL" indicator is displayed.
3. The display will now indicate the difference between the stored reference value and the value measured.
4. Press the REL key to exit relative mode.

Relative mode does not apply to frequency measurements.

3.14 Backlighting

Press the HOLD key for >1 second to turn on or off the backlighting function. The backlighting will automatically turn off after 10 seconds.

3.15 HOLD

The hold function freezes the reading in the display. Press the HOLD key briefly to activate or disable the HOLD function.

3.16 AUTO POWER OFF

The auto off feature will turn the multimeter off after 15 minutes. To disable the auto power off feature, hold down the MODE key when the multimeter is turned on.

3.17 Low battery indication

The 📋 icon will appear in the lower left corner of the screen when battery voltage becomes low. Replace the battery when this icon appears.

4. MAINTENANCE

To avoid electric shocks, disconnect the measurement leads from any source of voltage before opening the instrument or battery compartment. Do not use the instrument when it is open or without locking the battery compartment cover.

This multimeter is designed to provide years of reliable service, if the following care instructions are followed:

1. Keep the multimeter dry. If it gets wet, wipe it dry.
2. Use and store the multimeter in normal temperatures. Extreme temperatures can shorten the life of the electronic parts and distort or melt plastic parts.
3. Handle the multimeter gently and carefully. Dropping it can damage the electronic parts or the case.
4. Keep the multimeter clean. Wipe the case occasionally with a damp cloth. DO NOT use chemical substances, cleaning solvents, or detergents.
5. Use only new batteries of the recommended size and type. Remove the old or used battery so it does not leak and damage the instrument.
6. If the multimeter is to be stored for a long period of time, the battery should be removed to prevent damage to the unit.

4.1 Battery installation

To avoid electric shocks, disconnect the leads from any source of voltage before removing the battery cover.

1. Turn power off and disconnect the test leads from the multimeter.
2. Open the battery cover on the rear panel by removing the two screws (B) using a Phillips head screwdriver.

3. Insert the battery into battery holder, observing the correct polarity.

4. Put the battery cover back in place. Screw back down.

If your multimeter does is not working properly, check the fuses and batteries to make sure that they are still good and that they are properly inserted.

A B A B A

F1 F2

4.2 Replacing the fuses

To avoid electric shocks, disconnect the test leads from any source of voltage before removing the battery cover.

1. Disconnect the test leads from the multimeter.
2. Remove the battery cover (two "B" screws) and the battery.
3. Remove the six "A" screws securing the rear cover.
4. Gently remove the old fuse and install the new one.
5. Always use a fuse of the proper size and value (0.8A/1000V fast blow for the 600mA range [SIBA 70-172-40], 10A/1000V fast blow for the 20A range [SIBA 50-199-06]).
6. Replace and secure the rear cover, battery and battery cover.

5. TECHNICAL FEATURES

Function	Range	Resolution	Accuracy		Protection
DC Voltage	600 mV	0,1 mV	±(0,09 % R + 2 D)		1 000 V
	6V	0,001 V
	60 V	0,01 V
	600 V	0,1 V
	1 000 V	1 V	±(0,15% R + 2 D)
AC Voltage			50 to 60 Hz	40Hz-1kHz
	6 V	0,001 V	±(1,0% R + 3 D)	±(2,0% R + 3 D)	1 000 V
	60 V	0,01 V
	600 V	0,1 V
	1 000 V	1 V	±(1,2%R+3D)	±(2,5%R+3D)
	accuracy from 5 % to 100 % of range
DC Current	600 μA	0,1μA	±(1,0 % R + 3 D)		Fuse HBC 800mA/1000V
	6000 μA	1 μA
	60 mA	0,01 mA
	600 mA	0,1 mA
	6 A	0,001 A	±(1,5 % R + 3 D)		Fuse HBC 10A/1000V
	10 A	0,01 A
	(20 A : 30 s max. with reduced accuracy)
AC Current			40 Hz to 1 kHz
	600 μA	0,1μA	±(1,5 % R + 3 D)		Fuse HBC 800mA/1000V
	6000 μA	1 μA
	60 mA	0,01 mA
	600 mA	0,1 mA
	6 A	0,001 A	±(2,0 % R + 3 D)		Fusible HBC 10A/1000V
	10 A	0,01 A
	(20 A : 30 s max. with reduced accuracy)
	accuracy from 5 % to 100 % of range

Accuracy is valid from 18°C to 28°C, RH < 75%.

Function	Range	Resolution	Accuracy	Authorized overload protection
Resistance	600 Ω	0.1 Ω	±(0.3 % R + 4 D)	1 000 V
	6 kΩ	0.001 kΩ
	60 kΩ	0.01 kΩ
	600 kΩ	0.1 kΩ
	6 MΩ	0.001 MΩ
	60 MΩ	0.01 MΩ	±(0.5 % R + 20 D)
Capacity	60 nF	0.01 nF	±(3.5 % R + 4 D)	1 000 V
	600 nF	0.1 nF
	6 μF	0.001 μF
	60 μF	0.01 μF
	600 μF	0.1 μF
	1 000 μF	1 μF	±(5 % R + 5 D)
Frequency (electronic)	9.999 Hz	0.001 Hz	±(0.1 % R + 1 D)	1 000 V
	99.99 Hz	0.01 Hz
	999.9 Hz	0.1 Hz
	9.999 kHz	0.001 kHz
	99.99 kHz	0.01 kHz
	999.9 kHz	0.1 kHz
	9.999 MHz	0.001 MHz
	Sensitivity :0.8 Veff. min. @ 20 % to 80 % duty cycle and F < 100 kHz;5 Veff min. @ 20 % to 80 % duty cycle and F > 100 kHz
Frequency (electrical)	10.00-400 Hz	0.01 Hz	±(0.5 % R)	1 000 V
	Sensitivity : 15 Veff
Duty cycle	0.1 to 99.9 %	0.1 %	±(1.2 % R + 2 D)	1 000 V
	Pulse width : 100 μs - 100 msFrequency : from 5 Hz to 150 kHz
Temp.(K type)	-45 to 400°C-50 to +752°F	0.1°C0.1°F	±(3.0%R+5°C)(1)±(3.0%R+9°F)(1)	1 000 V
	400 to 750°C752 to 1382°F	1°C1°F	±(2.5%R+1.8°C)(1)±(2.5%R+3.6°F)(1)

(1): (probe accuracy not included)

Accuracy features consist in two elements:

(% reading R): is the accuracy of the measurement circuit

(+ digits D): is the accuracy of the analog to digital converter

Case	Double molded, waterproof IP67
Shock resistance (Drop Test)	2 meters
Diode Test	Test current of 0.9 mA maximum, open circuit voltage 2.8V DC typical
Continuity Test	Sound alert will stop if the resistance is >100Ω, test current < 0.35 mA
Temperature Sensor	Requires type K thermocouple
Input Impedance >10 MΩ V = and V ≈
AC Response True rms
ACV Bandwidth 40Hz to 1000Hz
Peak Factorlinearly to ≤1.5 at 1000V	≤3 at full scale up to 500V, decreasing
Display	6,000 count backlit LCD with bargraph
Overrange indication	“OL” is displayed
Auto Power Off	15 min, with disable feature
Polarity Automaticno indication for positive values,minus (-) sign for negative values
Measurement Rate	2 times per second, nominal
Low Battery Indication	“ ” is displayed if battery voltage drops below operating voltage
Battery	1 x 9 V battery (6LF22)
Fuses	mA, μA ranges; 0.8A/1000V fast ceramic; A range; 10A/1000V fast ceramic
Operating Temperature	5°C to 40°C
Storage Temperature	-20°C to 60°C
Operating Humidity	linear up to 4°C
Storage Humidity	< 80%
Operating Altitude	2000 m maximum
Weight	342 g (incl. holster)
Size	187 x 81 x 50mm (incl. holster)
Safetyand IEC 61010-2-033	In compliance with IEC61010-1
Double insulationInstallation category: III
Rated voltage: 1000 V
Pollution degree: 2

Inhalt

1. ALLGEMEINE HINWEISE....35

Diagram of a multimeter with labeled terminals and a voltmeter connected to positive and negative terminals

Illustration of a multimeter with analog terminals and a battery (no text or symbols visible)

Diagram of a multimeter with labeled ports and connection points, showing digital display and terminal connections.

Diagram of a multimeter with labeled terminals and a battery symbol, showing connections to positive and negative terminals.

Line drawing of a multimeter with circuit board and power supply (no text or symbols)

Illustration of a multimeter with circuit components and a battery, no text or symbols present

Diagram of a multimeter with labeled terminals and connection points, showing measurement setup

3.9 Diodentest

Diagram of a multimeter with labeled terminals and connection points showing measurement setup

Diagram of a multimeter with labeled terminals and a voltage meter connected to ground

Line drawing of a multimeter with circuit board and battery (no text or symbols)

Diagram of a multimeter with labeled ports and connection points, showing digital display and terminal connections.

Diagram of a multimeter with labeled terminals and connection points, showing measurement setup

Line drawing of a multimeter with circuit board and power supply (no text or symbols)

Illustration of a digital multimeter with circuit board and power source (no text or symbols)

Diagram of a multimeter with labeled terminals and connections, showing measurement setup

Diagram of a multimeter with labeled terminals and a circuit symbol below indicating polarity.

Diagram of a multimeter connected to a voltmeter with polarity labels

Diagram of a multimeter with an analog voltmeter connected to a power supply, showing polarity and measurement points.

3.3 Medidas de corriente continua

Diagram of a digital multimeter with labeled ports and connections, including a battery and switch.

Line drawing of a digital multimeter with an attached terminal block (no text or symbols visible)

Diagram of a multimeter with labeled terminals and a battery symbol, showing connections to positive and negative terminals.

Line drawing of a multimeter with circuit components and wiring (no text or symbols)

Illustration of a digital multimeter with circuit board and power source (no text or symbols)

Diagram of a multimeter with labeled terminals and connection points, showing measurement setup

3.9 Control de diodo

Diagram of a multimeter with labeled terminals and a diode symbol below, showing polarity indicators.

Diagram of a multimeter connected to a voltage source with polarity labels and measurement markings

UK - Unit 1 - Nelson Ct - Flagship Sq - Shaw Cross Business Pk - Dewsbury

West Yorkshire - WF12 7 ^TH - Tél : [phone] - Fax : [phone]

Middle East - P.O BOX 60-154 - 1241 2020 Jal el dib- BEIRUT
