Product type	Digital multimeter
Brand	Velleman
Model	DVM855
Category	Multimeter
Dimensions	138 x 74 x 30 mm
Weight	120 g (with battery)
Power supply	2 AAA LR03 batteries (incl.)
Display	LCD 3½ digits, 4000 counts, 47 x 21 mm
Main functions	DC/AC voltage, DC/AC current, resistance, capacitance, diode, continuity, frequency, duty cycle, battery test
DC voltage ranges	400 mV to 500 V
AC voltage ranges	4 V to 500 V
DC current ranges	400 µA to 10 A
AC current ranges	400 µA to 10 A
Resistance ranges	400 Ω to 40 MΩ
Capacitance ranges	51.2 nF to 100 µF
Frequency ranges	5.12 Hz to 5.12 MHz
Overvoltage category	CAT II 500 V / CAT III 300 V
Pollution degree	2
Overload protection	Fuses F0.5 A/500 V and F10 A/500 V (5 x 20 mm)
Operating temperature	0 °C to 40 °C
Operating humidity	Max. 80% RH
Maximum altitude	2000 m
Maintenance	Clean with a damp cloth and mild detergent
Spare parts	AAA LR03 batteries, fuses F0.5 A/500 V and F10 A/500 V (5 x 20 mm)
Warranty	24 months (consumer product)

Frequently Asked Questions - DVM855 VELLEMAN

How to measure DC voltage with the DVM855?

Turn the rotary selector to the V~ range, press SELECT to choose DC mode, connect the red lead to the VΩHz terminal and the black to COM, then place the test probes on the circuit to be measured. The value is displayed with polarity.

How to measure resistance?

Make sure the circuit is de-energized and capacitors are discharged. Turn the selector to Ω→•••, connect the leads as for voltage, and place the probes on the resistor. The value is displayed in ohms.

What to do if the display is blank?

Check that the batteries are correctly installed and not depleted. If the low battery symbol (BAT) appears, replace the batteries with two AAA LR03. If nothing displays, check the fuse (see manual).

How to replace the battery?

Turn off the multimeter and disconnect the leads. Remove the screw of the rear compartment, open it, replace the two AAA LR03 batteries observing polarity, close and re-screw.

What does the low battery symbol mean?

The BAT symbol or a battery icon indicates that the batteries are low and should be replaced to avoid inaccurate measurements.

Can I measure line voltage (230 V) with this multimeter?

Yes, but only within CAT II up to 500 V. For standard household installation, it is safe. Use the V~ range in AC mode. Be careful: keep your fingers behind the probe guard.

How to test a diode?

Select the Ω→••• range then press SELECT until the diode symbol appears. Connect the red probe to the anode and the black to the cathode. The display shows the approximate forward voltage.

What is the function of the SELECT button?

The SELECT button allows toggling between modes available at a rotary selector position, for example between DC and AC voltage, or between resistance, diode, and continuity.

How to use the backlight?

Press and hold the OH button (or HOLD depending on model) for 2 seconds to turn the backlight on or off. It turns off automatically after a certain time.

What to do if the fuse is blown?

Turn off the device and disconnect the leads. Open the rear compartment, remove the defective fuse and replace it with a fuse of the same specification: F0.5 A/500 V or F10 A/500 V (5 x 20 mm). Close carefully.

USER MANUAL DVM855 VELLEMAN

DIGITAL MULTIMETER - 4000 COUNTS DIGITALE MULTIMETER - 4000 COUNTS MULTIMÈTRE NUMÉRIQUE - 4000 POINTS MULTÍMETRO DIGITAL - 4000 CUENTAS DIGITAL-MULTIMETER - 4000 ZÄHLUNGEN MULTIMETR CYFROWY - WARTOŚCI DO 4000 MULTÍMETRO DIGITAL - CONTAGEM ATÉ 4000

CAT. II 500 V / CAT. III 300 V

USER MANUAL 3

HANDLEIDING 16

MODE D'EMPLOI 29

MANUAL DEL USUARIO 43

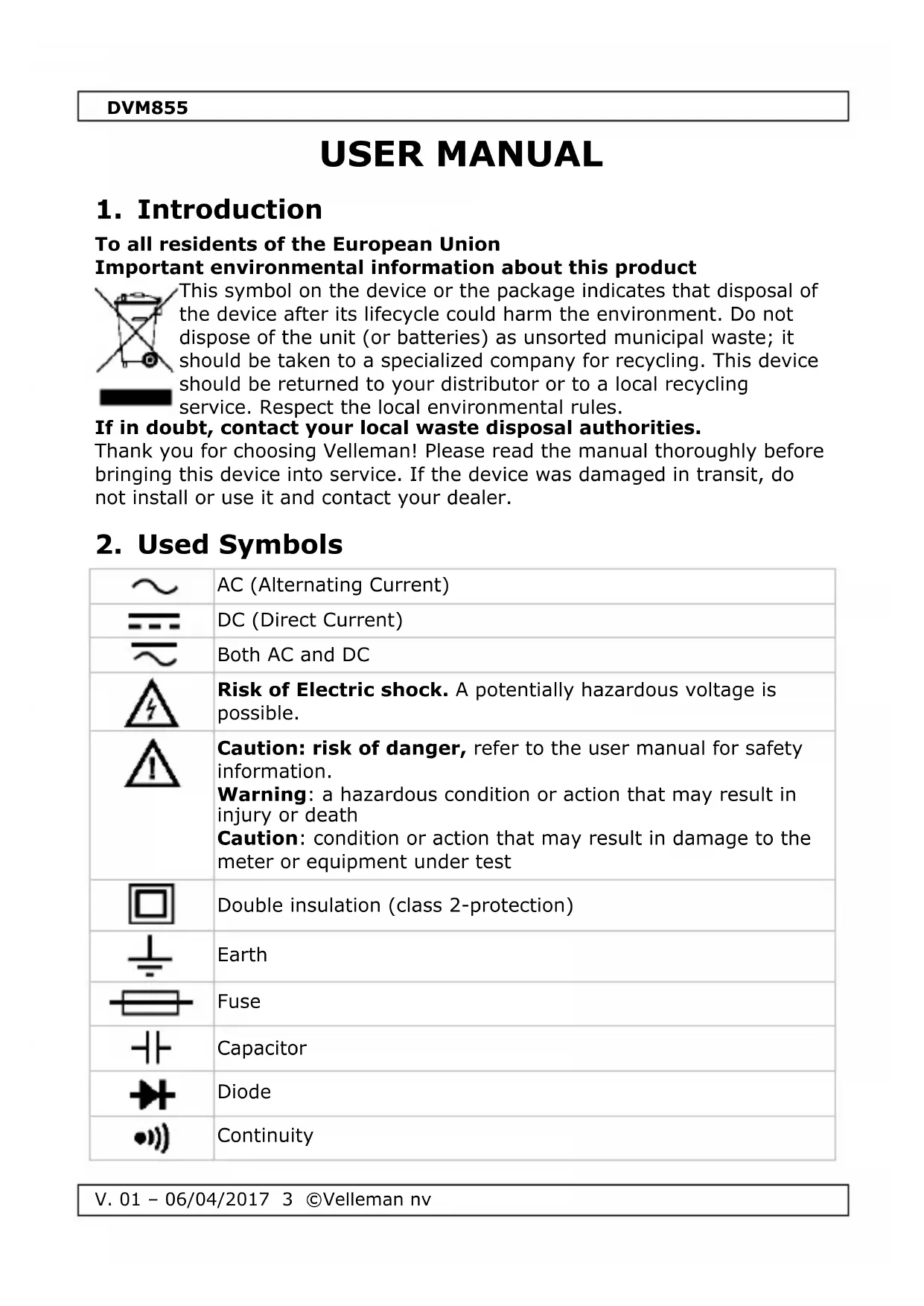

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Used Symbols

	AC (Alternating Current)
	DC (Direct Current)
	Both AC and DC
	Risk of Electric shock. A potentially hazardous voltage is possible.
	Caution: risk of danger, refer to the user manual for safety information.Warning: a hazardous condition or action that may result in injury or deathCaution: condition or action that may result in damage to the meter or equipment under test
	Double insulation (class 2-protection)
	Earth
	Fuse
	Capacitor
	Diode
	Continuity

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

	This symbol indicates: Read instructionsNot reading the instructions and manual can lead to damage, injury or death.
	This symbol indicates: DangerA hazardous condition or action that may result in injury or death
	This symbol indicates: Risk of danger/damageRisk of a hazardous condition or action that may result in damage, injury or death
	This symbol indicates: Attention; important informationIgnoring this information can lead to hazardous situations.
	WARNING: To avoid electrical shock always disconnect the test leads prior to opening the housing. To prevent fire hazards, only use fuses with the same ratings as specified in this manual.Remark: refer to the warning on the battery compartment
	Avoid cold, heat and large temperature fluctuations. When the unit is moved from a cold to a warm location, leave it switched off until it has reached room temperature. This to avoid condensation and measuring errors.
	Protect this device from shocks and abuse. Avoid brute force when operating.
	Pollution degree 2-device. For indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Not for industrial use.Refer to §8 Pollution degree.
	Keep the device away from children and unauthorised users.
	Risk of electric shock during operation. Be very careful when measuring live circuits.
	There are no user-serviceable parts inside the device.Refer to an authorized dealer for service and/or spare parts.

DVM855

	This is an installation category CAT III measuring instrument. Refer to §7 Overvoltage/installation category.
	Read this addendum and the manual thoroughly. Familiarise yourself with the functions of the device before actually using it.
	All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
	Only use the device for its intended purpose. Using the device in an unauthorized way will void the warranty. Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

4. Maintenance

There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

Before performing any maintenance activities, disconnect the test leads from the jacks.

For instructions on replacing battery or fuse, refer to §11 Battery and fuse replacement.

Do not apply abrasives or solvents to the meter. Use a damp cloth and mild detergent for cleaning purposes.

5. During Use

Risk of electric shock during operation. Be very careful when measuring live circuits.

• Never exceed the limit value for protection. This limit value is listed separately in the specifications for each range of measurement.
• Do not touch unused terminals when the meter is linked to a circuit which is being tested.
• Never use the meter with CAT II installations when measuring voltages that might exceed the safety margin of 500 V above earth ground. Never use the meter with CAT III installations when measuring voltages that might exceed the safety margin of 300 V above earth ground.
• Set the range selector at its highest position if the intensity of the charge to be measured is unknown beforehand.
• Disconnect the test leads from the tested circuit before rotating the range selector in order to change functions.
• When carrying out measurements on a TV set or switching power circuits, always remember that the meter may be damaged by any high amplitude voltage pulses at test points.

DVM855

• Always be careful when working with voltages above 60 VDC or 30 VAC rms. Keep your fingers behind the probe barriers at all times during measurement.
• Never perform resistance, diode or continuity measurements on live circuits. Make sure all capacitors in the circuit are depleted.

6. General Description

Refer to the illustration on page 2 of this manual:

1. Display

3 34 digits, 7 segments, LCD: 47 x 21 mm

1. Function buttons

2. Selection button

3. "VΩHz" jack

Insert the red (positive) test lead in this connector to measure voltage, resistance and current (except 10 A).

1. "COM" jack

Insert the black (negative) test lead.

1. "10A" jack

Insert the red test lead in this connector in order to measure a max. current of 10 A.

7. Overvoltage/Installation Category

DMMs are categorized depending on the risk and severity of transient overvoltage that might occur at the point of test. Transients are short-lived bursts of energy induced in a system, e.g. caused by lightning strike on a power line.

The existing categories according EN 61010-1 are:

CAT I	A CAT I-rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power, e.g. electronics circuits, control signals...
CAT II	A CAT II-rated meter is suitable for measurements in CAT I-environments and mono-phase appliances that are connected to the mains by means of a plug and circuits in a normal domestic environment, provided that the circuit is at least 10 m apart from a CAT III- or 20 m apart from a CAT IV-environment. E.g. household appliances, portable tools...
CAT III	A CAT III-rated meter is suitable for measurements in CAT I- and CAT II-environments, as well as for measurements on (fixed) mono- or poly-phased appliances which are at least 10 m apart from of a CAT IV-environment, and for measurements in or on distribution level equipment (fuse boxes, lighting circuits, electric ovens).

DVM855

CAT IV

A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II- and CAT III-environments as well as on the primary supply level. Note that for all measurements on equipment for which the supply cables run outdoors (either overhead or underground) a CAT IV meter must be used.

Warning:

This device was designed in accordance with EN 61010-1 installation category CAT II 500 V and CAT III 300 V. This implies that certain restrictions in use apply that are related to voltages and voltage peaks which can occur within the environment of use. Refer to the table above.

This device is only suitable for measurements up to 500 V in CAT II and up to 300 V in CAT III

8. Pollution Degree

IEC 61010-1 specifies different types of pollution environments, for which different protective measures are necessary to ensure safety. Harsher environments require more protection, and the protection against the pollution which is to be found in a certain environment depends mainly on the insulation and the enclosure properties. The pollution degree rating of the DVM indicates in which environment the device may be used.

Pollution degree 1	No pollution or only dry, nonconductive pollution occurs. The pollution has no influence. (only to be found in hermetically sealed enclosures)
Pollution degree 2	Only nonconductive pollution occurs. Occasionally, temporary conductivity caused by condensation is to be expected.(home and office environments fall under this category)
Pollution degree 3	Conductive pollution occurs, or dry nonconductive pollution occurs that becomes conductive due to condensation that is to be expected.(industrial environments and environments exposed to outside air - but not in contact with precipitation)
Pollution degree 4	The pollution generates persistent conductivity caused by conductive dust or by rain or snow. (exposed outdoor environments and environments where high humidity levels or high concentrations of fine particles occur)

Warning: This device was designed in accordance with EN 61010-1 pollution degree 2. This implies that certain restrictions in use apply that are related to pollution which can occur within the environment of use. Refer to the table above.

This device is only suitable for measurements in Pollution degree class 2 environments.

9. Specifications

This device is not calibrated when purchased!

Regulations concerning environment of use:

Use this meter only for measurements in CAT I, CAT II and CAT III

environments (see §7).

Use this meter only in a pollution degree 2 environment (see §8).

Ideal working conditions include:

temperature: 0 °C to 40 °C (32 °F to 104 °F)

relative humidity: max. 80 %

altitude: max. 2000 m (6560 ft)

voltage 500 V

fuse protection

F0.5 A/500 V, 5 x 20 mm

F10 A/500 V, 5 x 20 mm

power supply 2 x AAA (LR03, incl.)

display......LCD, 4000 counts

display dimensions 47 x 21 mm

over-range .... yes

continuity buzzer......yes

diode test.....yes

low-battery indication .... yes

ranging mode .... auto + manual

data hold .... yes

backlight.....yes

auto power-off ....yes

dimensions.... 138 x 74 x 30 mm

weight (with battery) 120 g

storage environment

temperature ...... -20 °C to 60 °C

humidity .... < 90 % RH

test lead probe.... CAT III 600 V, 12 A; L = 70 cm

9.1 DC VOLTAGE

Do not measure circuits that may contain voltages

500 VDC or > 500 VAC

range	resolution	accuracy
400 mV	0.1 mV	± (0.5 % rdg + 2 digits)
4 V	1 mV
40 V	10 mV
400 V	100 mV
500 V	1 V	± (0.8 % rdg + 2 digits)

Overload protection: 500 V DC or AC rms

Impedance: 10 MΩ, > 100 MΩ for 400 mV range

V. 01 - 06/04/2017 8 ©Velleman nv

9.2 AC VOLTAGE

	Do not measure circuits that may contain voltages > 500 VDC or > 500 VAC
range	resolution	accuracy
4 V	1 mV	± (0.8 % rdg + 3 digits)
40 V	10 mV
400 V	100 mV
500 V	1 V	± (1.2 % rdg + 3 digits)

Average sensing, calibrated to rms of sine wave

Frequency range: 40-500 Hz

Overload protection: 500 V DC or AC rms

Impedance: 10 MΩ

9.3 DC CURRENT

	Do not measure circuits that may contain voltages > 500 VDC or > 500 VAC
range	resolution	accuracy
400 μA	0.1 μA	± (1.2 % rdg + 2 digits)
4000 μA	1 μA
40 mA	10 μA
400 mA	100 μA
4 A	1 mA
10 A	10 mA	± (2.0 % rdg + 3 digits)

Overload protection: F0.5 A/500 V fuse, F10 A/500 V fuse 10 A up to 10 seconds

9.4 AC CURRENT

	Do not measure circuits that may contain voltages > 500 VDC or > 500 VAC
range	resolution	accuracy
400 μA	0.1 μA	± (1.5 % rdg + 3 digits)
4000 μA	1 μA
40 mA	10 μA
400 mA	100 μA
4 A	1 mA
10 A	10 mA	± (2.5 % rdg + 5 digits)

DVM855

Average sensing, calibrated to rms of sine wave

Frequency range: 40-500 Hz

Overload protection: F0.5 A/500 V fuse, F10 A/500 V fuse

10 A up to 10 seconds

9.5 RESISTANCE

	Do not conduct resistance measurements on live circuits
range	resolution	accuracy
400 Ω	0.1 Ω	± (1.0 % rdg + 3 digits)
4 kΩ	1 Ω	± (1.0 % rdg + 2 digits)
40 kΩ	10 Ω
400 kΩ	10 Ω
4 MΩ	1 kΩ
40 MΩ	10 kΩ	± (1.5 % rdg + 3 digits)

Overload protection: 500 V DC or AC rms

9.6 CAPACITANCE

	Do not conduct capacitance measurements on live circuits
range	resolution	accuracy
51.2 nF	10 pF	± (3.0 % rdg + 10 digits)
512 nF	100 pF	± (2.5 % rdg + 5 digits)
5.12 μF	1 nF
51.2 μF	10 nF
100 μF	100 nF	± (5.0 % rdg + 10 digits)

Overload protection: 500 V DC or AC rms

9.7 DIODE AND CONTINUITY

	Do not conduct diode or continuity measurements on live circuits
range	description	test condition
	display reads the approximate forward voltage of the diode	forward DC current ± 1 mA reversed DC voltage ± 1.5 V

DVM855

built-in buzzer sounds if resistance < 120 Ω

open-circuit voltage ± 0.5 V

Overload protection: 500 V DC or AC rms

9.8 FREQUENCY

	Do not conduct frequency measurements on live circuits
range	resolution	accuracy
5.12 Hz	0.001 Hz	± (0.1 % rdg + 5 digits)
51.2 Hz	0.01 Hz
512 Hz	0.1 Hz
5.12 kHz	1 Hz
51.2 kHz	10 Hz
512 kHz	100 Hz
5.12 MHz	1 kHz

Sensitivity: sine wave 0.6 V rms (10 MHz: 1.5 V rms)

Overload protection: 500 V DC or AC rms

9.9 DUTY CYCLE

0.1 %-99.9 %: ± (2.0 % rdg + 2 digits)

Frequency < 10 kHz

Sensitivity: sine wave 0.6 V rms

Overload protection: 500 V DC or AC rms

9.10 BATTERY TEST

range	load current	resolution	accuracy
1.5 V	50 mA	10 mV	± (5.0 % rdg + 5 digits)
9 V	5 mA	10 mV

Overload protection: F0.5 A/500 V fuse

10. Operation

10.1 VOLTAGE MEASUREMENT

Do not measure circuits that may contain voltages > 500 VDC or > 500 VAC

Use extreme caution when measuring voltages higher than 60 VDC or 30 VAC rms.

Always place your fingers behind the protective edges of the test probes while measuring!

1. Set the rotary switch in the desired "v=" position.
2. Press "SELECT" to choose the AC or DC measurement mode.
3. Connect the red test lead to the "VΩHz" jack and the black lead to the "COM" jack.
4. Connect the test leads to the source being measured.
5. Read the voltage value and the polarity of the red test lead on the LCD display.

Notes

- In the AC range, press "Hz%" to measure the frequency or duty cycle.

10.2 CURRENT MEASUREMENT

Do not measure circuits that may contain voltages > 500 VDC or > 500 VAC

Use extreme caution when measuring voltages higher than 60 VDC or 30 VAC rms.

Always place your fingers behind the protective edges of the test probes while measuring!

1. Set the rotary switch in the desired "A\~", "mA\~" or "μA\~" position.
2. Press "SELECT" to choose the AC or DC measurement mode.
3. Connect the red test lead to the "V Hz" jack and the black test lead to the "COM" jack (switch the red lead to the "10A" jack for measurements between 400 mA and 10 A).
4. Open the circuit in which the current is to be measured and connect the test leads to the circuit IN SERIES.
5. Read the current value and the polarity of the red lead connection on the LCD display.

Notes

- In the AC range, press "Hz%" to measure the frequency or duty cycle.

10.3 RESISTANCE MEASUREMENT

Do not conduct resistance measurements on live circuits. Make sure all capacitors in the circuit are depleted.

1. Set the rotary switch in the desired "Ω→••" position.
2. Connect the red test lead to the "V Hz" jack and the black test lead to the "COM" jack.
3. Connect the test leads to the resistor to be measured and read the LCD display.

10.4 CAPACITANCE MEASUREMENT

Do not conduct capacitance measurements on live circuits. Make sure all capacitors in the circuit are depleted.

1. Set the rotary switch in the desired “+” position.
2. Connect the red test lead to the "VΩHz" jack and the black test lead to the "COM" jack.
3. Connect the test leads to the source being measured and read the LCD display.

Notes

- When testing a 100 F capacitor, note that there will be a time lag of ± 15 seconds.

10.5 DIODE AND CONTINUITY TEST

Do not conduct diode or continuity measurements on live circuits. Make sure all capacitors in the circuit are depleted.

1. Set the rotary switch in the “Ω→••” position.
2. Press "SELECT" to choose the diode or continuity measurement mode.
3. Connect the red test lead to "VΩHz" jack and the black one to the "COM" jack.
4. For measuring the diode, connect the red test lead to the anode of the diode to be tested and the black test lead to the cathode of the diode. The approx. forward voltage drop of the diode will be displayed. For measuring continuity, connect the test leads to two points of the circuit to be tested. If continuity exists, the built-in buzzer will sound.

10.6 FREQUENCY AND DUTY CYCLE MEASUREMENT

Do not conduct frequency or duty cycle measurements on live circuits.

1. Set the rotary switch in the "Hz%" position.
2. Press "SELECT" to choose the frequency or duty cycle measurement mode.
3. Connect the red test lead to "VΩHz" jack and the black one to the "COM" jack.
4. Connect the test leads to the source being measured and read the LCD display.

10.7 BATTERY TEST

1. Set the rotary switch in the 1.5V or 9V position.
2. Connect the test leads to the battery to be tested and read the LCD display.

10.8 DATA HOLD

Press "D" to lock the displayed value. Press again to exit.

10.9 BACKLIGHT

Hold "uppressed for 2 seconds to switch the backlight on or off. The backlight will also switch off automatically.

10.10 RELATIVE MEASUREMENT

Press "REto measure the relative value or to exit the function.

11. Battery and Fuse Replacement

WARNING: To avoid electrical shock always disconnect the test leads prior to opening the housing. To prevent fire hazards, only use fuses with the same ratings as specified in this manual.

Remark: refer to the warning on the battery compartment

There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

Disconnect the test leads from the test points and remove the test leads from the measuring terminals before replacing the batteries or fuses.

DVM855

• When" " is displayed, the battery should be replaced.
• Fuses rarely need replacement and blown fuses almost always result from human error.

To replace the battery:

• Switch of the meter.
• Remove the screw at the back of the case and gently open the housing.
• Remove the old battery and insert a new one.
• Close the housing and fasten the screw.

Battery: 2x AAA LR03, make sure to respect the polarity

Fuses: F0.5 A/500 V, 5 x 20 mm, F10 A/500 V, 5 x 20 mm

Make sure the meter is closed tight and put the protective edge back in place before using the meter.

12. Troubleshooting

If the device acts abnormal while measuring, this means that the internal fuse is defective.

Keep in mind that a low battery level could lead to incorrect measurements. Replace the battery on a regular basis.

(tip: the reduced luminosity of the backlight/LCD display indicates a low battery level)

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

10.3 WEERSTANDSMETING

10.1 MESURER LA TENSION

10.8 FONCTION DATA HOLD

testowanie diod......tak

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
  You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

NL
