Product type Soldering station
Brand Velleman
Model VTSS5
Power supply 230 V~, 50 Hz
Maximum power consumption 50 VA
Temperature range 175°C ~ 480°C
Temperature adjustment Rotary electronic
Temperature tolerance 5%
Output Grounded
Dimensions (L x W x H) 195 x 100 x 90 mm
Compatible replacement tips BITC7N1, BITC7N2, BITC7N3 (not included)
Tip material Copper-plated iron
Included accessories Holder, sponge, tip
Usage Indoor only
Cleaning Damp cloth with mild detergent; do not immerse
Tip maintenance Clean and tin regularly; avoid abrasives
Safety Automatic cooling after shutdown, grounding, burn protection
Warranty 24 months (Velleman general terms)

Frequently Asked Questions - VTSS5 VELLEMAN

How to adjust the temperature of the VTSS5 station?
Use the rotary adjustment (2) to turn on the device and select the desired temperature between 175°C and 480°C. The LED lights up when the device is on.
What is the ideal temperature for soldering with lead-free solder?
For lead-free solder, the normal working temperature is 300-360°C (572-680°F). The melting point is about 220°C.
How to clean the soldering iron tip?
Briefly pass the tip over the damp sponge to remove residues. For deep cleaning, use isopropyl alcohol and 600-800 grit sandpaper, then re-tin.
Why does the station continue to blow after being turned off?
This is normal: after shutdown, a cooling fan briefly blows cold air to protect the heating element. Do not unplug the device during this phase.
Can I use non-original tips on the VTSS5?
It is recommended to use only original Velleman accessories, such as the replacement tips BITC7N1, BITC7N2 or BITC7N3, to ensure safety and performance.
How to replace the soldering iron tip?
Unscrew the nut of the iron, remove the old tip, clean the cylinder, place the new tip and screw the nut back on. Make sure the device is unplugged and cooled down.
What to do if the tip does not heat up?
Check that the station is plugged in and turned on, the temperature regulator is set, and the tip is properly attached. If the problem persists, contact your dealer.
Is the VTSS5 station suitable for lead-free soldering?
Yes, the temperature range goes up to 480°C, which allows reaching the necessary temperatures for lead-free solder (300-360°C in normal use).
How to properly tin the tip?
After cleaning, apply a little solder to the tip at around 200°C. This forms a protective layer that improves heat transfer and extends lifespan.
Where can I find accessories and replacement tips for the VTSS5?
Accessories and replacement tips are available from your Velleman dealer or at www.velleman.eu. Use references BITC7N1, BITC7N2 or BITC7N3.

User questions about VTSS5 VELLEMAN

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Welding machine in PDF format for free! Find your manual VTSS5 - VELLEMAN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VTSS5 by VELLEMAN.

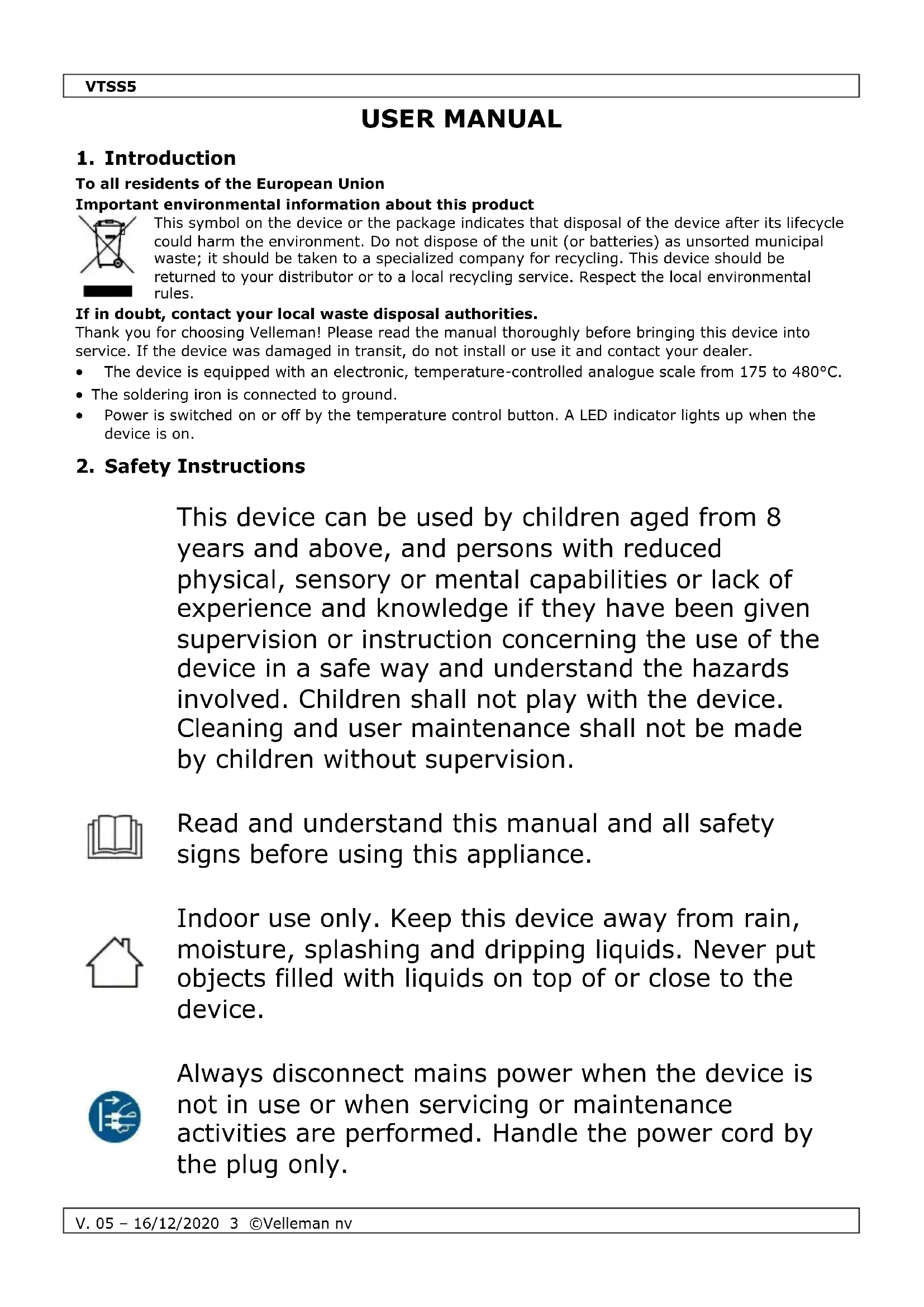

USER MANUAL VTSS5 VELLEMAN
