GJ461 - Food Processor BUFFALO - Free user manual and instructions

Product type	Food processor / Mixer blender
Model	GJ461
Brand	Buffalo
Bowl capacity	30 litres
Dimensions (H x W x D)	1142 x 579 x 611 mm
Weight	170 kg
Supply voltage	230 V / 50 Hz
Power	1500 W
Rated current	6.5 A
Movement type	Planetary
Bowl material	Stainless steel
Included accessories	Paddle, whisk, dough hook, mixing bowl
Speeds	3 speeds (gear lever)
Safety	Safety guard, overload circuit breaker, emergency stop (rotary OFF button)
Mixing capacity (max flour)	7.5 kg
Mixing capacity (max dough)	11.3 kg
Cleaning	Bowl and accessories washable in warm soapy water; do not immerse the appliance
Maintenance	Regular greasing of the lift mechanism; check belt every 12 months by a qualified technician
Repairability	Entrust to a Buffalo agent or qualified technician; spare parts available
Standards	CE, WEEE compliance

Frequently Asked Questions - GJ461 BUFFALO

How to change the accessories (paddle, whisk, dough hook)?

Turn off the appliance, open the safety guard, lower the bowl, then push the accessory upwards then to the left to disengage it. Insert the new accessory by pushing upwards and to the right to lock it in place. Raise the bowl.

Why does the appliance not start?

Check that the appliance is plugged in and switched on, the safety guard is properly closed, the bowl is fully raised, and the stop button (GJ461) is not stuck (turn it clockwise). If the overload circuit breaker has tripped, reset it after emptying part of the contents.

How to clean the Buffalo GJ461 mixer blender?

Turn off and unplug the appliance. Wash the bowl and accessories with warm soapy water. Do not use abrasive products. Clean the exterior with a damp cloth. Never immerse the appliance.

What is the maximum capacity of flour and dough for the GJ461?

The maximum flour capacity is 7.5 kg and dough capacity is 11.3 kg for the 30-litre bowl.

How to adjust the mixing speed?

Use the gear lever located on the appliance. Always stop the mixer before changing speed. Buffalo recommends starting at speed 1 and increasing gradually.

What to do if the appliance stops due to overload?

Turn off the appliance, empty part of the bowl contents, then reset the overload circuit breaker located at the back near the cable entry. Allow the appliance to cool for 20 minutes before restarting.

How to raise the bowl correctly?

Ensure that both locking pins lock the handles against the cradle and that the protrusion at the rear of the bowl fits into the designated hole. Push the handle all the way until the bowl is fully raised, otherwise the appliance will not operate.

Can I use non-Buffalo accessories with this mixer?

Buffalo recommends using only original accessories (dough hook, paddle, whisk) to ensure safety and performance. Using unsuitable accessories may damage the appliance or cause injury.

How to maintain the mixer blender in the long term?

Regularly grease the bowl lift mechanism. Every 12 months, have the chain and belt tension checked and greased by a Buffalo agent or qualified technician.

Is the appliance guaranteed and where to find spare parts?

Buffalo places great importance on quality. In case of damage during transport, contact your dealer. For repairs and spare parts, contact a Buffalo agent or approved qualified technician.

USER MANUAL GJ461 BUFFALO

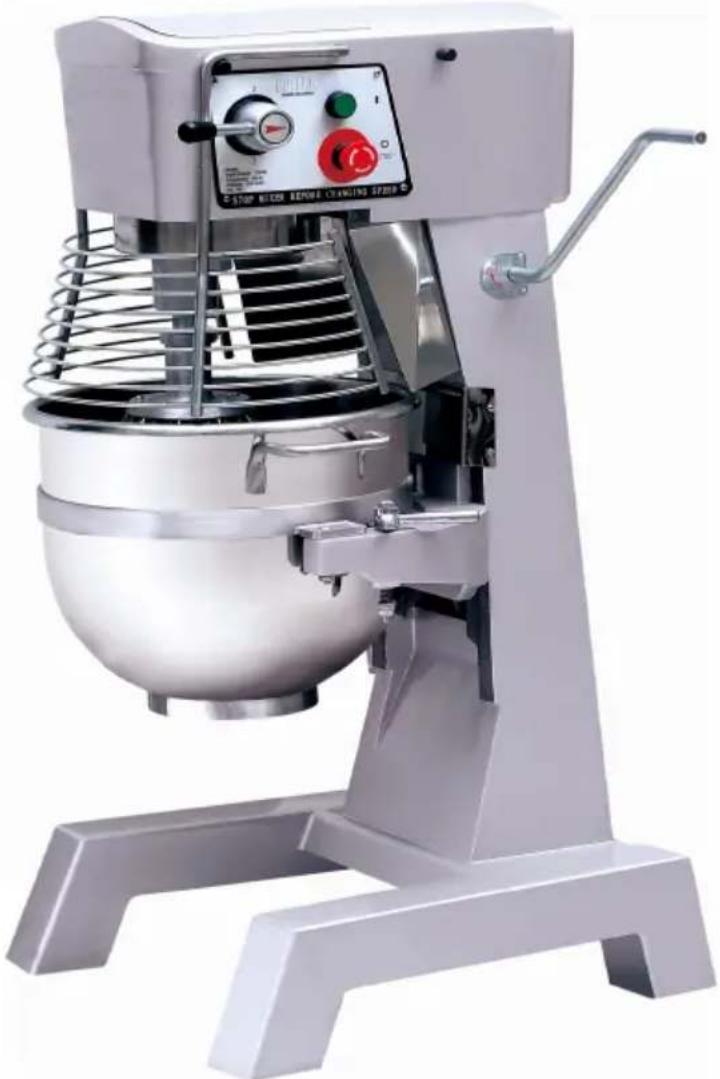

Exterior view of a Buffalo mixing station mixer with control panel and mesh fan (no visible text or symbols)

NL Planetary Mixer Handleiding
FR Planetary Mixer Mode d'emploi
DE Planetary Mixer Bedienungsanleitung

Exterior view of a modern kitchen mixer with control panel and side legs (no visible text or symbols)

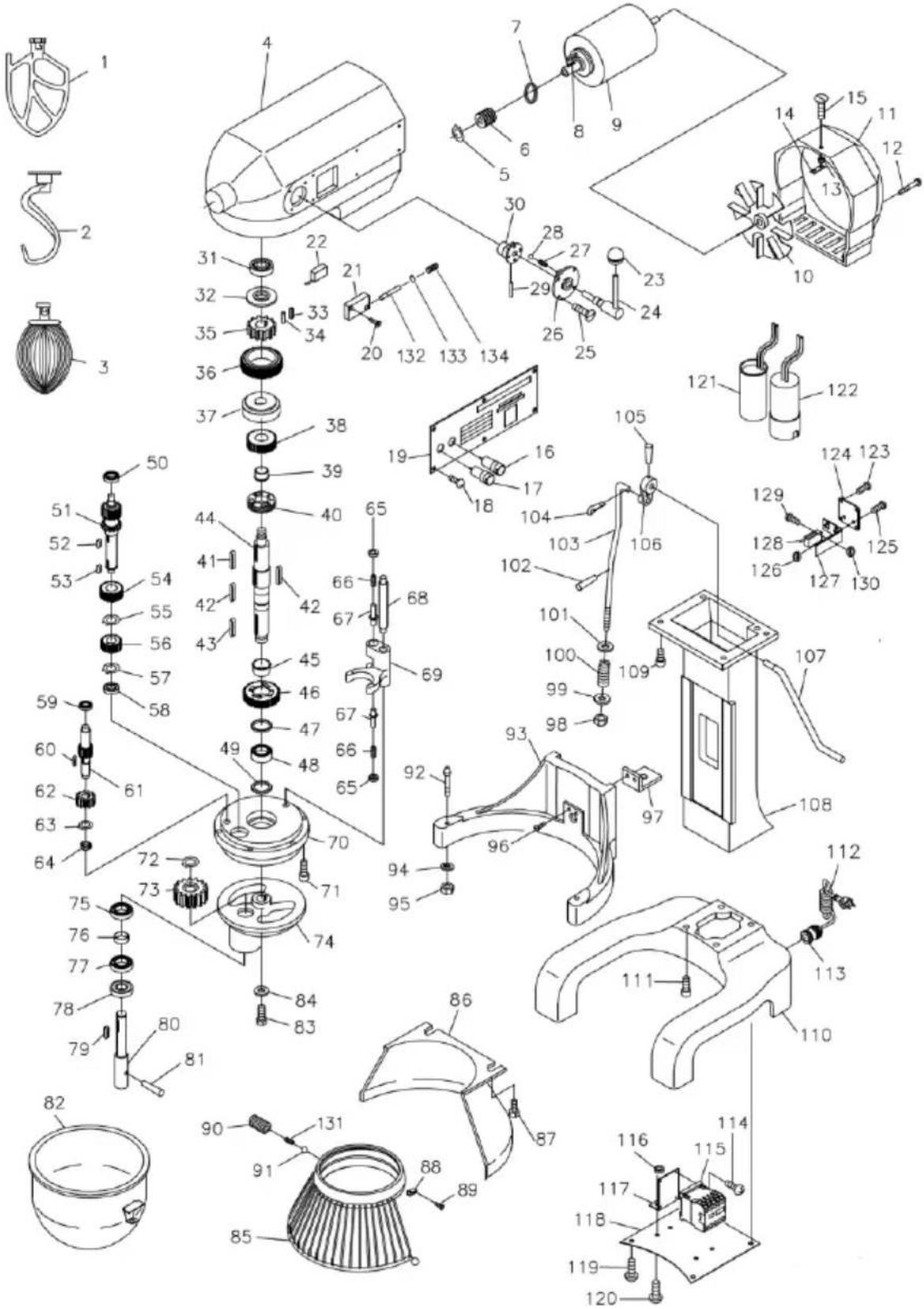

Exploded diagram and spare parts list GL190

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded diagram and spare parts list GL190

No.	Descripon	No.	Descripon	No.	Descripon
1	Flat Beater	48	Bearings	93	Support
2	Dough Hook	49	Seal	94	Washer
3	Wire Whip	50	Bearings	95	Type 1 Hexagon Nut
4	Gear Box	51	Gear Sha	96	Screw
5	Circlip	52	Key: 5x10	97	Liing
6	Worm Gear	53	Key: 5x10	98	Hexagon
7	Seal	54	Gear	99	Flat Washer
8	Key	55	Circlips	100	Spring
9	Motor	56	Gear	101	Flat Washer
10	Fan	57	Circlips	102	Pin
11	Rear Outer Casing	58	Bearings	103	Connecng
12	Nut M5 x 60	59	Bearings	104	Coer Pin
13	Washer	60	Key: 5x14	105	Retainer Pin
14	Connector	61	Sha	106	Crank Lever
15	Nut M4 x 8	62	Worm Gear	107	Handle
16	Red Buon	63	Circlips	108	Rear Pillar
17	Green Buon	64	Bearings	109	Hexagonal
18	Nut M4 x 8	65	Control Nut	110	Base
19	Panel	66	Spring	111	Hexagonal
20	Nut M4x 20	67	Fork Pin	112	Power Cord
21	Micro Switch	68	Sha	113	Gland
22	Distance Switch	69	Shiing Yoke	114	Screw
23	Handle Assembly	70	Inner Gear	115	Contact
25		71	Hexagon Socket	116	Type 1
26		72	Circlips	117	AC connector
27		73	Planet Gear	118	Fixing Plate
28		74	Operang Shelf	119	Screw
29		75	Bearing	120	Screw
30		76	Sha Support	121	Capacitor
31	Bearings	77	Bearing	122	Capacitor

Exploded diagram and spare parts list GL190

32	Washer	78	Seal	123	Screw
33	Spring	79	Key: 5x20	124	Fixing Plate
34	Roller 6 x 10	80	Spindle	125	Screw
35	Gear	81	Retainer Pin	126	Type 1
36	Cog	82	Bowl	127	Bracket
37	Ring Gasket	83	Screw	128	Distance
38	Gear	84	Washer	129	Screw
39	Sha sleeve	86	Rear Guard	130	Type 1
40	Claw Clutch	87	Bolt	132	Sha Pin
41	Key: 5x25	85	Front Guard Assembly	133	Split Washer
42	Key: 5x30	88		134	Spring
43	Key: 5x30	89
44	Main Sha	90
45	Sha Sleeve	91
46	Gear	131
47	Washer	92	Taper Pin

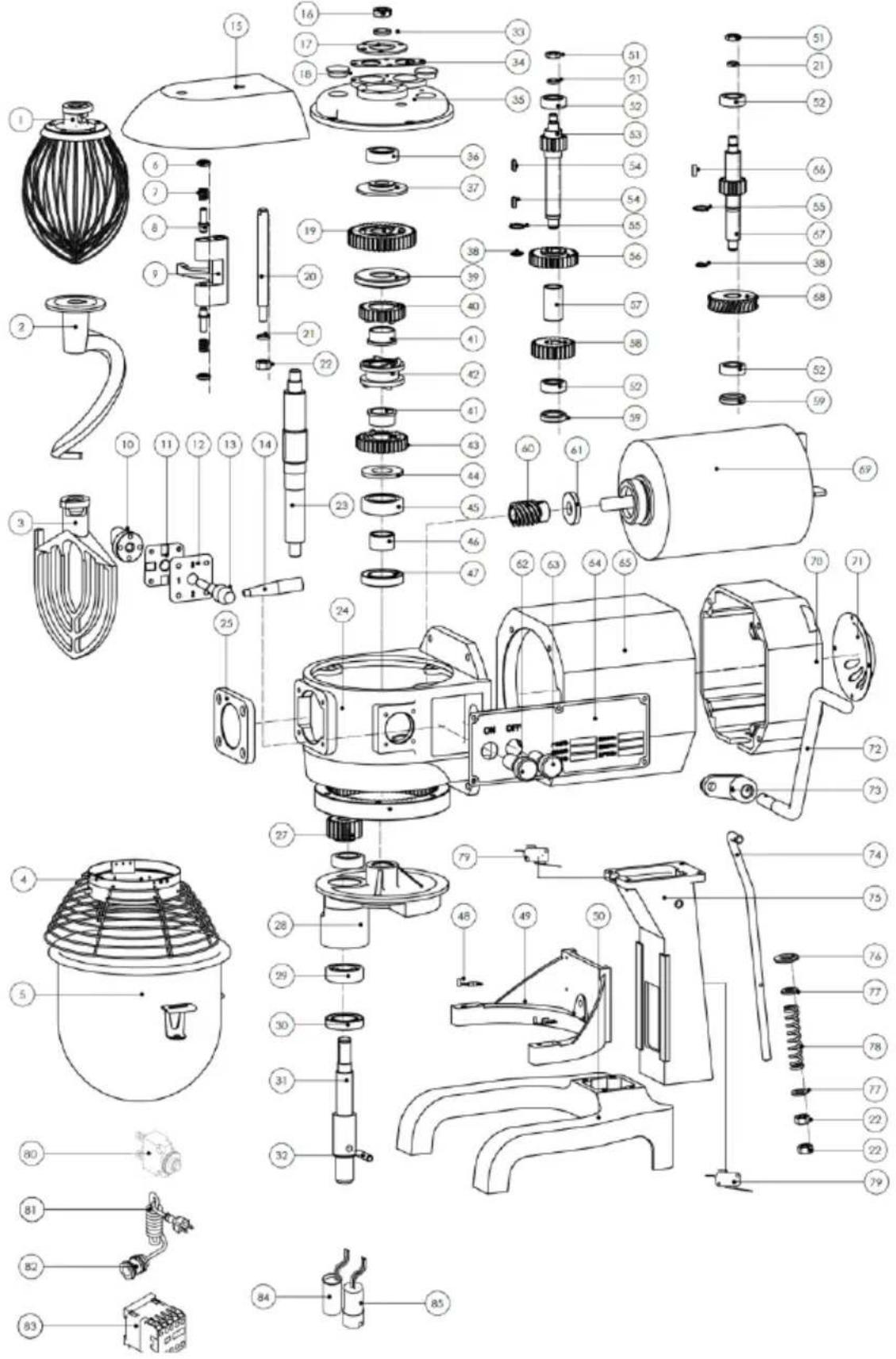

Exploded diagram and spare parts list GL191

Exploded view diagram of a kitchen appliance with numbered parts for identification

No.	Descripon	No.	Descripon	No.	Descripon
1	Wire Whip	30	Seal	59	Washer
2	Spiral Dough	31	Working Sha	60	Worm Wheel
3	Flat Beater	32	Retainer Pin	61	Seal
4	Safety Guard	33	Spring	62	Green Buon
5	Bowl Assembly	34	Pressing Plate	63	Red Buon
6	Cap	35	Transmission	64	Panel
7	Spring	36	Bearing	65	Motor Housing
8	Pin Sha	37	Spacer	66	Key
9	Shiing Yoke	38	Circlips	67	Sha Worm
10	Cam Gear	39	Ring Gasket	68	Gear
11	Transmission	40	Gear	69	Motor
12	Panel	41	Bushing	70	Rear Casing
13	Lever	42	Sha Sleeve	71	Rear Panel
14	Handle	43	Claw Gear	72	Crank Arm
15	Hood	44	Washer	73	Crank
16	Nut	45	Bearing	74	Connecng
17	Pressing Plate	46	Bushing	75	Pillar
18	Cap	47	Seal	76	Clamping Plate
19	Cog	48	Locking Clamp	77	Clamping Plate
20	Sha	49	Bowl Support	78	Spring
21	Washer	50	Bowl Support	79	Distance
22	Nut	51	Nut	80	Overlaid
23	Main Sha	52	Bearing	81	Power Cord
24	Gear Box	53	Gear	82	Gland
25	End Cap	54	Key	83	Contact Switch
26	Internal Gear	55	Circlips	84	Capacitor
27	Gear	56	Gear	85	Capacitor
28	Operang Sha	57	Bushing
29	Bearing	58	Gear

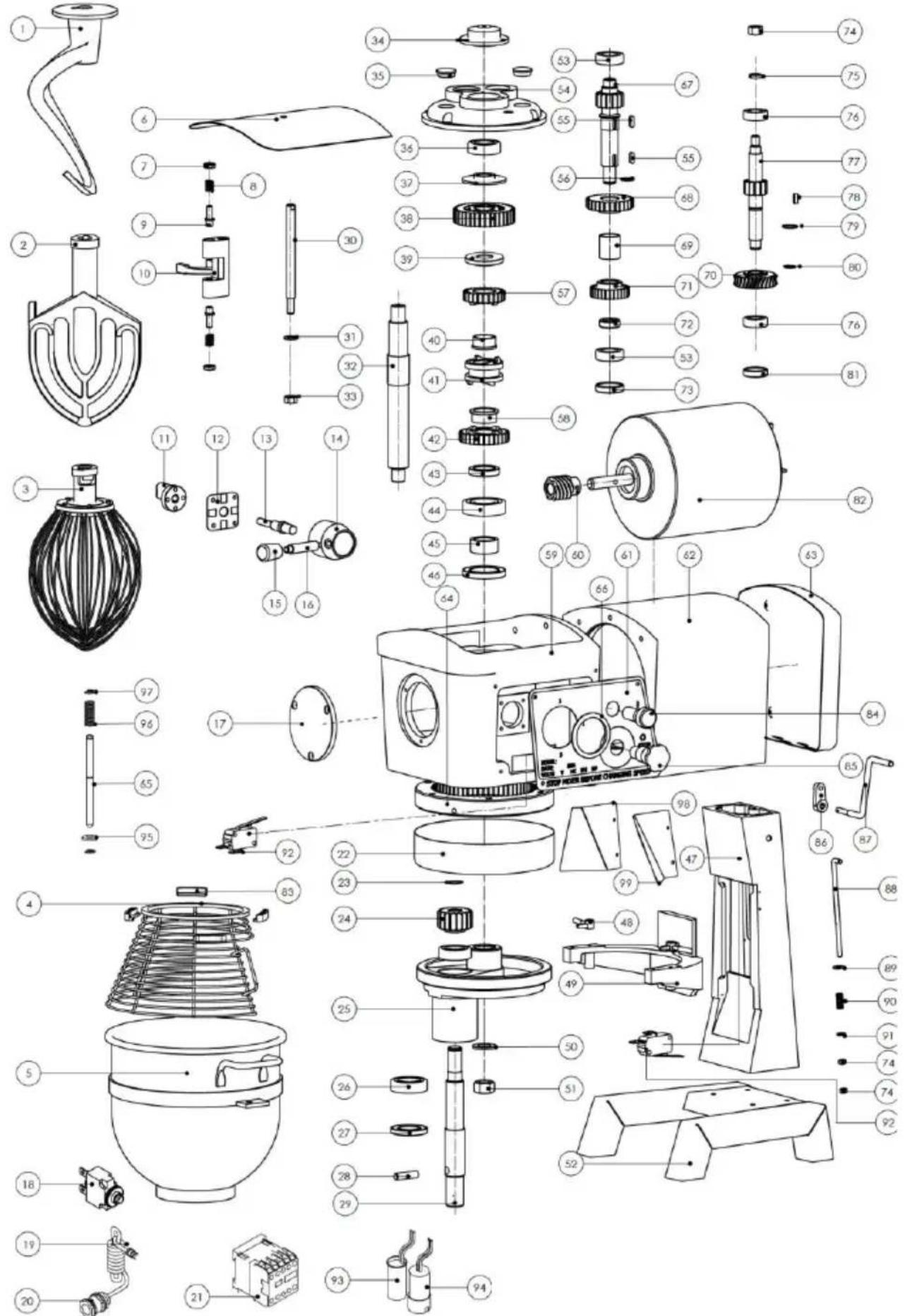

Exploded diagram and spare parts list

GJ461

Exploded view diagram of a kitchen appliance with numbered parts for identification

Exploded diagram and spare parts list GJ461

No.	Descripon	No.	Descripon	No.	Descripon
1	Dough Hook	33	Top Hat Valve	67	Gear Sha
2	Flat Beater	34	Flat Valve Cap	68	Gear
3	Wire Whip	35	Bearing	69	Bushing
4	Safety Guard	36	Spacer	70	Gear
5	Bowl	37	Gear	71	Gear
6	Upper Panel	39	Gear	72	Pressing Plate
7	Screw	40	Bushing	73	Spacer
8	Spring	41	Sha Sleeve	74	Nut
9	Pin Sha	42	Gear	75	Pressing Plate
10	Shiing Yoke	43	Clamping Plate	76	Bearing
11	Cam Gear	44	Bearing	77	Worm Gear
12	Transmission	45	Bushing	78	Key
13	Drive Sha	46	Seal	79	Circlips
14	Gear Mech	47	Pillar	80	Circlips
15	Knob	48	Locking Clamp	81	Spacer
16	Extension Bar	49	Support	82	Motor
17	Aachment	50	Clamping Plate	83	Rubber
18	Overload	51	Nut	84	Green Buon
19	Power Cable	52	Base	85	Red Buon
20	Gland	53	Bearing	86	Crank
21	Contact	54	Transmission	87	Crank lever
22	Hood Ring	55	Key	88	Connecng
23	Circlips	56	Circlips	89	Spring
24	Planet Gear	57	Gear	90	Plate
25	Operang	58	Bushing	91	Clamping Plate
26	Bearing	59	Gear Box	92	Distance
27	Seal	60	Worm Wheel	93	Capacitor 1
28	Pin	61	Panel	94	Capacitor 2
29	Working Sha	62	Casing	95	Switch
30	Sha	63	Rear Panel	96	Spring
31	Pressing Plate	64	Internal Gear	97	Washer
32	Main Sha	65	Switch Axle	98	Fin (le-hand
33	Nut	66	Seal	99	Fin (right-hand

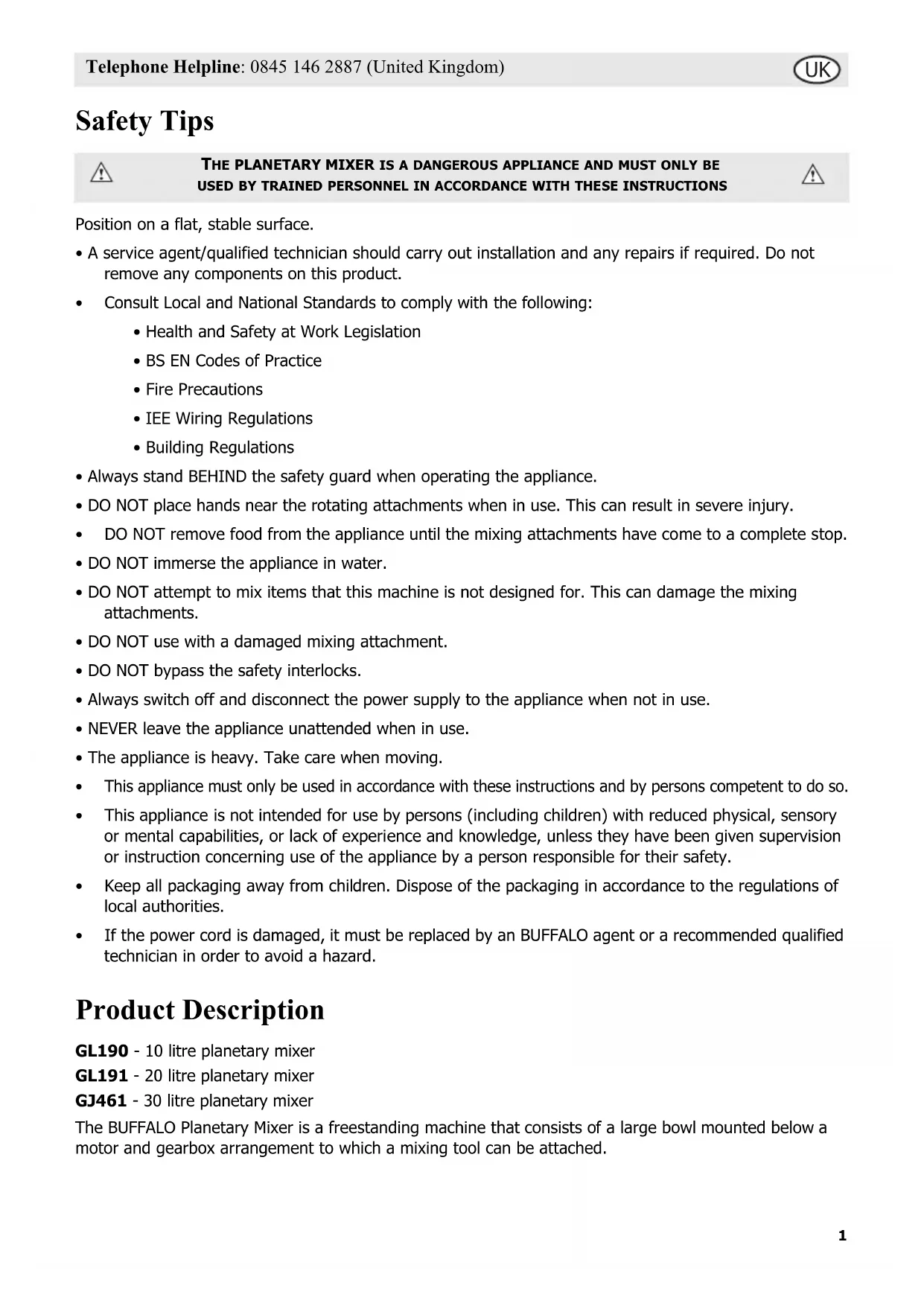

Safety Tips

THE PLANETARY MIXER IS A DANGEROUS APPLIANCE AND MUST ONLY BE USED BY TRAINED PERSONNEL IN ACCORDANCE WITH THESE INSTRUCTIONS

Position on a flat, stable surface.

• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation
• BS EN Codes of Practice
- Fire Precautions
- IEE Wiring Regulations
• Building Regulations

• Always stand BEHIND the safety guard when operating the appliance.
- DO NOT place hands near the rotating attachments when in use. This can result in severe injury.
• DO NOT remove food from the appliance until the mixing attachments have come to a complete stop.
• DO NOT immerse the appliance in water.
- DO NOT attempt to mix items that this machine is not designed for. This can damage the mixing attachments.
- DO NOT use with a damaged mixing attachment.
• DO NOT bypass the safety interlocks.
• Always switch off and disconnect the power supply to the appliance when not in use.
- NEVER leave the appliance unattended when in use.
- The appliance is heavy. Take care when moving.
• This appliance must only be used in accordance with these instructions and by persons competent to do so.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

Product Description

GL190 - 10 litre planetary mixer

GL191 - 20 litre planetary mixer

GJ461 - 30 litre planetary mixer

The BUFFALO Planetary Mixer is a freestanding machine that consists of a large bowl mounted below a motor and gearbox arrangement to which a mixing tool can be attached.

Introduction

The BUFFALO Planetary Mixer has been designed to mix a range of foodstuffs, varying from cream to dough.

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Planetary Mixer

- Spiral Dough Hook

- Wh h i s k

- Mixing Bowl

- Be a t e r

- Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Installation

Ensure the location of the Planetary Mixer is capable of supporting its weight.

WARNING: The Planetary Mixer is very heavy, care must be taken when moving it.

Assembly

WARNING: The bowl must be attached and raised into position prior to starting the Planetary Mixer.

BUFFALO accept no responsibility for any injury caused by incorrect assembly of this appliance.

Note: Ensure the feet are level to reduce vibration during operation.

Remove the appliance from all packaging.

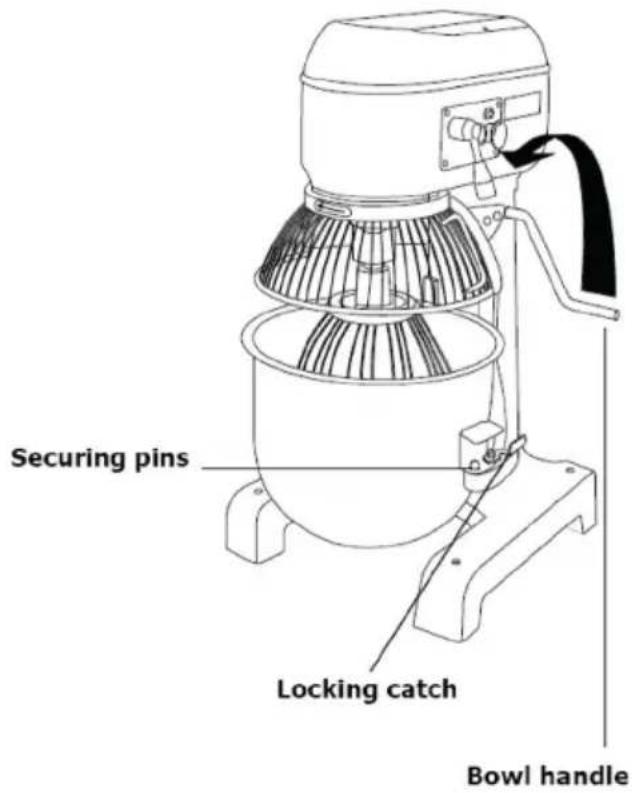

Fitting/Removing the Bowl

1. Turn Off the appliance.
2. Open the safety guard by turning it to the left (GL190 & GL191) or lifting it above the mixer (GJ461).
3. Lower the bowl with the bowl handle.
4. Release the locking catches either side of the bowl.
5. Lift the bowl. The bowl is held in place by two pins securing the handles to the cradle and a hole at the back of the appliance which houses the lug on the bowl lip.
6. Reverse the procedure to fit the bowl.

Note: Ensure the handle is fully pushed back and the bowl is completely raised or the mixer will not work.

Securing pins Locking catch Bowl handle

Note: Regularly grease the bowl lift mechanism to ensure smooth operation.

Changing the Mixer Attachment

1. Turn Off the appliance.
2. Lower the bowl with the bowl handle.
3. Push the mixer attachment up and to the left to release it.
4. Insert the desired attachment. Push up and to the right to lock it into place.

5. Raise the bowl.

6. Open the safety guard by turning it to the left (GL190 & GL191) or lifting it above the mixer (GJ461).

BUFFALO recommend the following uses for each attachment:.

	Spiral Dough hook	Heavy mixes dough, pie pastry etc.	Suitable Gears: 1 Slow
	Beater	Firm mixes light pastry, cake/biscuit mix, icings, fillings and mashed vegetables	Suitable Gears: 1, 2 Medium
	Whisk	Light mixes whipped cream, mayonnaise, egg whites, pancakes and soufflés	Suitable Gears: 1, 2, 3 Fast

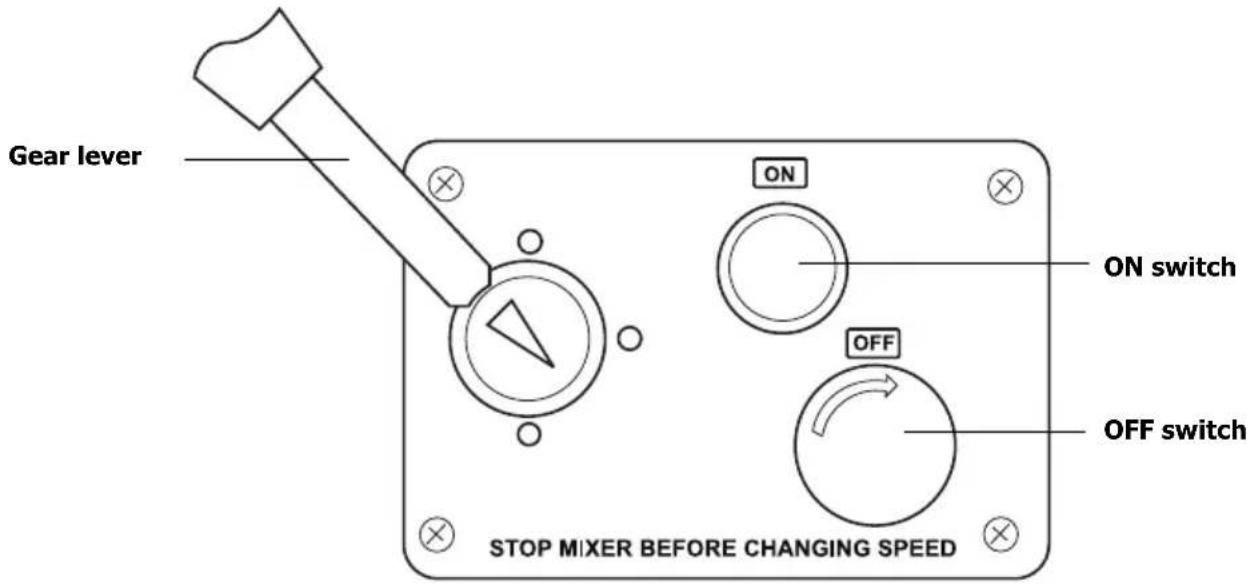

Layout of Controls

Gear lever ON ON switch OFF OFF switch STOP MIXER BEFORE CHANGING SPEED

ON button - Press to start the mixer.

OFF button - Press to stop the mixer. Twist clockwise to release and reset (GJ461 only).

GEAR LEVER - Use to adjust the speed of the mixer.

Operation

Note: Ensure that these instructions have been read thoroughly and the operation of the appliance is fully understood before use.

All personnel must be fully trained on the operation and safety precautions of the Planetary Mixer.

Mixing

WARNING: Always ensure the appliance is turned off before placing hands in the mixing bowl.

1. Open the safety guard.

2. Fill the bowl.

3. Select the desired speed and close the guard.

Note: BUFFALO recommend that you start with the slowest speed and increase the speed gradually as necessary. Ensure the safety guard is fully closed or the mixer will not work.

1. Press the START button to begin mixing.

Note: If the appliance is straining to mix then turn the appliance Off and remove some of the contents of the bowl before restarting.

Mixing Capacity

Model	Bowl Volume	Max Flour	Max Dough
GL190 10	2kg 3.2kg
GL191 20	5kg 8kg
GJ461 30l	7.5kg 11.3kg

Changing Mixing Speed

Note: ALWAYS stop the mixer before attempting to change the mixing speed.

With the appliance turned Off:

1. Select the required gear using the gear change lever.
2. Restart the appliance.

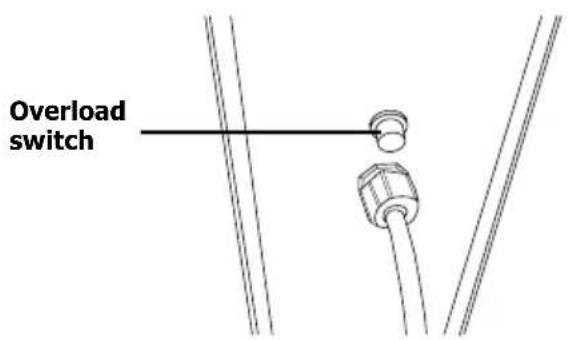

Overload Switch

The Overload switch is situated at the back of the machine beside the cable entry. If the appliance becomes too hot the Overload switch will stop the machine automatically. If this happens:

Overload switch

1. Turn Off the mixer.
2. Reduce the load in the mixing bowl.
3. Push the Overload switch back in to reset it.
4. Allow the appliance to cool for 20 minutes.

Note: In the event of a power cut the Overload switch will cut in to prevent the appliance from restarting automatically when power is restored.

Note: Always disconnect the Planetary Mixer from the mains powers supply when not in use.

Cleaning, Care & Maintenance

• Always turn off the mixer and disconnect from the power supply before cleaning.
- Use warm soapy water to clean the bowl and mixing attachments. Do not use abrasive cleaning chemicals as these can leave harmful residues.
- Clean the exterior of the appliance with a damp cloth.
- Dry all parts thoroughly after cleaning.
- Do not use jet/pressure washers to clean the appliance.
- Clean the appliance regularly.

Troubleshooting

If your BUFFALO appliance develops a fault, check the following table before making a call to the Helpline.

Fault Probable	Cause Action
The appliance is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	The Stop button not released (GJ461)	Turn button clockwise to release
	Plug and lead are damaged Call BUFFALO agent or qualified Technician
	Fuse in the plug has blown Replace the fuse
	Power supply Check power supply
	The overload switch has activated See	overload switch information in the Operation section of this manual
	Safety Guard not closed Close Safety Guard fully
	Appliance not in gear Put in gear
	Bowl not fully raised Ensure the Bowl lever is pushed back fully
Bowl will not fit back in to place	Bowl pins or surrounding area clogged with mix	Clean the appliance
The appliance is overheating	The mixing bowl is overloaded Turn off	the appliance and empty some of the contents
	The appliance has been operating for too long	Turn off the appliance and allow to cool down for 30 minutes
The appliance is noisy Bowl	or mixing attachment not correctly fitted	Remove and refit bowl/mixing attachment
	Worn bearings/damaged gears Call BUFFALO agent or qualified Technician
The mixing attachment fails to rotate properly	The belt has become loose Call BUFFALO agent or qualified Technician
Cannot select gear	Gearing cogs misaligned	Turn Off appliance and manually turn the whisk attachment slightly. Select the gear again.

Technical Specifications

Model	Voltage	Power	Current	Dimensions h x w x d mm	Weight	Bowl Volume
GL190	230V 50Hz	550W	1.8A	610 x 395 x 395	38kg	10l
GL191	230V 50Hz	1100W	4.7A	794 x 555 x 558	112kg	20l
GJ461	230V 50Hz	1500W	6.5A	1142 x 579 × 611	170kg	30l

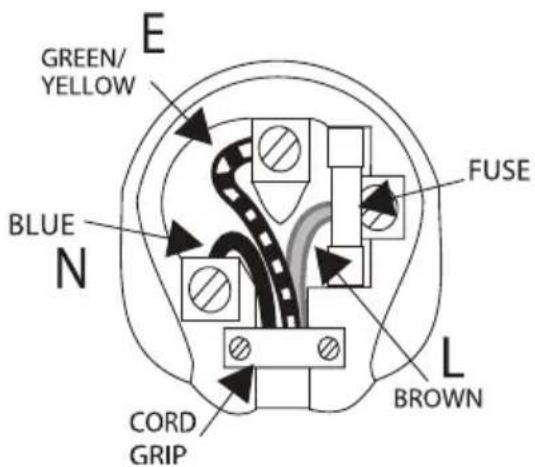

Electrical Wiring GL190, GL191

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

E GREEN/ YELLOW BLUE N FUSE L BROWN CORD GRIP

Electrical Wiring GJ461

GJ461 is supplied unplugged and requires hardwiring to a suitable electrical power supply with a 16 amp rated fuse.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Connection to a suitable power supply should only be carried out by a qualified and competent electrical engineer.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

C€

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a mixing bowl with a side-mounted stand and control panel (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Pure technical line drawing of a mechanical assembly with no text or symbols

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

• Declaración de conformidad • Declaração de conformidade • Överensstämmelseförsäkran •
• Overensstemmelseserklæring • Konformitetserklæring • Selvitys vaatimustenmukaisuudesta •

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento • Planetary Mixer Enhetstyp • Udstyrstype • Type utstyr • Laitteen tyyppi:

EMC Directive 2004/108/EC

LVD Directive 2006/95/EC

Machinery Directive 2006/42/EC

EN55014-1:2000+A2:2002, EN61000-32:2000, EN61000-3-3:1995+A1:2001, EN60335-2-64:2002 EN60335-1:2002, EN55014-2:1997+A1:2001, BS EN 454:2000

BUFFALO

Fourth Way Avonmouth Bristol BS11 8TB United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
