CD406 - Food Processor BUFFALO - Free user manual and instructions

Product type	Food processor (professional blender)
Brand	Buffalo
Model	CD406
Power	1500 W
Voltage	230 V ~ 50 Hz
Rated current	6.5 A
Jug capacity	2 litres
Dimensions (H x W x D)	490 x 200 x 230 mm
Weight	6 kg
Speed range	10,000 to 22,000 rpm
Functions	Variable speed, fast pulse (22,000 rpm) and slow pulse (10,000 rpm)
Power supply	Mains plug with 13 A fuse, 3-core cable (brown L, blue N, green/yellow E)
Grounding	Mandatory via specific grounding circuit
Control type	ON/OFF button, speed dial, pulse lever
Jug material	Not specified (plastic or glass)
Blade	Stainless steel cutting blade (estimated)
Safety	Do not immerse, do not use without lid, do not blend hot liquids, overheating protection with reset button
Cleaning	Unplug, let cool, clean with warm soapy water and damp cloth, dry thoroughly
Maintenance	Repairs by qualified Buffalo technician only
Spare parts	Jug and blades excluded from manufacturer warranty
Warranty	Manufacturer warranty (conditions not detailed)
Included accessories	Blender, jug with lid, safety pusher
Usage	Indoor use only, on a flat and stable surface

Frequently Asked Questions - CD406 BUFFALO

How to use the pulse function?

Place ingredients in the jug, close the lid, then place the jug on the base. Use the pulse button: upward for fast pulses (22,000 rpm) and downward for slow pulses (10,000 rpm).

Can I blend hot liquids?

No, it is strictly forbidden to blend hot liquids to prevent burns and damage to the appliance. Let liquids cool to room temperature before blending.

How to clean the Buffalo CD406 blender?

Always unplug the appliance before cleaning. Let it cool, then clean the jug and lid with warm soapy water and a damp cloth. Dry all parts thoroughly. Do not immerse the motor base in water.

What to do if the blender does not turn on?

Check that the appliance is properly plugged in and the ON/OFF button is in the up position. If the problem persists, check the plug fuse (13A) and the power supply. If internal wiring is faulty, contact a qualified Buffalo technician.

The blender stops while in use, what to do?

The appliance may have overheated. Let it cool completely, then press the reset button located on the base. Also ensure the jug is properly positioned on the base.

What is the maximum jug capacity?

The jug capacity is 2 litres. Do not exceed this capacity to avoid overflow and ensure efficient blending.

Can I blend dry ingredients like nuts?

Yes, cut dry ingredients into small pieces and add them through the lid hole while the motor is running for best results.

How to adjust the blender speed?

Use the speed adjustment dial on the base to choose between minimum speed (10,000 rpm) and maximum speed (22,000 rpm). Then turn on the blender with the ON/OFF button.

Is it safe to leave the blender unattended?

No, never leave the blender unattended while it is running. Always stay nearby to avoid any accidents.

Where can I get spare parts for the CD406?

Contact your Buffalo dealer or a qualified authorized technician. Note that the jug and blades are not covered by the manufacturer warranty.

USER MANUAL CD406 BUFFALO

Commercial Blender Instruction Manual

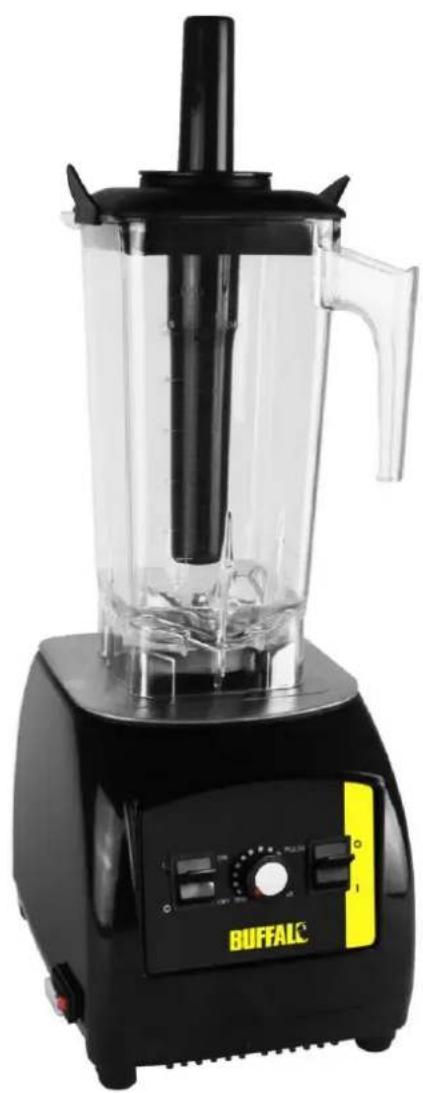

Black and white photo of a Buffalo blender with clear glass interior and handle (no visible text or symbols)

Model . Modèle . Modell . Modello . Modelo . Malli CD406

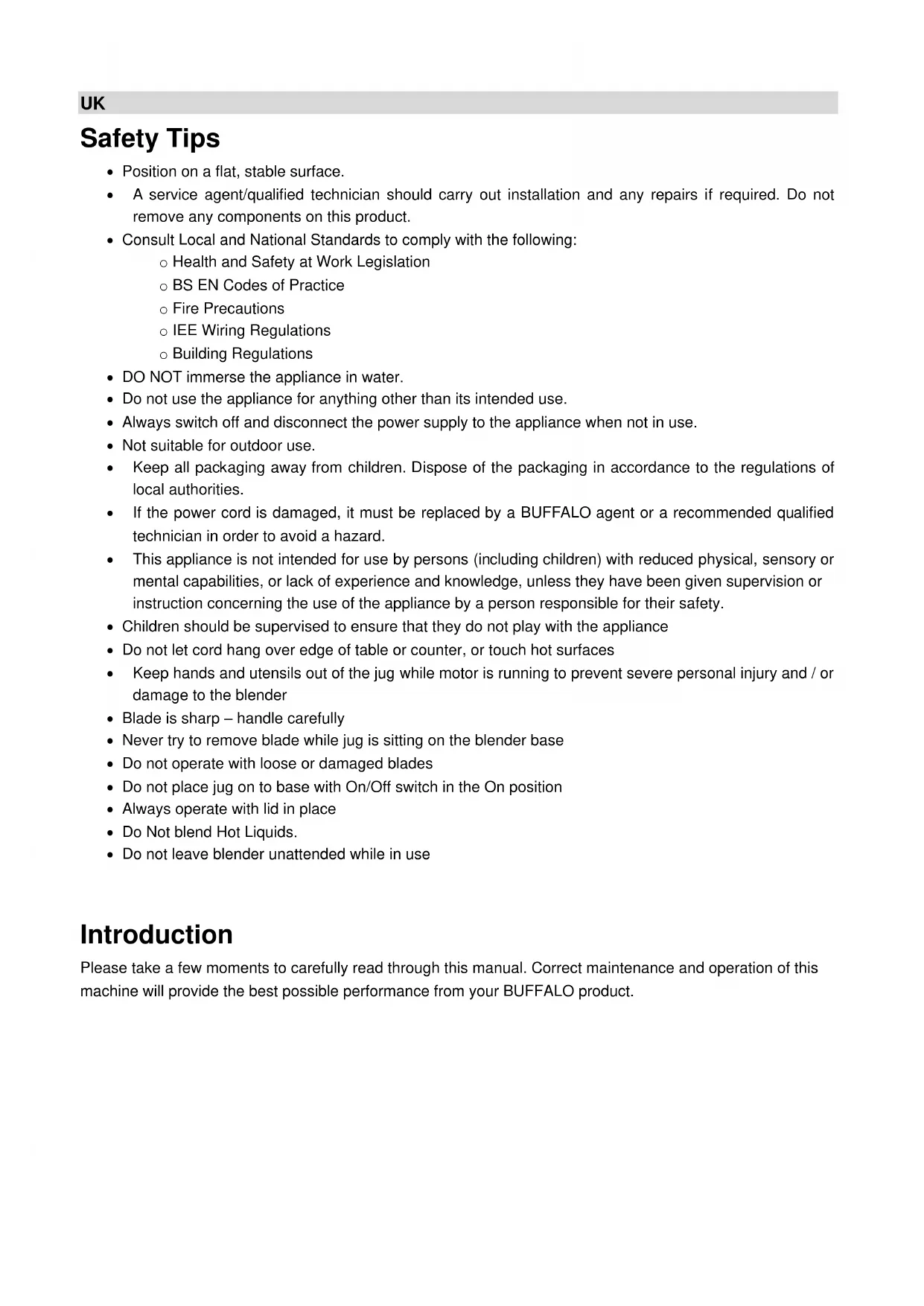

Safety Tips

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

o Health and Safety at Work Legislation
- BS EN Codes of Practice
- Fire Precautions
○ IEE Wiring Regulations
○ Building Regulations

• DO NOT immerse the appliance in water.
- Do not use the appliance for anything other than its intended use.
- Always switch off and disconnect the power supply to the appliance when not in use.
- Not suitable for outdoor use.
- Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance
- Do not let cord hang over edge of table or counter, or touch hot surfaces
- Keep hands and utensils out of the jug while motor is running to prevent severe personal injury and / or damage to the blender
- Blade is sharp – handle carefully
- Never try to remove blade while jug is sitting on the blender base
- Do not operate with loose or damaged blades
- Do not place jug on to base with On/Off switch in the On position
• Always operate with lid in place
- Do Not blend Hot Liquids.
- Do not leave blender unattended while in use

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Blender
• Blender Jug and lid
• Safety pusher

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

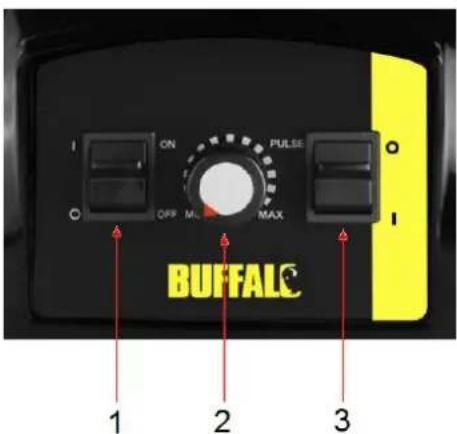

Location of Controls

ON PULSE OFF MAX BUFFALC 1 2 3

Controls

1 - On / OFF switch.

- Up for On, down for Off.

2 - Variable Speed Dial.

- Allows continual adjustment of speed from low (10,000rpm) to high (22,000rpm)

3 – High/Low Pulse Switch

- Down to pulse at high speed (22,000rpm).

Operation

Plug in Blender and turn on Power Switch (located on side of machine). The machine is now ready for use.

To blend using variable speed function -

1. Place ingredients into blender
2. Secure lid (Note. Always operate with lid secured)
3. Locate jug on to body of blender
4. Select speed using variable speed dial (low 10,000rpm, high 22,000rpm)
5. Turn on blender using On/Off switch

To blend using High / Low Pulse function –

1. Place ingredients into Blender
2. Secure lid (Note. Always operate with lid secured)
3. Locate jug on to body of Blender
4. Turn on blender using Pulse switch (Up to Pulse at high speed (22,000rpm), down to Pulse at low speed (10,000rpm))

Note – When blending dry ingredients best results will be obtained by cutting ingredients' in to small pieces and adding to the blender when motor is running using the hole in the lid.

Cleaning, Care & Maintenance

• Always disconnect from power supply before cleaning
• Always allow to cool before cleaning.
• Use warm, soapy water and a damp cloth to clean the appliance.
• Dry thoroughly after cleaning.
• A BUFFALO dealer or qualified technician should carry out repairs if required.

WARNING: Do not allow any water to spill into the body of the appliance when cleaning.

Troubleshooting

Fault	Probable Cause	Action
The unit is not working	The Unit is not switched on	Check the unit is plugged in correctly and switched on
	Plug and lead are damaged	Call BUFFALO agent or qualified technician
	Fuse in the plug has blown	Replace the plug fuse
	Power supply	Check Power Supply
	Internal wiring fault	Call BUFFALO agent or qualified technician
	Unit has overheated	Allow to cool. When cool press reset switch located on base
	Jug incorrectly located on body of appliance	Relocate Jug

NOTE: Jug / Blades are not covered by manufacturers warranty

Technical Specification

Model	Voltage	Power	Current	Jug Capacity	Dimensions h x w x d mm	Weight (kg)
CD406	230v 50hz	1500W	6.5A	2.0L	490 x 200 x 230	6

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit. If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

C€

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice

Veiligheidstips

Simple line drawing of a trash bin with crossed lines indicating no text or symbols (no text or labels)

C€

Simple line drawing of a trash bin with crossed lines indicating no text or symbols (no text or labels)

C€

Simple line drawing of a trash bin with two crossed lines and a horizontal bar below (no text or symbols)

C€

Simple line drawing of a trash bin with crossed lines indicating no text or symbols (no text or labels)

C€

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

C€

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

C€

Declaration of Conformity

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • - Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho

Standards

Standaarden • Normes • Normen • Standard • Estándares • Normas

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
