L515 - Grill plate BUFFALO - Free user manual and instructions

Product type	Electric griddle plate
Brand	Buffalo
Model	L515
Plate material	Stainless steel
Useful surface (L x W)	500 x 310 mm
Dimensions (H x W x D)	200 x 525 x 460 mm
Weight	Approximately 15 kg (estimate)
Voltage	230 V ~ 50 Hz
Power	2200 W
Rated current	9.6 A
Temperature range	60 °C to 300 °C
Main functions	Cooking, drying of cooking surfaces
Care and cleaning	Cleaning with a damp cloth and soapy water; scraping after each use with a suitable scraper
Safety	Do not immerse; hot surfaces; unplug before cleaning; use by trained personnel only
Included spare parts	Drip tray
Repairability	Repairs to be entrusted to a Buffalo agent or qualified technician
General information	Indoor use; compliant with CE standards; do not dispose of with household waste

Frequently Asked Questions - L515 BUFFALO

How to use the plate for the first time?

Before first use, check that the surface is clean. Brush it with cooking oil, set the thermostat to 110 °C and let it heat. Once the indicator light goes out, turn off the appliance, let it cool and wipe off excess oil.

What temperature is recommended for ordinary cooking?

A temperature between 200 and 220 °C is generally suitable for ordinary cooking.

How to clean the grill plate?

Turn off and unplug the appliance, allow to cool. Clean the exterior with a damp cloth and warm soapy water. Scrape off food residues after each use with a suitable scraper. Do not use steel wool.

What to do if the appliance does not heat?

First check that the appliance is plugged in and turned on. If the plug and cord are damaged, contact a Buffalo agent or qualified technician. Also check the mains power supply.

The heating indicator lights up but the appliance does not heat, what to do?

This may indicate a faulty heating element or a thermostat problem. Check the thermostat and clean the cooking surface. If the problem persists, contact a Buffalo agent.

How to remove the drip tray?

Wait until the appliance has completely cooled. Pull the tray outwards, empty it and wash it with warm soapy water. Never remove the tray during or immediately after use due to hot contents.

Can I immerse the grill plate in water?

No, do not immerse the appliance. Clean only with a damp cloth.

What oil to use for the initial seasoning of the plate?

Use ordinary cooking oil (e.g., vegetable oil) to brush the surface before first heating.

How to avoid the build-up of carbonized residues on the plate?

Do not let grease accumulate. Scrape the surface after each use and clean regularly. If deposits form, scrub the surface then dry it thoroughly.

What to do in case of appliance breakdown?

Refer to the troubleshooting table in the manual. Common problems include incorrect connection, faulty thermostat or defective heating element. If the problem persists, contact a Buffalo agent or qualified technician.

USER MANUAL L515 BUFFALO

UK Table of Contents

Safety Tips 1

Product Description 1

Introduction 1

Pack Contents 1

Operation 2

Seasoning the Griddle Plate 2

Cooking 2

Cleaning, Care & Maintenance 3

1.2.3

Waste Tray 3

Troubleshooting 4

Technical Specifications 4

Electrical Wiring 5

Compliance 5

NL Inhoudsopgave

Veiligheidstips 6

Spcifications techniques 14

Raccordement electrique. 15

Conformité 15

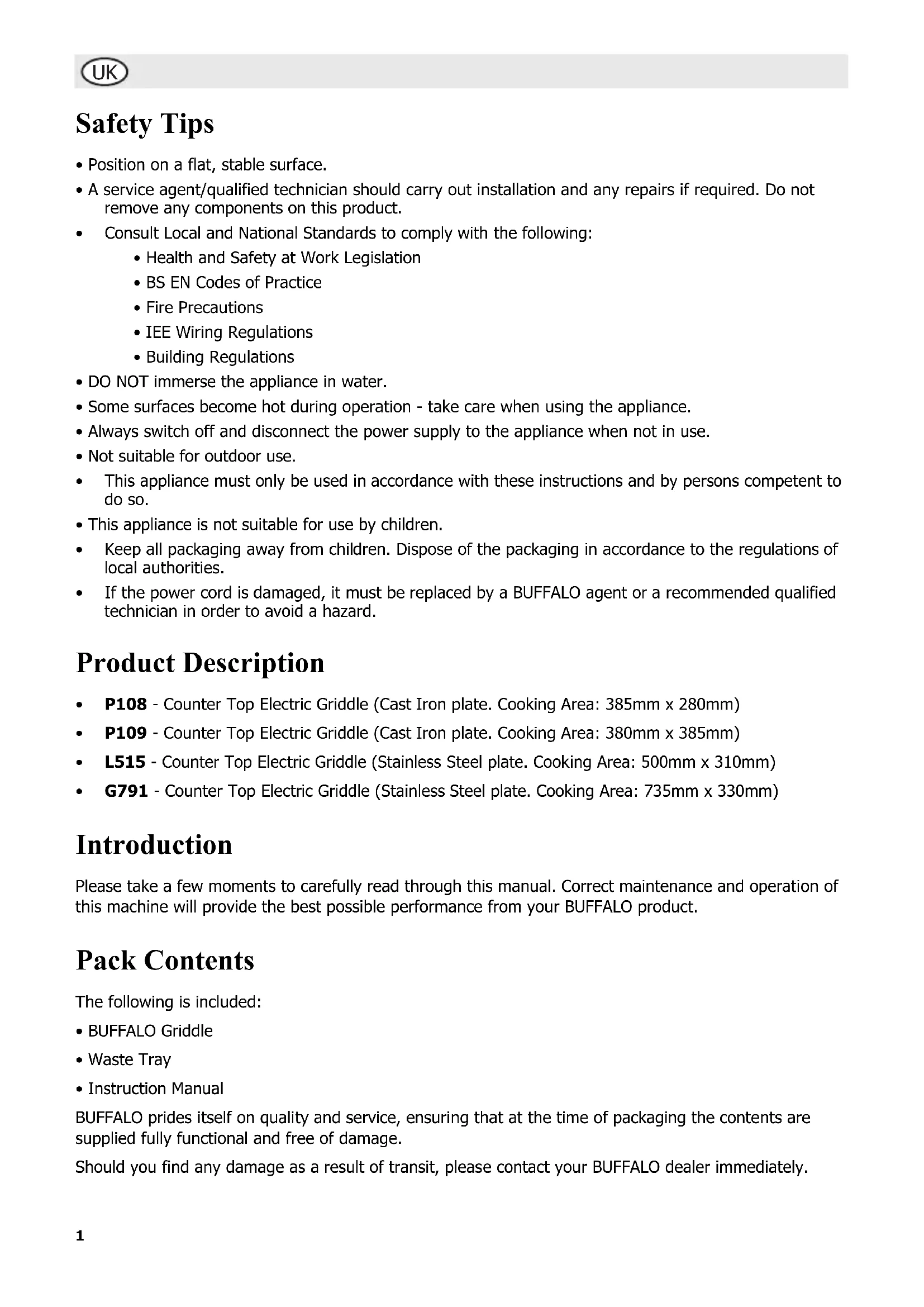

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

Health and Safety at Work Legislation
BS EN Codes of Practice
Fire Precautions
- IEE Wiring Regulations
Building Regulations

DO NOT immerse the appliance in water.
- Some surfaces become hot during operation - take care when using the appliance.
- Always switch off and disconnect the power supply to the appliance when not in use.
- Not suitable for outdoor use.
This appliance must only be used in accordance with these instructions and by persons competent to do so.
- This appliance is not suitable for use by children.
- Keep all packaging away from children. Dispos of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

Product Description

P108 - Counter Top Electric Griddle (Cast Iron plate. Cooking Area: 385mm x 280mm)
P109 - Counter Top Electric Griddle (Cast Iron plate. Cooking Area: 380mm x 385mm)
L515 - Counter Top Electric Griddle (Stainless Steel plate, Cooking Area: 500mm x 310mm)
G791 - Counter Top Electric Griddle (Stainless Steel plate, Cooking Area: 735mm x 330mm)

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Griddle
• Waste Tray
• Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

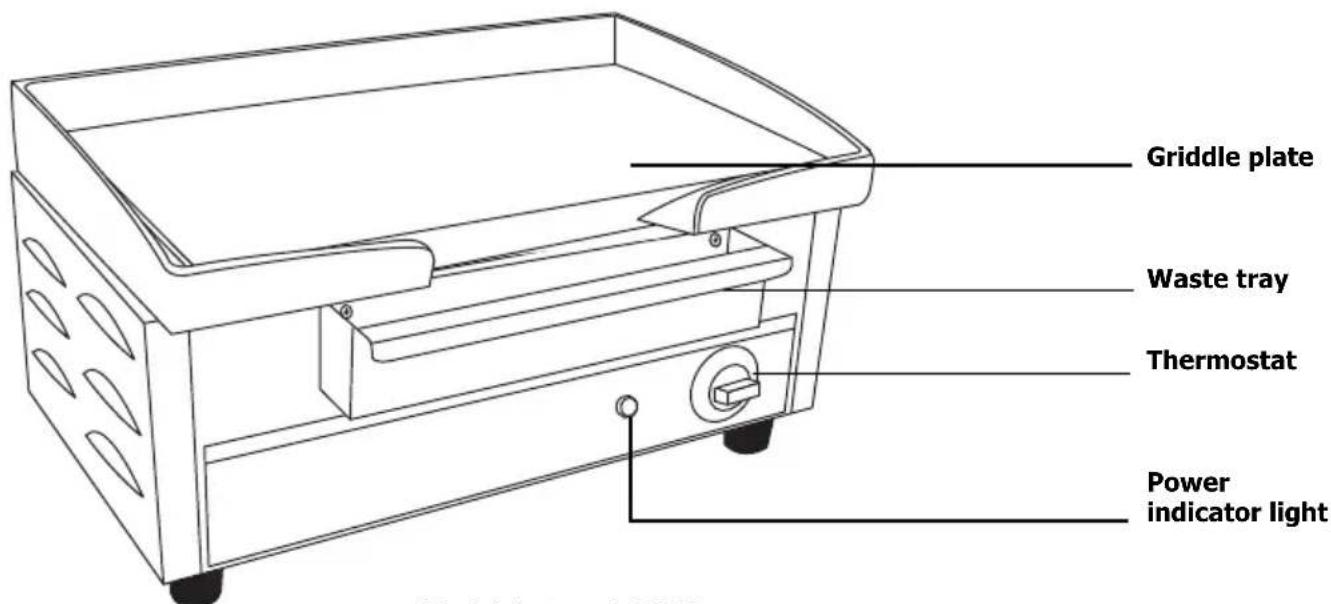

Operation

Model featured: P108

Seasoning the Griddle Plate

Before using for the first time the cooking surface needs to seasoned.

1. Ensure the cooking surface is clean.
2. Brush the surface with cooking oil.
3. Set the thermostat to 110^ and turn the appliance On. The power indicator light turns on.
4. Once the appliance reaches temperature the power indicator light turns off.
5. Turn the appliance Off and allow to cool before wiping away any excess oil.
6. The appliance is now ready to use.

Cooking

1. Connect the appliance to the mains power supply.
2. Set the thermostat to the desired temperature (60^ - 300^) . The power indicator light comes on and the appliance begins to heat up.

Note: 200^ C to 220^ C is suitable for general cooking.

1. The power indicator light turns off when the appliance has reached the set temperature.

Note: BUFFALO recommend the cooking surface is lightly oiled before cooking.

1. Place the foodstuffs on the griddle plate and cook as required.

Cleaning, Care & Maintenance

If grease is permitted to accumulate, it will begin to carbonised into a hard substance that is extremely difficult to remove. To prevent this follow the cleaning steps below:

• Always turn Off the appliance and disconnect from the power supply before cleaning.
• Allow the appliance to cool before cleaning.
• Use warm, soapy water and a damp cloth to clean the exterior of the appliance.
  Take care when using scrapers to remove cooking residues as they can damage the cooking surface.
• Dry thoroughly after cleaning.
• A BUFFALO dealer or qualified technician should carry out repairs if required.

Scraping

After each use, scrape the appliance with a scraper/grill stone/copper brush or flexible spatula to remove excess fat and food. A waste tray is provided for the scrapings if necessary.

If there is an accumulation of burned fat or food, the cooking surface should be thoroughly scoured and re-seasoned.

NOTE: IT IS VITAL THAT THE COOKING SURFACE IS RE-SEASONED AFTER SCOURING.

WARNING: DO NOT USE STEEL WOOL AS IT MAY LEAVE SHARDS THAT COULD CONTAMINATE FOOD.

Waste Tray

These appliances feature a waste tray to collect any liquid or fats that run off during cooking.

At least once a day, remove and empty the waste tray before washing with warm soapy water. Do not allow the tray to overfill or excess grease will run out of the overflow hole at the front of the tray.

WARNING: DO NOT remove the tray during or immediately after use as the contents will be hot.

Note: The waste tray for the L515/G791 slots inside the appliance.

Troubleshooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline.

Fault Probable Cause	Action
The appliance is not working	The appliance is not switched on	Check the appliance is plugged in correctly and switched on
	Plug and lead are damaged Call BUFFALO agent or qualified technician
	Fuse in the plug has blown Replace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO agent or qualified technician
Appliance does not reach set temperature	Faulty thermostat Call BUFFALO agent or qualified technician
	Faulty element Call BUFFALO agent or qualified technician
Appliance heats up but indicator light does not come on	Bulb has expired Call BUFFALO agent or qualified technician
Power indicator light comes on but appliance does not heat up	Faulty element Call BUFFALO agent or qualified technician
	Faulty thermostat Call BUFFALO agent or qualified technician
	Thermostat set incorrectly Check thermostat
Appliance slow to heat up Cooking surface	face not clean Clean cooking surface
	Faulty element Call BUFFALO agent or qualified technician
Surface flaking	Build up of carbonised food debris	Refer to Cleaning, Care and Maintenance section

Technical Specifications

Model	Voltage	Power	Current	Cooking Surface Dimensions w x d (mm)	Dimensions h x w x d (mm)	Weight (kg)
P108	230V 50Hz	1800W	8A	385 x 280	228 x 440 x 365	19.5
P109	230V 50Hz	2800W	12.2A	380 x 385	228 x 440 x 465	23
L515	230V 50Hz	2200W	9.6A	500 x 310	200 x 525 x 460	24.5
G791	230V 50Hz	2900W	12.6A	735 x 330	200 x 745 x 460	34.2

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

DECLARATION OF CONFORMITY

• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärgung • Dichiarazione di conformità •

• Declaración de conformidad - Declaração de conformidade - Überensstämmlseförsakran
  Overensstemmelseserklaering • Konformitetserklaring • Selvitys vaatimustenmukaisuudesta •

Equipment Type • Ultrustingtype • Type d'équipement • Gerätotyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de équipamento • Griddle Enhetstyp • Udstystrype • Type utstyr • Laitteen typpi:

Model · Modèle · Modell · Modello · Modelo:

EMC Directive 89/336/EEC
LVD Directive 2006/95/EC
WEEE Directive 2002/96/EC

EN 61000-6-3:2001, EN 61000-3-2:2000, EN 61000-3-3:1995/A1:2001, EN 61000-6-1:2001, EN 60335-2-38:2003 EN 60335-1:2002

BUFFALO

Fourth Way Avonmouth Bristol BS11 8TB United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
