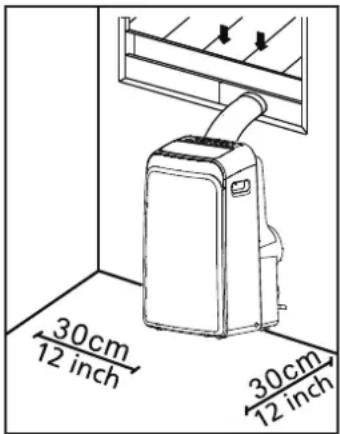

30cm 12 inch 30cm 12 inch

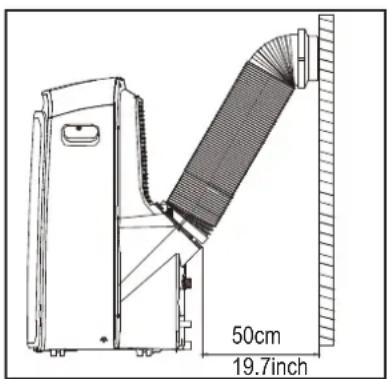

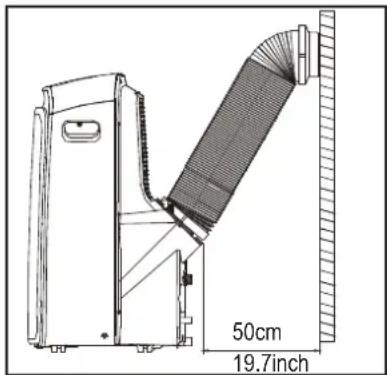

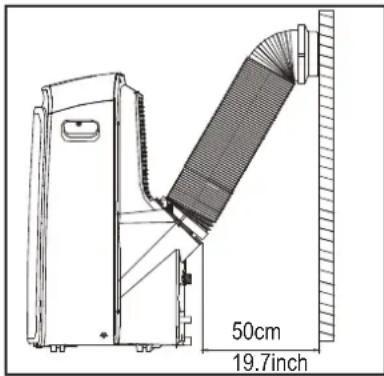

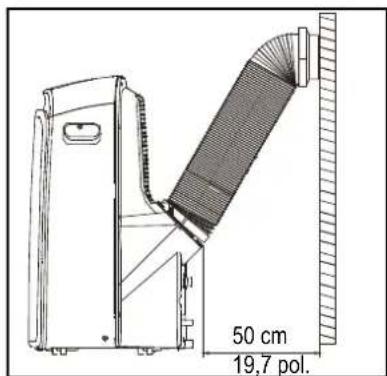

50cm 19.7inch

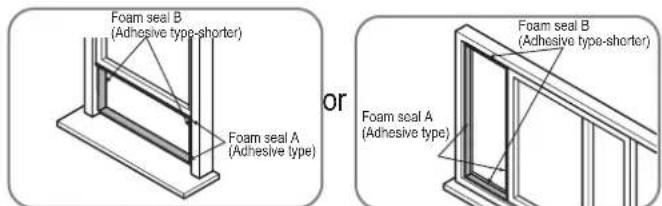

Kit de ventra B (as necessary) Kit de ventra A

Simple line drawing of a device with a coiled cable or hose inserted into a window frame (no text or symbols)

Line drawing of a device with a probe inserted into a screen (no text or symbols)

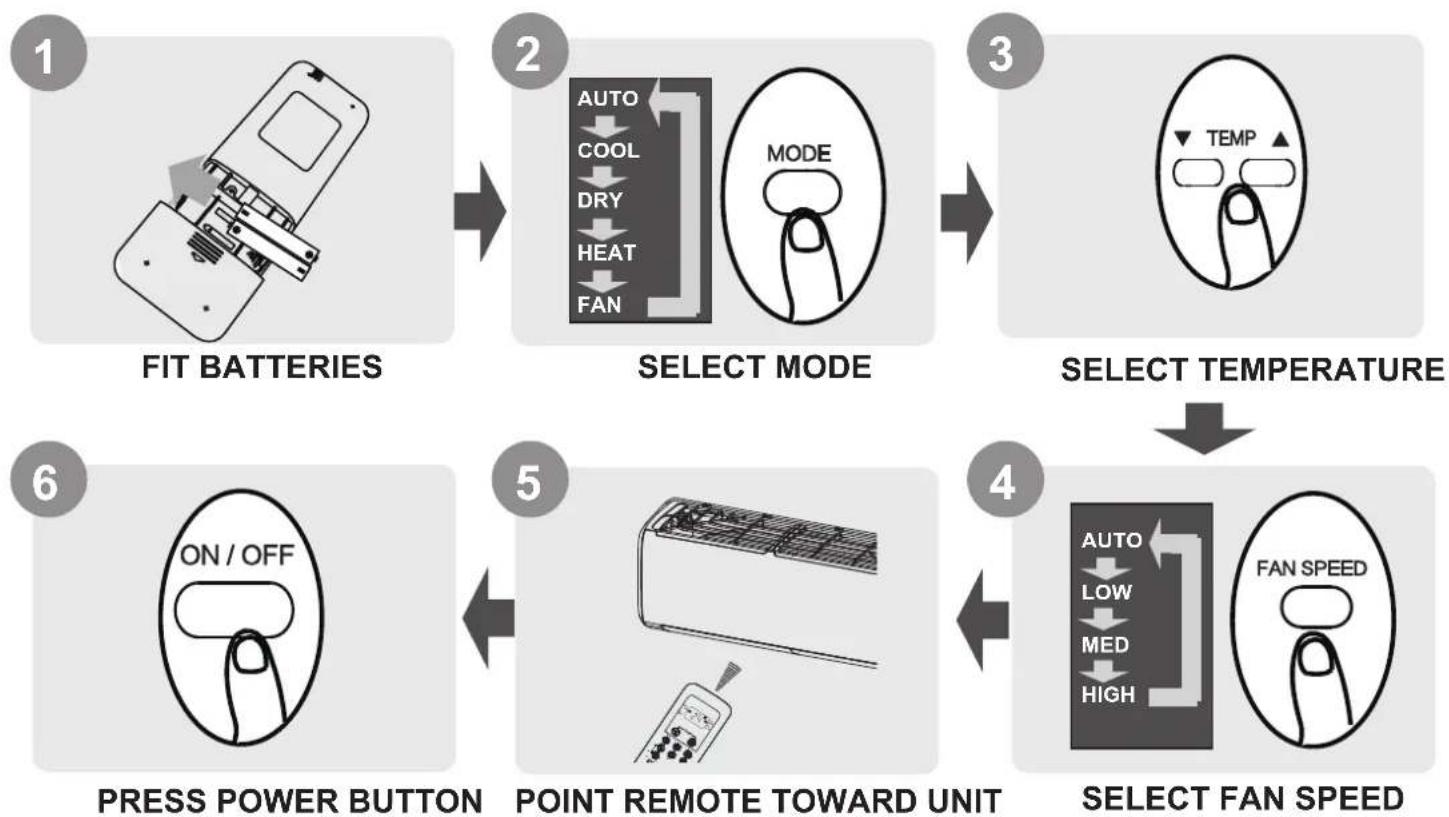

Funcionamiento

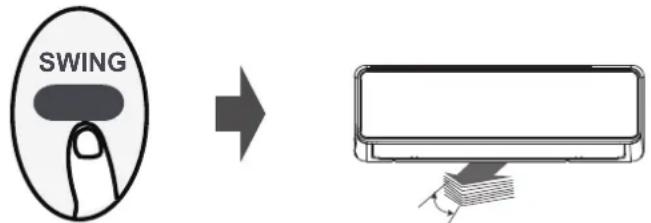

on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ON (3 seconds) SLEEP ON/OFF

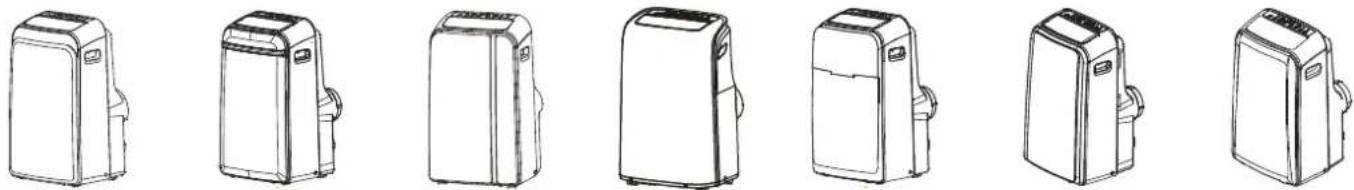

Line drawing of a portable air conditioner unit with ventilation grilles and buttons (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

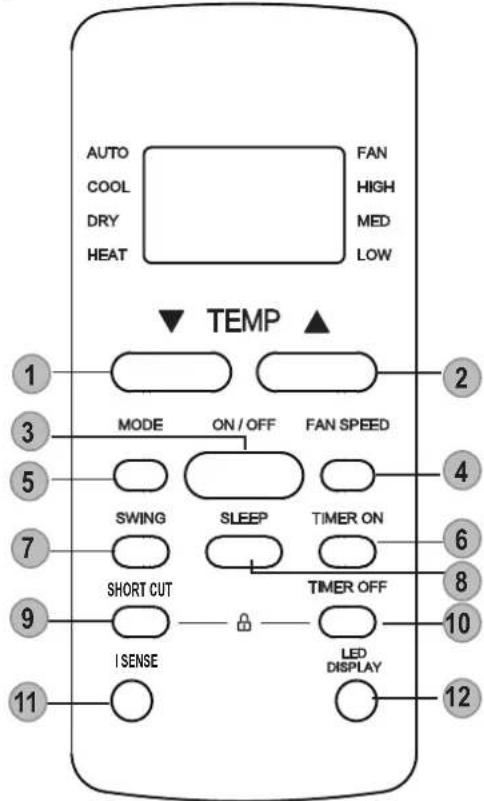

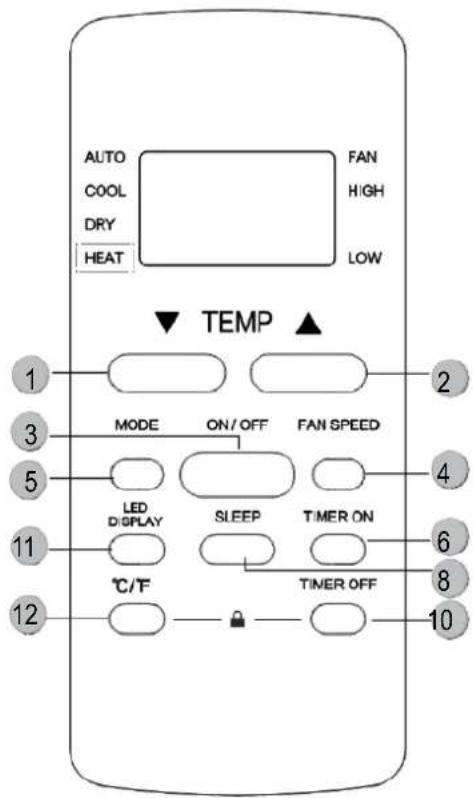

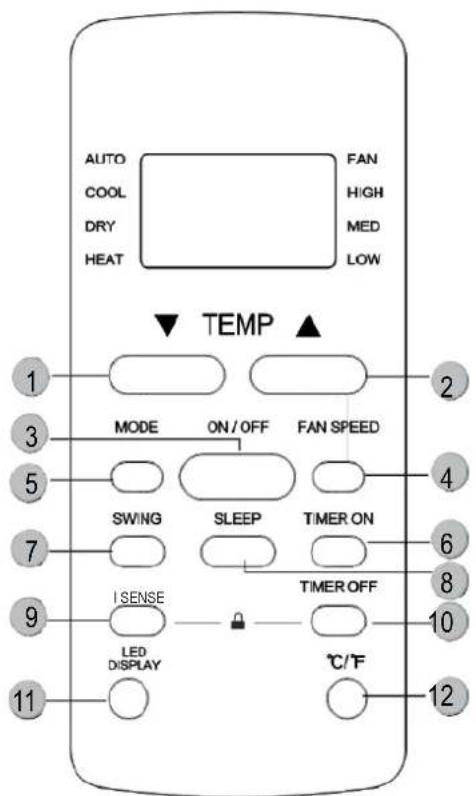

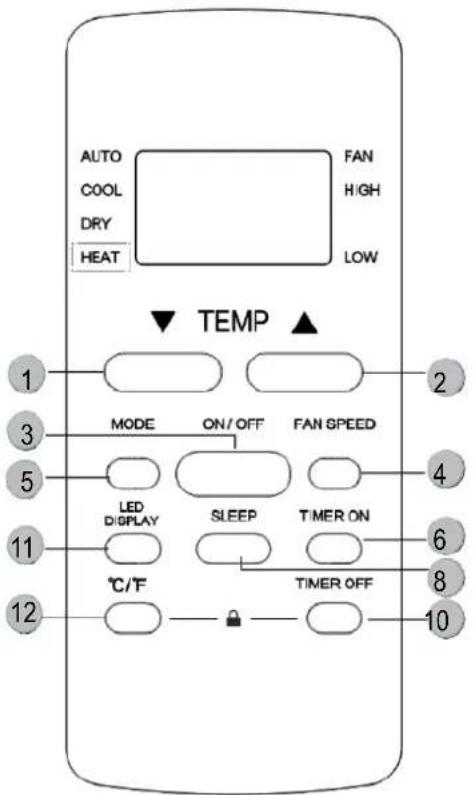

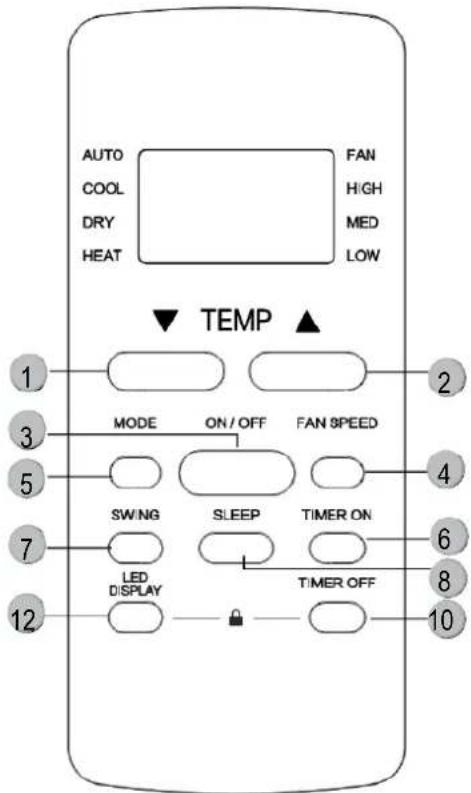

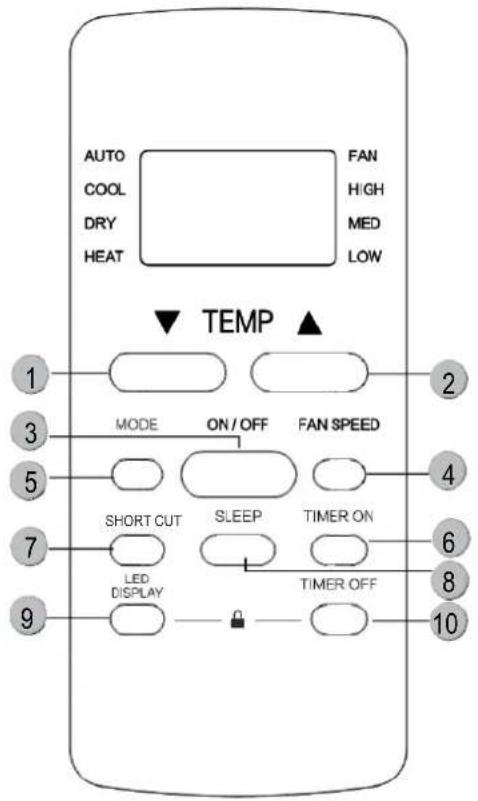

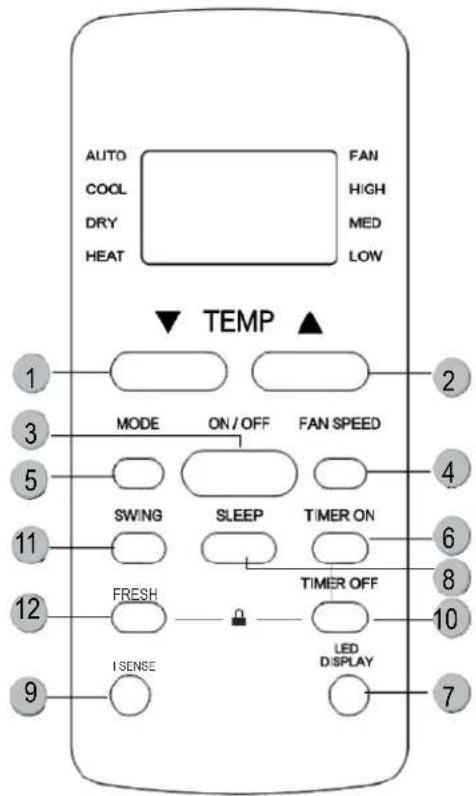

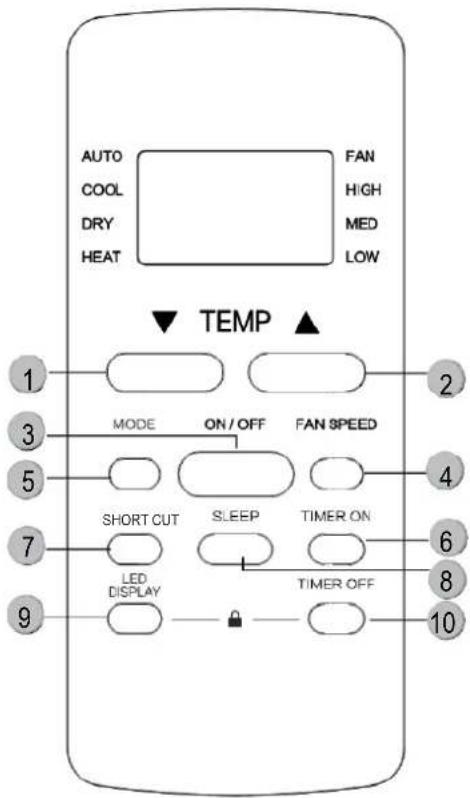

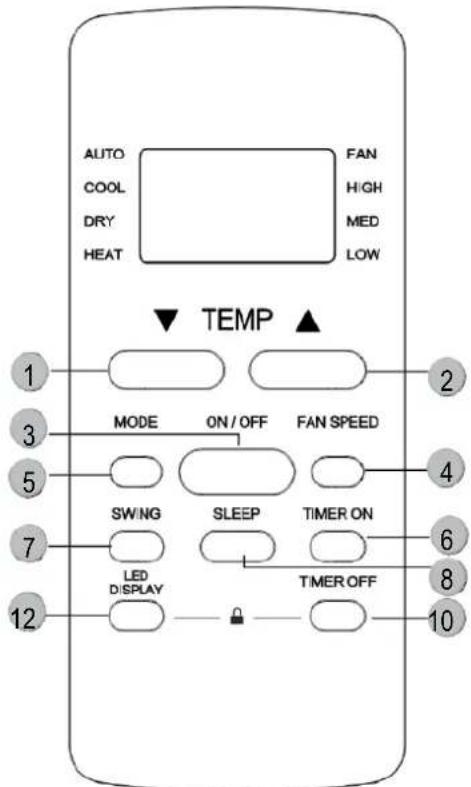

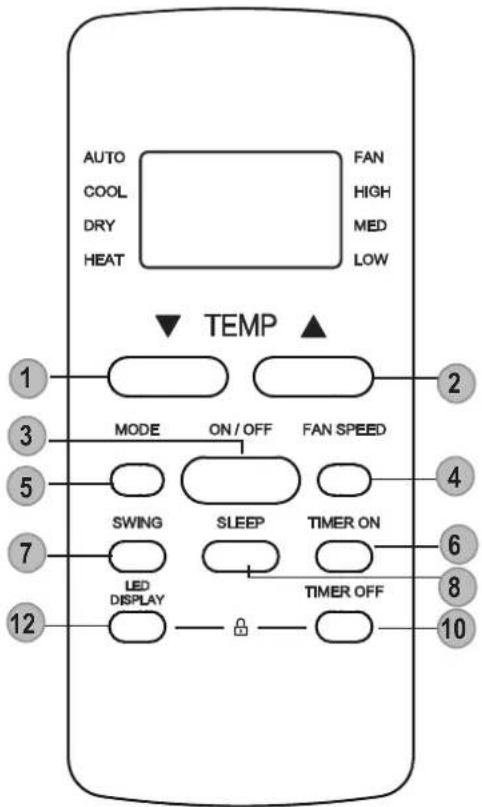

CONTROL REMOTO

MANUAL DE USUARIO

NOTA IMPORTANTE:

Diagram showing two views of a mobile phone with internal components and cable insertion (no text or symbols)

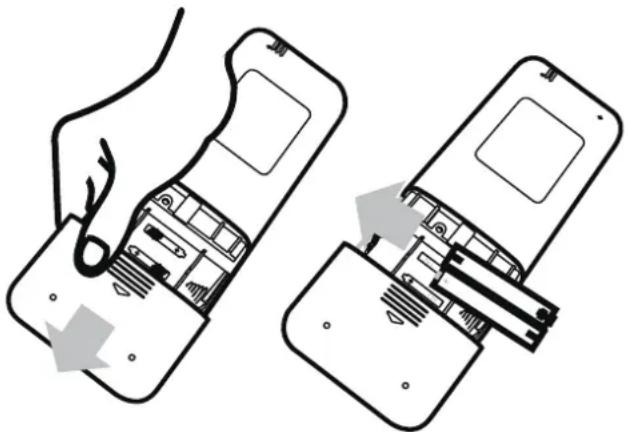

NOTAS SOBRE LAS PILAS

AUTO → LOW → MED → HIGH

SHORT CUT

Installation and Owner's Manual

CONTENT

SAFETY PRECAUTIONS 35

CAUTIONS 36

WARNINGS (FOR USING R290/R32 REFRIGERANT ONLY) 37

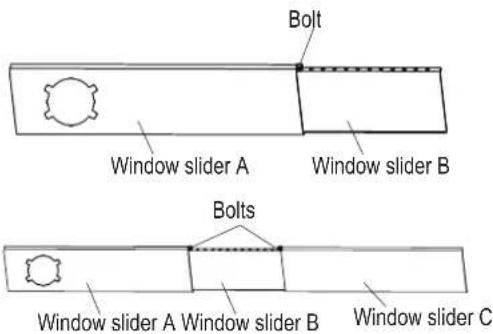

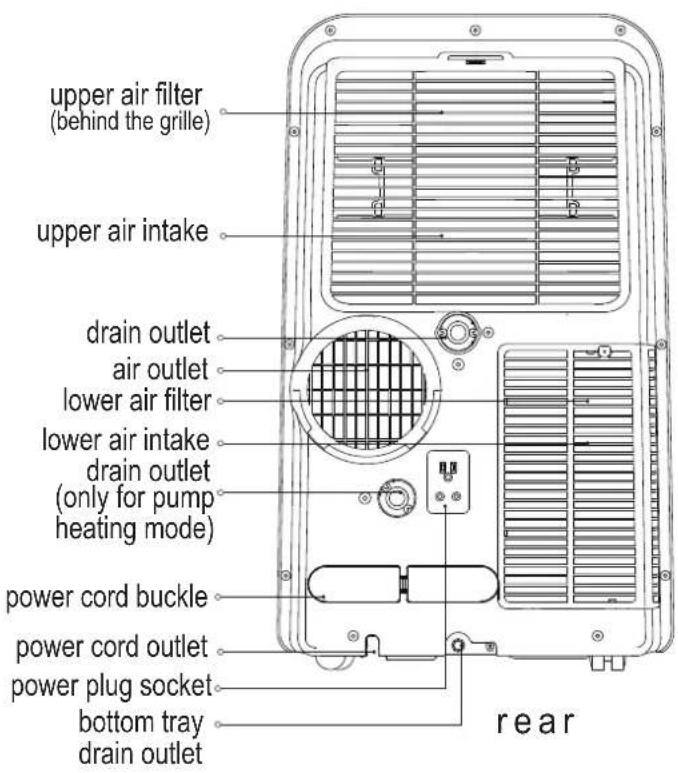

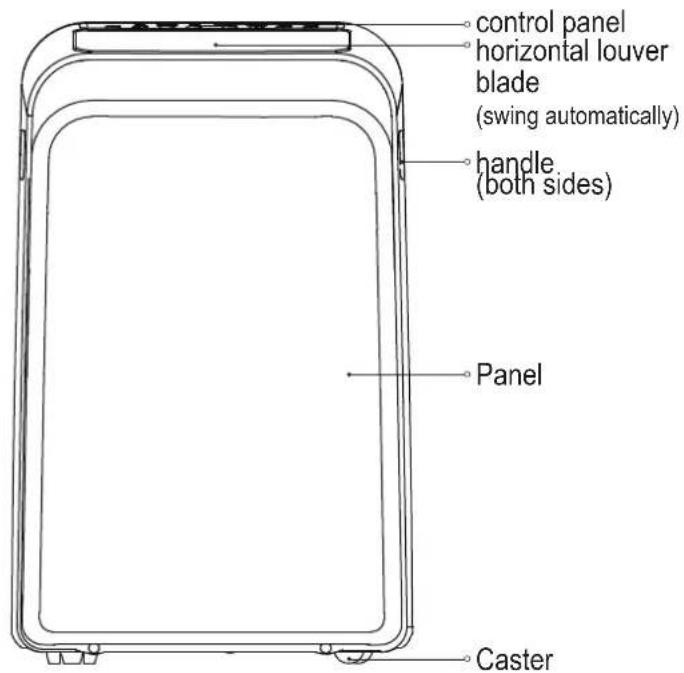

PREPARATIONS 41

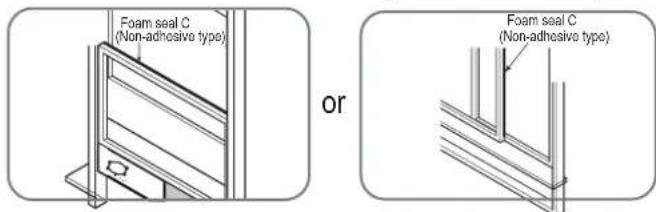

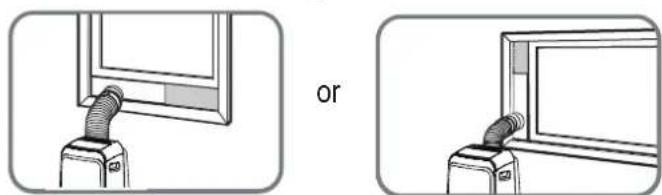

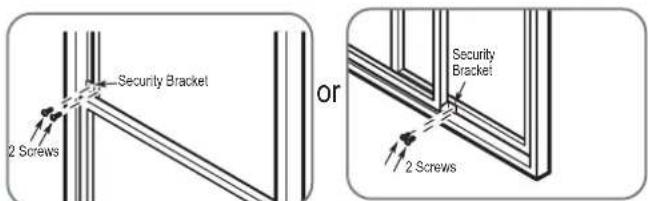

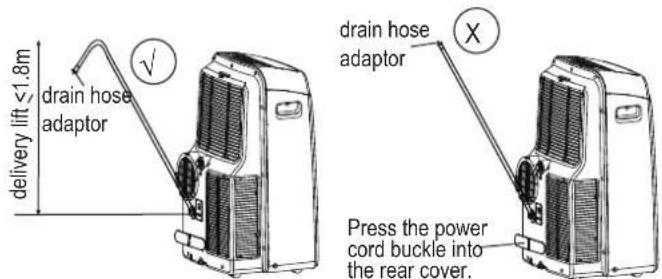

INSTALLATION 42

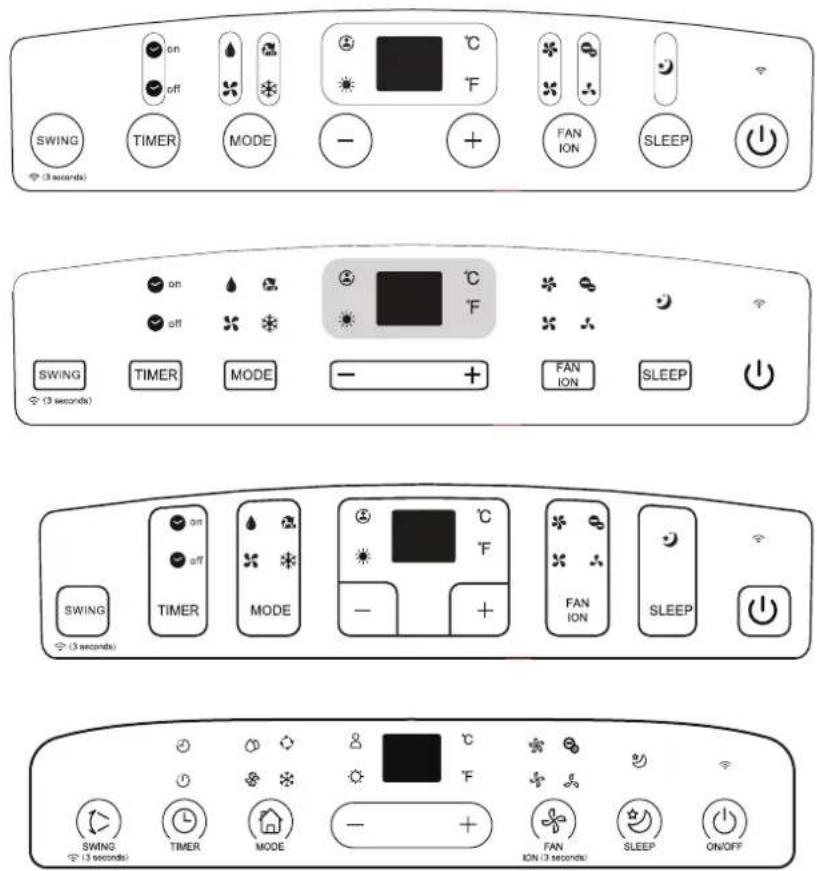

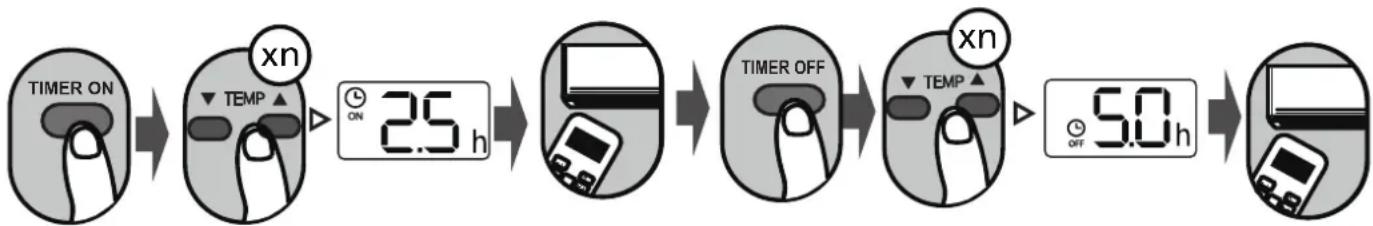

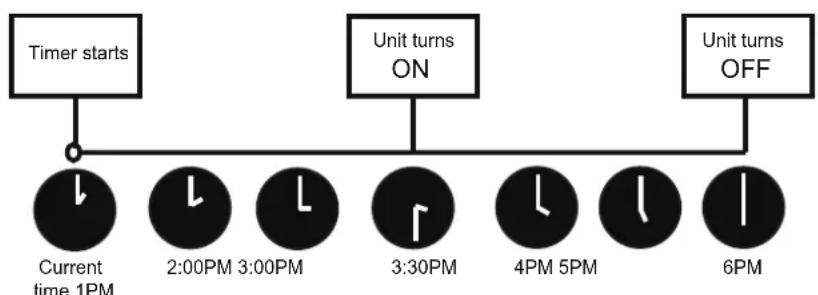

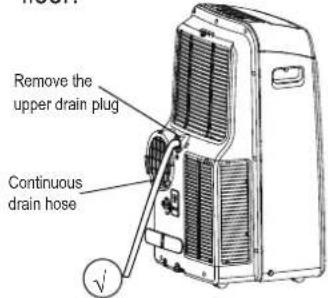

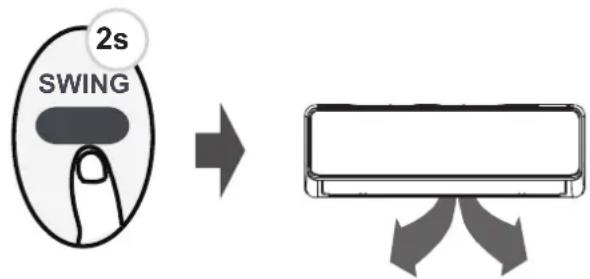

OPERATION 44

MAINTENANCE 48

FAULTS DIAGNOSIS ....48

DESIGN AND COMPLIANCE NOTES 49

SOCIABLE REMARK ....50

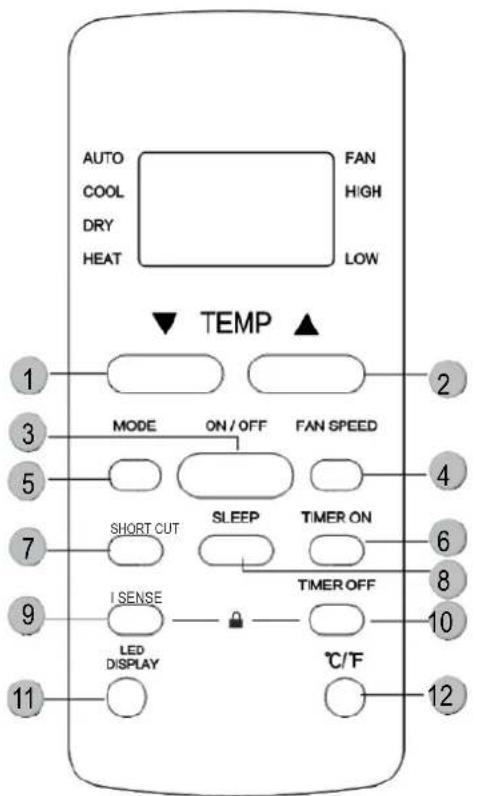

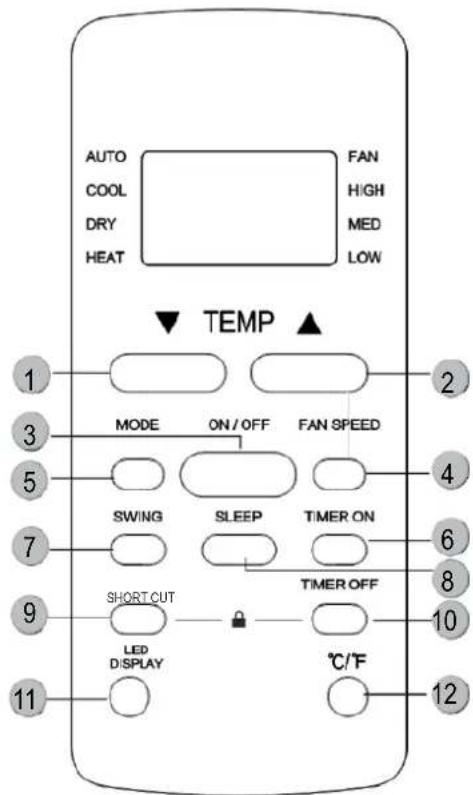

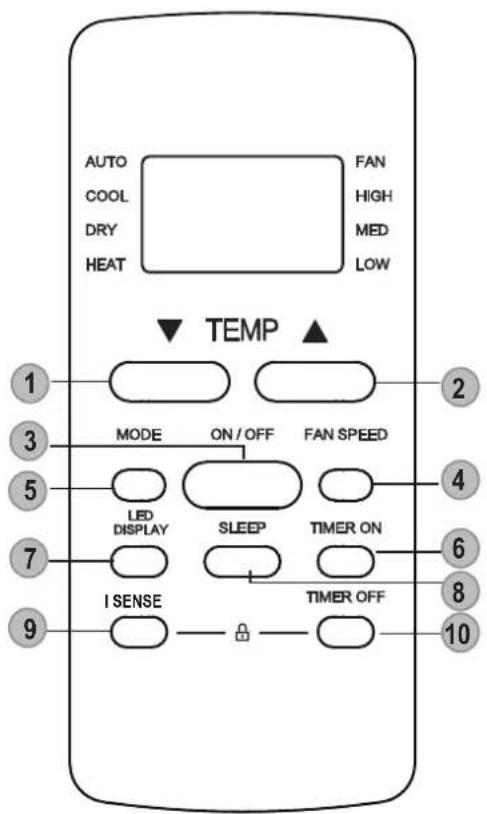

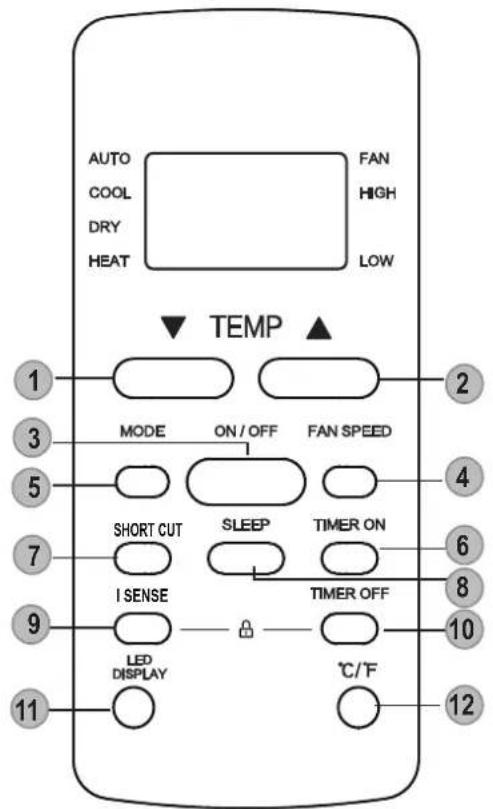

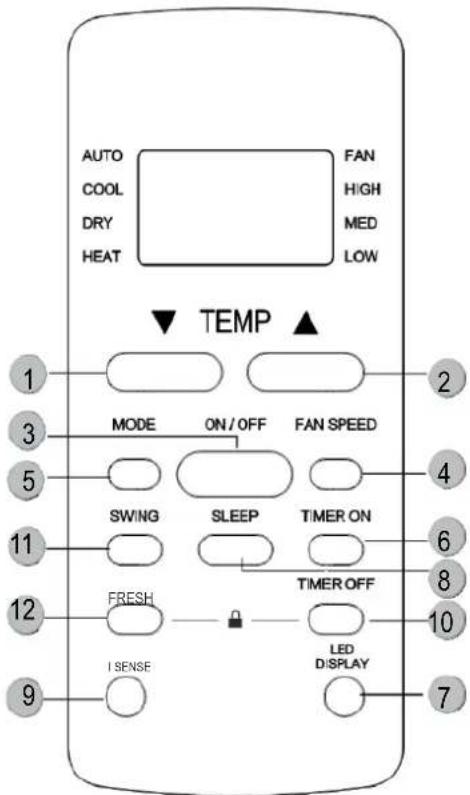

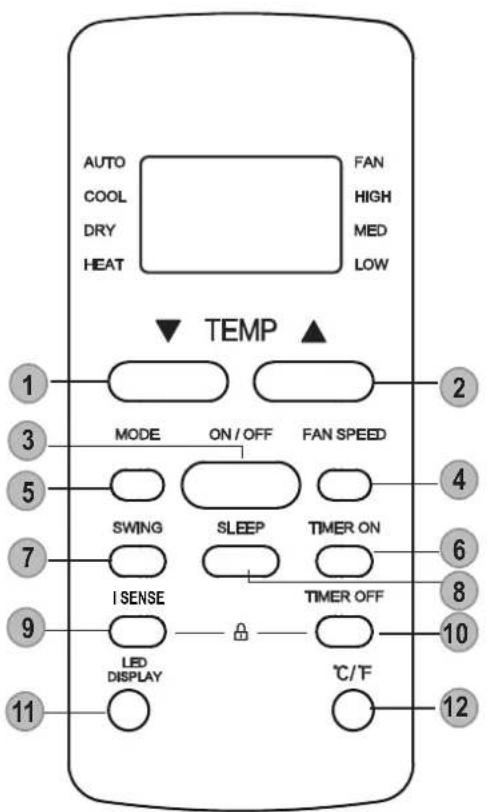

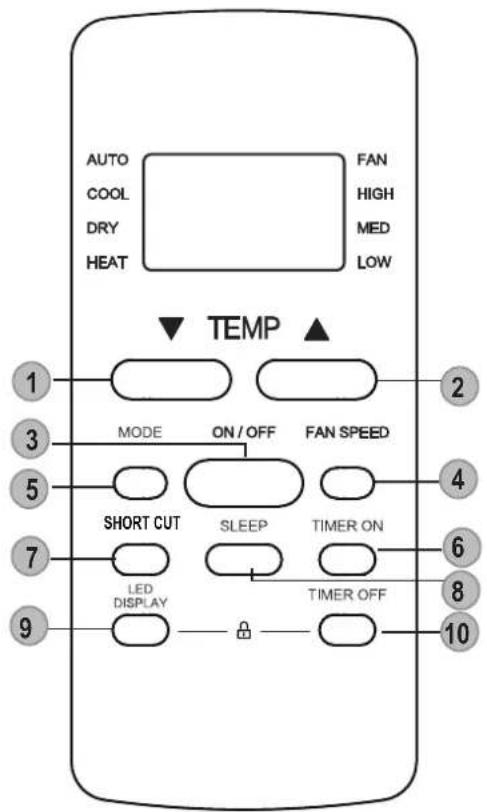

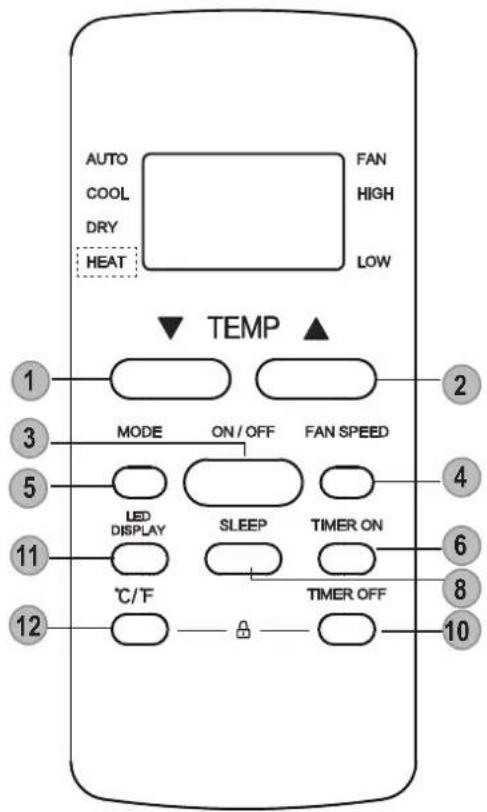

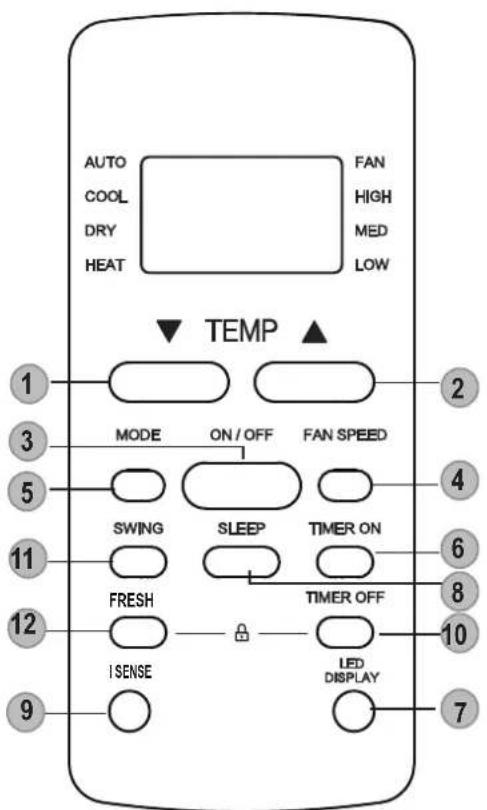

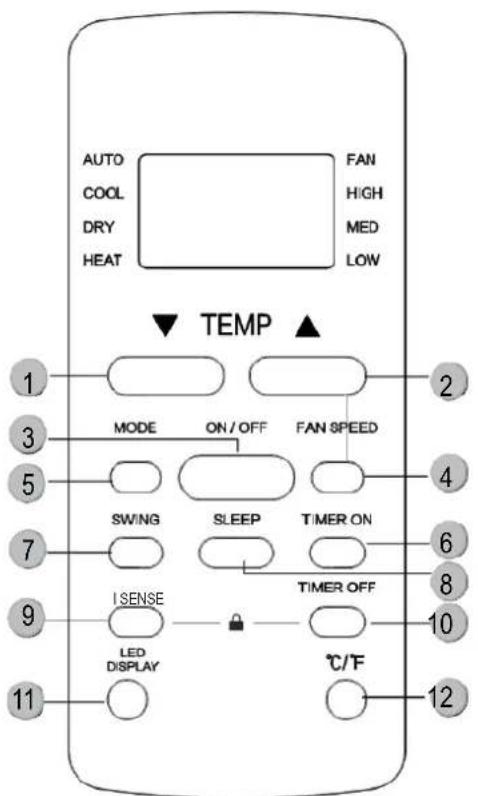

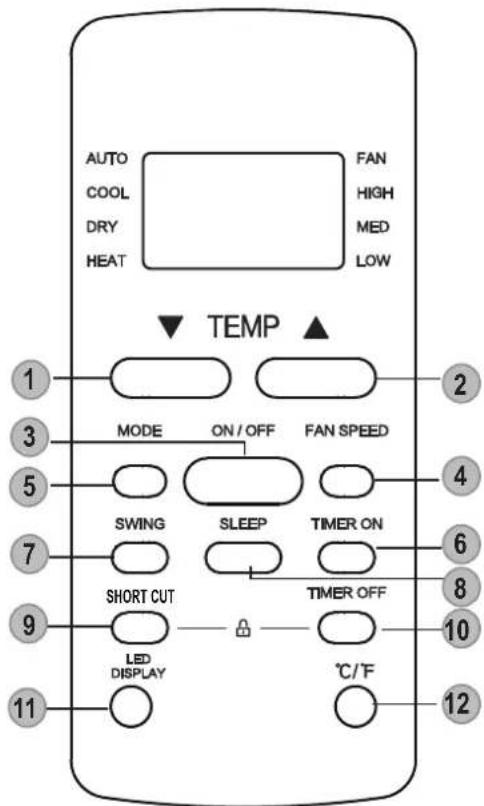

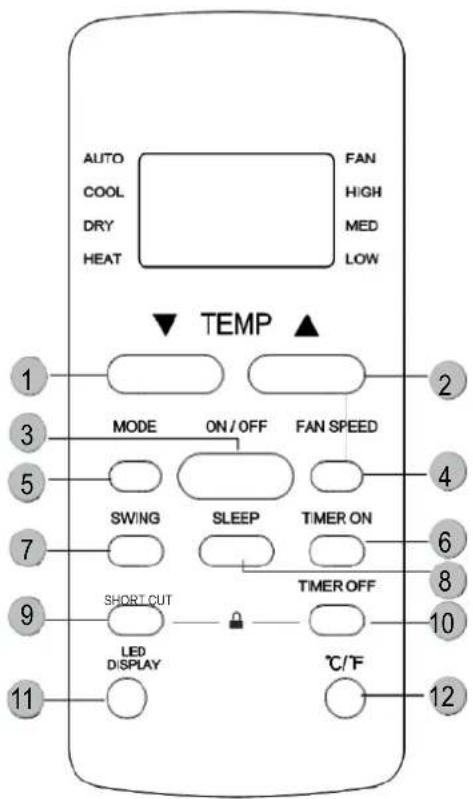

REMOTE CONTROLLER ....51

IMPORTANT

This Air Conditioner should be used for hosehold use.

WARNING

Servicing shall only be performed as recommended by the equipment manufacturer.

Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of the person competent in the use of flammable refrigerants.

The power supply must be SINGLE-PHASE (one phase (L) and one neutral (N)) with his grounded power (GND)) or THREE-PHASE (three phase (L1, L2, L3) and one neutral (N) with his grounded power (GND)) and his manual switch. Any breach of these specifications involve a breach of the warranty conditions provided by the manufacturer.

NOTE

In line with the company's policy of continual product improvement, the aesthetic and dimensional characteristics, technical data and accessories of this appliance may be changed without notice.

ATTENTION

Read this manual carefully before installind or operating you new air conditioning unit. Make sure to save this manual for future reference.

| Safety Precautions

This symbol indicates that ignoring instructions may cause death or serious injury.

WARNING: To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage.

-Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire.

-Use only the included accessories and parts, and specified tools for the installation. Using non-standard parts can cause water leakage, electrical shock, fire, and injury or property damage.

-Make sure that the outlet you are using is grounded and has the appropriate voltage. The power cord is equipped with a three-prong grounding plug to protect against shock. Voltage information can be found on the nameplate of the unit.

-Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker (the fuse or circuit breaker needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on unit), have a qualified electrician install the proper receptacle.

-Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive noise and vibration.

-The unit must be kept free from obstruction to ensure proper function and to mitigate safety hazards.

-DO NOT modify the length of the power cord or use an extension cord to power the unit.

-DO NOT share a single outlet with other electrical appliances. Improper power supply can cause fire or electrical shock.

-DO NOT install your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to water can cause electrical components to short circuit.

-DO NOT install the unit in a location that may be exposed to combustible gas, as this could cause fire.

-The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to roll over objects, as these could cause tipping.

-DO NOT operate a unit that it has been dropped or damaged.

-The appliance with electric heater shall have at least 1 meter space to the combustible materials.

-Do not touch the unit with wet or damp hands or when barefoot.

-If the air conditioner is knocked over during use, turn off the unit and unplug it from the main power supply immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact a technician or customer service for assistance.

-In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.

-Your air conditioner should be used in such a way that it is protected from moisture. e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug immediately if it occurs.

-All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit.

-The unit's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.

Cautions

Cautions

-This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (be applicable for the European Countries)
-This appliance is not intended for use by persons (including childern) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (be applicable for other countries except the European Countries )
-Children should be supervised to ensure that they do not play with the appliance. Children must be supervised around the unit at all times.
-If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
-Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
-Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
-Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or return to an authorized service facility for examination and/or repair.
-To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
-The appliance shall be installed in accordance with national wiring regulations.
-Contact the authorised service technician for repair or maintenance of this unit.
-Contact the authorised installer for installation of this unit.
-Do not cover or obstruct the inlet or outlet grilles.
-Do not use this product for functions other than those described in this instruction manual.
-Before cleaning, turn off the power and unplug the unit.
-Disconnect the power if strange sounds, smell, or smoke comes from it.
-Do not press the buttons on the control panel with anything other than your fingers.
-Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
-Do not operate or stop the unit by inserting or pulling out the power cord plug.
-Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol, etc.
-Always transport your air conditioner in a vertical position and stand on a stable, level surface during use.
-Always contact a qualified person to carry out repairs. If the damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and not repaired.
-Hold the plug by the head of the power plug when taking it out.
-Turn off the product when not in use.

|Warnings (for using R290/R32 refrigerant only)

-Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
-The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
-Do not pierce or burn.
-Be aware that the refrigerants may not contain an odour.

Appliance MUPO-12-H9 should be installed, operated and stored in a room with a floor area larger than 12 m^2 .

-Compliance with national gas regulations shall be observed.
-Keep ventilation openings clear of obstruction.
-The appliance shall be stored so as to prevent mechanical damage from occurring.
-A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
-Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.
-Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

Caution: Risk of fire/flammable materials
(Required for R32/R290 units only)

Simple line drawing of an open book with no text or symbols visible

IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.

Explanation of symbols displayed on the unit (For the unit adopts R32/R290 Refrigerant only):

	WARNING	This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
	CAUTION	This symbol shows that the operation manual should be read carefully.
	CAUTION	This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
	CAUTION	This symbol shows that information is available such as the operating manual or installation manual.

|Warnings (for using R290/R32 refrigerant only)

1. Transport of equipment containing flammable refrigerants See transport regulations
2. Marking of equipment using signs
   See local regulations
   3.Disposal of equipment using flammable refrigerants
   See national regulations.
   4.Storage of equipment/appliances
   The storage of equipment should be in accordance with the manufacturer's instructions.
   5.Storage of packed (unsold) equipment
   Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.
   The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.
   6.Information on servicing
   1) Checks to the area
   Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
   2)Work procedure
   Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.
   3) General work area
   All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.
   4) Checking for presence of refrigerant
   The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants,
   i.e. non-sparking, adequately sealed or intrinsically safe.
   5)Presence of fire extinguisher
   If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.
   6) No ignition sources
   No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained
   flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or

explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. No Smoking signs shall be displayed.

7) Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8) Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants:

The charge size is in accordance with the room size within which the refrigerant containing parts are installed;

The ventilation machinery and outlets are operating adequately and are not obstructed;

If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

9) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used.

This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;

That there no live electrical components and wiring are

|Warnings (for using R290/R32 refrigerant only)

exposed while charging, recovering or purging the system; That there is continuity of earth bonding.

7. Repairs to sealed components

1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.

2) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely.

Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

8. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

9.Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

10. Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

11.Leak detection methods

he following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or

may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

12. Removal and evacuation

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

Remove refrigerant;

Purge the circuit with inert gas;

Evacuate;

Purge again with inert gas;

Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task.

Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place.

Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

13.Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed.

Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.

Cylinders shall be kept upright.

Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.

Label the system when charging is complete (if not already).

|Warnings (for using R290/R32 refrigerant only)

Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site. 14.Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:

Mechanical handling equipment is available, if required, for handling refrigerant cylinders;

All personal protective equipment is available and being used correctly; The recovery process is supervised at all times by a competent person;

Recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.

e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.

f) Make sure that cylinder is situated on the scales before recovery takes place.

g) Start the recovery machine and operate in accordance with manufacturer's instructions.

h) Do not overfill cylinders. (No more than 80 % volume liquid charge).

i) Do not exceed the maximum working pressure of the cylinder, even temporarily.

j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.

k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

1. Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

16.Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good

practice that all refrigerants are removed safely.

When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Note About Fluorinated Gasses

-Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific information on the type, the amount and the CO_2 equivalent in tonnes of the fluorinated greenhouse gas(on some models), please refer to the relevant label on the unit itself.
-Installation, service, maintenance and repair of this unit must be performed by a certified technician.
-Product uninstallation and recycling must be performed by a certified technician.

|Preparation

control panel horizontal louver blade (swing automatically) handle (both sides) Panel Caster

front

upper air filter (behind the grille) upper air intake drain outlet air outlet lower air filter lower air intake drain outlet (only for pump heating mode) power cord buckle power cord outlet power plug socket bottom tray drain outlet rear

Installation

Choosing The Right Location

30cm 12 inch 30cm 12 inch

Recommend Installation

50cm 19.7inch

Your installation location should meet the following requirements:

-Make sure that you install your unit on an even surface to minimize noise and vibration.
-The unit must be installed near a grounded plug, and the Collection Tray Drain (found on the back of the unit) must be accessible.
-The unit should be located at least 30cm (12") from the nearest wall to ensure proper air conditioning.
-DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this could cause damage to the unit.

NOTE:

All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The actual shape shall prevail.

The unit can be controlled by the unit control panel alone or with the remote controller. This manual does not include Remote Controller Operations, see the <> packed with the unit for details.

When there are wide differences between "INSTRUCTION MANUAL" and "Remote control Illustration" on function description, the description on "INSTRUCTION MANUAL" shall prevail.

Tools Needed

-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors; -Saw (optional, to shorten window adaptor for narrow windows)

Accessories

Check your window size and choose the fit window slider.

Part	Description	Quantity Part Description Quantity
	Unit Adaptor	1 pc
	Exhaust Hose	1 pc
	Window Slider Adaptor	1 pc
	Wall Exhaust Adaptor A(only for wall installation)	1 pc
	Wall Exhaust Adaptor B(with cap)(only for wall installation)	1 pc
*	Screw and anchor(only for wall installation)	4 set
*	Window Slider A	1 pc
*	Window Slider B	1 pc
	Power Cord Buckle	1 pc

NOTE: Items with * are optional. Slight variations in design may occur.

| Installation

Window Installation Kit

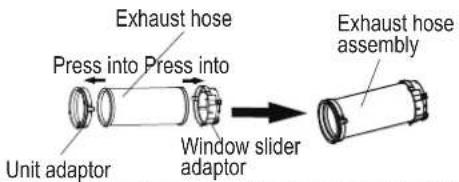

Step One: Preparing the Exhaust Hose assembly Press the exhaust hose into the window slider adaptor and unit adaptor, clamp automatically by elastic buckles of the adaptors.

Step Two: Install the Exhaust hose assembly to the unit

Insert unit adaptor of the Exhaust hose assembly into the lower groove of the air outlet of the unit while the hook of the adaptor is aligned with the hole seat of the air outlet and slide down the Exhaust hose assembly along the arrow direction for installation.

Exhaust hose Press into Press into Unit adaptor Window slider adaptor Exhaust hose assembly

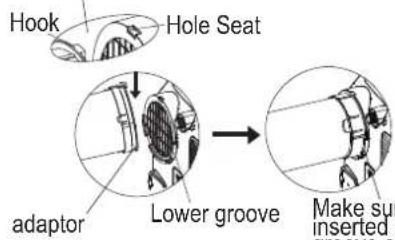

Make sure the hook of the adaptor is aligned with the hole seat of the air outlet.

Hook Hole Seat adaptor Lower groove Make suit inserted

Make sure the adaptor is inserted into the lower groove of the air outlet.

Step Three: Preparing the Adjustable Window Slider

1. Depending on the size of your window, adjust the size of the window slider.
2. If the length of the window requires two window sliders, use the bolt to fasten the window sliders once they are adjusted to the proper length.
3. For some models, if the length of the window requires three window sliders(optional), use two bolts to fasten the window sliders once they or are adjusted to proper length.

Bolt Window slider A Window slider B Bolts Window slider A Window slider B Window slider C

Note: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following installation methods. Hung Window or Sliding Window Installation (optional)

Foam seal B (Adhesive type-shorter) Foam seal A (Adhesive type) or Foam seal B (Adhesive type-shorter) Foam seal A (Adhesive type)

1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown.

Window slider A Window slider B (if required) or Window slider B (if required) Window slider A

1. Insert the window slider assembly into the window opening.

Foam seal C (Non-adhesive type) or Foam seal C (Non-adhesive type)

1. Cut the non-adhesive foam seal C strip to match the width of the window. Insert the seal between the glass and the window frame to prevent air and insects from getting into the room.

Security Bracket 2 Screws or Security Bracket 2 Screws

1. If desired, install the security bracket with 2 screws as shown.

Diagram showing two views of a window with a hose, one open and one closed, both without any text or symbols.

| Operation

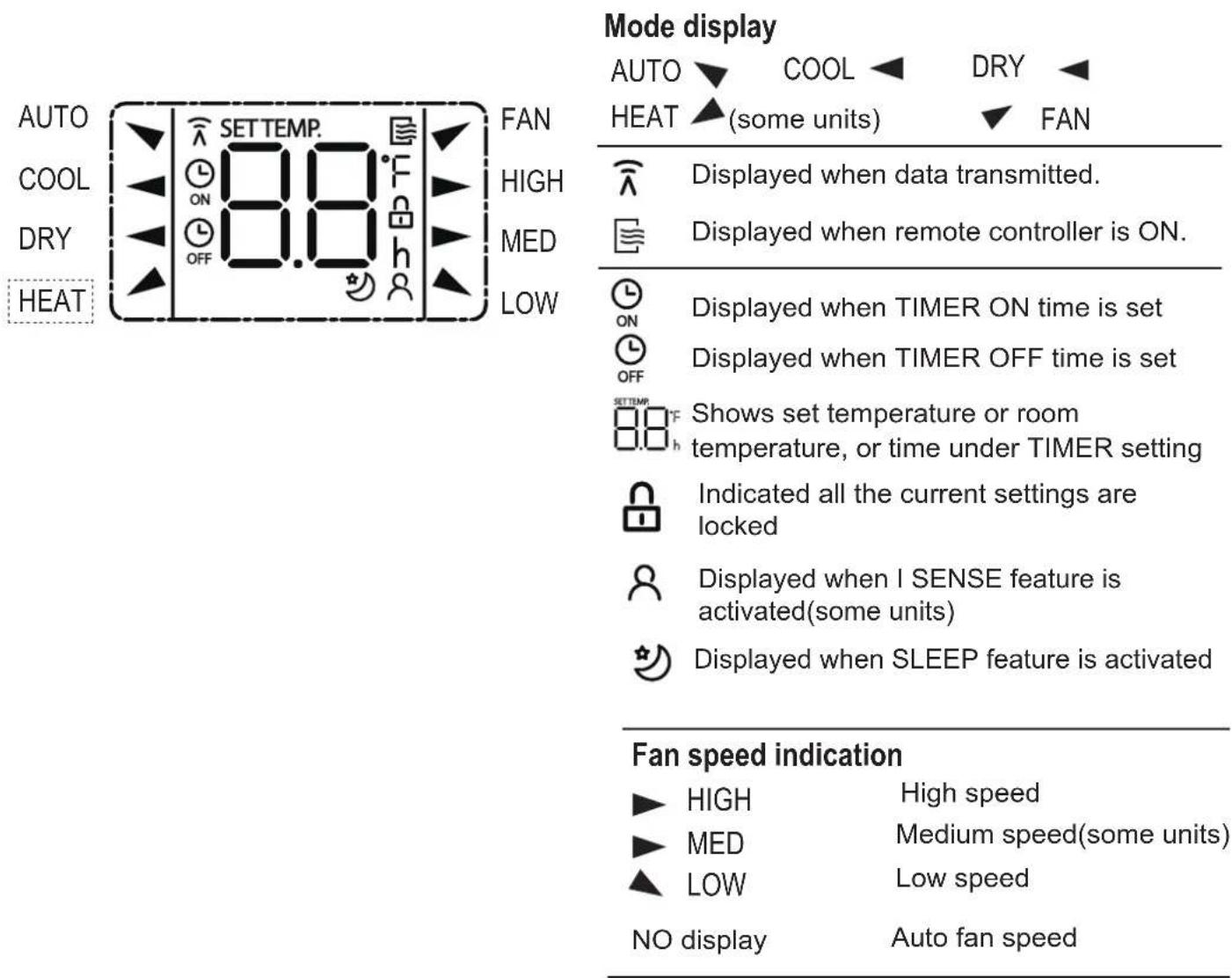

NOTE: The control panel may be look like one of the followings:

NOTE: On some models is instead of °F. On some models (WIRELESS light) is instead of • (power light). NOTE: Some features(ION, FOLLOW ME, HEAT, WIRELESS etc.) are optional. ION is not applicable for R32/R290 units.

	HEAT mode light		HIGH fan speed light		FOLLOW ME light
	COOL mode light		MED fan speed light		ION light
	FAN mode light		LOW fan speed light		SLEEP light
	DRY mode light		AUTO fan speed light	°C	Degrees Celsius
	AUTO mode light		FILTER light	°F	Degrees Fahrenheit
	WIRELESS light		POWER MANAGEMENT light		LED display

NOTE: The unit you purchased may be look like one of the followings:

| Operation

SWING

Swing button

Used to initiate the Auto swing feature. When the operation is ON, press the SWING button can stop the louver at the desired angle.

SWING

Wireless button(optional)

(3 seconds)

Used to initiate the Wireless function. For the first time to use Wireless function, press and hold the swing button for 3 seconds to initiate the Wireless connection mode. The LED DISPLAY shows 'AP' to indicate you can set Wireless connection. If connection(router) is successful within 8 minutes, the unit will exit Wireless connection mode automatically and the Wireless indicator illuminates. If connection is failure within 8 minutes, the unit exits Wireless connection mode automatically. After Wireless connection is successful, you can press and hold SWING and DOWN (-) buttons at the same time for 3 seconds to turn off Wireless function and the LED DISPLAY shows 'OF' for 3 seconds, press SWING and UP(+) buttons at the same time to turn on Wireless function and the LED DISPLAY shows 'ON' for 3 seconds.

NOTE: When you restart the Wireless function, it may take a period of time to connect to the network automatically.

TIMER

Timer button

Used to initiate the AUTO ON start time and AUTO OFF stop time program, in conjunction with the + & - buttons. The timer on/off indicator light illuminates under the timer on/off settings.

MODE

Mode button

Selects the appropriate operating mode. Each time you press the button, a mode is selected in a sequence that goes from AUTO), COOL, DRY, FAN and HEAT (cooling only models without). The mode indicator light illuminates under the different mode settings.

+ Up (+) and Down (-) buttons

Used to adjust (increasing/decreasing) temperature settings in 1°C/1°F (or 2°F) increments in a range of 17°C/62°F to 30°C/86°F (or 88°F) or the TIMER setting in a range of 0\~24hrs. NOTE: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the Up and Down buttons at the same time for 3 seconds.

FAN

ION

Fan/Ion button(Ion is optional)

Control the fan speed. Press to select the fan speed in four steps-LOW, MED, HIGH and AUTO. The fan speed indicator light illuminates under different fan settings. When select AUTO fan speed, all the fan indicator lights turn dark. On some models, when select AUTO fan speed, all the fan indicator lights illumiante(optional). NOTE: Press this button for 3 seconds to initiate ION feature. The ion generator is energized and will help to remove pollen and impurities from the air, and trap them in the filter. Press it for 3 seconds again to stop the ION feature.

SLEEP

Sleep(Eco) button

Used to initiate the SLEEP/ECO operation.

(●)

Power button

Power switch on/off.

The image is too blurry to recognize any text content.

LED display

Shows the set temperature in °C or °F("°F" no display for some models) and the Auto-timer settings. While on DRY and FAN modes, it shows the room temperature.

Shows Error codes and protection code:

E1-Room temperature sensor error.

E2-Evaporator temperature sensor error.

E3-Condenser temperature sensor error (on some models).

E4-Display panel communication error.

EC-Refrigerant leakage detection malfunction (on some models).

P1-Bottom tray is full--Connect the drain hose and drain the collected water away. If protection repeats, call for service.

Note: When one of the above malfunctions occurs, turn off the unit, and check for any obstructions. Restart the unit, if the malfunction is still present, turn off the unit and unplug the power cord. Contact the manufacturer or its service agents or a similar qualified person for service.

Exhaust hose installation

The exhaust hose and adaptor must be installed or removed in accordance with the usage mode.

For COOL,HEAT(heat pump type) or AUTO mode must be installed exhaust hose.

For FAN, DEHUMIDIIFY or HEAT(electrical heat type) mode must be removed exhaust hose.

Operation

Operation Instructions

COOL operation

-Press the "MODE" button until the "COOL" indicator light comes on.
-Press the ADJUST buttons "+" or "-" to select your desired room temperature. The temperature can be set within a range of 17°C\~30°C/62°F\~86°F(or 88°F).
-Press the "FAN SPEED" button to choose the fan speed.

HEAT operation(cooling only models without)

-Press the "MODE" button until the "HEAT" indicator light comes on.
-Press the ADJUST buttons "+" or "-" to select your desired room temperature. The temperature can be set within a range of 17°C\~30°C/62°F\~86°F(or 88°F).
-Press the "FAN SPEED" button to choose the fan speed. For some models, the fan speed can not be adjusted under HEAT mode.

DRY operation

-Press the "MODE" button until the "DRY" indicator light comes on.
-Under this mode, you cannot select a fan speed or adjust the temperature. The fan motor operates at LOW speed.
-Keep windows and doors closed for the best dehumidifying effect.
-Do not put the duct to window.

AUTO operation

-When you set the air conditioner in AUTO mode, it will automatically select cooling, heating(cooling only models without), or fan only operation depending on what temperature you have selected and the room temperature.
-The air conditioner will control room temperature automatically round the temperature point set by you.
-Under AUTO mode, you can not select the fan speed.
NOTE: Under AUTO mode, both the AUTO mode and the actual operation mode indicator lights illuminate for some models.

FAN operation

-Press the "MODE" button until the"FAN" indicator light comes on.
-Press the "FAN SPEED" button to choose the fan speed. The temperature can not be adjusted.
-Do not put the duct to window.

TIMER operation

-When the unit is on, press the Timer button will initiate the Auto-off stop program, the TIMER OFF indicator light illuminates. Press the UP or down button to select the desired time. Press the TIMER button again within 5 seconds, the Auto-on start program is initiated.
And the TIMER ON indicator light illuminates. Press the up or down button to select the desired Auto-on start time.

-When the unit is off, press the Timer button to initiate the Auto-on start program, press it again within 5 seconds will initiate the Auto-off stop program.
-Press or hold the UP or DOWN button to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start.
-The system will automatically revert back to display the previous temperature setting if there is no operation in a 5 seconds period.
-Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/Stop timer program.

SLEEP(ECO) operation

-Press this button, the selected temperature will increase (cooling) or decrease(heating) by 1°C/2°F(or 1°F) 30 minutes. The temperature will then increase (cooling) or decrease (heating) by another 1°C/2°F(or 1°F) after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the Sleep/Eco mode and the unit will continue to operate as originally programmed.

NOTE: This feature is unavailable under FAN or DRY mode.

Other features

FOLLOW ME/TEMP SENSING feature(optional)

NOTE: This feature can be activated from the remote control ONLY. The remote control serves as a remote thermostat allowing for the precise temperature control at its location. To activate the Follow Me/Temp Sensing feature, point the remote control towards the unit and press the Follow Me/Temp Sensing button. The remote control will send this signal to the air conditioner until press the Follow Me/Temp Sensing button again. If the unit does not receive the Follow Me/Temp Sensing signal during any 7 minutes interval, the unit will exit the Follow Me/Temp Sensing mode.

NOTE: This feature is unavailable under FAN or DRY mode.

AUTO-RESTART

If the unit breaks off unexpectedly due to the power cut, it will restart with the previous function setting automatically when the power resumes.

AIR FLOW DIRECTION ADJUSTMENT

The louver can be adjusted automatically. Adjust the air flow direction automatically:

-When the Power is ON, the louver opens fully.
-Press the SWING button on the panel or remote controller to initiate the Auto swing feature. The louver will swing up and down automatically.
-Please do not adjust the louver manually.

| Operation

WAIT 3 MINUTES BEFORE RESUMING OPERATION After the unit has stopped, it can not be restarted operation in the first 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes.

POWER MANAGEMENT feature(on some models) When the ambient temperature is lower than the setting temperature for a period of time, the unit will be automatically operate power management feature. The compressor and fan motor stop. When the ambient temperature is higher than the setting temperature, the unit will be automatically quit the power management feature. The compressor and (or) fan motor run. NOTE: For unit with power management light, the light will illuminate under this feature.

Water drainage

-During dehumidifying modes, remove the upper drain plug from the back of the unit, install the drain connector (5/8" universal female mender) with 3/4" hose(locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open end of the hose directly over the drain area in your basement floor.

Remove the upper drain plug Continuous drain hose

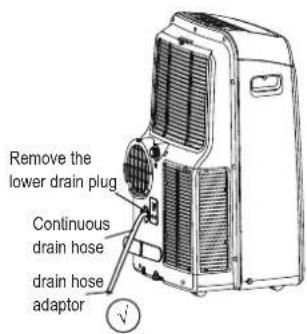

-During heating pump mode, remove the lower drain plug from the back of the unit, install the drain connector(5/8" universal female mender) with 3/4" hose(locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open end of the Hose adaptor directly over the drain area in your basement floor.

NOTE: Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the warter flowing. Place the end of the hose into the drain and make sure the end of the hose is down to let the water flow smoothly. (See Figs with ☑). Do never let it up. (See Figs with ○). When the continuous drain hose is not used, ensure that the corresponding drain plug and knob are installed firmly to prevent leakage.

Remove the lower drain plug Continuous drain hose drain hose adaptor

delivery lift ≤1.8m drain hose adaptor drain hose adaptor Press the power cord buckle into the rear cover.

-When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times, the digital display area shows "P1". At this time the air conditioning/dehumidification process will immediately stop. However, the fan motor will continue to operate(this is normal). Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away. Reinstall the bottom drain plug and restart the machine until the "P1" symbol disappears. If the error repeats, call for service. NOTE: Be sure to reinstall the bottom drain plug firmly to prevent leakage before using the unit.

Maintenance

WARNING:

-Always unplug the unit before cleaning or servicing.
-DO NOT use flammable liquids or chemicals to clean the unit.
-DO NOT wash the unit under running water. Doing so causes electrical danger.
-DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord must be replaced with a new cord from the manufacturer.

Clean the Air Filter

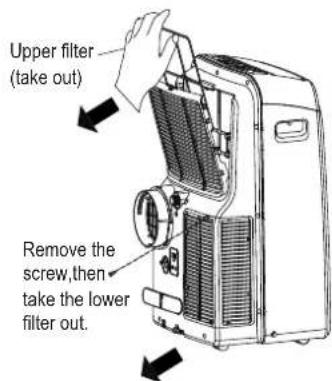

Upper filter (take out) Remove the screw,then take the lower filter out.

Remove the air filter

CAUTION

DO NOT operate the unit without filter because dirt and lint will clog it and reduce performance.

| Maintenance

Maintenance Tips

-Be sure to clean the air filter every 2 weeks for optimal performance.
-The water collection tray should be drained immediately after P1 error occurs, and before storage to prevent mold.
-In households with animals, you will have to periodically wipe down the grill to prevent blocked airflow due to animal hair.

Clean the Unit

Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free cloth.

Store the unit when not in use

-Drain the unit's water collection tray according to the instructions in the following section.

-Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.
-Turn off the appliance and unplug it.
-Clean the air filter according to the instructions in the previous section. Reinstall the clean, dry filter before storing.
-Remove the batteries from the remote control.

Be sure to store the unit in a cool, dark place. Exposure to direct sunshine or extreme heat can shorten the lifespan of the unit.

NOTE: The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mildliquid dishwashing detergent. Rinse thoroughly and wipe dry. Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the unit.

| Faults Diagnosis

Please check the machine according to the following form before asking for maintenance:

Problem	Possible Cause	Troubleshooting
Unit does not turn on when pressing ON/OFF button	P1 Error Code	The Water Collection Tray is full. Turn off the unit, drain the water from the Water Collection Tray and restart the unit.
	In COOL mode: room temperature is lower than the set temperature	Reset the temperature
Unit does not cool well	The air filter is blocked with dust or animal hair	Turn off the unit and clean the filter according to instructions
	Exhaust hose is not connected or is blocked	Turn off the unit, disconnect the hose, check for blockage and reconnect the hose
	The unit is low on refrigerant	Call a service technician to inspect the unit and top off refrigerant
	Temperature setting is too high	Decrease the set temperature
	The windows and doors in the room are open	Make sure all windows and doors are closed
	The room area is too large	Double-check the cooling area
	There are heat sources inside the room	Remove the heat sources if possible
The unit is noisy and vibrates too much	The ground is not level	Place the unit on a flat, level surface
	The air filter is blocked with dust or animal hair	Turn off the unit and clean the filter according to instructions
The unit makes a gurgling sound	This sound is caused by the flow of refrigerant inside the unit	This is normal

| Design and Compliance Notes

Design Notice

The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version.

Energy Rating Information

The Energy Rating for this unit is based on an installation using an un-extended exhaust duct without window slider adaptor or wall exhaust adaptor A (as shown in the Installation section of this manual).

Unit Temperature Range

Mode Temperature Range
Cool 17-35°C (62-95°F)
Dry	13-35°C (55-95°F)
Heat (pump heat mode)	5-30°C (41-86°F)
Heat (electrical heat mode)	≤30°C (86°F)

NOTE: To be in compliance EN 61000-3-11, the product MUPO-12-H9 shall be connected only to a supply of the system impedance: | Zsys|=0.348 ohms or less. Before connect the product to public power network, please consult your local power supply authority to ensure the power network meet above requirement.

| Sociable Remark

When using this unit in the European countries, the following information must be followed:

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

It is prohibited to dispose of this appliance in domestic household waste.

For disposal, there are several possibilities:

A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least free of charge.
C) The manufacture will take back the old appliance for disposal at least free of charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.

Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the ground-water and find their way into the food chain.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

REMOTE CONTROLLER

OWNER'S MANUAL

IMPORTANT NOTE:

Thank you for purchasing our air conditioner. Please read this manual carefully before operating your new air conditioning unit. Make sure to save this manual for future reference.

Table of Contents

Remote Controller Specifications ....54

Handling the Remote Controller ....55

Buttons and Functions ....56

Remote Screen Indicators 61

How to Use Basic Functions ....62

How to Use Advanced Functions ....64

Remote Controller Specifications

Model	RG51F/EF, RG51F2(1)/EFU1, RG51F4/E, RG51F5(1)/EU1, RG51H(1)/EF, RG51H1(1)/EF, RG51H2(1)/EFU1-M, RG51H3(1)/EU1-M, RG51F6/E,RG51H3(1)/CE-M
Rated Voltage	3.0V(Dry batteries R03/LR03×2)
Signal Receiving Range	8m
Environment	-5°C~60°C(23°F~140°F)

Quick Start Guide

NOT SURE WHAT A FUNCTION DOES?

Refer to the How to Use Basic Functions and How to Use Advanced Functions sections of this manual for a detailed description of how to use your air conditioner.

SPECIAL NOTE

• Button designs on your unit may differ slightly from the example shown.
• If the indoor unit does not have a particular function, pressing that function's button on the remote control will have no effect.
• When there are wide differences between "Remote controller Manual" and "USER'S MANUAL" on function description, the description of "USER'S MANUAL" shall prevail.

Handling the Remote Controller

Inserting and Replacing Batteries

Your air conditioning unit may come with two batteries(some units). Put the batteries in the remote control before use.

1. Slide the back cover from the remote control downward, exposing the battery compartment.
2. Insert the batteries, paying attention to match up the (+) and (-) ends of the batteries with the symbols inside the battery compartment.
3. Slide the battery cover back into place.

Diagram showing two views of a smartphone with internal components and arrows indicating insertion or disassembly (no text or symbols present)

BATTERY NOTES

For optimum product performance:

• Do not mix old and new batteries, or batteries of different types.
• Do not leave batteries in the remote control if you don't plan on using the device for more than 2 months.

BATTERY DISPOSAL

Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper disposal of batteries.

TIPS FOR USING REMOTE CONTROL

• The remote control must be used within 8 meters of the unit.
• The unit will beep when remote signal is received.
• Curtains, other materials and direct sunlight can interfere with the infrared signal receiver.
• Remove batteries if the remote will not be used more than 2 months.

CAUTIONS FOR USING REMOTE CONTROL

The device could comply with the local national regulations.

• In Canada, it should comply with CAN ICES-3(B)/NMB-3(B).
• In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
  (1) This device may not cause harmful interference, and
  (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- Changes or modifications not expressly approved by the party responsible for compliance could void user's authority to operate the equipment.

Buttons and Functions

Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual.

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 2 3 5 SWING SLEEP TIMER ON 4 6 7 SHORT CUT TIMER OFF 8 9 I SENSE LED 10 11 12

Model: RG51F/EF

1 TEMP ▼: Decreases temperate in 1°C increments. Min. temperature is 17°C.
2 TEMP ▲: Increases temperate in 1°C increments. Max. temperature is 30°C.
3 ON/OFF: Turns the unit on or off.
4 FAN SPEED: Selects fan speeds in the following order: AUTO → LOW → MED → HIGH
5 MODE: Scrolls through operation modes as follows: AUTO → COOL → DRY → HEAT → FAN

NOTE: Please do not select HEAT mode if the machine you purchased is cooling only type. Heat mode is not supported by the cooling only appliance.

6 TIMER ON: Sets timer to turn unit on (see How to Use Basic Functions for instructions).
7 SWING: Starts and stops the horizontal louver movement. Hold down for 2 seconds to initiate vertical louver auto swing feature(some units).

8 SLEEP: Saves energy during sleeping hours.
9 SHORT CUT: Sets and activates your favorite pre-settings
10 TIMER OFF: Sets timer to turn unit off (see How to Use Basic Functions for instructions).
11 I SENSE: Temperature sensing and room temperature display button.
12 LED DISPLAY: Press this button to turn on and turn off the display on the indoor unit.

NOTE: Press together the two buttons simultaneously for 5 seconds to lock the keyboard. Press together the two buttons for 2 seconds to unlock the keyboard.

Press together simultaneously

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 SWING SLEEP TIMER ON 7 LED DISPLAY TIMER OFF 12 2 4 6 8 10

Model: RG51F4/E

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 SWING SLEEP TIMER ON 7 I SENSE TIMER OFF 9 LED DISPLAY 10 °C/°F 11 2 4 6 8 10 12

Model: RG51F2(1)/EFU1

1 TEMP ▼: Decreases temperate in 1°F increments. Min. temperature is 62°F.
2 TEMP ▲: Increases temperate in 1°F increments. Max. temperature is 86°F.
3 ON/OFF: Turns the unit on or off.
4 FAN SPEED: Selects fan speeds in the following order: AUTO → LOW → MED → HIGH
5 MODE: Scrolls through operation modes as follows: AUTO → COOL → DRY → HEAT → FAN
NOTE: Please do not select HEAT mode if the machine you purchased is cooling only type. Heat mode is not supported by the cooling only appliance.
6 TIMER ON: Sets timer to turn unit on (see How to Use Basic Functions for instructions).
7 SWING: Starts and stops the horizontal louver movement. Hold down for 2 seconds to initiate vertical louver auto swing feature(some units).

8 SLEEP: Saves energy during sleeping hours.

9 I SENSE: Temperature sensing and room temperature display button.

SHORT CUT: Sets and activates your favorite pre-settings.

10 TIMER OFF: Sets timer to turn unit off (see How to Use Basic Functions for instructions).

11 LED DISPLAY: Press this button to turn on and turn off the display on the indoor unit.

12 °C/F: Press this button to alternate the temperature display between the °C & °F.

NOTE: Press together the two buttons simultaneously for 5 seconds to lock the keyboard. Press together the two buttons for 2 seconds to unlock the keyboard.
    note bottom of C: "Press together simultaneously"

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 2 3 5 SWING SLEEP TIMER ON 4 6 7 SHORT CUT TIMER OFF 8 9 LED DISPLAY 10 °C/°F 11 12

Model: RG51F5(1)/EU1

AUTO COOL DRY HEAT FAN HIGH LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 2 3 5 SHORT CUT SLEEP TIMER ON 4 7 I SENSE TIMER OFF 8 9 LED DISPLAY 10 °C/F 11 12

Model: RG51H2(1)/EFU1-M

① TEMP ▼: Decreases temperate in 1°C/1°F increments. Min. temperature is 17°C/62°F.
2 TEMP ▲: Increases temperate in 1°C/1°F increments. Max. temperature is 30°C/86°F.
3 ON/OFF: Turns the unit on or off.
4 FAN SPEED: Selects fan speeds in the following order: AUTO → LOW → HIGH
5 MODE: Scrolls through operation modes as follows: AUTO → COOL → DRY → HEAT(cooling models without) → FAN NOTE: Please do not select HEAT mode if the machine you purchased is cooling only type. Heat mode is not supported by the cooling only appliance.
6 TIMER ON: Sets timer to turn unit on (see How to Use Basic Functions for instructions).
7 SHORT CUT: Sets and activates your favorite pre-settings.

8 SLEEP: Saves energy during sleeping hours.
9 I SENSE: Temperature sensing and room temperature display button.
10 TIMER OFF: Sets timer to turn unit off (see How to Use Basic Functions for instructions).
11 LED DISPLAY: Press this button to turn on and turn off the display on the indoor unit.
12 ℃/F: Press this button to alternate the temperature display between the ℃ & ℃F.

NOTE: Press together the two buttons simultaneously for 5 seconds to lock the keyboard. Press together the two buttons for 2 seconds to unlock the keyboard.

Press together simultaneously

AUTO COOL DRY HEAT FAN HIGH LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 LED DISPLAY SLEEP TIMER ON 6 11 °C/F TIMER OFF 8 12 10

Model: RG51H3(1)/EU1-M RG51H3(1)/CE-M(Cooling only model, HEAT mode is not available)

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 LED DISPLAY SLEEP TIMER ON 7 I SENSE TIMER OFF 9 2 4 6 8 10

Model: RG51H(1)/EF

① TEMP ▼: Decreases temperate in 1°C increments. Min. temperature is 17°C.
2 TEMP ▲: Increases temperate in 1°C increments. Max. temperature is 30°C.

NOTE: Press together ▼ & ▲ buttons at the same time for 3 seconds will alternate the temperature display between the °C & °F.

3 ON/OFF: Turns the unit on or off.
4 FAN SPEED: Selects fan speeds in the following order: AUTO → LOW → MED → HIGH
5 MODE: Scrolls through operation modes as follows: AUTO → COOL → DRY → HEAT → FAN NOTE: Please do not select HEAT mode if the machine you purchased is cooling only type. Heat mode is not supported by the cooling only appliance.
6 TIMER ON: Sets timer to turn unit on (see How to Use Basic Functions for instructions).
7 LED DISPLAY: Press this button to turn on and turn off the display on the indoor unit.

8 SLEEP: Saves energy during sleeping hours.
9 I SENSE: Temperature sensing and room temperature display button.
10 TIMER OFF: Sets timer to turn unit off (see How to Use Basic Functions for instructions).
11 SWING: Starts and stops the horizontal louver movement. Hold down for 2 seconds to initiate vertical louver auto swing feature(some units).
12 FRESH: Starts and stops the Fresh feature. It will help to purify the air in the room.

NOTE: Press together the two buttons simultaneously for 5 seconds to lock the keyboard. Press together the two buttons for 2 seconds to unlock the keyboard.

Press together simultaneously

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 SWING SLEEP TIMER ON 5 FRESH TIMER OFF 11 I SENSE LED 9 7

Model: RG51H1(1)/EF

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 SHORT CUT SLEEP TIMER ON 7 LED DISPLAY TIMER OFF 9 2 4 6 8 10

Model: RG51F6/E

Press together simultaneously
NOTE: Press together the two buttons simultaneously for 5 seconds to lock the keyboard. Press together the two buttons for 2 seconds to unlock the keyboard.

① TEMP ▼: Decreases temperate in 1°C increments. Min. temperature is 17°C.
2 TEMP ▲: Increases temperate in 1°C increments. Max. temperature is 30°C.
3 ON/OFF: Turns the unit on or off.
4 FAN SPEED: Selects fan speeds in the following order: AUTO → LOW → MED → HIGH
5 MODE: Scrolls through operation modes as follows: AUTO → COOL → DRY → HEAT → FAN
NOTE: Please do not select HEAT mode if the machine you purchased is cooling only type. Heat mode is not supported by the cooling only appliance.
6 TIMER ON: Sets timer to turn unit on (see How to Use Basic Functions for instructions).
7 SHORT CUT: Sets and activates your favorite pre-settings.
8 SLEEP: Saves energy during sleeping hours.
9 LED DISPLAY: Press this button to turn on and turn off the display on the indoor unit.
10 TIMER OFF: Sets timer to turn unit off (see How to Use Basic Functions for instructions).

Remote Screen Indicators

Information are displayed when the remote controller is power up.

AUTO COOL DRY HEAT SETTEMP. FAN HIGH MED LOW Mode display AUTO ▼ COOL ◀ DRY ◀ HEAT ▲ (some units) ▼ FAN Displayed when data transmitted. Displayed when remote controller is ON. Displayed when TIMER ON time is set Displayed when TIMER OFF time is set Shows set temperature or room temperature, or time under TIMER setting Indicated all the current settings are locked Displayed when I SENSE feature is activated(some units) Displayed when SLEEP feature is activated Fan speed indication ▶ HIGH High speed ▶ MED Medium speed(some units) ▲ LOW Low speed NO display Auto fan speed

Note:

All indicators shown in the figure are for the purpose of clear presentation. But during the actaul operation, only the relative function signs are shown on the display window.

How to Use Basic Functions

! ATTENTION

Before operation, please ensure the unit is plugged in and power is available.

AUTO Mode

Select AUTO mode Set your desired temperature

Turn on the air conditioner

NOTE:

1. In AUTO mode, the unit will automatically select the COOL, FAN, or HEAT function based on the set temperature.
2. In AUTO mode, fan speed can not be set.

COOL or HEAT Mode

Select COOL/HEAT mode Set the temperature Turn on the fan speed

conditioner

DRY Mode

Select DRY mode Set your desired temperature Turn on the air conditioner

NOTE: In DRY mode, fan speed can not be set since it has already been automatically controlled.

FAN Mode

Select FAN mode Turn on the air condition speed

NOTE: In FAN mode, you can't set the temperature. As a result, no temperature displays in remote screen.

Setting the TIMER

TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off.

TIMER ON setting

Press TIMER ON button to initiate the ON time sequence.

Press Temp. up or down button for for multiple times to set the desired time to turn on the unit.

Point remote to unit and wait 1sec, the TIMER ON will be activated.

x5 TEMP ▲ ON 2.5 h

TIMER OFF setting

Press TIMER OFF button to initiate the OFF time sequence.

Press Temp. up or down button for for multiple times to set the desired time to turn off the unit.

Point remote to unit and wait 1sec, the TIMER OFF will be activated.

x10 TEMP ▲ 5.0 h OFF

NOTE:

1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example, press 5 times to get 2.5h, and press 10 times to get 5h,) The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.

TIMER ON & OFF setting(example)

Keep in mind that the time periods you set for both functions refer to hours after the current time.

Example: If current timer is 1:00PM, to set the timer as above steps, the unit will turn on 2.5h later (3:30PM) and turn off at 6:00PM.

2.5 hours later

5 hours later

How to Use Advanced Functions

Swing function(some units)

Press Swing button

SWING

The horizontal louver will swing up and down automatically when pressing Swing button. Press again to make it stop.

2s SWING

Keep pressing this button more than 2 seconds, the vertical louver swing function is activated. (Model dependent)

SLEEP function

SLEEP

The SLEEP function is used to decrease energy use while you sleep (and don't need the same temperature settings to stay comfortable). This function can only be activated via remote control. The sleep function is not available in Fan or Dry mode. Please refer to the OWNER'S MANUAL for more details.

I SENSE function(some units)

I SENSE

When the I SENSE function is activated, the remote display is actual temperature at its location. The remote control will send this signal to the air conditioner every 3 minutes interval until press the I SENSE button again.

NOTE: Press this button for seven seconds to start/stop memory feature of I SENSE function.

• If the memory feature is activated, "On" displays for 3 seconds on the screen.
• If the memory feature is stopped, “OF” displays for 3 seconds on the screen.
• While the memory feature is activated, press the ON/OFF button, shift the mode or power failure will not cancel the I SENSE function.

SHORTCUT function(some units)

SHORT CUT

Used to restore the current settings or resume previous settings.

Push this button when remote controller is on, the system will automatically revert back to the previous settings including operating mode, setting temperature, fan speed level and sleep feature(if activated).

If pushing more than 2 seconds, the system will automatically restore the current operation settings including operating mode, setting temperature, fan speed level and sleep feature (if activated).

FP function

×2

The unit will operate at high fan speed (while compressor on) with temperature automatically set to 8^ C/ 46^ F.

Note: This function is for heat pump air conditioner only.

Press this button 2 times during one second under HEAT Mode and setting temperature of 17^ / 62^ to activate FP function.

Press On/Off, Sleep, Mode, Fan and Temp. button while operating will cancel this function.

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

Simple line drawing of an open book with no text or symbols visible

30cm 12 inch 30cm 12 inch

50cm 19.7inch

Simple line drawing of a medical device with tubing inserted into a window (no text or symbols)

Line drawing of a device with a scroll wheel and screen (no text or symbols)

Fonctionnement

on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN I ON (3 seconds) SLEEP ON/OFF

SWING Bouton SWING (oscillation)

Line drawing of a server rack unit with cooling fans and ventilation slots (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

TÉLÉCOMMANDE

MANUEL D'UTILISATION

REMARQUE IMPORTANTE:

Diagram showing two-step smartphone shipment process with labeled parts and directional arrows indicating movement

REMARQUES SUR LES BATTERIES

AUTO → LOW → MED → HIGH

x5 TEMP ON 2.5 h

Simple line drawing of a rectangular object with a folded base and a gray arrow pointing downward (no text or symbols)

Simple line drawing of a rectangular object with two curved arrows pointing downward (no text or symbols)

SHORT CUT

Warning symbol depicting a flame inside a triangle (no text or numbers)

Simple line icon of an open book (no text or symbols)

30cm 12 inch 30cm 12 inch

Fensteril B (talls afterderich) Fensteril A

Pure technical line drawing of a structural frame or panel assembly without any text, numbers, or symbols

0

Pure technical line drawing of a structural joint or bracket (no text or symbols)

Simple line drawing of a device with a coiled cable inserted into a window frame (no text or symbols)

Line drawing of a device with a pipe inserted into a window (no text or symbols)

Betrieb

on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ION SLEEP (3 seconds) on off SWING TIMER MODE - + FAN ON (3 seconds) SLEEP ON/OFF

Line drawing of a large industrial air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

FERNBEDIENUNG

BENUTZERHANDBUCH

WICHTIGER HINWEIS:

Diagram showing two views of a mobile phone with a hand holding the screen and a device inserted into the case (no text or symbols present)

HINWEISE ZU BATTERIEN

Gleichzeitigdrücken

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 SW/NG SLEEP TIMER ON 7 LED DISPLAY TIMER OFF 12 2 4 6 8 10

Modell: RG51F4/E

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 ○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─● 3 ○─MODE ○─ON / OFF ○─FAN SPEED 5 ○─SWING ○─SLEEP ○─TIMER ON 7 ○─I SENSE ○─TIMER OFF 9 ○─LED DISPLAY ○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○ 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ○─● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ● 12 ○

Modell: RG51F2(1)/EFU1

Gleichzeitigdrücken

Gleichzeitigdrücken

AUTO COOL DRY HEAT FAN HIGH LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 LED DISPLAY SLEEP TIMER ON 11 °C/F TIMER OFF 12 2 4 6 8 10

Modell:RG51H3(1)/EU1-M RG51H3(1)/CE-M

Gleichzeitigdrücken

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 ○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─● 3 ○─MODE ○─ON/OFF ○─FAN SPEED 5 ○─SWING ○─SLEEP ○─TIMER ON 11 ○─FRESH ○─LOCK ○─TIMER OFF 12 ○─I SENSE ○─LED 9 ○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○− 1 2 3 4 5 6 8 10 9 7

Modell: RG51H1(1)/EF

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 SHORT CUT SLEEP TIMER ON 7 LED DISPLAY TIMER OFF 9 2 4 6 8 10

Modell: RG51F6/E

SET TEMP. ON OFF 8.0°F ph h

FAN

HIGH

MED

LOW

Modus

x5 TEMP ON 2.5 h

SHORT CUT

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of an open book with no text or symbols visible

30cm 12 inch 30cm 12 inch

50 cm 19,7 pol.

Two technical illustrations showing a device being inserted into a window, with no visible text or symbols.

Funcionamento

SWING (3 seconds) ON OFF TIMER MODE - + FAN ION SLEEP SWING (3 seconds) ON OFF TIMER MODE - + FAN ION SLEEP SWING (3 seconds) ON OFF TIMER MODE - + FAN ION SLEEP SWING (3 seconds) ON OFF TIMER MODE - + FAN ION SLEEP SWING (3 seconds) ON OFF TIMER MODE - +

Line drawing of a portable air conditioner unit with cooling fins and buttons (no text or symbols)

Symbol of a trash bin crossed with no visible text or numbers, accompanied by a black rectangular block below (no text or symbols present)

CONTROLO REMOTO

Modelo	RG51F/EF, RG51F2(1)/EFU1, RG51F4/E, RG51F5(1)/EU1, RG51H(1)/EF, RG51H1(1)/EF, RG51H2(1)/EFU1-M, RG51H3(1)/EU1-M, RG51F6/E,RG51H3(1)/CE-M
Tensão nominal	3.0V(R03/LR03×2 pilhas secas)
Alcance do sinal	8m
MEIO AMBIENTE	-5°C~60°C(23°F~140°F)

Diagram showing two views of a mobile phone with cable and plug, no text or symbols present

NOTAS SOBRE BATERIAS

Pressione simultaneamente

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 ○─┐ │ 2 │ 3 MODE ON/OFF FAN SPEED 4 5 ──┐ │ 5 SW/NG SLEEP TIMER ON 6 7 ──┐ │ 7 LED SLEEP TIMER ON 8 │ 12 ──┘ ━─┐ │ 10 ──┘ ━─┘

Modelo: RG51F4/E

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 ○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─● 3 ○─MODE ○─ON/OFF ○─FAN SPEED 5 ○─SWING ○─SLEEP ○─TIMER ON 7 ○─I SENSE ○─TIMEROFF ○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○─○ 9 ○─LED DISPLAY ○─C/F 11 ○─● 12 ○─●

Modelo: RG51F2(1)/EFU1

AUTO → LOW → MED → HIGH

Pressione simultaneamente

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 ○─○─○─○─2 3 ○─MODE ON/OFF FAN SPEED 5 ○─○─○─○─4 7 ○─SWING SLEEP TIMER ON 9 ○─SHORT CUT └─Timer OFF 11 ○─LED ◼ │ ◼ └─○─°C/F │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ ──○─○─○─○─12

Modelo: RG51F5(1)/EU1

AUTO COOL DRY HEAT FAN HIGH LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 SHORT CUT SLEEP TIMER ON 7 I SENSE TIMER OFF 9 LED DISPLAY 10 °C/F 11 2 4 6 8 12

Modell: RG51H2(1)/EFU1-M

Pressione simultaneamente

AUTO COOL DRY HEAT FAN HIGH LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 LED DISPLAY SLEEP TIMER ON 11 °C/F TIMER OFF 12 2 4 6 8 10

Modelo:RG51H3(1)/EU1-M RG51H3(1)/CE-M

AUTO → LOW → MED → HIGH

Pressione simultaneamente

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 ○─┐ │ │ 2 │ │ │ 3 ○─┐ │ │ 4 │ │ │ 5 ○─┐ │ │ 6 ○─┐ │ │ 7 ○─┐ │ │ 8 ○─┐ │ │ 9 ○─┐ │ │ 10 ○─┐ │ │ 11 ○─┐ │ │ 12 ○─┐ │ │ 13 ○─┐ │ │ 14 ○─┐ │ │ 15 ○─┐ │ │ 16 ○─┐ │ │ 17 ○─┐ │ │ 18 ○─┐ │ │ 19 ○─┐ │ │ 20 ○─┐ │ │ 21 ○─┐ │ │ 22 ○─┐ │ │ 23 ○─┐ │ │ 24 ○─┐ │ │ 25 ○─┐ │ │ 26 ○─┐ │ │ 27 ○─┐ │ │ 28 ○─┐ │ │ 29 ○─┐ │ │ 30 ○─┘ 31 ○─┘ 32 ○─┘ 33 ○─┘ 34 ○─┘ 35 ○─┘ 36 ○─┘ 37 ○─┘ 38 ○─┘ 39 ○─┘ 40 ○─┘ 41 ○─┘ 42 ○─┘ 43 ○─┘ 44 ○─┘ 45 ○─┘ 46 ○─┘ 47 ○─┘ 48 ○─┘ 49 ○─┘ 50 ○─┘ 51 ○─┘ 52 ○─┘ 53 ○─┘ 54 ○─┘ 55 ○─┘ 56 ○─┘ 57 ○─┘ 58 ○─┘ 59 ○─┘ 60 ○─┘ 61 ○─┘ 62 ○─┘ 63 ○─┘ 64 ○─┘ 65 ○─┘ 66 ○─┘ 67 ○─┘ 68 ○─┘ 69 ○─┘ 70 ○─┘

Modelo: RG51H1(1)/EF

AUTO COOL DRY HEAT FAN HIGH MED LOW ▼ TEMP ▲ 1 MODE ON/OFF FAN SPEED 3 5 SHORT CUT SLEEP TIMER ON 7 LED DISPLAY TIMER OFF 9 2 4 6 8 10

Modelo: RG51F6/E

Pressione simultaneamente

x5 TEMP ON 2.5 h

SHORT CUT

QR code image containing encoded data, no visible human-readable text

C/ NÁPOLES 249 P1

08013 BARCELONA

SPAIN

([phone]

SAT: ([phone]
