USER MANUAL MUPO09H9 MundoClima

Installation and owner's manual

Remote Controller 45

IMPORTANCE NOTICE

Caution: Risk of fire

IMPORTANT

Thank you for selectiong super quality Air Conditiones. To ensure satisfactory operation for many ears to come, this manual should be read carefully before the installation and before using the air conditioner. After reading, store it a safe place. Please refer to the manual for questions on use or in the event that any irregularities occur. This Air Conditioner should be used for hosehold use.

WARNING

Servicing shall only be performed as recommended by the equipment manufacturer.

Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of the person competent in the use of flammable refrigerants.

The power supply must be SINGLE-PHASE (one phase (L) and one neutral (N)) with his grounded power (GND) and his manual switch. Any breach of these specifications involve a breach of the warranty conditions provided by the manufacturer.

NOTE

In line with the company's policy of continual product improvement, the aesthetic and dimensional characteristics, technical data and accessories of this appliance may be changed without notice.

ATTENTION

Read this manual carefully before installing or operating you new air conditioning unit. Make sure to save this manual for future reference.

The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.

Warning

Warning: This air conditioner uses R290 flammable refrigerant.

Notes: Air conditioner with R290 refrigerant, if roughly treated, may cause serious harm to the human body or surrounding things.

• The room space for the installation, use, repair, and storage of this air conditioner should be greater than 12m^2
• Air conditioner refrigerant can not charge more than 228g.
• Do not use any methods to speed up defrost or to clean frosty parts except for particular recommended by manufacturer.
• Not pierce or burn air conditioner, and check the refrigerant pipeline wether be damaged.
• The air conditioner should be stored in a room without lasting fire source, for example, open flame, burning gas appliance, working electric heater and so on.
• Notice that the refrigerant may be tasteless.
• The storage of air conditioning prevent mechanical damage caused by accident.
• Maintenance or repair of air conditioners using R290 refrigerant must be carried out after security check to minimize risk of incidents.
• Please read the instruction carefully before installing, using and maintaining.

Symbol	Note Explanation
	WARNING	This symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
	CAUTION	This symbol shows that the operation manual should be read carefully.
	CAUTION	This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
	CAUTION	This symbol shows that information is available such as the operating manual or installation manual.

Safety Precaution

Incorrect installation or operation by not following these instructions may cause harm or damage to people, properties, etc.

The seriousness is classified by the following indications:

WARNING

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage to properties.

WARNING

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  This unit is designed for indoor use only.
• The air conditioner must be grounded. Incomplete grounding may result in electric shocks.

Do not connect the earth wire to the gas pipeline, water pipeline, lightning rod, or telephone earth wire.

After installment, earth leakage examination must be carried on through electrifying.
An earth leakage breaker with rated capacity must be installed to avoid possible electric shocks.
- Don't install air conditioner in a place where there is flammable gas or liquid. It may cause fire or explosion.
If the power supply cord is damaged, it must be replaced by the manufacture or its service agent or a similar qualified person.
The specification of the fuse are printed on the circuit bord, such as: AC 250V/3.15A.

• Don't put hands or any objects into the air inlets or outlets. This may cause personal injury or damage to the unit.
• Don't touch the swinging wind vanes. It may damp your finger and damage the driving parts of the wind vanes.
• Don't attempt to repair the air conditioner by yourself. You may be hurt or cause further malfunctions.
  In lighting storm weather, please cut off the primary power supply switch in order to prevent the machine from damage.
• Don't use liquid or corrosive detergent to clean the appliance and don't splash water or other liquid onto it, otherwise, it may damage the plastic components, even cause electric shock.
• Don't operate the unit in a wet room such as the bath room or laundry rooms.
• Don't touch the unit with wet or damp hands or when barefoot.
• Don't pull the unit by the cord.
• Don't remove any part of the unit unless instructed by an authorized technician.
• Don't move the unit, unless the power has been cut off and the power cord is tied to the bending and winding column.
• Don't operate the unit with a damaged plug or a loose socket.
• Ducts connected to an appliance shall not contain an ignition source.

WARNING

Failure to follow the below precaution could result in electrical shock, fire or personal injury.

1. The plug must be plugged into an outlet that is properly installed and grounded.
2. Do not use an extension cord or plug adaptor with this unit.

CAUTION

• Don't apply the cold air to the body for a long time. It will deteriorate your physical conditions and cause health problems.
• Don't block air inlet or air outlet, otherwise, the cooling / heating capacity will be weakened, even cause system stop operating.
• Close the windows and doors, otherwise, the cooling / heating capacity will be weakened.
• If the air filter is very dirty, the cooling / heating capacity will be weakened. Please clean the air filter regularly.

WEEE Warning

Meaning of crossed out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

Parts Description

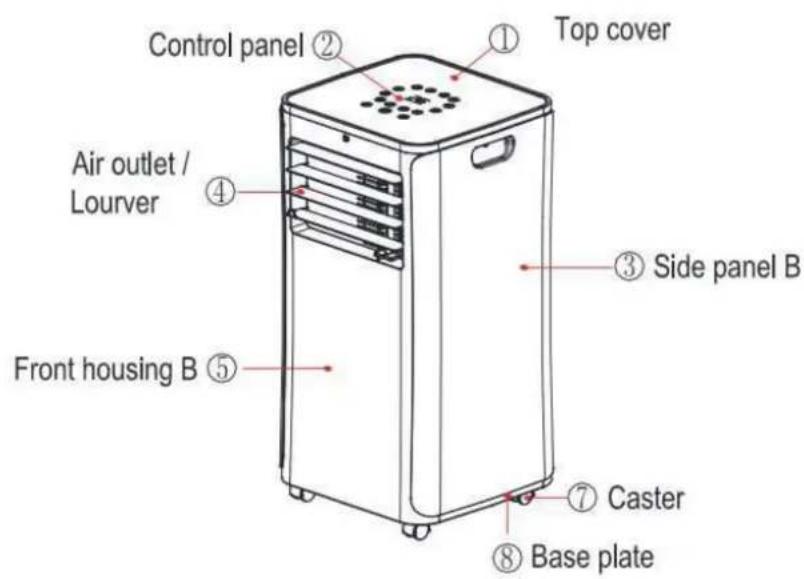

FRONT VIEW

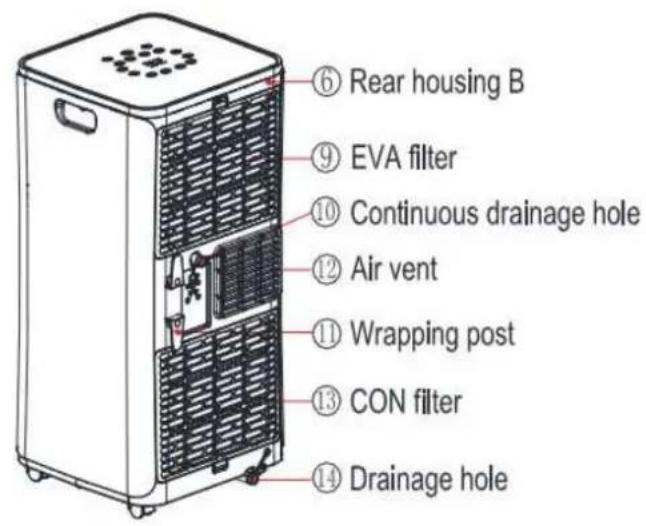

REAR VIEW

Accessories

Exhaust hose

Slide bar connector

Window kit

Remote controller

Note:

• The descriptions in this user manual are text and figures may have slightly difference to the promotion information and actual appliance. Please refer to the real appliance purchased, Thank you.

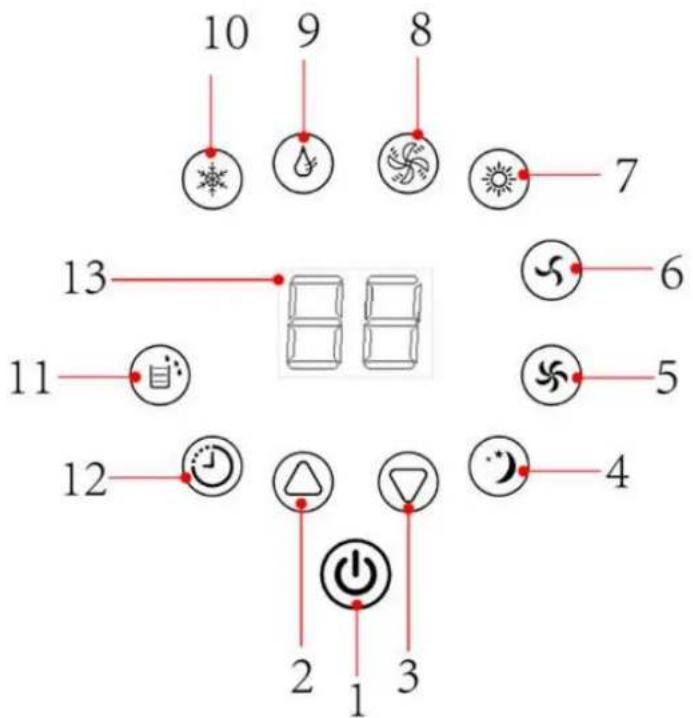

Control Panel

1. POWER

2. LOW FAN

3. WATER FULL LIGHT

4. UP

5. HEATING MODE

6. TIMER KEY

7. DOWN

8. FAN KEY

13.DISPLAY

1. SLEEP

2. DEHUMIDIFIER MODE

3. HIGH FAN

4. COOLING MODE

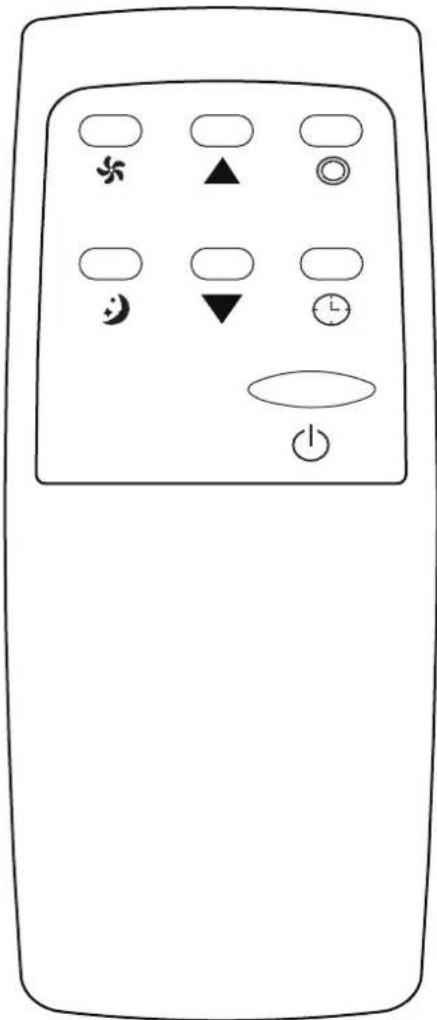

Function buttons

1. POWER button

Press this key to turn on/off machine.

1. MODE Buttons

After machine turns on, press this key to select cooling, dehumidifying and fan mode.

Cooling Fan Dehumidifying Heating

1. SLEEP button

Press this key to turn on the sleep mode.

Note: Can not turn on the sleep mode in the dehumidifying or Fan mode!

1. UP and DOWN buttons

Press these buttons to increase or decrease the temperature or set the timer.

The temperature can only be set in cooling mode.

1. SPEED buttons

In cooling and heating mode press this button to adjust the fan speed (High / Low).

In dehumidification mode you can not adjust the speed, it always works at low speed.

1. TIMER button

Press this button to set the timer (1 to 24 hour intervals)

Operation

WARNING

Failure to follow the below precaution could result in electrical shock, fire or personal injury.

1. The plug must be plugged into an outlet that is properly installed and grounded.
   2.Do not use an extension cord or plug adaptor with this unit.

Before starting the unit

1. Select a suitable location, make sure the unit is near to an electrical outlet.
2. Install the flexible exhaust hose and the adjustable window slider kit.
3. Plug the unit into a right outlet.
4. Turn the unit on.

Cooling mode

• Press "MODE" to select cooling mode, cooling mode indictor turns on.
• Press "UP" or "DOWN" to adjust temperature.
• Press "SPEED" to select the fan speed.

Heating mode

• Press "MODE" to select heating mode, heating mode indictor turns on.
• Press "UP" or "DOWN" to adjust temperature.
• Press "SPEED" to select the fan speed.

Dehumidifying mode

• Press "MODE" to select dehumidifying mode, dehumidifying mode indicator turns on.
• Under dehumidifying mode, sleeping function cannot be setup, and fan speed is low.

Fan mode

• Press "MODE" to select fan mode, fan mode indicator turns on.
• Press "SPEED" to select high speed or low speed.
• Temperature and sleeping function cannot be setup.

Installation

Guide of customer

The customer should have a qualified power supply coincident with that printed on the tag of the air conditioner. Its voltage should be in the range of 220 240V
- Must use special circuit and efficient grounding outlet matching with the plug of the air conditioner.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
The appliance should be installed in accordance with national wiring regulation.
The plug should be easily accessible after installation.
If the fuse of unit on PCB is broken, please change it with the type of E3.15A/250V

Select a best location

1.Install the mobile air conditioner in a flat and spacious location where the air outlets will not be obstructed.
2.A minimum clearance of 50cm from walls or other obstacles should be kept.
3. The gradient can't be more than 10 degrees with the horizontal plane, while putting and using the utensil

Note: 1. The air conditioner shall not be used in the laundry.

2.The plug shall be accessible after the unit is positioned.

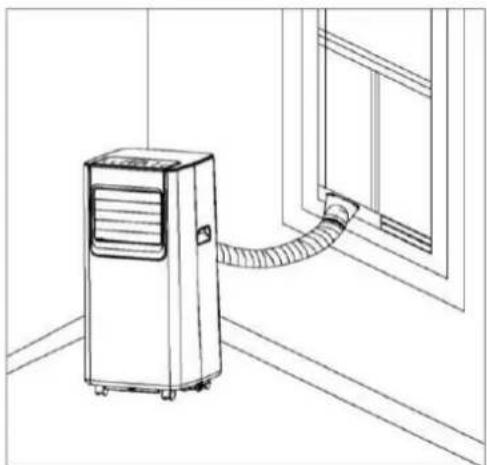

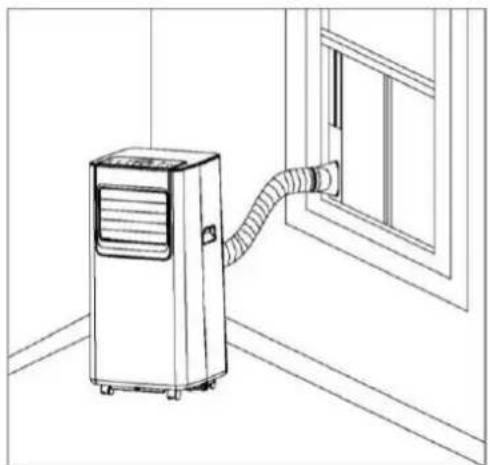

Duct mount instruction

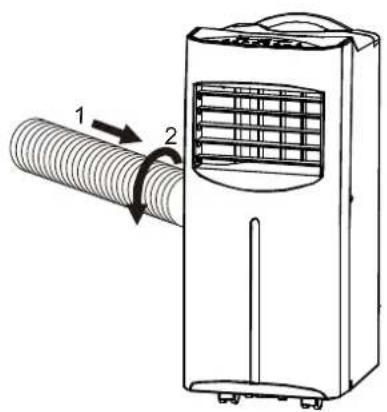

1. Put the side of duct to the exhaust air outlet of mobile air conditioner. Fix it with unit correspondingly, then turn right. Push it downwards, make sure that it is fixed thoroughly.
2. Put the other side of the duct to adaptor.

1. Put the adaptor subassembly to a nearby window.

Window kit installation

Your window kit has been designed to fit most standard vertical and horizontal window applications. However, it may be necessary for you to improve or modify some aspects of the installation procedure for certain types of window. Please refer to fig. A &fig. B for minimum and maximum window openings.

Fig.A

Window slide kit minimum:67.5cm maximum:125cm

Fig. B

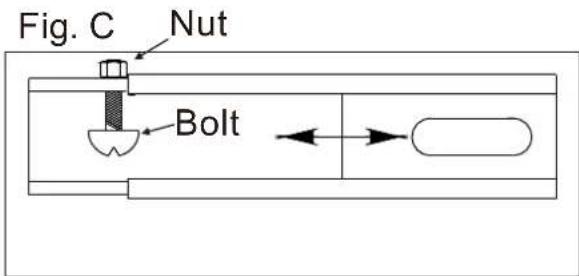

Note:The bolt and nut are used to fix window fixing board.

Important Notice

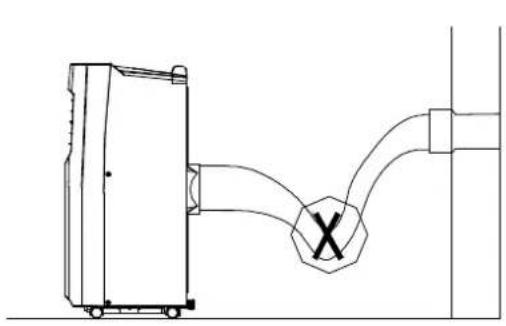

The length of the exhaust hose shall be 280 1,500mm , and this length is based on the specifications of the air conditioning. Do not use extension tubes or replace it with other different hoses, or this may cause a malfunction. Exhaust host must be not blocked; otherwise it may cause overheating.

Note: Stretching or bending the duct excessively will affect the cooling efficiency. (As the following fig. Shows)

Water drainage

The unit is capable of removing condensate itself, so it is not necessary to connect the drain, however, if using the dehumidification mode or high humidity in the environment, it is recommended to connect the equipment a drain of the opposite when the condensate tank is full the unit will stop and shows "WATER FULL".

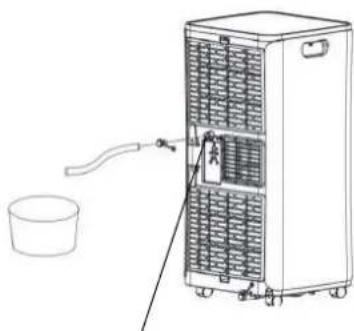

• Drain connection:

Remove the cap from the drain outlet (gravity) on the back. Anchor the hose emptying the hole. Place the other end of the hose into the drain hose have negative inclination.

Continuous drain outlet (only applicable to dehumidifying mode)

Note:

Make sure the hose is secure and there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the water flowing. Place the end of the hose into the drain and make sure the end of the hose is down to let the water flow smoothly. Do never let it up.

• When the water level of the bottom tray reaches predetermined level, the digital display area shows "WATER FULL"

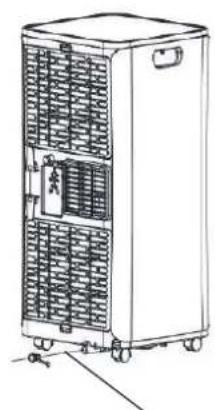

Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away. Reinstall the bottom drain plug and restart the machine until the symbol disappears.

NOTE: Be sure to reinstall the bottom drain plug before using the unit

Drain outlet

Maintenance

Your new air conditioner is designed to give you the dependable service for many years. This section tells you how to clean and care for your air conditioner properly. Call your local authorized dealer for an annual checkup. Remember the cost of this service call is your responsibility.

Cleaning Air Filter

If the air filter is covered by dust, the cooling capability will be decreased. Please clean the air filter every two weeks.

1. Turn off the conditioner off the power supply.

2.Pull out the air filter

1. Wash air filter in warm soap water. Do not put air filter in the dishwasher or use any chemical cleaners. And dry filter completely before replacing.

2. Put the air filter back to its place.

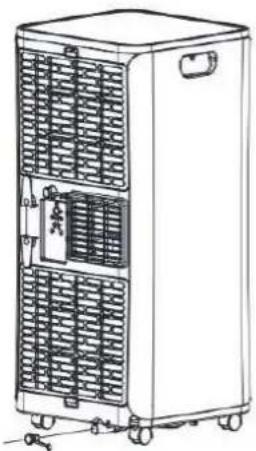

Cleaning The Unit

1.For the purpose of safety, please turn off the air conditioner and cut off the power supply.

2.Wipe the unit with dry cloth.

3.If the unit is very dirty, please wipe with wet cloth dipped by cold water.

Note: if you don't use the unit for a long time, please pull out the rubber plug to drain the inside water out referring to right figure.

WARNING

Do not use gasoline, benzene, thinner or any other chemicals, or any liquid insecticide on the air conditioner, as these substances may cause flaking off of the paint, cracking or deformation of plastic parts.

※ Never attempt to clean the unit by pouring water directly over any of the surface areas, as this will cause deterioration of electrical components and wiring insulation.

※ Never use hot water over 40^(104^) to clean the air filter.

Troubleshooting

To save the service call, please try the suggestions below to see if you can solve your problem without outside help.

Air Condition Will Not Operate

Causes	Solutions
●The power switch is released.●Power supply failure.●The fuse is burnt.●It doesn't reach the setting time for starting up.	■Switch on the power.■Wait for the recovery of power supp■Replace the fuse.■Wait or eliminate the original setting

Unit Doesn't Start When Pressing ON/OFF Button

Causes	Solutions
●It is not four minutes after switch off.●Room temperature is lower than the setting temperature.	■Wait three minutes.■Reset the temperature.

The Wind Blowing Out, But The Cooling Effect Is Bad

Causes	Solutions
● Mistakes in temperature setting.	■ Set a proper temperature, setting temperature should be lower than ambient temperature.
● The air filter is blocked by dust.	■ Clean the air filter.
● The air inlet or outlet of machine is blocked.	■ Remove the obstruction.
● Turn the air conditioner on in very hot room.	■ Allow additional time to remove stored heat from walls ,ceiling, floor and furniture.
● Cooling capacity is insufficient .	■ Reconfirm the required cooling capacity with your dealer.
● The doors or windows are open.	■ Close the doors and windows.

Noise or vibration

Causes	Solutions
●The ground is not level or not flat enough.	■Place the unit on a flat, level ground if possible.

Error Code	Description
E1	Room temperature sensor open or short circuit
E2	Pipe temperature sensor open or short circuit
No code	Condenser temperature sensor open or short circuit.
FL "Water Full"	Water full protection

Others

Disposal

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities:

A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least free of charge.
C) The manufacture will take back the old appliance for disposal at least free of charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.

Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the ground-water and find their way into the food chain.

Maintenance Notice

WARNING

For maintenance or scrap, please contact authorized service centers.

Maintenance by unqualified person may cause dangers.

Feed air conditioner with R290 refrigerant, and maintain the air conditioner in strictly accordance with manufacturer's requirements. The chapter is mainly focused on special maintenance requirements for appliance with R290 refrigerant. Ask repairer to read after-sales technical service handbook for detailed information.

Qualification requirements of maintenance personnel

1. Special training additional to usual refrigerating equipment repair procedures is required when equipment with flammable refrigerants is affected. In many countries, this training is carried out by national training organisations that are accredited to teach the relevant national competency standards that may be set in legislation. The achieved competence should be documented by a certificate.

2. The maintenance and repair of the air conditioner must be conducted according to the method recommended by the manufacturer. If other professionals are needed to help maintain and repair the equipment, it should be conducted under the supervision of individuals who have the qualification to repair AC equipped with flammable refrigerant.

Inspection of the Site

Safety inspection must be taken before maintaining equipment with R290 refrigerant to make sure the risk of fire is minimized. Check whether the place is well ventilated, whether anti-static and fire prevention equipment is perfect.

While maintaining the refrigeration system, observe the following precautions before operating the system.

Operating Procedures

1.General work area:

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

1. Checking for presence of refrigerant:

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially toxic or flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with all applicable refrigerants, i.e.non-sparking, adequately sealed or intrinsically safe.

3.Presence of fire extinguisher:

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO_2 fire extinguisher adjacent to the charging area.

4.No ignition sources:

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the surrounding space.

Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks.

'No Smoking' signs shall be displayed.

1. Ventilated Area (open the door and window):

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

1. Checks to the refrigeration equipment:

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants:

• The charge size is in accordance with the room size within which the refrigerant containing parts are installed.
• The ventilation machinery and outlets are operating adequately and are not obstructed.
• If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant.
• Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.
• Checks to electrical devices:

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

• That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking.
• That no live electrical components and wiring are exposed while charging, recovering or purging the system.
• Keep continuity of earthing.

Inspection of Cable

Check the cable for wear, corrosion, overvoltage, vibration and check if there are sharp edges and other adverse effects in the surrounding environment. During the inspection, the impact of aging or the continuous vibration of the compressor and the fan on it should be taken into consideration.

Leakage check of R290 refrigerant

Note: Check the leakage of the refrigerant in an environment where there is no potential ignition source. No halogen probe (or any other detector that uses an open flame) should be used.

Leak detection method:

For systems with refrigerant R290, electronic leak detection instrument is available to detect and leak detection should not be conducted in environment with refrigerant. Make sure the leak detector will not become a potential source of ignition, and is applicable to the measured refrigerant. Leak detector shall be set for the minimum ignitable fuel concentration (percentage) of the refrigerant. Calibrate and adjust to proper gas concentration (no more than 25% ) with the used refrigerant.

The fluid used in leak detection is applicable to most refrigerants. But do not use chloride solvents to prevent the reaction between chlorine and refrigerants and the corrosion of copper pipeline.

If you suspect a leak, then remove all the fire from the scene or put out the fire. If the location of the leak needs to be welded, then all refrigerants need to be recovered, or, isolate all refrigerants away from the leak site (using cut-off valve). Before and during the welding, use OFN to purify the entire system.

Removal and Vacuum Pumping

1.Make sure there is no ignited fire source near the outlet of the vacuum pump and the ventilation is well.
2. Allow the maintenance and other operations of the refrigeration circuit should be carried out according to the general procedure, but the following best operations that the flammability is already taken into consideration are the key. You should follow the following procedures:
- Remove the refrigerant.
- Decontaminate the pipeline by inert gases.
Evacuation.
- Decontaminate the pipeline by inert gases again.
- Cut or weld the pipeline.
3. The refrigerant should be returned to the appropriate storage tank. The system should be blown with oxygen free nitrogen to ensure safety. This process may need to be repeated for several times. This operation shall not be carried out using compressed air or oxygen.

1. Through blowing process, the system is charged into the anaerobic nitrogen to reach the working pressure under the vacuum state, then the oxygen free nitrogen is emitted to the atmosphere, and in the end, vacuumize the system. Repeat this process until all refrigerants in the system is cleared. After the final charging of the anaerobic nitrogen, discharge the gas into the atmosphere pressure, and then the system can be welded. This operation is necessary for welding the pipeline.

Procedures of Charging Refrigerants

As a supplement to the general procedure, the following requirements need to be added:

• Make sure that there is no contamination among different refrigerants when using a refrigerant charging device. The pipeline for charging refrigerants should be as short as possible to reduce the residual of refrigerants in it.
• Storage tanks should remain vertically up.
• Make sure the grounding solutions are already taken before the refrigeration system is charged with refrigerants.
• After finishing the charging (or when it is not yet finished), label the mark on the system.
• Be careful not to overcharge refrigerants.

Scrap and Recovery

Scrap:

Before this procedure, the technical personnel shall be thoroughly familiar with the equipment and all its features, and make a recommended practice for refrigerant safe recovery. For recycling the refrigerant, shall analyze the refrigerant and oil samples before operation. Ensure the required power before the test.

1.Be familiar with the equipment and operation.
2.Disconnect power supply.
3.Before carrying out this process, you have to make sure:

• If necessary, mechanical equipment operation should facilitate the operation of the refrigerant tank.
• All personal protective equipment is effective and can be used correctly.
• The whole recovery process should be carried out under the guidance of qualified personnel.
• The recovering of equipment and storage tank should comply with the relevant national standards.
  4.If possible, the refrigerating system should be vacuumized.
  5.If the vacuum state can't be reached, you should extract the refrigerant in each part of the system from many places.
• Before the start of the recovery, you should ensure that the capacity of the storage tank is sufficient.
  7.Start and operate the recovery equipment according to the manufacturer's instructions.

8.Don't fill the tank to its full capacity (the liquid injection volume does not exceed 80% of the tank volume).
9. Even the duration is short, it must not exceed the maximum working pressure of the tank.
10. After the completion of the tank filling and the end of the operation process, you should make sure that the tanks and equipment should be removed quickly and all closing valves in the equipment are closed.
11. The recovered refrigerants are not allowed to be injected into another system before being purified and tested.

Note: The identification should be made after the appliance is scrapped and refrigerants are evacuated. The identification should contain the date and endorsement. Make sure the identification on the appliance can reflect the flammable refrigerants contained in this appliance.

Recovery:

1. The clearance of refrigerants in the system is required when repairing or scrapping the appliance. It is recommended to completely remove the refrigerant.
2. Only a special refrigerant tank can be used when loading the refrigerant into the storage tank. Make sure the capacity of the tank is appropriate to the refrigerant injection quantity in the entire system. All tanks intended to be used for the recovery of refrigerants should have a refrigerant identification (i.e. refrigerant recovery tank). Storage tanks should be equipped with pressure relief valves and globe valves and they should be in a good condition. If possible, empty tanks should be evacuated and maintained at room temperature before use.
3. The recovery equipment should be kept in a good working condition and equipped with equipment operating instructions for easy access. The equipment should be suitable for the recovery of R290 refrigerants. Besides, there should be a qualified weighting apparatus which can be normally used. The hose should be linked with detachable connection joint of zero leakage rate and be kept in a good condition. Before using the recovery equipment, check if it is in a good condition and if it gets perfect maintenance. Check if ll electrical components are sealed to prevent the leakage of the refrigerant and the fire caused by it. If you have any question, please consult the manufacturer.
4. The recovered refrigerant shall be loaded in the appropriate storage tanks, attached with a transporting instruction, and returned to the refrigerant manufacturer. Don't mix refrigerant in recovery equipment, especially a storage tank.
5. The space loading R290 refrigeration can't be enclosed in the process of transportation. Take anti electrostatic measures if necessary in transportation. In the process of transport, loading and unloading, necessary protective measures must be taken to protect the air conditioner to ensure that the air conditioner is not damaged.
6. When removing the compressor or clearing the compressor oil, make sure the compressor is pumped to an appropriate level to ensure that there is no residual R290 refrigerants in the lubricating oil. The vacuum pumping should be carried out before the compressor is returned to the supplier. Ensure the safety when discharging oil from the system.

• Read this instructions carefully so that you can use the air-conditioner safely and correctly.
  Take good care of the instructions so that it can be referred to at any time.

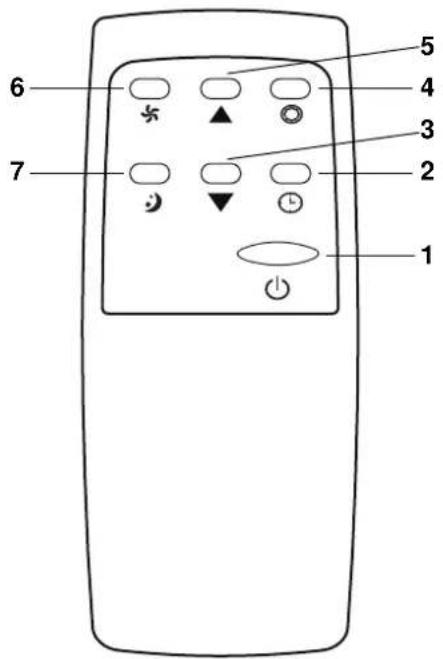

Buttons description

1. POWER

You can press the button to start and stop the unit.

2. TIMER

You can press the button to set the timer.

3. REDUCE

You can press the button to reduce the temperature or set the timer.

4. MODE

You can press the button to set the mode of operation (Cooling, Heating, Fan or Dehumidifying)

5. INCREASE

You can press the button to raise the temperature or set the timer.

6. FAN

You can press the button to adjust the fan speed (High / Low)

7. SLEEP MODE

You can press the button to set the sleep mode.

Attention

1.Aim the remote controller towards the receiver on the air-conditioner.
2. The remote controller should be within 8 meters away from the receiver.
3.No obstacles between theremote controller and receiver.
4. Do not drop or throw the remote controller.
5. Do not put the remote controller under the forceful sunrays or heating facilities and other heating sources.
6.Use two 7# batteries,do not use the electric batteries.
7. Take the batteries out of remote controller before stop its using for long.
8. When the noise of transmitting signal'cant be heard indoor unit orthetransmissionsymbol on the display screen doesn't flare, batteriesneedbereplaced.
9.If reset phenomenon occurs on pressing the button of the remote controller, the electric quantity is deficient and new batteriesneed to be substituted.
10. The waste battery should be disposed properly.

ANNEX: PROTECTIONS AND FUNCTIONS

1. Frost protection function:

In cooling or dehumidifying mode, if the temperature of the copper tube is too low, the machine will automatically work in the defrost state; If the temperature of the copper pipe rises to a certain temperature, it can automatically return to normal operation.

2. Protection function against water overflow:

When the water in the water tray exceeds the warning level, the machine will automatically sound an alarm and the 'Water Full' indicator will flash. At this point, it is necessary to connect the machine or remove the water plug to empty the water. After draining the water, the machine will automatically return to the working mode.

3. Compressor functor protection

To increase the life of the compressor, it has a start protection function with a delay of 3 minutes after turning off the compressor.

INDEX DES CONTENUS
