Brand	PowerPlus
Model	POWX1731
Product type	Oil-free air compressor
Power supply	230 V, 50 Hz
Rated power	1100 W (1.5 hp)
Rotational speed	3400 min⁻¹
Rated pressure	8 bar (116 PSI)
Tank capacity	24 L
Air flow rate	180 L/min
Weight	20 kg
Sound pressure level (LpA)	77 dB(A)
Sound power level (LwA)	97 dB(A)
Pressure regulation	Pressure regulator with manometer, range 0-8 bar
Quick coupling	Yes, for compressed air
Safety valve	Yes, factory set
Condensate drain	Threaded plug at bottom of tank
Included accessories	Air gun with manometer, 3 nozzles, blow gun, 5 m spiral hose
Maintenance	Daily draining of condensate, regular cleaning
Safety	Overload protection, automatic restart after power cut
Warranty	36 months from date of purchase

Frequently Asked Questions - POWX1731 PowerPlus

How to adjust the pressure on the POWX1731 compressor?

Use the pressure regulator (6) to adjust the pressure displayed on the manometer (5). The set pressure is available at the quick coupling (4).

How often should the condensate be drained?

It is recommended to drain the condensate daily by opening the drain valve (10) at the bottom of the tank.

What to do if the compressor does not start?

Check the mains voltage (230V, 50Hz), extension cords that are too long, the ambient temperature (must be above 5°C), and let the motor cool down if it is too hot.

How to clean the compressor?

Unplug the device, let it cool down, then clean with a damp cloth and a little soap. Do not use water or solvents. Disconnect the hose and tools before cleaning.

What is the maximum tank pressure?

The rated pressure is 8 bar (116 PSI). The safety valve is set to this pressure to prevent overpressure.

Can the compressor be used for painting?

Yes, but follow safety instructions: use paints with a flash point above 55°C, wear a mask and goggles, ensure adequate ventilation and do not smoke.

How to test the safety valve?

Pull the ring of the safety valve (9) until you hear air escaping, then release it. Perform this test from time to time to check its proper operation.

What to do if the compressor runs but does not reach pressure?

Check the non-return valve, the seals and the drain plug (10). If necessary, replace defective parts in an authorized workshop.

What accessories are supplied with the POWX1731?

The compressor is supplied with an air gun (with manometer), 3 nozzles, a blow gun and a 5 m spiral hose.

How to store the compressor?

Unplug the device, empty the air and condensate. Store it in a dry place, away from unauthorized persons, and do not tip it over.

USER MANUAL POWX1731 PowerPlus

POWERPLUS HIGH QUALITY TOOLS

POWX1731

NL NEDERLANDS VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING

FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE

EN ENGLISH ORIGINAL INSTRUCTION MANUAL

11 POSSIBLES ANOMALIES ET INTERVENTIONS ADMISES

1 DESCRIPTION (FIG A) 2
2 PACKAGE CONTENT LIST 2
3 SYMBOLS 2
4 GENERAL POWER TOOL SAFETY WARNINGS 3
4.1 Work area 3
4.2 Electrical safety 3
4.3 Personal safety 3
4.4 Power tool use and care 4
4.5 Service 4
5 PRECAUTIONS 4
5.1 Safety instructions for working with copressed air and blasting guns 4
5.2 Safety information for paint spraying 4
5.3 Operating pressure vessels 5
6 POINTS TO NOTE WHEN SETTING UP THE COMPRESSOR ....5
7 ASSEMBLY AND STARTING 5
7.1 Voltage 5
7.2 On/Off switch (7) 5
7.3 Adjusting the pressure 5
7.4 Setting the pressure switch.. 6
8 CLEANING AND MAINTENANCE 6
8.1 Cleaning 6
8.2 Condensation water 6
8.3 Safety valve (9) 6
8.4 Storage 6
9 TECHNICAL DATA 7
10 NOISE 7
11 POSSIBLE FAULTS AND RELATED PERMITTED REMEDIES....7
12 WARRANTY 8
13 ENVIRONMENT 8
14 DECLARATION OF CONFORMITY 9

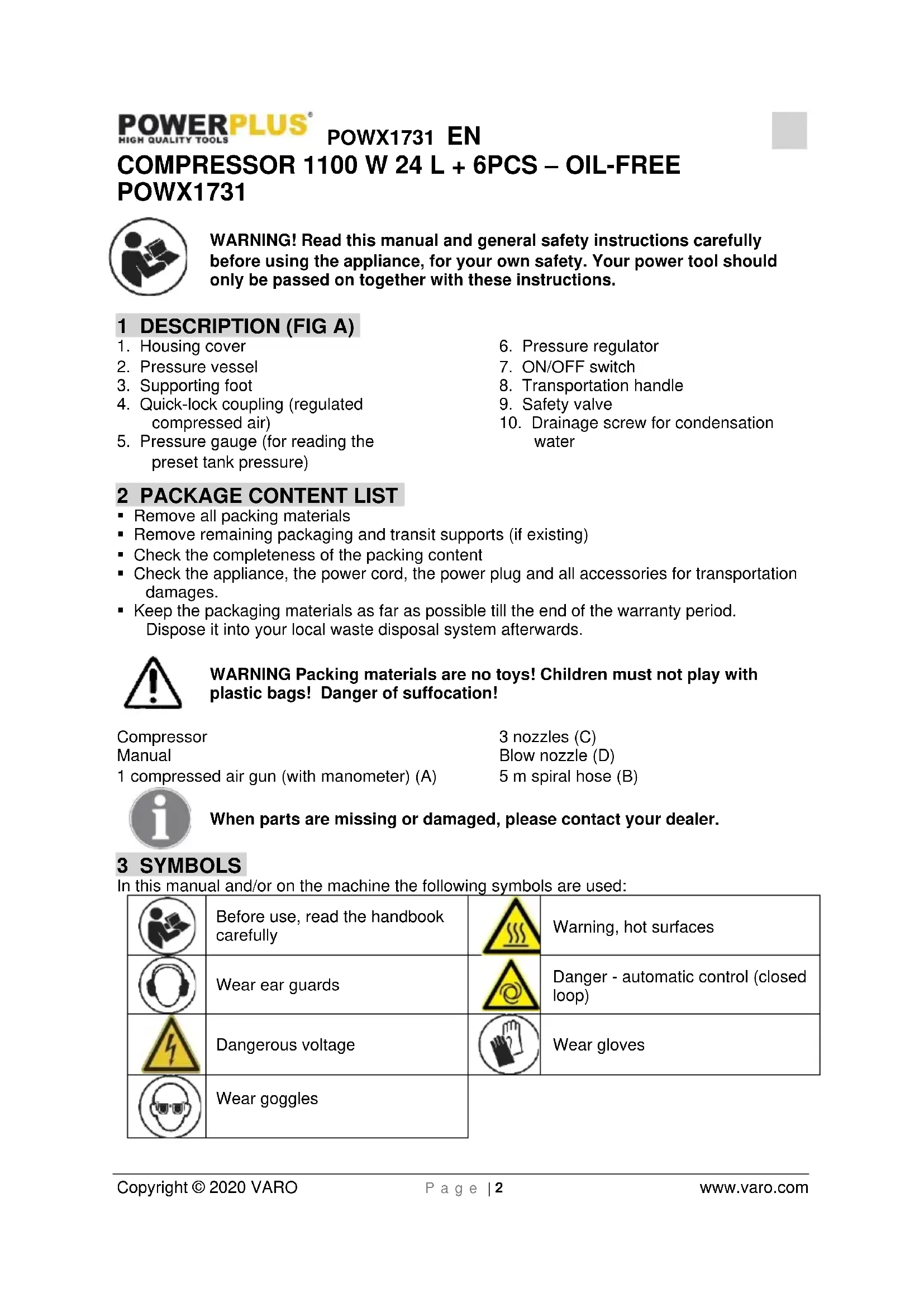

COMPRESSOR 1100 W 24 L + 6PCS - OIL-FREE POWX1731
