ODW 131 F - Dishwasher OK - Free user manual and instructions

Product type	Dishwasher
Brand	OK
Model	ODW 131 F
Capacity	6 place settings
Programs	Intensive, Universal, Eco, 90 min, 60 min, Gentle 40°, Quick rinse (30 min)
Supply voltage	220-240 V ~50 Hz
Power	1170-1380 W
Water pressure	0.4 - 10 bar
Water consumption (Eco program)	6.5 L
Energy consumption (Eco program)	0.613 kWh
Eco program duration	230 minutes
Compatible detergent types	Powder, tablets, liquid
Regenerating salt compartment	Yes, adjustable
Rinse aid compartment	Yes, 110 ml
Filtration system	Main filter, micro filter, coarse mesh filter
Tub material	Stainless steel
Installation	Freestanding, not built-in
Water connection	Cold water only
Spare parts	Available for 7 to 10 years
Warranty	See included warranty card

Frequently Asked Questions - ODW 131 F OK

How to put salt in the dishwasher?

Remove the basket, unscrew the cap of the salt compartment. Before the first wash, add 1 liter of water to the compartment, then approximately 1 kg of special dishwasher salt. Screw tightly and immediately start a quick program to avoid any damage.

How to adjust salt consumption?

After turning on the appliance, close the door and hold the ▷ button for 5 seconds to enter setting mode. Press ▷ || to select the level corresponding to your water hardness (see table in the manual). The appliance exits the mode automatically after 5 seconds.

Which detergent to use?

Use only special dishwasher detergent (powder, tablet, or liquid). Follow the dosages indicated on the packaging. Never use regular dish soap, as it would create foam and damage the appliance.

How to clean the filters?

Turn the filter cap counterclockwise and remove the assembly. Separate the filters (main, micro, coarse mesh), wash them under running water, then reassemble in reverse order. Never operate the dishwasher without the filters.

What to do if the dishwasher does not turn on?

First check that the plug is properly connected and the socket is powered. Make sure the door is correctly closed. Also check that the water supply tap is open and the water pressure is sufficient.

What to do if water does not drain?

Check that the drain hose is not bent or blocked. Clean the main filter (coarse mesh). Make sure the kitchen sink is not clogged. If the problem persists, contact customer service.

How to interpret error codes?

The codes are indicated by flashing lights. For example: 'water' light flashes = water supply problem; 'overflow' light flashes = leak. In case of an error code, contact customer service (number on the warranty card).

How to load dishes for better cleaning?

Place plates and bowls face down, tilt hollow items to allow water drainage. Arrange utensils in the basket with points down. Do not overload the dishwasher and ensure the spray arms can rotate freely.

Can I use all-in-one tablets?

Yes, combination tablets (detergent + salt + rinse aid) are compatible. Place the tablet in the main compartment. Remember to adjust the water hardness and rinse aid dosage if necessary for optimal results.

What to do if dishes do not dry?

Check the rinse aid level (compartment and indicator). Use the Eco program or a program with drying. Wait a few minutes after the cycle ends before opening the door to let steam escape. Do not unload dishes too soon.

USER MANUAL ODW 131 F OK

B.2017E, 2018, 2019, 2020, 2021, 2022

51.079 1948

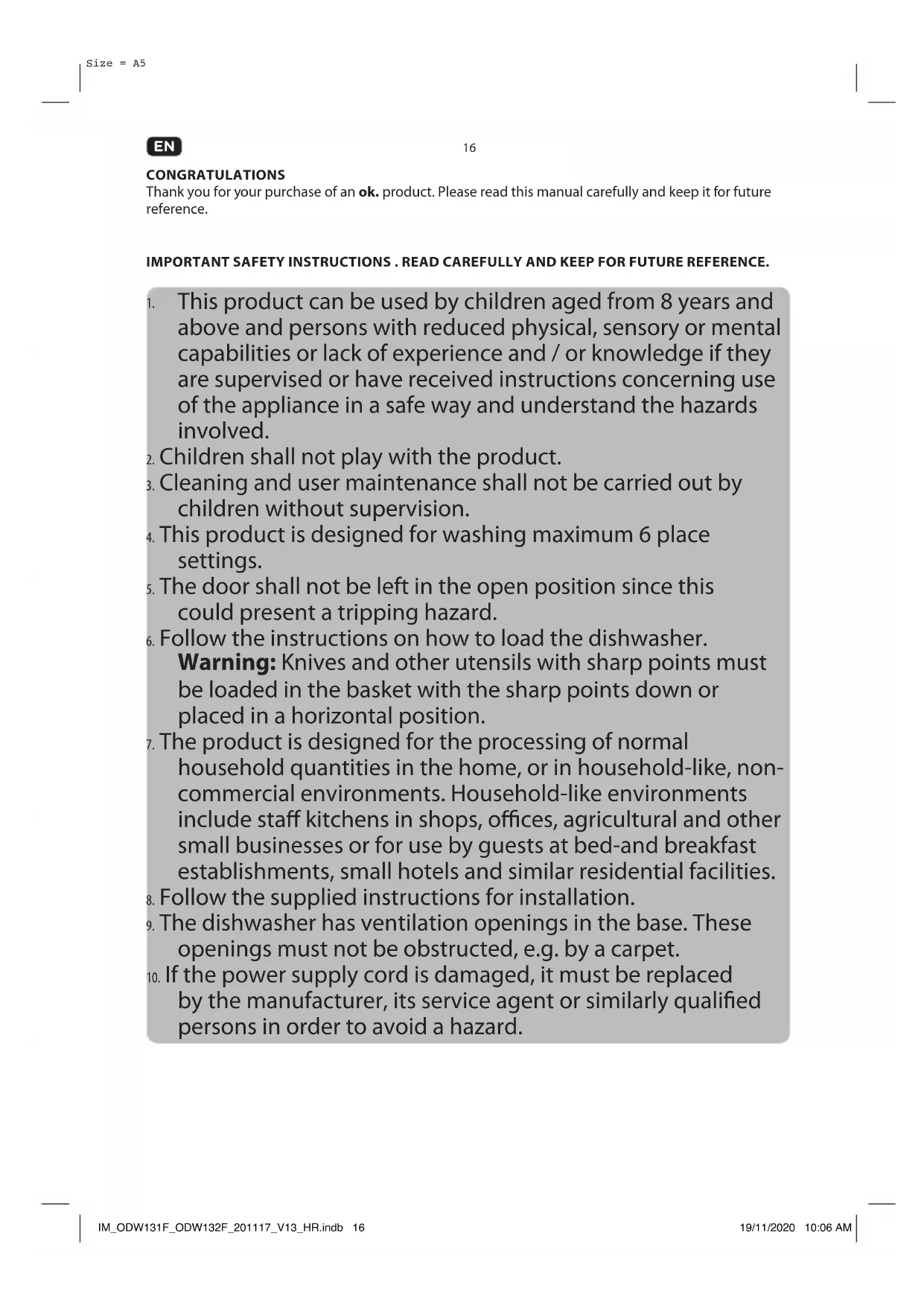

HERZLICHEN GLÜCKWUNSCH!

Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they are supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be carried out by children without supervision.
4. This product is designed for washing maximum 6 place settings.
5. The door shall not be left in the open position since this could present a tripping hazard.
6. Follow the instructions on how to load the dishwasher.
   Warning: Knives and other utensils with sharp points must be loaded in the basket with the sharp points down or placed in a horizontal position.
7. The product is designed for the processing of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and breakfast establishments, small hotels and similar residential facilities.
8. Follow the supplied instructions for installation.
9. The dishwasher has ventilation openings in the base. These openings must not be obstructed, e.g. by a carpet.

10. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

11. This product is connected to the water mains. Consider minimum and maximum permitted inlet water pressure, see chapter Technical Data. Consider all instructions about installation for detachable hose-sets, use new hose-sets for installation. Do not reuse old hose-sets.

12. Follow the instructions in the chapter Cleaning and Care.
13. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
14. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
15. Never leave the product unsupervised while it is switched on.
16. Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
17. The mains voltage must match the information on the rating label of the product.
18. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
19. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
20. Only unplug from the power socket by the plug itself. Do not pull on the cord.
21. Unplug the product ...

- when the product is not being used,

• in case of malfunctions,
• before attaching / detaching accessories and

• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• This product is not intended for commercial use. It is designed for household use only.

INTENDED USE

This product is only intended for cleaning dishes and cutlery which are dishwasher proof or suitable for dishwashers. Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

WARRANTY AND SPARE PARTS

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

EN

18

CONTROLS AND COMPONENTS

Controls Panel

A. Button ▷II

B. Mode selection button

C. Mode: soft

D. Mode: 60 minutes

E. Mode: 90 minutes

F. Mode: Eco ECO

G. Mode: Universal

H. Mode: Intensiv

1. Signal lamp (rise aid empty)

J. Signal lamp (water softener empty)

K. On/Off-indicator light

L. On/Off switch

Front side

M. Handle

N. Door

Back side

O. Power cord with plug

P. Water inlet connection

Q. Waste water hose (preassembled)

Inside

R. Spray arms

S. Filter assembly

T. Salt container

U. Dishwasher basket

V. Cutlery basket

W. Detergent, tab/powder compartment

w1.Cover

w2. Lock

w3. Compartment for main washing

w4. Compartment for pre-washing

X. Rinse aid compartment

x1. Fill indicator

x2. Rinse aid container

BEFORE FIRST TIME USE

- Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

- Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

• After unpacking, please refer to chapter Cleaning and care.

INSTALLATION

Note: The dishwasher is equipped with power cord and plug. Make sure before installation, that a suitable mains outlet is at the desired place of installation.

Consider the dimension of the product for placing and installation.

Place the dishwasher on an even, horizontal and steady surface, e.g. place it on a suitable desk in your kitchen.

Note: The dishwasher is not intended to be built in.

2 The dishwasher must be connected to drainage.

1. The hose is already connected the waste water outlet, at the back of the product. Cut the straps and unwind the hose.
2. Connect the end to a drainpipe. Observe the max. height of the outlet of drainage hose.

Note:

A suitable hose holder is available as optional accessories.

3 Connect the water inlet to a tap water supply (3/4") using the provided hose and make sure it is correctly sealed and fasten tightly.

Note: If the water pipes are new or have not been used for an extended period of time, let the water run for some time, to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and the appliance might be damaged.

4 Connect the power plug to the mains.

Note: Before using the product for the first time, make sure that all hydrophilic connections of the product are correctly sealed and connected to both the device as well as the water mains. Check all connections periodically to avoid possible leakage.

PREPARATION

5 Filling salt into the salt container

Depending on your tap water hardness (hardness degree) use additional salt (water softener). Always consider the instruction provided with the salt.

1. Remove the basket and then unscrew and remove the cap from the salt container.
2. Before first usage, pour 1 lt. of water in the salt container of your machine.

3. Place the end of the funnel (supplied) into the hole and fill in about 1 kg of salt. It is normal for a small amount of water to come out of the salt container.

4. After filling the container, screw the cap tightly back on in a clockwise direction.

5. Immediately after filling the salt into the salt container, a washing program must be started (rapid program suggested). Otherwise the filter system, pump or other important components of the machine may be damaged by the salt, which voids the warranty.

Note: Usually, the salt warning light S will be cease to be illuminated within 2-6 days after the salt container has been filled with salt. Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is filled.

Warning!

• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwashers, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty and is not liable for any caused damages.
• If salt has been spilled, a soak or a rapid program must be run to remove the excess salt.
• Only fill in salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilt, remaining of the bottom of the machine for any period of time, which may cause corrosion.
• The salt container must only be refilled when the salt warning light in the control panel comes on.

EN

20

Adjusting the salt consumption

1. Activate the setup mode: Close the door within 60 seconds after power ON, press the ▷ II button and hold it for 5 seconds, the machine will enter the setup mode which is indicated by the blinking indicator light of ▶water softener).
2. Adjust the level of salt consumption: Press the ▷ II button to select the proper setting according to your local environment. Follow table below to find correct setting. You can see the current setting, by observing, which program indicators light up.

Water Hardness level		Setting Digital display stalls
^^1)	mmol/ I^2)
0-5 0-0.9	1
6-11 1.0-2.0	2
12-17 2.1-3.0	3
18-22 3.1-4.0	4*
23-34 4.1-6.1	5
35-55 6.2-8.0	6

1. The product will exit the setup mode automatically, 5 seconds after last setting/operation of switch.

Note:

1) German degree of measurement for the water hardness
2) millimol, international unit for water hardness
*) factory setting

Contact your local water board for information on the hardness of your water supply.

Adding detergent

• The dispenser must be refilled before the start of each wash cycle.

• For the correct amount follow the instructions provided with the detergent.

• Press the release button and the lid springs open.

• Always add the detergent just before starting each wash cycle, otherwise it could get damp and will not dissolve properly.
• If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Consider the difference of the two compartments:

a) Compartment for detergent for the main wash cycle.
b) Compartment for detergent for the pre-wash cycle.

1. Close the lid and press it down until it locks in place.

Note: Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Fill rinse aid dispenser

Your dishwasher is designed to use liquid rinse aids which are released during the final rinse to prevent water from forming droplets on your dishes.

1. Open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110 ml.

2. To open the dispenser, turn the cap towards the "open" (left) arrow and lift it out.

3. Pour the rinse aid into the dispenser, being careful not to overfill it.
4. Screw back the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Note: Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

1. Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, as well as spot and streak free drying.
2. If the rinse aid dispenser is empty the rinse aid signal lamp will turn on red.

Loading the cutlery basket

Observe the plan for placing cutlery into the cutlery basket. See table below for possible part designations.

Warning!

• Long bladed knives stored in an upright position are a potential hazard.
• Do not let any item extend through the bottoms of the baskets.
  • Always load sharp utensils with the sharp points down!
• Do not overload your dishwasher as this will impair the results.

EN

22

Loading the dishwasher basket

• Only clean dishes and cutlery which are dishwasher proof or suitable for dishwashers. Follow the instructions of manufacturers.
• Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans, pots, etc.
• It is not necessary to rinse the dishes under running water.
• Place objects in the dishwasher in the following way:
• Items such as cups, glasses, pots/pans, etc. face down.
• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils must be stacked securely and cannot tip over.
• All utensils have to be placed in such a way, that the spray arms can rotated freely during washing.

Note: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

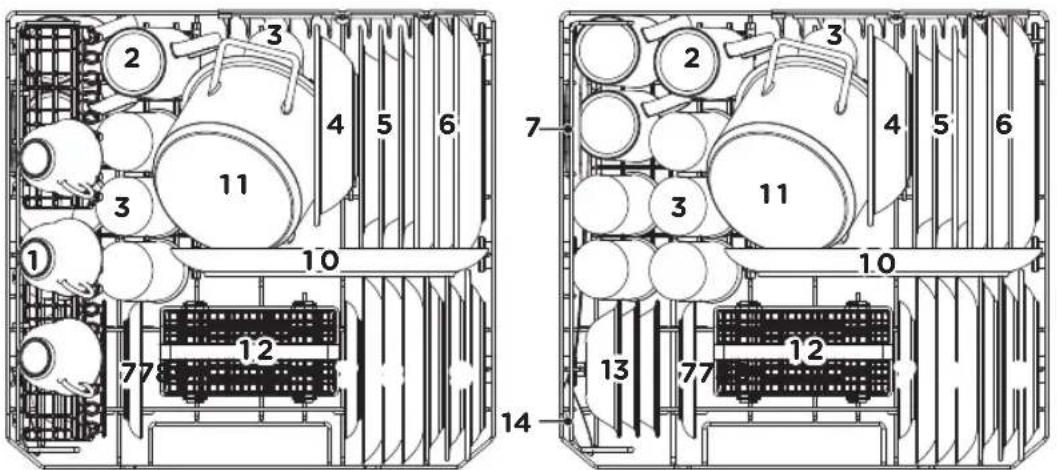

Observe the general plan for placing dishes and cutlery into the basket. See the table below for possible part designations..

Option 1 Option 2

Cups Mugs	Glasses Melamine bowls	Soup plates
Dinner plates	Saucers	Dessert dishes	Melamine dessert plates	Oval platter
Small pot	Cutlery basket	Dessert bowls	Serving spoons

OPERATION

Washing dishes

10

- Consider following steps to start the washing process:

1. Prepare the dishwasher

2. Load the dishwasher baskets

3. Add detergent

4. Make sure the water-tap/water supply is open, the appliance is connected to the mains and the door is closed correctly

5. Push the ⏻ button to turn on the dishwasher and choose your program, refer chapter

Choosing Program

1. Push the button

• To stop the process push the button again.

Note: The program lights show the state of the dishwasher:

a) Program light on: standby or pause

b) Program light blinking: washing process ongoing

1. When the wash cycle has finished, an accoustical signal will sound for 8 seconds

- Turn off the appliance using the button and shut off the water supply.

- Open the door of the dishwasher.

Warning! It is dangerous to open the door during a running cycle, because the hot water may scald you.

- Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot. They will also dry better.

- Unload the dishwasher.

Pause the wash cycle

- You can modify the washing program when the dishwasher has just been started, as otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.

- Press the button for more than three seconds to switch the machine into stand-by mode

- Change the program to the desired cycle setting

- Press the button again to continue with the wash cycle

Note: If you open the door during a running program, the machine will pause. After closing the door, the machine will resume with the chosen program after 10 seconds.

- If you forgot a dish you can pause the process and add it, but make sure the detergent compartment has not already opened.

1. Press the button.

2. Open the door a little to pause the washing process.

3. After the spray arms have come to a halt, you can open the door completely.

4. Add the forgotten dishes.

5. Close the door and press the Button again and the dishwasher will continue with the cycle after 10 seconds.

Recommendations on the type of detergent

Consider below notes in order to improve the cleaning result, while reducing the energy consumption as well as environmental impact:

- Dose the detergent, salt and rinse aid based on the recommendations / requirements of the supplier, while considering the mass and soiling level of the tablewares.

- Do not mix different detergents and salts.

- Do you use detergents that are based on solvents or corrosive ingredients.

- Avoid overdosing.

Caution: An incorrect dosage of detergent, salt and other additives can damage the product and impair its correct function.

EN

24

CHOOSING PROGRAM

Program table

The table below shows which programs are best for different types of dishes and how much detergent is needed. It also shows various information about the programs.

Program	Information and purpose	Description of the cycle	Detergent Pre/Main	Running time in min	Energy cons. in kWh	Water cons. in litre	Rinse aid
Intensiv	For heaviest soiled crockery, and normally soiled pots, pans, dishes, etc. with dried on soiling	Pre-wash 50°C Wash 70°C Rinse Rinse Rinse 70°C Drying	4/10 g 140	1.200 9.6			★
Universal	For normally soiled loads such as pots, plates, glasses and lightly soiled pans	Pre-wash Wash 60°C Rinse Rinse 70°C Drying	4/10 g 120	1.050 7.7			★
ECO (*EN 60436)	This is the standard programme; It is suitable to clean normally soiled tableware and is the most efficient program in terms of its combined energy and water consumption for that type of tableware	Pre-wash Wash 45°C Rinse 65°C Drying	14 g 230	0.613 6.5			★
90 min	For normally soiled loads that do not need extensive drying	Wash 65°C Rinse Rinse Rinse 70°C Drying	14 g 90	1.100 6.6			★
60 min	For lightly soiled crockery that do not need extensive drying	Wash 65°C Rinse Rinse Rinse 50°C Drying	14 g 60	0.820 5.8			★
40° Rapid	A quick rinse for lightly soiled loads without drying	Wash 40°C Rinse Rinse	12 g 30	0.500 5.8 -

Note:

* ECO: This program is suitable to clean normally soiled tableware and for this use, it is the most efficient program in terms of its combined energy and water consumption. It is used to assess the compliance with the EU ecodesign legislation.

Note:

The values given for programs other than the ECO program are indicative only.

CLEANING AND CARE

• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the buttons).
• Clean the edge around the door using a soft, warm and damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Cleaning the filter assembly

The filter prevents larger remnants of food or other objects from entering the pump. Inspect the filters for blockage every time the dishwasher has been used.

12 The filter system consists of a coarse filter, a flat (main filter) and a micro filter (fine filter).

• Main filter A: Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down the drain.
• Fine filter B: This filter holds food residue in the sump area and prevents it from being deposited on the dishes during the wash cycle.
• Coarse filter C: Larger items, such as pieces of bones or glass that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

13 Disassemble and clean the filter according to following steps:

• Turn the filter cap (filter C) anticlockwise and take out the whole filter assembly.
  • Take out filters B and C.
  • Take out filter C.
• Wash the filters under running water and remove all residues and foreign objects.
• Reassembling is done in reverse order. Make sure the filter assembly is installed correctly.
  Note: Never use the dishwasher when the filter system not installed.

Cleaning the spray arms

14 The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. It is recommended to clean them every two month.

• Grasp the middle of the spray arm, pull it upwards to remove it.
• Wash the arms under a jet of running water
• Return them carefully to their seat and make sure that the spray arms are installed correctly and can rotate freely.

Descaling

Descaling is not necessary if the detergent is dosed correctly. If you want to descale the dishwasher, proceed according to the descaling agent manufacturer's instructions. You can obtain suitable descaling agents from retailers.

ERROR CODES

Code Meaning Possible causes
The 40^ light flickers.	Longer inlet time	Faucets is not openedWater intake is restrictedWater pressure is too low
The 90^ light flickers.	Overflow	Some component of the dishwasher leaks
The 40^ and 60^ lights flicker	Not reaching required temperature	Malfunction of heating element
The ECO, 40^ and lights flicker	Failure of communication between main PCB with display PCB.	Open circuit or broken wiring for the communication.

When an ERROR code appears, please contact the customer service. The respective hotlines are noted in the provided warranty card.

EN

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes Solution
Product does not work	Interrupted power supply · Check the power supply
	Water pressure is too low · Check whether water supply is connected properly and the faucet is opened
	Dishwasher door is not properly closed	Ensure, that the door is closed properly
Water is not pumped out of the dishwasher	Kink in drain hose · Check the drain hose
	Filter is clogged · Check and clean the coarse filter
	Kitchen sink is clogged · Check whether the kitchen sink is draining well or call a service agent for help
Sud in the tub · Improper detergent · Only use special dishwasher
Sud in the interior	Detergent with colourant was used	Only use detergent without colourant
White film on inside surface	Hard water minerals · Regularly clean the interior with a damp sponge
Rust stains on cutlery	Cutlery are not corrosion resistant	Do not wash these items in the dishwasher
	A programme was not run after refilling salt	Always run a quick programme after adding salt
	Softener lid is loose	Check and tighten it
Knocking noise in the cabinet	Spray arm is knocking against an item in the basket	Interrupt the program and rearrange the items
Rattling noise	Items of crockery are loose in the cabinet
Knocking noise in water pipes	Caused by on-site installation or cross section of the piping	This has no influence on the dishwasher function
Dishes are not clean	Incorrectly loaded dishes	Re-arrange the dishes
	Spray arms are blocked
	Not enough detergent	Add more detergent
	Program was not powerful enough	Choose another program
	Filter is dirty or not inserted correctly	Clean the filter and ensure it's fit in correctly
Cloudiness on glassware	• Too much detergent • Use less detergent	• Use a mild abrasive cleaner to clean them
Black or grey marks on dishes	• Aluminum utensils have rubbed against dishes
Detergent left in dispenser cups	• Detergent dispenser is blocked • Re-arrange the dishes
Dishes are not drying •	Improper loading
	• Rinse-aid level is too low • Increase the rinse-aid level
	• Dishes removed too soon • Do not removed the dishes immediately after washing.

TECHNICAL DATA

Power consumption 1170 - 1380 W
Rated voltage / frequency 220 - 240 V ~ 50 Hz
Water pressure (flow pressure) 0.4 - 10 bar / 0.04 - 1	MPa
Water temperature Cold

• This is a Dishwasher.
- See website below for detailed technical information or ask your vendor for specification sheet. www.ok-online.com.

DISPOSAL

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Notes concerning the energy- and water consumption of the dishwasher

• The eco program is suitable for cleaning normally soiled dishes. It is the most efficient program for this purpose in terms of combined energy and water consumption and is used to assess compliance with the EU ecodesign legislation.
• By loading the domestic dishwasher up to the capacity specified by the manufacturer, energy and water can be saved. Arrange the dishes correctly as described in the loading plans in these instructions. Improper loading causes inefficient dish-washing and possibly malfunctions.
• Manual pre-washing of the dishes leads to higher water and energy consumption and is not recommended.
• Washing dishes in a household dishwasher generally uses less energy and water than washing by hand, provided the household dishwasher is used in accordance with the manufacturer's instructions.
• Values for the program duration as well as the energy and water consumption of all programs that include an operating cycle can be found in the corresponding tables in these instructions.
• Observe the information on proper installation (including horizontal alignment, connection to the power supply, water connections) in these instructions.
• Use of cleaning agents, salt and other additives must be carried out properly. Incorrect dosage leads to increased environmental pollution and possibly damage to the device.
• Before each use, remove all foreign objects from the household dishwasher.
• Regular cleaning and compliance with the optimal cleaning intervals and measures to prevent limescale deposits, are important. Please refer to the chapter on Cleaning and care.
• Regular control of the filters and the optimal cleaning intervals are important. Please refer to the chapter on Cleaning and care.

ES

28

ENHORABUENA
