USER MANUAL ODD 12121 A1 OK

Front view of a modern stainless steel refrigerator with dual doors (no visible text or symbols)

DE GEBRAUCHSANMEISUND
CN UTERMANUAL 12
24. MANUAL DE INSTI
NORSEVEPLC
19. 02H3E1 PHSHS 75
HU TELVOSZKALOI KIZHOKRY

MANUALE DELL'UTENTE 57
GL DREBUKSLAMUZIMOSCE
PL. POSTINANCIA OBSUOULTA
ET MANUAL DE UTILIZAÇÃO 1
215 08-05-191516:07
KULLAWIK KILAVUZU TID

A1 A2 A3 M 1-22: 3:33 A5 A6 A7 A8 A9 A10 A11 O N B C D E F G H M L K J

M/2017/21 H, 0301,409,866.02 7:1278 367=

HERZLICHEN GLÜCKWUNSCH!

Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instruction concerning use of the product in a safe way and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be carried out by children unless they are supervised.
4. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
5. A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
6. The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or the usage by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
7. Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
8. Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
9. Warning: Do not damage the refrigerant circuit.
10. Warning: Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type, which is recommended by the manufacturer.
11. Do not store explosive substances such as aerosol cans with a flammable propellant in this product.
12. The lamp is not replaceable.

13. Follow the instructions in the chapter Cleaning and care.

14. Warning: The refrigerant and insulation blowing gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.

15. To avoid contamination of food, please respect the following instructions:

-Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
-Clean regularly surfaces that can come in contact with food and accessible drainage systems.
-Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
-Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
-Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
-One-, two- and three-star compartments are not suitable for the freezing of fresh food.
-If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1. Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Do not place any objects on top of the product.
3. Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
4. Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, the product has been dropped during installation etc.). For servicing and repairs, please consult an authorised service agent.
5. The mains voltage must match the information on the rating label of the product.
6. Only unplugging from the power socket can separate the product completely from the mains.
7. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
8. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
9. Only unplug from the power socket by the plug itself. Do not pull on the cord.

EN

14

1. Unplug the product ...

2. when the product is not being used,

3. in case of malfunctions,
4. before attaching / detaching accessories and

5. before cleaning the product.

6. Use this product in dry indoor areas only and never outdoors.

7. This product is not intended for commercial use. It is designed for household use only.

8. Make sure that electrical components, live parts and the power cord do not become wet.
9. Use accessories supplied with the device or recommended by the manufacturer only!
10. Do not cover the product while in use. Fire hazard!
11. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
12. WARNING! Do not locate multiple portable socket-outlets portable power suppliers at the rear of the appliance.

Caution: Risk of fire!

Flammable materials.

WARNING! During using, service and disposal the appliance, please pay attention to symbol as left side, which is located on rear of appliance (rear panel or compressor.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal.

INTENDED USE

This product is suitable for refrigerating and freezing food and beverages only. Any other use may damage the device or cause injuries.

The product is only intended to be used in private households and shall not be used for commercial purposes.

The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

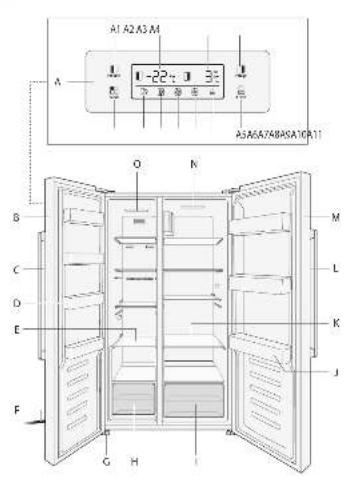

CONTROLS AND COMPONENTS

A. Control panel with display

A1 Button Freezer
A2 Temperature display, freezer
A3 Temperature display, refrigerator
A4 Button Fridge
A5 Unlock button 3 SEC.
A6 Indicator lock/unlock
A7 Indicator SUPER FREEZING mode
A8 Indicator SUPER COOLING mode
A9 Indicator ECO mode
A10 Indicator SMART mode
A11 Button Mode

B. Freezer door

C. Freezer door handle

D. Freezer door tray (4x)

E. Freezer glass shelf (5x)

F. Power cord with plug (not shown)

G. Adjustable feet, front

H. Freezer compartment

I. Vegetable compartment (fresh food compartment)

J. Refrigerator door tray (3x)

K. Refrigerator glass shelf (5x)

L. Refrigerator door handle

M. Refrigerator door

N. Refrigerator lighting

O. Freezer lighting

DELIVERY CONTENTS

1 x Fridge and freezer combination
1 x Egg holder for 8 eggs
1 x Ice cube tray
1 x User manual

ACCESSORIES

1 x egg holder for 8 eggs
1 x Ice cube tray
1 x Hexagon wrench

BEFORE FIRST TIME USE

• Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.
  • After unpacking, please refer to chapter Cleaning and care.

EN

INSTALLATION

Fig. 1 Place the unit on a level and stable surface. Keep the minimum distances to all sides.

Fig. 2 Unevenness can be compensated with the adjustable front feet.

Fig. 3 The refrigerator and freezer are equipped with glass shelves which, if desired can be removed by pulling them forward. Some of the shelves can be inserted at different heights.

Warning

If the refrigerator has been stored or tipped sideways during transport or installation, it must stand upright for 12 hours before being connected to the mains.

OPERATION

Fig. 4 Plug in the power plug into an appropriate mains socket outlet.

Note:

Allow the product to precool for about 2-3 hours before putting in the food.

SETTINGS

Fig. 5 The control panel is locked in normal operation after 25 seconds. Before adjusting the settings described below, press the unlock key for at least 3 seconds. The symbol changes to and all keys are unlocked. All settings made are only activated after the automatic locking.

FREEZER TEMPERATURE SETTING

Fig. 6 Press the Freezer button to set the freezer temperature from -14 to -22°C in 1°C temperature steps. After adjusting the setting, the display flashes for another 5 seconds.

REFRIGERATOR TEMPERATURE SETTING

Fig. 7 Press the Fridge button to set the temperature of the refrigerator from 2 to 8°C in 1°C steps. After adjusting the setting, the display flashes for another 5 seconds.

Quick freeze, quick refrigeration, vacation and standard mode functions

Fig. 8 By pressing the Mode button, you can select four different functions as indicated by the symbol.

• SMART mode: In this mode, the refrigerator sets the temperature of two compartments automatically according to internal temperature and ambient temperature.
  • ECO : the fridge runs in lowest energy consumption setting.
• SUPER FREEZING mode: In this mode, the freezer compartment cools to the lowest temperature for approx. 50 hours. Then the temperature set before super mode is automatically restored.
• SUPER COOLING: In this mode, the fridge compartment cools to the lowest temperature for approx. 2.5 hours. Then the temperature set before super mode is automatically restored.
  To turn off the auxiliary functions, unlock the control panel again as described in the Settings section and press the Mode button repeatedly until none of the additional function icons light up. As a result, any additional functions are deactivated and the device operates at the preset temperatures.

DOOR OPEN ALARM

If one door keeps open for 90 seconds. an alarm will be arisen until the door is closed.

ENERGY SAVING TIPS

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).
- Ensure unobstructed air flow around the refrigerator and freezer.
- If an ice layer has built, defrost the unit. A thick layer of ice affects the transmission of the cold, thus the energy consumption will be increased.
- When taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.
- Select the temperature regulator setting according to the filling amount of the product.
- Use drawers, baskets or shelves to store the food. If the energy of the product is used efficiently, the energy consumption can be minimized.

CLEANING AND CARE

Warning

• Unplug the product before cleaning.
- When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).
- Never use oil or grease on the door seal. This will make it porous over time.
- Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.
- Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
• Make sure that no water enters the product interior (for example, through the switch).
- Wipe the door seal with clean water only, and dry it thoroughly afterwards.
- Removable parts e.g. glass shelves, can be taken out for cleaning.

DECOMMISSIONING

If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Unplug the product.
• Empty the product.
- Clean the interior of the product compartment and let it dry.
- Carefully clean all the accessories. (vegetable containers, door compartments, glass shelves, etc.)
- Let the door open to avoid the formation of unpleasant odors and mold.

EN

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer.

Problem Possible causes $olution
Product does not work	Interrupted power supply	Check the power supply
Temperature in the compartments is not low enough.	The door is not closed firmly or it is opened to often.	Rearrange the food so that the door can be closed firmly.
	The ambient temperature is lower than 10°C or higher than 38°C	The product is intended to be operated in an ambient temperature of 10°C to 38°C
Water gathers in the lower part of the compartment	The food comes in contact with the rear wall of the compartment	Move away the food or container from the rear wall
The interior lamp doesn’t shine	Lamp is defectContact service center

ERROR CODES

Error Code Fault Description

E1 Temperature sensor failure of refrigeration chamber

E2 Temperature sensor failure of freezing chamber

E5 Freezing defrost sensor detection circuit error

E6 Communication error

E7 Ambient temperature sensor error

TECHNICAL DATA

Voltage: 220 - 240 V~

Frequency: 50 Hz

Rated current: 1.3 A

Energy ConsumptionkWh/24h : 1.001kWh/Jahr : 365

Ambient temperature: 10°C - 38°C

Net capacity of refrigerator: 291 L

Net capacity of freezer: 145 L

Measurement (HxWxD): 1770 x 905 x 590 mm

Depth with door open: 870 mm

Four-star compartmentStorage Volume: 142 L

Two-star compartmentStorage Volume: 3 L

This product is intended to be used in climate classes from SN to ST.

Climate class Ambient temperature
SN +10 to +32°C
N +16 to +32°C
ST +16 to +38°C

DISPOSAL

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Refrigerants must be evacuated and disposed of by a qualified specialist in accordance with

federal and local regulations before the appliance is scraped.

EU Product Data Sheet

ODD 12121 A1

The information in this product data sheet is presented in accordance with Article 3, letter b) in connection with Appendix III of delegated regulation (EU) No. 1060/2010 of the Commission on completing Council Directive 2010/30/EU of the European Union and of the Council with regard to the labelling of household cooling appliances relating to energy consumption.

a) Supplier's trademarks	ok.
b) Model identifier ODD 12121 A1
c) Household cooling appliance models ^1 category 7
d) Energy efficiency class ^2	A+
e) Community eco-label in accordance with Council Regulation (EEC)No. 66/2010	n/a

		Symbol Value Unit
f) Annual energy consumption3		AEc	365 kWh/year
g)	Storage volume and if necessary Starratingeach compartment4:
	Other Compartment5	Vom	n/a L
	Cellar Compartment V	cm	n/a L
	Wine storage compartment V	wma	n/a L
	Storage area for fresh comestibles V	m	291 L
	Chill compartment V	cc	n/a L
	Ice cube making compartment and zero-star compartment n/a L
	One-star compartment	V*	n/a L
	Two-star compartment	V**	3	L
	Three-star compartment	V***	n/a L
	Freezer compartment (four-star compartment)	V***	142 L
h) Design temperature “other compartments”		n/a
i)	Information regarding frost-free conditions for each compartment:
	Other Compartment	n/a
	Cellar Compartment	n/a
	Wine storage compartment	n/a
	Storage area for fresh comestibles	n/a
	Chill compartment	n/a
	Ice cube making compartment and zero-star compartment	n/a
	One-star compartment	n/a
	Two-star compartment	yes
	Three-star compartment	n/a
	Freezer compartment (four-star compartment)	yes
j)	Storage time in the event of breakdown (“temperature increase time”)		10	h
k) Freezing capacity			10 Kg/24h
l)	Climatic Class6		SN-ST
m)	Airborne acoustical noise		43	dB(A) re1 pW

^1 Household refrigerating appliance categories: 1 = Refrigerator with one or more storage areas for fresh comestibles; 2 = Refrigerator with cellar zone, cellar compartment, cooling appliance and wine cabinet; 3 = Refrigerator with chilling zone and refrigerator with a zero-star compartment; 4 = Refrigerator with a one-star compartment; 5 = Refrigerator with a two-star compartment; 6 = Refrigerator with a three-star compartment; 7 = Cooling units and freezers; 8 = Upright freezer; 9 = Chest freezer; 10 = Multi-purpose cooling units and other cooling appliances.

^2 Range: A+++ (highest efficiency) to D (lowest efficiency)

^3 On the basis of standard testing results over a 24-hour period. Actual consumption depends on the use and location of the appliance.

^4 * = compartment -6°C or colder; *** = Deep-freeze storage area -18°C or colder; **** = Freezer and deep-freeze storage areas -18°C or colder and with a minimum freezing capacity

^5 "other compartment" is a compartment that is not a wine storage area and which is intended for the storage of certain comestibles at a higher temperature such as +14 °C.

^6 Climatic class SN: This appliance is intended for operation at a surrounding temperature between +10°C and +32°C; Climatic class N: This appliance is intended for operation at a surrounding temperature between +16°C and +32°C; Climatic class ST: This appliance is intended for operation at a surrounding temperature between +16°C and +38°C; Climatic class T: This appliance is intended for operation at a surrounding temperature between +16°C and +43°C.
