Brand	Carat
Model	SL1506X
Product type	Wall chaser / Wall milling machine
Usage	Grooving in brick and abrasive materials (dry use only)
Max power consumption	2000 W
Power supply	Single-phase, 230 V
Insulation class	II (double insulation)
No-load speed	4200 rpm
Bore diameter	22.2 mm
Max disc diameter	150 mm
Max cutting depth	50 mm
Max cutting width	2.4 - 50 mm (adjustable)
Weight	6.7 kg
Laser guide	Yes, class 2/1 mW
Protection	LED overload indicator and automatic shut-off
Sound pressure level	94 dB(A)
Sound power level	105 dB(A)
Vibrations (RMS value)	≤ 2.5 m/s²
Warranty	12 months
Recommended maintenance	Inspection by a certified technician after 300 hours
Disposal	Do not dispose in household waste, recycle according to WEEE

Frequently Asked Questions - SL1506X CARAT

Which discs to use with the SL1506X wall chaser?

Only use diamond discs of 1.5 mm thickness, suitable for dry use. Mount six discs with 2.1 mm intermediate flanges.

How to mount the diamond discs?

Loosen the protection bolts, remove the locking flange and the flanges. Position the first disc, then a flange, then the next four discs and intermediate flanges. Finish with the locking flange and tighten the bolt. Refer to the manual for the exact diagram.

How to adjust the cutting depth?

Turn the adjustment screw (mark 1 in figure a) to adjust the depth, then retighten the knob. Check that the disc rotates freely before cutting.

What to do in case of motor overload?

The LED flashes red during overload, becomes steady red before shutdown. Turn off the machine immediately, let it cool, then run it idly for a minute. Avoid overload by not forcing the tool.

How to use the laser guide?

The laser guide turns on automatically with the switch. It projects a red line indicating the cut of the inner disc. For better visibility, wear special protective glasses (available from Carat).

What safety precautions to take?

Wear hearing protection (sound level >90 dB), FFP2 mask, gloves and goggles. Always unplug the machine before any maintenance. Check for any cables or pipes in the wall before cutting.

How to clean and maintain the wall chaser?

Regularly clean the ventilation slots and flanges. Lubricate moving parts if necessary. Have the tool checked by a certified technician after 300 hours of use. Only use original parts.

What is the warranty for the SL1506X?

The warranty is 12 months from delivery, upon presentation of the invoice. It covers material or manufacturing defects. Excluded are damages due to improper use, overload, or use of non-original parts.

Can the wall chaser be used with water?

No, this model is designed for dry use only. Use a vacuum for dust extraction.

How to make vertical cuts?

For a vertical cut, position the machine at the top of the line and let it dig from top to bottom. For a horizontal cut, pull from left to right. Ensure the cut line is clear.

USER MANUAL SL1506X CARAT

ENGLISH Instructions for use 7

A

Technical line drawing of an electric vehicle's internal components, showing hoses and wiring (no text or symbols)

HOOFDONDERDELEN

The main parts are numbered identical to the graphics of the power tool at page 2 of this manual.

1. Handle
2. Overload indication
3. ON/OFF Switch
4. Dust extraction
5. Carbon brush holder
6. Cutting depth adjustment
7. Laser guide
8. Blade guard
9. Wheels

SPECIFICATIONS

Type SL-1506

Rated power input 2000W

Protection class II

Loaded speed 4200 rpm

Arbor diameter ∅ 22,2 mm

Maximum diameter diamond cut-off wheel ∅ 150 mm

Maximum cutting depth 50 mm

Maximum cutting width 2,4 - 50 mm

Weight 6,7 kg

INTENDED USE

The SL-1506 is a double insulated handheld wall chaser for dry use in combination with sawblades for cutting in mineral materials such as concrete or brick.

The machine is only suitable for use with saw blades with laser welded diamond segments.

POWER SUPPLY

The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. This is a class II tool and can therefore also be used from non-grounded sockets.

ENVIRONMENTAL PROTECTION

Do not dispose of electric tools together with household waste material! In observance of European Directive 2012/19/EU on waste electrical an electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

WORKING PROCES

The figures referenced to, are stated at page 3 of this manual.

Dust extraction

Dust released during dry cutting is dangerous to your health. Therefore a dust extraction system specially intended for this purpose must be used.

The use of a dust extraction system is also required to optimize the life time of the diamond saw blades.

To prevent clogging of the dust extraction system it is essential that the materials which are being cut are completely dry.

Information about dust extraction systems is available at your local Carat dealer.

Laser guide system

The SL-1506 is equipped with a laser guide integrated in the blade guard. The laser is activated as soon as the on/off switch is pressed and the sawblades start rotating. The laser shows as a red line on wall "in front of the machine" and indicates the cutting line of the inner blade (nearest to the motor)

The visibility of the laser can be increased by wearing special "laser" goggles (info at your Carat dealer). The laser is class 2 / 1mW and approved for use on hand held machines.

Mounting diamond grinding wheels

For mounting the diamond grinding wheels do as follows:

Note: The SL-1506 is only suitable to use in combination with six diamond grinding wheels, each with a core thickness of 1.5mm.

• Loosen the bolts of the blade guard.
  • Take of the outer part of the blade guard.
• Loosen the bolt with a spanner, while blocking the locking fl ange with the two-pin spanner.
• Remove all fl anges.
  • Position the first diamond grinding wheel.
• Position the first fl ange with a thickness of 2,1mm.
• Position the following five diamond grinding wheels, and the other four intermediate flanges with a thickness of 2.1mm.
  • Position the remaining fl anges.
  • Position the locking fl ange.
• Mount the bolt.
• Thighten the bolt with the spanner, while blocking the blocking fl ange with the two-pin spanner.
• Place the outer part of the blade guard.
  • Mount en thighten the bolts of the blade guard.

Always check the arbor hole and the fl anges before mounting the diamond grinding wheel. They must be clean and undamaged.

Note: make sure that saw blades are used intended for dry use and suited for the material which has to be cut ask your carat dealer for advice!

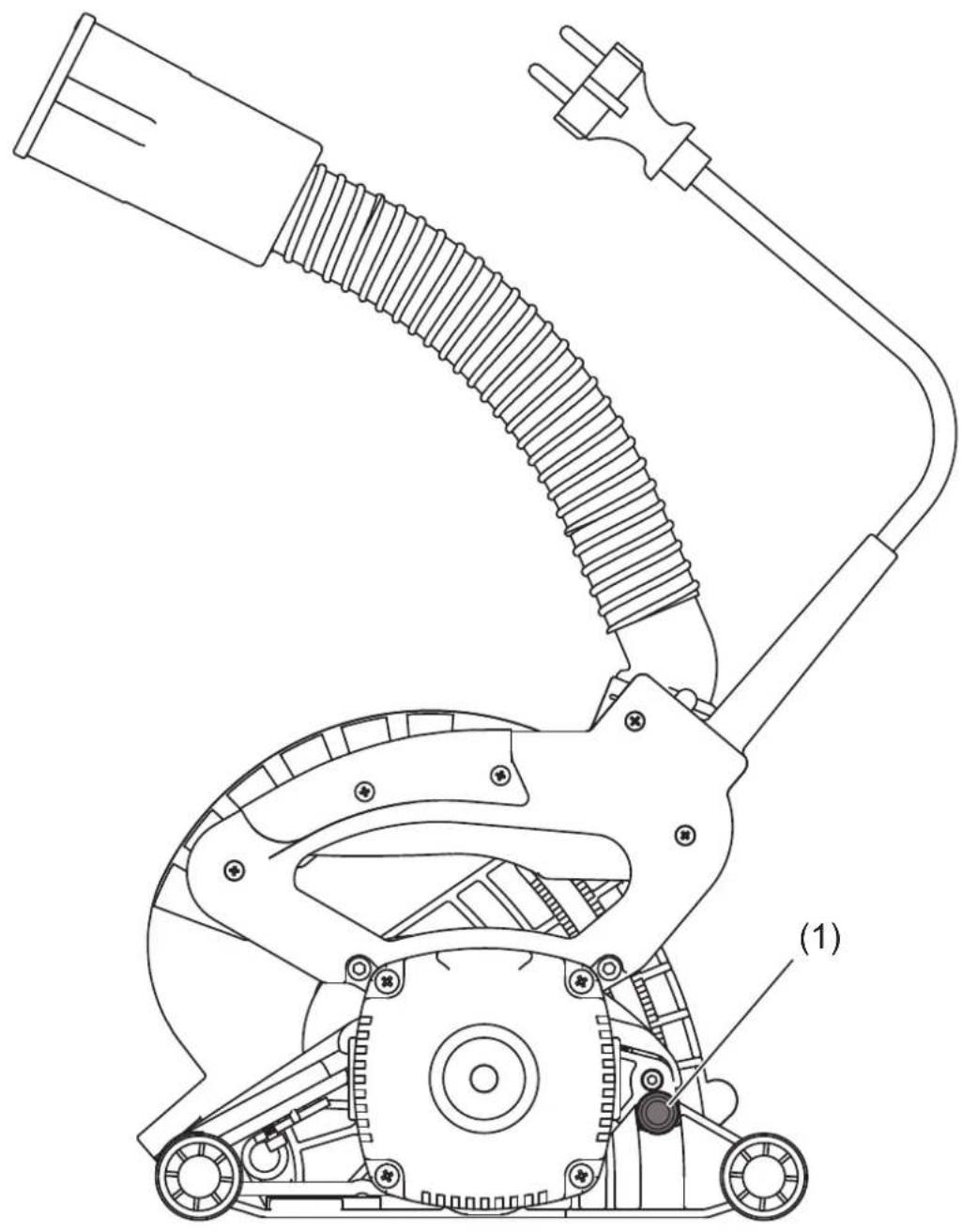

Adjusting cutting depth [Fig. A]

Release knob (1).

Adjust depth.

Fasten knob (1).

Making horizontal and vertical cuts

Before making a cut always check for hidden water, gas pipes and electricity loads in the wall.

Defi ne the position of the cut.

To determine the location of the diamond grinding wheels a indication line is made on the guard. This line represents the inner diamond grinding wheel.

Place the machine with the side of the pivot against the wall or floor in such way the diamond grinding wheel can turn freely.

Turn on the machine and make sure the diamond grinding wheels rotate at full speed.

Slowly push the diamond grinding wheels into the material.

For horizontal cuts; pull the machine through the material from left to right.

For vertical cuts; let the machine grind itself through the material from top to bottom.

OVERLOAD PROTECTION

To protect the motor, the machine is provided with a LED load indication and a electronic overload protection system. Whenever the engine is switched off due to overload, it must be switched on again as soon as possible to cool the motor. Then let the machine run for a minimum of 1 minute without load.

The LED indicates the load on the motor:

Continuously green Normal load

Blinking red Overload

Continuously red

Overload; the motor will switch off automatically

PRACTICAL TIPS

• Do not use diamond grinding wheels which are eccentric. These cause extra burden to the bearings and cogs.
• Avoid overloading.
• Only switch on the handheld powertool when the diamond grinding wheel can rotate freely.
• By fastening a slat to the wall, to guide the handheld powertool, improves the making of straight cuts.

It isn't possible to cut curves!

MAINTENANCE

Generally it can be put that regular maintenance (checking, cleaning, oiling) has a positive effect on the safety for the operator and the lifetime of the handheld powertool.

It is recommended to have the handheld powertool checked by a certified expert after 300 hours

Only use original spare parts.

WARRENTY

For this product is a warranty period of 12 months applicable from the date of delivery. Guarantee claims has to be proved by showing the purchase invoice. Guarantee claims have to be proved by showing the purchase invoice. The guarantee includes the repair of defects which have occurred and can be linked by to material or manufacturing faults. Transport costs for the equipment from and to the client are to be paid by the client. Travel- and housing costs for repair personnel on site are to be paid by the client.

Not covered by guarantee defects caused:

• by incorrect use or connection.
• machine overload.
• incorrect or bad maintenance.
• not properly following the information from the manual.
• the machine is used by unqualifi ed personel.
• if the machine is used for purposes not suitable.
• the machine is repaired using unoriginal parts.
• if the machine encryption is damaged or deleted.
• if defects are caused by fire, damp and/or transport.

SYMBOLS

	Do not dispose of electric tools together with household waste material!
	This product is in accordance with applicable EC directives.
	Wear hearing protection; when sound levels are over 90dB(A), hearing protection is obligatory.
	Use a dust mask with fi ltering class FFP2.
	Wear suitable protective working gloves.
	Always disconnect the plug from the socket before carrying out any work on the machine!
	Read the operating- and safety instructions before use.
	CAUTION

EMISSION

Typically the A-weighted noise levels of the product are:

Sound pressure level 94 dB(A); Sound power level 105 dB(A). Uncertainty K = 3 dB.

WEAR HEARING PROTECTION!

The measured average vibration is less then 2,5 m/s^2 .

Measured values determined according to EN 60745.

DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product (SL-1506) is in conformity with the following standards or standardized documents:

EN 60745; EN 61000;

2006/42/EG; 2014/30/EU; 2011/65/EU
