USER MANUAL S907.EU Bimar

type S907.EU (mod. F100/3)

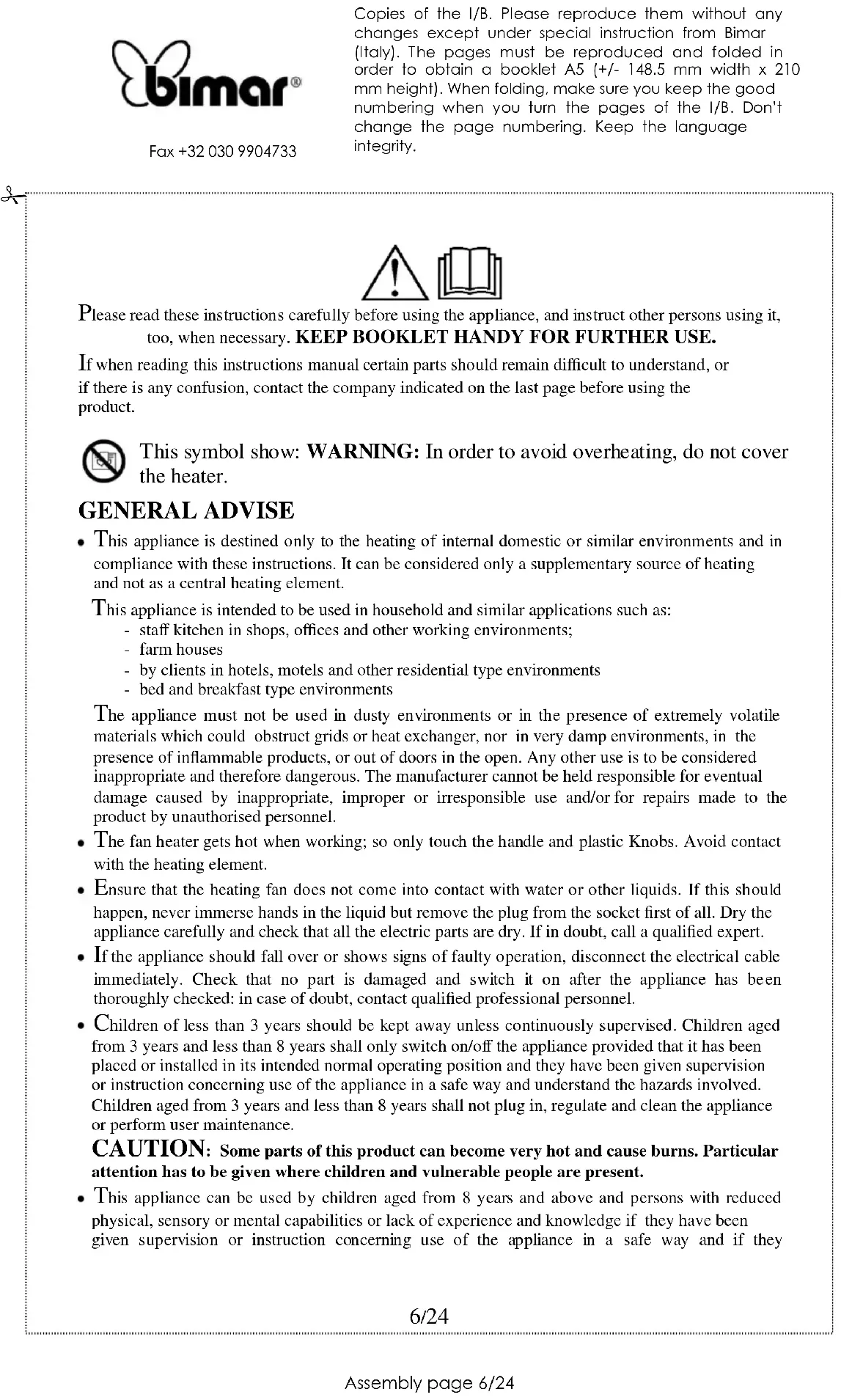

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. KEEP BOOKLET HANDY FOR FURTHER USE.

If when reading this instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.

This symbol show: WARNING: In order to avoid overheating, do not cover the heater.

GENERAL ADVISE

• This appliance is destined only to the heating of internal domestic or similar environments and in compliance with these instructions. It can be considered only a supplementary source of heating and not as a central heating element.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen in shops, offices and other working environments;
  -farm houses
• by clients in hotels, motels and other residential type environments
• bed and breakfast type environments

The appliance must not be used in dusty environments or in the presence of extremely volatile materials which could obstruct grids or heat exchanger, nor in very damp environments, in the presence of inflammable products, or out of doors in the open. Any other use is to be considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for eventual damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorised personnel.

• The fan heater gets hot when working; so only touch the handle and plastic Knobs. Avoid contact with the heating element.
• Ensure that the heating fan does not come into contact with water or other liquids. If this should happen, never immerse hands in the liquid but remove the plug from the socket first of all. Dry the appliance carefully and check that all the electric parts are dry. If in doubt, call a qualified expert.
• If the appliance should fall over or shows signs of faulty operation, disconnect the electrical cable immediately. Check that no part is damaged and switch it on after the appliance has been thoroughly checked: in case of doubt, contact qualified professional personnel.
  Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they

understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Attention: when using electric appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and physical injury.
- Unplug the appliance when not in use.
- The fireguard of this heater is intended to prevent direct access to heating elements and must be in place when the heater is in use, but the fireguard does not give full protection for young children and for infirm person.
- Do not move the appliance when it is in function.
- That the user must not leave the appliance unattended while it is connected to the supply.
- Do not touch the heater with wet hands or feet.
- Never use the fan heater to dry damp garments.
- Do not expose the heater to the weather (sun, rain, etc.).
- Do not pull on the power cord or the appliance to unplug the appliance from the wall socket.
- Never move the appliance by pulling the cord.
- The appliance must not be positioned immediately under a socket.
- The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
- If the electric cord is damaged, it has to be replaced by the supplier or an authorized service center or a professionally qualified, to avoid any risks.

INSTALLATION

• After removing the packing materials, check the integrity of the heater; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger.
• Before connecting the appliance, check that the voltage shown on the data plate matches that of your electricity (230V 50Hz) and that the electric plug is grounded. In the event of incompatibility between the electric outlet and the plug of the heater, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the heater (10A). Check that the mains are not connected equipment; high absorption to prevent overloading and fire risks. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum of the heater.

Attention: before use the appliance remove the detachable coupon to stick the handle.

• Before each use, verify that the heater is in good condition and that the electrical cord is not damaged: in the case of doubt, ask for professionally qualified help.
• Make sure that the cable is correctly positioned and that it is not in contact with hot parts or sharp edges, nor wrapped around the device or twisted.
• Position the fan heater far from other sources of heat, inflammable materials (curtains, carpets, etc.), inflammable gases or explosive materials (spray cans) and from materials that can deform on exposure to heat. Make sure that there is 100cm of free space in front of the fan heater and 30cm on the sides. Do not use the heater in the immediate vicinity of a bathtub, shower or swimming pool (to avoid drops of water falling on the heater or the heater falling in the water), or in places where it could be subject to shocks.

• Do not hang or simply pull the unit to the wall or walls.

• Make sure that the fan heater is working correctly: if not, turn the heater off and have it checked by professionally qualified personnel.

• Make sure that the air-intake grid is not obstructed by objects, fabrics or anything else to avoid the heater overheating or breaking.
• Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly. Check that no other high absorption appliances are connected to the same power source.
• In the case of a breakdown or fault, switch off the appliance and have it checked by a professionally qualified technician; repairs made by unqualified persons can be dangerous and render void the warranty.

USE

Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk.

To use the thermofan, please follow the instructions below:

1) Insert the plug in the current socket.
2) To switch the appliance on, turn the selector knob to the position corresponding to the desired function:

$$ 0 ^ {\prime \prime} = O F F; \quad “ \text {f a n} $$

warm (1000W), low speed (sleep function)

空 ^ 空 =air warm (1000W), high speed; air very hot (2000W)

In addition, the switch also adjusts the thermostat; turn the knob all the way anticlockwise to select the function that activates at least about 5^ , the temperature reaches about 5^ and is kept constant, then when the temperature exceeds 5^ unit turns off.

Ion function: produces a stream of negative ions that neutralize the positive ions present air, ionizing function is less obvious in environments with high humidity. This function is activated every time you

select the rear dial (6) in pos. "IONO" and "IONO"

3) If you wish the oscillation function, turn the oscillation button (6), in pos. "IONO" and oscillation (i.e., 90^ rotation alternatively right and left).
4) To turn off the fan heater, please turn the Knob in the "0" position clockwise and press the rear switch in pos."OFF". Then pull out the plug from the socket.

Never leave the appliance connected to the socket if it is not in use, especially for long periods.

CLEANING AND MAINTENANCE

Attention: before cleaning the fan heater, turn it off, remove the plug from the outlet and wait for it to cool.

Periodically check that the air-intake grill is not obstructed by fuzz or threads.
- Use a soft, slightly damp cloth to clean the body; do not use metal scouring pads or abrasive products.
- To clean and maintain of the grid, it is possible vacuum cleaner paying attention not to damage the electrical resistance.
- When the appliance is not being used, cover it and put it in a dry place. It is a good idea to put it back in its original packaging to protect it from dust and humidity.
- If you decide not to use the fan heater, we recommend that you make it inoperative by cutting the power cord (but first make sure you have removed the plug from the electrical outlet), and make those parts harmless that are dangerous when played with by children.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
