Product type	Home safe
Brand	Olymp
Model	GOsafe 120FP
External dimensions (H×W×D)	250 × 350 × 250 mm
Internal dimensions (H×W×D)	247 × 347 × 190 mm
Weight	8 kg
Wall thickness	4 mm
Door thickness	1,5 mm
Power supply	4 AA LR6 batteries (1.5 V); backup power via 9V battery
Opening methods	Numeric code (4 to 8 digits), fingerprint, dual entry (code + fingerprint), emergency key
Fingerprint capacity	Up to 30 fingerprints
Default codes	User code: 1234; Master code: 123456
Security functions	Alarm on incorrect code (3 attempts), anti-vibration alarm, silent mode
Mounting type	Wall mounting (expansion bolts for concrete, tightening screws for wood)
Box contents	1 safe, 1 shelf, 4 fixing screws, 2 emergency keys, 4 AA LR6 batteries, instruction manual
Care and cleaning	Clean with a soft, dry, lint-free cloth; do not use solvents
Warranty	Return to vendor with original packaging and receipt in case of defect

Frequently Asked Questions - GOsafe 120FP Olymp

How to open the safe for the first time?

Remove the emergency lock cover, insert the emergency key and turn it counterclockwise. Keep the key in position and turn the knob clockwise to open the door. Then remove the key and store it in a safe place.

How to change the user code?

Open the door, press the reset button once. A yellow light flashes. Enter the new code (4 to 8 digits) and press "#". You will hear two beeps confirming the change.

How to change the master code?

Open the door, press "0" twice and then press the reset button once. A yellow light flashes. Enter the new master code (4 to 8 digits) and confirm with "#". You will hear two beeps.

How to register a fingerprint?

Open the door, press Reset once. The yellow light flashes. Place your finger on the sensor, lift it and repeat twice. A long beep indicates successful registration. You can register up to 30 fingerprints.

What to do if I forgot the code?

Use the emergency key to open the safe. Once open, you can reset the codes via the reset button or restore factory settings by holding Reset for 8 seconds.

What to do if batteries are low?

If the red light flashes after entering the code, replace the 4 AA LR6 batteries. For emergency opening, use an external 9V battery by connecting it under the keypad after removing the black sticker.

How to enable or disable sound?

To activate silent mode, press "0" twice and "*" once. To exit, press "6" twice and "*" once. Warning tones remain active even in silent mode.

How to activate the anti-vibration alarm?

In standby mode, press "*". The alarm will sound for 20 seconds if the safe is moved or shaken. You can stop it by entering a valid code or fingerprint.

What to do after three incorrect code entries?

An alarm sounds for 20 seconds. If you enter the correct code or a valid fingerprint within this time, the alarm stops. Otherwise, wait for the alarm to end.

How to mount the safe to the wall?

Drill holes at the desired locations. Use expansion bolts for a concrete wall or tightening screws for a wood wall. Insert the screws and tighten. Ensure the safe is securely fixed before loading it.

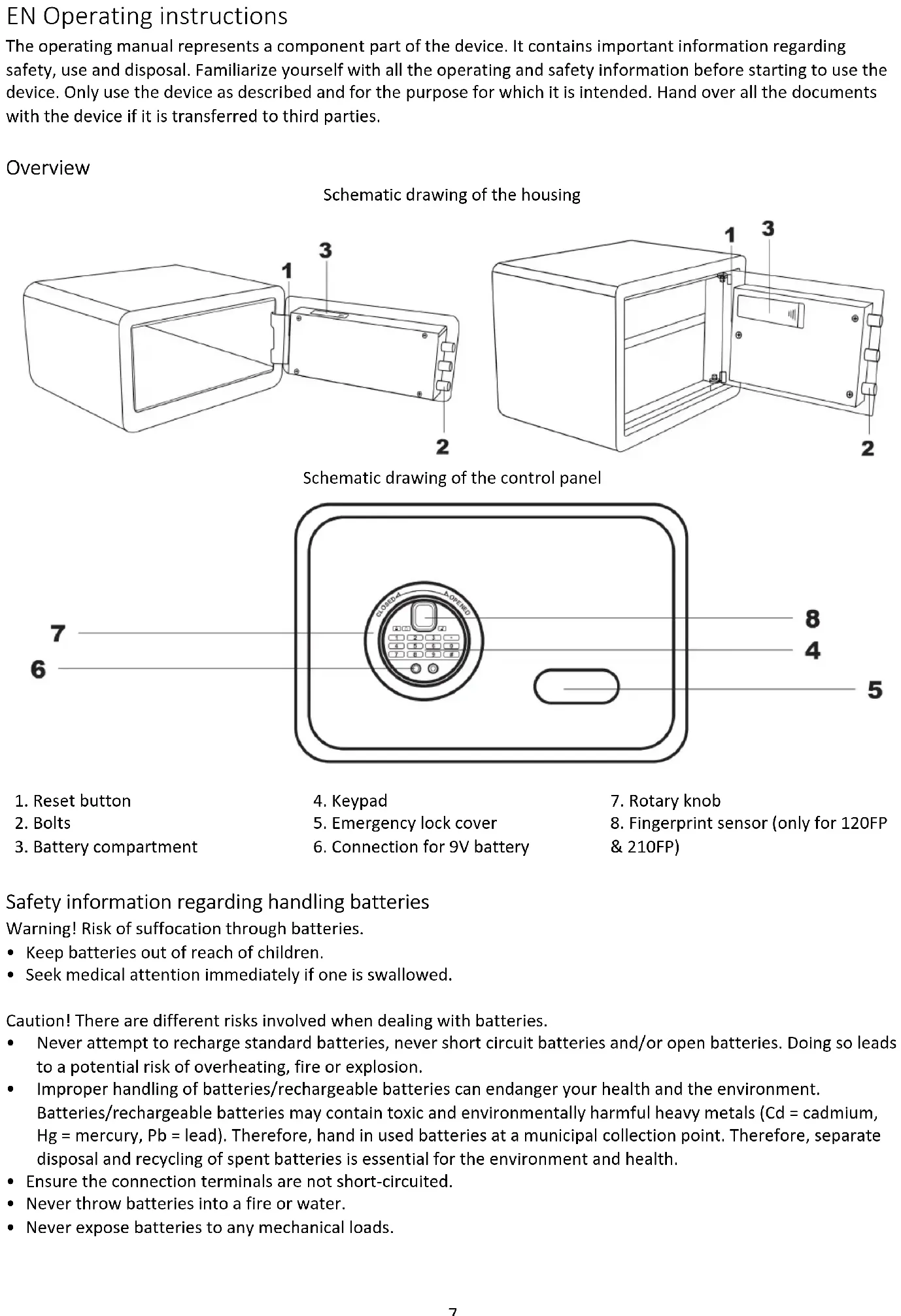

USER MANUAL GOsafe 120FP Olymp

EN Operating instructions

The operating manual represents a component part of the device. It contains important information regarding safety, use and disposal. Familiarize yourself with all the operating and safety information before starting to use the device. Only use the device as described and for the purpose for which it is intended. Hand over all the documents with the device if it is transferred to third parties.

Overview

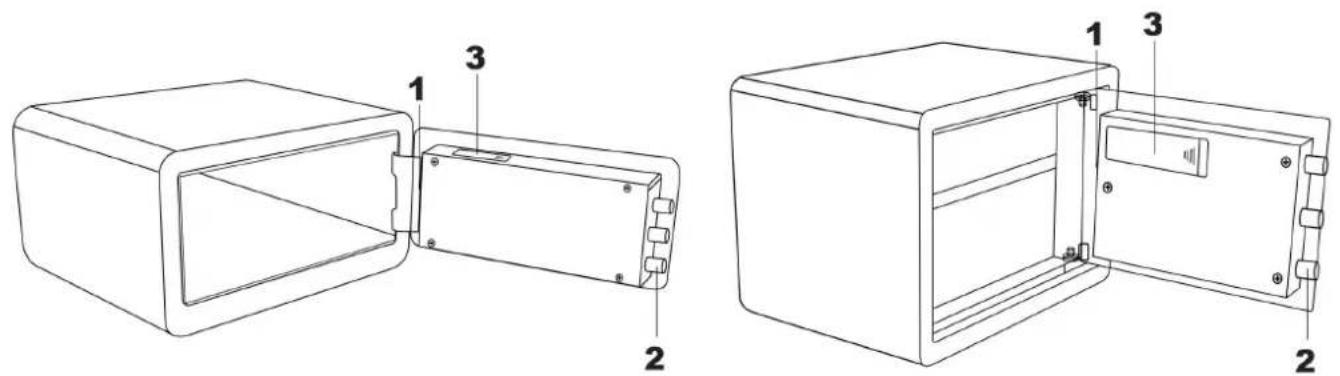

Schematic drawing of the housing

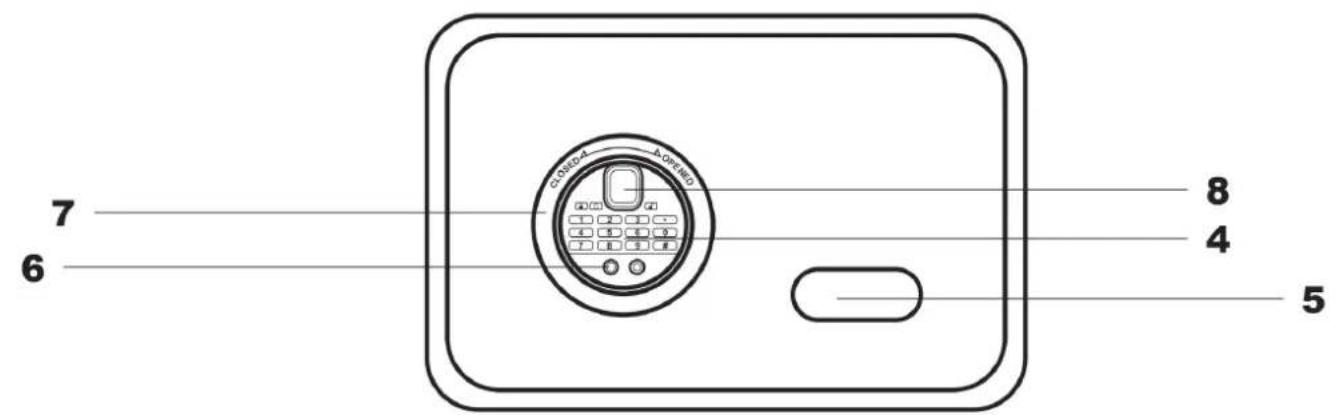

Schematic drawing of the control panel

1. Reset button

4.Keypad

1. Rotary knob

2. Bolts

3. Emergency lock cover

4. Fingerprint sensor (only for 120FP)

5. Battery compartment

6. Connection for 9V battery

& 210FP)

Safety information regarding handling batteries

Warning! Risk of suffocation through batteries.

• Keep batteries out of reach of children.
• Seek medical attention immediately if one is swallowed.

Caution! There are different risks involved when dealing with batteries.

• Never attempt to recharge standard batteries, never short circuit batteries and/or open batteries. Doing so leads to a potential risk of overheating, fire or explosion.
• Improper handling of batteries/rechargeable batteries can endanger your health and the environment. Batteries/rechargeable batteries may contain toxic and environmentally harmful heavy metals (Cd = cadmium, Hg = mercury, Pb = lead). Therefore, hand in used batteries at a municipal collection point. Therefore, separate disposal and recycling of spent batteries is essential for the environment and health.
• Ensure the connection terminals are not short-circuited.
• Never throw batteries into a fire or water.

• Never expose batteries to any mechanical loads.

• Leaking batteries could cause damage to the device. If a battery should start to leak, remove it from the device immediately to prevent any further damage. Take the utmost care when handling damaged or leaking batteries and always wear protective gloves.

• Avoid any contact with the skin, eyes and mucous membranes. Rinse any parts of the body which have come into contact with battery acid with plenty of clean water and contact a doctor immediately. Avoid extreme conditions and temperatures which could affect the batteries, e.g. by placing them on radiators or exposing them to direct sunlight.
• Only use batteries of the type specified.
• Never use batteries of different types or new and old batteries together.
• Ensure batteries are inserted with the correct polarity.
  If the device will not be used for a longer period, switch the device off and remove the batteries.
• Remove empty batteries from the device and dispose of them according to the applicable directives.
• The batteries must be removed from the device before its disposal.
• You are legally obliged to dispose of batteries at your dealer or at the collection points provided by the responsible waste disposal authority.

Package Contents

Check the package contents of the safe before you actually use the safe. If anything is missing or damaged, contact our Service Department.

• 1x Safe

• 1x Shelf (only for 120FP)

• 4x Fixing screws

• 2x Emergency key

4x AA LR6 batteries

• 1x Instruction manual

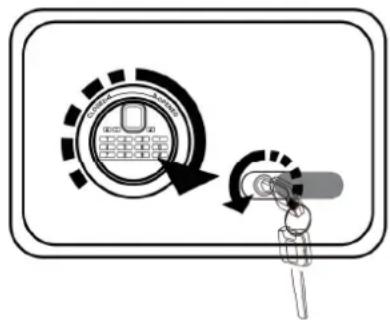

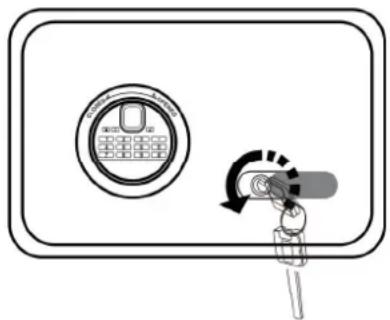

Open the safe for the first time / Open the safe with the emergency key:

When opening the safe for the first time, it must be opened with the emergency key.

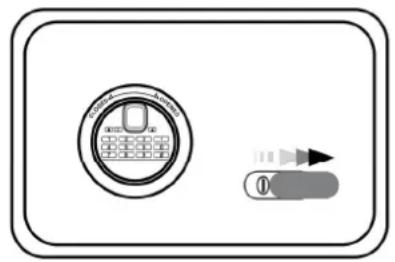

• Remove the cover of the emergency lock
• Insert the emergency key and turn it anticlockwise.
• Do not let go of the key, otherwise it will return to its original position.
• Turn the knob clockwise to open the door.

CAUTION: When finished, remove the emergency key and keep it in a safe place. !!!NOT IN THE SAFE!!!

Inserting the batteries

• Open the door and remove the battery cover.
• Insert 4 x AAL LR6 batteries into the battery compartment.

Low battery level

If the red light flashes after entering the correct code, it means that the battery is too low and you should insert new batteries.

Replace the batteries by arranging them as indicated by the "+" and "-" signs.

Removing the batteries

Follow the steps below to remove the batteries.

Remove the battery compartment cover.

Caution! Danger of short circuit.

• Remove batteries only with a non-conductive object, e.g. a wooden or plastic spatula.

Remove the batteries.

Replace the battery compartment cover.

External battery source

• 9V battery can be used as an external power source. (9V battery not included in the scope of delivery).
• Remove the lower black sticker from the keypad.
• Place the 9V battery until the metal contacts under the keypad are in contact.

ATTENTION: Only for emergency operation!

Closing the door

• Close the door of the safe
• Turn the knob anticlockwise to close the door.

Open door with user code or master code

• Enter the registered user/master code (4 to 8 digits).
• Then press the "#" key.
• You will hear two short buzzer sounds and see the green light turn on.
• Turn the knob clockwise to open the door.

ATTENTION: The preset user code is "1234" and the preset master code is "123456"!

Opening the door with fingerprint (only for 120FP & 210FP)

• Press the fingerprint sensor on the control panel with the registered finger.
• You will hear two short buzzer sounds and see the green light come on.
• Turn the knob clockwise to open the door.

ATTENTION: In factory setting mode, the door can be opened by any fingerprint!

Opening the door with user code or master code and fingerprint (only for 120FP & 210FP)

• Press the fingerprint sensor with the registered finger.
• You will hear 2 short beeps and see the green light flashing.
• Then enter the user/master code and press the "#" button within 10 seconds.
• You hear 2 short buzzer tones and the green light lights up.
• Turn the knob clockwise to open the door.

Setting the user code

• Open the door and press the reset button once.
  You will hear 2 short buzzer sounds and see the yellow light flashing.
• Then enter the new user code (4 to 8 digits) and press "#" to confirm.
• You will hear 2 buzzer tones, which means that the new user code has been set successfully.

ATTENTION: Please leave the door open until the test of the new code has been successfully completed!

Setting the master code

• Open the door, press the "0" twice and the reset button once.
• You will hear 3 short buzzer sounds and see the yellow light flashing.
• Then enter the new master code (4 to 8 digits) and press "#" to confirm.
  You will hear 2 buzzer tones, which means that the new master code has been set successfully.

ATTENTION: Please leave the door open until the test of the new code has been successfully completed!

Setting the fingerprint (only for 120FP & 210FP)

• Open the door and press the reset button once.
• You will hear 2 short buzzer sounds and see a yellow light flashing.
• Place your finger on the fingerprint sensor and then remove it.
• You will hear 2 buzzer tones and see a yellow light flashing.
• Repeat the previous step two more times.
  Finally, you will hear a long beep, which means that the new fingerprint has been successfully registered.

ATTENTION: A maximum of 30 fingerprints are supported!

Please use the same finger when registering fingerprints!

To improve the rate of correct finger identification, you can follow the advice below:

We recommend that each user register 2-3 fingerprints.

We recommend women and children to register with thumb and middle finger.

Try to press with even force.

In very dry weather, we recommend breathing on the fingers until they are a little wet.

I. Correct

II. Incorrect

Switch between single and double entry mode (only for 120FP & 210FP)

• Open the safe.
• Press "1" on the keypad and the reset button at the same time.
• You will hear a long buzzer tone.
  This means that the switch between single and double entry mode was successful.

Alarm - Wrong code

• If 3 incorrect code entries or 5 incorrect fingerprint entries are made, a warning tone sounds for 20 seconds.

ATTENTION: You can stop the beeps by entering the correct code or fingerprint within 20 seconds.

Alarm - Shake alarm

• Press " *" while the unit is in sleep mode.
  then the vibration alarm system is activated.
• The safe will sound an alarm for 20 seconds if it is moved or shaken.
• You can stop the alarm by entering a password or fingerprint (only for 120FP & 210FP).

Restoring the factory settings

• Open the safe.
• Press the reset button and hold it down for 8 seconds.
• You will hear a long beep.
• The safe is reset to the factory settings.

In the factory settings, the user code is "1234" and the master code is "123456" and any fingerprint (only for 120FP & 210FP) will allow the safe to be opened.

ATTENTION: In the factory settings, the safe is in single-entry mode.

Turning the sound off/on

• Press "0" twice and "*'" once to activate mute mode.
• Press "6" twice and "* once to end the mute mode.

ATTENTION: The safe is in mute mode when the battery is low. Alarm beep is still activated during mute mode.

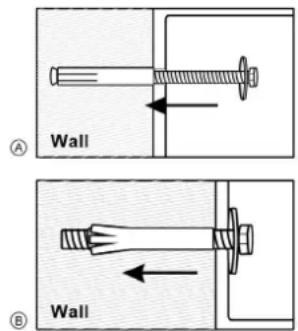

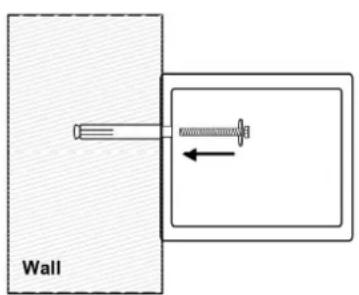

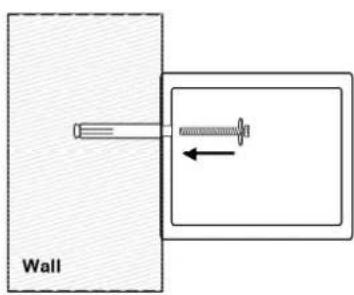

Mounting method

Mount the safe in a place that is not easy to move.

• Drill the holes for the expansion screws (or clamping screws) in the right place.
• Turn the expansion screws anticlockwise to loosen them.
• Use the expansion screws (or the clamping screws) to fix the cabinet to the wall.
• Make sure the enclosure is fixed in the right place, then tighten all the screws.

CAUTION: Use the expansion screws if there is a concrete wall. Use the clamping screws if there is a wooden wall.

Technical data

Name GOsafe 1	20FP GOsafe 210FP GOsafe 210
Dimensions (H × W × D)	Outside: 250 × 350 × 250 mm Interior: 247 × 347 × 190 mm	Outside: 230 × 430 × 350 mm Inside: 225 × 425 × 290 mm	Outside: 230 × 430 × 350 mm Inside: 225 × 425 × 290 mm
Weight 8.9 kg	13,8 kg 13,8 kg
Lock variant	fingerprint, numeric code, fingerprint + numeric code, emergency key	Fingerprint, numeric code, fingerprint + numeric code, emergency key	Numeric code, emergency key
Wall thickness	4 mm 4 mm 4 mm
Body thickness	1.5 mm 2 mm 2 mm

Batteries 4 × AA LR6 (Mignon) 4 × AA LR6 (Mignon) 4 × AA LR6 (Mignon)

Warranty

Dear customer,

We are delighted that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Cleaning

Clean the surface of the housing with a soft, dry, lint-free cloth. Do not use any solvents or cleaning agents.

Disposal

OER GRUINE POINTS	Packaging materials must be disposed of according to local regulations.
	The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France.
	The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices.
	The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispos of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations.
	Defective or empty batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and the device via the collection points provided.
a b	Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1-7: plastic/20-22: paper and cardboard/80-98: composite materials.
lo Riciclo! d c a b Seguile regale del suo comune	The device and the packaging material can be recycled, so sort them prior to disposal for better waste management. Contact your local authorities for information on the various options available to ensure correct disposal. Observe the following identifications of the packaging materials: (a) numbers, (b) abbreviations and (c) materials which have the following significance: 1-7: plastics / 20-22: paper and cardboard / 80-98: composite materials and (d) type of packaging. The logo is only applicable to Italy.
i	Find out about the possibilities of taking back old appliances and used batteries free of charge from your dealer.

Conformity

The CE Mark on the device confirms conformity.

The Declaration of Conformity can be read online at www.go-europe.com or http://productip.com/?f=1670dd

The full EU Declaration of Conformity is available online by scanning the QR code:

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1

D-45527 Hattingen

Germany

FR Mode d'emploi

Anevepyonoin/Evepyooninn hou

• PatnoTe duo opec to "0" ka iia oop a to ** yia vao evpyoioeTe tn aeitoupyia siyaan,
• NaTnoTe duo ofopec to "6" kaia opa ta ** yia va byeite ano tn aeitoupyia siyaonc.

PNOEXH: To xpnatokibwio piokeia oE aeitoupyia oyaon otav n oaun foptionc tnc mataipac eiva Xaun. OI npoeiiodonountkoi ncoeakolouovv va evepyonoiuvrta kata tn diapkeia tnL eitoupyiac oyaonc.

Túncoc tonoθétnonc

Aoaiote to xnpaataokiawto e mepos nou dev evival uekolo va etakivnthetai.

AvoiEte tic one c yia tic biEec diaoToaHc (n tic biEec ouophiIcn) oTo oWoTo oOnmuio.
Tupiotc tic bi8ec siaotoln apiotepoortpoa yva tuc xalapwoe.
XpnouonoiTe tic BiEe dciaoToaInc (n tic BiEe c ouofoInc) yia v a stepewaete to nepiBna otoivio.
Bebaiw 0eite oti to nepiBnua exei oTepeWtei otn oWoTH eoon kal, otn ouvexia, ophiTe oAec tic biEc.

IPOZOxH: Xpouonouoote tic BiDcE ciaotao nC eav unapxei toixoc ano oKupodεμa. Xpouonounote tic BiDcOuphiic nC eav npokietai yia hluvo toixo.

Texvka otoxieia
