Product type	Electronic code safe
Brand	Olymp
Model	GOsafe H195
External dimensions (H × W × D)	195 × 508 × 370 mm
Internal dimensions (H × W × D)	165 × 505 × 320 mm
Weight	13.5 kg
Power supply	4 AA LR6 batteries (alkaline)
Lock type	Numeric code (3 to 6 digits) + emergency key
Default master code	000000
Number of user codes	1 user code (3-6 digits)
Self-protection function	3 incorrect codes → keyboard locked for 5 minutes
Opening with masked code	Yes (Clear key before entry)
Opening log	100 records with timestamp
Portable unit (CEU)	Open, change code or download the last 100 records
Wall mounting	Expansion screws (concrete) or tightening screws (wood)
Wall thickness	5 mm
Case thickness	1.5 mm
Cleaning	Soft, dry, lint-free cloth, without solvent
Package contents	Safe, 4 AA LR6 batteries, instruction manual, 2 emergency keys, 2 fixing screws

Frequently Asked Questions - GOsafe H195 Olymp

How to open the safe for the first time?

For the first opening, use the emergency key. Remove the lock cover (logo plate), insert the key and turn it to open the door.

What to do if I forgot my code?

Use the emergency key to open the safe. Then you can reset the user code using the master code (default 000000) or by following the master code setting procedure.

How to change the master code?

With the door open, press CLEAR twice. The display shows 'PROG'. Enter 842627 and press LOCK. Enter the old master code, then press LOCK. Enter the new code (6 digits) and confirm with LOCK. The display shows 'GOOD'.

How to set the date and time?

With the door open, press CLEAR twice. Enter 055261 and press LOCK. Enter the year, month, day (e.g., 150730 = July 30, 2015), then press LOCK. Then enter the hour, minutes, seconds (e.g., 160130 = 4:01:30 PM) and confirm with LOCK.

How to view the opening history?

With the door open, press CLEAR twice. Enter 162550 and press LOCK. Use the keys: 2 (previous), 8 (next), 4 (previous screen), 6 (next screen), 5 (last). Press CLEAR to exit.

What to do if the code is entered incorrectly several times?

After 3 incorrect entries, the self-protection function locks the keyboard for 5 minutes. Wait or use the emergency key to open.

How to fix the safe to the wall?

Drill holes at the designated locations. Use expansion screws for a concrete wall, or tightening screws for a wooden wall. Insert the screws and tighten.

How to clean the safe?

Use a soft, dry, lint-free cloth. Do not use cleaning products or solvents.

How to replace the batteries?

Open the battery compartment cover. Remove the cover. Replace the 4 used AA LR6 batteries with new ones, respecting polarity. Close the cover.

What does the flashing red light mean after entering the correct code?

This indicates that the battery voltage is too low. Replace the 4 alkaline batteries with new ones immediately.

USER MANUAL GOsafe H195 Olymp

EN Operating instructions....7

Line drawing of a two-port cabinet with labeled parts (1 and 2), showing internal structure without any text or symbols beyond labels.

hour minute second
0 0 0 0	0 0

hour minute second
1 6 0 1	3 0

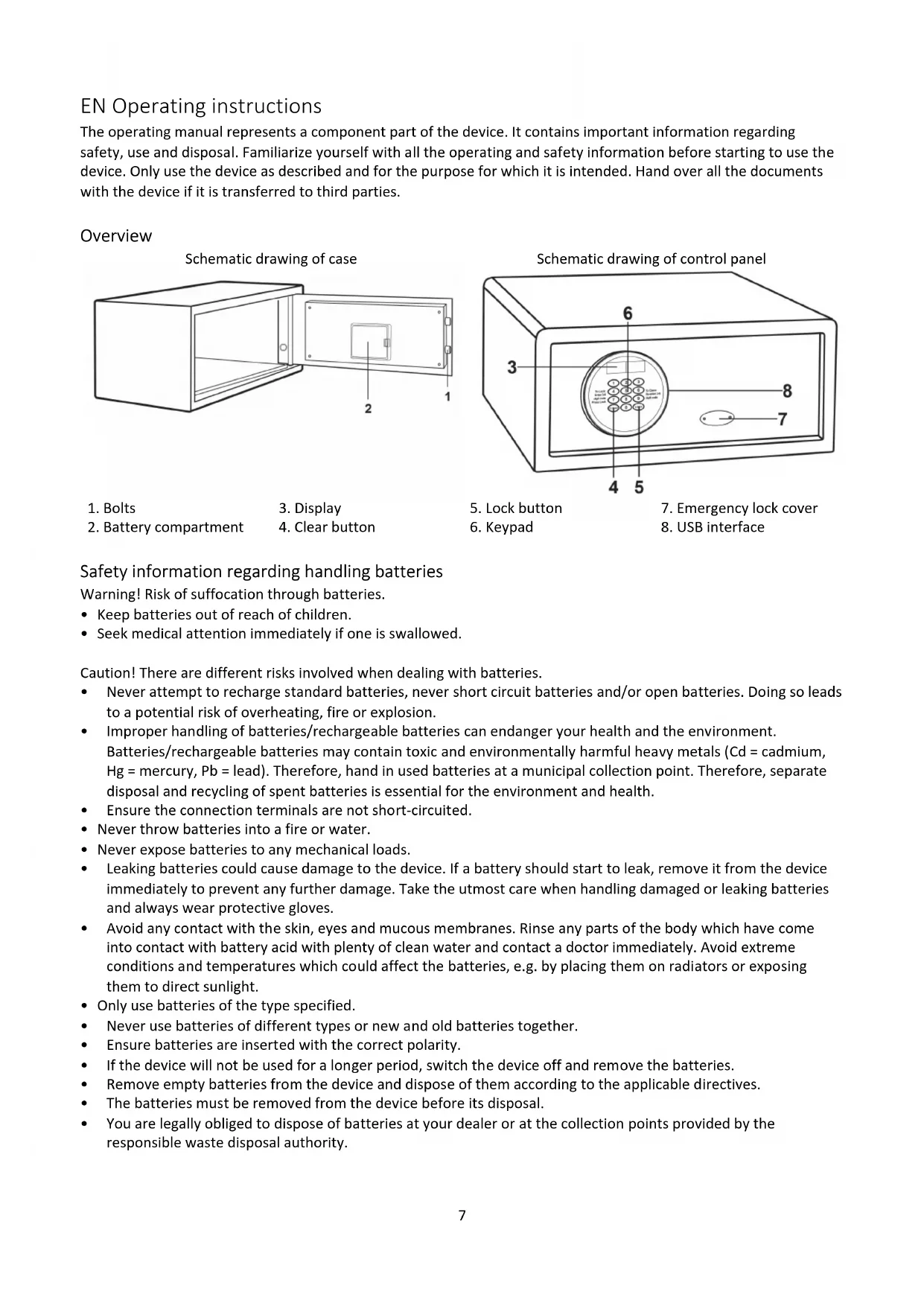

EN Operating instructions

The operating manual represents a component part of the device. It contains important information regarding safety, use and disposal. Familiarize yourself with all the operating and safety information before starting to use the device. Only use the device as described and for the purpose for which it is intended. Hand over all the documents with the device if it is transferred to third parties.

Overview

Schematic drawing of case

Line drawing of a two-port cabinet with labeled parts (1 and 2), showing internal structure without any text or symbols beyond labels.

1. Bolts

2. Display

3. Battery compartment

4. Clear button

Schematic drawing of control panel

6 3 8 7 4 5

1. Lock button

2. Emergency lock cover

3. Keypad

4. USB interface

Safety information regarding handling batteries

Warning! Risk of suffocation through batteries.

• Keep batteries out of reach of children.
• Seek medical attention immediately if one is swallowed.

Caution! There are different risks involved when dealing with batteries.

• Never attempt to recharge standard batteries, never short circuit batteries and/or open batteries. Doing so leads to a potential risk of overheating, fire or explosion.
• Improper handling of batteries/rechargeable batteries can endanger your health and the environment. Batteries/rechargeable batteries may contain toxic and environmentally harmful heavy metals (Cd = cadmium, Hg = mercury, Pb = lead). Therefore, hand in used batteries at a municipal collection point. Therefore, separate disposal and recycling of spent batteries is essential for the environment and health.
• Ensure the connection terminals are not short-circuited.
• Never throw batteries into a fire or water.
• Never expose batteries to any mechanical loads.
• Leaking batteries could cause damage to the device. If a battery should start to leak, remove it from the device immediately to prevent any further damage. Take the utmost care when handling damaged or leaking batteries and always wear protective gloves.
• Avoid any contact with the skin, eyes and mucous membranes. Rinse any parts of the body which have come into contact with battery acid with plenty of clean water and contact a doctor immediately. Avoid extreme conditions and temperatures which could affect the batteries, e.g. by placing them on radiators or exposing them to direct sunlight.
• Only use batteries of the type specified.
  • Never use batteries of different types or new and old batteries together.
• Ensure batteries are inserted with the correct polarity.
  • If the device will not be used for a longer period, switch the device off and remove the batteries.
• Remove empty batteries from the device and dispose of them according to the applicable directives.
  • The batteries must be removed from the device before its disposal.
• You are legally obliged to dispose of batteries at your dealer or at the collection points provided by the responsible waste disposal authority.

Package Contents

Check the package contents of the safe before you actually use the safe. If anything is missing or damaged, contact our Service Department.

- 1x Safe

• 1x Emergency power supply

- 4x AA LR6 batteries

- 2x Emergency key

- 1x Shelf

- 4x Fixing screws

• 1x Instruction manual

Setup

Open the safe for the first time / Open the safe with the emergency key:

When opening the safe for the first time, it must be opened with the emergency key.

- Remove the cover of the emergency key (logo plate).

- Insert the emergency key.

- Turn it to open the door.

ATTENTION: Please do not leave your emergency keys in your safe.

Inserting the batteries

- Open the flap.

- Remove the battery cover.

- Insert 4xAA LR6 batteries into the battery compartment.

Low battery level

If the red light flashes after entering the correct code, it means that the battery voltage is too low and you need to insert new batteries.

ATTENTION: Replace 4 fresh alkaline batteries by arranging them as indicated by the "+" and "-" signs.

Removing the batteries

Follow the steps below to remove the batteries.

Remove the battery compartment cover.

Caution! Danger of short circuit.

- Remove batteries only with a non-conductive object, e.g. a wooden or plastic spatula.

Remove the batteries.

Replace the battery compartment cover.

Close door with personal code

- Lock the door.

- Enter any 3- to 6-digit code and press the "LOCK" button.

- The safe is locked as soon as the display shows "CLOSED".

Open door with user code

- Enter the previous 3 to 6 digit code.

- OPENED" appears on the display.

• This means that the safe is opened.

ATTENTION: Incorrect code entry 4 times activates the self-locking function. (3-6 digit code only)

The keypad is locked for 5 minutes!

Open door with hidden user code

- Press "Clear" once before entering the password.

- As you enter the code, it disappears from the display.

Opening the door with master code

• Press "LOCK" twice.
• SUPER" appears on the display.
• Enter the 6-digit master code.
• The safe is opened.

ATTENTION: The preset master code is "000000"!

Setting the master code

• Hold the door open and press "CLEAR" twice.
  • The display shows "PROG".
• Enter "842627" and press "LOCK".
  • The display shows "OLD".
• Enter the previous master code and press "LOCK".
• NEW" appears on the display.
• Enter the new 6-digit master code and press "LOCK" to confirm.
  • GOOD" appears on the display.
  • The new master code has been successfully changed.

ATTENTION: the preset master code is "000000"!

Setting the date and time

• Leave the door open.
• Press "CLEAR" twice.
• Enter "055261" and press "LOCK".
  • The date appears on the display.
• The programme for setting the clock starts.

The data is first shown on the display:

year month date
0 0 0 0	0 0

Example: Press 150730 means 30 July 2015

year month date
1 5 0 7	3 0

Then press "LOCK" to confirm.

The display will now show the data:

hour minute second
0 0 0 0	0 0

Example: Press 160130 means 16(hour):01(minute):30(second)

hour minute second
1 6 0 1	3 0

Then press "LOCK" to confirm.

GOOD" appears on the display.

Reading the closing and opening log

• This program can be used to query 100 data records.
• Leave the door open.
• Press "CLEAR" twice.
• Enter "162550" and "LOCK".
  • The display will show "RECORD."

- The program for retrieving records when closing and opening begins.

The records are displayed in two screens.

The function keys look as follows:

• Press "2" to return to the previous record.
• Press "8" to jump to the next record.
• Press "4" to show the previous content on the display.
• Press "6" to show the following contents on the display.
• Press "5" to go to the last record.
• Press "CLEAR" to exit this program.

For example:

Safe opened with master code on July 30, 2015 at 16:01:30.

The display shows the following message:

year month date
1 5 0 7	3 0

Press "6" to display the following content.

hour minute - Open way
1 6 0 1	- 2

• "1": Opening the lock with the user code.
• "2": Opening the lock with the master code.
• "3": Opening the lock with the CEU.
• "4": Opening the lock with the emergency key.
• Press "CLEAR" to exit this program.

CEU

Hand Device (CEU) for open the door, Set the code or Download the last 100 times opening records.

Alarm - Incorrect code

Incorrect code entry 3 times activates the self-locking function. (3-6 digit code only)

The keypad is locked for 5 minutes!

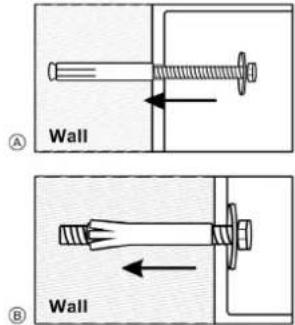

Mounting method

Mount the safe in a place that is not easy to move.

• Drill the holes for the expansion screws (or clamping screws) in the right place.
• Turn the expansion screws anticlockwise to loosen them.
• Use the expansion screws (or the clamping screws) to fix the cabinet to the wall.
  • Make sure the enclosure is fixed in the right place, then tighten all the screws.

CAUTION: Use the expansion screws if there is a concrete wall. Use the clamping screws if there is a wooden wall.

Wall

Wall Wall

Technical data

Name	GOsafe H20	GOsafe H25	GOsafe H195
Dimensions (H × W × D)	Outside: 200x430x370 mm / Inside: 170x427x320 mm	Outside: 250x350x250 mm / Inside: 230x347x200 mm	Outside: 195x508x370 mm / Inside: 165x505x320 mm
Weight	10,5 kg	8,5 kg	13,5 kg
Lock variant	Code, emergency key	Code, emergency key	Code, emergency key
Wall thickness	5 mm	5 mm	5 mm
Body thickness	1,5 mm	1,5 mm	1,5 mm
Batteries	4 × AA LR6 (Mignon)	4 × AA LR6 (Mignon)	4 × AA LR6 (Mignon)

Warranty

Dear customer,

We are delighted that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Cleaning

Clean the surface of the housing with a soft, dry, lint-free cloth. Do not use any solvents or cleaning agents.

Disposal

	Packaging materials must be disposed of according to local regulations.
	The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France.
	The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices.
	The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispose of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations.
	Defective or empty batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and the device via the collection points provided.
	Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1-7: plastic/20-22: paper and cardboard/80-98: composite materials.
	The device and the packaging material can be recycled, so sort them prior to disposal for better waste management. Contact your local authorities for information on the various options available to ensure correct disposal. Observe the following identifications of the packaging materials: (a) numbers, (b) abbreviations and (c) materials which have the following significance: 1-7: plastics / 20-22: paper and cardboard / 80-98: composite materials and (d) type of packaging. The logo is only applicable to Italy.
Segui le regole del tuo comune
	Find out about the possibilities of taking back old appliances and used batteries free of charge from your dealer.

Conformity

The CE Mark on the device confirms conformity.

The Declaration of Conformity can be read online at www.go-europe.com or http://productip.com/?f=1670dd

The full EU Declaration of Conformity is available online at the following website or by scanning the QR code:

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1

D-45527 Hattingen

Germany
