Stinger Mix 6 A G3 - Hi-fi system LD Systems - Free user manual and instructions

Product type	Active speaker with integrated mixer
Brand	LD Systems
Model	Stinger Mix 6 A G3
Category	HiFi system / PA system
Dimensions (W x H x D)	323 x 215 x 222 mm
Weight	7 kg
Power supply	110-120 V / 220-240 V, 50-60 Hz, 220 W max
Amplifier type	Class D, 2 x 70 W RMS (2 x 140 W peak)
Speakers	Woofer 6.5" (165 mm) + Tweeter 1" (25 mm)
Frequency response	80 Hz - 20 kHz
Dispersion angle	80° x 70° (H x V)
Max SPL	122 dB
Number of input channels	4 (3 mic/line combo + 1 stereo line)
Microphone inputs	3 x XLR/6.3 mm jack combo (balanced)
Line inputs	1 x 3.5 mm stereo jack + 2 x RCA
Equalizer	Bass (80 Hz), Mid (2.5 kHz), Treble (12 kHz) on main channel; bass and treble on each channel
Built-in effects	16 digital 24-bit effects, adjustable via presets
Phantom power	15 V, switchable for channels 1-3
Outputs	1 x 6.3 mm jack for passive speaker (70 W/4 ohms), 1 x monitor (6.3 mm jack), 2 x RCA (REC OUT)
Protections	Limiter, short circuit, overvoltage, overload, temperature
Enclosure	Bass-reflex in MDF, black finish
Mounting	2 stand mounts 16 mm, rubber feet
Maintenance and cleaning	Use a dry cloth; do not expose to water or moisture
Safety	Do not open the device; risk of electric shock; surface temperature up to 70 °C; avoid prolonged exposure >90 dB SPL
Spare parts and repairability	Replaceable fuse of same type; repair by authorized center; optional accessory: speaker stand LDSPS16

Frequently Asked Questions - Stinger Mix 6 A G3 LD Systems

How to connect a microphone to the Stinger Mix 6 A G3?

Use the combo XLR/6.3 mm jack inputs for channels 1 to 3. Make sure phantom power is activated if using a condenser microphone (PHANTOM ON button).

Can I connect an electric guitar directly?

Yes, activate the HI-Z button on channel 1 to switch to high impedance, suitable for instruments like electric guitar.

How to adjust the master volume and effects?

Use the MAIN LEVEL knob for master volume. For effects, select the preset with the PRESETS switch (16 effects), adjust the DFX send level per channel and the DFX RET return.

What to do if the PEAK LED stays on continuously?

This indicates an overload of the effects processor input. Reduce the DFX level of the affected channels or lower the master volume.

How to use the MONITOR OUT output?

The MONITOR OUT output provides a signal identical to the main signal, independently adjustable with the MONITOR knob. Allows connecting an additional active speaker.

What is the output power for the passive speaker?

The SPEAKER OUT output delivers 70 W RMS into 4 ohms. Connect the passive speaker LDMIX6G3 or another speaker of at least 4 ohms.

How to record the audio output?

Use the REC OUT output (RCA) to send the signal to a recorder. The level is linked to MAIN LEVEL.

The device does not turn on, what to check?

Check the fuse (behind the IEC socket) and replace it with one of the same rating if necessary. Ensure the mains voltage matches the setting (110-120V or 220-240V).

What safety precautions for installation?

Maintain a distance of 20 cm around for ventilation, avoid heat sources, and do not place liquid objects on the device. Surface temperature can reach 70°C.

How to clean the speaker?

Use a dry, soft cloth. Never use liquid or abrasive products. Disconnect the device before cleaning.

USER MANUAL Stinger Mix 6 A G3 LD Systems

Black electronic device with hexagonal mesh back panel and multiple ports, no visible text or symbols on the main body.

Black outdoor audio amplifier with mesh grille and 'LD STYKME' logo on front (no text-heavy elements)

LD MIX G3 SERIES

ACTIVE 2-WAY LOUDSPEAKER WITH 4-CHANNEL MIXER

LDMIX62AG3

PASSIVE 2-WAY LOUDSPEAKER

LDMIX62G3

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

PREVENTIVE MEASURES 3-4

INTRODUCTION

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS MIX6AG3

MIX6G3 CONNECTION

OPTIONAL ACCESSORIES

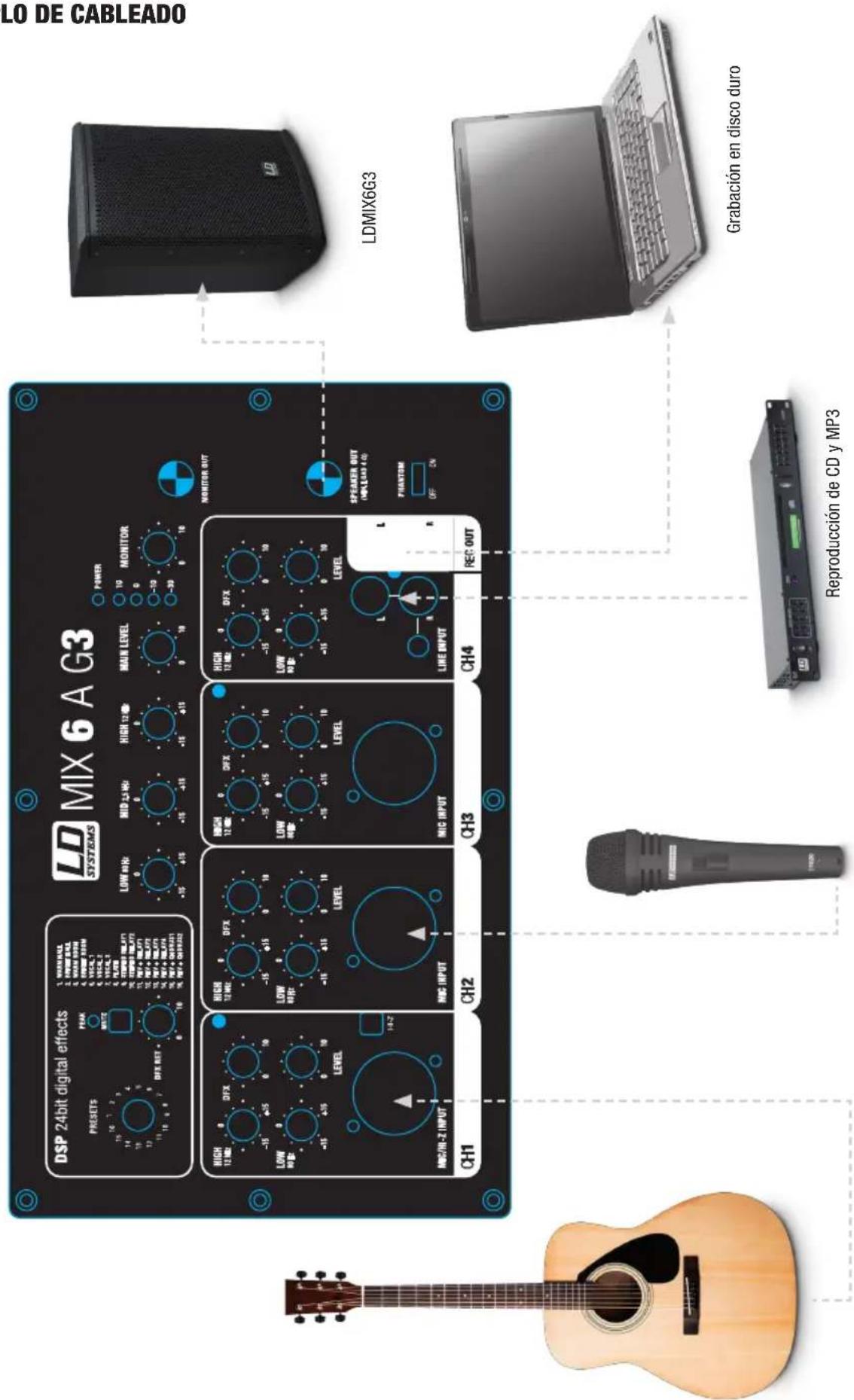

WIRING EXAMPLE

TECHNICAL DATA

MANUFACTURER'S DECLARATIONS

DEUTSCH

SICHERHEITSHINWEISE

EINFÜHRUNG

ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE MIX6AG3

ANSCHLUSS MIX6G3

OPTIONALES ZUBEHÖR

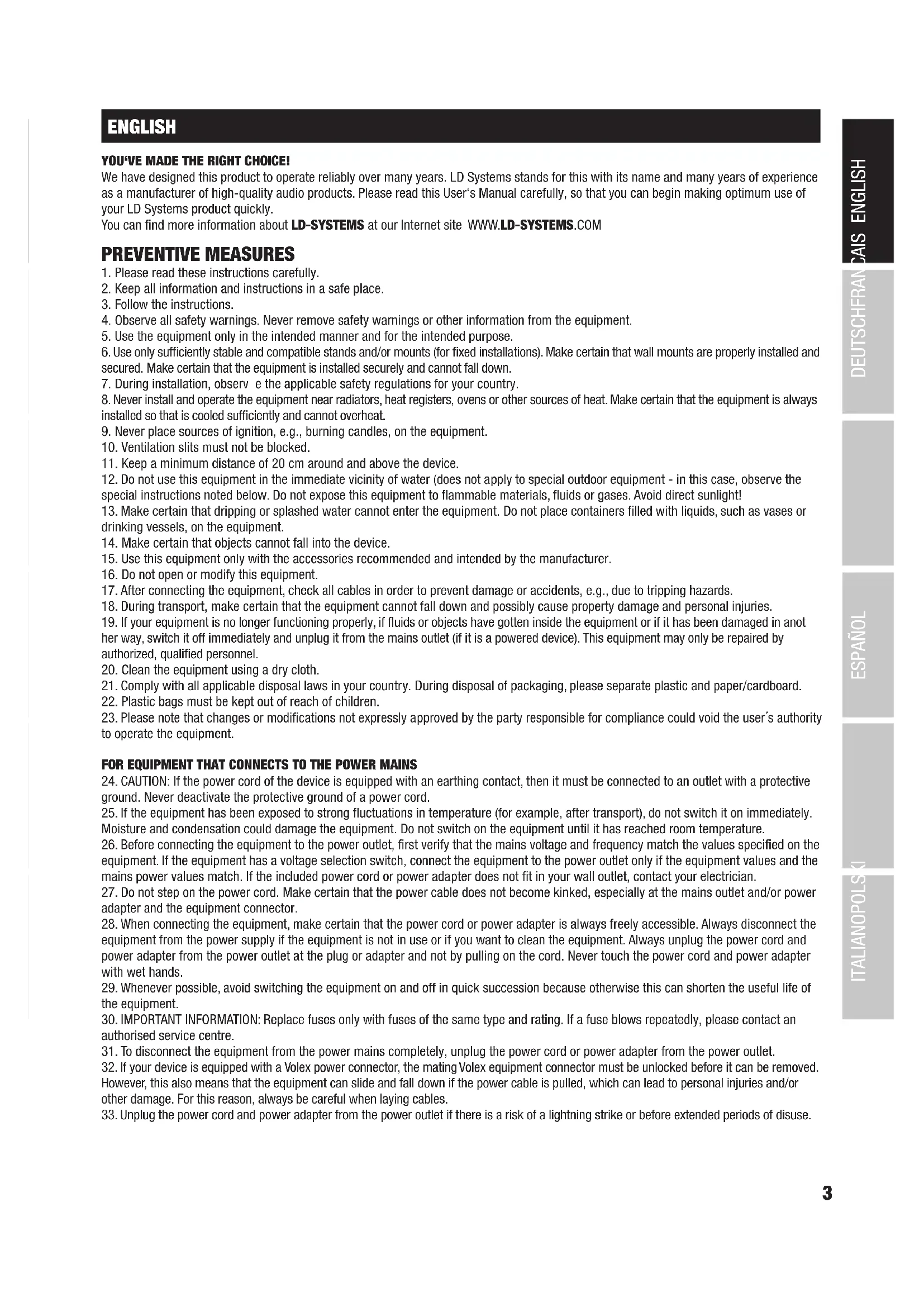

We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User's Manual carefully, so that you can begin making optimum use of your LD Systems product quickly.

You can find more information about LD-SYSTEMS at our Internet site WWW.LD-SYSTEMS.COM

PREVENTIVE MEASURES

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Keep a minimum distance of 20 cm around and above the device.
12. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases. Avoid direct sunlight!
13. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
14. Make certain that objects cannot fall into the device.
15. Use this equipment only with the accessories recommended and intended by the manufacturer.
16. Do not open or modify this equipment.
17. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
18. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
19. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
20. Clean the equipment using a dry cloth.
21. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
22. Plastic bags must be kept out of reach of children.
23. Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS

1. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
2. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
3. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
4. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
5. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
6. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.
7. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.
8. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
9. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.
10. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

CAUTION:

To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel.

The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock.

The warning triangle with exclamation mark indicates important operating and maintenance instructions.

The housing surface of the spotlight can heat up to temperatures as high as 70 °C in regular use. Ensure that it is not possible to come into contact with the housing unintentionally. Always allow sufficient time for the lamp to cool down before dismantling, carrying out maintenance work or charging etc.

Warning! This device is designed for use below 2000 metres in altitude.

Warning! This product is not intended for use in tropical climates.

CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS!

This device is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks.

Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

INTRODUCTION

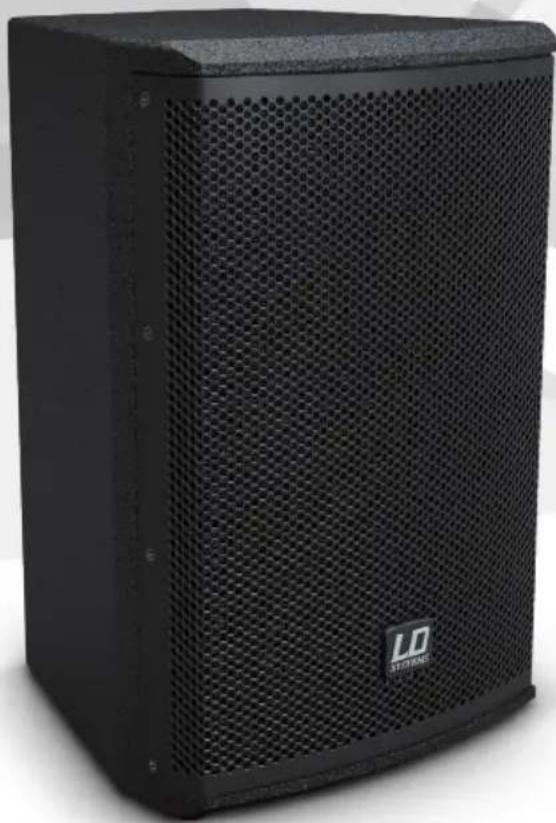

The light, compact MIX6AG3 active and MIX6G3 passive speakers have 6.5" woofers with a frequency response of 80 Hz to 20 kHz and a dispersion angle of 80° x 50°. In combination they are ideal for small PA and monitor applications. The integrated mixer of the MIX6AG3 offers one line channel and three microphone channels with 2-band equalizer, a switchable Hi-Z input, RSA outputs, phantom power and 24-bit digital effects.

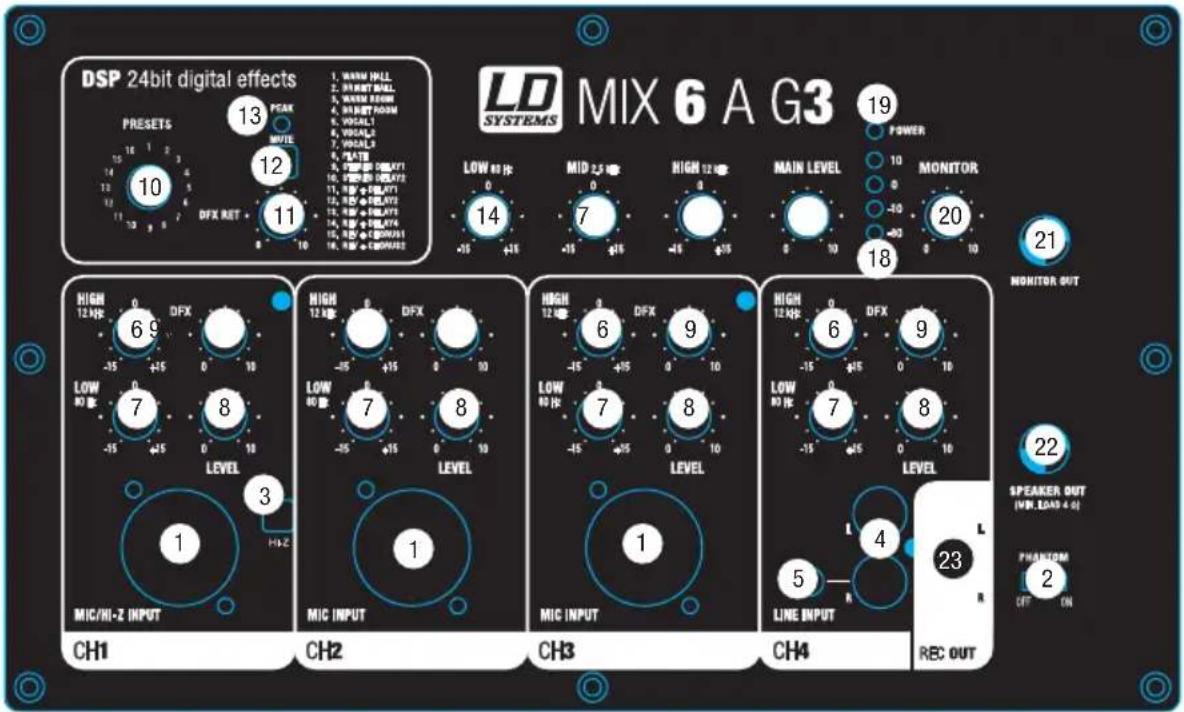

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS MIX6AG3

DSP 24bit digital effects PRESETS 13 PEAK 10 MVTE 12 DFX RET 11 10 LD SYSTEMS MIX 6 A G3 19 POWER LOW 80 Hz 14 MID 2.5 Hz 7 HIGH 12 Hz 0 -15 +15 -15 +15 MAIN LEVEL 10 MONITOR -30 -30 -30 20 18 21 HIGH 12 kHz 6 9 -35 +15 0 10 HIGH 12 kHz 6 9 -35 +15 0 10 HIGH 12 kHz 6 9 -35 +15 0 10 HIGH 12 kHz 6 9 -35 +15 0 10 HIGH 12 kHz 6 9 -35 +15 0 10 HIGH 12 kHz 6 9 -30 -30 -30 20 MONITOR OUT 22 SPEAKER OUT (MP, LOAD 4 Hz) 23 PHANTOM OFF ON MIC/HI-Z INPUT CH1 CH2 CH3 CH4 REC OUT

1 MIC INPUT CH1 - CH3

Balanced microphone input (combined XLR / 6.3 mm jack). It is also possible to use an unbalanced microphone cable (mono jack). There is a switchable 15 V phantom power supply (switch no. 2).

2 PHANTOM ON / OFF

Switchable 15 V phantom power for the microphone inputs on channels 1 to 3 (CH1 – CH3) for use of a condenser microphone. In the ON position, the phantom power is on, in the OFF position it is switched off.

3 HI-Z

This pressure switch can be used to change the channel 1 (CH1) input to high-impedance (press switch to activate). This allows channel 1 to be used as an instrument channel, e.g. for an electric guitar.

4 LINE INPUT CH4 (CINCH L/R)

Unbalanced line input with cinch sockets to connect an input device (e.g. laptop, MP3 player). This stereo input is internally set to mono.

5 LINE INPUT CH4 (3.5 MM STEREO JACK)

Unbalanced line input with a 3.5 mm stereo jack socket. This stereo input is internally set to mono.

6 HIGH

Equalizer high band (12 kHz) for input channels 1 to 4 (CH1 - CH4). Turn anti-clockwise to reduce the treble and clockwise to increase. In central position (snap-in point) the equalizer is inactive.

7 LOW

Equalizer bass band (80 Hz) for input channels 1 to 4 (CH1 - CH4). Turn anti-clockwise to reduce the bass and clockwise to increase. In central position (snap-in point) the equalizer is inactive.

8 LEVEL

Volume control for input channels 1 to 4 (CH1 - CH4).

9 DFX

Effect send control for input channels 1 to 4 (CH1 - CH4). The signal from the relevant channel is picked up before the volume control (post fader) and sent to the internal effects device (DSP) according to the effect send control setting. Here, care must be taken to ensure that the input of the effects device is not overmodulated (watch PEAK LED).

10 PRESETS

Continuous rotary knob to select one of the 16 internal digital effects. A list of all effects is to be found to the right of the controls for the effects device (DSP).

11 DFX RET

The effects return control can be used to add the effects signal to the main signal (MAIN).

12 MUTE

Pressing the MUTE button mutes the internal effects device, causing the PEAK LED to light up continuously. Pushing the button again cancels mute status, and the PEAK LED goes off.

13 PEAK LED

The PEAK LED lights up when the input of the internal effects device is overmodulated (reduce DFX effect send level on channels 1 to 4) and when the internal effects device is muted (MUTE).

14 LOW

Equalizer bass band (80 Hz) for the main channel. Turn anti-clockwise to reduce the bass and clockwise to increase. In central position (snap-in point) the equalizer is inactive.

15 MID

Equalizer mid-range band (2.5 kHz) for the main channel. Turn anti-clockwise to reduce the mid-range and clockwise to increase. In central position (snap-in point) the equalizer is inactive.

16 HIGH

Equalizer high band (12 kHz) for the main channel. Turn anti-clockwise to reduce the treble and clockwise to increase. In central position (snap-in point) the equalizer is inactive.

17 MAIN LEVEL

Volume control for the main channel (main volume).

18 MAIN LEVEL METER

4-segment level meter display for the main channel. When the red LED lights up, the device is operating at the distortion limit. Brief illumination at level peaks in the received signal is uncritical, but permanent illumination should be avoided by reducing the volume level.

19 POWER LED

Goes on when the device is correctly connected to the mains and switched on.

20 MONITOR

Volume control for the monitor channel. The signal is identical to the main signal and picked up before the volume control of the main channel (MAIN LEVEL) so it can be adjusted independently.

21 MONITOR OUT

Balanced line input with a 6.3 mm jack socket. An additional active speaker can be connected. Level adjustment using the MONITOR volume control (no. 20).

22 SPEAKER OUT

Output (6.3 mm jack) with 70W RMS amplifier output for the passive speaker LDMIX6G3. The impedance of the connected speaker may not be less than 4 ohms. The volume is adjusted parallel to the main volume using the MAIN LEVEL volume control (no. 17). The signal is identical to the main signal.

23 REC OUT

Line output with cinch sockets. The signal received is identical to the main signal and picked up before the volume control of the main channel (MAIN LEVEL) so it can be adjusted independently.

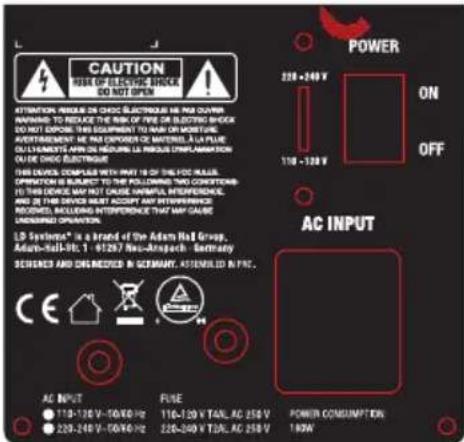

24 110 - 120 V / 220 - 240 V

Switch to set the operating voltage. The mains voltage provided by your energy supplier and the operating voltage of your device must be the same!

25 IEC MAINS SOCKET WITH BUILT-IN FUSE HOLDER

IMPORTANT: BEFORE you use the device make sure that the mains voltage provided by your energy supplier and the operating voltage of your device are the same! Replace the fuse only with a fuse of the same type and the same supply voltage (see label)!

In the event of repeated fuse failure, please contact an authorised service centre.

26 POWER ON / OFF

On / off switch for power supply to the device.

There is a 16 mm tripod flange (tripod optional) on two side panels for tripod mounting.

CAUTION RARE OF ELECTRIC STICKER DO NOT OPEN ATTENTION RESOLVE FOR CHOC ELECTROQUE AS PRI-QUIPER MANHAMS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPORE. THIS EQUIPMENT TO RAW OR MOBILITY ADVERTISING ARE NO DISCOVER OR MAINTEN. LA FLUE OUTLEAMOUNTS ARE NO RESUME LA RESOLVE COMPRESSION OU DE CHOC ELECTROQUE THIS DEVICE COMPLIAR WITH PART IS OF THE ICE ROLLER. OPERATION IS BULICATE TO THE FOLLOWING TWO CONVERSIONS TO THIS DEVICE MAY NOT CAUSE UNMULF INTERFERENCE. AND IN THE DEVICE MUST ACCEPT ANY REFERENCE ROLLING THYSE REFERENCE THAT MAY GABLE UNSMILES OPERATION. 1.0 Systems* is a brand of the Adam Hall Group. Adams Hall-30: 1 - 41287 Non-Anschap. Externary SERVICES AND DISCLOSED IN SCHEMA, ATTEMISED IN PLC. CE AC INPUT ● 110-120 V - 50/60 Hz ● 220-240 V - 50/60 Hz FLUE 110-120 V TAIL. AC 250 V 220-240 V TAIL. AC 250 V POWER COMPUTATION 1kW

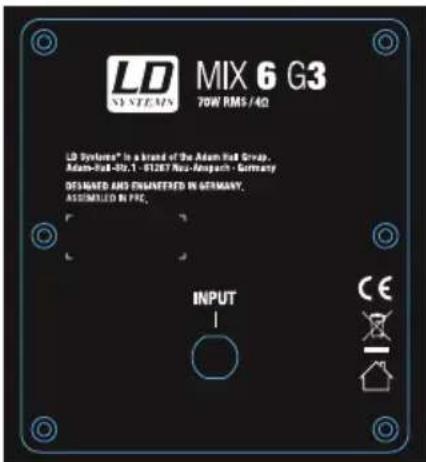

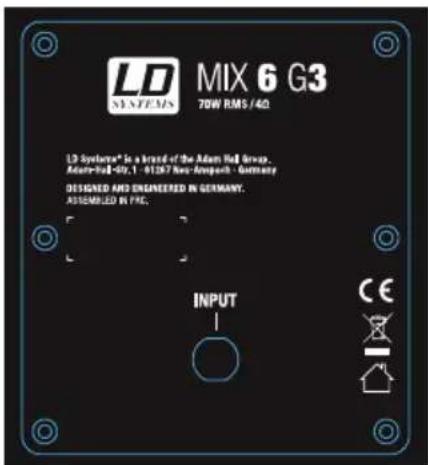

MIX6G3 CONNECTION

LD SYSTEMS MIX 6 G3 70W RMS/4Ω LD Systems® is a brand of the Adam Hall Group, Adams-Rus-402.1 - 61287 Nus-Anagach - Germany DESIGNED AND ENSMERED IN GERMANY, ASSUMATED IN PRE. INPUT CE

INPUT

The speaker input (6.3 mm jack socket) is on the back of the passive MIX6G3 speaker.

There is a 16 mm tripod flange (tripod optional) on two side panels for tripod mounting.

OPTIONAL ACCESSORIES

SPEAKER STANDS FOR 16 MM FLANGE LDSPS16

Simple line drawing of a tripod-mounted stand with a vertical pole (no text or symbols)

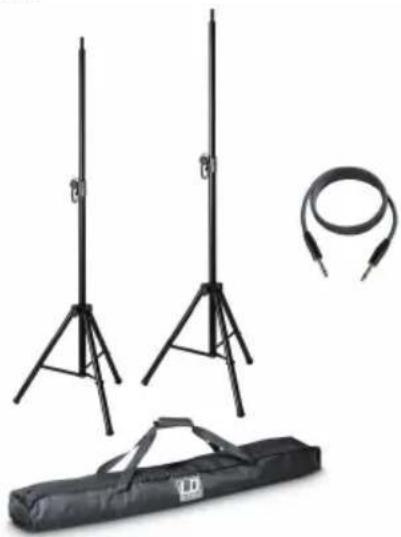

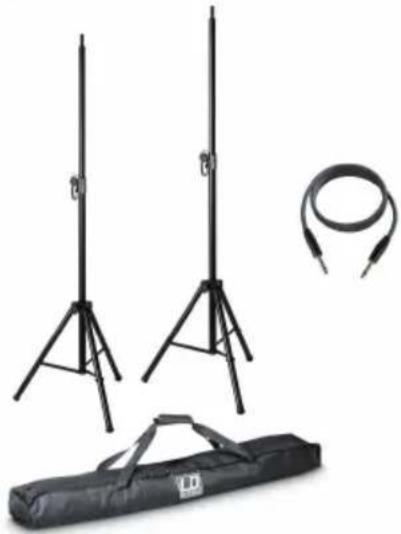

2X SPEAKER STAND WITH TRANSPORT BAG + SPEAKER CABLE 10 M FOR LDMIX6(A)G3
LDMIX6G2SET2

Product photo of a set of three black stand-mounted devices and a black bandage with a coiled cable (no text or symbols visible)

TRANSPORT BAG FOR LDMIX6(A)G3 LDMIX6G2B

Black rectangular backpack with zipper and side pockets, no visible text or symbols

TRANSPORT BAG FOR 2X LDMIX6(A)G3 LDMIX6G2B2

Black leather bag with a logo, no visible text or symbols on the body

SET OF 2X ADAPTER FLANGE 36MM TO 16MM LDMIX6G2SET1

Two black cylindrical mechanical components with protruding ports, no visible text or symbols

DSP 24bit digital effects LD SYSTEMS MIX 6 A G3 PRESETS PEAK MUTE DFX RET - 10 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 -10 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -15 -10 -30 0 10 Power 10 MONITOR LDMIX6G3 HIGH 12 MHz DFX LOW 80Hz +10 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +10 -30 0 10 MONITOR OUT HIGH 12 MHz DFX LOW 80Hz +10 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 +15 LDMIX6G3 CH2 CH3 CH4 RE: OUT Speaker OUT (MPLEAT 4.0) Phantom OFF 24 Hard disk Recording CD / MP3 playback

TECHNICAL DATA

Model name: LDMIX6AG3
Product type: PA speaker with built-in mixer
Type: Active
Large woofers: 6.5"
Large woofers: 165.1 mm
Woofer brand: Custom made
Large tweeters: 1"
Large tweeters: 25 mm
Tweeter brand: Custom made
Dispersion angle (H x V): 80° x 70°
Frequency response: 80 Hz – 20,000 Hz
Amplifier: Class D
Amplifier output (RMS): 2 x 70 W
Amplifier output (peak): 2 x 140 W
Max. SPL: 122 dB
Protective circuitry: Limiter, short circuit, overvoltage, overload, temperature
Mixer

Channels:	4
Microphone input channels:	3
Microphone input connection types:	XLR / combined XLR / 6.3 mm jack
Microphone input channel controls:	EQ high, EQ low, DFX send, level, Hi-Z switch (only channel 1)
Line input channels:	1
Line input channel connection type:	3.5 mm stereo jack, 2x cinch
Line input channel controls:	EQ high, EQ low, DFX send, level
Monitor line outputs:	1
Monitor line output connection type:	6.3 mm jack (balanced)
Monitor line output controls:	monitor volume
Record output:	1
Record output connection type:	2 x cinch
Amplified main output:	1
Amplified main output connection type	6.3 mm jack (min. impedance 4 ohms)

DSP digital effects device

Number of DSP programmes:	16
DSP controls:	Presets, DFX return, mute switch
DSP display elements:	Peak LED

Main section
Main section controls: EQ low, EQ mid, EQ high, main level, phantom power, voltage switch, power switch
Phantom power: 15 V

Main section display elements: 4-segment LED level meter, power LED
Mains connection: IEC power socket
Power supply: Transformer

Operating voltage:	110 V AC – 120 V AC, 50 – 60 Hz
	220 V AC – 240 V AC, 50 – 60 Hz

Power consumption (max.): 220 W
Ambient temperature (for operation): 0^ C – 40^ C
Relative air humidity: <85%, non-condensing
Housing
Housing type: Bass reflex

Housing material:	MDF
Housing surface:	Textured finish
Housing colour: Black
Width:	323 mm
Height:	215 mm
Depth:	222 mm
Weight:	7 kg
Additional features:	2x 16 mm tripod flange, rubber feet

Model designation:	LDMIX6G3
Product type: PA loudspeakers
Type: Passive
Large woofers: 6.5"
Large woofers: 165.1 mm
Woofer brand: Custom made
Large tweeters: 1"
Large tweeters: 25 mm
Tweeter brand: Custom made
Dispersion angle (H x V): 80° x 70°
Frequency response: 80 Hz – 20,000 Hz
Amplifier output (RMS): 70 W
Amplifier output (peak): 140 W
Impedance:	4 ohms
Sensitivity (1W/ 1m):	90 dB
Max. SPL:	122 dB
Speaker connections:	1
Speaker connection type:	6.3 mm jack
Housing type:	Bass reflex
Housing material:	MDF
Housing surface:	Textured finish
Housing colour: Black
Width:	323 mm
Height:	215 mm
Depth:	222 mm
Weight:	4.4 kg
Additional features:	2x 16 mm tripod flange, rubber feet

MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATIONS OF LIABILITY

You can find our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-LDSYSTEMS_DE_EN_ES_FR.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach / Email: [e-mail] / +49 (0)6081 / 9419-0.

CORRECT DISPOSAL OF THIS PRODUCT

(valid in the European Union and other European countries with a differentiated waste collection system)

This symbol on the product, or on its documents indicates that the device may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

CE Compliance

Adam Hall GmbH states that this product meets the following guidelines (where applicable):

R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017

Low voltage directive (2014/35/EU)

EMV directive (2014/30/EU)

RoHS (2011/65/EU)

The complete declaration of conformity can be found at www.adamhall.com.

Furthermore, you may also direct your enquiry to [e-mail].

DEUTSCH

LD SYSTEMS MIX 6 G3 70W RMS/4Ω LD Systems® is a brand of the Adam Hall Group, Adams-Roll-20,1 - 91287 New-Amperech - Germany DESIGNED AND ENGINEERED IN GERMANY. ASSEMBLED IN PLC. INPUT CE

INPUT

Simple line drawing of a tripod-mounted stand with a vertical pole (no text or symbols)

2 X LAUTSPRECHERSTATIV MIT TRANSPORTTASCHE UND LAUTSPRECHERKABEL (10 M) FÜR LDMIX6(A)G3 LDMIX6G2SET2

Product photo of a set of three stand-mounted devices and a black bandage with a coiled cable (no text or symbols visible)

TRANSPORTTASCHE FÜR LDMIX6(A)G3 LDMIX6G2B

Black rectangular backpack with visible shipping bags and a small logo on the front (no text or symbols on the bag itself)

TRANSPORTTASCHE FÜR 2 X LDMIX6(A)G3 LDMIX6G2B2

Black leather bag with a logo, no visible text or symbols on the body

2 X ADAPTERFLANSCH 36 MM AUF 16 MM LDMIX6G2SET1

Two black cylindrical mechanical components with protruding ports, no visible text or symbols

APPAREILS RELIÉS AU SECTEUR

DSP 24bit digital effects PRESETS 13 PEAK NOTE 10 12 11 DFX RET 10 14 -45 -435 HIGH 6 A G3 LOW 80 Hz 0 MID 2.5 kHz 0 HIGH 12 kHz 0 MAIN LEVEL 0 MONITOR 19 POWER 10 0 -10 -30 0 10 20 18 21 MONITOR OUT HIGH 6 9 LOW 80 Hz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 High 6 7 LOW 80 Hz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 6 8 LOW 80 Hz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 6 9 LOW 80 Hz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 6 8 LOW 80 Hz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 6 9 LOW 80 Hz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 6 8 LOW 80 Hz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 6 9 LOW 80 Hz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 6 9 LOW 80 Hz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 6 9 LOW 80 Hz 0 HIGH 12 kHz 0 HIGH 12 kHz 0 HIGH 6 9 LOW 80 Hz 0 High Level (REF) ON (SPEAKER OUT OWN, LOAD, CO) PHYSIOM ON (PHYSIOM ON) REC OUT (REC OUT)

1 MIC INPUT CH1 - CH3

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTIONER, REQUIRE OR CHOC ELECTRICUT ME PER OLIVER ANISHING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT ASSUME THIS EQUIPMENT TO MAX ON MOUNTING AVITCHING ON WE APPOSED ICE MATCHER, A LA PURE OUTLE CHOC ELECTRICUT. ARE TO REQUIRE UN PRIOR DIMENSION OUTLE CHOC ELECTRICUT. THIS DRAIN COMPLIUM WITH PART 1'S OF THE PCC RULE OPERATION IN ENSPECT TO THIS FOLLOWING TWO CONDITIONS: (1) THIS DRAIN MAY NOT CANCEL, UNAMUL, RETAINANCE, AND IS THE DRAIN MUST ACCEPT ANY INTERRUPTION RECOACH, HOLDING WITHOUT NOTICE THAT MAY SURE UNLESS OTHERWISE REQUIRED. LD Systems* is a brand of the Adam Hall Group, Admit-Hall-Itc: 1 - 97267 Nox-Inquiryach - Germany DESIGNED AND DRAWINGS IN GRAVY, ASSEMBLED IN FRC. AC INPUT FUSE 118-120 V /50/40 Hz 220-240 V /50/40 Hz 118-120 V TALL AC 250 V 220-240 V T22L AC 250 V POWER CONSUMPTION: 1kW

LD SYSTEMS MIX 6 G3 70W RMS/40 LD Systems® is a brand of "the Adam Hall Group, Adams-Hall-5tr, 1 - 61287 Nrc-Fampach - Germany DESIGNED AND ENGINEERED IN GERMANY. ASSEMBLED IN PAC. INPUT CE

INPUT

Simple line drawing of a tripod-mounted stand with a vertical pole (no text or symbols)

2 SUPPORTS D'ENCEINTE AVEC SAC DE TRANSPORT + CÂBLE DE HAUT-PARLEUR DE 10 M POUR LDMIX6(A)G3
LDMIX6G2SET2

Product photo of a set of three stand-mounted devices and a black bandage with a coiled cable (no text or symbols visible)

SAC DE TRANSPORT POUR LDMIX6(A)G3 LDMIX6G2B

Black rectangular backpack with visible shipping and side pockets (no text or symbols)

SAC DE TRANSPORT POUR 2 LDMIX6(A)G3 LDMIX6G2B2

Black leather bag with visible branding and handle, no readable text or symbols

JEU DE 2 BRIDES D'ADAPTATEUR 36 MM VERS 16 MM LDMIX6G2SET1

Two black cylindrical mechanical components with protruding ports, no visible text or symbols

EXEMPLE DE CÂBLAGE

DSP 24bit digital effects LD SYSTEMS MIX 6 A G3 PRESETS PEAK WRITE 1. WORK NAME 2. POWER NAME 3. POWER SOURCE 4. POWER GROUP 5. VOLUME 6. VOLTAGE 7. VOLTAGE 8. VOLTAGE 9. VOLTAGE 10. VOLTAGE LOW 10 Hz -15 ±15 HIGH 12 Hz -15 ±15 MAIN LEVEL 0 ±15 POWER 10 0 -10 MONITOR -30 0 ±10 HIG 12 MHz -15 ±15 EQUITY -15 ±15 EQUITY -15 ±15 EQUITY -15 ±15 EQUITY -15 ±15 EQUITY -15 ±15 EQUITY -15 ±15 EQUITY -15 ±15 EQUITY -15 ±15 EQUITY -15 ±15 EQUITY

CARACTÉRISTIQUES TECHNIQUES

(Valid in the European Union and other European countries with waste separation)

LD SYSTEMS MIX 6 G3 70W RMS/40 LD Systems® is a brand of the Adam Hall Group, Adams-Roll-62, 1 - 01367 New-Anpass - Germany DESIGNED AND ENGINEERED IN GERMANY, ASSEMBLED IN PRE. INPUT CE

ENTRADA

Simple line drawing of a tripod-mounted stand with a vertical pole (no text or symbols)

2 SOPORTES DE ALTAVOZ CON BOLSA DE TRANSPORTE + CABLE DE ALTAVOZ DE 10 M PARA LDMIX6(A)G3
LDMIX6G2SET2

Product photo of a set of three stand-mounted devices and a black bandage with a coiled cable (no text or symbols visible)

BOLSA DE TRANSPORTE PARA LDMIX6(A)G3 LDMIX6G2B

Black leather backpack with zipper and side pockets, no visible text or symbols

BOLSA DE TRANSPORTE PARA 2 x LDMIX6(A)G3 LDMIX6G2B2

Black leather bag with a logo and handle, no visible text or symbols on the body

CONJUNTO DE 2 x ROSCAS ADAPTADORAS DE 36 MM A 16 MM LDMIX6G2SET1

Two black cylindrical mechanical components with protruding pins, no visible text or symbols

EJEMPLO DE CABLEADO

DSP 24bit digital effects PRESETS PEAK MUTE DFX RET LD SYSTEMS MIX 6 A G3 POWER LOW 10Hz -15 +15 MID (2.4 Hz) -15 +15 HIGH 12Ω -15 +15 MAIN LEVEL 0 10 MONITOR -33 0 10 MONITOR OUT HIGH 12 MHz -15 +15 DFX LOW REF: -15 +15 LEVEL HIGH 12 MHz -15 +15 DFX LOW REF: -15 +15 LEVEL HIGH 12 MHz -15 +15 DFX LOW REF: -15 +15 LEVEL HIGH 12 MHz -15 +15 DFX LOW REF: -15 +15 LEVEL L LINE INPUT REC: OUT LDMIX6G3 PHANTOM OFF 24 LDO DE CABLEADO CH1 CH2 CH3 CH4 SPEAKER OUT (MPEGAT 4.0) GRABACIÓN en disco duro

DATOS TÉCNICOS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION: NOISE, DE CHOC ELECTRICAL, HE PAZ OUTER ANHAMS TO REDUCT THE RISK OF PRR OR ELECTRIC SHOCK DO NOT DISPOSED THIS EQUIPMENT TO MAIN ON MOZZURE PROMSTMENT: HE ARE ESPOSED OR MAINTEN. LA PLUS OUT LUX MARQUITE APN. DE REQUIRE LE REQUIRE ONMP AMMPTION OUT FOR CHOC ELECTRICAL THIS DEVICE COMPLIES WITH PART 4 OF THE POS RULER. OPPATION IS BULGED TO THE FOLLOWERS TWO CORNIXORS. (II) THIS DEVICE MAY NOT CRANE INFRASTRUCTURE, REFERENCE, AND IS THE DEVICE MUST ACCEPT ANY INTERFERENCE. RECEIVED, INCLUDING REFERENCE THAT MAY BEANS UNCOMED OPERATION. LB Systemic® is a brand of the Adam Hall Group. Adapt-1043-SLS 1 - 81327 Nano-Respack - Germany SPRINGED AND INSURED IN MGERMANY, ASSEMBLED BY PCS. AC INPUT FUSE POWER CONSUMPTION: 110-120 V-50/30 Hz 110-120 V TAN, AC 150 V 180W 220-740 V-50/30 Hz 220-740 V TAN, AC 250 V

PRZYŁĄCZE MIX6G3

LD SYSTEMS MIX 6 G3 70W RMS /40 LD Systems® is a brand of the Adam Roll Group. Admir-Roll-40, 1 - 81357 Two-Anporth - Germany DESIGNED AND ENGINEERED IN GERMANY. ASSEMBLED IN PRC. INPUT CE

INPUT

Simple line drawing of a tripod-mounted stand with a vertical pole (no text or symbols)

2 X STOJAK NA GŁOŚNIK Z TORBĄ TRANSPORTOWA + KABEL GŁOŚNIKOWY 10 M DO LDMIX6(A)G3
LDMIX6G2SET2

Product photo of a set of three stand-mounted devices and a black bandage with a coiled cable (no text or symbols visible)

TORBA TRANSPORTOWA NA LDMIX6(A)G3 LDMIX6G2B

Black rectangular backpack with zipper and side pockets, no visible text or symbols

TORBĄ TRANSPORTOWĄ NA 2 X LDMIX6(A)G3 LDMIX6G2B2

Black leather bag with visible branding and handle, no readable text or symbols

ZESTAW DWÓCH ADAPTERÓW KOŁNIERZA Z 36 MM NA 16 MM LDMIX6G2SET1

Two black cylindrical mechanical components with protruding pins, no visible text or symbols

PRZYKŁAD OKABLOWANIA

DSP 24bit digital effects PRESETS PFAK MUTE DFX RET LD SYSTEMS MIX 6 A G3 L WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWAL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWALL WINWELL MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI 100 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz MINI-15 MHz

DANE TECHNICZNE

LD SENSEM MIX 6 G3 70W RMS / 4Ω LD Systems® is a brand of the Adam Hall Group. Adam-Hall-3b: 1 - 61367 New-Enquest - Germany DESIGNED AND ENGREDIENTED IN GERMANY. ASSEMBLED IN PLC. INPUT CE

INPUT

Simple line drawing of a tripod-mounted stand with a vertical pole (no text or symbols)

2 STATIVI PER ALTOPARLANTE CON BORSA DI TRASPORTO + CAVO ALTOPARLANTE DA 10 M PER LDMIX6(A)G3
LDMIX6G2SET2

Product photo of a set of three black tripod-mounted devices and a black bandage with a coiled cable (no text or symbols visible)

BORSA DI TRASPORTO PER LDMIX6(A)G3 LDMIX6G2B

Black athletic backpack with visible straps and side pockets (no text or symbols)

BORSA DI TRASPORTO PER 2 LDMIX6(A)G3 LDMIX6G2B2

Black leather bag with strap and logo (no visible text or symbols)

SET DI 2 FLANGE PER ADATTATORE da 36 MM a 16 MM LDMIX6G2SET1

Two black cylindrical mechanical components with protruding ports, no visible text or symbols

Abstract geometric pattern with overlapping translucent planes, no text or symbols present
