Brand	LIFT-MASTER
Model	041D7440
Product Type	AC Garage Door Opener Replacement Motor Kit
Power	1/2 HP (models 041A7442 and 041D7440) or 3/4 HP (models 041A7767 and 041A7766)
Power Supply	AC, disconnect before servicing
Drive Type	Chain or belt, adjustable
Main Functions	Motorized garage door opening/closing, electronic travel programming, automatic power detection
Safety Features	Safety reverse system, safety reverse sensors (photo eyes), obstacle test required
Programming	Adjustment of UP and DOWN positions via buttons on left panel, automatic power learning
Maintenance and Cleaning	Monthly check of safety reverse system, keep sensors aligned and unobstructed
Spare Parts and Repairability	Complete motor kit with bracket, logic board, capacitor, wiring harness; compatible with listed models
General Information	8-page manual, available for free download; California Prop 65 warning (lead)

Frequently Asked Questions - 041D7440 LIFT-MASTER

Which garage door opener models are compatible with this motor kit?

This kit is compatible with models 041A7767, 041A7766 (3/4 HP) as well as 041A7442 and 041D7440 (1/2 HP).

Should I disconnect the power before installing the motor?

Yes, it is imperative to disconnect all electrical power from the opener before any intervention to avoid risk of electrocution.

How to adjust the chain or belt tension?

For chain: turn the outer nut in the indicated direction until there is about 1/4 inch slack (square rail) or 1/2 inch above the shoe at midpoint, then lock with inner nut. For belt: hand-tighten the spring nut then tighten with a 7/16 inch wrench to a torque of 1 1/4 inches.

What to do if the door does not stop at the correct position?

You need to reprogram the travel: press the adjustment button until the UP button flashes, then use UP/DOWN buttons to position the door. Repeat for close. If the light flashes 5 times, the timeout expired; if it flashes 10 times, check sensor alignment.

How to test the safety reverse system?

Place a 1.5 inch (3.8 cm) thick board on the floor, centered under the door. Close the door with the remote: it should immediately reverse upon hitting the obstacle. If not, increase the close travel and repeat test.

What tools are needed for installation?

Required tools: a 1/4 inch magnetic nut driver, long-nose pliers, and a 5/16 inch long shaft magnetic nut driver and sleeve.

How to proceed with removing the old motor?

Remove the light lens, cover, logic board, and end panels. Disconnect the capacitor (red/blue wires) and terminal block (white wire). Remove the retaining clip and wiring harness. Finally, unscrew the motor bracket fasteners and remove the assembly.

What does a 10-time flash of the light during programming mean?

This indicates that the safety reverse sensors are misaligned or obstructed. Ensure they are facing each other and unobstructed, then run a full open/close cycle.

Can I use the remote if a safety sensor is faulty?

No. If the LED of a sensor is off, the opener will not close with the remote. You must align or clear the sensors to restore operation.

How often should the safety reverse system be tested?

It is recommended to perform a monthly test of the safety reverse system to ensure user safety, especially for children.

USER MANUAL 041D7440 LIFT-MASTER

This motor kit is for use with AC garage door openers that utilize electronic controls to set the open (UP) and close (DOWN) travel. The force is adjusted automatically when you program the travel. The images are for reference and your product may look different.

You will need:

1/4" magnetic nut driver
- Long-nosed pliers
- 5/16" long-shafted magnetic nut driver and socket

Installation

CHECK OFF STEPS AS THEY ARE COMPLETED

1. Preparation:

Close the garage door.

Disconnect all electrical power to the garage door opener.

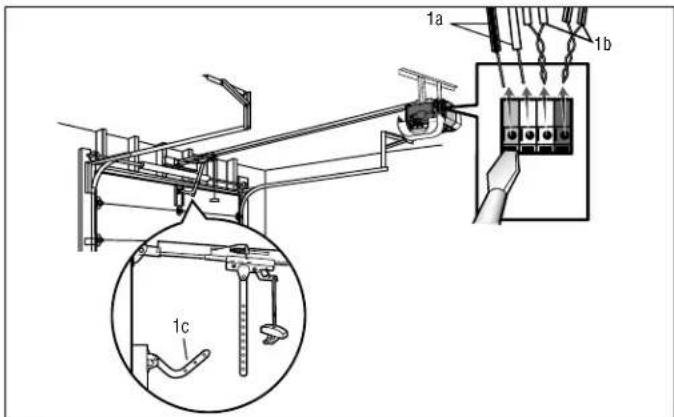

Disconnect wires for the door control (1a) and the safety reversing sensors (1b) at the logic board.

Disconnect the door arm from the rail (1c).

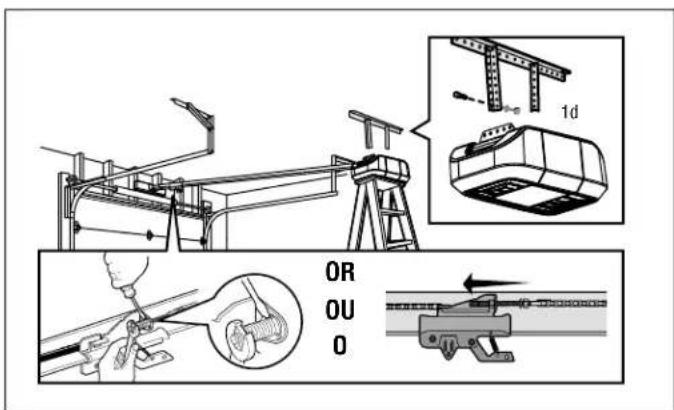

Remove the garage door opener from the hanging brackets (1d).

Relax the chain/belt tension by loosening the outer nut on the trolley.

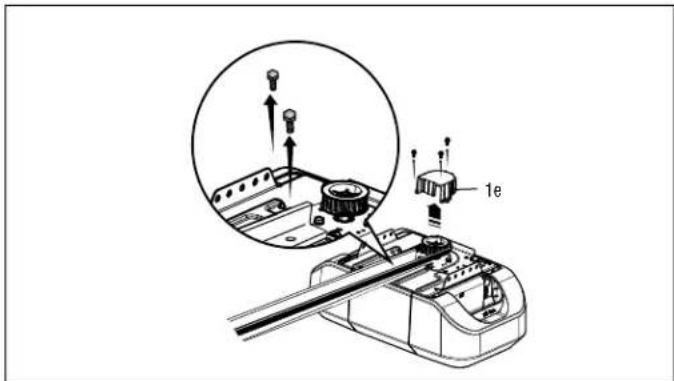

Remove the sprocket cover (1e).

Remove the belt or chain from sprocket.

Place the loose chain/belt on the end of the rail nearest the sprocket. Tape the chain/belt to the rail to prevent the chain/belt from falling to the floor.

Remove the rail from the garage door opener.

WARNING

To prevent possible SERIOUS INJURY or DEATH from electrocution, disconnect power to opener BEFORE proceeding.

CAUTION

The garage door MUST be in the fully closed position during installation.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

2. Disassemble opener:

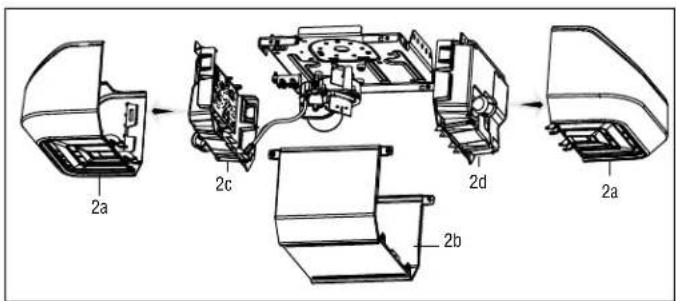

Remove the light lens (2a).

Remove the cover (2b).

Remove the logic board and end panel (2c).

Remove the front end panel (2d).

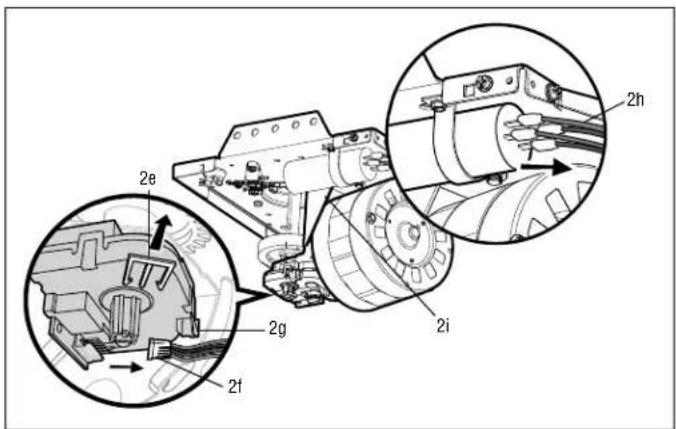

Remove retainer clip (2e), and wire harness (2f) from the travel module (2g).

Disconnect the capacitor (red and blue wires) (2h) and the terminal block (white wire) from the motor.

If your garage door opener has a gear case, remove the top cover by pushing in the tabs on the front and back of the case.

Remove hardware securing the motor bracket (2i) to the chassis.

Discard the old motor and bracket assembly.

3. Install the new motor:

Install the new motor and motor bracket to the opener chassis.

Reverse steps in part 2 to reassemble the opener.

4. Reinstall the garage door opener:

NOTE: Trolley must be in the down position before installing chain/belt.

Fasten the rail to the garage door opener.

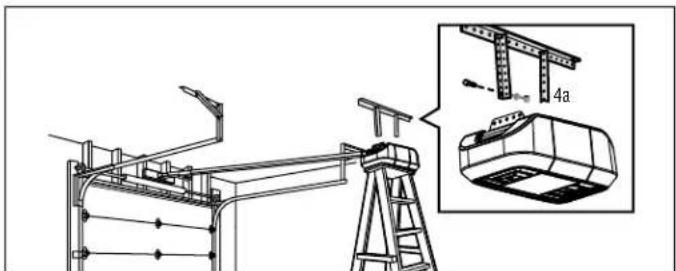

Attach the garage door opener to the hanging brackets (4a).

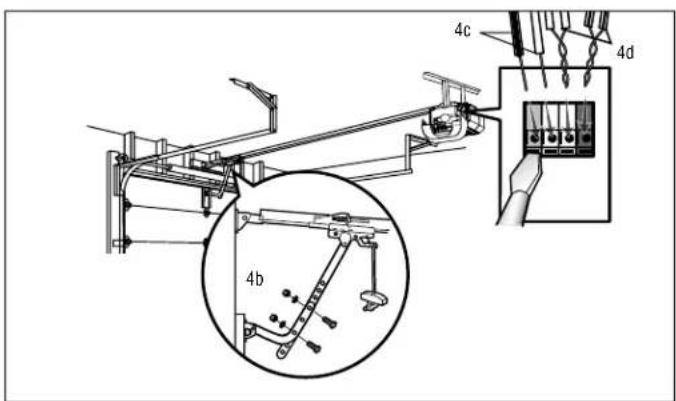

Attach the door arm from the rail (4b).

Reconnect wires for the door control (4c) and the safety reversing sensors (4d) at the logic board.

Remove tape from chain/belt and rail. Reinstall chain/belt and sprocket cover on sprocket.

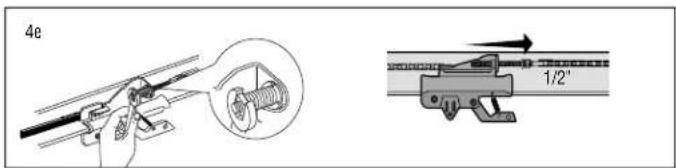

To tighten the chain, turn outer nut in the direction shown. When the chain is approximately 1/4 (square rail) or 1/2 (T-rail) above the base of the rail at its midpoint, re-tighten the inner nut to secure the adjustment (4e).

To tighten the belt, manually thread the spring trolley nut on the threaded shaft until it is finger tight. Place a 7/16" open end wrench on the square end. Tighten spring to a 1-1/4" tension (4e).

Reconnect power to the garage door opener.

Proceed to Adjustments

Adjustments

Program the Travel

Your garage door opener is designed with electronic controls to make setup and adjustments easy. The adjustments allow you to program where the door will stop in the open (UP) and close (DOWN) position. The electronic controls sense the amount of force required to open and close the door. The force is adjusted automatically when you program the travel and cannot be changed.

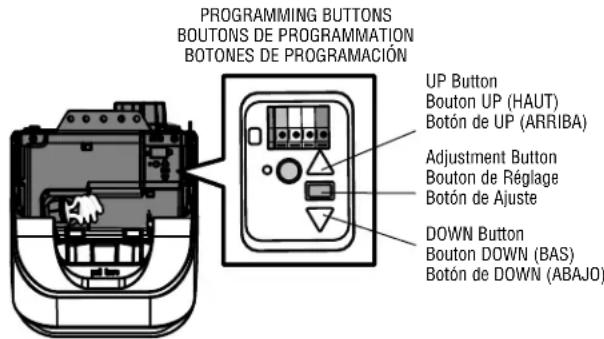

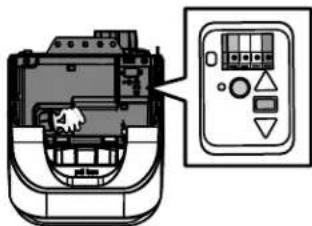

The programming buttons are located on the left side panel of the garage door opener and are used to program the travel.

Setting the UP position:

1. Press and hold the Adjustment Button until the UP Button begins to flash and/or a beep is heard.
2. Press and hold the UP Button until the door is in the desired UP position.

NOTE: The UP and DOWN Buttons can be used to move the door up and down as needed.
3. Once the door is in the desired UP position press and release the Adjustment Button. The garage door opener lights will flash twice and the DOWN Button will begin to flash.

Setting the DOWN position:

1. Press and hold the DOWN Button until the door is in the desired DOWN position.
   NOTE: The UP and DOWN Buttons can be used to move the door up and down as needed.
2. Once the door is in the desired DOWN position press and release the Adjustment Button. The garage door opener lights will flash twice and the UP Button will begin to flash.
3. Press and release the UP Button. When the door travels to the programmed UP position, the DOWN Button will begin to flash.

4. Press and release the DOWN Button. The door will travel to the programmed DOWN position. Programming is complete.

5. If the garage door opener lights are flashing 5 times during the steps for Program the Travel, the programming has timed out. If the garage door opener lights are flashing 10 times during the steps for Program the Travel, the safety reversing sensors are misaligned or obstructed (refer to owner's manual). When the sensors are aligned and unobstructed, cycle the door through a complete up and down cycle using the remote control or the UP and DOWN buttons. Programming is complete. If you are unable to operate the door up and down, repeat the steps for Programming the Travel.

WARNING

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal system.
  After any adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1 - 1 / 2'' (3.8cm) high object (or 2× 4 laid flat) on floor.

CAUTION

To prevent damage to vehicles, be sure fully open door provides adequate clearance.

Test the Safety Reversal System

1. With the door fully open, place a 1-1/2 inch (3.8 cm) board (or a 2x4 laid flat) on the floor, centered under the garage door.
2. Press the remote control push button to close the door. The door MUST reverse when it makes contact with the board.

If the door stops and does not reverse on the obstruction, increase the down travel (see Program the Travel).

Repeat the test. When the door reverses upon contact with the 1-1/2 inch board, remove the board and open/close the door 3 or 4 times to test the adjustment.

If the opener continues to fail the safety reversal test, call a trained door systems technician.

Test the Protector System

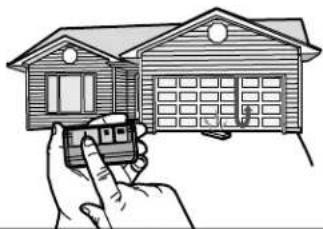

1. Open the door. Place the garage door opener carton in the path of the door.
2. Press the remote control push button to close the door. The door will not move more than an inch (2.5 cm), and the garage door opener lights will flash 10 times.

The garage door opener will not close from a remote control if the LED in either safety reversing sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).

If the garage door opener closes the door when the safety reversing sensor is obstructed (and the sensors are no more than 6 inches (15cm) above the floor), call for a trained door systems technician.

WARNING

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.
• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1 - 1 / 2 high (3.8cm) object (or 2× 4 laid flat) on the floor.

1

2

WARNING

Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

1

2

Trousse de moteur

© 2013, The Chamberlain Group, Inc.
