USER MANUAL 269131 SILVERLINE

Original Instructions

• Working pressure: p. 4
• .0 – 7.5bar (60–108psi) Maximum pressure: p. 8
• .3bar (120psi) Air inlet: p. 1
• ⁄4"BSPquickconnector Nail size: p. 18
• Gauge, 10–32mmNail capacity: p. 100
• pce Staple size: p. 18
• Gauge, 16-32mm (type 90 & A type) Staple width: p. 5
• .7mm Staple capacity: p. 100
• pce Weight: p. 1
• .3kg Aspartofourongoingproductdevelopment,specicationsofSilverlineproducts may alter without notice.Sound and vibration information:SoundpressureL : p. 86
• .4dB(A)SoundpowerL : p. 99
• .4dB(A)Uncertainty K: p. 2
• .5dB(A)Weighted vibration a : p. 0
• .55m/s Uncertainty K: .19m/s The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary. Specication Fastener Tool Safety Warnings WARNING: Read and understand the safety instructions before installing, operating, repairing, maintaining,cleaning,changingaccessorieson,orworkingnearthistool.Failuretodosocanresultin serious injury.Save all warnings and instructions for future reference. WARNING: This appliance is not intended for use by persons (including children) with reduced physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the tool by a person responsible for their safety. Children must be supervised to ensure that they do not play with the tool.• Onlyqualiedandtrainedusersshouldinstall,adjust,orusethetool.• Donotmodifythetool.Modicationscanreducetheeffectivenessofsafetymeasuresandincrease the risks to the user.• Do not discard the safety instructions; give them to the user.• Do not use the tool if it has been damaged.• Inspect the tool periodically to verify that the ratings and markings required by ISO 11148 (detailed in the Description of Symbols) are legibly marked on the tool. The user (and employer if appropriate) should contact the manufacturer to obtain replacement marking labels when necessary.• Compressed air can cause severe injury.• Always disconnect the tool from the air supply when not in use.• Always disconnect the tool from the compressed air supply before changing accessories, making adjustments and/or repairs and when moving away from an operating area to a different area.• Keepngersawayfromtriggerwhennotoperatingthetoolandwhenmovingfromoneoperating position to another.• Never direct compressed air at yourself, others or animals.• Whippinghosescancausesevereinjury.Alwayscheckfordamagedorloosehosesorttings.• Never carry or drag an air tool by its hose.• When using air tools, do not exceed the maximum operating pressure.• Inspect tools and accessories before each use. Do not use if damaged or excessively worn.• Air tools should only be powered by compressed air at the lowest pressure required by the task to reduce noise and vibration and minimise wear.• Never use pure oxygen or combustible gases to power an air tool. Air tools are not designed for thesepowersourcesandtheirusecreatesareandexplosionhazard.• Be aware that air tools may become cold during use, affecting grip, control and susceptibility to vibration-related injury. IMPORTANT: Even when this tool is used as prescribed it is not possible to eliminate all residual risk factors. If you are in any doubt as to the safe use of this tool, do not use it. Introduction Thank you for purchasing this Silverline product. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the product read and fully understand this manual. Keep these instructions with the product for future reference. Description of Symbols The rating plate on your product may show symbols. These represent important information about the product or instructions on its use.Wear hearing protection Wear eye protection Wear breathing protection Wear head protectionWear hand protectionWARNING: To reduce the risk of injury, user must read instruction manual Caution! DO NOT use with compressed gas cylinders!Conforms to relevant legislation and safety standards. Environmental Protection Air tools should not be disposed of with household waste. They contain traces of oil and other lubricants. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Technical Abbreviations Key p. 0

silverlinetools.com Projectile Hazards a) Be aware that failure of the workpiece, accessories, or tool itself can generate high-velocity projectiles. b) Always wear impact-resistant eye protection during operation of this tool. The grade of protection required should be assessed for each use.c) Assess risk to others when considering projectile hazard risk.d) Ensurethattheworkpieceissecurelyxed.e) The fastener driving tool shall be disconnected when unloading fasteners, making adjustments, clearing jams or changing accessories.f) Ensurethatfastenerspenetratematerialcorrectlyandcannotbedeected/misredtowardsoperator and/or any bystanders.g) Becarefulwhenringfastenersintothinmaterialorattheedgeofmaterial.Thefastenersmaygo straight through or miss the material and cause damage or injury to people nearby. h) During operation, debris from workpiece and fastening/collation system may be discharged.i) Ensure tool is always safely engaged on the workpiece and cannot slip. Operating Hazards a) Ensure users and maintenance personnel are physically able to handle the bulk, weight and power of the tool. b) Hold the tool correctly; be ready to counteract normal or sudden movements such as recoil. Have both hands available.c) Maintain a balanced body position and secure footing.d) Only use lubricants recommended by the manufacturer.e) Personal protective safety glasses should be used; suitable gloves and protective clothing are recommended.f) Foroverheadwork,wearasafetyhelmet.g) Avoid direct contact with moving parts to prevent injury by pinching or cutting. h) Be aware that there is a risk of electrostatic discharge if used on plastic and other non-conductive materials. Take appropriate steps to reduce this risk when working with these materials (e.g. using a grounding system).i) Beawarethatcertainmaterialsmaypresentreorexplosionriskswhenbeingprocessed.Takeappropriate precautions to reduce hazards. Employers should make risks clear to operators.j) Switch off device/release start-and-stop control if the air/power supply is interrupted.k) Never operate the tool with the safety mechanism disabled.l) Never use the tool if defective or operating abnormally. Stop using immediately and have the tool serviced by an authorised service centre.m) Be careful when handling fasteners, especially when loading and unloading, as the fasteners have sharp points which could cause injury. n) Incorrect fasteners not designed or the incorrect size for your tool can cause operator injury and damage to the tool.o) Only wear gloves that provide adequate feel and safe control of triggers and any adjusting devices. Repetitive Motions Hazards When using the tool the user may experience discomfort in the hands, arms, shoulders, neck or other parts of the body.a) Adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balance postures. Change posture during extended tasks; this can help avoid discomfort and fatigue.b) Symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness should not be ignored. Inform employer if appropriateandconsultaqualiedhealthprofessional. Accessory Hazards a) Disconnectthetoolfromtheairsupplybeforettingorchangingtheaccessory. b) Avoid direct contact with the accessory during and after use. Accessories are often sharp and may become hot during use.c) Use only sizes and types of accessories and consumables that are recommended by the manufacturer of the tool; do not use other types or sizes of accessories or consumables.d) Ensure the maximum operation speed of any accessory equals or exceeds the rated speed marked on the tool. Work area hazards a) Be aware of slippery surfaces caused by use of the tool and trip hazards caused by the air line. Slips, trips and falls are major causes of injury. b) Where possible do not obstruct thoroughfares and passageways with air lines or cables. Take appropriatemeasurestoreducetriprisksuchaserectingwarningsignsandxingcablesandairlines in place.c) Proceed with care in unfamiliar surroundings to minimise risk from hidden hazards such as utility lines. d) The tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electric power.e) Ensure that there are no electrical cables, gas pipes, etc., which could cause a hazard if damaged by use of the tool.f) Keepbystandersaway(whenworkinginanareawherethereisalikelihoodofthroughtrafcofpeople). Clearly mark off your operating area. Noise Hazards Exposure to high noise levels can cause permanent, disabling hearing loss and other problems, such as tinnitus (ringing, buzzing, whistling or humming in the ears). Risk assessment and use of appropriate controls for these hazards are essential.a) Use appropriate controls to reduce the risk of noise-related injury. These can include actions such asdampingmaterialstopreventworkpiecesfrom‘ringing’. b) Use hearing protection in accordance with any employer's instructions and as required by occupational health and safety regulations.c) Operate and maintain this tool as recommended in the instructions to prevent an unnecessary increase in the noise level.d) Select, maintain and replace the consumable/accessory as recommended in the instructions, to prevent an unnecessary increase in noise.e) Where a silencer is available, ensure it is in place and in good working order when the tool is being operated.f) Take steps to reduce noise in the work area where possible (e.g. by using damping mats). Vibration Hazards Exposure to vibration can cause disabling damage to the nerves and blood supply of the hands and arms. Not all vibration hazards can be eliminated by tool design or construction, and some residual risks remain. Check the vibration-emission value (obtained using ISO 28927-3) shown in thespecicationtable.Ensuretheriskitrepresentsisassessedandmanaged.Iftheriskcannotbemanaged so that it falls within acceptable limits, then do not use the tool.Take the following steps to reduce risk of vibration-related injury:a) Wear warm clothing when working in cold conditions. Keep hands warm and dry.b) Ifnumbness,tingling,painorwhiteningoftheskinofngersorhandsisexperienced,stopusingthetool,informemployer(whereappropriate)andconsultaqualiedhealthprofessional.c) Operate and maintain the tool as recommended in the instructions to prevent an unnecessary increase in vibration levels.d) Where appropriate, support the weight of the tool in a stand, tensioner or balancer.e) The risk from vibration is generally greater when the grip force is higher. Hold the tool with a light but safe grip, taking account of the required hand reaction forces. f) Ensure the tool and accessories are properly mounted and in good repair: improperly mounted or damaged tools can cause excessive vibration. 1 Air Exhaust 2 Trigger 3 Air Inlet 4 Magazine Latch 5 Magazine Cover 6 Safety Catch 7 Hex Screws 8 Depth Adjuster 9 1/4" BSP Quick Connectors 10 Hex Keys 11 Oil Bottle Product Familiarisation Intended Use Air nail gun with magazine, powered by an air compressor for light to medium duty fastening applications, using compatible nails or staples.Not intended for commercial use. ThetoolmustONLYbeusedforitsintendedpurpose.Anyuseotherthanthosementionedinthismanual will be considered a case of misuse. The operator, and not the manufacturer, shall be liable for any damage or injury resulting from such cases of misuse. The manufacturer shall not be liable foranymodicationsmadetothetool,norforanydamageresultingfromsuchmodications. 269131_OwnerManual.indd 7269131_OwnerManual.indd 7 07/03/2024 14:0807/03/2024 14:08EN

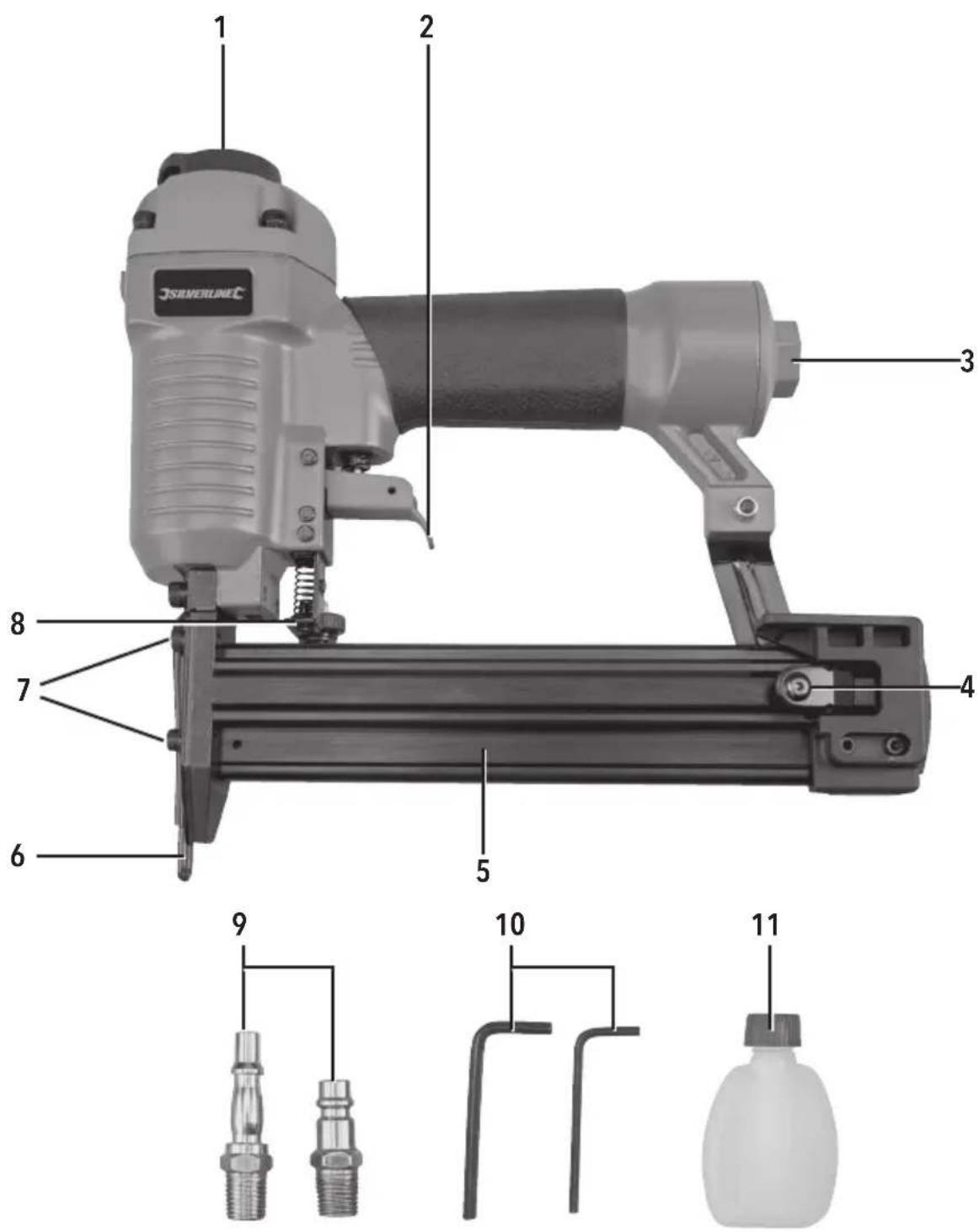

• Carefullyunpackandinspectyourtool.Familiariseyourselfwithallitsfeaturesandfunctions.
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool. Before Use

WARNING: Always disconnect the tool from the air supply before adjustment or maintenance is carried out.

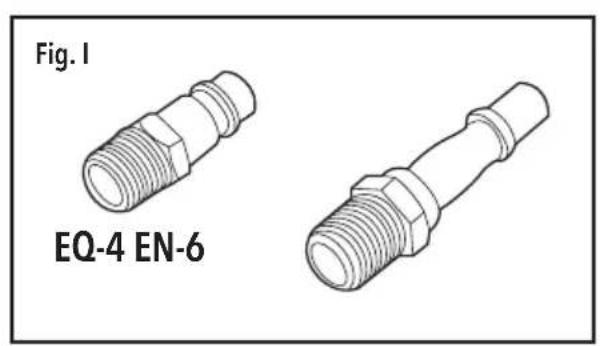

Fitting the quick connector Note: ThistoolissuppliedwithtwodifferentmaleairlineQuickConnectors(9)(Fig.I):EQ-4 – commonly used in EuropeEN-6 – mainly used in the UK• Please choose the connector that is compatible with the airline system you are using, and install as outlined below:1. ApplysomePTFEtape(notincluded)tothescrewthreadsoftheQuickConnector.Thiswillhelptomaintain an airtight seal. Note: ApplyPTFEtapetightlyandinaclockwisedirection,soitdoesnotcomeoffwhenthethread is screwed into the tool.2. Remove the protective plug from the Air Inlet (3).3. Using a spanner (not included) screw the Quick Connector into the Air Inlet located at the base of the handle.4. Connect to airline, pressurise carefully and carry out a leak check (e.g. by spraying small amounts of soapy water on to the outside of the connectors).• AirlinesttedwithmatchingfemaleQuickConnectorswillnowbeapushttothetool. Recommended air supply

• This tool should be connected to a clean, dry air supply with inline oiler and water separator.• Donotallowsupplypressuretoexceedthemaximumstated(see‘Specication’).• Ensure that water is drained from air system daily.• Ensure that all parts of the system (hoses, couplers, etc.) are correctly rated for the air pressure to be used. Checking the safety catch

WARNING: Always disconnect the tool from the air supply before any adjustment or

maintenance is carried out.• Ensure that there are no fasteners in the magazine.• The Safety Catch (6) should move in and out with no obstruction.• Test the Safety Catch is operating correctly as follows:1. Connect the tool to the air supply.2. Push the Safety Catch against a piece of wood without pulling the Trigger (2). The tool should not re.Ifthetoolres,itmustberepairedbeforefurtheruse.3. Hold the tool away from the piece of wood. The Safety Catch should return to the original position.4. PulltheTrigger.Thetoolshouldnotre.Ifthetoolres,itmustberepairedbeforeanyfurtheruse.5. Push the Safety Catch against the piece of wood, but this time pull the Trigger. The tool should re.Thisindicatesnormaloperation. Loading the magazine

WARNING: Always disconnect the tool from the air supply before any loading, adjustment, or

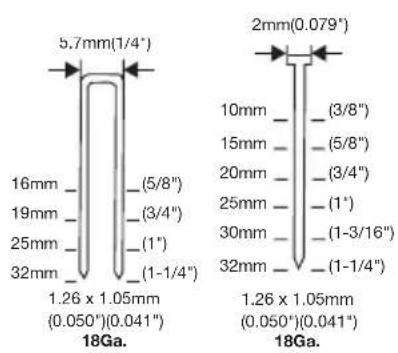

maintenance is carried out. WARNING:Onlyusecompatiblefastenersasspeciedin‘Specication’.1. PresstheMagazineLatch(4)andslidetheMagazineCover(5)open.2. Insert fasteners into the magazine, ensuring the point of the fastener is facing forward (away from the handle of the tool).

• Toloadwithstaples,placethestripofstaplesoverthecartridgeguide,asshowninFig.II.

3. ClosetheMagazineCoveruntiltheMagazineLatchisfullysecured.

IMPORTANT: Always test the fastener will penetrate by the correct amount. Using a similar material reatestfastenerand,ifnecessary,usetheDepthAdjuster(8)asdescribedbelowin‘Fastenerdepthadjustment’toadjustthefastenerdepthtothedesiredlevel. Operation

WARNING: ALWAYSwearappropriatepersonalprotectiveequipment,includingeyeprotection,

when working with this tool.

WARNING: Ensure your compressed air supply operates within the pressure range stated in

‘Specication’. Firing the trigger

WARNING: Be aware of the thickness of your workpiece when driving in fasteners. A protruding

nail or staple may cause injury.IMPORTANT: Always test the fastener will penetrate by the correct amount.1. Fireatestfastenerintoapieceofscrapmaterialandexaminethepenetrationdepthofthefastener.2. Turn the Depth Adjuster (8) backwards towards the body of the tool to increase the driving depth.3. To decrease the driving depth, turn the Depth Adjuster in the direction away from the tool body.• If the Depth Adjuster is set to its lowest setting, the driving depth can be further decreased by adjusting the air pressure to the desired level. Reducing the pressure will reduce the depth that the fastener penetrates.

WARNING: Topreventringunintentionally,neverpullbacktheSafetyCatch(6)withtheair

supply connected. Clearing jams

WARNING: Always disconnect the tool from the air supply before any adjustment or maintenance is carried out.

Fastener jammed in magazine 1. PresstheMagazineLatch(4)andslidetheMagazineCover(5)open.2. Remove the obstruction using pliers.3. Reload the magazine and close securely. Fastener jammed in plate area 1. Undo the three Hex Screws (7) and remove the nose cover.2. Remove the Safety Catch (6) and the pressure plate located underneath it.3. Remove the obstruction using pliers.4. Re-assemble and check the operation of the Safety Catch before using the tool. Maintenance

WARNING: Always disconnect the machine from the air supply before carrying out any maintenance or cleaning.

Note: Two Hex Keys (10) are provided with this air nailer stapler that are suitable for partial disassembly of this unit. These may be useful for cleaning, unjamming and replacing parts. Such disassembly is not covered by this manual. WARNING: Never use third party spares with this product. Only use spares supplied by Silverline or an authorised Silverline stockist or repair centre. Cleaning

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shortenthemachine’sservicelife.Cleanthebodyofyourmachinewithasoftbrush,ordrycloth. IMPORTANT: There is very little that can go wrong with your air tool and it should be noted that when an air tool fails to work it is generally because the internal workings have corroded due to dirty, wet air and failure to follow the instructions given below. Daily maintenance procedure Ifaninlinelubricatorisnotttedtotheairsupply,thetoolmustbemanuallylubricated: 1. Disconnect from the air supply and remove any fasteners.2. Pour 3-4 drops of oil into the air intake.3. Reconnect the air supply and operate the machine several times to lubricate all internal workings.• If the machine is in constant use or used for long periods at a time, repeat the above procedure up to 3 times per day.• Useairtooloil.DONOTUNDERANYCIRCUMSTANCESUSENORMALENGINEOIL.• Failuretocomplywiththeoperatingandmaintenanceinstructionsmayinvalidatetheguarantee. 269131_OwnerManual.indd 8269131_OwnerManual.indd 8 07/03/2024 14:0907/03/2024 14:09Air Nailer Stapler 32mm269131
